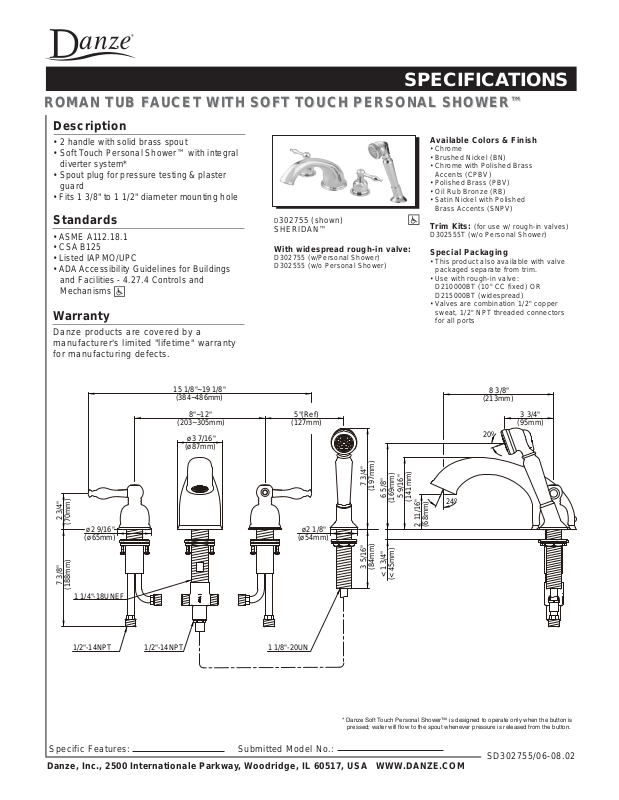

SPECIFICATIONS
ROMAN TUB FAUCET WITH SOFT TOUCH PERSONAL SHOWER™
ROMAN TUB FAUCET WITH SOFT TOUCH PERSONAL SHOWER™
Description
•
2 handle with solid brass spout
•
Soft Touch Personal Shower™ with integral
diverter system*
•
Spout plug for pressure testing & plaster
guard
• Fits 1 3/8" to 1 1/2" diameter mounting hole
Standards
• ASME A1 12.18.1
• CSA B125
• Listed IAPMO/UPC
• ADA Accessibility Guidelines for Buildings
and Facilities - 4.27.4 Controls and
Mechanisms
Warranty
Danze products are covered by a
manufacturer's limited "lifetime" warranty
for manufacturing defects.
D302755 (shown)
SHERIDAN™
With widespread rough-in valve:
D302755 (w/Personal Shower)
D302555 (w/o Personal Shower)
Available Colors & Finish
• Chrome
• Brushed Nickel (BN)
• Chrome with Polished Brass
Accents (CPBV)
• Polished Brass (PBV)
• Oil Rub Bronze (RB)
• Satin Nickel with Polished
Brass Accents (SNPV)
Trim Kits: (for use w/ rough-in valves)
D302555T (w/o Personal Shower)
Special Packaging
• This product also available with valve
packaged separate from trim.
• Use with rough-in valve:
D210000BT (10" CC fixed) OR
D215000BT (widespread)
• Valves are combination 1/2" copper
sweat, 1/2" NPT threaded connectors
for all ports
15 1/8"~19 1/8"
(384~486mm)
8"~12"
(203~305mm)
ø3 7/16"
(ø87mm)
2 3/4"
(70mm)
ø2 9/16"
(ø65mm)
7 3/8"
(188mm)
1 1/4"-18UNEF
1/2"-14NPT 1/2"-14NPT 1 1/8"-20UN
5"(Ref)
(127mm)
ø2 1/8"
(ø54mm)
7 3/4"
(197mm)
3 5/16"
(84mm)
6 5/8"
5 9/16"
(169mm)
< 1 3/4"
(< 45mm)
(141mm)
2 11/16"
(68mm)
24º
8 3/8"
(213mm)
20º
3 3/4"
(95mm)
* Danze Soft Touch Personal Shower™ is designed to operate only when the button is
pressed; water will flow to the spout whenever pressure is released from the button.
Specific Features: Submitted Model No.:
Danze, Inc., 2500 Internationale Parkway, Woodridge, IL 60517, USA WWW.DANZE.COM
SD302755/06-08.02
SPECIFICATIONS
ROMAN TUB FAUCET ROUGH-IN VALVES-CRITICAL DIMENSIONS
ROMAN TUB FAUCET ROUGH-IN VALVES-CRITICAL DIMENSIONS
Rough-in valve D215000BT (widespread)
8"~12"
(203~305mm)
2"
(51mm)
1 5/8"
(42mm)
7 3/8"
(188mm)
1 1/4"-18UNEF
ø1 7/8"
(ø47mm)
1/2"-14NPT
ø1 15/16"
(ø49mm)
1/2"-14NPT
< 1 3/4"
(< 45mm)
* Installation method shown is for deck thickness of less than 1-3/4".
If the installation is for deck thickness between 1-3/4" and 3-1/2",
the sleeve nut needs to be reversed.
Specific Features: Submitted Model No.:
Danze, Inc., 2500 Internationale Parkway, Woodridge, IL 60517, USA WWW.DANZE.COM
SD302755/06-08.02
