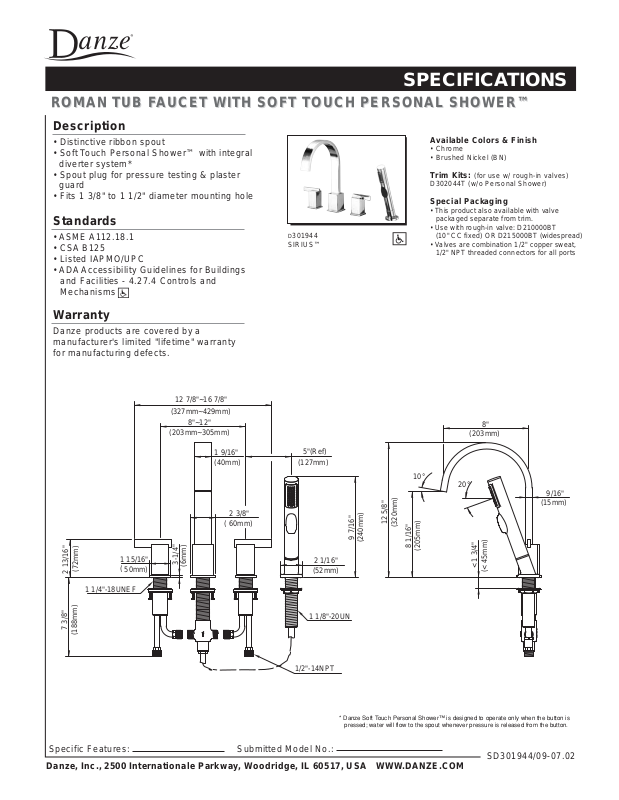

SPECIFICATIONS
ROMAN TUB FAUCET WITH SOFT TOUCH PERSONAL SHOWER™
ROMAN TUB FAUCET WITH SOFT TOUCH PERSONAL SHOWER™
Description
• Distinctive ribbon spout
• Soft Touch Personal Shower™ with integral
diverter system*
• Spout plug for pressure testing & plaster
guard
• Fits 1 3/8" to 1 1/2" diameter mounting hole
Standards
• ASME A1 12.18.1
• CSA B125
• Listed IAPMO/UPC
• ADA Accessibility Guidelines for Buildings
and Facilities - 4.27.4 Controls and
Mechanisms
Warranty
Danze products are covered by a
manufacturer's limited "lifetime" warranty
for manufacturing defects.
D301944
SIRIUS™
Available Colors & Finish
• Chrome
• Brushed Nickel (BN)
Trim Kits: (for use w/ rough-in valves)
D302044T (w/o Personal Shower)
Special Packaging
• This product also available with valve
packaged separate from trim.
• Use with rough-in valve: D210000BT
(10" CC fixed) OR D215000BT (widespread)
• Valves are combination 1/2" copper sweat,
1/2" NPT threaded connectors for all ports
(72mm)
2 13/16"
1 1/4"-18UNEF
7 3/8"
(188mm)
1 15/16"
(
50mm)
12 7/8"~16 7/8"
(327mm~429mm)
8"~12"
(203mm~305mm)
1 9/16"
(40mm)
3-1/4"
(6mm)
2 3/8"
(
60mm)
5"(Ref)
(127mm)
2 1/16"
(52mm)
1 1/8"-20UN
1/2"-14NPT
9 7/16"
(240mm)
12 5/8"
(320mm)
10°
8 1/16"
(205mm)
20°
8"
(203mm)
< 1 3/4"
(< 45mm)
9/16"
(15mm)
* Danze Soft Touch Personal Shower™ is designed to operate only when the button is
pressed; water will flow to the spout whenever pressure is released from the button.
Specific Features: Submitted Model No.:
Danze, Inc., 2500 Internationale Parkway, Woodridge, IL 60517, USA WWW.DANZE.COM
SD301944/09-07.02
SPECIFICATIONS
ROMAN TUB FAUCET ROUGH-IN VALVES-CRITICAL DIMENSIONS
ROMAN TUB FAUCET ROUGH-IN VALVES-CRITICAL DIMENSIONS
Rough-in valve D215000BT (widespread)
8"~12"
(203~305mm)
2"
(51mm)
1 5/8"
(42mm)
7 3/8"
(188mm)
ø1 7/8"
(ø47mm)
1 1/4"-18UNEF
1/2"-14NPT
ø1 15/16"
(ø49mm)
1/2"-14NPT
< 1 3/4"
(< 45mm)
* Installation method shown is for deck thickness of less than 1-3/4".
If the installation is for deck thickness between 1-3/4" and 3-1/2", the sleeve nut needs
to be reversed.
Specific Features: Submitted Model No.:
Danze, Inc., 2500 Internationale Parkway, Woodridge, IL 60517, USA WWW.DANZE.COM
SD301944/09-07.02
