Danze D301725 User Manual

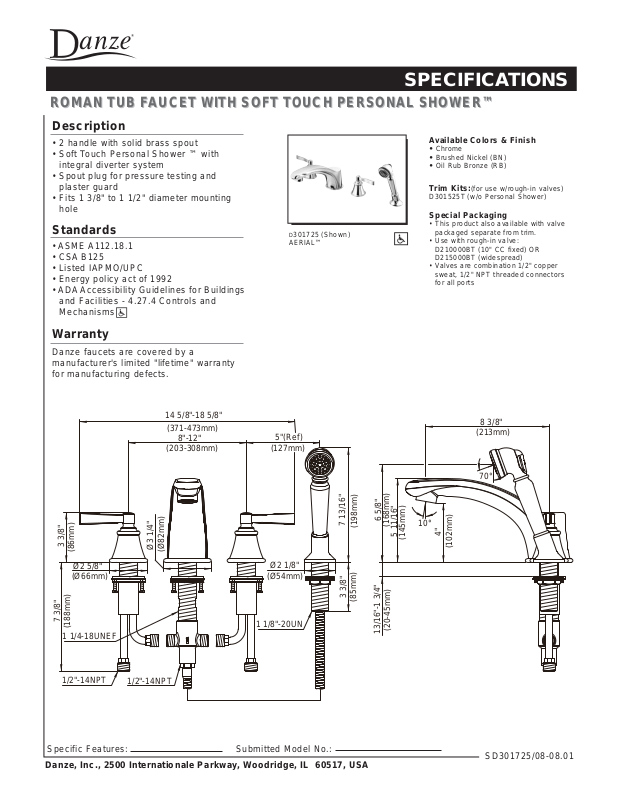

SPECIFICATIONS
ROMAN TUB FAUCET WITH SOFT TOUCH PERSONAL SHOWER™
ROMAN TUB FAUCET WITH SOFT TOUCH PERSONAL SHOWER™
Description
• 2 handle with solid brass spout
• Soft Touch Personal Shower ™ with
integral diverter system
• Spout plug for pressure testing and
plaster guard
• Fits 1 3/8" to 1 1/2" diameter mounting
hole
Standards
• ASME A1 12.18.1
• CSA B125
• Listed IAPMO/UPC
• Energy policy act of 1992
• ADA Accessibility Guidelines for Buildings
and Facilities - 4.27.4 Controls and
Mechanisms
Warranty
Danze faucets are covered by a
manufacturer's limited "lifetime" warranty
for manufacturing defects.
D301725 (Shown)
AERIAL™
Available Colors & Finish
• Chrome
• Brushed Nickel (BN)
• Oil Rub Bronze (RB)
Trim Kits:(for use w/rough-in valves)
D301525T (w/o Personal Shower)
Special Packaging
• This product also available with valve
packaged separate from trim.
• Use with rough-in valve:
D210000BT (10" CC fixed) OR
D215000BT (widespread)
• Valves are combination 1/2" copper
sweat, 1/2" NPT threaded connectors
for all ports
3 3/8"
(86mm)
Ø2 5/8"
(Ø66mm)
7 3/8"
(188mm)
1 1/4-18UNEF
1/2"-14NPT
Ø3 1/4"
(Ø82mm)
1/2"-14NPT
14 5/8"-18 5/8"
(371-473mm)
8"-12"
(203-308mm)
5"(Ref)
(127mm)
Ø2 1/8"
(Ø54mm)
1 1/8"-20UN
7 13/16"
(198mm)
3 3/8"
(85mm)
6 5/8"
13/16"-1 3/4"
10°
(168mm)
5 11/16"
(145mm)
(20-45mm)
8 3/8"
(213mm)
70°
4"
(102mm)
Specific Features: Submitted Model No.:
Danze, Inc., 2500 Internationale Parkway, Woodridge, IL 60517, USA
SD301725/08-08.01
SPECIFICATIONS
ROMAN TUB FAUCET ROUGH-IN VALVES-CRITICAL DIMENSIONS
ROMAN TUB FAUCET ROUGH-IN VALVES-CRITICAL DIMENSIONS
Rough-in valve D215000BT (widespread)
8"-12"
(203-305mm)
2"
(51mm)
1 5/8"
(42mm)
(ø47mm)
7 3/8"
(188mm)
1 1/4"-18UNEF
1/2"-14NPT
ø1 7/8"
ø1 15/16"
(ø49mm)
1/2"-14NPT
< 1 3/4"
(< 45mm)
* Installation method shown is for deck thickness of less than 1-3/4".
If the installation is for deck thickness between 1-3/4" and 3-1/2",
the sleeve nut needs to be reversed.
Specific Features: Submitted Model No.:
Danze, Inc., 2500 Internationale Parkway, Woodridge, IL 60517, USA WWW.DANZE.COM
SD301725/08-08.01
