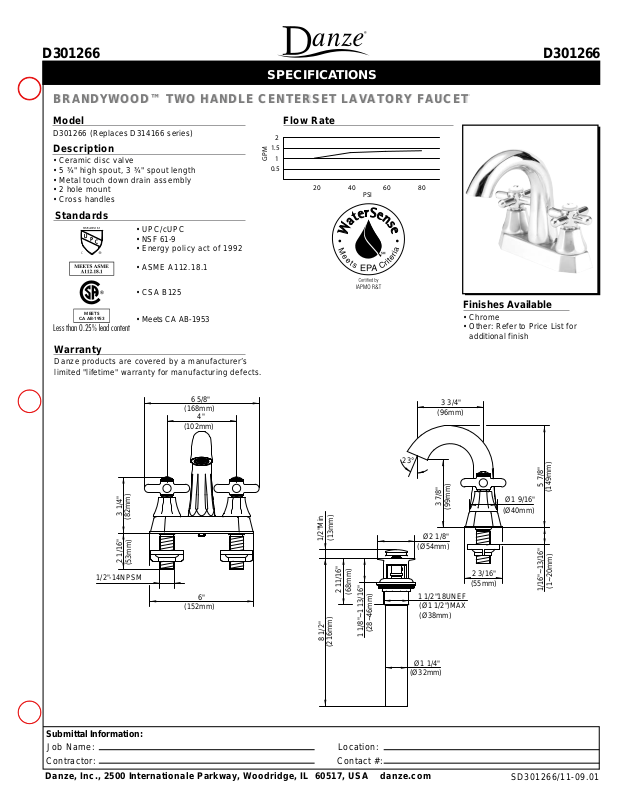

SPECIFICATIONS

BRANDYWOOD™ TWO HANDLE CENTERSET LAVATORY FAUCET

BRANDYWOOD™ TWO HANDLE CENTERSET LAVATORY FAUCET

Model

D301266 (Replaces D314166 series)

Description

• Ceramic disc valve

• 5 ¾" high spout, 3 ¾" spout length

• Metal touch down drain assembly

• 2 hole mount

• Cross handles

Standards

• UPC/cUPC

• NSF 61-9

• Energy policy act of 1992

• ASME A112.18.1

• CSA B125

MEETS

CA AB-1953

• Meets CA AB-1953

Less than 0.25% lead content

Warranty

Danze products are covered by a manufacturer’s
limited "lifetime" warranty for manufacturing defects.

6 5/8"

(168mm)

4"

(102mm)

Flow Rate

2

1.5

GPM

1

0.5

20 40 60 80

PSI

Finishes Available

• Chrome

• Other: Refer to Price List for
additional finish

3 3/4"

(96mm)

23°

3 1/4"

(82mm)

Ø2 1/8"

(Ø54mm)

1 1/2"18UNEF

(Ø1 1/2")MAX
(Ø38mm)

Ø1 1/4"

(Ø32mm)

2 1/16"

(53mm)

1/2"-14NPSM

6"

(152mm)

1/2"Min

(13mm)

8 1/2"

(216mm)

2 11/16"

(68mm)

1 1/8"~1 13/16"

(28~46mm)

Submittal Information:

Job Name: Location:

Contractor: Contact #:

Danze, Inc., 2500 Internationale Parkway, Woodridge, IL 60517, USA danze.com

3 7/8"

(99mm)

2 3/16"

(55mm)

5 7/8"

(149mm)

Ø1 9/16"

(Ø40mm)

(1~20mm)

1/16"~13/16"

SD301266/11-09.01
