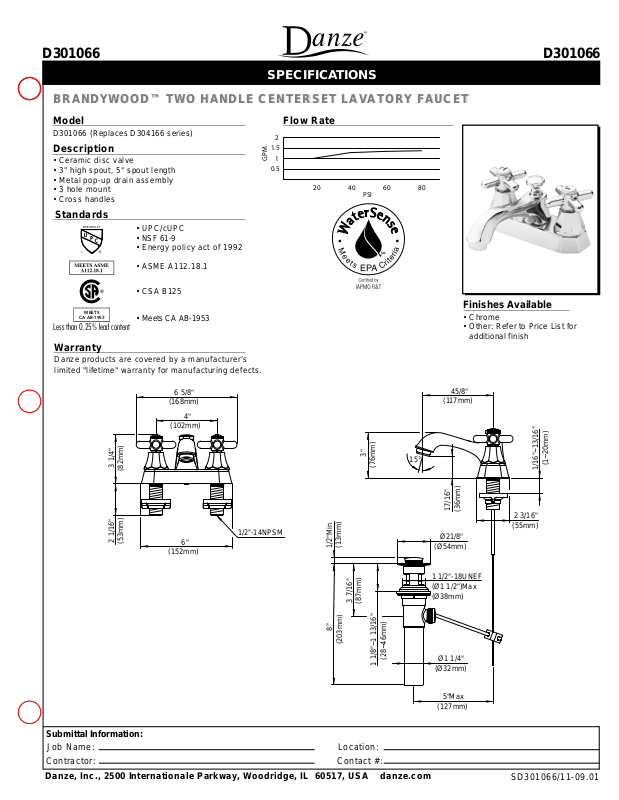

Danze D301066 Spec Sheets
D301066 D301066
SPECIFICATIONS
BRANDYWOOD™ TWO HANDLE CENTERSET LAVATORY FAUCET
BRANDYWOOD™ TWO HANDLE CENTERSET LAVATORY FAUCET
Model
D301066 (Replaces D304166 series)
Description
• Ceramic disc valve
• 3" high spout, 5" spout length
• Metal pop-up drain assembly
• 3 hole mount
• Cross handles
Standards
• UPC/cUPC
• NSF 61-9
• Energy policy act of 1992
• ASME A112.18.1
• CSA B125
MEETS
CA AB-1953
• Meets CA AB-1953
Less than 0.25% lead content
Warranty
Danze products are covered by a manufacturer’s
limited "lifetime" warranty for manufacturing defects.
6 5/8"
(168mm)
4"
(102mm)
Flow Rate
2
1.5
GPM
1
0.5
20 40 60 80
PSI
Finishes Available
• Chrome
• Other: Refer to Price List for
additional finish
45/8"
(117mm)
3 1/4"
(82mm)
2 1/16"
(53mm)
6"
(152mm)
1/2"-14NPSM
(13mm)
1/2"Min
3 7/16"
8"
(203mm)
3"
(76mm)
(87mm)
1 1/8"~1 13/16"
15°
(28~46mm)
Submittal Information:
Job Name: Location:
Contractor: Contact #:
Danze, Inc., 2500 Internationale Parkway, Woodridge, IL 60517, USA danze.com
17/16"
(36mm)
Ø21/8"
(Ø54mm)
1 1/2"-18UNEF
(Ø1 1/2")Max
(Ø38mm)
Ø1 1/4"
(Ø32mm)
5"Max
(127mm)
(1~20mm)
1/16"~13/16"
2 3/16"
(55mm)
SD301066/11-09.01
