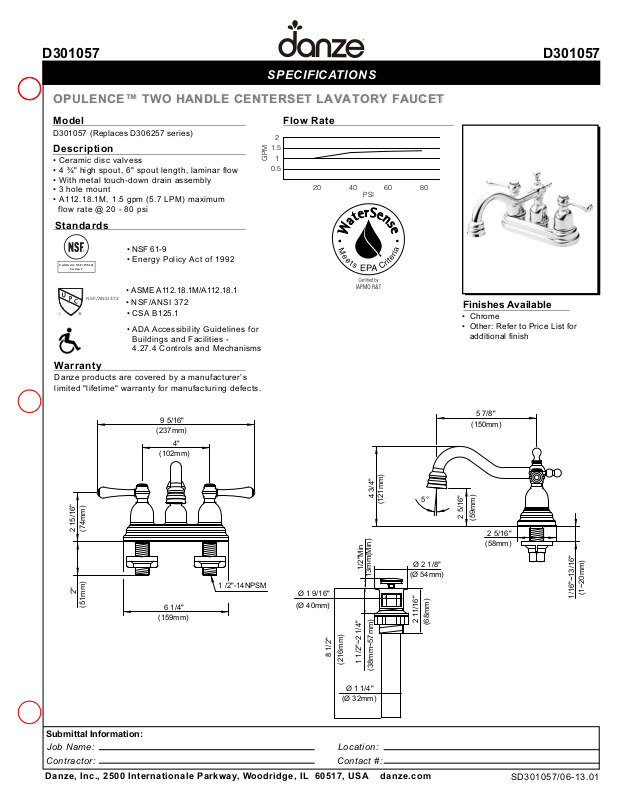

SPECIFICATIONS
OPULENCE™ TWO HANDLE CENTERSET LAVATORY FAUCET
OPULENCE™ TWO HANDLE CENTERSET LAVATORY FAUCET
750103D750103D
Model
D301057 (Replaces D306257 series)
Description
• Ceramic disc valvess
• 4 ¾" high spout, 6" spout lengt h, laminar flow
• With metal touch-down drain assembly
• 3 hole mount
• A112.18.1M, 1. 5 gpm (5.7 LPM) maximum
flow rate @ 20 - 80 psi
Standards
• NSF 61-9
Certified to NSF/ANSI 61
Section 9
NSF/ANSI 372
• Energy Policy Act of 1992
• ASME A112.18.1M/A112.18.1
• NSF/ANSI 372
• CSA B 125.1
• ADA Accessibility Guidelines for
Buildings and Facilities -
4.27.4 Controls and Mechanisms
Warranty
Danze products are covered by a manufacturer’s
limited "lifetime" warranty for manufactur ing defects.
9 5/16"
(237mm)
4"
(102mm)
Flow Rate
2
1.5
GPM
1
0.5
20 40 60 80
PSI
Finishes Available
• Chrome
• Other: Refer to Price List for
additional finish
5 7/8"
(150mm)
(74mm)
2 15/16"
2"
(51mm)
6 1/4"
(159mm)
1 /2"-14NPSM
Ø 1 9/16"
(Ø 40mm)
8 1/2"
(216mm)
(Ø 32mm)
1/2"Min
1 1/2"~2 1/4"
Ø 1 1/4"
4 3/4"
(121mm)
13mm(Min)
(38mm~57mm)
5°
Ø 2 1/8"
(Ø 54mm)
2 11/16"
Submittal Information:
Job Name: Locat ion:
Contract or: Contact # :
Danze, Inc., 2500 Internationale Parkway, Woodridge, IL 60517, USA danze.com
(68mm)
2 5/16"
(59mm)
2 5/16"
(58mm)
SD301057/06-13.01
(1~20mm)
1/16"~13/16"
