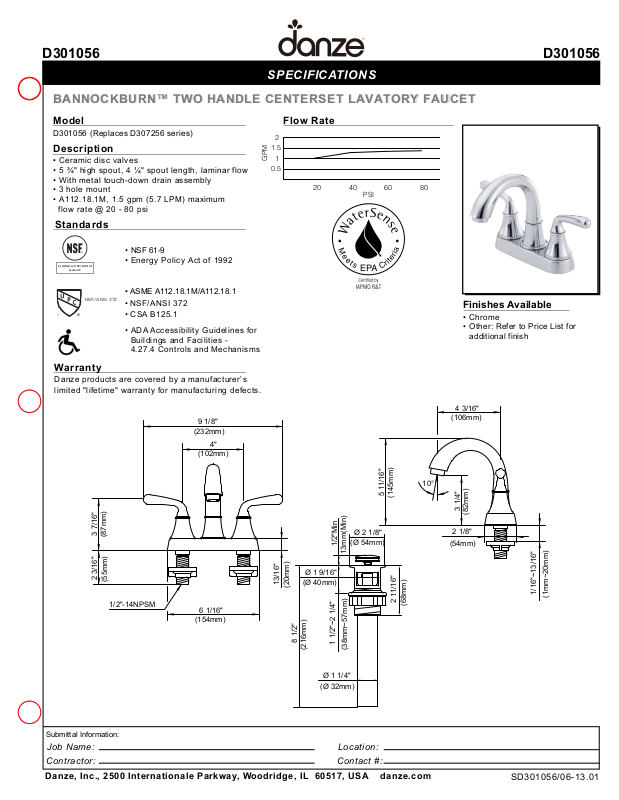

SPECIFICATIONS
BANNOCKBURN™ TWO HANDLE CENTERSET LAVATORY FAUCET
BANNOCKBURN™ TWO HANDLE CENTERSET LAVATORY FAUCET
650103D650103D
Model
D301056 (Replaces D307256 series)
Description
• Ceramic disc valves
• 5 ¾" high spout, 4 ¼" spout lengt h, laminar flow
• With metal touch-down drain assembly
• 3 hole mount
• A112.18.1M, 1. 5 gpm (5.7 LPM) maximum
flow rate @ 20 - 80 psi
Standards
• NSF 61-9
Certified to NSF/ANSI 61
Section 9
NSF/ANSI 372
• Energy Policy Act of 1992
• ASME A112.18.1M/A112.18.1
• NSF/ANSI 372
• CSA B 125.1
• ADA Accessibility Guidelines for
Buildings and Facilities -
4.27.4 Controls and Mechanisms
Warranty
Danze products are covered by a manufacturer’s
limited "lifetime" warranty for manufactur ing defects.
9 1/8"
(232mm)
4"
(102mm)
Flow Rate
2
1.5
GPM
1
0.5
20 40 60 80
PSI
Finishes Available
• Chrome
• Other: Refer to Price List for
additional finish
4 3/16"
(106mm)
10°
5 11/16"
(145mm)
3 7/16"
(87mm)
2 3/16"
(55mm)
1/2"-14NPSM
Submittal Information:
6 1/16"
(154mm)
13/16"
(20mm)
Ø 1 9/16"
(Ø 40mm)
8 1/2"
(216mm)
Ø 1 1/4"
(Ø 32mm)
Ø 2 1/8"
(Ø 54mm)
1/2"Min
13mm(Min)
1 1/2"~2 1/4"
(38mm~57mm)
2 11/16"
(68mm)
Job Name: Locat ion:
Contract or: Contact # :
Danze, Inc., 2500 Internationale Parkway, Woodridge, IL 60517, USA danze.com
3 1/4"
2 1/8"
(54mm)
(82mm)
1/16"~13/16"
(1mm~20mm)
SD301056/06-13.01
