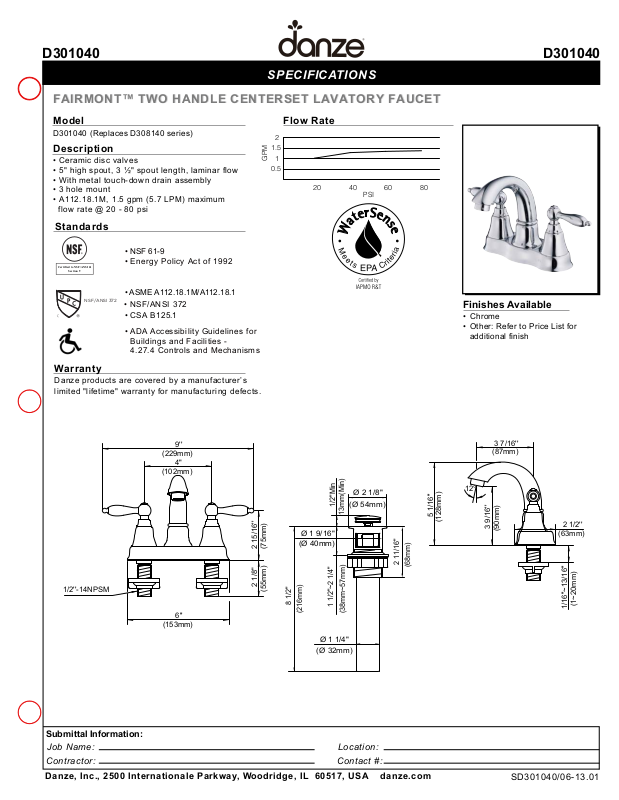

SPECIFICATIONS
FAIRMONT™ TWO HANDLE CENTERSET LAVATORY FAUCET
FAIRMONT™ TWO HANDLE CENTERSET LAVATORY FAUCET
040103D040103D
Model
D301040 (Replaces D308140 series)
Description
• Ceramic disc valves
• 5" high spout, 3 ½" spout length, laminar flow
• With metal touch-down drain assembly
• 3 hole mount
• A112.18.1M, 1. 5 gpm (5.7 LPM) maximum
flow rate @ 20 - 80 psi
Standards
• NSF 61-9
Certified to NSF/ANSI 61
Section 9
NSF/ANSI 372
• Energy Policy Act of 1992
• ASME A112.18.1M/A112.18.1
• NSF/ANSI 372
• CSA B 125.1
• ADA Accessibility Guidelines for
Buildings and Facilities -
4.27.4 Controls and Mechanisms
Warranty
Danze products are covered by a manufacturer’s
limited "lifetime" warranty for manufactur ing defects.
Flow Rate
2
1.5
GPM
1
0.5
20 40 60 80
PSI
Finishes Available
• Chrome
• Other: Refer to Price List for
additional finish
9''
(229mm)
4"
(102mm)
Ø 2 1/8"
1/2"Min
(Ø 54mm)
13mm(Min)
Ø 1 9/16"
(Ø 40mm)
8 1/2"
(216mm)
1 1/2"~2 1/4"
Ø 1 1/4"
(Ø 32mm)
(38mm~57mm)
2 11/16"
(68mm)
1/2''-14NPSM
6''
(153mm)
2 15/16''
(75mm)
2 1/8"
(55mm)
Submittal Information:
Job Name: Locat ion:
Contract or: Contact # :
Danze, Inc., 2500 Internationale Parkway, Woodridge, IL 60517, USA danze.com
5 1/16''
(128mm)
12°
3 7/16''
(87mm)
3 9/16''
(90mm)
SD301040/06-13.01
2 1/2''
(63mm)
(1~20mm)
1/16''~13/16''
