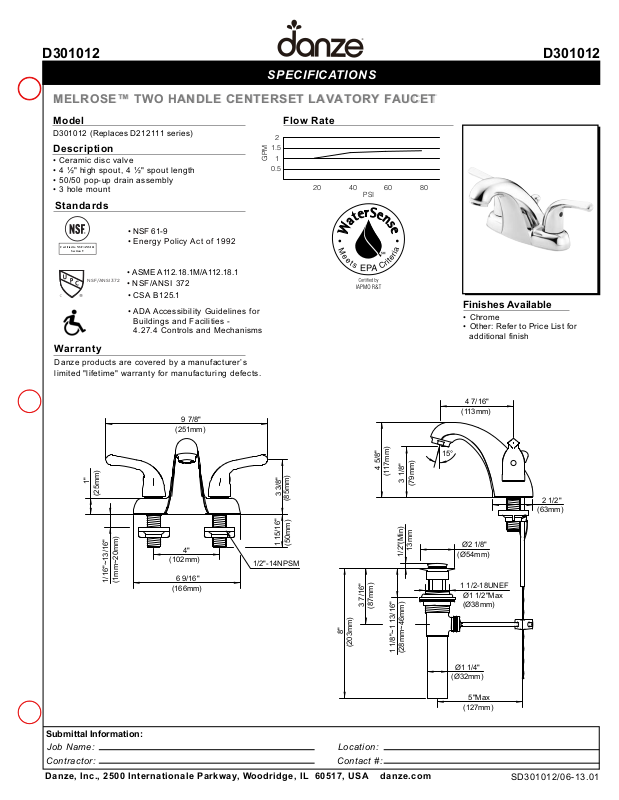

Danze D301012 Spec Sheets
SPECIFICATIONS
MELROSE™ TWO HANDLE CENTERSET LAVATORY FAUCET
MELROSE™ TWO HANDLE CENTERSET LAVATORY FAUCET
210103D210103D
Model
D301012 (Replaces D212111 series)
Description
• Ceramic disc valve
• 4 ½" high spout, 4 ½" spout length
• 50/50 pop-up drain assembly
• 3 hole mount
Standards
• NSF 61-9
Certified to NSF/ANSI 61
Section 9
NSF/ANSI 372
• Energy Policy Act of 1992
• ASME A112.18.1M/A112.18.1
• NSF/ANSI 372
• CSA B 125.1
• ADA Accessibility Guidelines for
Buildings and Facilities -
4.27.4 Controls and Mechanisms
Warranty
Danze products are covered by a manufacturer’s
limited "lifetime" warranty for manufactur ing defects.
9 7/8"
(251mm)
Flow Rate
2
1.5
GPM
1
0.5
20 40 60 80
PSI
Finishes Available
• Chrome
• Other: Refer to Price List for
additional finish
4 7/16"
(113mm)
4 5/8"
(117mm)
1"
(25mm)
1/16"~13/16"
(1mm~20mm)
4"
(102mm)
6 9/16"
(166mm)
3 3/8"
(85mm)
(50mm)
1 15/16"
1/2"-14NPSM
8"
(203mm)
3 7/16"
(87mm)
3 1/8"
(79mm)
13mm
1/2"(Min)
1 1/8"~1 13/16"
(28mm~46mm)
Submittal Information:
Job Name: Locat ion:
Contract or: Contact # :
Danze, Inc., 2500 Internationale Parkway, Woodridge, IL 60517, USA danze.com
15°
2 1/2"
(63mm)
Ø2 1/8"
(Ø54mm)
1 1/2-18UNEF
Ø1 1/2"Max
(Ø38mm)
Ø1 1/4"
(Ø32mm)
5"Max
(127mm)
SD301012/06-13.01
