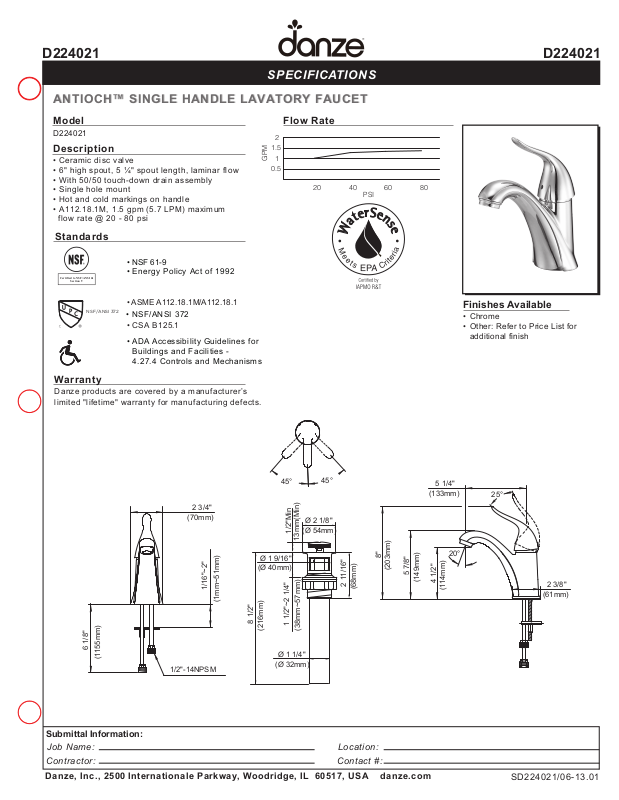

D224021
SPECIFIC ATIONS
ANTIOCH™ SINGLE HANDLE LAVATORY FAUCET
ANTIOCH™ SINGLE HANDLE LAVATORY FAUCET
D224021
Model
D224021
Description
• Ceramic disc valve
• 6" high spout, 5 ¼" spout length, laminar flow
• With 50/50 touch-down drain assembly
• Single hole mount
• Hot and cold markings on handle
• A112.18.1M, 1.5 gpm (5.7 LPM) maximum
flow rate @ 20 - 80 psi
Standards
• NSF 61-9
Certified to NSF/ANSI 61
Section 9
NSF/ANSI 372
• Energy P olicy Act of 1992
• ASME A112.18.1M/A112.18.1
• NSF/ANSI 372
• CSA B125.1
• ADA Accessibili ty Guidelines fo r
Buildings and F acilities -
4.2 7.4 Contr ols and M echanisms
Warranty
Danze products are covered by a manufacturer’s
limited "lifetime" warrant y for manufacturing defects.
2
1.5
GPM
1
0.5
Flow Rate
20 40 60 80
PSI
Finishes Available
• Chrome
• Other: Refer to Price List for
additional finish
45°
Ø 2 1/8"
(Ø 54mm)
1/2"Min
13mm(Min)
(38mm~57mm)
2 11/16"
(68mm)
8"
(203mm)
5 7/8"
(149mm)
6 1/8"
(1155mm)
2 3/4"
(70mm)
1/16"~2"
1/2"-14NPSM
(1mm~51mm)
8 1/2"
45°
Ø 1 9/16"
(Ø 40mm)
(216mm)
Ø 1 1/4"
(Ø 32mm)
1 1/2"~2 1/4"
Submittal Information:
Job Name: Location:
Contractor: Contact #:
Danze, Inc., 2500 Internationale Parkway, Woodridge, IL 60517, US A danze.com
5 1/4"
(133mm)
20°
4 1/2"
(114mm)
25°
2 3/8"
(61mm)
SD224021/06-13.01
