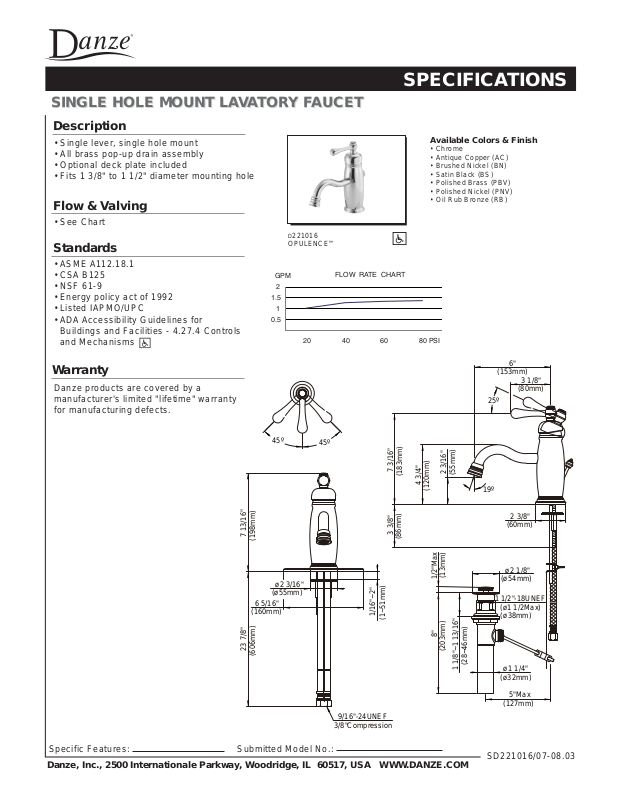

Danze D221016 Spec Sheets

SINGLE HOLE MOUNT LAVAT O R Y FAUCET

SINGLE HOLE MOUNT LAVAT O R Y FAUCET

Description

• Single lever, single hole mount

• All brass pop-up drain assembly

• Optional deck plate included

• Fits 1 3/8" to 1 1/2" diameter mounting hole

Flow & Valving

• See Chart

D221016

Standards

OPULENCE™

• ASME A112.18.1

• CSA B125

• NSF 61-9

• Energy policy act of 1992

• Listed IAPMO/UPC

• ADA Accessibility Guidelines for

GPM

2

1.5

1

0.5

FLOW RATE CHART

Buildings and Facilities - 4.27.4 Controls
and Mechanisms

20 40 60 80 PSI

Warranty

Danze products are covered by a
manufacturer's limited "lifetime" warranty
for manufacturing defects.

SPECIFICATIONS

Available Colors & Finish

• Chrome

• Antique Copper (AC)

• Brushed Nickel (BN)

• Satin Black (BS)

• Polished Brass (PBV)

• Polished Nickel (PNV)

• Oil Rub Bronze (RB)

6"

(153mm)

3 1/8"

(80mm)

25º

7 13/16"

(198mm)

6 5/16"

(160mm)

23 7/8"

(606mm)

45º

ø2 3/16"

(ø55mm)

45º

9/16"-24UNEF

3/8"Compression

7 3/16"

3 3/8"

1/16"~2"

(1~51mm)

(183mm)

4 3/4"

(86mm)

2 3/16"

(120mm)

(13mm)

1/2"Max

8"

(203mm)

(55mm)

19º

1 1/2"-18UNEF

(28~46mm)

1 1/8"~1 13/16"

2 3/8"

(60mm)

ø2 1/8"

(ø54mm)

(ø1 1/2Max)
(ø38mm)

ø1 1/4"

(ø32mm)

5"Max

(127mm)

Specific Features: Submitted Model No.:

Danze, Inc., 2500 Internationale Parkway, Woodridge, IL 60517, USA WWW.DANZE.COM

SD221016/07-08.03
