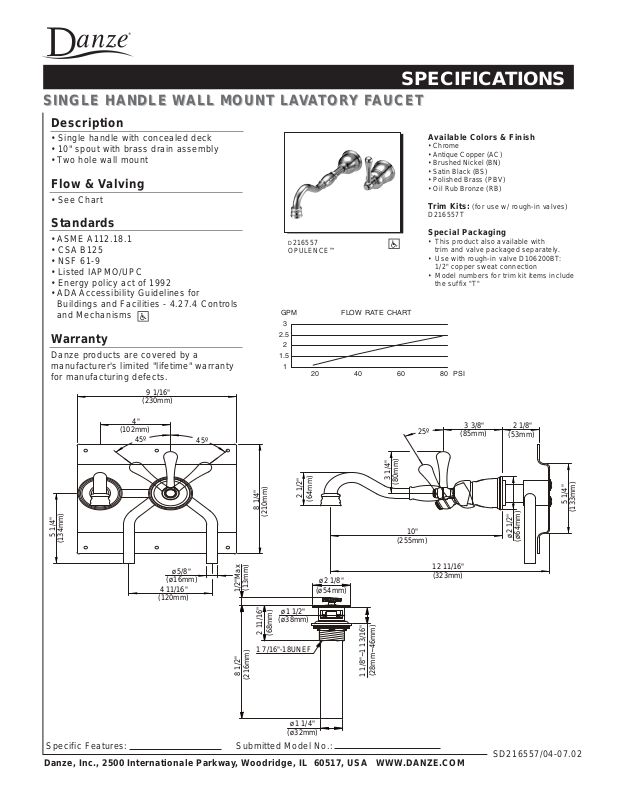

SPECIFICATIONS

SINGLE HANDLE WALL MOUNT LAVAT ORY F AUCET

SINGLE HANDLE WALL MOUNT LAVAT ORY F AUCET

Description

• Single handle with concealed deck

• 10" spout with brass drain assembly

• Two hole wall mount

Flow & Valving

• See Chart

Standards

• ASME A1 12.18.1

• CSA B125

• NSF 61-9

• Listed IAPMO/UPC

• Energy policy act of 1992

• ADA Accessibility Guidelines for
Buildings and Facilities - 4.27.4 Controls
and Mechanisms

Warranty

Danze products are covered by a
manufacturer's limited "lifetime" warranty
for manufacturing defects.

9 1/16"

(230mm)

D216557

OPULENCE™

GPM FLOW RATE CHART

3

2.5

2

1.5

1

20 40 60 80

Available Colors & Finish

• Chrome

• Antique Copper (AC)

• Brushed Nickel (BN)

• Satin Black (BS)

• Polished Brass (PBV)

• Oil Rub Bronze (RB)

Trim Kits: (for use w/ rough-in valves)

D216557T

Special Packaging

• This product also available with
trim and valve packaged separately.

• Use with rough-in valve D106200BT:
1/2" copper sweat connection

• Model numbers for trim kit items include
the suffix "T"

PSI

5 1/4"

(134mm)

4"

(102mm)

45º

ø5/8"

(ø16mm)

4 11/16"

(120mm)

45º

8 1/4"

(210mm)

(13mm)

1/2"Max

2 11/16"

1 7/16"-18UNEF

8 1/2"

(216mm)

ø1 1/2"

(ø38mm)

(68mm)

2 1/2"

(64mm)

ø2 1/8"

(ø54mm)

3 1/4"

(80mm)

10"

(255mm)

(28mm~46mm)

1 1/8"~1 13/16"

25º

12 11/16"
(323mm)

3 3/8"

(85mm)

2 1/8"

(53mm)

ø2 1/2"

(ø64mm)

5 1/4"

(133mm)

ø1 1/4"

(ø32mm)

Specific Features: Submitted Model No.:

Danze, Inc., 2500 Internationale Parkway, Woodridge, IL 60517, USA WWW.DANZE.COM

SD216557/04-07.02
