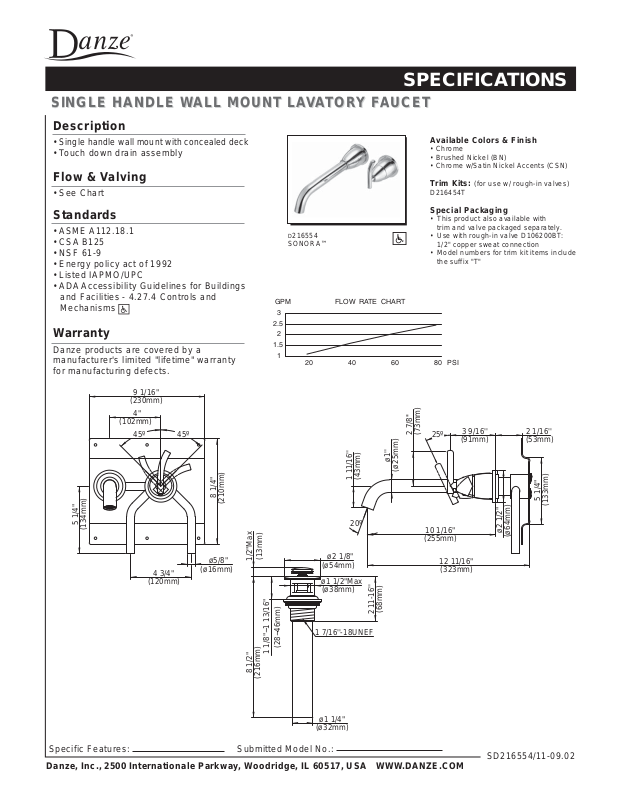

SPECIFICATIONS
SINGLE HANDLE WALL MOUNT LAVAT ORY FAUCET
SINGLE HANDLE WALL MOUNT LAVAT ORY FAUCET
Description
•
Single handle wall mount with concealed deck
• Touch down drain assembly
Flow & Valving
• See Chart
Available Colors & Finish
• Chrome
• Brushed Nickel (BN)
• Chrome w/Satin Nickel Accents (CSN)
Trim Kits: (for use w/ rough-in valves)
D216454T
Standards
• ASME A1 12.18.1
• CSA B125
• NSF 61-9
• Energy policy act of 1992
• Listed IAPMO/UPC
• ADA Accessibility Guidelines for Buildings
and Facilities - 4.27.4 Controls and
Mechanisms
Warranty
Danze products are covered by a
manufacturer's limited "lifetime" warranty
for manufacturing defects.
9 1/16"
(230mm)
4"
(102mm)
45º
45º
8 1/4"
(210mm)
D216554
SONORA™
GPM FLOW RATE CHART
3
2.5
2
1.5
1
20 40 60 80
ø1''
1 11/16''
(43mm)
2 7/8''
(73mm)
(ø25mm)
Special Packaging
• This product also available with
trim and valve packaged separately.
• Use with rough-in valve D106200BT:
1/2" copper sweat connection
• Model numbers for trim kit items include
the suffix "T"
PSI
25º
3 9/16''
(91mm)
2 1/16''
(53mm)
5 1/4"
(133mm)
5 1/4"
(134mm)
4 3/4"
(120mm)
ø5/8"
(ø16mm)
(13mm)
1/2"Max
(28~46mm)
1 1/8"~1 13/16"
8 1/2"
(216mm)
1 7/16''-18UNEF
ø1 1/4"
(ø32mm)
20º
ø2 1/8"
(ø54mm)
ø1 1/2"Max
(ø38mm)
(68mm)
2 11-16''
10 1/16"
(255mm)
12 11/16"
(323mm)
Specific Features: Submitted Model No.:
Danze, Inc., 2500 Internationale Parkway, Woodridge, IL 60517, USA WWW.DANZE.COM
ø2 1/2"
(ø64mm)
SD216554/11-09.02
