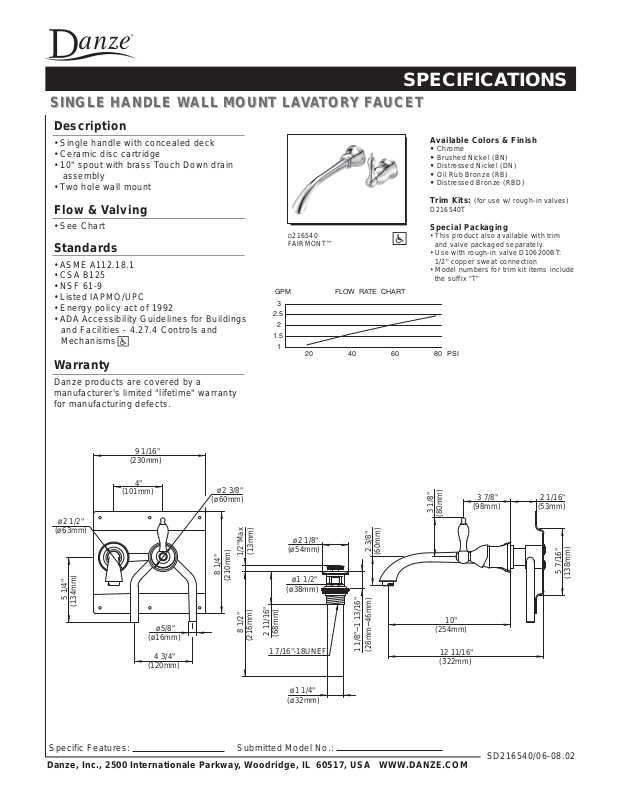

SPECIFICATIONS
SINGLE HANDLE WALL MOUNT LAVAT ORY F AUCET
SINGLE HANDLE WALL MOUNT LAVAT ORY F AUCET
Description
• Single handle with concealed deck
• Ceramic disc cartridge
• 10" spout with brass Touch Down drain
assembly
• Two hole wall mount
Flow & Valving
• See Chart
Standards
• ASME A1 12.18.1
• CSA B125
• NSF 61-9
• Listed IAPMO/UPC
• Energy policy act of 1992
• ADA Accessibility Guidelines for Buildings
and Facilities - 4.27.4 Controls and
Mechanisms
Warranty
Danze products are covered by a
manufacturer's limited "lifetime" warranty
for manufacturing defects.
D216540
FAIRMONT™
GPM FLOW RATE CHART
3
2.5
2
1.5
1
20 40 60 80
Available Colors & Finish
• Chrome
• Brushed Nickel (BN)
• Distressed Nickel (DN)
• Oil Rub Bronze (RB)
• Distressed Bronze (RBD)
Trim Kits: (for use w/ rough-in valves)
D216540T
Special Packaging
• This product also available with trim
and valve packaged separately.
• Use with rough-in valve D106200BT:
1/2" copper sweat connection
• Model numbers for trim kit items include
the suffix "T"
PSI
ø2 1/2"
(ø63mm)
5 1/4"
(134mm)
9 1/16"
(230mm)
4"
(101mm)
ø5/8"
(ø16mm)
4 3/4"
(120mm)
ø2 3/8"
(ø60mm)
8 1/4"
(210mm)
(13mm)
1/2"Max
8 1/2"
(216mm)
ø2 1/8"
(ø54mm)
ø1 1/2"
(ø38mm)
2 11/16"
(68mm)
1 7/16"-18UNEF
ø1 1/4"
(ø32mm)
2 3/8"
(60mm)
(28mm~46mm)
1 1/8"~1 13/16"
3 1/8"
(80mm)
10"
(254mm)
12 11/16"
(322mm)
3 7/8"
(98mm)
2 1/16"
(53mm)
5 7/16"
(138mm)
Specific Features: Submitted Model No.:
Danze, Inc., 2500 Internationale Parkway, Woodridge, IL 60517, USA WWW.DANZE.COM
SD216540/06-08.02
