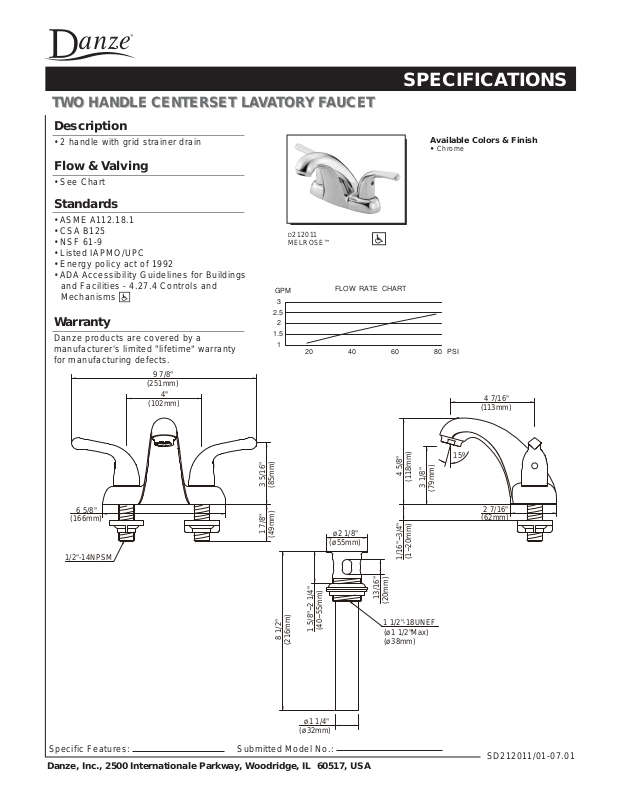

Danze D212011 Spec Sheets

TWO HANDLE CENTERSET LAVAT O R Y FAUCET

TWO HANDLE CENTERSET LAVAT O R Y FAU CET

Description

• 2 handle with grid strainer drain

SPECIFICATIONS

Available Colors & Finish

• Chrome

Flow & Valving

• See Chart

Standards

• ASME A1 12.18.1

• CSA B125

• NSF 61-9

• Listed IAPMO/UPC

• Energy policy act of 1992

• ADA Accessibility Guidelines for Buildings
and Facilities - 4.27.4 Controls and
Mechanisms

Warranty

Danze products are covered by a
manufacturer's limited "lifetime" warranty
for manufacturing defects.

9 7/8"

(251mm)

4"

(102mm)

D212011

MELROSE™

GPM

3

2.5

2

1.5

1

FLOW RATE CHART

20 40 60 80

PSI

4 7/16"

(113mm)

15º

3 5/16"

(85mm)

6 5/8"

(166mm)

1/2"-14NPSM

1 7/8"

(49mm)

8 1/2"

(216mm)

(ø32mm)

(ø55mm)

(40~55mm)

1 5/8"~2 1/4"

ø1 1/4"

ø2 1/8"

Specific Features: Submitted Model No.:

Danze, Inc., 2500 Internationale Parkway, Woodridge, IL 60517, USA

4 5/8"

(118mm)

1/16"~3/4"

(1~20mm)

13/16"

(20mm)

1 1/2"-18UNEF
(ø1 1/2"Max)

(ø38mm)

3 1/8"

(79mm)

2 7/16"

(62mm)

SD212011/01-07.01
