Danze D201542 User Manual

D201542 D201542

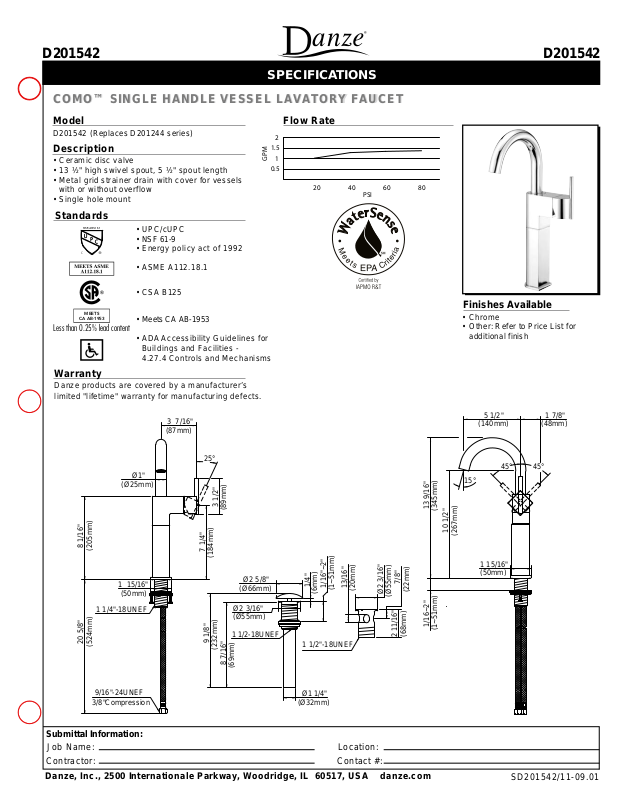

SPECIFICATIONS

COMO™ SINGLE HANDLE VESSEL LAVATORY FAUCET

Model

D201542 (Replaces D201244 series)

Description

• Ceramic disc valve

• 13 ½" high swivel spout, 5 ½" spout length

• Metal grid strainer drain with cover for vessels with or without overflow

• Single hole mount

Standards

• UPC/cUPC

• NSF 61-9

• Energy policy act of 1992

• ASME A112.18.1

• CSA B125

MEETS

CA AB-1953

• Meets CA AB-1953

Less than 0.25% lead content

• ADA Accessibility Guidelines for Buildings and Facilities -

4.27.4 Controls and Mechanisms

Warranty

Danze products are covered by a manufacturer’s limited "lifetime" warranty for manufacturing defects.

Flow Rate

1.5

GPM

0.5

20 40 60 80

PSI

Finishes Available

• Chrome

• Other: Refer to Price List for additional finish

(Ø25mm)

8 1/16"

(205mm)

1 15/16" (50mm)

1 1/4"-18UNEF

20 5/8"

(524mm)

9/16"-24UNEF

3/8"Compression

Ø1"

3 7/16"

(87mm)

25°

7 1/4"

(184mm)

9 1/8"

(232mm)

3 1/2"

(89mm)

Ø2 5/8"

(Ø66mm)

Ø2 3/16" (Ø55mm)

1 1/2-18UNEF

8 7/16"

(69mm)

1/16"~2"

(1~51mm)

1/4"

(6mm)

1 1/2"-18UNEF

Ø1 1/4"

(Ø32mm)

13/16"

(20mm)

7/8"

Ø2 3/16"

(Ø55mm)

2 11/16"

(22mm)

(68mm)

13 9/16"

(345mm)

10 1/2"

1/16~2"

(1~51mm)

(140mm)

15°

(267mm)

5 1/2"

1 15/16" (50mm)

45°

1 7/8"

(48mm)

45°

Submittal Information:

Job Name: Location:

Contractor: Contact #:

Danze, Inc., 2500 Internationale Parkway, Woodridge, IL 60517, USA danze.com

SD201542/11-09.01
