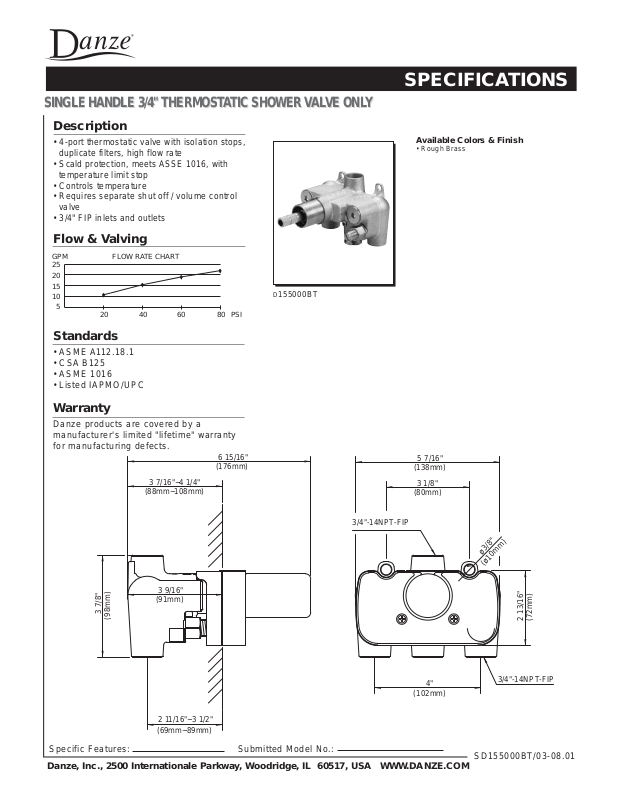

Danze D155000BT Spec Sheets

SINGLE HANDLE 3/4" THERMOSTATIC SHOWER VALVE ONLY

SINGLE HANDLE 3/4" THERMOSTATIC SHOWER VALVE ONLY

Description

•

4-port thermostatic valve with isolation stops,

duplicate filters, high flow rate

• Scald protection, meets ASSE 1016, with
temperature limit stop

• Controls temperature

• Requires separate shut off / volume control
valve

• 3/4" FIP inlets and outlets

Flow & Valving

GPM FLOW RATE CHART
25

20
15
10

5

20 40 60 80 PSI

D155000BT

Standards

• ASME A112.18.1

• CSA B125

• ASME 1016

• Listed IAPMO/UPC

SPECIFICATIONS

Available Colors & Finish

• Rough Brass

Warranty

Danze products are covered by a
manufacturer's limited "lifetime" warranty
for manufacturing defects.

6 15/16"

(176mm)

3 7/16"~4 1/4"

(88mm~108mm)

3 9/16"

(91mm)

3 7/8"

(98mm)

3/4"-14NPT-FIP

5 7/16"

(138mm)

3 1/8"

(80mm)

4"

(102mm)

8"

/

ø3

0mm)

(ø1

3/4"-14NPT-FIP

2 13/16"

(72mm)

2 11/16"~3 1/2"

(69mm~89mm)

Specific Features: Submitted Model No.:

Danze, Inc., 2500 Internationale Parkway, Woodridge, IL 60517, USA WWW.DANZE.COM

SD155000BT/03-08.01
