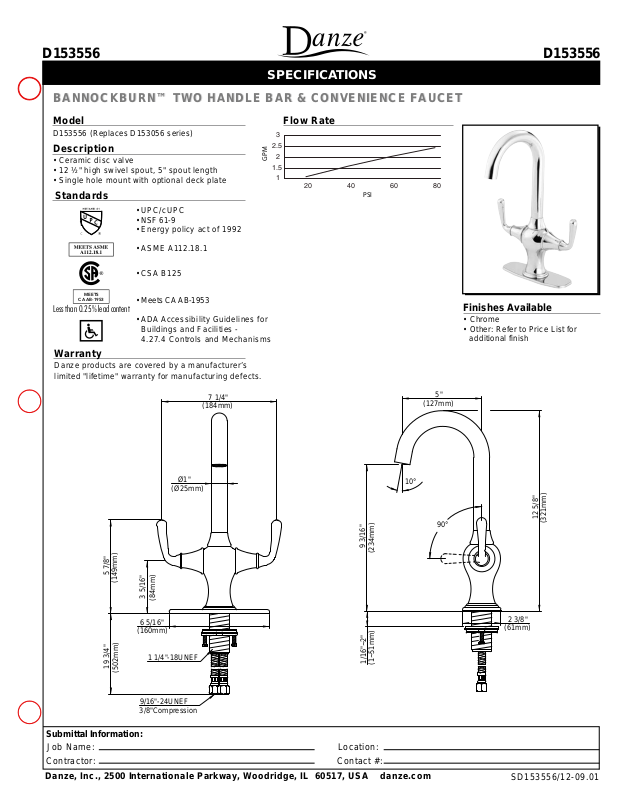

D153556 D153556
SPECIFICATIONS
BANNOCKBURN™ TWO HANDLE BAR & CONVENIENCE FAUCET
BANNOCKBURN™ TWO HANDLE BAR & CONVENIENCE FAUCET
Model
D153556 (Replaces D153056 series)
Description
• Ceramic disc valve
• 12 ½" high swivel spout, 5" spout length
• Single hole mount with optional deck plate
Standards
• UPC/cUPC
• NSF 61-9
• Energy policy act of 1992
• ASME A112.18.1
• CSA B125
MEETS
CA AB-1953
• Meets CA AB-1953
Less than 0.25% lead content
• ADA Accessibility Guidelines for
Buildings and Facilities -
4.27.4 Controls and Mechanisms
Warranty
Danze products are covered by a manufacturer’s
limited "lifetime" warranty for manufacturing defects.
7 1/4"
(184mm)
Flow Rate
3
2.5
2
GPM
1.5
1
20 40 60 80
PSI
Finishes Available
• Chrome
• Other: Refer to Price List for
additional finish
5"
(127mm)
5 7/8"
(149mm)
19 3/4"
(502mm)
Ø1"
(Ø25mm)
3 5/16"
(84mm)
6 5/16"
(160mm)
1 1/4"-18UNEF
9/16"-24UNEF
3/8"Compression
9 3/16"
(234mm)
1/16"~2"
(1~51mm)
10°
Submittal Information:
Job Name: Location:
Contractor: Contact #:
Danze, Inc., 2500 Internationale Parkway, Woodridge, IL 60517, USA danze.com
90°
12 5/8"
(321mm)
2 3/8"
(61mm)
SD153556/12-09.01
