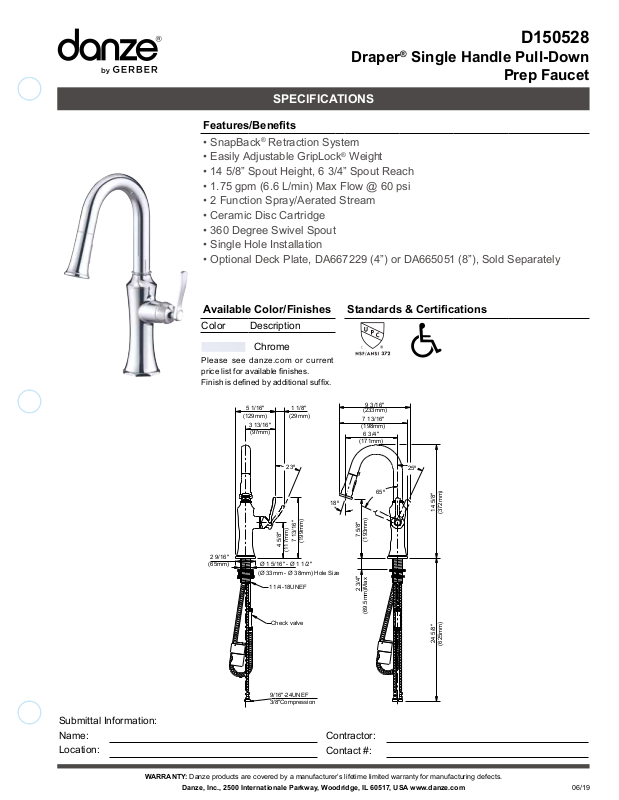

Danze D150528 Specs

D150528

Draper® Single Handle Pull-Down

Prep Faucet

SPECIFICATIONS

Features/Benets

napBack® Retraction System

• S

• Easily Adjustable GripLock® Weight

• 14 5/8” Spout Height, 6 3/4” Spout Reach

• 1.75 gpm (6.6 L/min) Max Flow @ 60 psi

• 2 Function Spray/Aerated Stream

• Ceramic Disc Cartridge

• 360 Degree Swivel Spout

• Single Hole Installation

• Optional Deck Plate, DA667229 (4”) or DA665051 (8”), Sold Separately

Available Color/Finishes Standards & Certications

Color Description

Chrome

Please see danze.com or current

price list for available nishes.
Finish is dened by additional sufx.

2 9/16"

(65mm)

5 1/16"

(129mm)

3 13/16"

(97mm)

Ø 1 5/16" - Ø 1 1/2"

(Ø 33mm - Ø 38mm) Hole Size

1 1/8"

(29mm)

23º

7 13/16"

4 5/8"

(117mm)

1 1/4-18UNEF

Check valve

(199mm)

18º

9 3/16"

(233mm)

7 13/16"

(198mm)

6 3/4"

(171mm)

7 5/8"

(193mm)

2 3/4"

(69.5mm)Max

65º

25º

14 5/8"

(372mm)

24 5/8"

(625mm)

Submittal Information:
Name:
Location:

WARRANTY: Danze products are covered by a manufacturer’s lifetime limited warranty for manufacturing defects.

9/16"-24UNEF
3/8"Compression

Contractor:
Contact #:

Danze, Inc., 2500 Internationale Parkway, Woodridge, IL 60517, USA www.danze.com

06/19
