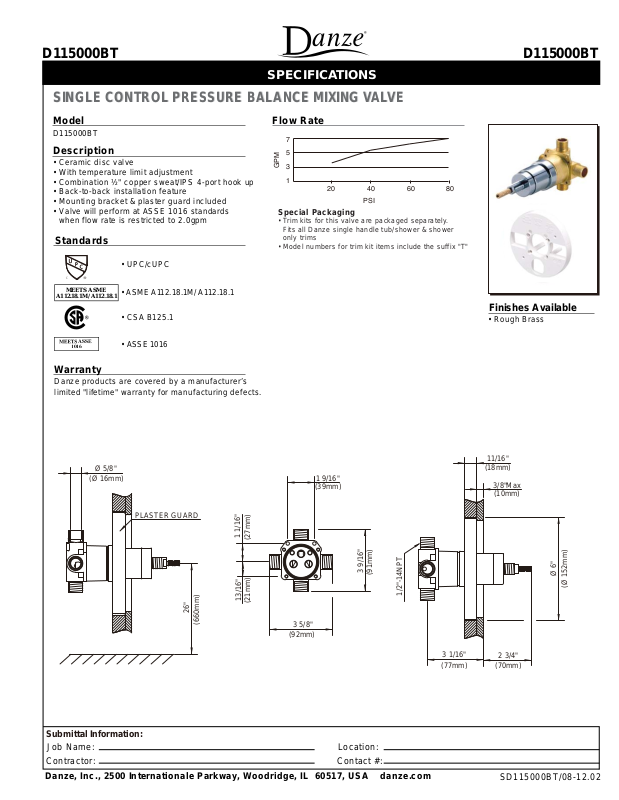

D115000BT D115000BT

SPECIFICATIONS

SINGLE CONTROL PRESSURE BALANCE MIXING VALVE

SINGLE CONTROL PRESSURE BALANCE MIXING VALVE

Model

D115000BT

Description

• Ceramic disc valve

• With temperature limit adjustment

• Combination ½" copper sweat/IPS 4-port hook up

• Back-to-back installation feature

• Mounting bracket & plaster guard included

• Valve will perform at ASSE 1016 standards
when flow rate is restricted to 2.0gpm

Standards

• UPC/cUPC

MEETS ASME

A112.18.1M/ A112.18.1

ASSE

1016

• ASME A112.18.1M/ A112.18.1

• CSA B125. 1

• ASSE 1016

Warranty

Danze products are covered by a manufacturer’s
limited "lifetime" warranty for manufacturing defects.

Flow Rate

7

5

GPM

3

1

Special Packaging

• Trim kits for this valve are packaged separately.
Fits all Danze single handle tub/shower & shower
only trims

• Model numbers for trim kit items include the suffix "T"

20 40 60 80

PSI

Finishes Available

• Rough Brass

Ø 5/8"

(Ø 16mm)

PLASTER GUARD

26"

(660mm)

1 1/16"

(27mm)

13/16"

(21mm)

3 5/8"

(92mm)

1 9/16"
(39mm)

3 9/16"

(91mm)

1/2"-14NPT

Submittal Information:

Job Name: Location:

Contractor: Contact #:

Danze, Inc., 2500 Internationale Parkway, Woodridge, IL 60517, USA danze.com

3 1/16"

(77mm)

11/16"

(18mm)

3/8"Max
(10mm)

Ø 6"

(Ø 152mm)

2 3/4"

(70mm)

SD115000BT/08-12.02
