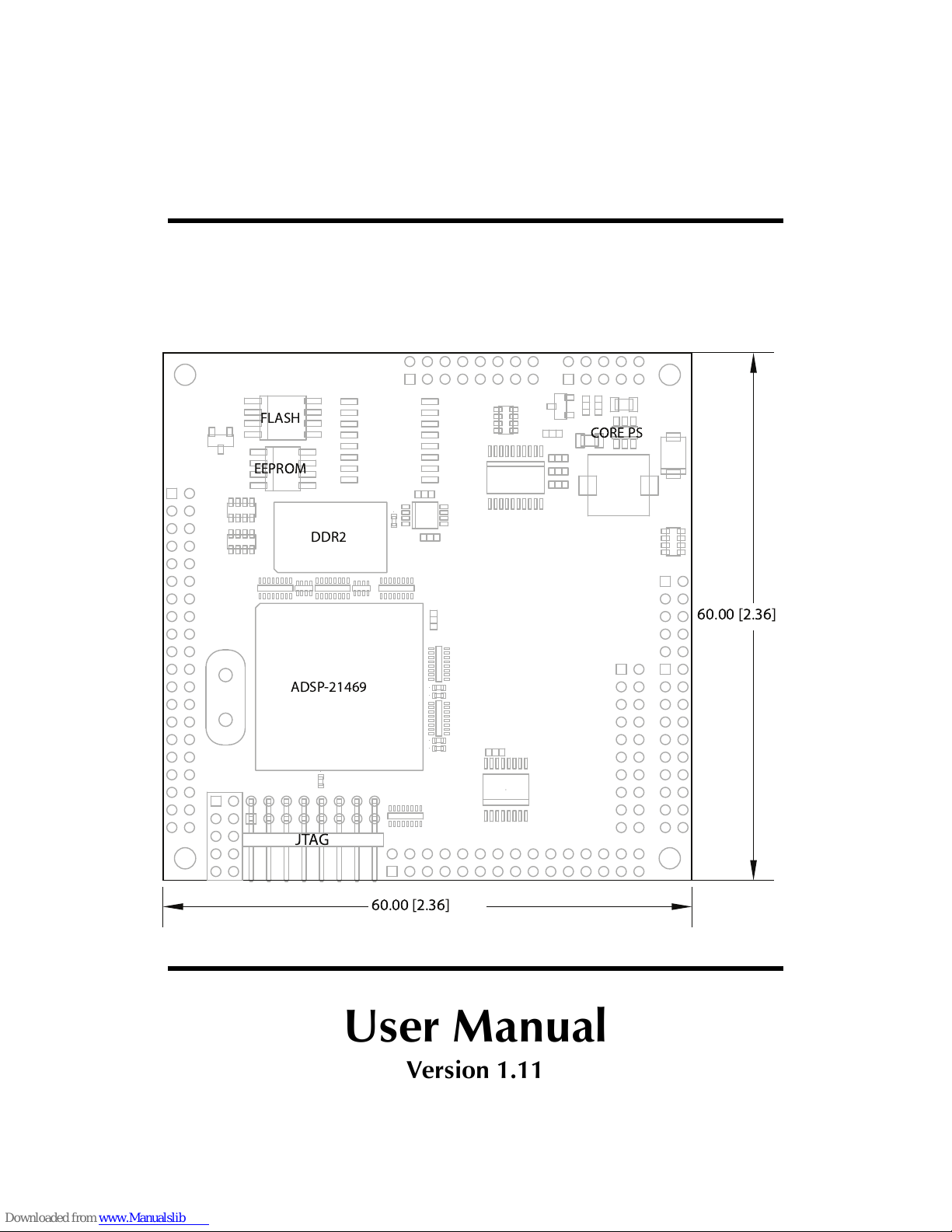

Danville Signal Processing, Inc.
dspblok™ 21469
User Manual
Version 1.11
Danville Signal Processing, Inc.
dspblok™ 21469
User Manual
Copyright © 2009-2012 Danville Signal Processing, Inc. All rights reserved. Printed in the USA.
Under the copyright laws, this manual may not be reproduced in any form without prior written permission
from Danville Signal Processing, Inc.
Danville Signal Processing, Inc. strives to deliver the best product to our customers. As part of this goal, we
are constantly trying to improve our products. Danville Signal Processing, Inc., therefore, reserves the right to
make changes to product specification or documentation without prior notice. Updated operating manuals
and product specification sheets are available at our website for downloading.
This manual may contain errors, omissions or “typo’s”. Please send your comments, suggestions and
corrections to:
Danville Signal Processing, Inc.
38570 100th Avenue
Cannon Falls, MN 55009-5534
Trademark Notice
dspblok, dspstak, dspFlash and dspBootloader are trademarks of Danville Signal Processing, Inc.
VisualDSP++, CrossCore, SHARC and Blackfin are trademarks of Analog Devices, Inc.
Contact Information
Danville Signal Processing, Inc.
38570 100th Avenue
Cannon Falls, MN 55009
E-mail: dsp@danvillesignal.com
Web Site: http://www.danvillesignal.com
Voice: 507-263-5854
Fax: 877-230-5629
dspblok™ 21469 User Manual Page B
Table of Contents
Overview..................................................................................................................1
dspblok™ Development Boards ................................................................................................................ 1
dspblok™ 21469....................................................................................................................................... 1
Intended Audience ................................................................................................................................... 2
Getting Started.......................................................................................................................................... 2
Hardware Overview .................................................................................................6
Power Supply............................................................................................................................................ 6
Memory.................................................................................................................................................... 8
DAI & DPI ................................................................................................................................................ 8
Data Bus................................................................................................................................................... 8
Clocks....................................................................................................................................................... 9
Link Ports.................................................................................................................................................. 9
Multiprocessor Configurations................................................................................................................... 9
Reset......................................................................................................................................................... 9
Signal Levels ............................................................................................................................................. 9
Boot Options ............................................................................................................................................ 9
Connections ...........................................................................................................10
Connector Recommendations & Notes ...................................................................12
Connector Specification.......................................................................................................................... 12
JH1 – JTAG ............................................................................................................................................. 12
JH2 – DAI, DPI, IO ................................................................................................................................. 12
JH3 – Configuration ................................................................................................................................ 12
JH4 – Power & Clock.............................................................................................................................. 12
JH5, JH7 – Data Bus ............................................................................................................................... 13
JH6 – Link Port ....................................................................................................................................... 13
JH8 – dspBootloader Mode..................................................................................................................... 13
Mechanical Dimensions (dspblok 21469)................................................................14
Mechanical Dimensions (dspblok 21469+ICE)........................................................15
Schematic...............................................................................................................15
Product Warranty ...................................................................................................16
RoHS & WEEE Compliance.....................................................................................17
dspblok™ 21469 User Manual Page C
Overview
Danville Signal's dspblok™ family of products delivers the power of digital signal processing in a small 60mm
x 60mm form factor. Connections are brought out to standard 2mm dual row headers. The dspblok reduces
development costs, risk and time.
Danville’s dspblok DSP function modules are often incorporated directly into larger custom embedded
systems. By taking advantage of pretested signal processing modules, pc board layouts become simpler and
projects are completed quickly and cost effectively. Danville’s dspblok DSP Engines are largely pin
compatible. This allows your application to take advantages of new processor technology and extended
features in the future.
You can also create small standalone embedded applications by combining a dspblok DSP function module
with other dspblok modules. Embedded dspblok systems can be created by using a dspblok power supply
such as our dspblok ps-uart, and an I/O module, such as one of our dspblok ad96k family of audio data
converter boards. Each board is stacked via 2mm headers to create a low profile configuration where space is
at a premium. We also have combination power supply- I/O boards such as our dspblok a9238/48 highspeed ADC boards for SDR applications.
Danville dspblok DSP Engines are the driving force behind many of Danville’s standalone products such as
our dspstak, dsprak, dspMusik and dspInstrument product lines.
dspblok™ Development Boards
All dspblok production modules have a companion developer’s version, which includes an Analog Devices’
EZ-KIT style debugger. These boards are physically larger (60mm x 115mm) to accommodate the debugger
but have a matching footprint to our production modules (60mm x 60mm). Once you have developed and
debugged your software, you can replace the debugger module (ICE version) with a lower cost, smaller
production module.
The dspblok “with ICE” versions include the free Visual DSP++ KIT license and are supported by the FULL
version. Depending on the complexity of your application, you may be able to create and support your
application without ever needing to purchase additional development tools. You can also use Analog
Devices’ CrossCore Embedded Studio.
dspblok™ 21469
The dspblok™ 21469 is a highly integrated DSP module that incorporates an Analog Devices’ ADSP-21469
SHARC DSP operating at 450 MHz with flash, EEProm and DDR2 SDRAM memory. An onboard switching
power supply supports the core voltage requirements of the DSP so that only 3.3V is required to power the
dspblok. The ADSP-21469 peripherals include SPORTS (8), SPI(2), TWI (I2C), UART, timers, PWMs, JTAG,
an 8 bit wide data bus and LINK ports(2). All of these peripherals are available via 2mm headers on the
dspblok.
dspblok™ 21469 User Manual Page 1
Intended Audience
The dspblok 21469 requires an understanding of the Analog Devices’ ADSP-21469 and the associated tools
used for development. If the dspblok 21469 is going to be integrated into a larger hardware design, then it is
also assumed that the user is familiar with basic hardware design. In most cases, systems integrators, DSP
programmers and software engineers can create DSP embedded systems using our embedded dspblok
systems (or dspstak family) without the need for additional hardware design and manufacturing.
If you do not have a background with these skills, you may want to check out our web site
(http://www.danvillesignal.com) as well as the Analog Devices web site for links to useful references. Danville
engineers are also available to discuss your application.
Getting Started
Danville’s customer base is quite diverse. Our customers range from embedded systems hardware designers
to system integrators looking for complete turnkey solutions. We often work with embedded systems
engineers who may not have specific expertise in digital signal processing.
Regardless of your background, you will need the right tools. This means either Visual DSP++5.0 for SHARC
or CrossCore Embedded Studio for the software development along with either a dspblok 21469 with ICE or
an external ADI emulator.
Visual DSP++5.0 versus CrossCore Embedded Studio:
VisualDSP++ has been ADI’s DSP software environment for many years. In many ways, it has a similar look
and feel to Microsoft’s’ Visual Studio Tools. There are separate licenses for SHARC and Blackfin so customers
that need to support both families often need to buy two full licenses. In our view, the full version of
VisualDSP++ is expensive, about $3500 US. However, once you own VisualDSP++, you can continue
updating for free. Version 1.0 customers can now be using Version 5.0 without incurring any maintenance
charges. There are also KIT and TESTDRIVE licenses, which are free.
CrossCore Embedded Studio is ADI’s replacement for VisualDSP++. Unlike VDSP++, it is Eclipse based. It
has a much lower entry cost: $1000 US. It will likely have upgrade costs as new processors are added. This
may not matter at all if you are not migrating to newer DSPs. CrossCore supports both Blackfin and SHARC
DSP with a single license. ADI offers a free 90 day TESTDRIVE version.
dspblok™ 21469 User Manual Page 2
Emulation Options:
dspblok 21469+ICE:
Start your development with a dspblok 21469+ICE module. The “+ICE” version incorporates an ADI
Standalone Debug Agent. The debug agent is a USB bus powered device. It operates at full speed
(12Mb/s).
The dspblok 21469+ICE has the same footprint as a production dspblok except that the board is
much larger. This is necessary to fit the debug agent.
One of the advantages of the dspblok 21469+ICE is that it is supported by the VisualDSP++ KIT
license.
The KIT (free) version starts out as a FULL (TESTDRIVE) version but after 90 days requires that the
dspblok 21469+ICE is connected via the ADI debug agent. It will not connect to an ADI emulator,
simulator or support another SHARC DSP. The linker restricts a user program to 27306 words of
memory for code space with no restrictions for data space. The good news is that it can be used to
create bootable images (loader files) that can be used with the production dspblok 21469.
Depending on your situation, this may be all that you need.
You can also use the dspblok 21469+ICE with CrossCore Embedded Studio but you will need to buy
a license after 90 days.
dspblok 21469 with an external ADI ICE :
Start your development with a dspblok 21469 module. In this case, you will want to connect to the
dspblok 21469via an external Analog Devices emulator. Analog Devices offers two versions the USBICE and the HPUSB-ICE. We prefer the faster HPUSB-ICE, which is up to 10 times faster and also
supports background telemetry. You will also need a Danville JTAG adapter kit (P/N A.08153),
which converts the Danville JTAG 2mm header to the larger ADI JTAG connector.
You will also need a FULL VisualDSP++ 5.0 or CrossCore Embedded Studio license after 90 days.
Development Boards:
If you are designing your own companion board, we strongly recommend that you use one of our existing
I/O boards and/or power supply boards as an initial development platform. Depending on your situation, this
could be a dspblok dev board, dspstak system, dspInstrument, or a combination of dspblok I/O and power
supply modules. Any of these components will give you a solid footing for development before you
incorporate the dspblok into your own target.
If you are laying out your own pc board, we can provide you with PCB footprints and schematic symbols
(Gerber & Altium Designer) to help you avoid simple mistakes.
Regardless of your situation, Danville engineers are available to help you with your application. We may
have solutions that are not yet on our web site. We also provide many solutions that are specifically tailored
to customer needs. Contact us about turnkey solutions.
dspblok™ 21469 User Manual Page 3
We recommend that you have the documents:
• Danville Signal Designing for Compatibility Manual
• Danville Signal dspBootloader Manual
• Analog Devices ADSP-21467/ADSP-21469 SHARC Processor Data Sheet
• Analog Devices ADSP-214xx SHARC Processor Hardware Reference Manual
• Analog Devices SHARC Processor Programming Reference Manual
• Analog Devices VisualDSP++ 5.0 Manual Set
We recommend that you have the tools:
• Analog Devices VisualDSP++ 5.0 for SHARC or CrossCore Embedded Studio
• Emulator or Debug Agent (one of the following)
• Analog Devices HPUSB-ICE and Danville JTAG Adapter P/N A.08153
• Danville dspblok 21469+ICE
Optional:
• Danville dspFlash Blackfin & SHARC Programmer
Our website (www.danvillesignal.com) has downloads and links to these tools and documents.
dspblok™ 21469 User Manual Page 4
EEPROM
FLASH
DDR2
ADSP-21469
CORE PS
60.00 [2.36]
115.00 [4.53]
Analog Devices' Debug Agent
EEPROM
FLASH
JTAG
60.00 [2.36]
60.00 [2.36]
DDR2
ADSP-21469
CORE PS
The dspblok 21469+ICE includes the following
items:
Hardware:
• dspblok 21469+ICE Module
• USB Cable
Software:
• VisualDSP++ 5.0 for SHARC (KIT
license) CD
Documents (CD):
• This Manual
• CAD footprints (Gerber & Altium
formats)
• Schematics
• Sample Programs
• Debug Agent Driver
The dspblok 21469 includes the following:
Hardware:
• dspblok 21469 Module
Documents (CD):
• This Manual
• CAD footprints (Gerber & Altium
formats)
• Schematics
• Sample Programs
dspblok™ 21469 User Manual Page 5
Hardware Overview
EEPROM
FLASH
JTAG
60.00 [2.36]
60.00 [2.36]
DDR2
ADSP-21469
CORE PS

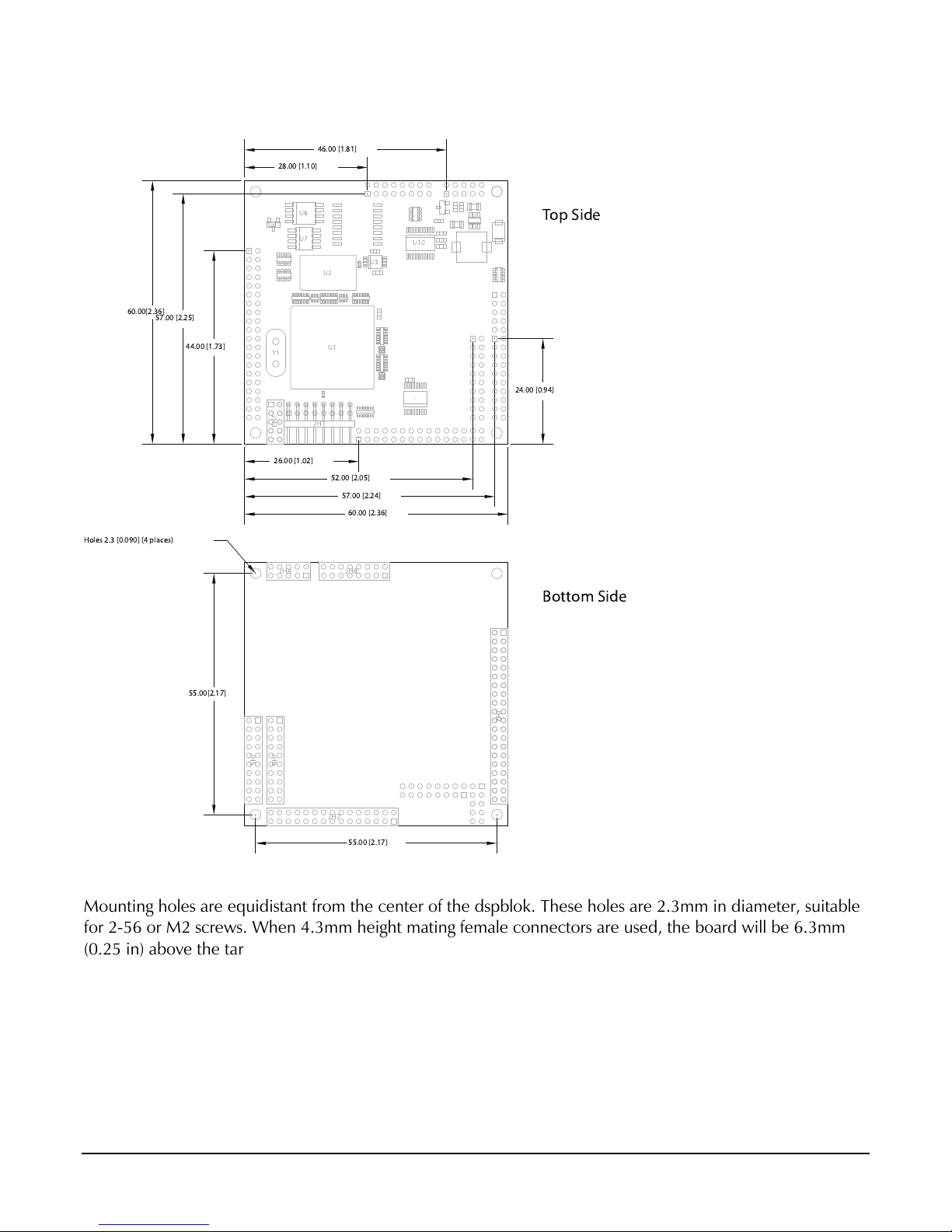

The dspblok 21469 is a small module measuring 60mm x 60mm (2.36” x 2.36”). JH2 and JH4 – JH8 are
2mm male headers that are installed on the bottom side of the pc assembly. JH1 and JH3 are mounted on
the top side of the pc assembly. If mating 2mm female headers (4.3mm ht.) are used, the pc assembly will
be about ¼” above the mating pc board. This allows standard (0.250”) standoffs to be used with the corner
mounting holes if desired. The hole size is 2.3mm – suitable for 2-56 or M2 screws.
• JH1 – JTAG (connects to external ICE)
• JH2 – DAI, DPI, I/O, SPI & System
• JH3 – Clock & Boot Configuration)
• JH4 – Power & Ext Clock
• JH5, JH7 – Data Bus
• JH6 – Link Ports
• JH8 – dspBootloader Mode
Power Supply
There are two power supply connections to the dspblok: DSP core (Vdd) and DSP I/O and Memory
(Vd+3.3). The DSP core supply may range from 3.3V to 5V. This is the input to an on-board switching
power supply that supplies 1.1V to the ADSP-21469. DO NOT use a higher voltage supply for the core
supply input (JH4-Vdd).
A single 3.3V supply is all that is required to power the dspblok 21469, but in some cases, a 5V supply may
be more convenient. The DSP I/O and Memory supply must be 3.3V.
For example, a product may already have a switching supply that converts directly to 3.3V. In this case, it
may be desirable to supply both the DSP core and the dspblok Vd+3.3 (I/O) from this supply.
Alternatively, a product might have a 5V supply (perhaps from an external power supply module). A simple
LDO fixed regulator could be used to create 3.3V from this supply. Most high-speed devices, including the
ADSP-21469, draw most of their power from their core supplies. In this scenario, it makes no sense to
power the dspblok core with 3.3V since the LDO would be dissipating the excess voltage as heat. If the I/O
requirements are modest, the power dissipation in the LDO might not be significant
Power consumption is largely a function of the temperature of (leakage current) of the ADSP-21469. It is also
a function of the core clock and the computation tasks that are being executed on the DSP. The highest
consumption occurs when the DSP is performing continuous floating point operations at maximum core
clock (450MHz) and at maximum temperature. Accessing external I/O such as the DRAM or other
peripherals consumes less power in the benchmarks that we have performed. The following table shows
power consumption measurements for a typical dspblok 21469 operating in a variety of configurations all at
dspblok™ 21469 User Manual Page 6
room temperature. The Analog Devices’ ADSP-21467/ADSP-21469 SHARC Processor Data Sheet has an
excellent section on estimating power consumption of the DSP. Please note that the measurements do not
take into account the increase static current as temperature rises.
Typical Power Consumption at Room Temperature
Core
Clock
Vdd = 3.3V & Vd+3.3
mA mA mA mW mW mW
100MHz 145mA 143mA 143mA 479mW 472mW 472mW
200MHz 150mA 148mA 147mA 568mW 554mW 554mW
400MHz 214mA 209mA 208mA 769mW 746mW 746mW
450MHz 231mA 225mA 225mA 822mW 795mW 795mW
Vdd = 5.0V
mA mA mA mW mW mW
Vdd = 5V Core Supply Only
100MHz 84mA 84mA 84mA 280mW 275mW 275mW
200MHz 101mA 108mA 101mA 365mW 355mW 355mW
400MHz 164mA 168mA 162mA 525mW 510mW 510mW
450MHz 178mA 173mA 174mA 565mW 545mW 545mW
Vd+3.3 Supply Only
100MHz 48mA 48mA 48mA 168mW 172mW 168mW
200MHz 54mA 54mA 54mA 185mW 185mW 185mW
400MHz 65mA 64mA 68mA 215mW 215mW 218mW
450MHz 67mA 67mA 67mA 224mW 224mW 224mW
Composite Vdd & Vd+3.3
100MHz 448mW 447mW 443mW
200MHz 550mW 540mW 537mW
400MHz 740mW 725mW 728mW
450MHz 789mW 769mW 769mW
Continuous
floating point
operations
Mixed
floating point
& DAI
operations
Mixed
floating point
& DDR2
operations
Continuous
floating point
operations
Mixed
floating point
& DAI
operations
Mixed
floating point
& DDR2
operations
dspblok™ 21469 User Manual Page 7
Memory
The ADSP-21469 includes an on board DDR2 DRAM controller. Unlike earlier SHARC processors, the
DRAM interface is largely independent of the external data bus. On the dspblok 21469, the only overlap is
MS0#, which is not available because its address is assigned to DDR2_CS#.
The dspblok 21469 uses a 1Gb (64M x 16) DDR2 DRAM. DDR2 memory is much faster and typically much
larger than older SDRAM. PC board layout is non trivial. The dedicated DDR2 interface of the ADSP-21469
has been carefully laid out with respect to trace length, signal integrity, and bus isolation so that the DDR2
operates reliably at maximum speed. The CD includes examples of DDR2 register configuration code.
A 16Mbit serial flash memory may be used to bootload the DSP. There is a pre-installed bootloader program
that resides in the flash. This program accepts standard ADI loader files (SPI, slave, binary, 8 bit) and can be
uploaded with a Danville dspblok development board, a dspstak 21469 or any board that includes a USB
connector to JH8. If you want to manage the flash memory yourself, you can overwrite the internal
bootloader via the JTAG port. In this case, the Danville dspFlash Blackfin & SHARC Programmer is available
for fast production programming.
64kbits of EEProm memory is also available as byte addressable user memory. For example, you might store
serial numbers, build versions or calibration values in this space.
There are other Flash/EEProm combinations available via special order. Contact Danville if you have special
memory requirement needs.
DAI & DPI
The ADSP-21469 has 20 DAI lines and 14 DPI lines. Collectively these can be thought of as two sets of
crossbar switches that connect to a wealth of peripherals. The dspblok 21469 maintains the flexibility of the
DAI and DPI by bringing out all 20 DAI and 12 of 14 DPI lines to external connections.
The DAI is completely unencumbered and can be assigned to I/O in an arbitrary manner. The DPI is slightly
restricted in that the primary SPI interface is assigned to DPI1 (MOSI), DPI2 (MISO), DPI3 (SCK), DPI5 (Flash
SS) and DPI6 (EE SS). With the exception of DPI6, these connections are necessary to support SPI master
booting. The dspblok 21469 may also be booted from an external host using SPI slave mode. In this case
DPI4 is also used as the SPIDS# line.
Data Bus
The dspblok 21469 brings out the complete asynchronous data bus including all address lines with the
exception of MS0# which would be in conflict with the DDR2 chip select.
The upper portion of MS1# is used for on-board peripherals. The lower ¾ of the address space is available.
MS2# and MS3# can also be used as FLAG2 and FLAG3, respectively. They are configured together so
MS1# might be used for the external data bus and FLAG2 & FLAG3 for other purposes.
dspblok™ 21469 User Manual Page 8
Clocks
The dspblok 21469 supports both internal and external clocking options. You can add a standard HC49 style
crystal to the board for internal clocking or you can supply an external clock. The configuration header (JH3)
allows any ADSP-21469 power-up clock configuration to be set.
Link Ports
The dspblok 21469 has two link ports available that can be used to interface to additional dspblok 21469
boards or may be used to connect to other external devices such as FPGAs.
Multiprocessor Configurations
The dspblok 21469 may be used as a coprocessor in a larger system. Perhaps the easiest way to
communicate with an external host to configure the secondary SPI port as a slave. The primary SPI port
remains configured as an SPI master so that it can manage local resources such as flash and EE memory as
well as other I/O devices.
Certainly, the Link Ports are available for multiprocessor systems. They are ideal where fast interprocessor
communications are required. Since clocks and data are always driven from the same source, clock skew is
minimized.
You can also use SPORTs for interprocessor communication. This can be a good approach for Blackfin –
SHARC combinations. It also works well for multichannel applications where you might use several dspbloks
to provide front end signal processing and combine into a consolidated TDM data stream. The results could
be routed to a central processor that manages the whole system and communicates to the outside world.
Reset
On power up, the dspblok 21469 is automatically held in reset until the 3.3V power supply is stable.
RESET# is active low and open drain. This means that an external device(s) may also reset the dspblok by
pulling the reset line low. External devices should not drive RESET# high since this can cause contention with
the on-board reset circuit. The external reset circuit is connected in a wired-OR configuration using an active
low – open drain configuration. A 74LVC125 or an open collector/drain transistor circuit are possibilities. You
do not need an additional pull up resistor.
Signal Levels
The dspblok 21469 uses standard 3.3V logic levels. These levels have become the defacto operating standard
for many years now. DO NOT use 5V logic when interfacing to the dspblok. The inputs are not 5V tolerant.
Most external devices requiring 5V TTL levels can be safely driven by the dspblok. If you have questions
concerning interfacing external devices, please contact Danville for suggestions.
Boot Options
All ADSP-21469 boot options are available via the configuration and programming header (JH3). These
include Master SPI (flash memory), Slave SPI (external host) or Link Port. The boot mode pins are pulled
passively to create a default boot mode of SPI Master.
dspblok™ 21469 User Manual Page 9
Connections
Pin Description Pin Description Pin Description
JH1 JTAG JH2 DAI, DPI, IO JH3 Configuration
1 EMUSEL 1 GND 1 GND
Note 4
2 EMU 2 DPI8/IO0/SS1#
Note 1
3 Key (No Pin)
Note 2
3 DPI4/IO1/SS2# 3 Vd+3.3
4 GND 4 DPI13/IO2/SS3#
5 Vd+3.3 Mon 5 DPI14/IO3/SS4# 5 Vd+3.3
6 TMS 6 FLG0/IO4/SS5#
7 GND 7 DPI7/SS0# 7 Vd+3.3
8 TCK 8 DPI11/I2C_SDA
9 GND 9 DPI12/I2C_SCL 9 GND
10 TRST# 10 DPI9/UART_TX
11 GND 11 DPI10/UART_RX
12 TDI 12 FLG1 JH4 Power
Note 3
13 GND
13 Reserved
14 TDO 14 DPI1/MOSI 1 GND
15 Vd+3.3 15 DPI3/SCK 2 Ext Clk
16 Vd+3.3 16 DPI2/MISO
JH8 dspBootloader
17 RESET# 4 DSP ClkOut
Note 3
18 Reserved 5 Vd+3.3
19 DAI1 6 Vd+3.3
1 NC 20 DAI2
2 NC 21 DAI3
3 Reserved 22 DAI4
4 NC 23 DAI5 10 GND
5 GND 24 DAI6
6 GND 25 DAI7
7 Reserved 26 DAI8
8 Reserved 27 DAI9
9 GND 28 DAI10
10 GND 29 DAI11
11 Reserved 30 DAI12
12 GND 31 DAI13
13 USER MODE 1 32 DAI14
14 GND 33 DAI15
15 USER MODE 0 34 DAI16
16 GND 35 DAI17
36 DAI18
37 DAI19
38 DAI20
39 GND
2 BOOTCFG0
Note 4
4 BOOTCFG1
Note 4
6 BOOTCFG2
Note 5
8 CLKCFG0
Note 5
10 CLKCFG1
Note 6
Note 7
Note 7
Note 8
3 Vd+1.1
7 Vdd (3.3V or 5V)
8 Vdd (3.3V or 5V)
9 PS Sync
dspblok™ 21469 User Manual Page 10
40 GND
Pin Description Pin Description Pin Description
JH5 Data Bus JH7 Address Bus JH6 Link Port
Note 9
Note 9
Note 9
Note 9
Note 9
Note 9
Note 9
Note 9
Note 9
1 NC
2 NC
3 NC
4 NC
5 NC
6 NC
7 NC
8 NC
9 D7
10 D6
Note 9
Note 9
Note 9
1 NC 1 L0DAT0
2 NC 2 L0DAT1
3 NC 3 L0DAT2
4 A23 4 L0DAT3
5 A22
6 A21
7 A20
8 A19
9 A18
10 A17
5 L0DAT4
6 L0DAT5
7 L0DAT6
8 L0DAT7
9 LCLK0
10 LACK0
11 D5 11 A16 11 L1DAT0
12 D4 12 A15 12 L1DAT1
13 D3 13 A14 13 L1DAT2
14 D2 14 A13 14 L1DAT3
15 D1 15 A12 15 L1DAT4
16 D0 16 A11 16 L1DAT5
17 RD# 17 A10 17 L1DAT6
18 WR# 18 A9 18 L1DAT7
19 ACK 19 A8 19 LCLK1
Note 8
20 NC 20 A7
21 A6
24 A3
25 A2
26 A1
27 A0
28 MS1#
29 MS2#
30 MS3#
22 A5
23 A4
20 LACK1
Note 1: Mating Plug is plugged to prevent misalignment.
Note 2: DPI4 also functions as SPIDS# in SPI slave booting applications.
Note 3: Leave Unconnected.
Note 4: Boot Configuration is 001 by default (SPI Master Booting).
Note 5: Clock Configuration is 10 by default (16 x ClkIn), generally reconfigured in program code.
Note 6: Vd+1.1 is for power supply monitor only (DSP Core supply).
Note 7: Vdd is externally supplied: 3.3 to 5V (Vin for DSP Core Switching supply). Both connections must be
the same voltage.
Note 8: Leave open or supply 1.4 to 1.6M clock, typically data converter MCLK/N
Note 9: Not Connected, may be used for extended features by other dspbloks.
dspblok™ 21469 User Manual Page 11
Connector Recommendations & Notes
Connector Specification
All dspblok connectors are gold plated 2mm dual row headers. Male connectors are generally mounted on
the bottom side of the dspblok pc assembly. The exceptions are JH3 & JH1, which are not intended to mate
to a motherboard. Mating female connectors are included for your target pc board. The plastic base of each
male connector is 2mm. The height of the female headers is 4.3mm. This means that the inserted combined
height of the two connectors is 6.3mm or approximately ¼ inch. Standard standoffs may be used to secure
the dspblok to the target pc board. Mounting holes are 2.3mm dia. to accommodate a 2-56 or M2 screws or
standoffs.
JH1 – JTAG
This connector is mounted on the top side of the dspblok. A 2mm right angle header is used instead of the
larger ADI JTAG header. The connections on the JTAG header correspond with the connections on an ADI
JTAG header. In addition, Vd+3.3 is also available. This addition allows an active buffer circuit to be added
for JTAG chaining applications. Danville has an ADI JTAG adapter available (P/N A.08153).
The dspblok 21469+ICE omits JH1 since the debugger is on-board. If you want to use an external emulator
or the Danville dspFlash Blackfin & SHARC Programmer, you may remove the ADI Debugger and use the
JTAG connection provided below the debugger.
JH2 – DAI, DPI, IO
This connector is mounted on the bottom side of the dspblok. The DAI lines are all uncommitted by the
dspblok. With the exception of the SPI lines, the DPI can be freely assigned. The alternate names in the table
are dspstak I/O conventions. If you are using a dspstak for development, it may be prudent to following these
usage conventions.
JH3 – Configuration
This connector is mounted on the top side of the dspblok. It provides direct access to the ADSP-21469 clock
mode and boot mode configuration pins. In most cases, you should leave all the connections open. Use
shorting jumpers if you want to change the configuration. Note that each shorting jumper will cause the
corresponding mode pin to deviate from the pin state of the default configuration. This means that some pins
are pulled high and others low.
JH4 – Power & Clock
This connector is mounted on the bottom side of the dspblok. This is the main power feed to the dspblok,
Vdd is the input to the core switching supply. Both Vdd pins should be connected to together and fed with
either 5V or 3.3V. Likewise, Vd+3.3 should be connected together and fed with 3.3V. Vd+1.1 is current
limited by a large resistor. Its purpose is for diagnostics.
dspblok™ 21469 User Manual Page 12
JH5, JH7 – Data Bus
The data bus is split to two separate connectors, one for address and the other for data. The ADSP-21469
has an 8 bit data bus. Earlier dspbloks based on the ADSP-21369 supported a 32 bit data bus. This was
needed primarily to support wide SDRAM interfacing. The original JH6 connection on the dspblok 21369zx
board was used for the extended data bus. This is also why there are unused pins on JH5. If you are adapting
a dspblok 21369zx design to support the dspblok 21469, you should verify that these changes will not
impact your design. In most cases, this will not be an issue.
The address bus is also organized so that the MS# lines and the lower address lines are grouped together.
This allows a smaller receptacle to be used when the whole address space is not required.
JH6 – Link Port
The Link Port connections include 33 ohm series terminators as well as 10K pulldowns for LCLKx and
LACKx. The series terminators will have minimal effect when located on the receive side of a link port
connection, but are required on the driving end of a link port connection.
If you are connecting another non-dspblok device to a link port, make sure your circuit includes series
terminators at the driving end of any connection. These terminators are often available internally in FPGAs.
You should not supply additional terminators on the dspblok side of a connection.
Link ports circuits are fast so careful attention to pcb layout and/or cabling is essential. Consult a Danville
engineer if you have questions about this topic.
JH8 – dspBootloader Mode
JH8 supports the Danville dspBootloader. The dspBootloader allows you to upload your application and any
supporting files via a variety of different ports. If the connections are left open, the dspBootloader will
operate in its default setting. We recommend that you bring the mode pins out to an external configuration
header or a dip switch.
You should review the dspBootloader manual for detailed information.
dspblok™ 21469 User Manual Page 13
Mechanical Dimensions (dspblok 21469)
JH2
60.00[2.36]
55.00[2.17]
Holes 2.3 [0.090] (4 places)
Top Side
Bottom Side
55.00 [2.17]
57.00 [2.24]
60.00 [2.36]
24.00 [0.94]
U7
U6
JH1
Y1
U4
U2
U1
U3
U10
JH2
JH7
JH5
JH4
JH3
JH8
26.00 [1.02]
52.00 [2.05]
28.00 [1.10]
46.00 [1.81]
57.00 [2.25]
44.00 [1.73]
JH6
Mounting holes are equidistant from the center of the dspblok. These holes are 2.3mm in diameter, suitable
for 2-56 or M2 screws. When 4.3mm height mating female connectors are used, the board will be 6.3mm
(0.25 in) above the target board, therefore 0.250 standoffs may be used.
Component height above the board is 6mm (0.236 in). The board is 1.6mm (0.062 in) thick.
dspblok™ 21469 User Manual Page 14
Mechanical Dimensions (dspblok 21469+ICE)
EEPROM
FLASH
DDR2
ADSP-21469
CORE PS
60.00 [2.36]
115.00 [4.53]
Analog Devices' Debug Agent
55.00 [2.17]
55.00 [2.17]
The dspblok 21469+ICE board has identical mounting holes and mating connections as the production
dspblok 21469. Two additional mounting holes are provided for support as shown.
The debugger portion of the dspblok 21469+ICE is USB bus powered.
Manual Reset is also available via a tact switch located below the ADI debugger.
Schematic
The Distribution CD includes schematic diagrams of the dspblok 21469.
dspblok™ 21469 User Manual Page 15
Product Warranty
Product Warranty
Product WarrantyProduct Warranty
Danville Signal Processing, Inc. products carry the following warranty:
Danville Signal Processing products are warranted against defects in materials and workmanship. If Danville
Signal Processing receives notice of such defects during the warranty period, Danville Signal Processing shall,
at its option, either repair or replace hardware products, which prove to be defective.
Danville Signal Processing software and firmware products, which are designated by Danville Signal
Processing for use with our hardware products, are warranted not to fail to execute their programming
instructions due to defects in materials and workmanship. If Danville Signal Processing receives notice of
such defects during the warranty period, Danville Signal Processing shall, at its option, either repair or
replace software media or firmware, which do not execute their programming instructions due to such
defects. Danville Signal Processing does not warrant that operation of the software, firmware, or hardware
shall be uninterrupted or error free.
The warranty period for each product is one year from date of installation.
Limitation of Warranty:
The forgoing warranty shall not apply to defects resulting from:
• Improper or inadequate maintenance by the Buyer;
• Buyer-supplied software or interfacing;
• Unauthorized modification or misuse;
• Operation outside the environmental specification of the product;
• Improper site preparation and maintenance.
Exclusive Remedies:
The remedies provided herein are the Buyer’s sole and exclusive remedies. In no event shall Danville Signal
Processing, Inc. be liable for direct, indirect, special, incidental or consequential damages (including loss of
profits) whether based on contract, tort, or any other legal theory.
dspblok™ 21469 User Manual Page 16
RoHS & WEEE Compliance
The European Union approved a directive on the restriction of the use of certain hazardous substances in
electrical and electronic equipment. This directive is commonly known as RoHS, EU Directive 2002/95/EC.
This directive severely limits the amount of lead and 5 other substances that can be in contained in
nonexempt products. The directive became European law in February 2003 and took effect July 1, 2006.
It is likely that other countries outside the European Union and some states in the United States may adopt
similar legislation.
There are a number of important exemptions that affect many of our customers. The most important of these
is Category 9, Control and Monitoring Instruments. You may wish to review your situation to see if this
exemption applies to you. Military, medical and some other products are also exempt. We suggest that you
make an appropriate assessment concerning your products.
The dspblok 21469 is RoHS compliant.
The dspblok 21469 is a subcomponent of a larger system; therefore it is not subject to the WEEE directive EU
Directive 2002/96/EC.
dspblok™ 21469 User Manual Page 17
Loading...
