Instructions: Control Panel LCP 501
Instructions: MCD Control Panel LCP 501
Order Code: 175G0096
1. Description
The MCD 500 LCP can be mounted up to 3 metres away from the soft starter,
allowing remote control and monitoring. The LCP is rated IP65 when mounted
correctly in accordance with these instructions.
2. Packing List
1 x LCP 4 x M3 x 16 Screw
1 x Cable, DB9, 3 metres 4 x M3 Flat washer
1 x Gasket, foam 4 x M3 Spring washer
1 x Instruction sheet 4 x M3 Nut
2 x Jack screw
3. Specifications
Maximum cable length 3 metres
Protection IP65 and NEMA12
MI17G302 – VLT
®
is a registered Danfoss trademark
Instructions: Control Panel LCP 501
4. Mounting the LCP
Models MCD5-0021 to MCD5-0105: The LCP can be removed or
replaced while the starter is running. It is not necessary to remove
mains or control voltage.
Models MCD5-0131 to MCD5-1600: The bus bar and/or heatsink are
live whenever mains voltage is connected. Remove mains and
control voltage from the soft starter before removing the cover.
1. Use the template to drill four mounting holes and two holes for the
DB9 connector.
2. Apply the foam gasket to the back of the LCP.
3. Align the LCP over the holes and screw in place.
4. Plug the cable into the LCP and the soft starter.
177H A614.11
177H A615.10
MCD5-0021 to MCD5-0105 MCD5-0131 to MCD5-1600
MI17G302 - VLT® is a registered Danfoss trademark
177H A616.10
Instructions: Control Panel LCP 501
5. Synchronising the LCP and the Starter
The DB9 cable can be connected/disconnected from the LCP while the starter
is running.

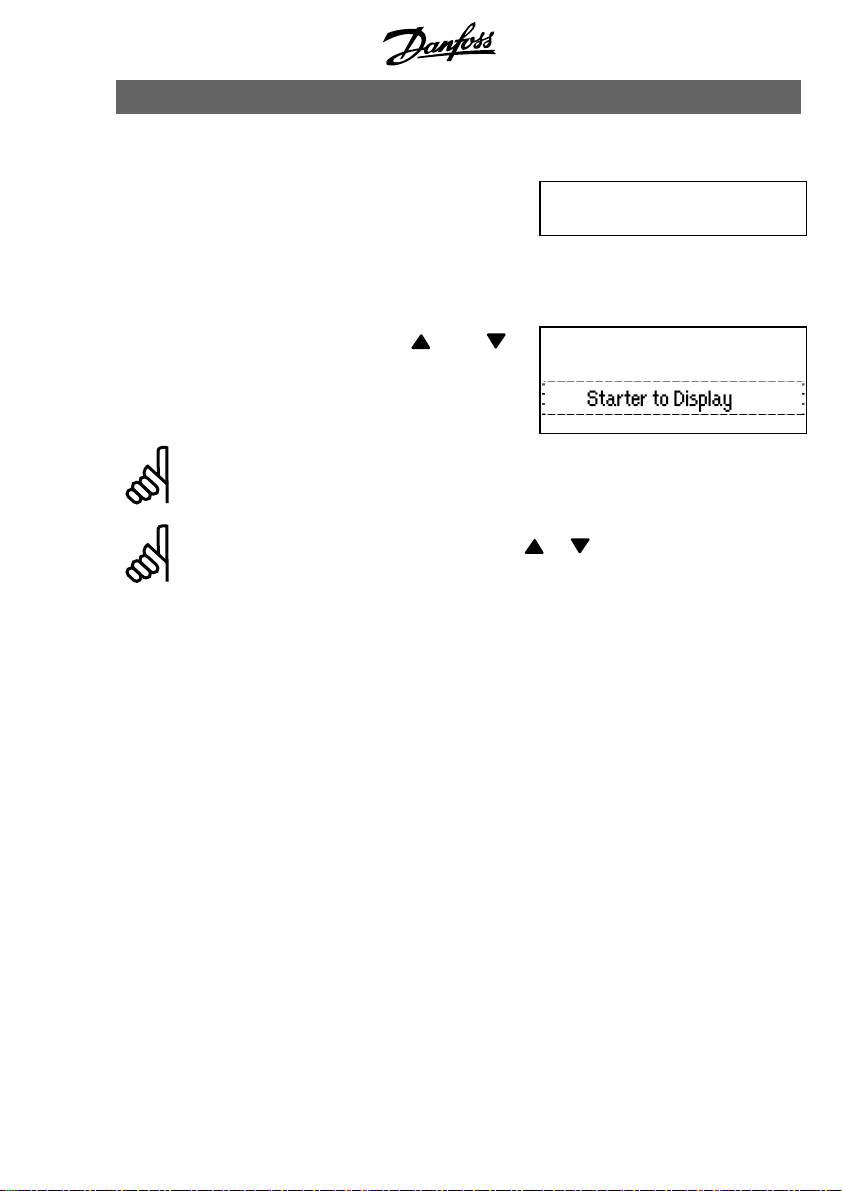

The first time a LCP is plugged into a starter, the
starter will copy its parameter settings to the LCP.
New Display Detected
If the LCP has previously been used with a MCD 500, the operator can select
whether to copy the parameters to the starter, or to copy the MCD 500's
parameter settings into the LCP.
Select the required option using the [ ] and [ ]
keys. The selected option is surrounded by a
dotted line. Press [OK] to proceed with the
selection.
Copy Parameters
Display to Starter
Starter to Display
If the parameter software version in the LCP is different from the software
version of the starter, only
Starter to Display will be available.
While the LCP is synchronising, only the [ ] [ ] [OK] and [OFF] keys
are enabled.
MI17G302 – VLT
®
is a registered Danfoss trademark
Instructions: Control Panel LCP 501
6. Mounting template
Drill four mounting holes for screws (one in each corner) and two holes for
the DB9 connector.
Image is not to scale.
Dimensions are given with faceplate removed.
68 mm
62 mm
13 mm
142 mm
13 mm
136 mm
4 mm (x4)
25 mm (x2)
177H A613.11
MI17G302
