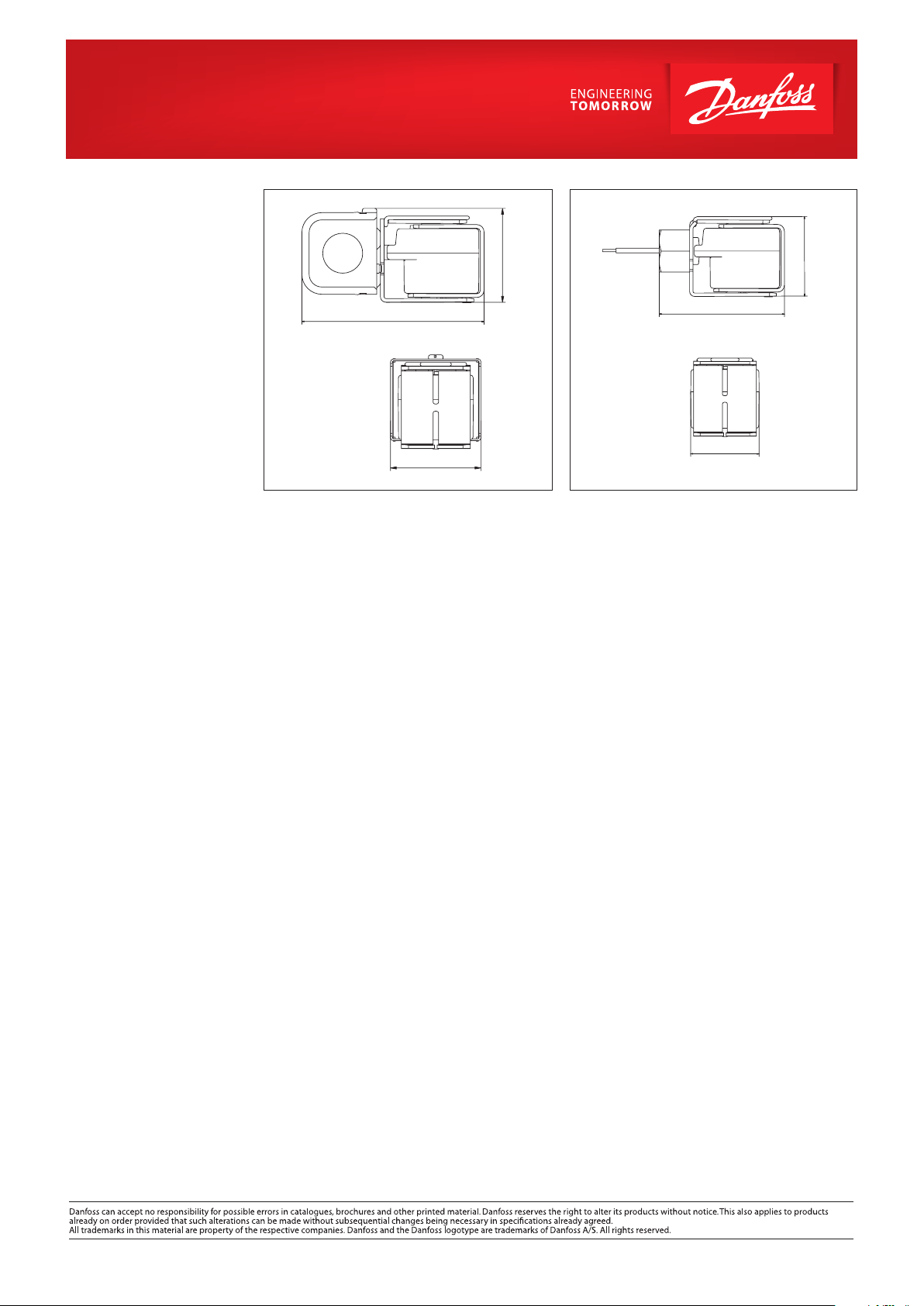

Solenoid coils for electric expansion and solenoid
valves with UL approval

Type BJ, BX, BT and BU

BJ and BX are a series of coils with UL approval.
The coils are designed to be used with Danfoss
electric expansion and solenoid valves.

BT and BU are dual-voltage versions with UL
approval, designed to be used with Danfoss
solenoid valves.

Features

Approval

y High reliability and long lifetime
y Easy mounting and dismounting
y UL approved coil range

Listed

y Covering standard voltage and frequency
y Two electrical connection versions

© Danfoss | DCS (rm) | 2019.03

DKRCC.PD.BS0.D6.22 | 1

Danfoss

18F66.10

Danfoss

18F67.10

Data sheet | Solenoid coils, Type BJ, BX, BT and BU

Technical data

Ordering

BJ and BX Coils

Design

In accordance with UL 429

Power supply

Alternating current (AC)

Permissible voltage variation

Alternating current (AC):
50 Hz and 60 Hz: -15% to +10%
50/60 Hz: ± 10%

Valve type Coil type

Junction box NEMA 2

AKV / EVR
EVRH / EVRA
EVRAT / EVRS
EVRST / EVM
EV220B 6-50
EV210B
EV215B
EV225B
EV250B

AKVH / EVRH

Conduit boss NEMA 4

AKV / EVR
EVRH / EVRA
EVRAT / EVRS
EVRST / EVM
EV220B 6-50
EV210B
EV215B
EV225B
EV250B

AKVH / EVRH

BJ024CS 7 18 24 50 / 60 14 018F4100

BJ120CS 7 18

BJ240CS 7 18

BJ120BS 7 18 120 60 16 018F4130
BJ208BS 7 18 208 60 16 018F4132
BJ240BS 7 18 240 60 16 018F4134

BX024CS 18 46 24 50 / 60 14 018F4102
BX024CS 71 180 24 50 / 60 14 018F4103
BX024CS 98 250 24 50 / 60 14 018F4104
BX120CS 18 46
BX120CS 36 91 018F4113
BX120CS 71 180 018F4114
BX120CS 98 250 018F4115
BX240CS 18 46
BX240CS 98 250 018F4123
BX120BS 98 250 120 60 16 018F4131
BX208BS 98 250 208 60 16 018F4133
BX240BS 98 250 240 60 16 018F4135

Wire length

Insulation of coil wire

Class H according to IEC 85

Connection

Junction box or Conduit boss

Enclosure, IEC 60529

Junction box NEMA 2 ~ IP 12–32
Conduit boss NEMA 4 ~ IP 54

Ambient temperature

-40 – 122 °F (-40 – 50 °C)

Humidity

0 − 97% non-condensation condition

Voltage

[V AC]

110
120

208 – 240

230

110
120

208 – 240

230

Frequency

[Hz]

50 / 60

60

60
50

50 / 60

60

60
50

Power

consumption

[W] Code no.[in.] [cm]

16
15

14
17

16
15

14
17

018F4110

018F4120

018F4112

018F4122

Ordering

BT and BU Coils

© Danfoss | DCS (rm) | 2019.03

Valve type Coil type

Junction box NEMA 2

BT240C 7 18 110 50 12

EVR

Conduit boss NEMA 4

EVR

BT240C 7 18 110 – 120 60 12

BT240C 7 18 230 50 12
BT240C 7 18 208 – 240 60 12

BU240C 7 18 110 50 12
BU240C 7 18 110 – 120 60 12
BU240C 7 18 230 50 12
BU240C 7 18 208 – 240 60 12

Wire length

[in.] [mm]

Voltage

[V AC]

Frequency

[Hz]

Power

consumption

[W] Code no.

018F4180

018F4181
