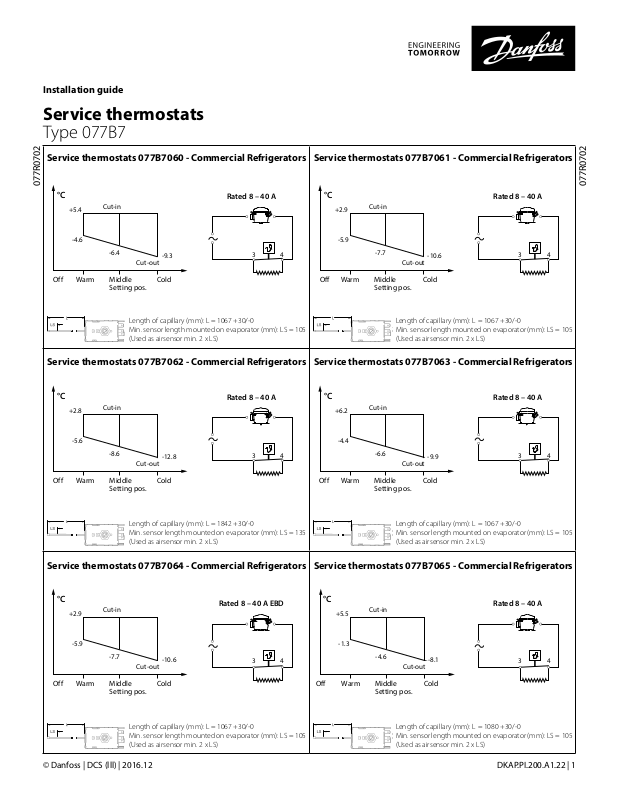

Danfoss Electronics 077B7 Installation Guide
Installation guide
Service thermostats
Type 077B7
Service thermostats 077B7060 - Commercial Refrigerators
077R0702
°C
+5.4
-4.6
Off Warm
Cut-in
-6.4
Middle
Setting pos.
Length of capillary (mm): L = 1067 +30/-0
Min. sensor length mounted on evaporator (mm): LS = 105
(Used as airsensor min. 2 x LS)
Cut-out
-9.3
Cold
Rated 8 – 40 A
3
4
Service thermostats 077B7062 - Commercial Refrigerators
Off
°C
+2.8
-5.6
Warm
Cut-in
-8.6
Middle
Setting pos.
Cut-out
-12.8
Cold
Rated 8 – 40 A
3
4
Service thermostats 077B7061 - Commercial Refrigerators
°C
+2.9
-5.9
Off Warm Middle
Cut-in
-7.7
Setting pos.
-10.6
Cut-out
Cold
Length of capillary (mm): L = 1067 +30/-0
Min. sensor length mounted on evaporator (mm): LS = 105
(Used as airsensor min. 2 x LS)
Rated 8 – 40 A
3 4
Service thermostats 077B7063 - Commercial Refrigerators
°C
+6.2
-4.4
Off Warm Middle
Cut-in
-6.6
Setting pos.
Cut-out
-9.9
Cold
Rated 8 – 40 A
3 4
077R0702
Length of capillary (mm): L = 1842 +30/-0
Min. sensor length mounted on evaporator (mm): LS = 135
(Used as airsensor min. 2 x LS)
Service thermostats 077B7064 - Commercial Refrigerators
°C
+2.9
-5.9
Off Warm Middle
Cut-in
-7.7
Cut-out
Setting pos.
Length of capillary (mm): L = 1067 +30/-0
Min. sensor length mounted on evaporator (mm): LS = 105
(Used as airsensor min. 2 x LS)
© Danfoss | DCS (lll) | 2016.12
-10.6
Cold
Rated 8 – 40 A EBD
3
4
Length of capillary (mm): L = 1067 +30/-0
Min. sensor length mounted on evaporator (mm): LS = 105
(Used as airsensor min. 2 x LS)
Service thermostats 077B7065 - Commercial Refrigerators
Off
°C
+5.5
-1.3
Warm
Cut-in
-4.6
Middle
Setting pos.
Length of capillary (mm): L = 1080 +30/-0
Min. sensor length mounted on evaporator (mm): LS = 105
(Used as airsensor min. 2 x LS)
Cut-out
-8.1
Cold
Rated 8 – 40 A
3 4
DKAP.PI.200.A1.22 | 1
Danf
already on order pro
All trademarks in this material are property of the respec
Service thermostats 077B7066 - Ice-cream cabinets and
Service thermostats 077B7067 - Commercial Refrigerators
freezers without signal
°C
-15.7
-20.7
Off Cold
Warm Middle
-19.2
Cut-in
-22.8
-24.6
Setting pos.
Length of capillary (mm): L = 622 +30/-0
(Airsensor)
Cut-out
-28.8
Rated 8 – 40 A
3 4
°C
+4.2
-1.5
Off Cold
Cut-in
-3.2
Warm Middle
Setting pos.
Service thermostats 077B7068 - Ice-cream cabinets and freezers without signal
°C
-16.7
-23.5
Off Cold
Warm Middle
-19.2
Cut-in
-26.4
Cut-out
Setting pos.
-21.8
-29.5
Rated 8 – 40 A
3 4
Rated 8 – 40 A
-6.0
Cut-out
Length of capillary (mm): L = 1087 +30/-0
Min. sensor length mounted on evaporator (mm): LS = 110
(Used as airsensor min. 2 x LS)
Length of capillary (mm): L = 623 +30/-0
(Airsensor)
4
3
Accessories for
077B7060
077B7061
077B7062
077B7063
077B7064
077B7065
077B7067
The 077B….EBD, 077B….L EBD can be applied on systems with R290 and R600a as the working fluid.
For countries where safety standards are not an indispensable part of the safety system Danfoss recommend the installer to get a third
party approval of the system containing flammable refrigerant.
Note: All temperatures at 760 mm Hg
Accessories for
077B7066
077B7068
oss can accept no responsibility for possible errors in catalogues, brochures and other printed material. Danfoss reserves the right to alter its products without notice. This also applies to products
DKAP.PI.200.A1.22
vided that such alterations can be made without subsequential changes being necessary eady agreed.
tive companies. Danfoss and the Danfoss logotype are trademarks of Danfoss A/S. All rights reserved.
© Danfoss | DCS (lll) | 2016
