Danfoss XGE-2C, XGE-4C, XGE, XGE-6C, XGE-6CB Data sheet

...
Data Sheet
Fan speed controller Type XGE
Used in refrigeration and air conditioning units
Fan speed controller XGE stabilizes condensing pressure by changing condenser’s fan speed. The controller reduces fan noise and saves energy in low ambient conditions.
Widespread usage in refrigeration and air conditioning units.
Extensive performance testing under dierent conditions and strict quality control procedures ensure trouble free operation for many years. Compact size, reduced weight and high degree of protection means that it can be mounted directly on refrigeration lines. Panel mounting also possible.
Easy adjusting made by the turn of a setting screw situated on the top surface. Specially designed heat dissipation radiator ensures no overheating and extended lifetime.
XGE-EC version for EC fan motors.
Features
• Wide regulating range
• Compact design
• Male or female pressure connection
• Easy setting and adjusting
• Simple and easy electrical connection
• Cut o type or Minimum speed type
• Fitted with an electro-magnetic suppression
lter
AI227986440745en-000201
Max. speed
100%
95%
45%
35%
Min. speed
230V @ 50Hz
230V @ 60Hz
prop.band
Pressure [bar]
Set point
Danfoss
61H0003.10
Prop. band
Max. speed
Pressure [bar]
Set point
Danfoss
61H0005.10
Output (V DC)
10
Fan speed controller, Type XGE
Functions
Figure 1: XGE
Figure 2: XGE-EC
Fan speed controller keeps the condensing pressure at a steady level by regulating the speed of the AC/EC fan motors.When pressure is declining the controller decreases the output voltage changing the speed of AC/EC fan motor. The proportional band is a non-adjustable pressure dierence between max. and min. pressure where the regulation occurs.
For min. pressure the controller can either operates with min. speed or completely cuts o the output voltage, depending on the type of the controller.
XGE saves energy and reduces noise by lowering the fan speed or cutting it o.
© Danfoss | Climate Solutions | 2021.02 AI227986440745en-000201 | 2
1
Danfoss
61H0003.10
123456XGE Fan speed controller
Compressor
Evaporator
Expansion valve
Receiver
Condenser
Fan speed controller, Type XGE
Applications
Application example
Figure 3: Typical refrigeration system using XGE fan speed controller
© Danfoss | Climate Solutions | 2021.02 AI227986440745en-000201 | 3
Units
Voltage
Max. current
3A
Min. current
0.2A
Enclosure
IP65
Max. working pressure
47 bar / 681 psi
Supply frequency
50 / 60 Hz
Operating ambient temp.
-20 – 55 °C / -4 – 131 °F
Fluid temperature
-20 – 70 °C / -4 – 158 °F
Power supply
200 – 240 V AC
Pressure connection
7/16-20UNF female (with depressor pin) and male
Max. voltage output
95% of supply voltage for 50 Hz
Cut o / Min. speed 45% of supply voltage for 50 Hz
35% of supply voltage for 60 Hz
Units
Voltage
Input voltage
10 V DC
Output
0 to 10 V DC
Rated current
1 mA
Enclosure
IP65
Max. working pressure
47 bar / 681 psi
Ambient temperature
-20 – 55 °C / -4 – 131 °F
Fluid temperature
-20 – 70 °C / -4 – 158 °F
Pressure connection
7
16
- 20UNF female
are with depressor pin
Fan speed controller, Type XGE
Product specication
Technical data
Table 1: XGE
NOTE:
XGE can also be used for 4A rated fans provided the ambient temperature does not exceed 40 °C / 104 °F. Please contact Danfoss regarding the maximum ambient temperature limits at ratings between 3A and 4A
Table 2: XGE-EC
Wiring and electrical connection

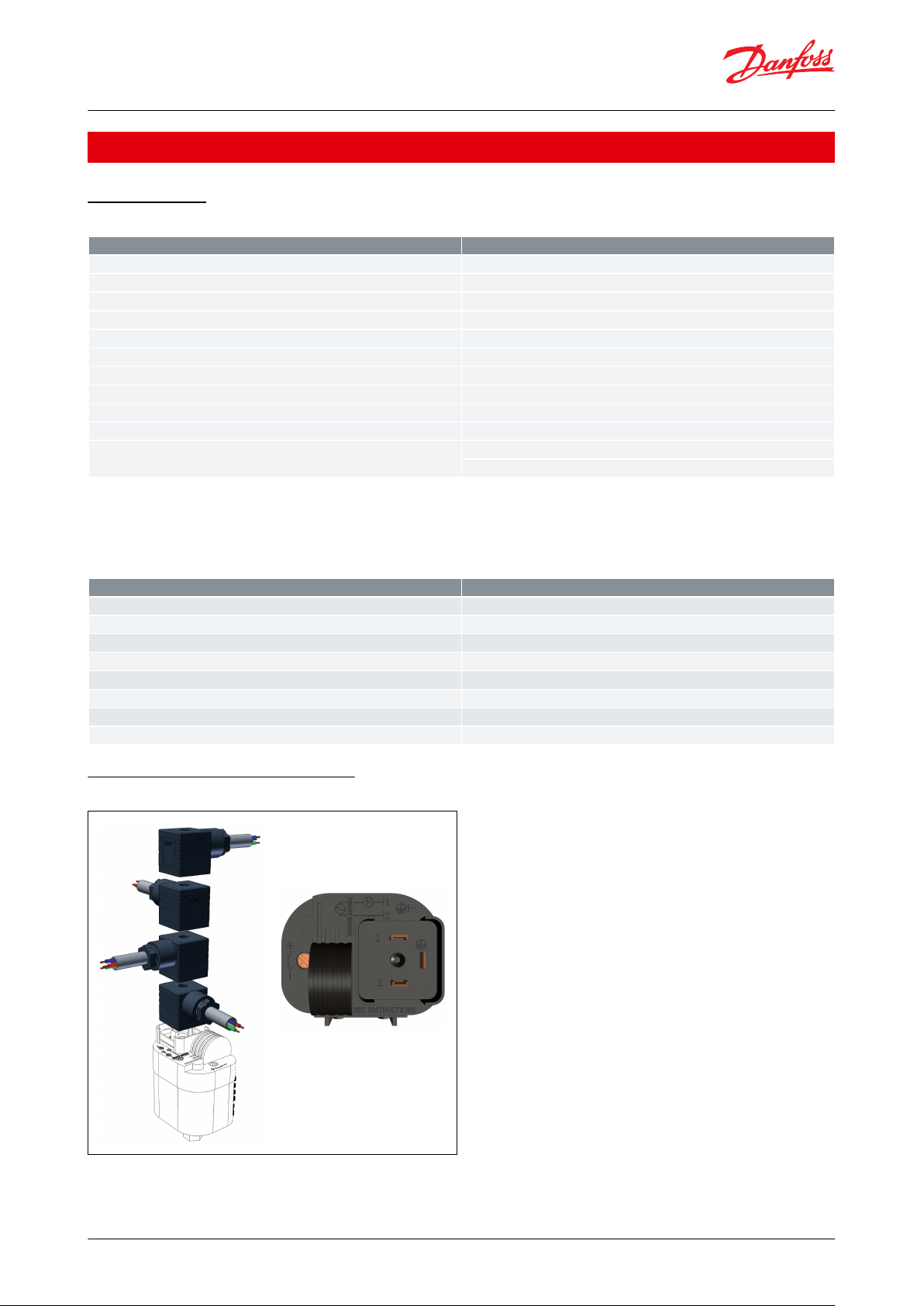

Figure 4: Wiring and electrical connection
Electrical connection of XGE to the fan motor is simple and easy.
© Danfoss | Climate Solutions | 2021.02 AI227986440745en-000201 | 4
112 mm / 4.41 in.
ø66 mm / 2.59 in.
Fan speed controller, Type XGE
With the use of a square “quick connect” plug, the connection is possible in 4 dierent directions, allowing many dierent machine congurations to accommodate XGE, depending on the position of the fan motor and orientation
needed for the electrical cable.
For wiring, a simple diagram is embossed onto the XGE surface and also indicated on the plug.
Dimensions and weight

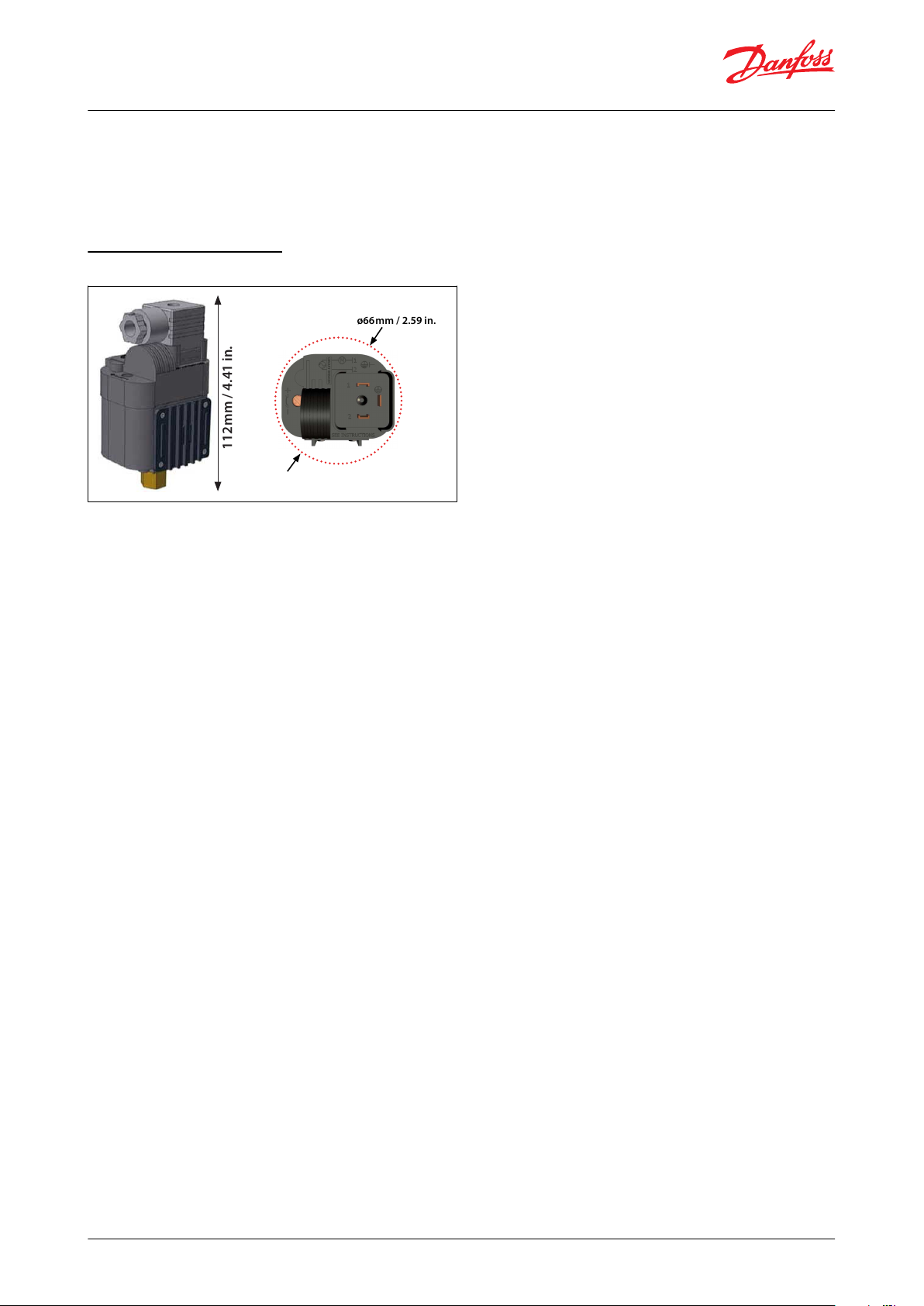

Figure 5: Dimensions and weight for type XGE
• Horizontal space: diameter of 66 mm / 2.59 in.
• Height: 90 mm / 3.54 in. (112 mm / 4.41 in. with plug tted)
• Weight: 180 g / 6.35 oz
© Danfoss | Climate Solutions | 2021.02 AI227986440745en-000201 | 5
Catalogue num‐ ber
Refrigerant
Factory setting
Adjusting
range
Proportional
band
Operational
range
Mode
Pressure con‐
nection
Code number
(1)
[bar]
[bar]
[bar]
[bar]
XGE-2C
R22, R134a, R404A, R407A, R407C, R407F, R448A, R449A, R450A, R452A, R513A88 – 18
4.5
3.5 – 18
Cut-o
Female
061H3144
XGE-4C1910 – 2564 – 25
Cut-o
Female
061H3140
XGE-4CB1910 – 2564 – 25
Cut-o
male
061H3142
XGE-6C
R410A
(2)
28
22 – 39
7
15 – 39
Cut-o
Female
061H3160
XGE-6CB
R410A*)2822 – 39
7
15 – 39
Cut-o
male
061H3162
XGE-4M
R22, R134a, R404A, R407A, R407C, R407F, R448A, R449A, R450A, R452A, R513A1910 – 2564 – 25
Min. speed
Female
061H3240
XGE-4MB1910 – 2564 – 25
Min. speed
male
061H3242
XGE-6M
R410A*)2822 – 39
7
15 – 39
Min. speed
Female
061H3260
Catalogue num‐ ber
Refrigerant
Factory setting
Adjusting
range
Proportional
band
Operational
range
Mode
Pressure con‐
nection
Code number
(3)
[psi]
[psi]
[psi]
[psi]
XGE-2C
R22, R134a, R404A, R407A, R407C, R407F, R448A, R449A, R450A, R452A, R513A
116
116 – 261
65
51 – 261
Cut-o
Female
061H3144
XGE-4C
276
145 – 362
87
58 – 362
Cut-o
Female
061H3140
XGE-4CB
276
145 – 362
87
58 – 362
Cut-o
male
061H3142
XGE-6C
R410A
(4)
406
319 – 566
101
217 – 566
Cut-o
Female
061H3160
XGE-6CB
R410A*)
406
319 – 566
101
217 – 566
Cut-o
male
061H3162
XGE-4M
R22, R134a, R404A, R407A, R407C, R407F, R448A, R449A, R450A, R452A, R513A
276
145 – 362
87
58 – 362
Min. speed
Female
061H3240
XGE-4MB
276
145 – 362
87
58 – 362
Min. speed
male
061H3242
XGE-6M
R410A*)
406
319 – 566
101
217 – 566
Min. speed
Female
061H3260
Catalogue num‐ ber
Refrigerant
Factory setting
[bar]
Adjusting range
[bar]
Proportional
band [bar]
Operational
range [bar]
Pressure connec‐
tion
Code number
(5)
XGE-2SE
R22, R134a, R404A, R407A, R407C, R407F, R448A, R449A, R450A, R452A, R513A
8
8 – 18
4.5
3.5 – 18
Female
061H3245
XGE-4SE1910 – 2564 – 25
Female
061H3246
XGE-6SE
R410A
(6)
28
22 – 39
7
15 – 39
Female
061H3247
Fan speed controller, Type XGE
Ordering
Table 3: XGE, SI units
(1)
(1)
Code numbers available in Multipack. Please contact Danfoss for code numbers available in Industrial pack
Code numbers available in Multipack. Please contact Danfoss for code numbers available in Industrial pack
(2)
(2)
In addition to the standard refrigerants.
In addition to the standard refrigerants.
Table 4: XGE, US units
(3)
(3)
Code numbers available in Multipack. Please contact Danfoss for code numbers available in Industrial pack
Code numbers available in Multipack. Please contact Danfoss for code numbers available in Industrial pack
(4)
(4)
In addition to the standard refrigerants.
In addition to the standard refrigerants.
Table 5: XGE-EC, SI Units
(5)
(5)
Code numbers available in Multipack. Please contact Danfoss for code numbers available in Industrial pack
Code numbers available in Multipack. Please contact Danfoss for code numbers available in Industrial pack
(6)
(6)
In addition to the standard refrigerants.
In addition to the standard refrigerants.
© Danfoss | Climate Solutions | 2021.02 AI227986440745en-000201 | 6
Catalogue num‐ ber
Refrigerant
Factory setting
[psi]
Adjusting range
[psi]
Proportional
band [psi]
Operational
range [psi]
Pressure connec‐
tion
Code number
(7)
XGE-2SE
R22, R134a, R404A, R407A, R407C, R407F, R448A, R449A, R450A, R452A, R513A
72
116 – 261
65
51 – 261
Female
061H3245
XGE-4SE
276
145 – 362
87
58 – 362
Female
061H3246
XGE-6SE
R410A
(8)
406
319 – 566
101
217 – 566
Female
061H3247
Pressure (bar / psi)
Danfoss
61H0006.10
Effective voltage (V%)
Min. set point
Max. set point
Prop. band
Min. setting
Max. setting
Operational range
Adjusting range
Min. speed
Max. speed
Cut off
Series
360 ° = 1 turn
XGE-2
approx. 0.8bar / 11.6 psi
XGE-4
approx. 1.5 bar / 22 psi
XGE-6
approx. 2.5 bar / 36 psi
Series
360 ° = 1 turn
XGE-2SE
approx. 0.8bar / 11.6 psi
XGE-4SE
approx. 1.5 bar / 22 psi
XGE-6SE
approx. 2.5 bar / 36 psi
Fan speed controller, Type XGE
Table 6: XGE-EC, US units
(7)
(7)
Code numbers available in Multipack. Please contact Danfoss for code numbers available in Industrial pack.
Code numbers available in Multipack. Please contact Danfoss for code numbers available in Industrial pack.
(8)
(8)
In addition to the standard refrigerants.
In addition to the standard refrigerants.

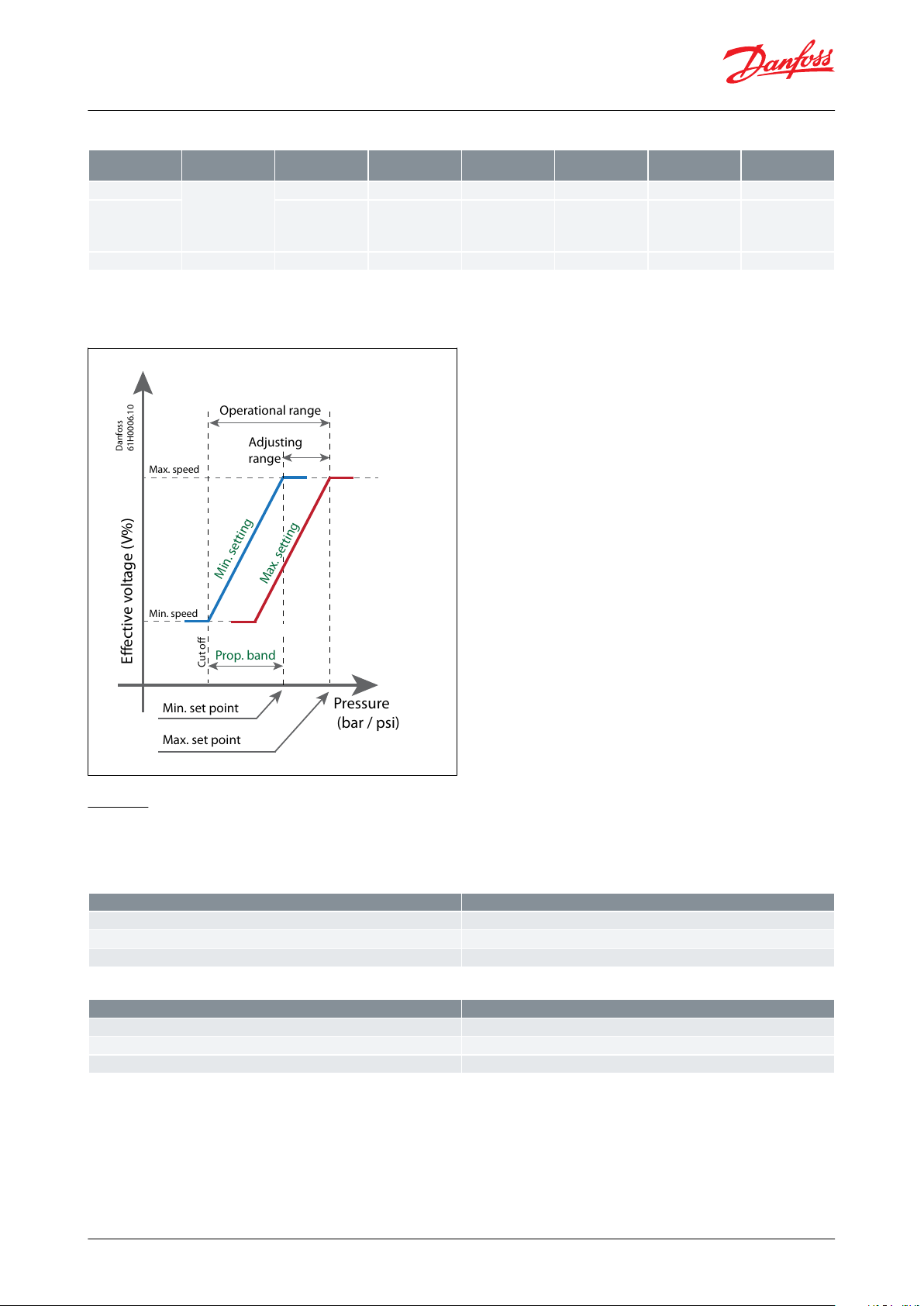

Figure 6: Eective Voltage
Setting
The easily accessible adjusting screw is situated on the top surface of XGE. The direction to turn the screw for decrease or increase in the setting pressure is indicated by arrow markings next to the adjusting screw.
Table 7: XGE
Table 8: XGE-EC
Every turn of the adjusting screw corresponds to a specied change in the setting value. A punch hole on the adjusting screw helps keep track of the number of turns made.
© Danfoss | Climate Solutions | 2021.02 AI227986440745en-000201 | 7
Code number
Catalogue number
061H3102
XGE-AE01
Fan speed controller, Type XGE

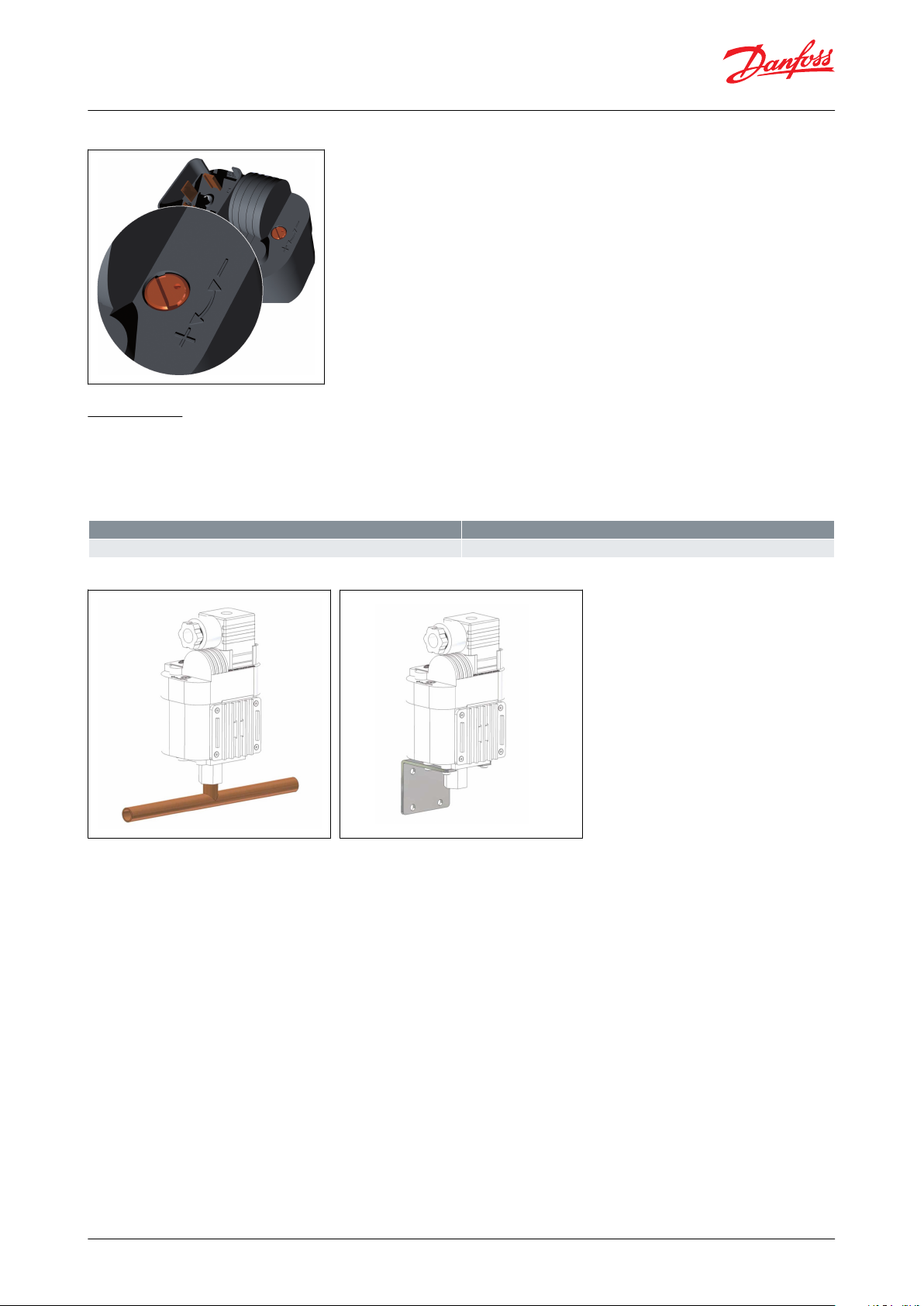

Figure 7: XGE adjusting screw
Installation
The XGE is designed to be directly mounted onto the refrigeration line making the most of free space in a unit. In cases where space is even more limited, XGE can be xed onto a simple bracket (supplied as an accessory) and screwed to a panel.
Table 9: Panel mounting bracket
Figure 8: Direct mount Figure 9: Panel mount
© Danfoss | Climate Solutions | 2021.02 AI227986440745en-000201 | 8
Document name
Document type
Document topic
Approval authority
Saginomiya 02-16
Manufacturers Declaration
China RoHS
Danfoss
CE-EL-0004
EU Declaration
EMCD/LVD
Danfoss
RU С-DK.БЛ08.В.01729
Electrical - Safety Certicate
EAC
EAC
1O146.D.00075-19
UA Declaration
TYSK
LLC CDC EURO TYSK
Fan speed controller, Type XGE
Certicates, declarations and approvals
The list contains all certicates, declarations, and approvals for this product type. Individual code number may have some or all of these approvals, and certain local approvals may not appear on the list.
Some approvals may change over time. You can check the most current status at danfoss.com or contact your local Danfoss representative if you have any questions.
Table 10: Certicates, declarations, and approvals
© Danfoss | Climate Solutions | 2021.02 AI227986440745en-000201 | 9
