Danfoss WD, WP, WR User guide

Technical Information

WD, WP and WR Series

Orbital Motors

www.danfoss.com

Technical Information

Orbital Motors Type WD, WP and WR

Revision history Table of revisions

Date Changed Rev

December 2019 Conversion to CMS/ET Danfoss layout. 0201

June 2017 First edition 0101

2 | © Danfoss | December 2019 BC267362166283en-000201

Technical Information

Orbital Motors Type WD, WP and WR

Technical Information

Orbital Motors Type WD, WP and WR

Technical Information

Operating Recommendations

Oil Type

Hydraulic oils with anti-wear, anti-foam and demulsifiers are recommended for systems incorporating Danfoss motors. Straight oils can be used but may require VI (viscosity index) improvers depending on the operating temperature range of the system. Other water based and environmentally friendly oils may be used, but service life of the motor and other components in the system may be significantly shortened. Before using any type of fluid, consult the fluid requirements for all components in the system for compatibility. Testing under actual operating conditions is the only way to determine if acceptable service life will be achieved.

Fluid Viscosity and Filtration

Fluids with a viscosity between 20 - 43 cSt [100 - 200 S.U.S.] at operating temperature is recommended. Fluid temperature should also be maintained below 85°C [180° F]. It is also suggested that the type of pump and its operating specifications be taken into account when choosing a fluid for the system. Fluids with high viscosity can cause cavitation at the inlet side of the pump. Systems that operate over a wide range of temperatures may require viscosity improvers to provide acceptable fluid performance.

Danfoss recommends maintaining an oil cleanliness level of ISO 17-14 or better.

Installation and Start-up

When installing a Danfoss motor it is important that the mounting flange of the motor makes full contact with the mounting surface of the application. Mounting hardware of the appropriate grade and size must be used. Hubs, pulleys, sprockets and couplings must be properly aligned to avoid inducing excessive thrust or radial loads. Although the output device must fit the shaft snug, a hammer should never be used to install any type of output device onto the shaft. The port plugs should only be removed from the motor when the system connections are ready to be made. To avoid contamination, remove all matter from around the ports of the motor and the threads of the fittings. Once all system connections are made, it is recommended that the motor be run-in for 15-30 minutes at no load and half speed to remove air from the hydraulic system.

Motor Protection

Over-pressurization of a motor is one of the primary causes of motor failure. To prevent these situations, it is necessary to provide adequate relief protection for a motor based on the pressure ratings for that particular model. For systems that may experience overrunning conditions, special precautions must be taken. In an overrunning condition, the motor functions as a pump and attempts to convert kinetic energy into hydraulic energy. Unless the system is properly configured for this condition, damage to the motor or system can occur.

To protect against this condition a counterbalance valve or relief cartridge must be incorporated into the circuit to reduce the risk of overpressurization. If a relief cartridge is used, it must be installed upline of the motor, if not in the motor, to relieve the pressure created by the over-running motor. To provide proper motor protection for an over-running load application, the pressure setting of the pressure relief valve must not exceed the intermittent rating of the motor.

Hydraulic Motor Safety Precaution

A hydraulic motor must not be used to hold a suspended load. Due to the necessary internal tolerances, all hydraulic motors will experience some degree of creep when a load induced torque is applied to a motor at rest. All applications that require a load to be held must use some form of mechanical brake designed for that purpose.

4 | © Danfoss | December 2019 BC267362166283en-000201

C

P109317

Technical Information

Orbital Motors Type WD, WP and WR

Technical Information

Motor/Brake Precaution

Caution

Danfoss’ motors/brakes are intended to operate as static or parking brakes. System circuitry must be designed to bring the load to a stop before applying the brake.

Caution

Because it is possible for some large displacement motors to overpower the brake, it is critical that the maximum system pressure be limited for these applications. Failure to do so could cause serious injury or death. When choosing a motor/brake for an application, consult the performance chart for the series and displacement chosen for the application to verify that the maximum operating pressure of the system will not allow the motor to produce more torque than the maximum rating of the brake. Also, it is vital that the system relief be set low enough to insure that the motor is not able to overpower the brake.

To ensure proper operation of the brake, a separate case drain back to tank must be used. Use of the internal drain option is not recommended due to the possibility of return line pressure spikes. A simple schematic of a system utilizing a motor/brake is shown in Typical Motor/Brake Schematic on page 5. Although maximum brake release pressure may be used for an application, a 34 bar [500 psi] pressure reducing valve is recommended to promote maximum life for the brake release piston seals. However, if a pressure reducing valve is used in a system which has case drain back pressure, the pressure reducing valve should be set to 34 bar [500 psi] over the expected case pressure to ensure full brake release.

To achieve proper brake release operation, it is necessary to bleed out any trapped air and fill brake release cavity and hoses before all connections are tightened. To facilitate this operation, all motor/ brakes feature two release ports. One or both of these ports may be used to release the brake in the unit. Motor/brakes should be configured so that the release ports are near the top of the unit in the installed position.

Typical Motor/Brake Schematic

©

Danfoss | December 2019 BC267362166283en-000201 | 5

W

P109318

P109319

Technical Information

Orbital Motors Type WD, WP and WR

Technical Information

Once all system connections are made, one release port must be opened to atmosphere and the brake release line carefully charged with fluid until all air is removed from the line and motor/brake release cavity. When this has been accomplished the port plug or secondary release line must be reinstalled. In the event of a pump or battery failure, an external pressure source may be connected to the brake release port to release the brake, allowing the machine to be moved.

Warning

It is vital that all operating recommendations be followed. Failure to do so could result in injury or death.

Motor Connections

There are two common types of circuits used for connecting multiple numbers of motors – series connection and parallel connection.

Series Connection

When motors are connected in series, the outlet of one motor is connected to the inlet of the next motor. This allows the full pump flow to go through each motor and provide maximum speed. Pressure and torque are distributed between the motors based on the load each motor is subjected to. The maximum system pressure must be no greater than the maximum inlet pressure of the first motor. The allowable back pressure rating for a motor must also be considered. In some series circuits the motors must have an external case drain connected. A series connection is desirable when it is important for all the motors to run the same speed such as on a long line conveyor.

Series Circuit

Parallel Connection

In a parallel connection all of the motor inlets are connected. This makes the maximum system pressure available to each motor allowing each motor to produce full torque at that pressure. The pump flow is split between the individual motors according to their loads and displacements. If one motor has no load, the oil will take the path of least resistance and all the flow will go to that one motor. The others will not turn. If this condition can occur, a flow divider is recommended to distribute the oil and act as a differential.

Parallel Circuit

The motor circuits shown above are for illustration purposes only. Components and circuitry for actual applications may vary greatly and should be chosen based on the application.

6 | © Danfoss | December 2019 BC267362166283en-000201

25

50

100

200

301

401

24

50

100

200

300

400

502

602

690

21

43

99

199

297

398

500

601

689

18

43

92

191

295

390

499

600

688

17

34

87

181

284

384

498

597

658

11

32

79

174

271

372

485

540

644

11

32

78

160

253

346

443

526

631

9

31

77

154

245

339

433

510

613

[127]

[140]

[139]

[127]

[113]

[91]

14

16

14

13

10

[262]

[286]

[280]

[275]

[262]

[243]

[212]

[177]

[127]

30

32

31

30

27

24

20

14

[543]

[559]

[563]

[572]

[557]

[536]

[511]

[482]

[445]

61

63

64

65

63

61

58

54

50

[806]

[839]

[857]

[872]

[853]

[826]

[790]

[767]

[741]

91

95

97

99

96

93

89

87

84

[1062]

[1099]

[1139]

[1155]

[1149]

[1125]

[1087]

[1060]

[1098]

120

124

129

131

130

127

123

120

124

[1285]

[1340]

[1390]

[1420]

[1409]

[1379]

[1451]

[1369]

145

151

157

160

159

156

164

155

[1496]

[1579]

[1652]

[1643]

[1646]

[1654]

[1638]

[1711]

[1640]

169

178

187

186

187

185

193

185

[1693]

[1796]

[1865]

[1911]

[1930]

[1945]

[1883]

[2021]

[1918]

191

203

211

216

218

220

213

228

217

Flow - lpm [gpm]

17 [250] 35 [500] 69 [1000] 104 [1500] 138 [2000] 173 [2500] 207 [3000] 242 [3500]

Pressure - bars [psi]

21 [183] 41 [366] 83 [732] 124 [1099] 166 [1465] 207 [1831] 248 [2197] 290 [2564]

Theoretical Torque - Nm [lb-in]

Max.

Inter.

Max.

Cont.

76 cc [4.6 in3/rev.]

080

2 [0.5]

4 [1]

8 [2]

15 [4]

23 [6]

30 [8]

38 [10]

45 [12]

53 [14]

61 [16]

64 [17]

26

51

101

201

302

402

503

603

704

804

904

Theoretical rpm

Overall Efficiency -

70 - 100%

40 - 69%

0 - 39%

Intermittent Ratings - 10% of Operation

Displacement tested at 54°C [129°F] with an oil viscosity of 46cSt [213 SUS]

Max. Inter.Max. Cont.

1

2

3

4

5

8

7

Torque - Nm [lb-in], Speed rpm

6

P109395

Technical Information

Orbital Motors Type WD, WP and WR

Technical Information

Product Testing

Performance testing is the critical measure of a motor’s ability to convert flow and pressure into speed and torque. All product testing is conducted using Danfoss’ state of the art test facility. This facility utilizes fully automated test equipment and custom designed software to provide accurate, reliable test data. Test routines are standardized, including test stand calibration and stabilization of fluid temperature and viscosity, to provide consistent data. The example below provides an explanation of the values pertaining to each heading on the performance chart.

1. Flow represents the amount of fluid passing through the motor during each minute of the test.

2. Pressure refers to the measured pressure differential between the inlet and return ports of the motor during the test.

3. The maximum continuous pressure rating and

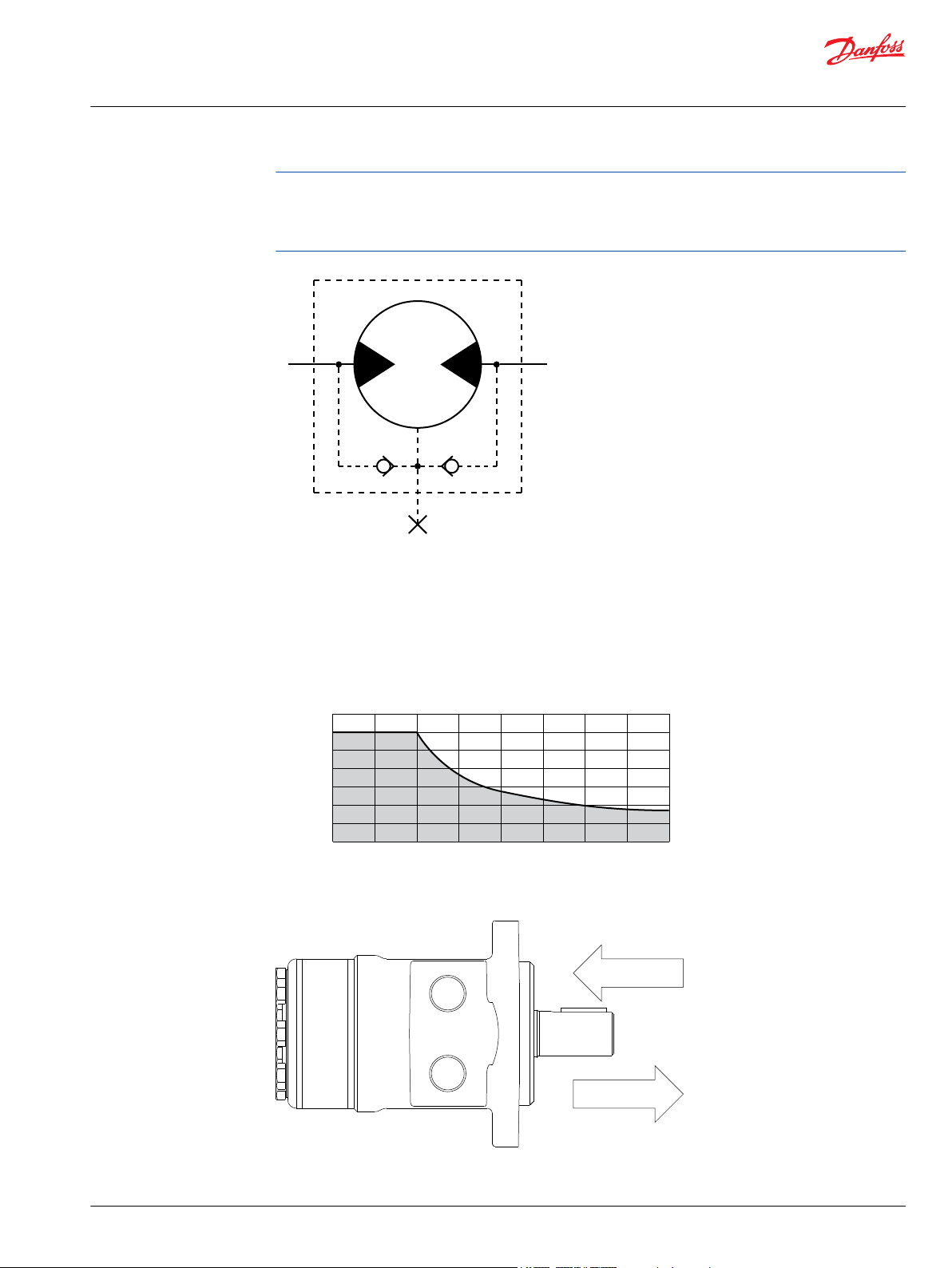

Allowable Bearing and Shaft Loading

maximum intermittent pressure rating of the motor are separated by the dark lines on the chart.

5. The maximum continuous flow rating and maximum intermittent flow rating of the motor are separated by the dark line on the chart.

7. Areas within the white shading represent maximum motor efficiencies.

This catalog provides curves showing allowable radial loads at points along the longitudinal axis of the motor. They are dimensioned from the mounting flange. Two capacity curves for the shaft and bearings are shown. A vertical line through the centerline of the load drawn to intersect the x-axis intersects the

©

Danfoss | December 2019 BC267362166283en-000201 | 7

curves at the load capacity of the shaft and of the bearing.

4. Theoretical RPM represents the RPM that the motor would produce if it were 100% volumetrically efficient. Measured RPM divided by the theoretical RPM give the actual volumetric efficiency of the motor.

6. Performance numbers represent the actual torque and speed generated by the motor based on the corresponding input pressure and flow. The numbers on the top row indicate torque as measured in Nm [lb-in], while the bottom number represents the speed of the output shaft.

8. Theoretical Torque represents the torque that the motor would produce if it were 100% mechanically efficient. Actual torque divided by the theoretical torque gives the actual mechanical efficiency of the motor.

9000

8000

7000

6000

5000

4000

3000

2000

1000

lb

4000

3500

3000

2500

2000

1500

1000

500 daN

445 daN [1000 lb]

BEARING

SHAFT

-100

-50 -25 0 25 50 75 100

mm

-75

-100

-50 -25 0 25 50 75 100

mm

-75

P109320

Technical Information

Orbital Motors Type WD, WP and WR

Technical Information

In the example below, the maximum radial load bearing rating is between the internal roller bearings illustrated with a solid line. The allowable shaft rating is shown with a dotted line.

The bearing curves for each model are based on laboratory analysis and testing conducted at Danfoss. The shaft loading is based on a 3:1 safety factor and 330 Kpsi tensile strength. The allowable load is the lower of the curves at a given point. For instance, one inch in front of the mounting flange the bearing capacity is lower than the shaft capacity. In this case, the bearing is the limiting load. The motor user needs to determine which series of motor to use based on their application knowledge.

ISO 281 Ratings vs. Manufacturer's Ratings

Published bearing curves can come from more than one type of analysis. The ISO 281 bearing rating is an international standard for the dynamic load rating of roller bearings. The rating is for a set load at a speed of 33 1/3 RPM for 500 hours (1 million revolutions). The standard was established to allow consistent comparisons of similar bearings between manufacturers. The ISO 281 bearing ratings are based solely on the physical characteristics of the bearings, removing any manufacturers specific safety factors or empirical data that influences the ratings.

Manufacturers’ ratings are adjusted by diverse and systematic laboratory investigations, checked constantly with feedback from practical experience. Factors taken into account that affect bearing life are material, lubrication, cleanliness of the lubrication, speed, temperature, magnitude of the load and the bearing type.

The operating life of a bearing is the actual life achieved by the bearing and can be significantly different from the calculated life. Comparison with similar applications is the most accurate method for bearing life estimations.

8 | © Danfoss | December 2019 BC267362166283en-000201

Example Load Rating for Mechanically Retained Needle Roller Bearings

Bearing Life L

L

10

C dynamic load rating

10

(C/P)p [106 revolutions]

nominal rating life

Technical Information

Orbital Motors Type WD, WP and WR

Technical Information

P equivalent dynamic load

Life Exponent p 10/3 for needle bearings

Bearing Load Multiplication Factor Table

RPM Factor

50 1.23 100 1.00 200 0.81 300 0.72 400 0.66 500 0.62 600 0.58 700 0.56 800 0.50

Vehicle Drive Calculations

When selecting a wheel drive motor for a mobile vehicle, a number of factors concerning the vehicle must be taken into consideration to determine the required maximum motor RPM, the maximum torque required and the maximum load each motor must support. The following sections contain the necessary equations to determine this criteria. An example is provided to illustrate the process.

Sample application (vehicle design criteria)

vehicle description 4 wheel vehicle

vehicle drive 2 wheel drive

GVW 1,500 lbs.

weight over each drive wheel 425 lbs.

rolling radius of tires 16 in.

desired acceleration 0-5 mph in 10 sec.

top speed 5 mph

gradability 20%

worst working surface poor asphalt

To determine maximum motor speed

RPM = (2.65 x KPH x G) / rm or RPM = (168 x MPH x G) / ri

KPH max. vehicle speed (kilometers/hr)

MPH max. vehicle speed (miles/hr)

G gear reduction ratio (if none, G = 1)

rm rolling radius of tire (meters)

ri rolling radius of tire (inches)

RPM = (168 x 5 x 1) / 16 = 52.5

©

Danfoss | December 2019 BC267362166283en-000201 | 9

Technical Information

Orbital Motors Type WD, WP and WR

Technical Information

To determine maximum torque requirement of motor

To choose a motor(s) capable of producing enough torque to propel the vehicle, it is necessary to determine the Total Tractive Effort (TE) requirement for the vehicle. To determine the total tractive effort, the following equation must be used:

TE = RR + GR + FA + DP (lbs or N)

TE Total tractive effort

RR Force necessary to overcome rolling resistance

GR Force required to climb a grade

FA Force required to accelerate

DP Drawbar pull required

The components for this equation may be determined using the following steps.

Step One: Determine Rolling Resistance

Rolling Resistance (RR) is the force necessary to propel a vehicle over a particular surface. It is recommended that the worst possible surface type to be encountered by the vehicle be factored into the equation.

RR = (GVW / 1000) x R (lb or N)

GVW gross (loaded) vehicle weight (lb or kg)

R surface friction (value from Rolling Resistance on page 10)

Rolling Resistance

Concrete (excellent) 10 Concrete (good) 15 Concrete (poor) 20 Asphalt (good) 12 Asphalt (fair) 17 Asphalt (poor) 22 Macadam (good) 15 Macadam (fair) 22 Macadam (poor) 37 Cobbles (ordinary) 55 Cobbles (poor) 37 Snow (2 inch) 25 Snow (4 inch) 37 Dirt (smooth) 25 Dirt (sandy) 37 Mud 37 to 150 Sand (soft) 60 to 150 Sand (dune) 160 to 300

Step Two: Determine Grade Resistance

Grade Resistance (GR) is the amount of force necessary to move a vehicle up a hill or “grade.” This calculation must be made using the maximum grade the vehicle will be expected to climb in normal operation.

10 | © Danfoss | December 2019 BC267362166283en-000201

Technical Information

Orbital Motors Type WD, WP and WR

Technical Information

To convert incline degrees to % Grade: % Grade = [tan of angle (degrees)] x 100 GR = (% Grade / 100) x GVW (lb or N) Example: GR = (20 / 100) x 1500 lbs = 300 lbs

Step Three: Determine Acceleration Force

Acceleration Force (FA) is the force necessary to accelerate from a stop to maximum speed in a desired time.

FA = (KPH x GVW (N)) / (35.32 x t) or FA = (MPH x GVW (lb)) / (22 x t)

t time to maximum speed (seconds)

Example: FA = (5 x 1500 lbs) / (22 x 10) = 34 lbs

Step Four: Determine Drawbar Pull

Drawbar Pull (DP) is the additional force, if any, the vehicle will be required to generate if it is to be used to tow other equipment. If additional towing capacity is required for the equipment, repeat steps one through three for the towable equipment and sum the totals to determine DP.

Step Five: Determine Total Tractive Effort

The Tractive Effort (TE) is the sum of the forces calculated in steps one through three above. On low speed vehicles, wind resistance can typically be neglected. However, friction in drive components may warrant the addition of 10% to the total tractive effort to insure acceptable vehicle performance.

TE = RR + GR + FA + DP (lb or N) Example: TE = 33 + 300 + 34 + 0 (lbs) = 367 lbs

Step Six: Determine Motor Torque

The Motor Torque (T) required per motor is the Total Tractive Effort divided by the number of motors used on the machine. Gear reduction is also factored into account in this equation.

T = (TE x rm) / (M x G) Nm per motor or T = (TE x ri) / (M x G) lb-in per motor

M number of driving motors

Example: T = (367 x 16) / (2 x 1) lb-in/motor = 2936 lb-in

Step Seven: Determine Wheel Slip

To verify that the vehicle will perform as designed in regards to tractive effort and acceleration, it is necessary to calculate wheel slip (TS) for the vehicle. In special cases, wheel slip may actually be desirable to prevent hydraulic system overheating and component breakage should the vehicle become stalled.

TS = (W x f x rm) / G (Nm per motor) or TS = (W x f x ri) / G (lb-in per motor)

f coefficient of friction (see Coefficient of friction (f) on page 11)

W loaded vehicle weight over driven wheel (lb or N)

Example: TS = (425 x .06 x 16) / 1 = lb-in/motor = 4080 lbs

Coefficient of friction (f)

Steel on steel 0.3 Rubber tire on dirt 0.5

©

Danfoss | December 2019 BC267362166283en-000201 | 11

Radius 76 mm [3.00 in]

Torque 1129 Nm [10000 lb-in]

P109321

Technical Information

Orbital Motors Type WD, WP and WR

Technical Information

Coefficient of friction (f) (continued)

Rubber tire on a hard surface 0.6 - 0.8 Rubber tire on cement 0.7

To determine radial load capacity requirement of motor

When a motor used to drive a vehicle has the wheel or hub attached directly to the motor shaft, it is critical that the radial load capabilities of the motor are sufficient to support the vehicle. After calculating the Total Radial Load (RL) acting on the motors, the result must be compared to the bearing/shaft load charts for the chosen motor to determine if the motor will provide acceptable load capacity and life.

RL = sqrt(W2 + (T / ri)2) lb or RL = sqrt(W2 + (T / rm)2) kg Example: RL = sqrt(4252 + (2936 / 16)2) = 463 lbs Once the maximum motor RPM, maximum torque requirement, and the maximum load each motor must

support have been determined, these figures may then be compared to the motor performance charts and to the bearing load curves to choose a series and displacement to fulfill the motor requirements for the application.

Induced Side Load

In many cases, pulleys or sprockets may be used to transmit the torque produced by the motor. Use of these components will create a torque induced side load on the motor shaft and bearings. It is important that this load be taken into consideration when choosing a motor with sufficient bearing and shaft capacity for the application.

To determine the side load, the motor torque and pulley or sprocket radius must be known. Side load may be calculated using the formula below. The distance from the pulley/sprocket centerline to the mounting flange of the motor must also be determined. These two figures may then be compared to the bearing and shaft load curve of the desired motor to determine if the side load falls within acceptable load ranges.

12 | © Danfoss | December 2019 BC267362166283en-000201

Distance

Side Load =

Side Load = 14855 Nm [3333 lbs]

Torque Radius

P109322

Technical Information

Orbital Motors Type WD, WP and WR

Technical Information

Hydraulic Equations

Multiplication Factor Abbreviation Prefix

12

10 10 10 10 10 10 10 10

9

6

3

2

1

-1

-2

T tera G giga M mega K kilo h hecto da deka d deci c centi

Theo. Speed (RPM) (1000 x LPM) / Displacement (cm3/rev)

(231 x GPM) / Displacement (in3/rev)

Theo. Torque (lb-in) (Bar x Disp. (cm3/rev)) / 20 pi

(PSI x Disp. (in3/rev) / 6.28

Power In (HP) (Bar x LPM) / 600

(PSI x GPM) / 1714

Power Out (HP) (Torque (Nm) x RPM) / 9543

(Torque (lb-in) x RPM) / 63024

©

Danfoss | December 2019 BC267362166283en-000201 | 13

Incorrect

Correct

P109323

Technical Information

Orbital Motors Type WD, WP and WR

Technical Information

Shaft Nut Information

The tightening torques listed with each nut should only be used as a guideline. Hubs may require higher or lower tightening torque depending on the material. Consult the hub manufacturer to obtain recommended tightening torque. To maximize torque transfer from the shaft to the hub, and to minimize the potential for shaft breakage, a hub with sufficient thickness must fully engage the taper length of the shaft.

Hub engagement

14 | © Danfoss | December 2019 BC267362166283en-000201

A Slotted Nut

35MM TAPERED SHAFTS

B Lock Nut

B

Lock Nut

C

Solid Nut

C

Solid Nut

C Solid Nut

M24 x 1.5 Thread

A

Slotted Nut

1” TAPERED SHAFTS 3/4-28 Thread

A Slotted Nut

1-1/4” TAPERED SHAFTS 1-20 Thread

A Slotted Nut

1-3/8” & 1-1/2” TAPERED SHAFTS 1 1/8-18 Thread

33 [1.29]

5 [.19]

6 [.24]

12 [.48]

Torque Specifications: 20 - 23 daNm [150 - 170 ft.lb.]

29 [1.13]28 [1.12]

42 [1.64]

6 [.22]

6 [.24]

15 [.59]

Torque Specifications: 32.5 daNm [240 ft.lb.]

36 [1.42]

16 [.63]

3.5 [.14]

33 [1.29]

28 [1.11]

12 [.47]

33 [1.28]

23 [.92]

24 [.95]

28 [1.10]

Torque Specifications: 24 - 27 daNm [180 - 200 ft.lb.]

Torque Specifications: 20 - 23 daNm [150 - 170 ft.lb.]

44 [1.73]

5 [.19]

6 [.25]

14 [.55]

Torque Specifications: 38 daNm [280 ft.lb.] Max.

35 [1.38]38 [1.48]

16 [.63]

4 [.16]

40 [1.57]

38 [1.48]

14 [.55]

44 [1.73]

29 [1.14]

30 [1.18]

34 [1.34]

Torque Specifications: 33 - 42 daNm [240 - 310 ft.lb.] Torque Specifications: 38 daNm [280 ft.lb.] Max.

48 [1.90]

5 [.19]

6 [.22]

15 [.61]

Torque Specifications: 41 - 54 daNm [300 - 400 ft.lb.]

44 [1.73]42 [1.66]

16 [.63]

4 [.16]

51 [2.00]

42 [1.66]

15 [.61]

48 [1.90]

35 [1.38]

36 [1.42]

44 [1.73]

Torque Specifications: 34 - 48 daNm [250 - 350 ft.lb.]

Torque Specifications: 41 - 54 daNm [300 - 400 ft.lb.]

P109324

Technical Information

Orbital Motors Type WD, WP and WR

Technical Information

©

Danfoss | December 2019 BC267362166283en-000201 | 15

P109325

Technical Information

Orbital Motors Type WD, WP and WR

Optional Motor Features

Speed Sensor Options

Danfoss offers both single and dual element speed sensor options providing a number of benefits to users by incorporating the latest advancements in sensing technology and materials. The 700 & 800 series motors single element sensors provide 60 pulses per revolution with the dual element providing 120 pulses per revolution, with all other series providing 50 & 100 pulses respectively. Higher resolution is especially beneficial for slow speed applications, where more information is needed for smooth and accurate control. The dual sensor option also provides a direction signal allowing end-users to monitor the direction of shaft rotation .

Unlike competitive designs that breach the high pressure area of the motor to add the sensor, the Danfoss speed sensor option utilizes an add-on flange to locate all sensor components outside the high pressure operating environment. This eliminates the potential leak point common to competitive designs. Many improvements were made to the sensor flange including changing the material from cast iron to acetal resin, incorporating a Buna-N shaft seal internal to the flange, and providing a grease zerk, which allows the user to fill the sensor cavity with grease. These improvements enable the flange to withstand the rigors of harsh environments.

Another important feature of the new sensor flange is that it is self-centering, which allows it to remain concentric to the magnet rotor. This produces a consistent mounting location for the new sensor module, eliminating the need to adjust the air gap between the sensor and magnet rotor. The oring sealed sensor module attaches to the sensor flange with two small screws, allowing the sensor to be serviced or upgraded in the field in under one minute. This feature is especially valuable for mobile applications where machine downtime is costly. The sensor may also be serviced without exposing the hydraulic circuit to the atmosphere. Another advantage of the self-centering flange is that it allows users to rotate the sensor to a location best suited to their application. This feature is not available on competitive designs, which fix the sensor in one location in relationship to the motor mounting flange.

Features / Benefits

•

Grease fitting allows sensor cavity to be filled with grease for additional protection.

•

Internal extruder seal protects against environmental elements.

•

M12 or weatherpack connectors provide installation flexibility.

•

Dual element sensor provides up to 120 pulses per revolution and directional sensing.

•

Modular sensor allows quick and easy servicing.

16 | © Danfoss | December 2019 BC267362166283en-000201

1

2

3

4

P109326

Technical Information

Orbital Motors Type WD, WP and WR

Optional Motor Features

•

Acetal resin flange is resistant to moisture, chemicals, oils, solvents and greases.

•

Self-centering design eliminates need to set magnetto-sensor air gap.

•

Protection circuitry

Sensor Options

•

Z - 4-pin M12 male connector This option has 50 pulses per revolution on all series except the DT which has 60 pulses per

revolution. This option will not detect direction.

•

Y - 3-pin male weatherpack connector This option has 50 pulses per revolution on all series except the DT which has 60 pulses per

revolution. This option will not detect direction. Includes a 610 mm [2 ft] cable.

•

X - 4-pin M12 male connector This option has 100 pulses per revolution on all series except the DT which has 120 pulses per

revolution. This option will detect direction.

•

W - 4-pin male weatherpack connector This option has 100 pulses per revolution on all series except the DT which has 120 pulses per

revolution. This option will detect direction. Includes a 610 mm [2 ft] cable.

Single Element Sensor - Y & Z

Supply voltages 7.5-24 Vdc Maximum output off voltage 24 V Maximum continuous output current < 25 ma Signal levels (low, high) 0.8 to supply voltage Operating Temp -30°C to 83°C [-22°F to 181°F]

Dual Element Sensor - X & W

Supply voltages 7.5-18 Vdc Maximum output off voltage 18 V Maximum continuous output current < 20 ma Signal levels (low, high) 0.8 to supply voltage Operating Temp -30°C to 83°C [-22°F to 181°F]

Sensor Connectors

Z Option

Pin 1 positive brown or red Pin 2 n/a white Pin 3 negative blue Pin 4 pulse out black

©

Danfoss | December 2019 BC267362166283en-000201 | 17

1

2

3

4

P109327

C B A

P109328

CD B A

P109329

Technical Information

Orbital Motors Type WD, WP and WR

Optional Motor Features

X Option

Pin 1 positive brown or red Pin 2 direction out white Pin 3 negative blue Pin 4 pulse out black

Y Option

Pin A positive brown or red Pin B negative blue Pin C pulse out black Pin D n/a white

W Option

Pin A positive brown or red Pin B negative blue Pin C pulse out black Pin D direction out white

Protection Circuitry

The single element sensor has been improved and incorporates protection circuitry to avoid electrical damage caused by:

•

reverse battery protection

•

overvoltage due to power supply spikes and surges (60 Vdc max.)

•

power applied to the output lead

The protection circuit feature will help “save” the sensor from damage mentioned above caused by:

18 | © Danfoss | December 2019 BC267362166283en-000201

P109330

Technical Information

Orbital Motors Type WD, WP and WR

Optional Motor Features

•

faulty installation wiring or system repair

•

wiring harness shorts/opens due to equipment failure or harness damage resulting from accidental conditions (i.e. severed or grounded wire, ice, etc.)

•

power supply spikes and surges caused by other electrical/electronic components that may be intermittent or damaged and “loading down” the system.

While no protection circuit can guarantee against any and all fault conditions. The single element sensor from Danfoss with protection circuitry is designed to handle potential hazards commonly seen in real world applications.

Unprotected versions are also available for operation at lower voltages down to 4.5V.

Freeturning Rotor Option

The ‘AC’ option or “Free turning” option refers to a specially prepared rotor assembly. This rotor assembly has increased clearance between the rotor tips and rollers allowing it to turn more freely than a standard rotor assembly. For spool valve motors, additional clearance is also provided between the shaft and housing bore. The ‘AC’ option is available for all motor series and displacements.

There are several applications and duty cycle conditions where ‘AC’ option performance characteristics can be beneficial. In continuous duty applications that require high flow/high rpm operation, the benefits are twofold. The additional clearance helps to minimize internal pressure drop at high flows. This clearance also provides a thicker oil film at metal to metal contact areas and can help extend the life of the motor in high rpm or even over speed conditions. The ‘AC’ option should be considered for applications that require continuous operation above 57 LPM [15 GPM] and/ or 300 rpm. Applications that are subject to pressure spikes due to frequent reversals or shock loads can also benefit by specifying the ‘AC’ option. The additional clearance serves to act as a buffer against spikes, allowing them to be bypassed through the motor rather than being absorbed and transmitted through the drive link to the output shaft. The trade-off for achieving these benefits is a slight loss of volumetric efficiency at high pressures.

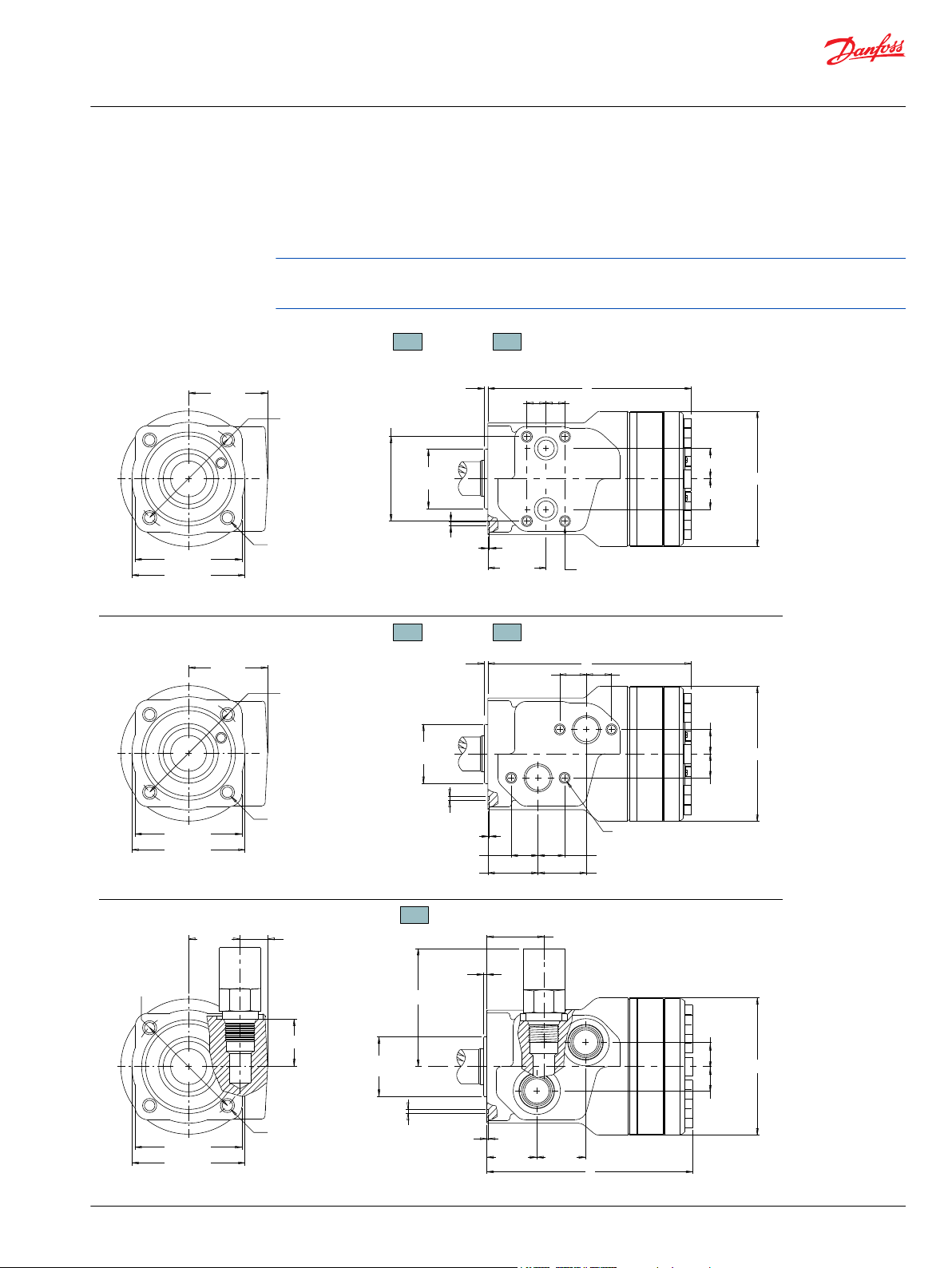

Valve Cavity Option

The valve cavity option provides a cost effective way to incorporate a variety of cartridge valves integral to the motor. The valve cavity is a standard 10 series (12 series on the 800 series motor) 2-way cavity that accepts numerous cartridge valves, including overrunning check valves, relief cartridges, flow control valves, pilot operated check fuses, and high pressure shuttle valves. Installation of a relief cartridge into the cavity provides an extra margin of safety for applications encountering frequent pressure spikes. Relief cartridges from 69 to 207 bar [1000 to 3000 psi] may also be factory installed.

©

Danfoss | December 2019 BC267362166283en-000201 | 19

P109331

Technical Information

Orbital Motors Type WD, WP and WR

Optional Motor Features

For basic systems with fixed displacement pumps, either manual or motorized flow control valves may be installed into the valve cavity to provide a simple method for controlling motor speed. It is also possible to incorporate the speed sensor option and a programmable logic controller with a motorized flow control valve to create a closed loop, fully automated speed control system. For motors with internal brakes, a shuttle valve cartridge may be installed into the cavity to provide a simple, fully integrated method for supplying release pressure to the pilot line to actuate an integral brake. To discuss other alternatives for the valve cavity option, contact an authorized Danfoss distributor.

Slinger Seal Option

Slinger seals are available on select series offered by Danfoss. Slinger seals offer extendes shaft/shaft seal protection by prevented a buildup of material around the circumference of the shaft which can lead to premature shaft seal failures. The Danfoss slinger seals are designed to be larger in diameter than competitive products, providing greater surface speed and ‘slinging action’.

Slinger seals are also available on 4-hole flange mounts on select series. Contact a Danfoss Customer Service Representative for additional information.

20 | © Danfoss | December 2019 BC267362166283en-000201

P109594

Technical Information

Orbital Motors Type WD, WP and WR

WD Product Line

WD Introduction

Overview

The WD motor series is an economical solution for light duty applications requiring high torque. It has a smaller outline yet still provides high efficiency across a wide performance range. Its integral check valves and a provision for a case drain reduce pressure on internal seals to improve product life. The compact package is suitable for industrial and mobile applications including car wash brushes, food processing equipment, conveyors, machine tools, agricultural equipment, sweepers, skid steer attachments, and more.

Features / Benefits

•

Built-in check valves offer versatility and increased seal life.

•

A variety of mounts and shafts provide flexibility in application design.

•

Spool valve design gives superior performance and smooth operation over a wide speed and torque range.

•

Integral rotor design provides smooth performance, compact volume and low weight.

•

Low port profiling is suitable for applications with limited space.

Typical Applications

agriculture equipment, conveyors, carwashes, sweepers, food processing, grain augers, spreaders, feed rollers, augers, brush drives and more

Series Descriptions

145/146 - Hydraulic Motor (standard)

Specifications

Performance data is typical. Performance of production units varies slightly from one motor to another. Running at intermittent ratings should not exceed 10% of every minute of operation.

©

Danfoss | December 2019 BC267362166283en-000201 | 21

186

388

568

780

970

1172

1361

167

350

536

736

922

1120

1318

1502

138

316

206

688

885

1086

1285

1477

115

285

485

658

855

1046

1248

1439

106

255

447

628

830

1026

1212

1404

217

402

598

780

981

1172

1365

[80]

[71]

[62]

[53]

[44]

9

8

7

6

5

[159]

[177]

[168]

[159]

[142]

[115]

[97]

18

20

19

18

16

13

11

[221]

[230]

[239]

[230]

[212]

[195]

[177]

25

26

27

26

24

22

20

[283]

[301]

[292]

[283]

[266]

[248]

32

34

33

32

30

28

[310]

[327]

[336]

[327]

[319]

[310]

35

37

38

37

36

35

[407]

[416]

[407]

[398]

[381]

[372]

46

47

46

45

43

42

P109595

Torque - Nm [lb-in], Speed rpm

Flow - lpm [gpm]

30 [435] 60 [870] 80 [1160] 100 [1450] 120 [1740] 140 [2030]

Max. Inter.Max. Cont.

12 [104] 24 [208] 31 [277] 39 [347] 47 [416] 55 [485]

Theoretical Torque - Nm [lb-in]

Max.

Inter.

Max.

Cont.

025

5 [1.3]

10 [2.6]

15 [4.0]

20 [5.3]

25 [6.6]

30 [7.9]

35 [9.2]

40 [10.6]

203

407

610

813

1016

1220

1423

1626

Theoretical rpm

Overall Efficiency -

70 - 100%

40 - 69%

0 - 39%

Intermittent Ratings - 10% of Operation

Displacement tested at 45°C [113°F] with an oil viscosity of 46cSt [213 SUS]

Pressure - bar [psi]

mm [in]

Rotor

Width

4.1

[.160]

25 cm3 [1.5 in3] / rev

Technical Information

Orbital Motors Type WD, WP and WR

WD Product Line

Specifications

CODE

025 24.6 [1.5] 1361 1502 35 [9] 40 [11] 34 [301] 47 [416] 100 [1450] 140 [2030] 225 [3260] 032 30.8 [1.9] 1244 1388 40 [11] 45 [12] 42 [372] 57 [505] 100 [1450] 140 [2030] 225 [3260] 040 39.7 [2.4] 1124 1312 45 [12] 53 [14] 66 [584] 79 [699] 124 [1800] 155 [2250] 225 [3260] 050 48.2 [2.9] 900 1012 45 [12] 53 [14] 91 [805] 114 [1009] 138 [2000] 173 [2500] 225 [3260] 060 59.4 [3.6] 880 970 53 [14] 60 [16] 110 [974] 136 [1204] 138 [2000] 173 [2500] 225 [3260] 080 79.6 [4.9] 752 934 60 [16] 75 [20] 141 [1248] 175 [1549] 138 [2000] 173 [2500] 225 [3260] 100 96.0 [5.9] 628 786 60 [16] 75 [20] 170 [1505] 220 [1947] 138 [2000] 173 [2500] 225 [3260] 125 122.8 [7.5] 483 604 60 [16] 75 [20] 225 [1991] 274 [2425] 138 [2000] 173 [2500] 225 [3260] 160 158.0 [9.6] 383 479 60 [16] 75 [20] 284 [2513] 345 [3054] 138 [2000] 173 [2500] 225 [3260] 200 196.5 [12.0] 308 384 60 [16] 75 [20] 312 [2761] 411 [3638] 124 [1800] 166 [2400] 225 [3260] 250 240.5 [14.7] 248 312 60 [16] 75 [20] 317 [2806] 450 [3983] 103 [1500] 155 [2250] 225 [3260] 315 303.2 [18.5] 199 250 60 [16] 75 [20] 396 [3505] 576 [5098] 103 [1500] 155 [2250] 200 [2900] 400 385.8 [23.5] 150 189 60 [16] 75 [20] 480 [4248] 582 [5151] 97 [1400] 121 [1750] 180 [2610]

Displacement cm3 [in3]

Max. Speed rpm

Max. Flow lpm [gpm]

Max. Torque Nm [lb-in]

Max. Pressure bar [psi]

cont. inter. cont. inter. cont. inter. cont. inter. peak

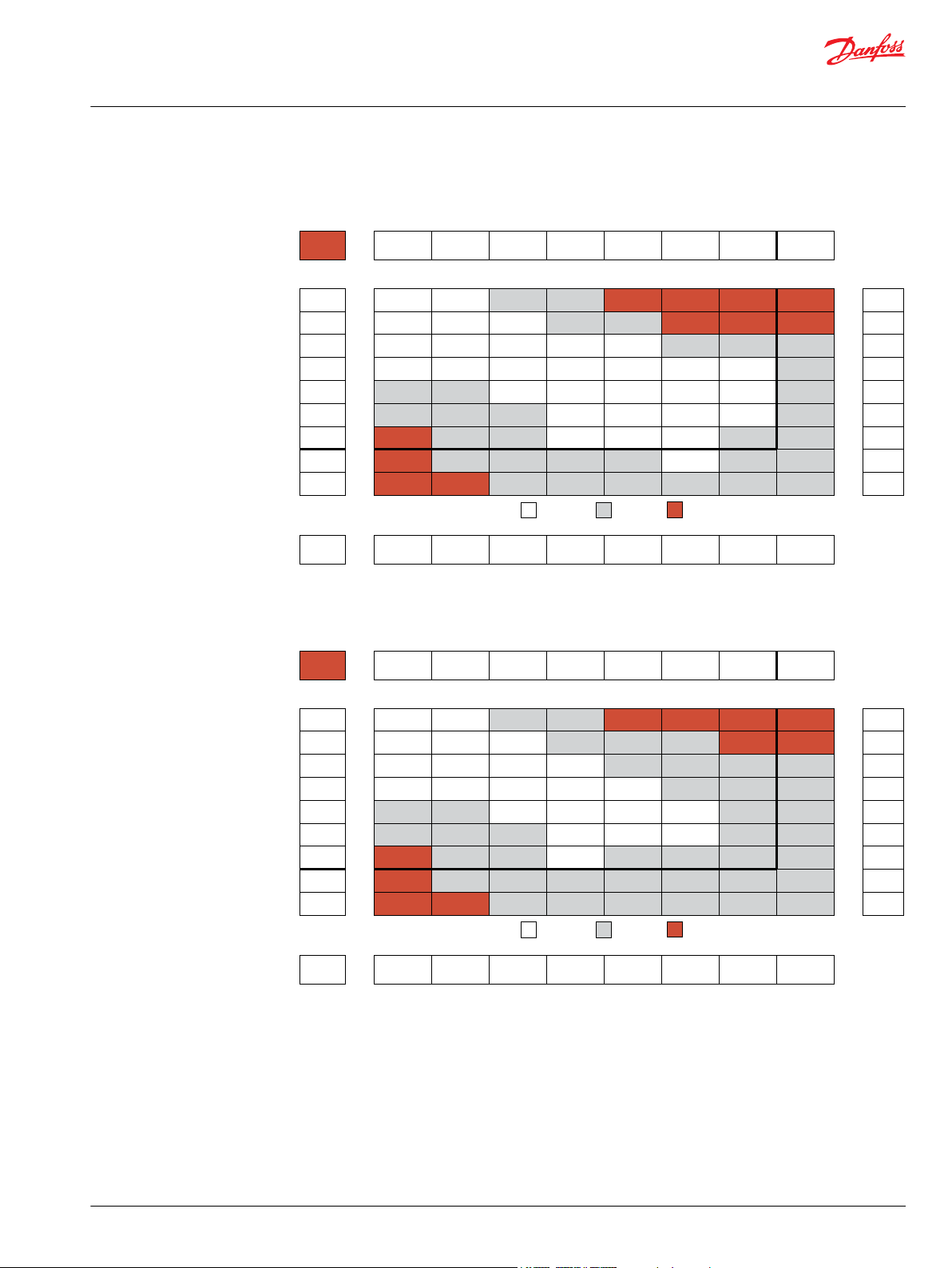

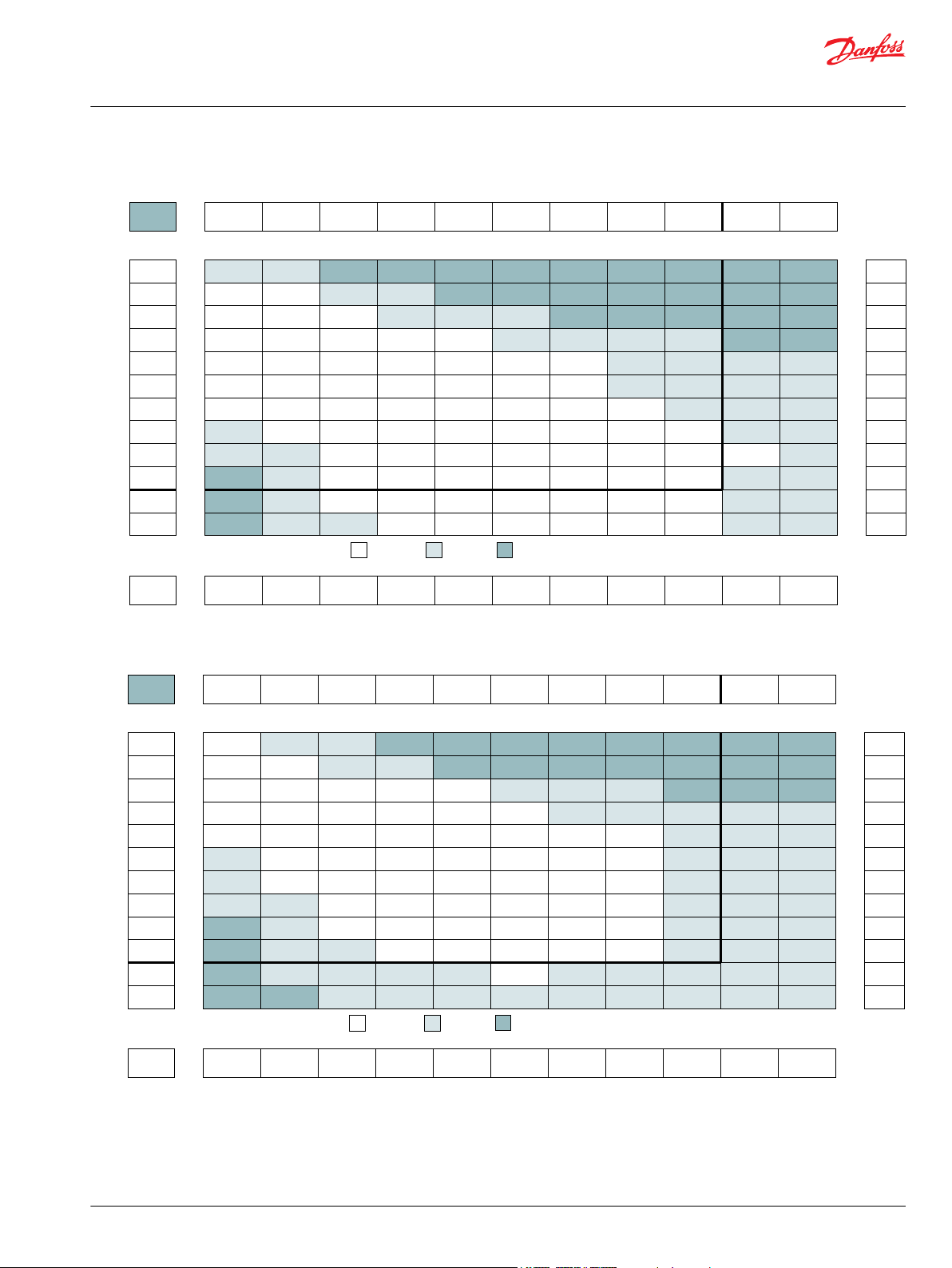

WD Functional Charts

Performance data is typical. Performance of production units varies slightly from one motor to another. Operating at maximum continuous pressure and maximum continuous flow simultaneously is not recommended. For additional information on product testing please refer to Product Testing on page 7.

025 Displacement Performance

22 | © Danfoss | December 2019 BC267362166283en-000201

150

300

460

616

780

928

1090

1244

133

276

433

586

754

910

1077

1214

1388

100

253

415

566

736

882

1057

1198

1362

68

236

398

543

712

860

1035

1177

1342

203

375

520

688

824

1008

1155

1326

186

346

500

658

806

980

1130

1300

[106]

[97]

[80]

[71]

[62]

[53]

12

11

9

8

7

6

[212]

[221]

[212]

[204]

[195]

[186]

[168]

[150]

24

25

24

23

22

21

19

17

[283]

[292]

[283]

[274]

[257]

[248]

32

33

32

31

29

28

[354]

[372]

[363]

[354]

[336]

[327]

40

42

41

40

38

37

[425]

[434]

[425]

[416]

[407]

[398]

48

49

48

47

46

45

[487]

[504]

[496]

[487]

[478]

55

57

56

55

54

Torque - Nm [lb-in], Speed rpm

Flow - lpm [gpm]

30 [435] 60 [870] 80 [1160] 100 [1450] 120 [1740] 140 [2030]

Max. Inter.Max. Cont.

15 [130] 29 [260] 39 [347] 49 [434] 59 [521] 69 [608]

Theoretical Torque - Nm [lb-in]

Max.

Inter.

Max.

Cont.

032

5 [1.3]

10 [2.6]

15 [4.0]

20 [5.3]

25 [6.6]

30 [7.9]

35 [9.2]

40 [10.6]

45 [11.9]

162

325

487

649

812

974

1136

1299

1461

Theoretical rpm

Overall Efficiency -

70 - 100%

40 - 69%

0 - 39%

Intermittent Ratings - 10% of Operation

Displacement tested at 45°C [113°F] with an oil viscosity of 46cSt [213 SUS]

Pressure - bar [psi]

mm [in]

Rotor

Width

5.1

[.200]

31 cm3 [1.9 in3] / rev

P109596

182

362

548

738

932

1124

169

344

535

729

914

1102

1312

128

334

519

706

896

1084

1290

90

320

502

688

878

1062

1266

304

488

670

856

1043

1242

284

468

648

834

1014

1218

254

428

614

798

976

1168

[89]

[97]

[89]

[62]

[53]

[27]

10

11

10

7

6

3

[177]

[186]

[177]

[168]

[142]

[124]

20

21

20

19

16

14

[257]

[274]

[283]

[274]

[266]

[248]

[221]

29

31

32

31

30

28

25

[354]

[381]

[372]

[363]

[354]

[336]

40

43

42

41

40

38

[478]

[469]

[460]

[451]

[434]

[425]

54

53

52

51

49

48

[575]

[584]

[566]

[549]

[531]

65

66

64

62

60

[690]

[699]

[690]

[681]

[673]

78

79

78

77

76

Torque - Nm [lb-in], Speed rpm

Flow - lpm [gpm]

21 [300] 41 [600] 62 [900] 83 [1200] 103 [1500] 124 [1800] 155 [2250]

Max. Inter.Max. Cont.

13 [117] 26 [229] 39 [347] 52 [464] 65 [576] 78 [694] 98 [867]

Theoretical Torque - Nm [lb-in]

Max.

Inter.

Max.

Cont.

040

8 [2]

15 [4]

23 [6]

30 [8]

38 [10]

45 [12]

53 [14]

191

380

572

763

955

1144

1335

Theoretical rpm

Overall Efficiency -

70 - 100%

40 - 69%

0 - 39%

Intermittent Ratings - 10% of Operation

Displacement tested at 45°C [113°F] with an oil viscosity of 46cSt [213 SUS]

Pressure - bar [psi]

mm [in]

Rotor

Width

6.6

[.260]

40 cm3 [2.4 in3] / rev

P109597

Technical Information

Orbital Motors Type WD, WP and WR

WD Product Line

032cc Displacement Performance

040cc Displacement Performance

©

Danfoss | December 2019 BC267362166283en-000201 | 23

148

298

450

602

750

143

289

438

590

732

900

130

276

423

580

722

885

1012

116

260

406

555

713

875

1000

102

245

388

540

693

860

986

86

229

374

523

681

848

972

75

214

352

508

669

830

960

166

314

475

635

794

924

[124]

[106]

[80]

[18]

14

12

9

2

[230]

[239]

[212]

[186]

[168]

[150]

26

27

24

21

19

17

[354]

[372]

[363]

[336]

[327]

[292]

[248]

40

42

41

38

37

33

28

[354]

[381]

[372]

[363]

[354]

[336]

55

56

54

52

51

46

42

[575]

[593]

[602]

[575]

[558]

[531]

[513]

65

67

68

65

63

60

58

[726]

[735]

[743]

[717]

[681]

[646]

[620]

82

83

84

81

77

73

70

[779]

[788]

[805]

[779]

[752]

[735]

[708]

88

89

91

88

85

83

80

[1009]

[991]

[974]

[947]

[929]

[885]

114

112

110

107

105

100

Torque - Nm [lb-in], Speed rpm

Flow - lpm [gpm]

21 [300] 41 [600] 62 [900] 83 [1200] 103 [1500] 124 [1800] 138 [2000]

Max. Inter.Max. Cont.

16 [143] 31 [278] 48 [422] 64 [564] 79 [700] 95 [842] 106 [937]

173 [2500]

133 [1175]

Theoretical Torque - Nm [lb-in]

Max.

Inter.

Max.

Cont.

050

8 [2]

15 [4]

23 [6]

30 [8]

38 [10]

45 [12]

53 [14]

158

313

471

629

786

942

1100

Theoretical rpm

Overall Efficiency -

70 - 100%

40 - 69%

0 - 39%

Intermittent Ratings - 10% of Operation

Displacement tested at 45°C [113°F] with an oil viscosity of 46cSt [213 SUS]

Pressure - bar [psi]

mm [in]

Rotor

Width

6.6

[.260]

48 cm3 [2.9 in3] / rev

P109598

122

247

371

496

626

752

119

243

367

492

618

744

880

970

113

236

360

484

608

735

870

958

107

223

347

470

596

727

862

944

94

209

330

457

582

716

847

932

77

192

315

436

567

696

830

924

65

180

304

425

558

680

800

902

142

266

386

500

628

740

842

[150]

[142]

[133]

[106]

[71]

[18]

17

16

15

12

8

2

[266]

[283]

[257]

[230]

[204]

[177]

[133]

[71]

30

32

29

26

23

20

15

8

[407]

[425]

[416]

[389]

[354]

[327]

[274]

[239]

46

48

47

44

40

37

31

27

[558]

[575]

[584]

[549]

[531]

[513]

[425]

[398]

63

65

66

62

60

58

48

45

[726]

[717]

[699]

[681]

[664]

[628]

[566]

82

81

79

77

75

71

64

[876]

[903]

[876]

[850]

[832]

[805]

[770]

[726]

99

102

99

96

94

91

87

82

[965]

[974]

[947]

[929]

[920]

[885]

[858]

[823]

109

110

107

105

104

100

97

93

[1204]

[1195]

[1151]

[1133]

[1124]

[1071]

[1035]

136

135

130

128

127

121

117

Torque - Nm [lb-in], Speed rpm

Flow - lpm [gpm]

21 [300] 41 [600] 62 [900] 83 [1200] 103 [1500] 124 [1800] 138 [2000]

Max. Inter.Max. Cont.

20 [176] 39 [343] 59 [520] 79 [695] 97 [862] 117 [1038] 131 [1155]

173 [2500]

164 [1448]

Theoretical Torque - Nm [lb-in]

Max.

Inter.

Max.

Cont.

060

8 [2]

15 [4]

23 [6]

30 [8]

38 [10]

45 [12]

53 [14]

61 [16]

128

254

382

510

638

764

892

1020

Theoretical rpm

Overall Efficiency -

70 - 100%

40 - 69%

0 - 39%

Intermittent Ratings - 10% of Operation

Displacement tested at 45°C [113°F] with an oil viscosity of 46cSt [213 SUS]

Pressure - bar [psi]

mm [in]

Rotor

Width

8.0

[.314]

59 cm3 [3.6 in3] / rev

P109599

Technical Information

Orbital Motors Type WD, WP and WR

WD Product Line

050cc Displacement Performance

060cc Displacement Performance

24 | © Danfoss | December 2019 BC267362166283en-000201

90

187

286

378

474

564

85

182

276

372

469

558

662

752

934

78

176

268

364

460

550

658

734

929

70

167

257

354

448

540

648

724

914

62

154

248

342

440

530

637

716

904

52

143

237

334

430

519

633

700

890

42

136

227

324

416

504

609

690

876

112

202

297

370

472

576

663

814

[195]

[177]

[168]

[115]

[71]

[18]

22

20

19

13

8

2

[372]

[381]

[363]

[336]

[310]

[257]

[230]

[177]

[97]

42

43

41

38

35

29

26

20

11

[540]

[549]

[558]

[540]

[513]

[487]

[425]

[389]

[283]

61

62

63

61

58

55

48

44

32

[726]

[743]

[735]

[726]

[708]

[664]

[620]

[602]

[478]

82

84

83

82

80

75

70

68

54

[903]

[947]

[920]

[903]

[894]

[885]

[850]

[752]

[655]

102

107

104

102

101

100

96

85

74

[1097]

[1133]

[1106]

[1097]

[1089]

[1071]

[1018]

[929]

[832]

124

128

125

124

123

121

115

105

94

[1221]

[1248]

[1230]

[1212]

[1195]

[1177]

[1151]

[1089]

[956]

138

141

139

137

135

133

130

123

108

[1513]

[1549]

[1540]

[1460]

[1443]

[1425]

[1363]

[1310]

171

175

174

165

163

161

154

148

Torque - Nm [lb-in], Speed rpm

Flow - lpm [gpm]

21 [300] 41 [600] 62 [900] 83 [1200] 103 [1500] 124 [1800] 138 [2000]

Max. Inter.Max. Cont.

27 [236] 52 [460] 79 [697] 105 [931] 131 [1155] 157 [1391] 175 [1548]

173 [2500]

219 [1941]

Theoretical Torque - Nm [lb-in]

Max.

Inter.

Max.

Cont.

080

8 [2]

15 [4]

23 [6]

30 [8]

38 [10]

45 [12]

53 [14]

61 [16]

76 [20]

95

190

285

381

476

570

666

761

951

Theoretical rpm

Overall Efficiency -

70 - 100%

40 - 69%

0 - 39%

Intermittent Ratings - 10% of Operation

Displacement tested at 45°C [113°F] with an oil viscosity of 46cSt [213 SUS]

Pressure - bar [psi]

mm [in]

Rotor

Width

10.4

[.410]

80 cm3 [4.9 in3] / rev

P109600

76

154

235

313

392

470

71

147

226

307

389

465

550

628

65

140

219

299

384

458

545

622

786

54

132

212

291

375

449

532

611

770

45

122

203

281

364

437

518

598

758

33

113

193

270

353

429

510

584

732

104

185

264

346

426

500

575

716

84

162

240

314

398

473

552

670

[248]

[221]

[204]

[168]

[133]

[97]

28

25

23

19

15

11

[504]

[496]

[443]

[416]

[381]

[327]

[292]

[239]

57

56

50

47

43

37

33

27

[726]

[708]

[673]

[655]

[628]

[620]

[531]

[487]

[327]

82

80

76

74

71

70

60

55

37

[956]

[938]

[920]

[894]

[858]

[832]

[770]

[726]

[593]

108

106

104

97

94

87

82

67

[1168]

[1151]

[1133]

[1106]

[1080]

[1062]

[1044]

[1009]

[823]

132

130

128

125

122

120

118

114

93

[1398]

[1372]

[1354]

[1345]

[1319]

[1301]

[1266]

[1230]

[1089]

158

155

153

152

149

147

143

139

123

[1460]

[1505]

[1478]

[1434]

[1416]

[1328]

[1221]

165

170

167

162

160

150

138

[1814]

[1876]

[1947]

[1929]

[1859]

[1832]

[1732]

[1682]

205

212

220

218

210

207

196

190

Torque - Nm [lb-in], Speed rpm

Flow - lpm [gpm]

21 [300] 41 [600] 62 [900] 83 [1200] 103 [1500] 124 [1800] 138 [2000]

Max. Inter.Max. Cont.

32 [284] 63 [555] 95 [840] 127 [1123] 157 [1393] 190 [1678] 211 [1867]

173 [2500]

264 [2340]

Theoretical Torque - Nm [lb-in]

Max.

Inter.

Max.

Cont.

100

8 [2]

15 [4]

23 [6]

30 [8]

38 [10]

45 [12]

53 [14]

61 [16]

76 [20]

79

157

236

316

395

473

552

631

789

Theoretical rpm

Overall Efficiency -

70 - 100%

40 - 69%

0 - 39%

Intermittent Ratings - 10% of Operation

Displacement tested at 45°C [113°F] with an oil viscosity of 46cSt [213 SUS]

Pressure - bar [psi]

mm [in]

Rotor

Width

13.0

[.510]

96 cm3 [5.9 in3] / rev

P109601

Technical Information

Orbital Motors Type WD, WP and WR

WD Product Line

080cc Displacement Performance

100cc Displacement Performance

©

Danfoss | December 2019 BC267362166283en-000201 | 25

60

120

183

242

301

362

424

483

57

118

179

240

299

360

422

477

604

54

115

175

237

295

356

419

470

595

48

109

170

233

289

351

415

463

584

44

102

165

228

282

345

410

454

573

38

94

155

219

275

340

386

444

565

34

87

148

205

265

329

376

437

556

61

126

174

244

301

342

412

526

[274]

[266]

[248]

[195]

[133]

[80]

[18]

31

30

28

22

15

9

2

[566]

[558]

[549]

[522]

[478]

[425]

[363]

[283]

[133]

64

63

62

59

54

48

41

32

15

[903]

[894]

[876]

[850]

[823]

[761]

[708]

[620]

[425]

102

101

99

96

93

86

80

70

48

[1204]

[1221]

[1212]

[1186]

[1151]

[1097]

[1035]

[920]

[726]

136

138

137

134

130

124

117

104

82

[1425]

[1487]

[1478]

[1460]

[1425]

[1381]

[1319]

[1204]

[1080]

161

168

167

165

161

156

149

136

122

[1708]

[1779]

[1788]

[1761]

[1690]

[1628]

[1558]

[1460]

[1354]

193

201

202

199

191

184

176

165

153

[1947]

[1991]

[1974]

[1947]

[1903]

[1850]

[1805]

[1717]

[1575]

220

225

223

220

215

209

204

194

178

[2425]

[2407]

[2381]

[2328]

[2274]

[2151]

[2062]

[1982]

274

272

269

263

257

243

233

224

Torque - Nm [lb-in], Speed rpm

Flow - lpm [gpm]

21 [300] 41 [600] 62 [900] 83 [1200] 103 [1500] 124 [1800] 138 [2000]

Max. Inter.Max. Cont.

41 [363] 80 [710] 121 [1075] 162 [1436] 201 [1782] 242 [2146] 270 [2388]

173 [2500]

338 [2994]

Theoretical Torque - Nm [lb-in]

Max.

Inter.

Max.

Cont.

125

8 [2]

15 [4]

23 [6]

30 [8]

38 [10]

45 [12]

53 [14]

61 [16]

76 [20]

62

123

185

247

309

370

432

493

616

Theoretical rpm

Overall Efficiency -

70 - 100%

40 - 69%

0 - 39%

Intermittent Ratings - 10% of Operation

Displacement tested at 45°C [113°F] with an oil viscosity of 46cSt [213 SUS]

Pressure - bar [psi]

mm [in]

Rotor

Width

16.8

[.660]

123 cm3 [7.5 in3] / rev

P109602

47

94

143

191

238

287

335

45

92

140

188

236

285

334

383

479

42

89

136

184

233

283

332

382

478

36

85

130

178

229

281

329

378

475

28

79

124

171

224

276

324

372

469

20

72

116

162

218

270

319

363

460

64

107

154

205

261

311

358

455

35

84

134

183

235

281

333

434

[372]

[345]

[336]

[292]

[221]

[124]

[44]

42

39

38

33

25

14

5

[779]

[752]

[699]

[655]

[602]

[522]

[443]

[310]

[106]

88

85

79

74

68

59

50

35

12

[1062]

[1106]

[1089]

[1044]

[1000]

[929]

[814]

[664]

[487]

120

125

123

118

113

105

92

75

55

[1487]

[1505]

[1487]

[1451]

[1407]

[1328]

[1239]

[1062]

[814]

168

170

168

164

159

150

140

120

92

[1859]

[1867]

[1850]

[1832]

[1761]

[1699]

[1664]

[1416]

[1195]

210

211

209

207

199

192

188

160

135

[2177]

[2221]

[2195]

[2168]

[2133]

[2062]

[1920]

[1814]

[1620]

246

251

248

245

241

233

217

205

183

[2513]

[2434]

[2390]

[2319]

[2239]

[2142]

[2062]

[1805]

284

275

270

262

253

242

233

204

[3053]

[3106]

[2991]

[2885]

[2717]

[2637]

[2558]

[2443]

345

351

338

326

307

298

289

276

Torque - Nm [lb-in], Speed rpm

Flow - lpm [gpm]

21 [300] 41 [600] 62 [900] 83 [1200] 103 [1500] 124 [1800] 138 [2000]

Max. Inter.Max. Cont.

53 [468] 103 [913] 156 [1380] 209 [1848] 259 [2293] 312 [2761] 347 [3073]

173 [2500]

435 [3852]

Theoretical Torque - Nm [lb-in]

Max.

Inter.

Max.

Cont.

160

8 [2]

15 [4]

23 [6]

30 [8]

38 [10]

45 [12]

53 [14]

61 [16]

76 [20]

48

96

144

192

240

287

335

384

479

Theoretical rpm

Overall Efficiency -

70 - 100%

40 - 69%

0 - 39%

Intermittent Ratings - 10% of Operation

Displacement tested at 45°C [113°F] with an oil viscosity of 46cSt [213 SUS]

Pressure - bar [psi]

mm [in]

Rotor

Width

20.8

[.820]

158 cm3 [9.6 in3] / rev

P109603

Technical Information

Orbital Motors Type WD, WP and WR

WD Product Line

125cc Displacement Performance

160cc Displacement Performance

26 | © Danfoss | December 2019 BC267362166283en-000201

38

76

115

153

192

230

268

35

74

113

150

190

226

266

308

384

30

70

110

146

186

223

262

305

381

23

64

105

138

181

218

258

299

376

56

98

132

174

210

250

292

372

48

92

120

163

200

240

284

358

62

86

133

167

209

256

330

[460]

[443]

[425]

[407]

[319]

[195]

[44]

52

50

48

46

36

22

5

[965]

[991]

[974]

[903]

[814]

[708]

[620]

[513]

[372]

109

112

110

102

92

80

70

58

42

[1451]

[1478]

[1460]

[1407]

[1336]

[1257]

[1151]

[1044]

[779]

164

167

165

159

151

142

130

118

88

[1929]

[1947]

[1929]

[1912]

[1823]

[1708]

[1558]

[1381]

[1097]

218

220

218

216

206

193

176

156

124

[2390]

[2425]

[2372]

[2283]

[2089]

[1903]

[1752]

[1531]

270

274

268

258

236

215

198

173

[2744]

[2761]

[2682]

[2567]

[2496]

[2407]

[2239]

[1947]

310

312

303

290

282

272

253

220

[3637]

[3593]

[3522]

[3416]

[3310]

[3186]

[2903]

411

406

398

386

374

360

328

Torque - Nm [lb-in], Speed rpm

Flow - lpm [gpm]

21 [300] 41 [600] 62 [900] 83 [1200] 103 [1500] 124 [1800] 166 [2400]

Max. Inter.Max. Cont.

66 [582] 128 [1135] 194 [1717] 260 [2298] 322 [2852] 388 [3434] 519 [4597]

Theoretical Torque - Nm [lb-in]

Max.

Inter.

Max.

Cont.

200

8 [2]

15 [4]

23 [6]

30 [8]

38 [10]

45 [12]

53 [14]

61 [16]

76 [20]

39

77

116

154

193

231

270

308

385

Theoretical rpm

Overall Efficiency -

70 - 100%

40 - 69%

0 - 39%

Intermittent Ratings - 10% of Operation

Displacement tested at 45°C [113°F] with an oil viscosity of 46cSt [213 SUS]

Pressure - bar [psi]

mm [in]

Rotor

Width

25.9

[1.020]

197 cm3 [12.0 in3] / rev

P109604

31

62

94

125

158

188

220

30

61

93

124

156

187

219

248

312

28

58

92

121

155

186

217

244

309

23

55

87

117

151

184

214

241

305

19

51

83

113

147

180

211

237

302

47

81

110

145

176

209

235

300

38

67

97

136

164

194

223

285

27

57

88

121

150

181

210

268

[513]

[540]

[513]

[451]

[354]

[257]

[195]

58

61

58

51

40

29

22

[1044]

[1080]

[1027]

[991]

[867]

[735]

[593]

[460]

[212]

118

122

116

112

98

83

67

52

24

[1708]

[1682]

[1637]

[1575]

[1496]

[1381]

[1221]

[1089]

[743]

193

190

185

178

169

156

138

123

84

[2292]

[2248]

[2213]

[2168]

[2089]

[2036]

[1894]

[1682]

[1460]

259

254

250

245

236

230

214

190

165

[2655]

[2673]

[2611]

[2567]

[2513]

[2451]

[2319]

[2062]

[1788]

300

302

295

290

284

277

262

233

202

[2805]

[2726]

[2690]

[2637]

[2496]

[2301]

[2159]

[1841]

317

308

304

298

282

260

244

208

[2513]

[2434]

[2390]

[2319]

[2239]

[2142]

[2062]

[1805]

414

412

406

390

372

355

335

298

[3983]

[3947]

[3885]

[3797]

[3664]

[3496]

[3328]

[2965]

450

446

439

429

414

395

376

335

Torque - Nm [lb-in], Speed rpm

Flow - lpm [gpm]

21 [300] 41 [600] 62 [900] 83 [1200] 97 [1400] 103 [1500] 138 [2000]

Max. Inter.Max. Cont.

80 [712] 157 [1390] 237 [2101] 318 [2813] 371 [3288] 394 [3491] 528 [4677]

155 [2250]

594 [5253]

Theoretical Torque - Nm [lb-in]

Max.

Inter.

Max.

Cont.

241 cm3 [14.7 in3] / rev

250

8 [2]

15 [4]

23 [6]

30 [8]

38 [10]

45 [12]

53 [14]

61 [16]

76 [20]

32

63

94

126

158

189

220

252

315

Theoretical rpm

Overall Efficiency -

70 - 100%

40 - 69%

0 - 39%

Intermittent Ratings - 10% of Operation

Displacement tested at 45°C [113°F] with an oil viscosity of 46cSt [213 SUS]

Pressure - bar [psi]

mm [in]

Rotor

Width

32.5

[1.280]

P109605

Technical Information

Orbital Motors Type WD, WP and WR

WD Product Line

200cc Displacement Performance

250cc Displacement Performance

©

Danfoss | December 2019 BC267362166283en-000201 | 27

25

49

74

101

125

147

175

22

47

72

98

123

146

174

199

250

20

43

69

95

121

143

171

197

246

35

59

90

115

139

166

187

240

30

54

84

112

132

160

182

236

33

65

90

118

138

166

217

22

53

80

105

127

152

206

[779]

[788]

[690]

[531]

[327]

[133]

88

89

78

60

37

15

[1540]

[1505]

[1434]

[1336]

[1257]

[1133]

[956]

[779]

[531]

174

170

162

151

142

128

108

88

60

[2257]

[2328]

[2177]

[2124]

[2036]

[1947]

[1841]

[1735]

[1593]

255

263

246

240

230

220

208

196

180

[3115]

[3053]

[3000]

[2965]

[2876]

[2814]

[2655]

[2478]

352

345

339

335

325

318

300

280

[3505]

[3469]

[3416]

[3363]

[3275]

[3142]

[3009]

[2885]

396

392

386

380

370

355

340

326

[4708]

[4655]

[4549]

[4425]

[4301]

[4115]

[3912]

532

526

514

500

486

465

442

[5098]

[5009]

[4938]

[4744]

[4567]

[4372]

[4142]

576

566

558

536

516

494

468

Torque - Nm [lb-in], Speed rpm

Flow - lpm [gpm]

21 [300] 41 [600] 62 [900] 90 [1300] 103 [1500] 138 [2000] 155 [2250]

Max. Inter.Max. Cont.

101 [897] 198 [1752] 299 [2649] 435 [3846] 497 [4401] 666 [5896] 748 [6623]

Theoretical Torque - Nm [lb-in]

Max.

Inter.

Max.

Cont.

303 cm3 [18.5 in3] / rev

315

8 [2]

15 [4]

23 [6]

30 [8]

38 [10]

45 [12]

53 [14]

61 [16]

76 [20]

25

50

75

100

125

150

175

200

250

Theoretical rpm

Overall Efficiency -

70 - 100%

40 - 69%

0 - 39%

Intermittent Ratings - 10% of Operation

Displacement tested at 45°C [113°F] with an oil viscosity of 46cSt [213 SUS]

Pressure - bar [psi]

mm [in]

Rotor

Width

40.9

[1.610]

P109606

19

39

59

77

100

120

137

150

18

37

57

75

97

117

134

154

189

14

33

52

73

93

113

131

151

187

11

28

43

67

89

109

129

148

185

25

39

60

81

97

124

138

182

17

32

49

70

84

113

130

178

[929]

[876]

[805]

[637]

[549]

[451]

[336]

[177]

105

99

91

72

62

51

38

20

[1929]

[1832]

[1726]

[1646]

[1575]

[1451]

[1257]

[1071]

[867]

218

207

195

186

178

164

142

121

98

[3186]

[3044]

[2974]

[2876]

[2779]

[2744]

[2513]

[2301]

[2071]

360

344

336

325

314

310

284

260

234

[3960]

[3637]

[3567]

[3522]

[3487]

[3345]

[3186]

[2991]

[2726]

417

411

403

398

394

378

360

338

308

[4248]

[4260]

[4124]

[4053]

[3965]

[3797]

[3629]

[3398]

480

478

466

458

448

429

410

384

[5151]

[5089]

[5036]

[4956]

[4868]

[4708]

[4522]

[4301]

582

575

569

560

550

532

511

486

Torque - Nm [lb-in], Speed rpm

Flow - lpm [gpm]

21 [300] 41 [600] 69 [1000] 83 [1200] 97 [1400] 121 [1750]

Max. Inter.Max. Cont.

129 [1142] 252 [2229] 424 [3751] 510 [4513] 596 [5274] 743 [6579]

Theoretical Torque - Nm [lb-in]

Max.

Inter.

Max.

Cont.

400

8 [2]

15 [4]

23 [6]

30 [8]

38 [10]

45 [12]

53 [14]

61 [16]

76 [20]

20

39

59

79

98

118

137

157

196

Theoretical rpm

Overall Efficiency -

70 - 100%

40 - 69%

0 - 39%

Intermittent Ratings - 10% of Operation

Displacement tested at 45°C [113°F] with an oil viscosity of 46cSt [213 SUS]

Pressure - bar [psi]

mm [in]

Rotor

Width

52.1

[2.050]

386 cm3 [23.5 in3] / rev

P109607

Technical Information

Orbital Motors Type WD, WP and WR

WD Product Line

315cc Displacement Performance

400cc Displacement Performance

WD 145/146 Series

28 | © Danfoss | December 2019 BC267362166283en-000201

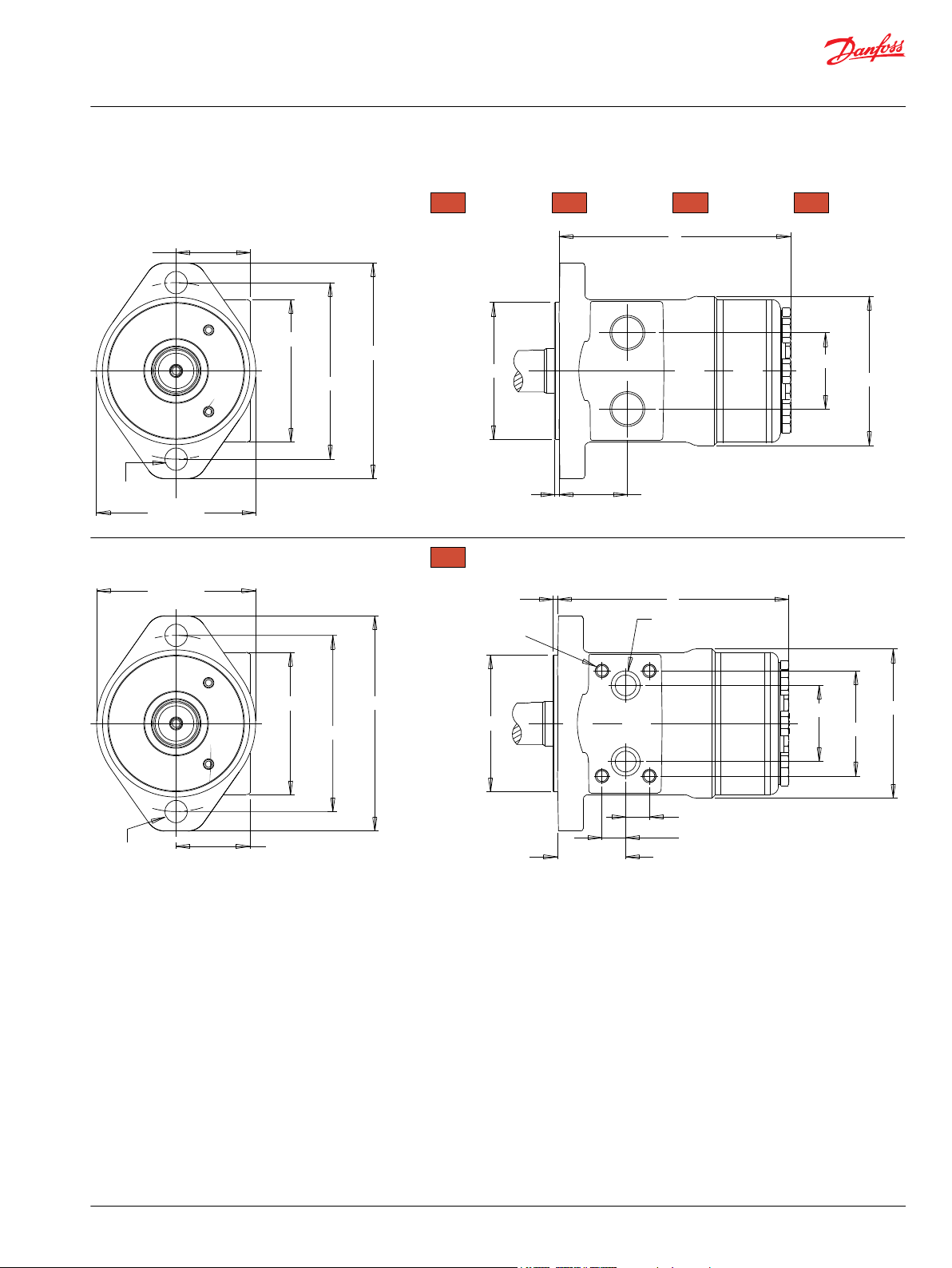

145/146 Series Housings

Dimensions shown are without paint. Paint thickness can be up to 0.13 [.005]. Dimensions are charted in 145/146 Series Technical Data on page 30 (TP) - Taller pilot height. Refer to detailed drawing for dimensional differences.

44.6 [1.756]

130 [5.118]

86 [3.386]

106.4 [4.189]

(2) Ø13.5 [.531]

96 [3.780]

Ø82.5 [3.248]

B

46 [1.811]

41.2 [1.622] - A10, A11, A18

36.2 [1.422] - A68

90 [3.543]

B

A

130 [5.118]

86 [3.386]

Ø106.4 [4.189]

44.6 [1.756]

96 [3.780]

2.6[.102]

B

41.2 [1.622]

14.3 [0.563]

46 [1.811]

63.5 [2.500]

90 [3.543]

82.5 [3.248]

(2) Ø13.5 [.531]

SPOTFACE Ø 17.5 [0.689] 2 [0.079] DEEP MIN.

(4) 5/16-18 UNC

13 [0.519] DEEP MIN.

B

A

2.6 [.102] - A10, A11, A18

8.0 [.315] - A68

P109608

A10

1/2-14 NPT

2-HOLE, SAE A MOUNT, ALIGNED PORTS

A68

G 1/2 (TP)

A17

1/2” Drilled

2-HOLE, SAE A MOUNT, ALIGNED MANIFOLD PORTS

A11

7/8-14 UNF

A18

G 1/2

Technical Information

Orbital Motors Type WD, WP and WR

WD Product Line

©

Danfoss | December 2019 BC267362166283en-000201 | 29

81 [3.189]

44.6 [1.756]

81 [3.189]

Ø 82.55 [3.250]

86 [3.386]

89.6 [3.528]

(4) 3/8-16 UNC 13 [.512] Min. Depth

Ø 44.4 [1.748]

B

2.6 [.102]

41.2 [1.622]

23 [.91]

31.8 [1.25]

23 [.91]

90 [3.543]

B

A

14.3 [.56]

Spotface: Ø 17.5 [0.689] 2 [0.079] Min. Depth

(4) 5/16-18 UNC 13 [0.519] Min. Depth

F37

1/2” Drilled

4-HOLE, SQUARE MOUNT, ALIGNED MANIFOLD PORTS

P109609

81 [3.189]

44.6 [1.756]

81 [3.189]

Ø 82.55 [3.250]

86 [3.386]

89.6 [3.528]

Ø 44.4 [1.748]

B

2.6 [.102]

41.2 [1.622]

46 [1.811]

90 [3.543]

B

A

(4) 3/8-16 UNC DEPTH 13 [.512] MIN.

F30

1/2-14 NPT

4-HOLE, SQUARE MOUNT, ALIGNED PORTS

F31

7/8-14 UNF

276 [4000]

207 [3000]

69 [1000]

138 [2000]

bar [psi]

0 1000900 rpm600 800700500400300200100

Continuous

Intermittent

P109610

Technical Information

Orbital Motors Type WD, WP and WR

WD Product Line

145/146 Series Technical Data

Permissible Shaft Seal Press

The curve below represents allowable seal pressure at various speeds. Operation in the gray area results in maintaining the rated life of the shaft seal. Actual shaft seal pressure depends on motor configuration.

30 | © Danfoss | December 2019 BC267362166283en-000201

P109354

6000 [1350]

N [lbf]

4000 [900]

2000 [450]

0 600 rpm700500400300200100 P109611

150 daN [337 lb]

200 daN [450 lb]

P109612

Technical Information

Orbital Motors Type WD, WP and WR

WD Product Line

With check valves and drain connection, the shaft seal pressure equals pressure in the drain line. With check valves and no drain connection, shaft seal pressure is identical to output pressure. No check valves and no drain connection, the shaft seal pressure is identical to the average value of input and output pressure.

Allowable Shaft Load / Bearing Curve

The bearing curve below represents the side load capacity of the motor at the centerline of the key for various motor speeds. Operating conditions within the shaded area will maintain acceptable oil film lubrication with recommended fluids. Operating conditions outside the shaded area are susceptible to motor failure due to oil starvation and/or excessive heat generation. Fluids with low lubricity or low viscosity may require the maximum load and speed ratings to be derated to provide acceptable motor life and performance.

Thrust Load

©

Danfoss | December 2019 BC267362166283en-000201 | 31

Technical Information

Orbital Motors Type WD, WP and WR

WD Product Line

Length and Weight Charts

The overall motor weights listed in this chart were calculated using the heaviest of the housing options associated with that mounting flange to end of motor dimension. 145 & 146 series motor weights can vary ± 0.5 kg [1 lb] depending on model configurations such as housing, shaft, endcover, options etc.

Dimension B is the overall motor length from the rear of the motor to the mounting flange surface and is referenced on detailed housing drawings listed in 145/146 Series Housings on page 28.

Dimension B

# 3mm Pilot 8mm Pilot Weight

025 119 [4.67] 114 [4.47] 5.20 [11.5] 032 120 [4.71] 115 [4.51] 5.24 [11.6] 040 121 [4.77] 116 [4.57] 5.29 [11.7] 050 121 [4.77] 116 [4.57] 5.29 [11.7] 060 123 [4.83] 118 [4.63] 5.34 [11.8] 080 125 [4.92] 120 [4.72] 5.42 [12.0] 100 128 [5.02] 123 [4.82] 5.51 [12.2] 125 131 [5.17] 126 [4.97] 5.65 [12.5] 160 135 [5.33] 130 [5.13] 5.79 [12.8] 200 141 [5.53] 136 [5.33] 5.97 [13.2] 250 147 [5.79] 142 [5.59] 6.20 [13.7] 315 156 [6.12] 151 [5.92] 6.49 [14.3] 400 167 [6.56] 162 [6.36] 6.88 [15.2]

mm [in] mm [in] kg [lb]

32 | © Danfoss | December 2019 BC267362166283en-000201

31.75 [1.250]

31.45 [1.238]

5 [.20]

C

*16 [.62]

5 [.20]

31.75 [1.250]

31.45 [1.238]

7.95 [.313]

7.93 [.312]

28.30 [1.114]

27.89 [1.098]

25.4 [1.000]

25.4 [0.999]

25.4 [1.000]

25.4 [0.999]

25.4 [1.000]

M8 X 1.25, Min. Depth 20 [.79]

6.35 [.250]

6.3 [.248]

6.35 [.250]

6.3 [.248]

28.15 [1.122]

27.95 [1.100]

1/4-20 UNC, Min. Depth 16 [.63]

19.1 [.761]

18.0 [.709]

15.5 [.610]

25.4 [1.000]

25.4 [.999]

1/4-20 UNC-2B 16 [.630] Min.

1/4-20 UNC, Min. Depth 16 [.63]

27.98 [1.102]

27.70 [1.091]

6.98 [.275]

6.90 [.271]

Ø25.02 [.985] Ø25.00 [.984]

6.38 [.251]

6.35 [.250]

Ø 25.4 [1.000] Ø 25.1 [.990]

Ø22.3 [.878] Ø22.2 [.874]

Ø25.4 [.998] Ø25.3 [.996]

39.9 [1.571]

30.4 [1.196]

C

2

C

01

7/8” 13 Tooth Spline

Max. Torque: 170 Nm [1500 lb-in] Max. Torque: 678 Nm [6000 lb-in]

02

1” 6B Spline, 1/4-20 Tap

Max. Torque: 678 Nm [6000 lb-in]

04

1” 6B Spline, M8x1.25 Tap

10

1” Straight

Max. Torque: 655 Nm [5800 lb-in]

Max. Torque: 678 Nm [6000 lb-in]

15

1” Straight Extended

G8

1” Straight Nickel Plated

B1

1” Straight, Woodruff Key

Max. Torque: 655 Nm [5800 lb-in]

12

25mm Straight

16

25mm Straight Extended

53

1” - 10.3 [.406] Pinhole

66

1” - 8.0 [.315] Pinhole

* Dimension for 66 shaft is 11.2 [.44]

C

2

C

2

1/4-20 UNC, Min. Depth 16 [.63]

6B Spline

SAE J499 Standard

16/32 Pitch Standard

ANSI B92.1-1996 Spline

Technical Information

Orbital Motors Type WD, WP and WR

WD Product Line

145/146 Series Shafts

Mounting / Shaft Length Chart

Dimension C is the overall distance from the motor mounting surface to the end of the shaft. Additional shaft length information, if necessary, is noted as C2 and does not increase or decrease the

listed C dimensions in this chart. The overall shaft lengths are already factored into the overall distance from the mounting surface to the end of the shaft.

©

Danfoss | December 2019 BC267362166283en-000201 | 33

Technical Information

Orbital Motors Type WD, WP and WR

WD Product Line

Dimension C

# 3mm Pilot 8mm Pilot C

01 45.4 [1.803] 50.8 [2.000] N/A 02 45.4 [1.803] 50.8 [2.000] N/A 04 45.4 [1.803] 50.8 [2.000] N/A 10 45.4 [1.803] 50.8 [2.000] 39.9 [1.571] 12 45.4 [1.803] 50.8 [2.000] 39.9 [1.571] 15 62.1 [2.445] 67.5 [2.657] 56.0 [2.205] 16 62.1 [2.445] 67.5 [2.657] 56.0 [2.205] 53 45.4 [1.803] 50.8 [2.000] 39.9 [1.571] 66 50.4 [1.984] 55.8 [2.197] 44.9 [1.768] B1 45.4 [1.803] 50.8 [2.000] N/A G8 50.4 [1.984] 55.8 [2.197] 40.6 [1.599]

2

mm [in] mm [in] mm [in]

34 | © Danfoss | December 2019 BC267362166283en-000201

1 2 3 4 5 6 7 8

25 cm3/rev [1.5 in3/rev] 31 cm3/rev [1.9 in3/rev] 40 cm3/rev [2.4 in3/rev] 48 cm3/rev [2.9 in3/rev] 59 cm3/rev [3.6 in3/rev] 80 cm3/rev [4.9 in3/rev] 96 cm3/rev [5.9 in3/rev]

Standard Rotation Reverse Rotation

The 145 & 146 series are bi-directional.

123 cm3/rev [7.5 in3/rev] 158 cm3/rev [9.6 in3/rev] 197 cm3/rev [12.0 in3/rev] 241 cm3/rev [14.7 in3/rev] 303 cm3/rev [18.5 in3/rev] 386 cm3/rev [23.5 in3/rev]

2-Hole, SAE A Mount, Aligned Ports, 1/2-14 NPT 2-Hole, SAE A Mount, Aligned Ports, 7/8-14 UNF 2-Hole, SAE A Mount, Aligned Manifold Ports, 1/2” Drilled 2-Hole, SAE A Mount, Aligned Ports, G 1/2 2-Hole, SAE A Mount, Aligned Ports, G 1/2 (TP) 4-Hole, Square Mount, Aligned Ports, 1/2-14 NPT 4-Hole, Square Mount, Aligned Ports, 7/8-14 UNF 4-Hole, Square Mount, Aligned Manifold Ports, 1/2” Drilled

7/8” 13 Tooth Spline 1” 6B Spline, 1/4-20 Tap 1” 6B Spline, M8x1.25 Tap 1” Straight 25mm Straight 1” Straight Extended

25mm Straight Extended 1” - 10.3 [.406] Pinhole 1” - 8.0 [.315] Pinhole 1” Straight, Woodruff Key 1” Straight Nickel Plated

Black Black, Unpainted Mounting Surface

Standard Speed Sensor, Dual, 4-Pin Male Weatherpack Connector Speed Sensor, Dual, 4-Pin M12 Male Connector Speed Sensor, Single, 3-Pin Male Weatherpack Connector Speed Sensor, Single, 4-Pin M12 Male Connector

None Freeturning Rotor Slinger Seal No Check Valves Installed

If the BE option is selected in Step 8, the G8 shaft is recommended for added shaft protection. The 15 & 16 extended shafts are designed for use with one of the speed sensor options listed in STEP 7.

(TP) - Tall pilot. Speed sensor option is not available on tall pilot housings.

None

145

1. CHOOSE SERIES DESIGNATION

2. SELECT A DISPLACEMENT OPTION

025 032 040 050 060 080 100

125 160 200 250 315 400

3. SELECT A MOUNT & PORT OPTION

A10 A11 A17 A18 A68 F30 F31 F37

4. SELECT A SHAFT OPTION

01 02 04 10 12 15

16 53 66 B1 G8

5. SELECT A PAINT OPTION

A B

6. SELECT A VALVE CAVITY / CARTRIDGE OPTION

7. SELECT AN ADD-ON OPTION

A

W

X Y Z

8. SELECT A MISCELLANEOUS OPTION

AA AC

BE FB

146

A

P109614

Technical Information

Orbital Motors Type WD, WP and WR

WD Product Line

145/146 Series Order Codes

©

Danfoss | December 2019 BC267362166283en-000201 | 35

P109635

Technical Information

Orbital Motors Type WD, WP and WR

WP Product Line

WP Introduction

Overview

The WP motor series is an economical alternative to more complex roller gerotor designs and still provides high efficiency across a wide performance range. These motors are intended for light-duty applications requiring high torque in a compact package and are suitable for industrial and mobile applications including car wash brushes, food processing equipment, conveyors, machine tools, agricultural equipment, sweepers, skid steer attachments, and more.

Features / Benefits

•

Built-in check valves offer versatility and increased seal life.

•

A variety of mounts and shafts provide flexibility in application design.

•

Spool valve design gives superior performance and smooth operation over a wide speed and torque range.

•

Standard high pressure shaft seals offer superior seal life and performance.

Typical Applications

agriculture equipment, conveyors, carwashes, sweepers, food processing, grain augers, spreaders, feed rollers, augers, brush drives and more

Series Descriptions

155/156 - Hydraulic Motor (standard)

36 | © Danfoss | December 2019 BC267362166283en-000201

P109636

Technical Information

Orbital Motors Type WD, WP and WR

WP Product Line

157/158 - Hydraulic Motor (with needle bearing)

Specifications

Performance data is typical. Performance of production units varies slightly from one motor to another. Running at intermittent ratings should not exceed 10% of every minute of operation.

CODE

025 25 [1.5] 1570 1687 40 [11] 45 [12] 35 [310] 48 [425] 100 [1450] 140 [2030] 225 [3260] 032 32 [2.0] 1550 1674 50 [13] 55 [15] 45 [398] 57 [504] 100 [1450] 140 [2030] 225 [3260] 040 40 [2.5] 1471 1670 60 [16] 70 [19] 65 [575] 74 [655] 100 [1450] 140 [2030] 225 [3260] 050 50 [3.0] 1208 1500 60 [16] 75 [20] 91 [805] 108 [956] 140 [2030] 175 [2540] 240 [3480] 060 59 [3.6] 1185 1271 60 [16] 75 [20] 125 [1106] 136 [1204] 160 [2320] 175 [2540] 240 [3480] 080 78 [4.8] 896 960 60 [16] 75 [20] 164 [1451] 183 [1620] 160 [2320] 175 [2540] 240 [3480] 100 96 [5.9] 728 780 60 [16] 75 [20] 195 [1726] 213 [1885] 160 [2320] 175 [2540] 240 [3480] 125 125 [7.6] 559 599 60 [16] 75 [20] 258 [2285] 278 [2460] 160 [2320] 175 [2540] 240 [3480] 160 159 [9.7] 452 483 60 [16] 75 [20] 321 [2840] 362 [3205] 160 [2320] 175 [2540] 240 [3480] 200 190 [11.6] 367 385 60 [16] 75 [20] 380 [3365] 420 [3720] 150 [2180] 175 [2540] 240 [3480] 250 240 [14.6] 291 312 60 [16] 75 [20] 445 [3940] 557 [4930] 140 [2030] 175 [2540] 240 [3480] 315 303 [18.5] 228 245 60 [16] 75 [20] 460 [4071] 602 [5330] 120 [1740] 160 [2320] 200 [2900] 400 388 [23.7] 155 189 60 [16] 75 [20] 488 [4320] 625 [5532] 95 [1380] 125 [1810] 180 [2610]

Displacement cm3 [in3]

Max. Speed rpm

cont. inter. cont. inter. cont. inter. cont. inter. peak

Max. Flow lpm [gpm]

Max. Torque Nm [lb-in]

Max. Pressure bar [psi]

WP Functional Charts

Performance data is typical. Performance of production units varies slightly from one motor to another. Operating at maximum continuous pressure and maximum continuous flow simultaneously is not recommended. For additional information on product testing please refer to Product Testing on page 7.

©

Danfoss | December 2019 BC267362166283en-000201 | 37

186

386

568

777

972

1167

1360

1570

160

352

537

736

920

1122

1318

1503

1687

134

323

505

692

870

1088

1282

1476

1636

101

280

467

660

840

1055

1258

1432

1600

106

255

431

608

803

998

1216

1394

1558

210

390

566

756

976

1160

1359

1516

[80]

[88]

[80]

[71]

[62]

[53]

[44]

9

10

9

8

7

6

5

[159]

[168]

[159]

[150]

[142]

[133]

[115]

18

19

18

17

16

15

13

[221]

[230]

[221]

[230]

[221]

[212]

[195]

[177]

25

26

25

26

25

24

22

20

[283]

[301]

[310]

[292]

[283]

[274]

[248]

32

34

35

33

32

31

28

[310]

[327]

[336]

[345]

[327]

[319]

[301]

35

37

38

39

37

36

34

[425]

[389]

[398]

[389]

[381]

[363]

[345]

48

44

45

44

43

41

39

Torque - Nm [lb-in], Speed rpm

Flow - lpm [gpm]

30 [435] 60 [870] 80 [1160] 100 [1450] 120 [1740] 140 [2030]

Max. Inter.Max. Cont.

12 [106] 24 [211] 32 [282] 40 [352] 48 [423] 56 [493]

Theoretical Torque - Nm [lb-in]

Max.

Inter.

Max.

Cont.

025

5 [1.3]

10 [2.6]

15 [4.0]

20 [5.3]

25 [6.6]

30 [7.9]

35 [9.2]

40 [10.6]

45 [11.9]

200

400

600

800

1000

1200

1400

1600

1800

Theoretical rpm

Overall Efficiency -

70 - 100%

40 - 69%

0 - 39%

Intermittent Ratings - 10% of Operation

Displacement tested at 45°C [113°F] with an oil viscosity of 46cSt [213 SUS]

Pressure - bar [psi]

mm [in]

Rotor

Width

4.1

[.160]

25 cm3 [1.5 in3] / rev

P109333

149

308

465

624

780

931

1086

1240

1400

1550

135

284

444

589

771

908

1066

1212

1382

1526

1674

114

270

429

575

751

895

1051

1190

1366

1500

1641

94

250

398

557

735

876

1030

1178

1340

1478

1617

240

378

544

719

857

1012

1145

1314

1452

1584

211

355

524

695

822

981

1121

1280

1418

1555

[97]

[106]

[97]

[88]

[80]

[71]

[62]

[53]

[44]

11

12

11

10

9

8

7

6

5

[212]

[239]

[230]

[221]

[212]

[204]

[177]

[168]

[159]

[142]

[106]

24

27

26

25

24

23

20

19

18

16

12

[310]

[327]

[319]

[310]

[301]

[283]

[257]

[239]

[230]

[212]

[177]

35

37

36

35

34

32

29

27

26

24

20

[327]

[381]

[398]

[389]

[372]

[354]

[345]

[336]

[310]

[274]

[248]

37

43

45

44

42

40

39

38

35

31

28

[407]

[425]

[407]

[398]

[381]

[372]

[354]

[301]

46

48

46

45

43

42

40

34

[496]

[504]

[496]

[478]

[460]

[451]

[442]

[425]

[407]

[345]

56

57

56

54

52

51

50

48

46

39

Torque - Nm [lb-in], Speed rpm

Flow - lpm [gpm]

30 [435] 60 [870] 80 [1160] 100 [1450] 120 [1740] 140 [2030]

Max. Inter.Max. Cont.

15 [135] 31 [271] 41 [361] 51 [451] 61 [541] 71 [631]

Theoretical Torque - Nm [lb-in]

Max.

Inter.

Max.

Cont.

032

5 [1.3]

10 [2.6]

15 [4.0]

20 [5.3]

25 [6.6]

30 [7.9]

35 [9.2]

40 [10.6]

45 [11.9]

50 [13.2]

55 [14.5]

156

313

469

625

781

938

1094

1250

1406

1563

1719

Theoretical rpm

Overall Efficiency -

70 - 100%

40 - 69%

0 - 39%

Intermittent Ratings - 10% of Operation

Displacement tested at 45°C [113°F] with an oil viscosity of 46cSt [213 SUS]

Pressure - bar [psi]

mm [in]

Rotor

Width

5.1

[.200]

32 cm3 [2.0 in3] / rev

P109334

Technical Information

Orbital Motors Type WD, WP and WR

WP Product Line

025 Displacement Performance

032 Displacement Performance

38 | © Danfoss | December 2019 BC267362166283en-000201

113

238

482

730

968

1219

1471

98

222

458

704

949

1191

1428

1670

83

204

442

687

928

1173

1411

1653

60

182

423

668

908

1150

1387

1627

48

161

402

646

892

1127

1369

1612

114

381

624

870

1107

1341

1598

[133]

[124]

[115]

[106]

[88]

[62]

[35]

15

14

13

12

10

7

4

[274]

[283]

[265]

[239]

[221]

[204]

[142]

31

32

30

27

25

23

16

[336]

[363]

[345]

[327]

[301]

[265]

38

41

39

37

34

30

[425]

[478]

[469]

[451]

[434]

[407]

[363]

48

54

53

51

49

46

41

[496]

[549]

[575]

[558]

[540]

[522]

[496]

[460]

56

62

65

63

61

59

56

52

[619]

[655]

[637]

[628]

[602]

[566]

70

74

72

71

68

64

Torque - Nm [lb-in], Speed rpm

Flow - lpm [gpm]

30 [435] 60 [870] 80 [1160] 100 [1450] 120 [1740] 140 [2030]

Max. Inter.Max. Cont.

19 [168] 38 [336] 50 [442] 64 [566] 76 [673] 89 [788]

Theoretical Torque - Nm [lb-in]

Max.

Inter.

Max.

Cont.

040

5 [1.3]

10 [2.6]

20 [5.3]

30 [7.9]

40 [10.6]

50 [13.2]

60 [15.8]

70 [18.5]

125

250

500

750

1000

1250

1500

2000

Theoretical rpm

Overall Efficiency -

70 - 100%

40 - 69%

0 - 39%

Intermittent Ratings - 10% of Operation

Displacement tested at 45°C [113°F] with an oil viscosity of 46cSt [213 SUS]

Pressure - bar [psi]

mm [in]

Rotor

Width

6.6

[.260]

40 cm3 [2.5 in3] / rev

P109335

100

197

400

600

808

1009

1208

1410

85

196

386

585

800

1006

1200

1396

1500

75

174

371

571

790

986

1196

1382

1488

64

159

355

560

770

982

1188

1370

1473

48

146

341

540

766

964

1176

1358

1457

127

314

516

733

956

1160

1347

1439

101

292

499

703

930

1140

1334

1412

97

290

495

697

872

963

1315

1388

[168]

[177]

[159]

[133]

[106]

[80]

[53]

[27]

19

20

18

15

12

9

6

3

[345]

[336]

[327]

[274]

[239]

[212]

[150]

[133]

39

38

37

31

27

24

17

15

[425]

[442]

[460]

[442]

[398]

[363]

[327]

[283]

[265]

48

50

52

50

45

41

37

32

30

[549]

[558]

[566]

[522]

[487]

[469]

[389]

[354]

62

63

64

59

55

53

44

40

[664]

[690]

[681]

[646]

[602]

[566]

[513]

[496]

75

78

77

73

68

64

58

56

[814]

[796]

[788]

[770]

[743]

[726]

[708]

[681]

92

90

89

87

84

82

80

77

[903]

[920]

[912]

[876]

[867]

[841]

[823]

[779]

102

104

103

99

98

95

93

88

[947]

[956]

[947]

[938]

[929]

[903]

[867]

[823]

107

108

107

106

105

102

98

93

Torque - Nm [lb-in], Speed rpm

Flow - lpm [gpm]

30 [435] 60 [870] 80 [1160] 100 [1450] 120 [1740] 140 [2030] 160 [2320] 175 [2540]

Max. Inter.Max. Cont.

24 [212] 47 [416] 63 [558] 79 [699] 95 [841] 110 [973] 126 [1115] 138 [1221]

Theoretical Torque - Nm [lb-in]

Max.

Inter.

Max.

Cont.

050

5 [1.3]

10 [2.6]

20 [5.3]

30 [7.9]

40 [10.6]

50 [13.2]

60 [15.8]

70 [18.5]

75 [19.8]

101

202

404

606

808

1010

1212

1414

1515

Theoretical rpm

Overall Efficiency -

70 - 100%

40 - 69%

0 - 39%

Intermittent Ratings - 10% of Operation

Displacement tested at 45°C [113°F] with an oil viscosity of 46cSt [213 SUS]

Pressure - bar [psi]

mm [in]

Rotor

Width

6.6

[.260]

50 cm3 [3.0 in3] / rev

P109336

Technical Information

Orbital Motors Type WD, WP and WR

WP Product Line

040 Displacement Performance

050 Displacement Performance

©

Danfoss | December 2019 BC267362166283en-000201 | 39

83

169

338

507

678

845

1014

1185

79

164

332

502

669

841

1005

1182

1271

72

155

320

493

660

833

999

1180

1265

64

142

309

482

645

818

992

1175

1256

51

135

290

468

630

805

982

1158

1241

38

124

276

454

616

792

968

1144

1228

108

245

424

594

770

956

1128

1212

88

222

400

582

754

933

1112

1196

[177]

[195]

[177]

[150]

[124]

[88]

[62]

[35]

20

22

20

17

14

10

7

4

[407]

[416]

[398]

[381]

[363]

[327]

[301]

[239]

[195]

46

47

45

43

41

37

34

27

22

[575]

[584]

[566]

[549]

[513]

[487]

[460]

[416]

[381]

65

66

64

62

58

55

52

47

43

[708]

[717]

[708]

[673]

[646]

[619]

[584]

[549]

[513]

80

81

80

76

73

70

66

62

58

[841]

[850]

[823]

[788]

[770]

[743]

[726]

[673]

[646]

95

96

93

89

87

84

82

76

73

[991]

[1000]

[982]

[965]

[929]

[903]

[876]

[823]

[761]

112

113

111

109

105

102

99

93

86

[1106]

[1088]

[1071]

[1035]

[1000]

[965]

[920]

[885]

125

123

121

117

113

109

104

100

[1204]

[1186]

[1159]

[1124]

[1080]

[1044]

[1009]

[973]

136

134

131

127

122

118

114

110

Torque - Nm [lb-in], Speed rpm

Flow - lpm [gpm]

30 [435] 60 [870] 80 [1160] 100 [1450] 120 [1740] 140 [2030] 160 [2320] 175 [2540]

Max. Inter.Max. Cont.

28 [249] 56 [499] 75 [665] 94 [831] 113 [998] 132 [1164] 150 [1330] 164 [1455]

Theoretical Torque - Nm [lb-in]

Max.

Inter.

Max.

Cont.

060

5 [1.3]

10 [2.6]

20 [5.3]

30 [7.9]

40 [10.6]

50 [13.2]

60 [15.8]

70 [18.5]

75 [19.8]

85

170

339

509

678

848

1017

1186

1271

Theoretical rpm

Overall Efficiency -

70 - 100%

40 - 69%

0 - 39%

Intermittent Ratings - 10% of Operation

Displacement tested at 45°C [113°F] with an oil viscosity of 46cSt [213 SUS]

Pressure - bar [psi]

mm [in]

Rotor

Width

8.0

[.314]

59 cm3 [3.6 in3] / rev

P109337

60

125

254

384

512

638

768

896

960

56

118

245

374

505

630

762

890

955

50

112

236

366

494

625

756

882

948

42

104

228

358

483

615

748

872

938

30

98

215

346

473

606

738

860

926

82

204

335

462

593

728

846

916

67

190

318

450

580

717

830

896

50

175

305

438

568

694

816

802

[283]

[274]

[230]

[212]

[168]

[124]

[88]

[53]

[27]

32

31

26

24

19

14

10

6

3

[549]

[566]

[531]

[496]

[469]

[407]

[372]

[319]

[239]

62

64

60

56

53

46

42

36

27

[708]

[743]

[717]

[664]

[619]

[584]

[496]

[442]

80

84

81

75

70

66

56

50

[938]

[920]

[903]

[885]

[850]

[814]

[761]

[690]

[655]

106

104

102

100

96

92

86

78

74

[1106]

[1062]

[1106]

[1080]

[1044]

[973]

[938]

[867]

[814]

125

120

125

122

118

110

106

98

92

[1257]

[1274]

[1257]

[1239]

[1195]

[1133]

[1044]

[1000]

142

144

142

140

135

128

118

113

[1434]

[1451]

[1416]

[1398]

[1381]

[1327]

[1239]

[1177]

162

164

160

158

156

150

140

133

[1549]

[1619]

[1549]

[1504]

[1487]

[1451]

[1416]

[1310]

175

183

175

170

168

164

160

148

Torque - Nm [lb-in], Speed rpm

Flow - lpm [gpm]

30 [435] 60 [870] 80 [1160] 100 [1450] 120 [1740] 140 [2030] 160 [2320] 175 [2540]

Max. Inter.Max. Cont.

37 [327] 75 [664] 100 [885] 125 [1106] 149 [1319] 174 [1540] 199 [1761] 218 [1929]

Theoretical Torque - Nm [lb-in]

Max.

Inter.

Max.

Cont.

080

5 [1.3]

10 [2.6]

20 [5.3]

30 [7.9]

40 [10.6]

50 [13.2]

60 [15.8]

70 [18.5]

75 [19.8]

64

128

256

385

513

641

769

897

962

Theoretical rpm

Overall Efficiency -

70 - 100%

40 - 69%

0 - 39%

Intermittent Ratings - 10% of Operation

Displacement tested at 45°C [113°F] with an oil viscosity of 46cSt [213 SUS]

Pressure - bar [psi]

mm [in]

Rotor

Width

10.4

[.410]

78 cm3 [4.8 in3] / rev

P109338

Technical Information

Orbital Motors Type WD, WP and WR

WP Product Line

060 Displacement Performance

080 Displacement Performance

40 | © Danfoss | December 2019 BC267362166283en-000201

51

99

205

311

413

519

624

728

780

42

93

202

307

410

515

620

726

771

35

84

197

301

406

510

615

723

764

25

72

192

294

399

503

608

714

755

62

182

283

388

492

600

706

736

48

172

271

379

480

582

684

724

24

140

258

368

464

565

668

712

118

240

347

446

548

646

699

[381]

[363]

[345]

[257]

[177]

[150]

[97]

[53]

43

41

39

29

20

17

11

6

[726]

[743]

[699]

[655]

[558]

[460]

[469]

[372]

[310]

82

84

79

74

63

52

53

42

35

[965]

[956]

[947]

[894]

[823]

[752]

[735]

[646]

[540]

109

108

107

101

93

85

83

73

61

[1159]

[1177]

[1124]

[1115]

[1071]

[1018]

[982]

[823]

[788]

131

133

127

126

121

115

111

93

89

[1345]

[1363]

[1345]

[1327]

[1310]

[1221]

[1115]

[1044]

152

154

152

150

148

138

126

118

[1593]

[1575]

[1558]

[1522]

[1496]

[1460]

[1407]

[1283]

180

178

176

172

169

165

159

145

[1743]

[1770]

[1752]

[1726]

[1708]

[1619]

[1522]

[1381]

197

200

198

195

193

183

172

156

[1876]

[1885]

[1841]

[1796]

[1708]

[1619]

[1558]

212

213

208

203

193

183

176

Torque - Nm [lb-in], Speed rpm

Flow - lpm [gpm]

30 [435] 60 [870] 80 [1160] 100 [1450] 120 [1740] 140 [2030] 160 [2320] 175 [2540]

Max. Inter.Max. Cont.

46 [407] 92 [814] 122 [1080] 153 [1354] 183 [1623] 214 [1894] 245 [2168] 268 [2372]

Theoretical Torque - Nm [lb-in]

Max.

Inter.

Max.

Cont.

100

5 [1.3]

10 [2.6]

20 [5.3]

30 [7.9]

40 [10.6]

50 [13.2]

60 [15.8]

70 [18.5]

75 [19.8]

52

104

208

313

417

521

625

729

781

Theoretical rpm

Overall Efficiency -

70 - 100%

40 - 69%

0 - 39%

Intermittent Ratings - 10% of Operation

Displacement tested at 45°C [113°F] with an oil viscosity of 46cSt [213 SUS]

Pressure - bar [psi]

mm [in]

Rotor

Width

13.0

[.510]

96 cm3 [5.9 in3] / rev

P109339

38

78

158

238

319

399

479

559

35

74

152

232

316

396

478

555

599

32

69

144

225

312

392

475

548

594

27

62

135

215

308

383

470

538

588

54

124

210

300

368

463

524

576

45

110

198

288

354

454

516

565

35

94

168

262

338

443

500

536

78

155

238

326

434

488

524

[460]

[442]

[389]

[310]

[274]

[133]

[71]

52

50

44

35

31

15

8

[841]

[867]

[850]

[814]

[726]

[681]

[566]

[442]

[354]

95

98

96

92

82

77

64

50

40

[1195]

[1221]

[1168]

[1115]

[1044]

[956]

[858]

[796]

[628]

135

138

132

126

118

108

97

90

71

[1487]

[1522]

[1487]

[1451]

[1416]

[1372]

[1292]

[1239]

[1133]

168

172

168

164

160

155

146

140

128

[1681]

[1788]

[1752]

[1708]

[1611]

[1469]

[1434]

[1398]

190

202

198

193

182

166

162

158

[2071]

[2088]

[2053]

[2000]

[1947]

[1858]

[1805]

[1699]

234

236

232

226

220

210

204

192

[2283]

[2265]

[2319]

[2230]

[2106]

[1982]

[1850]

[1761]

258

256

262

252

238

224

209

199

[2460]

[2372]

[2354]

[2319]

[2265]

[2088]

[1982]

278

268

266

262

256

236

224

Torque - Nm [lb-in], Speed rpm

Flow - lpm [gpm]

30 [435] 60 [870] 80 [1160] 100 [1450] 120 [1740] 140 [2030] 160 [2320] 175 [2540]

Max. Inter.Max. Cont.

60 [531] 119 [1053] 159 [1407] 199 [1761] 239 [2115] 279 [2469] 318 [2814] 348 [3080]

Theoretical Torque - Nm [lb-in]

Max.

Inter.

Max.

Cont.

125

5 [1.3]

10 [2.6]

20 [5.3]

30 [7.9]

40 [10.6]

50 [13.2]

60 [15.8]

70 [18.5]

75 [19.8]

40

80

160

240

320

400

480

560

600

Theoretical rpm

Overall Efficiency -

70 - 100%

40 - 69%

0 - 39%

Intermittent Ratings - 10% of Operation

Displacement tested at 45°C [113°F] with an oil viscosity of 46cSt [213 SUS]

Pressure - bar [psi]

mm [in]

Rotor

Width

16.8

[.660]

125 cm3 [7.6 in3] / rev

P109340

Technical Information

Orbital Motors Type WD, WP and WR

WP Product Line

100 Displacement Performance

125 Displacement Performance

©

Danfoss | December 2019 BC267362166283en-000201 | 41

30

63

128

193

257

323

387

452

483

25

60

125

190

255

320

384

451

481

18

56

121

187

252

316

380

448

477

10

52

116

183

248

312

375

444

472

48

110

179

244

306

371

436

466

37

100

173

239

299

366

430

460

86

160

224

288

358

423

450

78

144

211

275

346

412

436

[496]

[513]

[532]

[443]

[425]

[283]

[204]

[142]

[89]

56

58

60

50

48

32

23

16

10

[991]

[1018]

[1089]

[1035]

[1000]

[938]

[779]

[726]

[699]

112

115

123

117

113

106

88

82

79

[1363]

[1381]

[1434]

[1389]

[1372]

[1319]

[1177]

[1133]

[1097]

154

156

162

157

155

149

133

128

124

[1779]

[1814]

[1788]

[1743]

[1726]

[1664]

[1575]

[1505]

[1451]

201

205

202

197

195

188

178

170

164

[2168]

[2142]

[2106]

[2089]

[2080]

[1876]

[1823]

[1779]

245

242

238

236

235

212

206

201

[2522]

[2496]

[2460]

[2416]

[2363]

[2301]

[2257]

[2195]

285

282

278

273

267

260

255

248

[2894]

[2850]

[2814]

[2770]

[2726]

[2673]

[2620]

327

322

318

313

308

302

296

[3186]

[3168]

[3142]

[3115]

[3027]

[2929]

[2823]

360

358

355

352

342

331

319

Torque - Nm [lb-in], Speed rpm

Flow - lpm [gpm]

30 [435] 60 [870] 80 [1160] 100 [1450] 120 [1740] 140 [2030] 160 [2320] 175 [2540]

Max. Inter.Max. Cont.

74 [651] 147 [1302] 196 [1736] 245 [2170] 282 [2496] 343 [3038] 392 [3472] 429 [3798]

Theoretical Torque - Nm [lb-in]

Max.

Inter.

Max.

Cont.

160

5 [1.3]

10 [2.6]

20 [5.3]

30 [7.9]

40 [10.6]

50 [13.2]

60 [15.8]

70 [18.5]

75 [19.8]

32

65

130

194

258

323

387

453

485

Theoretical rpm

Overall Efficiency -

70 - 100%

40 - 69%

0 - 39%

Intermittent Ratings - 10% of Operation

Displacement tested at 45°C [113°F] with an oil viscosity of 46cSt [213 SUS]

Pressure - bar [psi]

mm [in]

Rotor

Width

20.8

[.820]

159 cm3 [9.7 in3] / rev

P109341

25

51

104

157

210

262

315

367

22

49

102

155

208

260

313

365

394

20

45

99

152

205

258

309

362

390

10

39

95

148

200

254

305

358

385

35

89

143

193

249

299

352

380

29

83

137

186

243

293

336

374

22

76

130

178

235

284

330

365

65

118

168

223

268

316

352

[664]

[690]

[655]

[619]

[575]

[478]

[319]

[133]

75

78

74

70

65

54

36

15

[1398]

[1416]

[1381]

[1345]

[1301]

[1257]

[1133]

[903]

[832]

158

160

156

152

147

142

128

102

94

[1770]

[1805]

[1770]

[1735]

[1681]

[1593]

[1469]

[1398]

[1292]

200

204

200

196

190

180

166

158

146

[2133]

[2230]

[2177]

[2124]

[2018]

[1965]

[1858]

[1788]

[1717]

241

252

246

240

228

222

210

202

194

[2575]

[2593]

[2566]

[2531]

[2451]

[2354]

[2248]

[2035]

291

293

290

286

277

266

254

230

[3080]

[3133]

[3115]

[3009]

[2947]

[2850]

[2673]

[2566]

348

354

352

340

333

322

302

290

[3336]

[3363]

[3345]

[3327]

[3150]

[3097]

[2894]

[2805]

377

380

378

376

356

350

327

317

[3681]

[3717]

[3699]

[3558]

[3540]

[3327]

[3221]

416

420

418

402

400

376

364

Torque - Nm [lb-in], Speed rpm

Flow - lpm [gpm]

30 [435] 60 [870] 80 [1160] 100 [1450] 115 [1670] 140 [2030] 150 [2180] 175 [2540]

Max. Inter.Max. Cont.

91 [803] 182 [1611] 242 [2142] 303 [2677] 348 [3079] 424 [3748] 454 [4016] 529 [4685]

Theoretical Torque - Nm [lb-in]

Max.

Inter.

Max.

Cont.

200

5 [1.3]

10 [2.6]

20 [5.3]

30 [7.9]

40 [10.6]

50 [13.2]

60 [15.8]

70 [18.5]

75 [19.8]

26

53

105

158

211

263

316

368

395

Theoretical rpm

Overall Efficiency -

70 - 100%

40 - 69%

0 - 39%

Intermittent Ratings - 10% of Operation

Displacement tested at 45°C [113°F] with an oil viscosity of 46cSt [213 SUS]

Pressure - bar [psi]

mm [in]

Rotor

Width

25.9

[1.020]

190 cm3 [11.6 in3] / rev

P109342

Technical Information

Orbital Motors Type WD, WP and WR

WP Product Line

160 Displacement Performance

200 Displacement Performance

42 | © Danfoss | December 2019 BC267362166283en-000201

19

40

81

124

165

207

250

291

312

16

36

77

121

162

203

247

285

310

10

32

72

115

158

195

243

278

307

6

21

65

106

153

189

236

271

302

10

50

94

144

183

222

256

294

42

84

135

170

216

249

270

36

76

125

157

205

234

254

23

61

113

138

188

221

242

[788]

[814]

[796]

[761]

[726]

[611]

[425]

[327]

[230]

89

92

90

86

82

69

48

37

26

[1717]

[1735]

[1699]

[1637]

[1584]

[1496]

[1345]

[1230]

[1133]

194

196

192

185

179

169

152

139

128

[2336]

[2372]

[2336]

[2265]

[2195]

[2150]

[2035]

[1938]

[1814]

264

268

264

256

248

243

230

219

205

[2885]

[2912]

[2841]

[2779]

[2699]

[2593]

[2496]

[2327]

[2168]

326

329

321

314

305

293

282

263

245

[3487]

[3513]

[3469]

[3398]

[3345]

[3221]

[3035]

[2903]

394

397

392

384

378

364

343

328

[3938]

[3855]

[3814]

[3726]

[3602]

[3416]

[3310]

445

439

431

421

407

386

374

[4513]

[4442]

[4301]

[4204]

[4035]

[3903]

[3788]

510

502

486

475

456

441

428

[4903]

[4929]

[4823]

[4655]

[4496]

[4389]

[4257]

554

557

545

526

508

496

481

Torque - Nm [lb-in], Speed rpm

Flow - lpm [gpm]

30 [435] 60 [870] 85 [1230] 100 [1450] 125 [1810] 140 [2030] 160 [2320] 175 [2540]

Max. Inter.Max. Cont.

115 [1018] 229 [2027] 325 [2875] 382 [3381] 478 [4230] 535 [4735] 611 [5407] 669 [5920]

Theoretical Torque - Nm [lb-in]

Max.

Inter.

Max.

Cont.

250

5 [1.3]

10 [2.6]

20 [5.3]

30 [7.9]

40 [10.6]

50 [13.2]

60 [15.8]

70 [18.5]

75 [19.8]

21

42

83

125

167

208

250

292

313

Theoretical rpm

Overall Efficiency -

70 - 100%

40 - 69%

0 - 39%

Intermittent Ratings - 10% of Operation

Displacement tested at 45°C [113°F] with an oil viscosity of 46cSt [213 SUS]

Pressure - bar [psi]

mm [in]

Rotor

Width

32.5

[1.280]

240 cm3 [14.6 in3] / rev

P109343

P109344

16

31

64

98

129

164

195

228

245

13

29

62

94

126

160

192

226

242

10

25

58

90

122

155

188

223

238

6

21

54

85

118

150

183

218

233

17

49

79

113

144

176

212

228

43

70

106

136

170

206

222

32

62

99

127

164

196

215

23

56

76

119

157

188

206

[1089]

[1035]

[991]

[920]

[761]

[646]

[531]

[327]

[204]

123

117

112

104

86

73

60

37

23

[1770]

[1717]

[1735]

[1620]

[1487]

[1381]

[1239]

[1080]

[885]

200

194

196

183

168

156

140

122

100

[2496]

[2451]

[2434]

[2363]

[2230]

[2106]

[1974]

[1646]

[1540]

282

277

275

267

252

238

223

186

174

[3044]

[3027]

[3009]

[2850]

[2690]

[2549]

[2390]

[2248]

[2097]

344

342

340

322

304

288

270

254

237

[3531]

[3513]

[3452]

[3230]

[3098]

[2876]

[2735]

[2593]

399

397

390

365

350

325

309

293

[4071]

[3965]

[3894]

[3752]

[3505]

[3257]

[3177]

460

448

440

424

396

368

359

[4655]

[4602]

[4558]

[4425]

[4248]

[4027]

[3929]

526

520

515

500

480

455

444

[5354]

[5328]

[5204]

[5053]

[4832]

[4664]

[4567]

605

602

588

571

546

527

516

Torque - Nm [lb-in], Speed rpm

Flow - lpm [gpm]

30 [435] 50 [725] 70 [1015] 85 [1230] 100 [1450] 120 [1740] 140 [2030] 160 [2320]

Max. Inter.Max. Cont.

145 [1283] 241 [2133] 338 [2991] 410 [3628] 482 [4265] 579 [5124] 675 [5973] 772 [6832]

Theoretical Torque - Nm [lb-in]

Max.

Inter.

Max.

Cont.

315

5 [1.3]

10 [2.6]

20 [5.3]

30 [7.9]

40 [10.6]

50 [13.2]

60 [15.8]

70 [18.5]

75 [19.8]

17

33

66

99

132

165

198

231

248

Theoretical rpm

Overall Efficiency -

60 - 100%

40 - 59%

0 - 39%

Intermittent Ratings - 10% of Operation

Displacement tested at 45°C [113°F] with an oil viscosity of 46cSt [213 SUS]

Pressure - bar [psi]

mm [in]

Rotor

Width

40.9

[1.610]

303 cm3 [18.5 in3] / rev

Technical Information

Orbital Motors Type WD, WP and WR

WP Product Line

250 Displacement Performance

315 Displacement Performance

©

Danfoss | December 2019 BC267362166283en-000201 | 43

11

25

51

76

103

129

155

179

189

10

23

50

75

102

128

153

177

187

7

20

48

73

100

125

150

174

184

5

16

45

70

96

123

148

170

180

10

40

67

89

119

143

165

175

6

35

59

82

112

139

158

167

27

47

73

102

130

152

160

36

62

91

121

144

150

[1274]

[1292]

[1283]

[1221]

[1062]

[885]

[673]

[442]

[372]

144

146

145

138

120

100

76

50

42

[1947]

[1973]

[1938]

[1903]

[1805]

[1646]

[1469]

[1283]

[1195]

220

223

219

215

204

186

166

145

135

[2389]

[2407]

[2381]

[2319]

[2212]

[2106]

[1965]

[1717]

[1558]

270

272

269

262

250

238

222

194

176

[2991]

[3009]

[2347]

[2850]

[2743]

[2611]

[2496]

[2212]

[2000]

338

340

333

322

310

295

282

250

226

[3646]

[3611]

[3558]

[3478]

[3310]

[3168]

[2956]

[2708]

412

408

402

393

374

358

334

306

[4319]

[4283]

[4177]

[4053]

[3947]

[3779]

[3558]

[3301]

488

484

472

458

446

427

402

373

[4850]

[4832]

[4735]

[4602]

[4389]

[4177]

[3938]

548

546

535

520

496

472

445

[5531]

[5469]

[5310]

[5097]

[4779]

[4602]

625

618

600

576

540

520

Torque - Nm [lb-in], Speed rpm

Flow - lpm [gpm]

30 [435] 45 [650] 55 [800] 65 [940] 80 [1160] 95 [1380] 110 [1595] 125 [1810]

Max. Inter.Max. Cont.

185 [1640] 278 [2460] 340 [3007] 402 [3554] 494 [4374] 587 [5194] 680 [6014] 772 [6834]

Theoretical Torque - Nm [lb-in]

Max.

Inter.

Max.

Cont.

400

5 [1.3]

10 [2.6]

20 [5.3]

30 [7.9]

40 [10.6]

50 [13.2]

60 [15.8]

70 [18.5]

75 [19.8]

13

26

52

77

103

129

155

180

190

Theoretical rpm

Overall Efficiency -

70 - 100%

40 - 69%

0 - 39%

Intermittent Ratings - 10% of Operation

Displacement tested at 45°C [113°F] with an oil viscosity of 46cSt [213 SUS]

Pressure - bar [psi]

mm [in]

Rotor

Width

52.1

[2.050]

388 cm3 [23.7 in3] / rev

P109345

Technical Information

Orbital Motors Type WD, WP and WR

WP Product Line

400 Displacement Performance

44 | © Danfoss | December 2019 BC267362166283en-000201

P109637

90.8 [3.575] Max.

D

45.7 [1.800]

B

A

59 [2.31]

59 [2.31]46 [1.83]

13.5 [.531]

105 [4.14]

106.4 [4.189]

13.5 [.531]

106.4 [4.189]

131.9 [5.193] Max.

80.8 [3.181] Max.

22.5° 22.5°

Ø 82.5 [3.248]

90.8 [3.575] Max.

D

45.7 [1.800]

B

A

Ø 82.5 [3.248]

A10, A11, A18 - 3.0 [.120] A68 - 8.0 [.310]

A10, A11, A18 - 48 [1.89] A68 - 43 [1.69]

A30, A31 - 3.0 [.120] AC8 - 8.0 [.310]

A30, A31 - 48 [1.89] AC8 - 43 [1.69]

131.9 [5.193] Max.

80.8 [3.181] Max.

2-HOLE, SAE A MOUNT, ALIGNED PORTS

4-HOLE, MAGNETO MOUNT, ALIGNED PORTS

A10 1/2-14 NPT A68 G 1/2 (TP)A11 7/8-14 UNF A18 G 1/2

A30 1/2-14 NPT A31 7/8-14 UNF AC8 G 1/2 (TP)

Technical Information

Orbital Motors Type WD, WP and WR

WP Product Line

155/156 Series

155/156 Series Housings

Dimensions shown are without paint. Paint thickness can be up to 0.13 [.005]. Dimensions are charted in 155/156 Series Technical Data on page 51. (TP) - Taller Pilot Height. Refer to detailed drawing for dimensional differences.

©

Danfoss | December 2019 BC267362166283en-000201 | 45

90.8 [3.575] Max.

18 [.71]

36 [1.42]

D

18 [.71]

B

A

59 [2.31]

13.5 [.531]

105 [4.14]

106.4 [4.189]

131.9 [5.193] Max.

80.8 [3.181] Max.

Ø 82.5 [3.248]

A12 - 3.0 [.120] A62, A69 - 8.0 [.310]

A12 - 40 [1.58] A62, A69 - 35 [1.38]

A12

G 1/2

2-HOLE, SAE A MOUNT, OFFSET PORTS

A62

G 1/2 (TP)

A69

7/8-14 UNF (TP)

90.8 [3.575] Max.

18 [.71]

36 [1.42]

D

18 [.71]

B

A

Ø 82.5 [3.248]

3.0 [.120]

40 [1.58]

59 [2.31]46 [1.83]

106.4 [4.189]

13.5 [.531]

22.5° 22.5°

131.9 [5.193] Max.

80.8 [3.181] Max.

4-HOLE, MAGNETO MOUNT, OFFSET PORTS

A32

G 1/2

P109638

Technical Information

Orbital Motors Type WD, WP and WR

WP Product Line

46 | © Danfoss | December 2019 BC267362166283en-000201

P109639

55 [2.17]47 [1.85]

106.4 [4.189]

13.5 [.531]

22.5° 22.5°

90.8 [3.575] Max.

D

45.7 [1.800]

14.3 [.562]

63.5 [2. 500]

Ø 82.5 [3.248]

Spotface Ø 17.5 [.689] 2 [.079] Min. deep

50 [1.97] 45 [1.77]

B

A

A37 - 3.0 [.120] AC7 - 8.0 [.310]

A37 - (4) 5/16-18 UNC, Min. Depth 12 [.47] AC7 - (4) M8 x 1.25, Min. Depth 12 [.47]

131.9 [5.193] Max.

80.8 [3.181] Max.

A37 AC7 -

A37

1/2” Drilled

4-HOLE, MAGNETO MOUNT, ALIGNED MANIFOLD PORTS

AC7

1/2” Drilled (TP)

55 [2.17]

13.5 [.531]

102 [4.02]

106.4 [4.189]

131.9 [5.193] Max.

80.8 [3.181] Max.

3 [.12]

90.8 [3.575] Max.

D

45.7 [1.800]

14.3 [.562]

63.5 [2. 500]

Ø 82.5 [3.248]

Spotface Ø 17.5 [.689] 2 [.079] Min. deep

50 [1.97]

B

A

A17 - (4) 5/16-18 UNC, Min. Depth 12 [.47] G17 - (4) M8 x 1.25, Min. Depth 12 [.47]

2-HOLE, SAE A MOUNT, ALIGNED MANIFOLD PORTS

A17

1/2” Drilled

G17

1/2” Drilled

Technical Information

Orbital Motors Type WD, WP and WR

WP Product Line

©

Danfoss | December 2019 BC267362166283en-000201 | 47

90.8 [3.575] Max.

18 [.71]

36 [1.42]

D

18 [.71]

Ø 82.5 [3.248]

20 [.79] 20 [.79]

20 [.79]

55 [2.17]

55 [2.17]47 [1.85]

13.5 [.531]

102 [4.02]

106.4 [4.189]

13.5 [.531]

106.4 [4.189]

131.9 [5.193] Max.

80.8 [3.181] Max.

22.5° 22.5°

B

A

90.8 [3.575] Max.

18 [.71]

36 [1.42]

D

18 [.71]

Ø 82.5 [3.248]

20 [.79] 20 [.79]

20 [.79]

B

A

A13 - 3 [.120] A63 - 8 [.310]

A13 - 40 [1.58] A63 - 35 [1.38]

A3D - 3 [.120] AC3 - 8 [.310]

A3D - 40 [1.58] AC3 - 35 [1.38]

A3D - (4) 7/16-20 UNF, Min. Depth 12 [.47] AC3 - (4) M8 x 1.25, Min. Depth 12 [.47]

(4) M8 x 1.25, Min. Depth 12 [.47]

131.9 [5.193] Max.

80.8 [3.181] Max.

A13

G 1/2

2-HOLE, SAE A MOUNT, OFFSET MANIFOLD PORTS

A3D

7/8-14 UNF

4-HOLE, MAGNETO, OFFSET MANIFOLD PORTS

A63

G 1/2 (TP)

AC3

G 1/2 (TP)

P109640

Technical Information

Orbital Motors Type WD, WP and WR

WP Product Line

48 | © Danfoss | December 2019 BC267362166283en-000201

Ø 44.4 [1.748]

22.9 [.902]

3 [.12] 48 [1.89]

D

58.7 [2.311] Max.

103.9 [4.091] Max.

Ø 82.55 [3.250]

80.8 [3.181] Max.

90.8 [3.575] Max.

B

A

82.8 [3.260] Max.

F30, F31 - (4) 3/8-16 UNC, Min. Depth 12 [.47] F38 - (4) M10 x 1.5, Min. Depth 12 [.47]

F30

1/2-14 NPT

4-HOLE, SQUARE MOUNT, ALIGNED PORTS

F31

7/8-14 UNF

F38

G 1/2

55 [2.17]

Max.

82.8 [3.260] Max.

103.9 [4.091] Max.

Ø 82.55 [3.250]

80.8 [3.181] Max.

(4) 3/8-16 UNC, Min. Depth 12 [.47]

B

A

Ø 44.4 [1.748]

23 [.90]

3 [.12]

50 [1.97]

D

90.8 [3.575] Max.

14.3 [.56] 14.3 [.56]

63.5 [2.50]

(4) 5/16-18 UNC, 12.0 [.47] Min. Deep

Spotface Ø 17.5 [.689], 2 [.079] Min. deep

F37

1/2” Drilled

4-HOLE, SQUARE MOUNT, ALIGNED MANIFOLD PORTS

P109641

Technical Information

Orbital Motors Type WD, WP and WR

WP Product Line

©

Danfoss | December 2019 BC267362166283en-000201 | 49

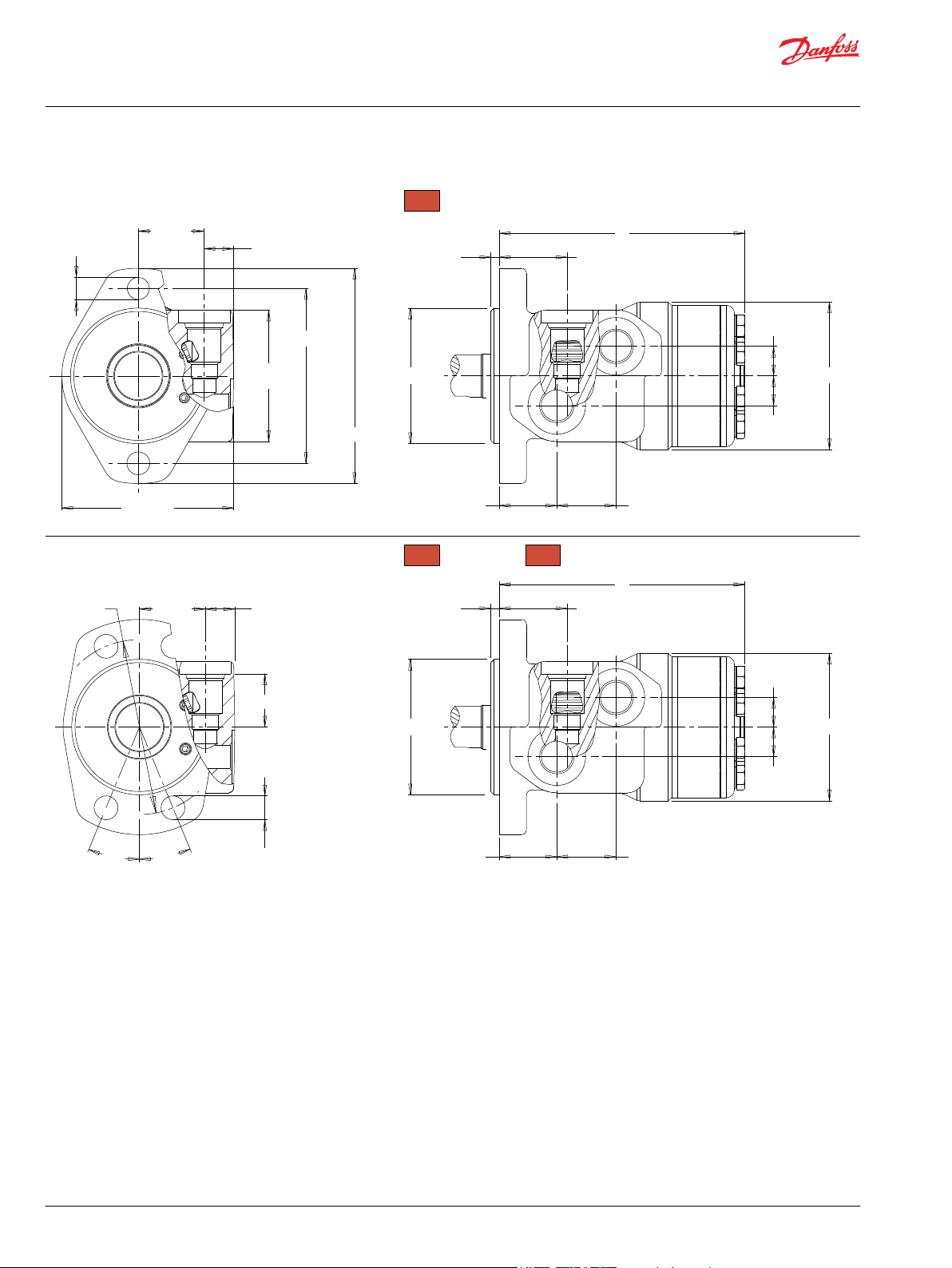

40 [1.57]

19 [.74]

13.5 [.531]

105 [4.14]

106.4 [4.189]

131.9 [5.193] Max.

80.8 [3.181] Max.

3 [.12]

40 [1.58]

90.8 [3.575] Max.

18 [.71]

46.2 [1.819]

36 [1.42]

D

18 [.71]

Ø 82.5 [3.248]

B

A

2-HOLE, SAE A MOUNT, OFFSET PORTS, VALVE CAVITY

A19

7/8-14 UNF

90.8 [3.575] Max.

18 [.71]

36 [1.42]

D

18 [.71]

Ø 82.5 [3.248]

B

A

22.5° 22.5°

106.4 [4.189] 40 [1.57]

32.4 [1.276]

13.5 [.531]

19 [.74]

A39 - 3.0 [.120] AC2 - 8.0 [.310]

A39 - 40 [1.58] AC2 - 35 [1.38]

A39 - 46.2 [1.819] AC2 - 41.2 [1.619]

A39

7/8-14 UNF

AC2

G 1/2 (TP)

4-HOLE, MAGNETO MOUNT, OFFSET PORTS, VALVE CAVITY

P109642

Technical Information

Orbital Motors Type WD, WP and WR

WP Product Line

50 | © Danfoss | December 2019 BC267362166283en-000201

Ø82.5 [3.248]

3 [.12]

Ø44.4 [1.748]

E

96.6 [3.803]

3.4 [.132]

62.4 [2.457]

31.2 [1.228]

7.1 [.280]

B

A

82 [3.228]

F21, F26 - (4) 3/8-16 UNC, Min. Depth 12 [.47] G24, G28 - (4) M10 x 1.5, Min. Depth 12 [.47]

4-HOLE, SQUARE MOUNT, ALIGNED END PORTS

F21

7/8-14 UNF

G28

G 1/2

F26

3/4-16 UNF

G24

M22 x 1.5

13.5 [.531]

106,4 [4.189]

131.9 [5.193] Max.

E

Ø82.5 [3.248]

62.4 [2.457]

31.2 [1.228]

96.6 [3.803]

3.4 [.132]

7.1 [.280]

B

A

A06, A08 - 3 [.120] AP6, AP8 - 8 [.310]

2-HOLE, SAE A MOUNT, ALIGNED END PORTS

A06

3/4-16 UNF

AP8

G 1/2 (TP)

A08

G 1/2

AP6

3/4-16 UNF (TP)

P109643

Technical Information

Orbital Motors Type WD, WP and WR

WP Product Line

155/156 Series Technical Data

Allowable Shaft Load / Bearing Curve

The bearing curve below represents the side load capacity of the motor at the centerline of the key for various motor speeds. Operating conditions within the shaded area will maintain acceptable oil film lubrication with recommended fluids. Operating conditions outside the shaded area are susceptible to motor failure due to oil starvation and/or excessive heat generation. Fluids with low lubricity or low viscosity may require the maximum load and speed ratings to be derated to provide acceptable motor life and performance.

©

Danfoss | December 2019 BC267362166283en-000201 | 51

6000 [1350]

8000 [1800]

N [lbf]

4000 [900]

2000 [450]

0 600 rpm700500400300200100

P109352

276 [4000]

207 [3000]

69 [1000]

138 [2000]

bar [psi]

0 1000900 rpm600 800700500400300200100

Continuous

Intermittent

P109353

P109354

Technical Information

Orbital Motors Type WD, WP and WR

WP Product Line

Permissible Shaft Seal Pressure

The curve below represents allowable seal pressure at various speeds. Operation in the gray area results in maintaining the rated life of the shaft seal. Actual shaft seal pressure depends on motor configuration.

With check valves and drain connection, the shaft seal pressure equals pressure in the drain line. With check valves and no drain connection, shaft seal pressure is identical to output pressure. No check valves and no drain connection, the shaft seal pressure is identical to the average value of input and output pressure.

52 | © Danfoss | December 2019 BC267362166283en-000201

445 daN [1000 lb]

P109355

Technical Information

Orbital Motors Type WD, WP and WR

WP Product Line

Thrust Load

Length and Weight Charts

The overall motor weights listed in each chart were calculated using the heaviest of the housing options associated with that mounting flange to end of motor dimension. 155 & 156 series motor weights can vary ± 0.5 kg [1 lb] depending on model configurations such as housing, shaft, endcover, options etc.

Dimension D is the overall motor length from the rear of the motor to the mounting flange surface and is referenced on detailed housing drawings listed in 155/156 Series Housings on page 45.

Dimension D

# 3 mm Pilot 8 mm Pilot Weight

mm [in] mm [in] kg [lb]

025 133 [5.24] 128 [5.04] 6.3 [13.9] 032 134 [5.28] 129 [5.08] 6.4 [14.1] 040 136 [5.34] 131 [5.16] 6.5 [14.2] 050 136 [5.34] 131 [5.16] 6.5 [14.2] 060 137 [5.40] 132 [5.20] 6.5 [14.3] 080 139 [5.49] 134 [5.28] 6.6 [14.5] 100 142 [5.59] 137 [5.39] 6.7 [14.7] 125 146 [5.74] 141 [5.55] 6.8 [14.9] 160 150 [5.90] 145 [5.71] 6.9 [15.2] 200 155 [6.10] 150 [5.91] 7.1 [15.6] 250 162 [6.36] 157 [6.18] 7.3 [16.1] 315 170 [6.69] 165 [6.50] 7.6 [16.7] 400 181 [7.13] 176 [6.93] 7.9 [17.5]

Dimension E is the overall motor length from the rear of the motor to the mounting flange surface and is referenced on detailed housing drawings listed in 155/156 Series Housings on page 45.

Dimension E

# 3 mm Pilot 8 mm Pilot Weight

025 144 [5.67] 139 [5.47] 5.9 [13.0] 032 145 [5.71] 140 [5.51] 6.0 [13.2] 040 146 [5.75] 141 [5.55] 6.1 [13.4]

©

Danfoss | December 2019 BC267362166283en-000201 | 53

mm [in] mm [in] kg [lb]

Technical Information

Orbital Motors Type WD, WP and WR

WP Product Line

Dimension E (continued)

# 3 mm Pilot 8 mm Pilot Weight

050 146 [5.75] 141 [5.55] 6.1 [13.4] 060 148 [5.83] 143 [5.63] 6.1 [13.4] 080 150 [5.91] 145 [5.71] 6.2 [13.6] 100 153 [6.02] 148 [5.83] 6.3 [13.9] 125 157 [6.18] 152 [5.98] 6.4 [14.1] 160 161 [6.33] 156 [6.14] 6.5 [14.3] 200 166 [6.54] 161 [6.34] 6.7 [14.7] 250 173 [6.81] 168 [6.61] 6.9 [15.2] 315 181 [7.13] 176 [6.93] 7.2 [15.8] 400 192 [7.56] 187 [7.36] 7.5 [16.5]

mm [in] mm [in] kg [lb]

54 | © Danfoss | December 2019 BC267362166283en-000201

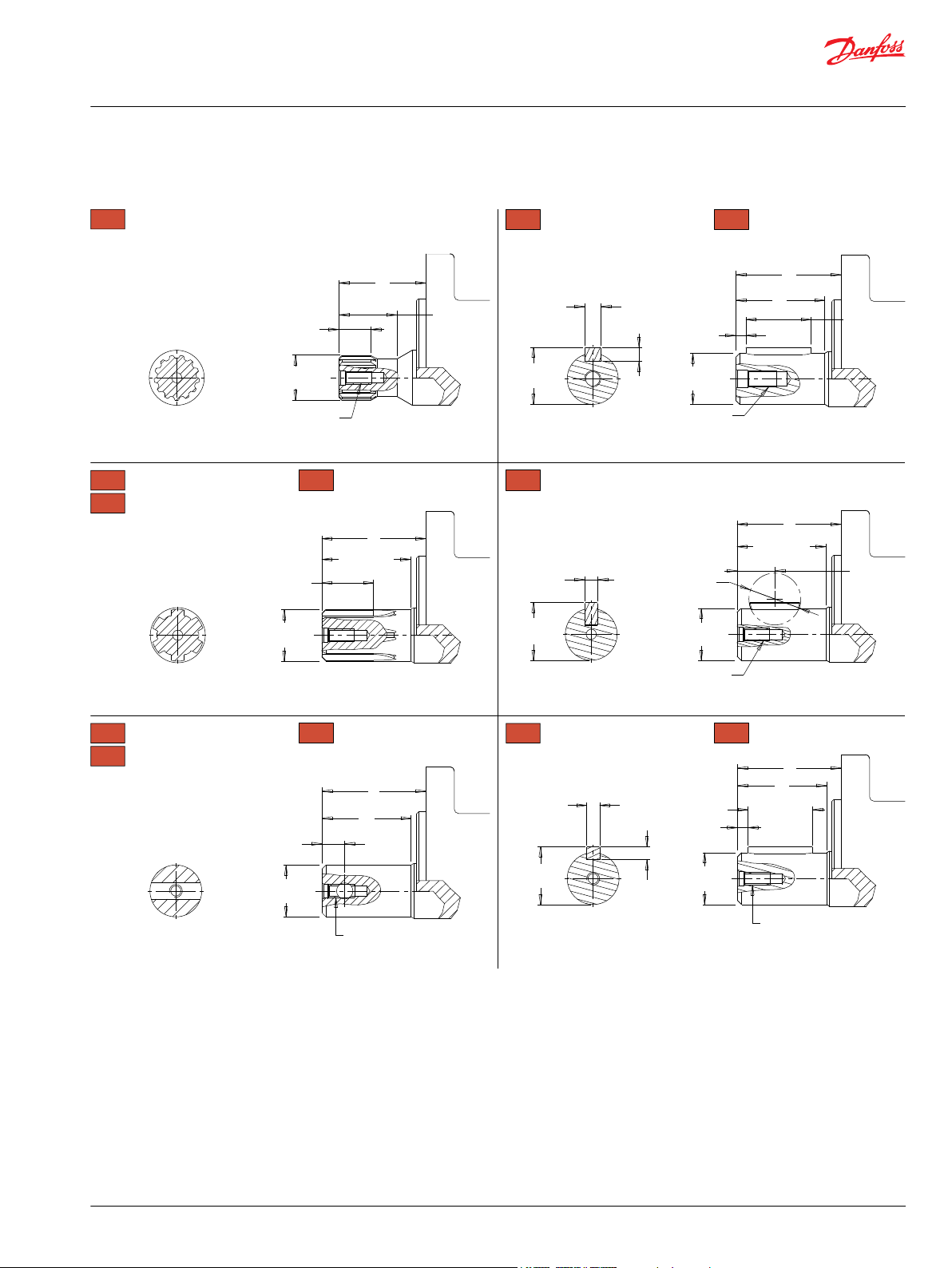

P109364

5 [.20]

31.75 [1.250]

31.45 [1.238]

7.95 [.313]

7.93 [.312]

28.30 [1.114]

27.89 [1.098]

25.4 [1.000]

M8 X 1.25, Min. Depth 20 [.79]

19.1 [.761]

18.0 [.709]

14.7 [.579]

25.4 [1.000]

25.4 [.999]

27.98 [1.102]

27.70 [1.091]

6.98 [.275]

6.90 [.271]

Ø25.02 [.985] Ø25.00 [.984]

6.38 [.251]

6.35 [.250]

Ø 25.4 [1.000] Ø 25.1 [.990]

Ø22.3 [.878] Ø22.2 [.874]

Ø25.4 [.998] Ø25.3 [.996]

39.2 [1.543]

39.9 [1.571]

32.7 [1.287]

F

01

7/8” 13 Tooth Spline

Max. Torque: 170 Nm [1500 lb-in] Max. Torque: 655 Nm [5800 lb-in]

02

1” 6B Spline, 1/4-20 Tap

Max. Torque: 678 Nm [6000 lb-in]

04

1” 6B Spline, M8x1.25 Tap

F3

1” 6B Spline, M8x1.25 Tap

B1

1” Straight, Woodruff Key

Max. Torque: 655 Nm [5800 lb-in]

12

25mm Straight

16

25mm Straight Extended

F

2

31.75 [1.250]

31.45 [1.238]

5 [.20]

F

25.4 [1.000]

25.4 [0.999]

6.35 [.250]

6.3 [.248]

6.35 [.250]

6.3 [.248]

28.15 [1.122]

27.95 [1.100]

1/4-20 UNC, Min. Depth 16 [.63]

Max. Torque: 655 Nm [5800 lb-in]

10

1” Straight

15

1” Straight Extended

F

2

1/4-20 UNC, Min. Depth 16 [.63]

25.4 [1.000]

25.4 [0.999]

1/4-20 UNC, Min. Depth 16 [.63]

F

2

05

1” - 9.5 [.375] Pinhole

Max. Torque: 678 Nm [6000 lb-in]

53

1” - 10.3 [.406] Pinhole

66

1” - 8.0 [.315] Pinhole

05, 53 - 16 [.62] 66 - 11 [.44]

1/4-20 UNC, Min. Depth 16 [.63]

F3 - 6B Spline B.S. 2059 Standard

02, 04 - 6B Spline SAE J499 Standard

Technical Information

Orbital Motors Type WD, WP and WR

WP Product Line

155/156 Series Shafts

Mounting / Shaft Length Chart

Dimension F is the overall distance from the motor mounting surface to the end of the shaft. Additional shaft length information, if necessary, is noted as F2 and does not increase or decrease the

listed F dimensions in this chart. The overall shaft lengths are already factored into the overall distance

©

Danfoss | December 2019 BC267362166283en-000201 | 55

from the mounting surface to the end of the shaft.

Technical Information

Orbital Motors Type WD, WP and WR

WP Product Line

Dimension F

# 3 mm Pilot 8 mm Pilot F

01 43.3 [1.705] 48.3 [1.902] N/A 02 45.3 [1.783] 50.3 [1.980] N/A 04 45.3 [1.783] 50.3 [1.980] N/A 05 45.3 [1.783] 50.3 [1.980] 39.2 [1.543] 10 45.3 [1.783] 50.3 [1.980] 39.2 [1.543] 12 50.3 [1.980] 55.3 [2.177] 44.2 [1.740] 15 62.1 [2.445] 67.1 [2.642] 56.0 [2.205] 16 62.6 [2.464] 67.6 [2.661] 56.5 [2.225] 53 45.3 [1.783] 50.3 [1.980] 39.2 [1.543] 66 50.3 [1.980] 55.3 [2.177] 44.2 [1.740] B1 45.3 [1.783] 50.3 [1.980] N/A

2

mm [in] mm [in] mm [in]

56 | © Danfoss | December 2019 BC267362166283en-000201

Technical Information

Orbital Motors Type WD, WP and WR

WP Product Line

155/156 Order Codes

©

Danfoss | December 2019 BC267362166283en-000201 | 57

1 2 3 4 5 6 7 8

25 cm3/rev [1.5 in3/rev] 32 cm3/rev [2.0 in3/rev] 40 cm3/rev [2.5 in3/rev] 50 cm3/rev [3.0 in3/rev] 59 cm3/rev [3.6 in3/rev] 78 cm3/rev [4.8 in3/rev] 96 cm3/rev [5.9 in3/rev]

Standard Rotation Reverse Rotation

The 155 & 156 series are bi-directional.

125 cm3/rev [7.6 in3/rev] 154 cm3/rev [9.4 in3/rev] 190 cm3/rev [11.6 in3/rev] 240 cm3/rev [14.6 in3/rev] 303 cm3/rev [18.5 in3/rev] 388 cm3/rev [23.7 in3/rev]

2-Hole, SAE A Mount, Aligned End Ports, 3/4-16 UNF 2-Hole, SAE A Mount, Aligned End Ports, G 1/2 2-Hole, SAE A Mount, Aligned End Ports, 3/4-16 UNF (TP) 2-Hole, SAE A Mount, Aligned End Ports, G 1/2 (TP) 2-Hole, SAE A Mount, Aligned Ports, 1/2-14 NPT 2-Hole, SAE A Mount, Aligned Ports, 7/8-14 UNF 2-Hole, SAE A Mount, Offset Ports, G 1/2 2-Hole, SAE A Mount, Offset Manifold Ports, G 1/2 2-Hole, SAE A Mount, Aligned Manifold Ports, 1/2” Drilled 2-Hole, SAE A Mount, Aligned Ports, G 1/2 2-Hole, SAE A Mount, Offset Ports, Valve Cavity 7/8-14 UNF 4-Hole, Magneto Mount, Aligned Ports, 1/2-14 NPT 4-Hole, Magneto Mount, Aligned Ports, 7/8-14 UNF 4-Hole, Magneto Mount, Offset Ports, G 1/2 4-Hole, Magneto Mount, Aligned Manifold Ports, 1/2” Drilled 4-Hole, Magneto Mount, Offset Ports, Valve Cavity 7/8-14 UNF 4-Hole, Magneto Mount, Offset Manifold Ports, 7/8-14 UNF 2-Hole, SAE A Mount, Offset Ports, G 1/2 (TP) 2-Hole, SAE A Mount, Offset Manifold Ports, G 1/2 (TP) 2-Hole, SAE A Mount, Aligned Ports, G 1/2 (TP) 2-Hole, SAE A Mount, Offset Ports, 7/8-14 UNF (TP) 4-Hole, Magneto Mount, Offset Ports, G 1/2 (TP) 4-Hole, Magneto Mount, Offset Manifold Ports, G 1/2 (TP) 4-Hole, Magneto Mount, Aligned Manifold Ports, 1/2” Drilled (TP)

7/8” 13 Tooth Spline 1” 6B Spline, 1/4-20 Tap 1” 6B Spline, M8x1.25 Tap 1” - 9.5 [.375] Pinhole 1” Straight 25mm Straight

1” Straight Extended 25mm Straight Extended 1” - 10.3 [.406] Pinhole 1” - 8.0 [.315] Pinhole 1” Straight, Woodruff Key 1” 6B Spline, M8x1.25 Tap

Black Black, Unpainted Mounting Surface

Standard Lock Nut Solid Hex Nut Speed Sensor, Dual, 4-Pin Male Weatherpack Connector Speed Sensor, Dual, 4-Pin M12 Male Connector Speed Sensor, Single, 3-Pin Male Weatherpack Connector Speed Sensor, Single, 4-Pin M12 Male Connector

None Freeturning Rotor Slinger Seal

The 15 & 16 extended shafts are designed for use with one of the speed sensor options listed in STEP 7.

(TP) - Tall pilot. Speed sensor option is not available on tall pilot housings.

None Valve Cavity Only 69 bar [1000 psi] Relief 86 bar [1250 psi] Relief

104 bar [1500 psi] Relief 121 bar [1750 psi] Relief 138 bar [2000 psi] Relief 173 bar [2500 psi] Relief

Valve cavity is only available on the A19, A39 & AC2 housings.

4-Hole, Magneto Mount, Aligned Ports, G 1/2 (TP) 4-Hole, Square Mount, Aligned End Ports, 7/8-14 UNF 4-Hole, Square Mount, Aligned End Ports, 3/4-16 UNF 4-Hole, Square Mount, Aligned Ports, 1/2-14 NPT 4-Hole, Square Mount, Aligned Ports, 7/8-14 UNF 4-Hole, Square Mount, Aligned Manifold Ports, 1/2” Drilled 4-Hole, Square Mount, Aligned Ports, G 1/2 2-Hole, SAE A Mount, Aligned Manifold Ports, 1/2” Drilled 4-Hole, Square Mount, Aligned End Ports, M22 x 1.5 4-Hole, Square Mount, Aligned End Ports, G 1/2

Groove In Mounting Flange No Check Valves Installed

155

1. CHOOSE SERIES DESIGNATION

2. SELECT A DISPLACEMENT OPTION

025 032 040 050 060 080 100

125 160 200 250 315 400

3. SELECT A MOUNT & PORT OPTION

A06 A08 AP6 AP8 A10 A11 A12 A13 A17 A18 A19 A30 A31 A32 A37 A39 A3D A62 A63 A68 A69 AC2 AC3 AC7

4. SELECT A SHAFT OPTION

01 02 04 05 10 12

AC8

F21 F26 F30 F31 F37

F38 G17 G24 G28

15 16 53 66 B1 F3

5. SELECT A PAINT OPTION

A B

6. SELECT A VALVE CAVITY / CARTRIDGE OPTION

7. SELECT AN ADD-ON OPTION

A B C

W

X Y Z

8. SELECT A MISCELLANEOUS OPTION

AA AC

BE

156

A B C D

E F G

J

DS FB

P109358

Technical Information

Orbital Motors Type WD, WP and WR

WP Product Line

58 | © Danfoss | December 2019 BC267362166283en-000201

Technical Information

Orbital Motors Type WD, WP and WR

WP Product Line

©

Danfoss | December 2019 BC267362166283en-000201 | 59

B

A

86 [3.39]

45°

H

19 [.75]

69 [2.72]

38 [1.50]

7 [.276]

18.5 [.73]

79.2 [3.118]

78.8 [3.102]

80.00 [3.150]

79.95 [3.148]

103 [4.055]

(4) 3/8-16 UNC, 20 [.79] Min. Deep (4) M10x1.5, 20 [.79] Min. Deep

W31 W38 -

106 [4.17]

55 [2.17]

102 [4.00]

131.9 [5.193] Max.

Ø13.7 [.539] Ø13.5 [.531]

102 [4.02]

55 [2.17]

Ø106.4 [4.189]

39 [1.52]

Ø90.8 [3.575]

Max.

18 [.71]

20 [.79]

G

8.3 [.327]

7.7 [.303]

39 [1.52]

20 [.79]

A63 -

A6D -

M8x1.25, Min. Depth 12 [.47] 5/16-18 UNC, Min. Depth 12 [.47]

Ø82.55 [3.248] Ø82.45 [3.246]

A63

G 1/2

2-HOLE, SAE A MOUNT, OFFSET MANIFOLD PORTS

A6D 7/8-14 UNF

4-HOLE, WHEEL MOUNT, ALIGNED PORTS

W31

7/8-14 UNF

W38

G 1/2

P109351

Technical Information

Orbital Motors Type WD, WP and WR

WP Product Line

WP 157 and 158 Series

WP 157 and 158 Series Housings

Dimensions shown are without paint. Paint thickness can be up to 0.13 [.005]. Dimensions are charted in WP 157 and 158 Series Technical Information on page 60.

WP 157 and 158 Series Technical Information

Allowable Shaft Load / Bearing Curve

The bearing curve represents allowable bearing loads based on ISO 281 bearing capacity for an L10 life of 2,000 hours at 100 rpm. Radial loads for speeds other than 100 rpm may be calculated using the multiplication factor table in Vehicle Drive Calculations on page 9.

60 | © Danfoss | December 2019 BC267362166283en-000201

2800

SAE A MOUNT

lb

2400

2000

1600

1200

800

400

1200

daN

200

1000

800

600

400

in-4 3210-1-2-3

mm50 750-50 25-25-75-100

445 daN [1000 lb]

335 daN [750 lb]

SHAFT

BEARING

P109359

2800

WHEEL MOUNT

lb

2400

2000

1600

1200

800

400

1200

daN

200

1000

800

600

400

in-2 543210-1

mm100 125500 7525-25-50

445 daN [1000 lb]

335 daN [750 lb]

SHAFT

BEARING

P109361

Technical Information

Orbital Motors Type WD, WP and WR

WP Product Line

SAE A Mount

Wheel Mount

Length and Weight Chart

Dimension G is the overall motor length from the rear of the motor to the mounting flange surface.

©

Danfoss | December 2019 BC267362166283en-000201 | 61

Technical Information

Orbital Motors Type WD, WP and WR

WP Product Line

Dimension G

# Length Weight

025 133 [5.24] 6.0 [13.3] 032 134 [5.28] 6.1 [13.4] 040 136 [5.33] 6.1 [13.5] 050 136 [5.33] 6.1 [13.5] 060 137 [5.39] 6.2 [13.6] 080 139 [5.48] 6.2 [13.6] 100 142 [5.59] 6.3 [13.9] 125 146 [5.74] 6.4 [14.2] 160 150 [5.89] 6.6 [14.5] 200 155 [6.09] 6.7 [14.9] 250 161 [6.35] 7.0 [15.3] 315 170 [6.69] 7.2 [15.9] 400 181 [7.13] 7.6 [16.8]

mm [in] kg [lb]

Dimension H is the overall motor length from the rear of the motor to the mounting flange surface.

Dimension H

# Length Weight

mm [in] kg [lb]

025 72 [2.83] 6.4 [14.1] 032 73 [2.87] 6.5 [14.4] 040 75 [2.95] 6.6 [14.5] 050 75 [2.95] 6.6 [14.5] 060 76 [2.99] 6.7 [14.8] 080 78 [3.07] 6.8 [15.0] 100 81 [3.19] 6.9 [15.2] 125 85 [3.35] 7.0 [15.5] 160 89 [3.50] 7.1 [15.6] 200 94 [3.70] 7.2 [15.9] 250 100 [3.94] 7.4 [16.4] 315 109 [4.29] 7.7 [17.0] 400 120 [4.72] 8.1 [17.8]

WP 157 and 158 Series Shafts

Mounting / Shaft Length Chart

Dimension J is the overall distance from the motor mounting surface to the end of the shaft.

Dimension J

# SAE and A Mounts Wheel Mounts

mm [in] mm [in]

10 55 [2.18] 116 [4.57] 11 55 [2.18] 116 [4.57]

62 | © Danfoss | December 2019 BC267362166283en-000201

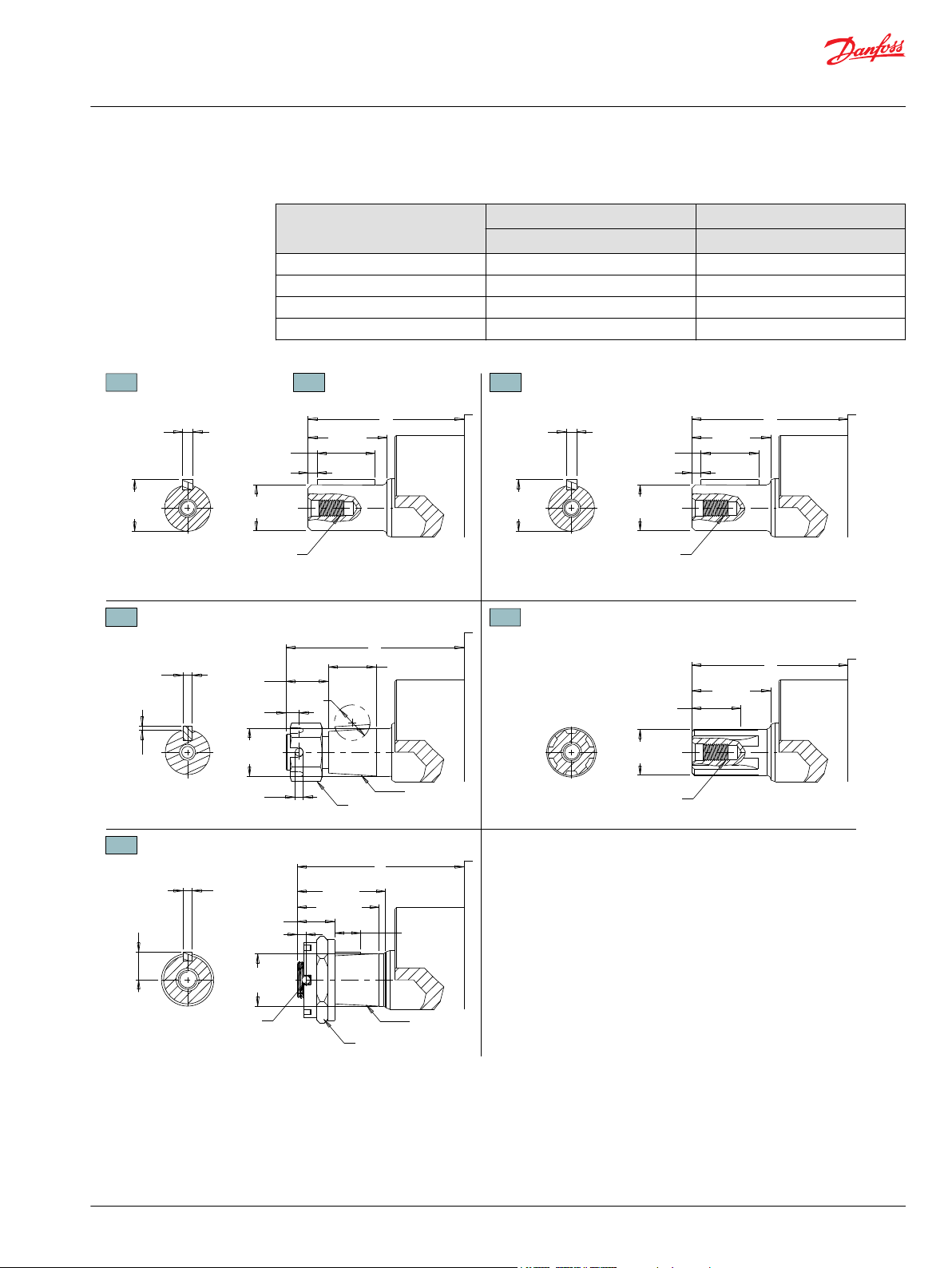

3 [.12]

31.7 [1.249]

31.4 [1.236]

10 - Min. Depth 16 [.63] 11 - Min. Depth 18 [.71]

J

43 [1.69]

8.0 [.313]

7.9 [.312]

28.0 [1.102]

27.7 [1.091]

25.0 [.985]

25.0 [.984]

5 [.20]

31.7 [1.249]

31.4 [1.236]

M8x1.25 Min. Depth 18 [.71]

J

43 [1.69]

J

48 [1.89]

44.5 [1.75]

20.5 [.81]

5 [.19]

25.4 [1.000]

14 [.55]

1:10 Taper

M20x1.5 Slotted Hex Nut

Ø 4.5 [.18] Thru.

6.4 [.251]

6.4 [.250]

28.2 [1.110]

28.0 [1.101]

6B Spline

B.S. 2059 Standard

25.4 [1.000]

25.4 [0.999]

25.4 [.998]

25.3 [.996]

5.0 [.197]

5.0 [.196]

15.3 [.602]

15.2 [.600]

28.57 [1.125]

28.56 [1.124]

M8x1.25 Min. Depth 18 [.71]

7 [.28]

4 [.16]

1:8 Taper

3/4-20 UNEF Slotted Hex Nut

2.5 [.097]

2.2 [.087]

25 [1.00]

25.4 [1.000]

25.4 [.999]

J

23 [.89]

19 [.75]

4.8 [.189]

4.8 [.188]

Max. Torque: 655 Nm [5800 lb-in] Max. Torque: 655 Nm [5800 lb-in]

Max. Torque: 678 Nm [6000 lb-in]

Max. Torque: 655 Nm [5800 lb-in]

F3 1” 6B Spline

N9

28.5mm Tapered

10

1” Straight, 1/4-20 Tap

11

1” Straight, M8x1.25 Tap

12 25mm Straight

Max. Torque: 655 Nm [5800 lb-in]

13

1” Tapered

P109397

Technical Information

Orbital Motors Type WD, WP and WR

WP Product Line

Dimension J (continued)

# SAE and A Mounts Wheel Mounts

12 55 [2.18] 116 [4.57] 13 66 [2.60] 127 [5.00] F3 55 [2.18] 116 [4.57] N9 58 [2.29] 119 [4.69]

mm [in] mm [in]

©

Danfoss | December 2019 BC267362166283en-000201 | 63

1 2 3 4 5 6 7 8

25 cm3/rev [1.5 in3/rev]

32 cm3/rev [2.0 in3/rev]

40 cm3/rev [2.5 in3/rev]

50 cm3/rev [3.0 in3/rev]

59 cm3/rev [3.6 in3/rev]

78 cm3/rev [4.8 in3/rev]

96 cm3/rev [5.9 in3/rev]

Clockwise Rotation Counterclockwise Rotation

The 157 & 158 series are bi-directional. Reversing the inlet hose will reverse shaft rotation.

125 cm3/rev [7.6 in3/rev]

154 cm3/rev [9.4 in3/rev]

190 cm3/rev [11.6 in3/rev]

240 cm3/rev [14.6 in3/rev]

303 cm3/rev [18.5 in3/rev]

388 cm3/rev [23.7 in3/rev]

2-Hole, SAE A Mount, Offset Manifold Ports, G 1/2

2-Hole, SAE A Mount, Offset Manifold Ports, 7/8-14 UNF

4-Hole, Wheel Mount, Aligned Ports, 7/8-14 UNF

4-Hole, Wheel Mount, Aligned Ports, G 1/2

1” Straight, 1/4-20 Tap

1” Straight, M8x1.25 Tap

25mm Straight

1” Tapered

1” 6B Spline

28.5mm Tapered

Black

Black, Unpainted Mounting Surface

Standard

None

Freeturning Rotor

None

157

1. CHOOSE SERIES DESIGNATION

2. SELECT A DISPLACEMENT OPTION

025

032

040

050

060

080

100

125

160

200

250

315

400

3. SELECT A MOUNT & PORT OPTION

A63

A6D

W31

W38

4. SELECT A SHAFT OPTION

10

11

12

13

F3

N9

5. SELECT A PAINT OPTION

A

B

6. SELECT A VALVE CAVITY / CARTRIDGE OPTION

7. SELECT AN ADD-ON OPTION

A

8. SELECT A MISCELLANEOUS OPTION

AA

AC

158

A

P109363

Technical Information

Orbital Motors Type WD, WP and WR

WP Product Line

WP 157 and 158 Series Ordering Information

64 | © Danfoss | December 2019 BC267362166283en-000201

P109365

P109366

Technical Information

Orbital Motors Type WD, WP and WR

WR Product Line

WR Product Line Introduction

Overview

The WR Series motors incorporate the latest advances for smooth performance, efficiency and durability. Featuring an optimized Roller Stator® geometry with seven precision rollers to eliminate sliding friction and provide rolling contact between the rotor and stator, thus increasing motor efficiency. A three-zone spool valve, integral check valves and a provision for a case drain reduce pressure on internal seals to improve product life. A wide variety of mounting, shaft, motor displacement and porting options are available to meet all application needs.

Features / Benefits

•

A variety of mounts and shafts provides flexibility in application design.

•

A high pressure shaft seal offers superior seal life and performance.

•

The spool valve design gives superior performance and smooth operation over a wide speed and torque range.

•

Built-in check valves (not shown) in the housing offer versatility and increased seal life.

•

Optimized Roller Stator® geometry provides a smooth running high efficient product.

Typical Applications

conveyors, carwashes, positioners, light-duty wheel drives, sweepers, food processing, grain augers, spreaders, feed rollers, screw drives, brush drives and more

Series Descriptions

251/252 - Hydraulic Motor

Standard

255/256 - Hydraulic Motor

Standard

©

Danfoss | December 2019 BC267362166283en-000201 | 65

43

95

188

365

560

728

942

1116

40

91

180

355

548

716

936

1113

1316

1515

35

82

170

343

532

706

927

1100

1301

1497

29

73

160

324

515

684

918

1082

1278

1469

24

62

144

312

502

667

904

1056

1253

1442

51

137

295

485

648

890

1028

1230

1415

126

293

471

634

874

1004

1206

1399

115

275

451

629

852

976

1184

1378

102

257

432

618

835

952

1154

1355

88

237

444

601

812

916

1116

1330

198

398

545

743

870

1078

1298

[80]

[88]

[80]

[62]

[53]

[44]

[27]

9

10

9

7

6

5

3

[177]

[186]

[168]

[159]

[150]

[142]

[124]

[115]

[88]

[71]

20

21

19

18

17

16

14

13

10

8

[283]

[265]

[248]

[239]

[230]

[221]

[195]

[186]

[177]

[168]

32

30

28

27

26

25

22

21

20

19

[354]

[372]

[363]

[354]

[345]

[327]

[310]

[301]

[274]

[257]

40

42

41

40

39

37

35

34

31

29

[327]

[460]

[451]

[434]

[425]

[416]

[398]

[381]

[345]

[336]

37

52

51

49

48

47

45

43

39

38

[549]

[566]

[549]

[540]

[522]

[504]

[487]

[460]

[434]

62

64

62

61

59

57

55

52

49

[637]

[646]

[619]

[602]

[593]

[558]

[531]

72

73

70

68

67

63

60

[699]

[735]

[726]

[717]

[690]

[681]

[664]

[655]

79

83

82

81

78

77

75

74

[788]

[823]

[796]

[779]

[761]

[743]

[726]

[708]

89

93

90

88

86

84

82

80

[876]

[903]

[894]

[876]

[858]

[841]

[823]

[796]

99

102

101

99

97

95

93

90

[1071]

[1080]

[1088]

[1044]

[1027]

[1018]

[1000]

121

122

123

118

116

115

113

Torque - Nm [lb-in], Speed rpm

Flow - lpm [gpm]

17 [250] 35 [500] 52 [750] 69 [1000] 86 [1250] 104 [1500] 121 [1750] 138 [2000] 155 [2250] 172 [2500] 207 [3000]

11 [97] 22 [195] 34 [301] 45 [398] 56 [496] 67 [593] 78 [690] 90 [796] 101 [894] 112 [991] 132 [1167]

Theoretical Torque - Nm [lb-in]

Max.

Inter.

Max.

Cont.

040

2 [0.5]

4 [1]

8 [2]

15 [4]

23 [6]

30 [8]

38 [10]

45 [12]

53 [14]

61 [16]

50

100

199

373

572

746

945

1119

1318

1517

Theoretical rpm

Overall Efficiency -

70 - 100%

40 - 69%

0 - 39%

Intermittent Ratings - 10% of Operation

Displacement tested at 54°C [129°F] with an oil viscosity of 46cSt [213 SUS]

Max. Inter.Max. Cont.Pressure - bar [psi]

40 cm3 [2.5 in3] / rev

mm [in]

Rotor Width

8.1

[.317]

P109367

Technical Information

Orbital Motors Type WD, WP and WR

WR Product Line

Specifications

Performance data is typical. Performance of production units varies slightly from one motor to another. Running at intermittent ratings should not exceed 10% of every minute of operation.

CODE

Displacem ent cm3 [in3]

Max. Speed rpm

Max. Flow lpm [gpm]

Max. Torque Nm [lb-in]

Max. Pressure bar [psi]

cont. inter. cont. inter. cont. inter. cont. inter. peak

040 40 [2.5] 1116 1515 45 [12] 61 [16] 93 [823] 123 [1088] 155 [2250] 207 [3000] 224 [3250] 050 50 [3.1] 1058 1220 53 [14] 61 [16] 111 [982] 149 [1319] 155 [2250] 207 [3000] 224 [3250] 060 59 [3.6] 890 1142 53 [14] 68 [18] 138 [1221] 172 [1522] 155 [2250] 207 [3000] 224 [3250] 070 71 [4.3] 865 1078 61 [16] 76 [20] 176 [1558] 207 [1832] 172 [2500] 207 [3000] 241 [3500] 080 79 [4.9] 759 957 61 [16] 76 [20] 202 [1788] 243 [2150] 172 [2500] 207 [3000] 241 [3500] 090 88 [5.4] 691 864 61 [16] 76 [20] 222 [1965] 263 [2327] 172 [2500] 207 [3000] 241 [3500] 100 100 [6.1] 610 760 61 [16] 76 [20] 246 [2177] 289 [2558] 172 [2500] 207 [3000] 241 [3500] 115 113 [6.9] 539 672 61 [16] 76 [20] 284 [2513] 327 [2894] 172 [2500] 207 [3000] 241 [3500] 130 129 [7.9] 472 588 61 [16] 76 [20] 316 [2797] 375 [3319] 172 [2500] 207 [3000] 241 [3500] 160 160 [9.8] 379 469 61 [16] 76 [20] 400 [3540] 454 [4018] 172 [2500] 207 [3000] 241 [3500] 200 198 [12.1] 308 384 61 [16] 76 [20] 462 [4088] 544 [4814] 172 [2500] 207 [3000] 241 [3500] 240 236 [14.4] 249 315 61 [16] 76 [20] 548 [4850] 642 [5682] 172 [2500] 207 [3000] 224 [3250] 250 250 [15.3] 250 300 61 [16] 76 [20] 561 [4965] 624 [5522] 172 [2500] 207 [3000] 224 [3250] 290 291 [17.8] 210 256 61 [16] 76 [20] 526 [4655] 664 [5876] 138 [2000] 190 [2750] 207 [3000] 320 322 [19.6] 188 235 61 [16] 76 [20] 518 [4584] 690 [6106] 121 [1750] 172 [2500] 190 [2750] 400 400 [24.4] 152 190 61 [16] 76 [20] 551 [4873] 698 [6177] 104 [1500] 138 [2000] 155 [2250]

WR Displacement Performance

Performance data is typical. Performance of production units varies slightly from one motor to another. Operating at maximum continuous pressure and maximum continuous flow simultaneously is not recommended. For additional information on product testing please refer to Product Testing on page 7.

66 | © Danfoss | December 2019 BC267362166283en-000201

77

155

295

452

594

754

896

75

152

291

447

589

749

892

1058

1220

74

150

283

434

577

736

875

1055

1216

69

142

272

430

566

728

873

1052

1212

63

132

267

416

546

716

861

1036

1210

52

124

248

402

528

699

843

998

1198

41

107

231

385

509

680

827

988

1160

36

91

215

368

489

664

812

960

1130

82

199

346

468

644

794

972

1112

182

324

448

624

776

904

1080

164

300

426

600

752

860

1032

[97]

[80]

[62]

[44]

[27]

[18]

11

9

7

5

3

2

[212]

[204]

[195]

[186]

[168]

[150]

[124]

[97]

24

23

22

21

19

17

14

11

[327]

[319]

[310]

[301]

[283]

[265]

[239]

[212]

37

36

35

34

32

30

27

24

[434]

[416]

[398]

[381]

[345]

[310]

49

47

45

43

39

35

[540]

[548]

[540]

[531]

[504]

[487]

[451]

[416]

61

62

61

60

57

55

51

47

[655]

[664]

[655]

[619]

[602]

[566]

[531]

74

75

74

70

68

64

60

[726]

[779]

[770]

[761]

[726]

[708]

[673]

[637]

82

88

87

86

82

80

76

72

[805]

[876]

[841]

[814]

[779]

[743]

91

99

95

92

88

84

[947]

[973]

982]

[982]

[947]

[929]

[885]

[850]

107

110

111

107

105

100

96

[1088]

[1097]

[1106]

[1062]

[1027]

[991]

[956]

123

124

125

120

116

112

108

[1301]

[1319]

[1310]

[1257]

[1221]

[1186]

[1150]

147

149

148

142

138

134

130

Torque - Nm [lb-in], Speed rpm

Flow - lpm [gpm]

17 [250] 35 [500] 52 [750] 69 [1000] 86 [1250] 104 [1500] 121 [1750] 138 [2000] 155 [2250] 172 [2500] 207 [3000]

14 [122] 27 [195] 41 [301] 55 [398] 69 [496] 82 [593] 96 [690] 110 [796] 124 [894] 137 [1215] 165 [1458]

Theoretical Torque - Nm [lb-in]

Max.

Inter.

Max.

Cont.

050

4 [1]

8 [2]

15 [4]

23 [6]

30 [8]

38 [10]

45 [12]

53 [14]

61 [16]

80

160

300

460

600

760

900

1060

1220

Theoretical rpm

Overall Efficiency -

70 - 100%

40 - 69%

0 - 39%

Intermittent Ratings - 10% of Operation

Displacement tested at 54°C [129°F] with an oil viscosity of 46cSt [213 SUS]

Max. Inter.Max. Cont.Pressure - bar [psi]

mm [in]

Rotor Width

9.9

[.389]

50 cm3 [3.1 in3] / rev

P109368

28

60

134

250

384

502

635

755

890

22

56

129

245

380

496

632

748

888

1021

1142

15

50

125

240

376

494

629

745

884

1018

1140

12

44

118

232

370

490

628

741

880

1011

1129

33

113

225

364

485

619

735

874

1007

1112

16

107

217

356

478

611

729

865

1000

1097

97

208

345

468

598

718

852

993

1085

87

198

331

460

589

705

840

984

1074

73

185

318

450

578

688

831

974

1060

58

174

307

438

561

676

820

962

1044

50

168

298

431

513

659

802

956

1020

[106]

[115]

[124]

[106]

[97]

[89]

[80]

[71]

[53]

12

13

14

12

11

10

9

8

6

[230]

[257]

[274]

[266]

[257]

[248]

[212]

[204]

[150]

[89]

26

29

31

30

29

28

24

23

17

10

[301]

[372]

[407]

[398]

[389]

[381]

[372]

[345]

[336]

[257]

[230]

34

42

46

45

44

43

42

39

38

29

26

[398]

[496]

[513]

[531]

[522]

[513]

[487]

[460]

[425]

[389]

[354]

45

56

58

60

59

58

55

52

48

44

40

[549]

[655]

[664]

[655]

[637]

[620]

[611]

[575]

[549]

[504]

62

74

75

74

72

70

69

65

62

57

[602]

[832]

[841]

[823]

[814]

[797]

[770]

[743]

[690]

[646]

68

94

95

93

92

90

87

84

78

73

[974]

[956]

[938]

[920]

[903]

[885]

[867]

[797]

[761]

110

108

106

104

102

100

98

90

86

[1071]

[1080]

[1097]

[1089]

[1071]

[1044]

[1009]

[938]

[903]

121

122

124

123

121

118

114

106

102

[1212]

[1221]

[1195]

[1177]

[1151]

[1124]

[1071]

[1018]

137

138

135

133

130

127

121

115

[1310]

[1328]

[1345]

[1310]

[1292]

[1283]

[1221]

[1204]

[1151]

148

150

152

148

146

145

138

136

130

[1487]

[1505]

[1522]

[1505]

[1487]

[1451]

[1434]

[1416]

[1398]

168

170

172

170

168

164

162

160

158

Torque - Nm [lb-in], Speed rpm

Flow - lpm [gpm]

17 [250] 35 [500] 52 [750] 69 [1000] 86 [1250] 104 [1500] 121 [1750] 138 [2000] 155 [2250] 172 [2500] 207 [3000]

16 [142] 33 [292] 49 [434] 65 [575] 81 [717] 98 [867] 114 [1009] 131 [1150] 147 [1292] 164 [1442] 179 [1584]

Theoretical Torque - Nm [lb-in]

Max.

Inter.

Max.

Cont.

060

2 [0.5]

4 [1]

8 [2]

15 [4]

23 [6]

30 [8]

38 [10]

45 [12]

53 [14]

61 [16]

68 [18]

34

67

135

253

387

505

640

758

892

1026

1145

Theoretical rpm

Overall Efficiency -

70 - 100%

40 - 69%

0 - 39%

Intermittent Ratings - 10% of Operation

Displacement tested at 54°C [129°F] with an oil viscosity of 46cSt [213 SUS]

Max. Inter.Max. Cont.Pressure - bar [psi]

59 cm3 [3.6 in3] / rev

mm [in]

Rotor Width

11.8

[.463]

P109369

Technical Information

Orbital Motors Type WD, WP and WR

WR Product Line

©

Danfoss | December 2019 BC267362166283en-000201 | 67

26

55

112

211

324

425

539

638

752

23

50

106

206

319

418

537

634

751

865

965

1078

40

94

194

306

403

529

622

743

854

960

1070

34

89

186

298

394

520

614

736

843

956

1062

81

178

288

386

508

604

728

831

945

1048

73

172

280

376

500

594

718

818

932

1036

66

163

270

364

486

578

705

807

920

1014

51

152

260

350

474

566

690

795

902

1000

143

248

339

458

552

675

782

888

988

125

232

326

440

538

650

766

876

960

110

221

312

425

522

630

750

850

944

[115]

[124]

[142]

[133]

[124]

[115]

[89]

[62]

[44]

13

14

16

15

14

13

10

7

5

[266]

[283]

[301]

[292]

[274]

[266]

[257]

[221]

[186]

[150]

[142]

[106]

30

32

34

33

31

30

29

25

21

17

16

12

[584]

[620]

[628]

[584]

[593]

[575]

[558]

[513]

[478]

[425]

[416]

66

70

71

66

67

65

63

58

54

48

47

[646]

[779]

[770]

[735]

[743]

[726]

[664]

[646]

[620]

[575]

73

88

87

83

84

82

75

73

70

65

[920]

[947]

[920]

[903]

[867]

[832]

[805]

[779]

[717]

104

107

104

103

98

94

91

88

81

[1062]

[1089]

[1097]

[1089]

[1018]

[1035]

[1018]

[947]

[938]

[885]

120

123

124

123

115

117

115

107

106

100

[1186]

[1230]

[1221]

[1212]

[1195]

[1168]

[1159]

[1133]

[1080]

[1044]

134

139

138

137

135

132

131

128

122

118

[1319]

[1398]

[1389]

[1407]

[1345]

[1301]

[1266]

[1230]

[1221]

149

158

157

159

152

147

143

139

138

[1513]

[1558]

[1540]

[1522]

[1496]

[1478]

[1416]

[1381]

[1345]

171

176

174

172

169

167

160

156

152

[1735]

[1699]

[1708]

[1646]

[1673]

[1655]

[1566]

[1531]

196

192

193

186

189

187

177

173

[1867]

[1832]

[1797]

[1805]

[1761]

[1805]

[1717]

[1690]

[1673]

211

207

203

204

199

204

194

191

189

Torque - Nm [lb-in], Speed rpm

Flow - lpm [gpm]

17 [250] 35 [500] 69 [1000] 86 [1250] 104 [1500] 121 [1750] 138 [2000] 155 [2250] 172 [2500] 190 [2750] 207 [3000]

19 [169] 39 [348] 174 [1540]77 [685] 97 [854] 117 [1033] 136 [1202] 155 [1371] 194 [1719] 213 [1888] 232 [2056]

Theoretical Torque - Nm [lb-in]

Max.

Inter.

Max.

Cont.

070

2 [0.5]

4 [1]

8 [2]

15 [4]

23 [6]

30 [8]

38 [10]

45 [12]

53 [14]

61 [16]

68 [18]

76 [20]

28

57

113

213

326

426

539

638

752

865

965

1078

Theoretical rpm

Overall Efficiency -

70 - 100%

40 - 69%

0 - 39%

Intermittent Ratings - 10% of Operation

Displacement tested at 54°C [129°F] with an oil viscosity of 46cSt [213 SUS]

Max. Inter.Max. Cont.Pressure - bar [psi]

71 cm3 [4.3 in3] / rev

mm [in]

Rotor

Width

13.8

[.542]

P109370

49

99

189

290

374

480

568

668

46

98

187

286

368

475

562

663

759

855

957

41

89

177

274

357

464

548

649

752

848

952

40

83

170

268

349

453

543

642

747

842

944

74

161

259

339

442

532

632

731

828

932

68

151

250

330

433

525

624

722

818

923

59

144

240

321

423

515

620

710

807

912

50

131

227

307

412

501

600

703

800

900

122

214

296

398

486

585

689

789

886

112

200

284

383

472

570

675

776

872

100

185

268

370

458

554

660

760

858

[159]

[150]

[124]

[97]

[71]

[44]

18

17

14

11

8

5

[336]

[345]

[336]

[327]

[310]

[301]

[274]

[248]

[212]

[186]

[159]

38

39

38

37

35

34

31

28

24

21

18

[681]

[673]

[690]

[664]

[646]

[637]

[611]

[575]

[540]

[496]

77

76

79

75

73

72

69

65

61

56

[832]

[867]

[858]

[850]

[832]

[823]

[796]

[752]

[717]

[673]

94

98

97

96

94

93

90

85

81

76

[1062]

[1053]

[1035]

[1027]

[1009]

[982]

[965]

[929]

[885]

120

119

117

116

114

111

109

105

100

[1248]

[1239]

[1221]

[1195]

[1177]

[1142]

[1106]

[1062]

141

140

138

135

133

129

125

120

[1407]

[1416]

1407]

[1398]

[1372]

[1345]

[1310]

[1265]

[1221]

159

160

159

158

155

152

148

143

138

[1540]

[1593]

[1611]

[1602]

[1566]

[1558]

[1522]

[1487]

[1451]

[1407]

174

180

182

181

177

176

172

168

164

159

[1761]

[1788]

[1770]

[1761]

[1735]

[1708]

[1655]

[1611]

[1575]

199

202

200

199

196

193

187

182

178

[1947]

[1965]

[1947]

[1929]

[1903]

[1876]

[1841]

[1805]

[1761]

220

222

220

218

215

212

208

204

199

[2124]

[2150]

[2133]

[2106]

[2080]

[2053]

[2018]

[1973]

[1929]

240

243

241

238

235

232

228

223

218

Torque - Nm [lb-in], Speed rpm

Flow - lpm [gpm]

17 [250] 35 [500] 69 [1000] 86 [1250] 104 [1500] 121 [1750] 138 [2000] 155 [2250] 172 [2500] 190 [2750] 207 [3000]

22 [192] 43 [384] 87 [768] 108 [960] 130 [1152] 152 [1344] 174 [1536] 195 [1728] 217 [1920] 239 [2112] 260 [2304]

Theoretical Torque - Nm [lb-in]

Max.

Inter.

Max.

Cont.

080

4 [1]

8 [2]

15 [4]

23 [6]

30 [8]

38 [10]

45 [12]

53 [14]

61 [16]

68 [18]

76 [20]

50

100

190

291

380

481

570

671

772

861

962

Theoretical rpm

Overall Efficiency -

70 - 100%

40 - 69%

0 - 39%

Intermittent Ratings - 10% of Operation

Displacement tested at 54°C [129°F] with an oil viscosity of 46cSt [213 SUS]

Max. Inter.Max. Cont.Pressure - bar [psi]

79 cm3 [4.9 in3] / rev

mm [in]

Rotor Width

15.7

[.617]

P109371

Technical Information

Orbital Motors Type WD, WP and WR

WR Product Line

68 | © Danfoss | December 2019 BC267362166283en-000201

23

45

91

169

260

339

430

510

601

22

42

88

166

257

336

429

508

600

691

772

864

17

35

81

160

250

328

426

504

596

688

770

863

31

77

156

245

324

424

500

594

684

768

858

27

72

152

238

318

417

496

591

678

766

848

21

68

146

232

308

411

488

586

670

764

844

60

140

225

300

402

480

578

664

754

835

52

130

215

292

393

472

566

654

742

825

42

122

205

280

380

462

552

642

722

812

110

193

270

366

448

540

630

712

800

96

186

258

354

434

528

610

700

778

[159]

[177]

[195]

[177]

[168]

[150]

[124]

[80]

[44]

18

20

22

20

19

17

14

9

5

[354]

[389]

[354]

[336]

[292]

[265]

[221]

[177]

[142]

[88]

40

44

40

38

33

30

25

20

16

10

[664]

[779]

[770]

[779]

[761]

[735]

[681]

[646]

[611]

[584]

[558]

[513]

75

88

87

88

86

83

77

73

69

66

63

58

[991]

[1009]

[991]

[974]

[956]

[938]

[912]

[856]

[797]

[743]

[699]

112

114

112

110

108

106

103

97

90

84

79

[1044]

[1186]

[1159]

[1115]

[1080]

[1062]

[1009]

[965]

[929]

[885]

118

134

131

126

122

120

114

109

105

100

[1133]

[1398]

[1363]

[1345]

[1327]

[1292]

[1283]

[1239]

[1186]

[1133]

[1071]

128

158

154

152

150

146

145

140

134

128

121

[1549]

[1611]

[1558]

[1531]

[1504]

[1451]

[1416]

[1381]

[1345]

[1310]

175

182

176

173

170

164

160

156

152

148

[1752]

[1805]

[1735]

[1717]

[1664]

[1628]

[1575]

[1531]

[1487]

[1442]

198

204

196

194

188

184

178

173

168

163

[1912]

[1965]

[1929]

[1912]

[1858]

[1823]

[1788]

[1770]

[1708]

[1646]

216

222

218

216

210

206

202

200

193

186

[2142]

[2106]

[2053]

[2018]

[2000]

[1947]

[1894]

[1814]

242

238

232

228

226

220

214

205

[2319]

[2327]

[2283]

[2239]

[2177]

[2159]

[2142]

[2088]

[2000]

262

263

258

253

246

244

242

236

226

Torque - Nm [lb-in], Speed rpm

Flow - lpm [gpm]

17 [250] 35 [500] 69 [1000] 86 [1250] 104 [1500] 121 [1750] 138 [2000] 155 [2250] 172 [2500] 190 [2750] 207 [3000]

24 [215] 49 [429] 218 [1932]97 [859] 121 [1073] 146 [1288] 170 [1502] 194 [1717] 243 [2146] 267 [2361] 291 [2576]

Theoretical Torque - Nm [lb-in]

Max.

Inter.

Max.

Cont.

090

2 [0.5]

4 [1]

8 [2]

15 [4]

23 [6]

30 [8]

38 [10]

45 [12]

53 [14]

61 [16]

68 [18]

76 [20]

23

45

91

170

260

340

430

510

601

692

772

864

Theoretical rpm

Overall Efficiency -

70 - 100%

40 - 69%

0 - 39%

Intermittent Ratings - 10% of Operation

Displacement tested at 54°C [129°F] with an oil viscosity of 46cSt [213 SUS]

Max. Inter.Max. Cont.Pressure - bar [psi]

88 cm3 [5.4 in3] / rev

mm [in]

Rotor Width

17.3

[.682]

P109372

17

38

80

150

229

296

378

450

528

610

680

13

37

78

148

226

292

375

448

526

608

677

760

12

33

75

142

221

285

367

442

520

600

666

754

11

31

70

139

218

282

370

438

518

596

660

750

29

68

136

215

280

367

433

514

590

653

742

15

65

131

212

280

364

426

508

582

645

730

7

61

128

208

274

363

420

500

576

635

715

20

122

201

270

361

412

490

568

624

702

118

197

265

353

404

480

556

610

688

111

189

255

338

390

468

542

594

666

85

162

208

310

355

440

525

574

636

[159]

[230]

[221]

[230]

[203]

[186]

[150]

[123]

[106]

[88]

[53]

18

26

25

26

23

21

17

14

12

10

6

[327]

[434]

[442]

[407]

[425]

[398]

[363]

[319]

[301]

[248]

[186]

[133]

37

49

50

46

48

45

41

36

34

28

21

15

[681]

[743]

[867]

[858]

[850]

[823]

[805]

[788]

[735]

[699]

[628]

[558]

77

84

98

97

96

93

91

89

83

79

71

63

[805]

[938]

[1106]

[1097]

[1088]

[1071]

[1018]

[1027]

[965]

[912]

[832]

[752]

91

106

125

124

123

121

115

116

109

103

94

85

[1062]

[1327]

[1310]

[1292]

[1248]

[1239]

[1186]

[1142]

[1071]

[991]

120

150

148

146

141

140

134

129

121

112

[1239]

[1549]

[1531]

[1487]

[1460]

[1434]

[1389]

[1345]

[1292]

[1177]

140

175

173

168

165

162

158

152

146

133

[1416]

[1761]

[1752]

[1770]

[1726]

[1673]

[1664]

[1602]

[1522]

[1496]

[1416]

160

199

198

200

195

189

188

181

172

169

160

[1673]

[1982]

[1973]

[1956]

[1903]

[1858]

[1814]

[1752]

[1699]

[1637]

189

224

223

221

215

210

205

198

192

185

[2168]

[2177]

[2159]

[2106]

[2071]

[2017]

[1973]

[1903]

[1788]

245

246

244

238

234

228

223

215

202

[2363]

[2381]

[2345]

[2336]

[2283]

[2265]

[2248]

[2221]

[2195]

267

269

265

264

258

256

254

251

248

[2558]

[2531]

[2513]

[2496]

[2478]

[2460]

[2443]

[2407]

[2363]

289

286

284

282

280

278

276

272

267

Torque - Nm [lb-in], Speed rpm

Flow - lpm [gpm]

17 [250] 35 [500] 69 [1000] 86 [1250] 104 [1500] 121 [1750] 138 [2000] 155 [2250] 172 [2500] 190 [2750] 207 [3000]

27 [239] 56 [496] 247 [2186]110 [974] 137 [1212] 166 [1469] 193 [1708] 220 [1947] 275 [2434] 303 [2682] 330 [2921]

Theoretical Torque - Nm [lb-in]

Max.

Inter.

Max.

Cont.

100

2 [0.5]

4 [1]

8 [2]

15 [4]

23 [6]

30 [8]

38 [10]

45 [12]

53 [14]

61 [16]

68 [18]

76 [20]

20

40

80

150

230

300

380

450

530

610

680

760

Theoretical rpm

Overall Efficiency -

70 - 100%

40 - 69%

0 - 39%

Intermittent Ratings - 10% of Operation

Displacement tested at 54°C [129°F] with an oil viscosity of 46cSt [213 SUS]

Max. Inter.Max. Cont.Pressure - bar [psi]

100 cm3 [6.1 in3] / rev

mm [in]

Rotor Width

19.7

[.777]

P109373

Technical Information

Orbital Motors Type WD, WP and WR

WR Product Line

©

Danfoss | December 2019 BC267362166283en-000201 | 69

17

38

80

150

229

296

378

450

528

610

680

13

37

78

148

226

292

375

448

526

608

677

760

12

33

75

142

221

285

367

442

520

600

666

754

11

31

70

139

218

282

370

438

518

596

660

750

29

68

136

215

280

367

433

514

590

653

742

15

65

131

212

280

364

426

508

582

645

730

7

61

128

208

274

363

420

500

576

635

715

20

122

201

270

361

412

490

568

624

702

118

197

265

353

404

480

556

610

688

111

189

255

338

390

468

542

594

666

85

162

208

310

355

440

525

574

636

[159]

[230]

[221]

[230]

[203]

[186]

[150]

[123]

[106]

[88]

[53]

18

26

25

26

23

21

17

14

12

10

6

[327]

[434]

[442]

[407]

[425]

[398]

[363]

[319]

[301]

[248]

[186]

[133]

37

49

50

46

48

45

41

36

34

28

21

15

[681]

[743]

[867]

[858]

[850]

[823]

[805]

[788]

[735]

[699]

[628]

[558]

77

84

98

97

96

93

91

89

83

79

71

63

[805]

[938]

[1106]

[1097]

[1088]

[1071]

[1018]

[1027]

[965]

[912]

[832]

[752]

91

106

125

124

123

121

115

116

109

103

94

85

[1062]

[1327]

[1310]

[1292]

[1248]

[1239]

[1186]

[1142]

[1071]

[991]

120

150

148

146

141

140

134

129

121

112

[1239]

[1549]

[1531]

[1487]

[1460]

[1434]

[1389]

[1345]

[1292]

[1177]

140

175

173

168

165

162

158

152

146

133

[1416]

[1761]

[1752]

[1770]

[1726]

[1673]

[1664]

[1602]

[1522]

[1496]

[1416]

160

199

198

200

195

189

188

181

172

169

160

[1673]

[1982]

[1973]

[1956]

[1903]

[1858]

[1814]

[1752]

[1699]

[1637]

189

224

223

221

215

210

205

198

192

185

[2168]

[2177]

[2159]

[2106]

[2071]

[2017]

[1973]

[1903]

[1788]

245

246

244

238

234

228

223

215

202

[2363]

[2381]

[2345]

[2336]

[2283]

[2265]

[2248]

[2221]

[2195]

267

269

265

264

258

256

254

251

248

[2558]

[2531]

[2513]

[2496]

[2478]

[2460]

[2443]

[2407]

[2363]

289

286

284

282

280

278

276

272

267

Torque - Nm [lb-in], Speed rpm

Flow - lpm [gpm]

17 [250] 35 [500] 69 [1000] 86 [1250] 104 [1500] 121 [1750] 138 [2000] 155 [2250] 172 [2500] 190 [2750] 207 [3000]

27 [239] 56 [496] 247 [2186]110 [974] 137 [1212] 166 [1469] 193 [1708] 220 [1947] 275 [2434] 303 [2682] 330 [2921]

Theoretical Torque - Nm [lb-in]

Max.

Inter.

Max.

Cont.

100

2 [0.5]

4 [1]

8 [2]

15 [4]

23 [6]

30 [8]

38 [10]

45 [12]

53 [14]

61 [16]

68 [18]

76 [20]

20

40

80

150

230

300

380

450

530

610

680

760

Theoretical rpm

Overall Efficiency -

70 - 100%

40 - 69%

0 - 39%

Intermittent Ratings - 10% of Operation

Displacement tested at 54°C [129°F] with an oil viscosity of 46cSt [213 SUS]

Max. Inter.Max. Cont.Pressure - bar [psi]

100 cm3 [6.1 in3] / rev

mm [in]

Rotor Width

19.7

[.777]

P109373

15

30

59

115

177

232

294

353

411

472

6

29

58

112

175

227

289

351

408

470

529

588

18

51

106

167

218

280

343

398

465

522

585

10

46

102

163

213

275

338

392

462

517

580

6

38

97

157

208

268

331

386

456

507

570

32

92

152

200

260

321

378

447

500

562

25

86

142

189

251

311

366

435

489

550

80

138

184

243

299

357

426

482

535

74

132

176

234

289

347

409

468

520

66

121

168

221

277

335

396

445

510

114

162

214

264

325

388

430

490

[301]

[283]

[274]

[266]

[248]

[177]

[133]

[115]

[62]

34

32

31

30

28

20

15

13

7

[531]

[566]

[575]

[584]

[575]

[566]

[531]

[487]

[416]

[372]

[319]

[283]

60

64

65

66

65

64

60

55

47

42

36

32

[1097]

[1115]

[1151]

[1133]

[1106]

[1062]

[1035]

[938]

[903]

[832]

124

126

130

128

125

120

117

106

102

94

[1239]

[1274]

[1451]

[1434]

[1389]

[1345]

[1328]

[1239]

[1168]

[1089]

140

144

164

162

157

152

150

140

132

123

[1637]

[1752]

[1726]

[1735]

[1699]

[1664]

[1646]

[1602]

[1505]

[1469]

[1398]

185

198

195

196

192

188

186

181

170

166

158

[1974]

[1956]

[2036]

[1974]

[1965]

[1912]

[1876]

[1832]

[1752]

[1682]

223

221

230

223

222

216

212

207

198

190

[2195]

[2257]

[2345]

[2292]

[2248]

[2159]

[2186]

[2115]

[1982]

[1938]

248

255

265

259

254

244

247

239

224

219

[2522]

[2558]

[2513]

[2496]

[2487]

[2416]

[2345]

[2319]

[2248]

285

289

284

282

281

273

265

262

254

[2761]

[2797]

[2770]

[2717]

[2744]

[2620]

[2584]

[2496]

312

316

313

307

310

296

292

282

[3053]

[3115]

[3036]

[3089]

[3018]

[2965]

[2903]

[2859]

[2726]

345

352

343

349

341

335

328

323

308

[3319]

[3310]

[3275]

[3266]

[3213]

[3195]

[3106]

[3071]

375

374

370

369

363

361

351

347

Torque - Nm [lb-in], Speed rpm

Flow - lpm [gpm]

17 [250] 35 [500] 69 [1000] 86 [1250] 104 [1500] 121 [1750] 138 [2000] 155 [2250] 172 [2500] 190 [2750] 207 [3000]

35 [310] 71 [628] 318 [2814]142 [1257] 177 [1566] 212 [1876] 248 [2195] 283 [2504] 354 [3133] 389 [3442] 425 [3761]

Theoretical Torque - Nm [lb-in]

Max.

Inter.

Max.

Cont.

130

2 [0.5]

4 [1]

8 [2]

15 [4]

23 [6]

30 [8]

38 [10]

45 [12]

53 [14]

61 [16]

68 [18]

76 [20]

15

30

59

118

177

235

294

353

411

472

529

588

Theoretical rpm

Overall Efficiency -

70 - 100%

40 - 69%

0 - 39%

Intermittent Ratings - 10% of Operation

Displacement tested at 54°C [129°F] with an oil viscosity of 46cSt [213 SUS]

Max. Inter.Max. Cont.Pressure - bar [psi]

129 cm3 [7.9 in3] / rev

mm [in]

Rotor Width

25.4

[1.002]

P109375

Technical Information

Orbital Motors Type WD, WP and WR

WR Product Line

12

24

48

92

140

184

235

278

327

379

11

23

47

89

137

178

230

272

322

374

420

469

5

21

42

84

132

172

222

264

312

360

409

453

20

38

82

128

170

218

259

306

355

400

448

14

34

77

123

164

212

253

300

350

394

442

6

28

73

118

160

208

247

295

342

387

435

22

70

114

152

200

242

289

338

380

428

67

110

147

192

235

281

333

374

421

62

106

142

184

227

276

323

368

412

100

134

178

216

267

316

358

401

94

129

172

210

258

308

346

392

[266]

[283]

[336]

[345]

[354]

[301]

[283]

[212]

[177]

[106]

30

32

38

39

40

34

32

24

20

12

[584]

[620]

[673]

[690]

[699]

[646]

[637]

[620]

[531]

[460]

[407]

[336]

66

70

76

78

79

73

72

70

60

52

46

38

[965]

[1204]

[1389]

[1469]

[1416]

[1451]

[1381]

[1336]

[1274]

[1186]

[1151]

[1062]

109

136

157

166

160

164

156

151

144

134

130

120

[1451]

[1602]

[1814]

[1797]

[1770]

[1735]

[1699]

[1646]

[1575]

[1513]

[1434]

164

181

205

203

200

196

192

186

178

171

162

[1611]

[1788]

[2142]

[2177]

[2168]

[2124]

[2089]

[2053]

[1929]

[1903]

[1760]

182

202

242

246

245

240

236

232

218

215

199

[2213]

[2345]

[2434]

[2567]

[2549]

[2496]

[2460]

[2354]

[2248]

[2195]

[2124]

250

265

275

290

288

282

278

266

254

248

240

[2567]

[2805]

[2832]

[2797]

[2761]

[2744]

[2708]

[2628]

[2575]

[2460]

290

317

320

316

312

310

306

297

291

278

[3169]

[3133]

[3098]

[3071]

[3044]

[2991]

[2956]

[2885]

[2867]

358

354

350

347

344

338

334

326

324

[3540]

[3505]

[3434]

[3443]

[3381]

[3310]

[3283]

[3195]

[3159]

400

396

388

389

382

374

371

361

357

[3575]

[3788]

[3735]

[3708]

[3717]

[3549]

[3478]

[3452]

404

428

422

419

420

401

393

390

[3894]

[3965]

[4018]

[3983]

[3965]

[3912]

[3788]

[3761]

440

448

454

450

448

442

428

425

Torque - Nm [lb-in], Speed rpm

Flow - lpm [gpm]

17 [250] 35 [500] 69 [1000] 86 [1250] 104 [1500] 121 [1750] 138 [2000] 155 [2250] 172 [2500] 190 [2750] 207 [3000]

43 [383] 89 [789] 395 [3495]176 [1556] 219 [1939] 265 [2345] 308 [2728] 352 [3111] 441 [3901] 484 [4284] 527 [4667]

Theoretical Torque - Nm [lb-in]

Max.

Inter.

Max.

Cont.

160

2 [0.5]

4 [1]

8 [2]

15 [4]

23 [6]

30 [8]

38 [10]

45 [12]

53 [14]

61 [16]

68 [18]

76 [20]

13

25

50

94

144

188

238

281

331

381

425

475

Theoretical rpm

Overall Efficiency -

70 - 100%

40 - 69%

0 - 39%

Intermittent Ratings - 10% of Operation

Displacement tested at 54°C [129°F] with an oil viscosity of 46cSt [213 SUS]

Max. Inter.Max. Cont.Pressure - bar [psi]

160 cm3 [9.8 in3] / rev

mm [in]

Rotor

Width

31.8

[1.252]

P109376

10

20

39

75

113

150

192

227

268

8

19

38

73

111

147

190

226

266

308

343

384

6

14

36

70

109

142

185

221

260

300

332

374

5

12

35

68

106

140

182

219

256

298

330

367

9

34

65

103

135

177

212

251

291

322

363

6

28

63

99

131

172

207

245

286

316

355

3

25

59

96

126

167

201

240

279

310

349

22

57

94

124

160

194

233

271

302

343

17

52

89

117

154

186

227

264

296

333

50

84

112

146

179

217

255

286

324

40

78

106

140

174

210

248

276

314

[336]

[416]

[407]

[389]

[354]

[292]

[204]

[186]

[88]

38

47

46

44

40

33

23

21

10

[770]

[912]

[850]

[841]

[814]

[770]

[708]

[646]

[566]

[487]

[407]

[265]

87

103

96

95

92

87

80

73

64

55

46

30

[1522]

[1451]

[1699]

[1717]

[1699]

[1655]

[1593]

[1531]

[1460]

[1372]

[1265]

[1150]

172

164

192

194

192

187

180

173

165

155

143

130

[1779]

[2133]

[2124]

[2088]

[2035]

[1973]

[1894]

[1805]

[1690]

[1584]

201

241

240

236

230

223

214

204

191

179

[2159]

[2531]

[2549]

[2513]

[2460]

[2398]

[2319]

[2239]

[2124]

[2009]

244

286

288

284

278

271

262

253

240

227

[2611]

[2920]

[2947]

[2920]

[2876]

[2814]

[2735]

[2655]

[2540]

[2434]

295

330

333

330

325

318

309

300

287

275

[2903]

[3292]

[3319]

[3327]

[3283]

[3221]

[3150]

[3062]

[2938]

[2841]

328

372

376

375

374

371

364

356

346

332

321

[3690]

[3708]

[3726]

[3673]

[3619]

[3540]

[3460]

[3336]

[3230]

417

419

421

415

409

400

391

377

365

[3788]

[4080]

[4088]

[4062]

[4009]

[3929]

[3841]

[3717]

[3619]

428

461

462

459

453

444

434

420

409

[4407]

[4469]

[4460]

[4407]

[4345]

[4274]

[4177]

[4044]

[3805]

498

505

504

498

491

483

472

457

430

[4814]

[4796]

[4779]

[4717]

[4646]

[4549]

[4283]

[4142]

544

542

540

533

525

514

484

468

Torque - Nm [lb-in], Speed rpm

Flow - lpm [gpm]

17 [250] 35 [500] 69 [1000] 86 [1250] 104 [1500] 121 [1750] 138 [2000] 155 [2250] 172 [2500] 190 [2750] 207 [3000]

54 [481] 109 [963] 489 [4332]218 [1929] 272 [2407] 326 [2888] 381 [3369] 435 [3850] 544 [4813] 598 [5294] 653 [5776]

Theoretical Torque - Nm [lb-in]

Max.

Inter.

Max.

Cont.

200

2 [0.5]

4 [1]

8 [2]

15 [4]

23 [6]

30 [8]

38 [10]

45 [12]

53 [14]

61 [16]

68 [18]

76 [20]

10

20

40

76

116

152

192

227

268

308

343

384

Theoretical rpm

Overall Efficiency -

70 - 100%

40 - 69%

0 - 39%

Intermittent Ratings - 10% of Operation

Displacement tested at 54°C [129°F] with an oil viscosity of 46cSt [213 SUS]

Max. Inter.Max. Cont.Pressure - bar [psi]

198 cm3 [12.1 in3] / rev

mm [in]

Rotor Width

39.4

[1.553]

P109377

Technical Information

Orbital Motors Type WD, WP and WR

WR Product Line

©

Danfoss | December 2019 BC267362166283en-000201 | 71

7

14

29

60

93

125

158

189

6

13

28

59

91

123

155

186

218

249

279

315

3

11

26

56

88

119

150

182

214

245

273

307

3

9

24

53

85

116

147

178

210

242

270

303

7

21

50

81

111

142

174

205

236

267

295

4

19

47

77

106

137

168

201

230

260

290

4

16

44

71

100

131

160

191

222

251

282

11

40

66

93

123

153

183

215

241

272

8

36

60

87

115

145

174

205

231

261

8

33

55

79

106

134

164

195

221

250

28

52

73

99

125

154

184

208

238

[416]

[443]

[469]

[460]

[416]

[372]

[310]

[204]

47

50

53

52

47

42

35

23

[867]

[929]

[982]

[1000]

[956]

[903]

[832]

[752]

[655]

[593]

[487]

[354]

98

105

111

114

109

104

95

85

75

68

56

40

[1743]

[1859]

[1982]

[2062]

[2009]

[1956]

[1885]

[1797]

[1699]

[1593]

[1460]

[1345]

197

210

224

236

227

221

213

203

192

180

165

154

[2186]

[2301]

[2451]

[2575]

[2522]

[2469]

[2398]

[2319]

[2213]

[2106]

[1956]

[1841]

247

260

277

290

285

280

272

262

250

238

221

210

[2717]

[2894]

[3062]

[3027]

[2974]

[2903]

[2823]

[2726]

[2611]

[2469]

[2336]

310

329

346

342

336

328

319

308

295

281

264

[3133]

[3336]

[3531]

[3513]

[3460]

[3398]

[3319]

[3310]

[3106]

[2965]

[2832]

354

377

399

397

391

384

375

365

350

335

320

[3575]

[3752]

[3974]

[3938]

[3867]

[3788]

[3699]

[3584]

[3434]

[3310]

404

424

449

445

437

428

418

405

388

376

[4151]

[4390]

[4425]

[4398]

[4328]

[4248]

[4160]

[4053]

[3894]

[3770]

469

496

500

497

489

480

470

458

440

428

[4522]

[4788]

[4850]

[4841]

[4788]

[4699]

[4602]

[4496]

[4337]

[4221]

511

541

548

547

541

531

520

510

490

480

[5151]

[5292]

[5266]

[5248]

[5195]

[5089]

[4991]

[4876]

[4797]

[4691]

582

598

595

592

587

575

564

551

545

530

[5646]

[5682]

[5664]

[5620]

[5514]

[5407]

[5310]

[5222]

[5133]

638

642

640

635

623

611

600

590

580

Torque - Nm [lb-in], Speed rpm

Flow - lpm [gpm]

17 [250] 35 [500] 69 [1000] 86 [1250] 104 [1500] 121 [1750] 138 [2000] 155 [2250] 172 [2500] 190 [2750] 207 [3000]

66 [584] 132 [1168] 595 [5265]265 [2345] 331 [2929] 397 [3513] 463 [4097] 529 [4681] 661 [5850] 728 [6442] 794 [7027]

Theoretical Torque - Nm [lb-in]

Max.

Inter.

Max.

Cont.

240

2 [0.5]

4 [1]

8 [2]

15 [4]

23 [6]

30 [8]

38 [10]

45 [12]

53 [14]

61 [16]

68 [18]

76 [20]

8

16

32

63

95

126

158

189

220

252

283

315

Theoretical rpm

Overall Efficiency -

70 - 100%

40 - 69%

0 - 39%

Intermittent Ratings - 10% of Operation

Displacement tested at 54°C [129°F] with an oil viscosity of 46cSt [213 SUS]

Max. Inter.Max. Cont.Pressure - bar [psi]

236 cm3 [14.4 in3] / rev

mm [in]

Rotor Width

47.4

[1.865]

P109378

31

59

91

119

151

179

211

31

60

90

118

150

179

210

250

271

300

56

88

116

148

178

205

241

268

296

53

85

113

144

177

201

234

263

290

48

81

107

139

174

193

231

255

281

74

103

134

168

188

223

244

273

69

99

132

163

180

214

232

263

64

92

129

158

171

211

221

252

61

87

124

156

162

201

210

242

84

119

148

158

193

200

230

82

116

148

150

185

192

220

[434]

[398]

[363]

[292]

[195]

[124]

49

45

41

33

22

14

[991]

[1018]

[991]

[947]

[858]

[717]

[664]

[549]

[442]

[336]

112

115

112

107

97

81

75

62

50

38

[2097]

[2062]

[2080]

[1938]

[1752]

[1735]

[1575]

[1416]

[1257]

237

233

235

219

198

196

178

160

142

[2611]

[2664]

[2522]

[2416]

[2248]

[2204]

[2080]

[1973]

[1858]

295

301

285

273

254

249

235

223

210

[3150]

[3186]

[3115]

[2920]

[2761]

[2717]

[2584]

[2442]

[2301]

356

360

352

330

312

307

292

276

260

[3699]

[3531]

[3451]

[3257]

[3159]

[3071]

[2965]

[2867]

418

399

390

368

357

347

335

324

[4168]

[3903]

[3841]

[3628]

[3664]

[3540]

[3416]

[3292]

471

441

434

410

414

400

386

372

[4611]

[4522]

[4283]

[4195]

[4133]

[4020]

[3912]

[3805]

521

511

484

474

467

454

442

430

[4965]

[4947]

[4681]

[4425]

[4531]

[4434]

[4336]

[4230]

561

559

529

500

512

501

490

478

[5292]

[5115]

[5204]

[4965]

[4805]

[4690]

[4549]

598

578

588

561

543

530

514

[5522]

[5469]

[5354]

[5398]

[5327]

[5221]

[2133]

624

618

605

610

602

590

580

Torque - Nm [lb-in], Speed rpm

Flow - lpm [gpm]

17 [250] 35 [500]

69 [608] 137 [1215] 275 [2431] 343 [3039] 412 [3646] 481 [4254] 549 [4862] 618 [5469] 687 [6077] 755 [6685] 824 [7292]

Theoretical Torque - Nm [lb-in]

Max.

Inter.

Max.

Cont.

250

8 [2]

15 [4]

23 [6]

30 [8]

38 [10]

45 [12]

53 [14]

61 [16]

68 [18]

76 [20]

32

60

92

120

152

180

212

244

272

304

Theoretical rpm

Overall Efficiency -

70 - 100%

40 - 69%

0 - 39%

Intermittent Ratings - 10% of Operation

Displacement tested at 54°C [129°F] with an oil viscosity of 46cSt [213 SUS]

Max. Inter.Max. Cont.Pressure - bar [psi]

250 cm3 [15.3 in3] / rev

mm [in]

Rotor Width

49.2

[1.938]

69 [1000] 86 [1250] 104 [1500] 121 [1750] 138 [2000] 155 [2250] 172 [2500] 190 [2750] 207 [3000]

P109379

Technical Information

Orbital Motors Type WD, WP and WR

WR Product Line

7

13

26

50

76

100

129

153

182

210

6

12

24

49

74

96

126

150

174

202

230

256

5

10

22

46

71

90

122

146

166

193

226

246

4

8

20

44

68

85

118

142

158

184

218

237

3

6

18

40

64

80

116

138

150

175

210

226

4

15

36

61

76

112

133

142

166

202

216

12

32

57

72

106

127

134

160

192

206

8

24

55

70

100

120

128

152

182

198

4

16

52

68

92

106

122

145

174

190

9

48

65

82

100

118

140

164

185

3

40

62

74

95

114

136

158

180

[531]

[549]

[531]

[513]

[496]

[442]

[398]

[336]

[221]

[106]

60

62

60

58

56

50

45

38

25

12

[1018]

[1080]

[1133]

[1177]

[1097]

[1062]

[1009]

[920]

[823]

[726]

[581]

[487]

115

122

128

133

124

120

114

104

93

82

66

55

[1637]

[1655]

[1682]

[1726]

[1770]

[1743]

[1682]

[1593]

[1505]

[1372]

[1239]

[1133]

185

187

190

195

200

197

190

180

170

155

140

128

[2301]

[2345]

[2407]

[2390]

[2372]

[2336]

[2283]

[2230]

[2089]

[1991]

[1929]

[1752]

260

265

272

270

268

264

258

252

236

225

218

198

[2584]

[2690]

[2876]

[2903]

[2929]

[2885]

[2832]

[2779]

[2708]

[2602]

[2478]

[2390]

292

304

325

328

331

326

320

314

306

294

280

270

[2330]

[3292]

[3328]

[3505]

[3487]

[3469]

[3452]

[3381]

[3319]

[3230]

[3098]

365

372

376

396

394

392

390

382

375

365

350

[4036]

[4053]

[4089]

[4115]

[4071]

[4053]

[4000]

[3938]

[3850]

[3770]

456

458

462

465

460

458

452

445

435

426

[4531]

[4620]

[4646]

[4655]

[4611]

[4522]

[4425]

[4319]

[4239]

[4142]

512

522

525

526

521

511

500

488

479

468

[5045]

[5080]

[5009]

[5027]

[4947]

[4868]

[4797]

[4735]

[4655]

[4549]

570

574

566

568

559

550

542

535

526

514

[5576]

[5531]

[5487]

[5443]

[5399]

[5363]

[5266]

[5204]

[5080]

630

625

620

615

610

606

595

588

574

[5876]

[5841]

[5797]

[5708]

[5629]

[5531]

[5443]

[5345]

[5204]

664

660

655

645

636

625

615

604

588

Torque - Nm [lb-in], Speed rpm

Flow - lpm [gpm]

17 [250] 35 [500] 69 [1000]52 [750] 86 [1250] 104 [1500] 121 [1750] 138 [2000] 155 [2250] 172 [2500] 190 [2750]

80 [707] 160 [1415] 639 [5659]240 [2122] 320 [2829] 400 [3537] 480 [4244] 560 [4952] 719 [6366] 799 [7074] 879 [7781]

Theoretical Torque - Nm [lb-in]

Max.

Inter.

Max.

Cont.

290

2 [0.5]

4 [1]

8 [2]

15 [4]

23 [6]

30 [8]

38 [10]

45 [12]

53 [14]

61 [16]

68 [18]

76 [20]

7

14

27

52

79

103

130

155

182

210

234

261

Theoretical rpm

Overall Efficiency -

70 - 100%

40 - 69%

0 - 39%

Intermittent Ratings - 10% of Operation

Displacement tested at 54°C [129°F] with an oil viscosity of 46cSt [213 SUS]

Max. Inter.Max. Cont.Pressure - bar [psi]

291 cm3 [17.8 in3] / rev

mm [in]

Rotor Width

57.2

[2.252]

P109380

6

12

24

46

70

93

118

140

165

188

5

11

22

45

69

92

117

138

163

186

210

235

5

10

20

44

68

89

115

136

161

184

208

233

4

9

19

43

66

86

113

134

158

182

204

230

6

17

41

63

82

110

130

154

177

197

226

4

16

38

58

77

104

124

147

170

190

218

2

13

35

53

73

98

117

141

162

181

209

11

32

49

67

91

110

134

155

173

202

6

28

47

63

85

103

126

147

165

193

2

24

43

59

77

97

118

138

156

185

[531]

[619]

[646]

[699]

[602]

[496]

[478]

[336]

[195]

[97]

60

70

73

79

68

56

54

38

22

11

[1186]

[1239]

[1363]

[1345]

[1328]

[1283]

[1239]

[1186]

[1080]

[930]

[779]

[620]

134

140

154

152

150

145

140

134

122

105

88

70

[1673]

[2115]

[2062]

[2080]

[2009]

[1929]

[1788]

[1681]

[1531]

[1389]

[1274]

[1062]

189

239

233

235

227

218

202

192

173

157

144

126

[2106]

[2442]

[2575]

[2752]

[2611]

[2531]

[2416]

[2301]

[2257]

[2027]

[1947]

[1681]

238

276

291

311

295

286

273

260

255

229

220

190

[2867]

[2947]

[3407]

[3345]

[3150]

[3080]

[2973]

[2858]

[2637]

[2522]

[2319]

324

333

385

378

356

348

336

323

298

285

262

[3478]

[3761]

[4000]

[3920]

[3858]

[3779]

[3619]

[3460]

[3327]

[3150]

[2965]

393

425

452

443

436

427

409

391

376

356

335

[3566]

[4310]

[4584]

[4531]

[4478]

[4434]

[4212]

[3991]

[3894]

[3752]

[3628]

403

487

518

512

506

501

476

451

440

424

410

[4823]

[4912]

[5115]

[4956]

[4929]

[4796]

[4611]

[4451]

[4310]

[4097]

545

555

578

560

557

542

521

503

487

463

[5496]

[5673]

[5496]

[5434]

[5345]

[5319]

[5150]

[4929]

[4858]

[4673]

621

641

621

614

604

601

582

557

549

528

[5832]

[6106]

[6071]

[5885]

[5876]

[5681]

[5575]

[5469]

[5327]

[5186]

659

690

686

665

664

642

630

618

602

586

Torque - Nm [lb-in], Speed rpm

Flow - lpm [gpm]

17 [250] 35 [500] 52 [750] 69 [1000] 86 [1250] 104 [1500] 121 [1750] 138 [2000] 155 [2250] 172 [2500]

87 [770] 177 [1566] 708 [6265]267 [2362] 354 [3132] 441 [3903] 533 [4717] 620 [5487] 795 [7035] 887 [7850]

Theoretical Torque - Nm [lb-in]

Max.

Inter.

Max.

Cont.

320

2 [0.5]

4 [1]

8 [2]

15 [4]

23 [6]

30 [8]

38 [10]

45 [12]

53 [14]

61 [16]

68 [18]

76 [20]

6

12

25

47

71

93

118

140

165

189

211

236

Theoretical rpm

Overall Efficiency -

70 - 100%

40 - 69%

0 - 39%

Intermittent Ratings - 10% of Operation

Displacement tested at 54°C [129°F] with an oil viscosity of 46cSt [213 SUS]

Max. Inter.Max. Cont.Pressure - bar [psi]

322 cm3 [19.6 in3] / rev

mm [in]

Rotor Width

63.5

[2.502]

P109381

Technical Information

Orbital Motors Type WD, WP and WR

WR Product Line

©

Danfoss | December 2019 BC267362166283en-000201 | 73

5

10

20

38

58

75

95

113

133

4

9

19

37

56

73

93

111

131

152

170

190

3

8

18

36

55

71

92

108

127

147

164

185

2

7

17

34

53

69

87

105

126

145

163

180

2

6

15

33

50

66

84

103

121

139

156

174

4

13

32

49

63

81

96

114

130

146

165

3

11

28

46

60

78

91

109

127

142

160

2

8

25

44

58

75

88

104

121

137

156

[723]

[761]

[791]

[771]

[703]

[620]

[523]

[460]

[404]

82

86

89

87

79

70

59

52

46

[1459]

[1549]

[1690]

[1673]

[1637]

[1558]

[1407]

[1283]

[1221]

[1000]

[850]

[655]

165

175

191

189

185

176

159

145

138

113

96

74

[2213]

[2317]

[2513]

[2451]

[2398]

[2301]

[2115]

[2062]

[1903]

[1690]

[1575]

[1327]

250

262

284

277

271

260

239

233

215

191

178

150

[2912]

[3053]

[3219]

[3346]

[3305]

[3217]

[3106]

[2968]

[2813]

[2641]

[2328]

[2122]

329

345

364

378

373

364

351

335

318

298

263

240

[3699]

[3779]

[3962]

[4135]

[4110]

[4025]

[3913]

[3806]

[3622]

[3448]

[3230]

[3027]

418

427

448

467

464

455

442

430

409

390

365

342

[4398]

[4443]

[4679]

[4873]

[4868]

[4787]

[4684]

[4543]

[4393]

[4228]

[3855]

497

502

529

551

550

541

529

513

496

478

436

[5106]

[5363]

[5569]

[5584]

[5515]

[5410]

[5269]

[5115]

[4959]

[4572]

[4365]

577

606

629

631

623

611

595

578

560

517

493

[5841]

[6036]

[6177]

[6159]

[5982]

[5864]

[5705]

[5522]

[5364]

[5133]

[4956]

660

682

698

696

676

663

645

624

606

580

560

Torque - Nm [lb-in], Speed rpm

Flow - lpm [gpm]

17 [250] 35 [500] 52 [750] 69 [1000] 86 [1250] 104 [1500] 121 [1750] 138 [2000]

Pressure - bar [psi]

112 [992] 224 [1984] 897 [7935]336 [2976] 448 [3968] 560 [4960] 673 [5952] 785 [6944]

Theoretical Torque - Nm [lb-in]

Max.

Inter.

Max.

Cont.

400

2 [0.5]

4 [1]

8 [2]

15 [4]

23 [6]

30 [8]

38 [10]

45 [12]

53 [14]

61 [16]

68 [18]

76 [20]

5

10

20

38

58

75

95

113

133

153

170

190

Theoretical rpm

Overall Efficiency -

70 - 100%

40 - 69%

0 - 39%

Intermittent Ratings - 10% of Operation

Displacement tested at 54°C [129°F] with an oil viscosity of 46cSt [213 SUS]

Max. Inter.Max. Cont.

400 cm3 [24.4 in3] / rev

mm [in]

Rotor Width

78.9

[3.106]

P109382

Technical Information

Orbital Motors Type WD, WP and WR

WR Product Line

80.0 [3.150]

83.8 [3.299]

Ø82.6 [3.250]

19 [.77]

80.0 [3.150]

83.8 [3.299]

Ø82.6 [3.250]

55 [2.17]

F37 - (4) 3/8-16 UNC, Min. Depth 16 [.63] G37 - (4) M10 x 1.5, Min. Depth 16 [.63]

80.0 [3.150]

83.8 [3.299]

Ø82.6 [3.250]

55 [2.17]

(4) 3/8-16 UNC Min. Depth 16 [.63]

F37 - (4) 5/16-18 UNC, Min. Depth 12 [.47] G37 - (4) M8 x 1.25, Min. Depth 12 [.47]

(4) 3/8-16 UNC, Min. Depth 16 [.63]

F33 - (4) M8 x 1.25, Min. Depth 12 [.47] F3D - (4) 5/16-18 UNC, Min. Depth 12 [.47]

Ø101.6 [4.00]

18 [.71]

Ø44.45 [1.750] Ø44.35 [1.746]

2.7 [.106]

2.3 [.091] 14 [.56] 14 [.56]

63.5 [2.50]

44 [1.72]

L

B

A

20 [.79]

38 [1.48]

20 [.79]

36 [1.42]

20 [.79] 20 [.79]

L

B

A

Ø44.45 [1.750] Ø44.35 [1.746]

2.7 [.106]

2.3 [.091]

A

B

40 [1.57]

32 [1.28]

Ø101.6 [4.00]

23 [.90]

Ø44.45 [1.750] Ø44.35 [1.746]

2.7 [.106]

2.3 [.091]

44 [1.72]

87 [3.42]

38 [1.48] 36 [1.42]

L

Ø101.6 [4.00]

18 [.71]

3.0 [.118]

1.2 [.047]

3.0 [.118]

1.2 [.047]

3.0 [.118]

4-HOLE, SQUARE MOUNT, OFFSET MANIFOLD PORTS

F39

7/8-14 UNF

4-HOLE, SQUARE MOUNT, OFFSET PORTS, VALVE CAVITY

F33

G 1/2

F3D

7/8-14 UNF

4-HOLE, SQUARE MOUNT, ALIGNED MANIFOLD PORTS

F37 1/2” Drilled G37 1/2” Drilled

P109383

Technical Information

Orbital Motors Type WD, WP and WR

WR Product Line

WR 251 and 252 Series

WR 251 and 252 Series Housings

Dimensions shown are without paint. Paint thickness can be up to 0.13 [.005]. Dimensions are charted in WR 251 and 252 Series Technical Information on page 76.

©

Danfoss | December 2019 BC267362166283en-000201 | 75

82 [3.220] Max.

Ø82.6 [3.250]

82 [3.220] Max.

88 [3.449] Max.

Ø44.45 [1.750] Ø44.35 [1.746]

A

23 [.91]

Ø101.6 [4.000]

N

23 [.90]

Ø101.6 [4.000]

N

(4) 3/8-16 UNC, Min. Depth 13 [.51]

Ø82.6 [3.250]

82 [3.220] Max.

88 [3.449] Max.

(4) 3/8-16 UNC, Min. Depth 13 [.51]

43 [1.68]2.8 [.110]

B

(4) 5/16-18 UNC, Min. Depth 12 [.47]

14 [.56]

64 [2.50]

43 [1.68]2.8 [.110]

Ø44.45 [1.750] Ø44.35 [1.746]

A

B

3.0 [.118]

1.2 [.047]

3.0 [.118]

1.2 [.047]

4-HOLE, SQUARE MOUNT, ALIGNED MANIFOLD PORTS

F37

1/2” Drilled

4-HOLE, SQUARE MOUNT, ALIGNED PORTS

F30 1/2-14 NPT F31 7/8-14 UNF

P109385

Technical Information

Orbital Motors Type WD, WP and WR

WR Product Line

WR 251 and 252 Series Technical Information

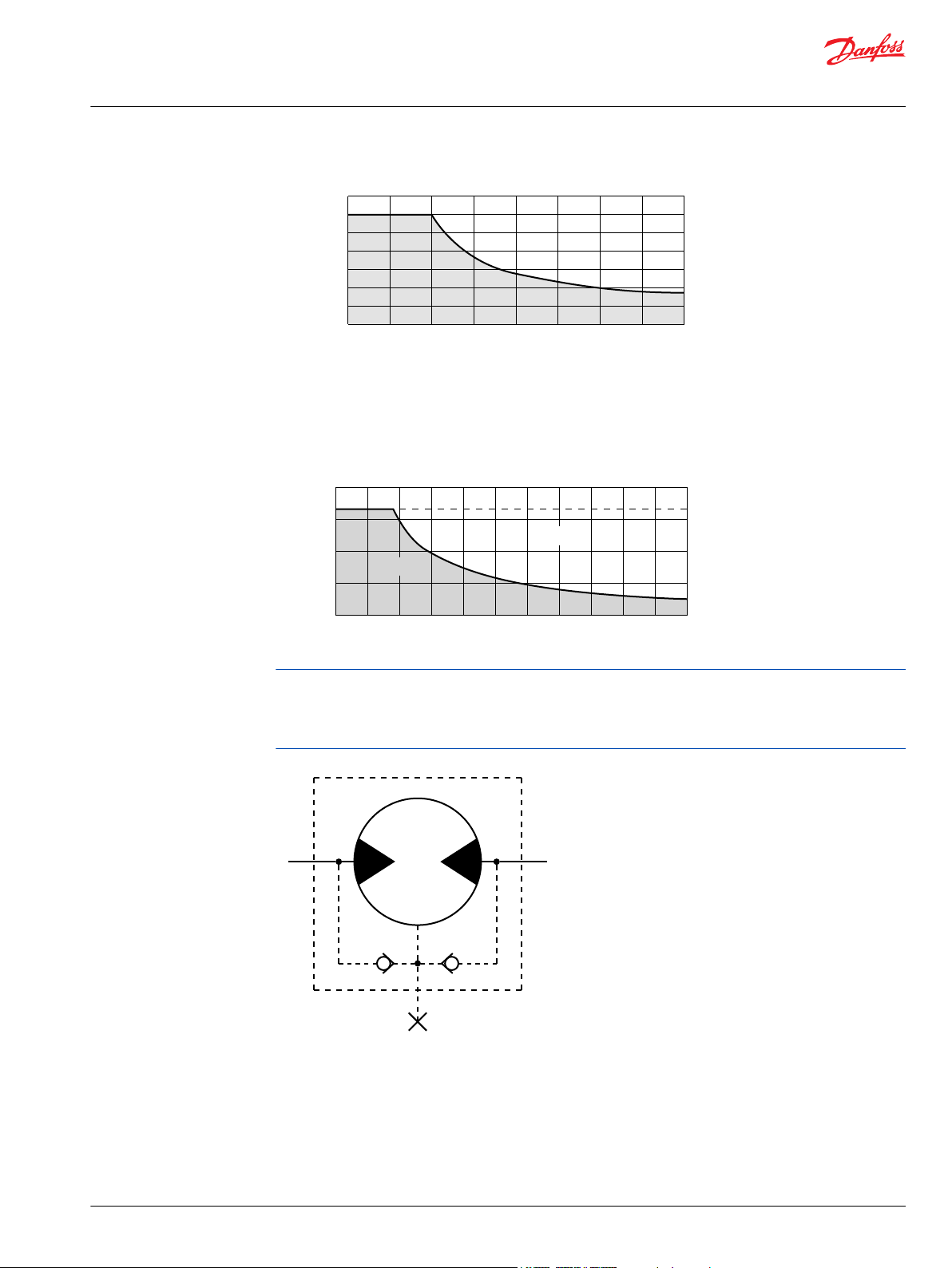

Allowable Shaft Load / Bearing Curve

The bearing curve below represents the side load capacity of the motor at the centerline of the key for various motor speeds. Operating conditions within the shaded area will maintain acceptable oil film lubrication with recommended fluids. Operating conditions outside the shaded area are susceptible to motor failure due to oil starvation and/or excessive heat generation. Fluids with low lubricity or low viscosity may require the maximum load and speed ratings to be derated to provide acceptable motor life and performance.

6000 [1350]

N [lbf]

4000 [900]

2000 [450]

0 600 rpm700500400300200100

P109389

276 [4000]

207 [3000]

69 [1000]

138 [2000]

bar [psi]

0 1000900 rpm600 800700500400300200100

Continuous

Intermittent

P109390

P109354

Technical Information

Orbital Motors Type WD, WP and WR

WR Product Line

Permissible Shaft Seal Pressure

The curve below represents allowable seal pressure at various speeds. Operation in the gray area results in maintaining the rated life of the shaft seal. Actual shaft seal pressure depends on motor configuration.

With check valves and drain connection, the shaft seal pressure equals pressure in the drain line. With check valves and no drain connection, shaft seal pressure is identical to output pressure. No check valves and no drain connection, the shaft seal pressure is identical to the average value of input and output pressure.

©

Danfoss | December 2019 BC267362166283en-000201 | 77

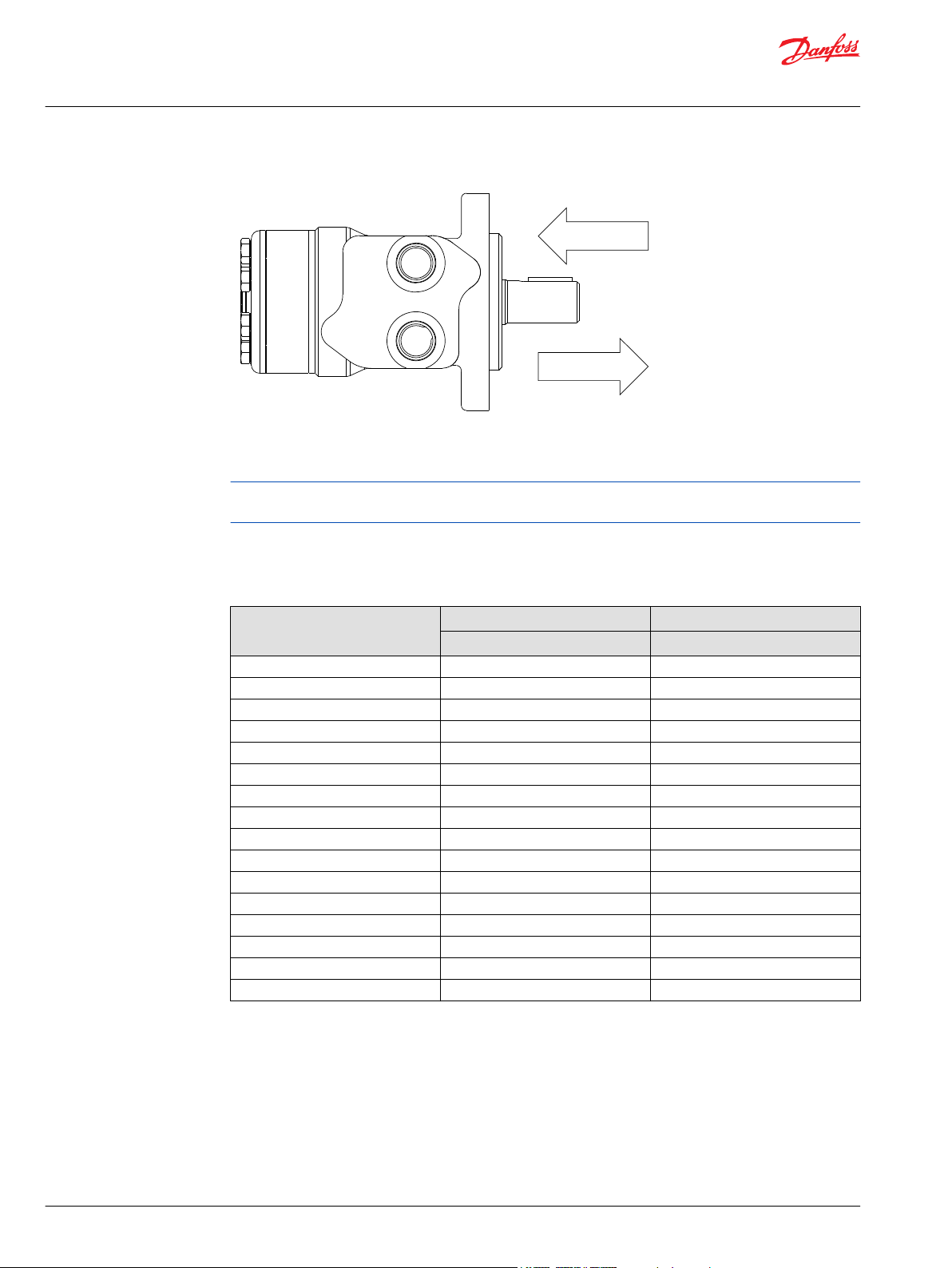

222 daN [500 lb]

445 daN [1000 lb]

P109391

Technical Information

Orbital Motors Type WD, WP and WR

WR Product Line

Length and Weight Chart

251 and 252 series motor weights can vary ± 0.5 kg [1 lb] depending on model configurations such as housing, shaft, endcover, options etc.

Dimension N is the overall motor length from the rear of the motor to the mounting flange surface and is referenced on detailed housing drawings listed in WR 251 and 252 Series Housings on page 75.

Dimension N

# Length Weight

mm [in] kg [lb]

040 127 [4.98] 6.3 [14.0] 050 128 [5.06] 6.4 [14.2] 060 130 [5.13] 6.5 [14.3] 070 132 [5.21] 6.6 [14.5] 080 134 [5.28] 6.7 [14.8] 090 136 [5.34] 6.8 [14.9] 100 138 [5.44] 6.9 [15.1] 115 141 [5.54] 7.0 [15.3] 130 144 [5.67] 7.1 [15.6] 160 150 [5.92] 7.4 [16.2] 200 158 [6.22] 7.7 [17.0] 240 166 [6.53] 8.0 [17.7] 250 168 [6.60] 8.1 [17.9] 290 176 [6.92] 8.5 [18.7] 320 182 [7.17] 8.7 [19.2] 400 197 [7.77] 9.4 [20.7]

25.40 [1.000]

25.38 [0.999]

25 [1.00]

Min. Depth

02 - 16 [.63] 03 - 20 [.80] 04 - 13 [.51]

1/4-20 UNC,

Min. Depth 16 [.63]

Ø25.40 [1.000] Ø25.38 [.999]

40 [1.57]

02 - 46 [1.79] 03 - 64 [2.51] 04 - 46 [1.79]

46 [1.79]

40 [1.57]

6B Spline

SAE J499 Standard

6.35 [.250]

6.30 [.248]

28.2 [1.122]

28.0 [1.100]

5 [.20]

32 [1.24]

25.02 [.985]

25.00 [.984]

M8 x 1.25,

Min. Depth 13 [.51]

46 [1.79]

40 [1.57]

7.95 [.313]

7.93 [.312]

28.0 [1.102]

27.7 [1.091]

5 [.20]

32 [1.25]

10 1” Straight

Max. Torque: 655 Nm [5800 lb-in]

02 1” 6B Spline, 1/4-20 Tap

Max. Torque: 678 Nm [6000 lb-in]

04 1” 6B Spline, M8x1.25 Tap

Max. Torque: 678 Nm [6000 lb-in]

12 25mm Straight

03

1” 6B Spline, 5/16-18

P109392

Technical Information

Orbital Motors Type WD, WP and WR

WR Product Line

WR 251 and 252 Series Shafts

©

Danfoss | December 2019 BC267362166283en-000201 | 79

1 2 3 4 5 6 7 8

40 cm3/rev [2.5 in3/rev]

50 cm3/rev [3.1 in3/rev]

59 cm3/rev [3.6 in3/rev]

71 cm3/rev [4.3 in3/rev]

79 cm3/rev [4.9 in3/rev]

88 cm3/rev [5.4 in3/rev]

100 cm3/rev [6.1 in3/rev]

113 cm3/rev [6.9 in3/rev]

Standard Rotation Reverse Rotation

The 251 & 252 series are bi-directional.

129 cm3/rev [7.9 in3/rev]

160 cm3/rev [9.8 in3/rev]

198 cm3/rev [12.1 in3/rev]

236 cm3/rev [14.4 in3/rev]

250 cm3/rev [15.3 in3/rev]

291 cm3/rev [17.8 in3/rev]

322 cm3/rev [19.6 in3/rev]

400 cm3/rev [24.4 in3/rev]

2-Hole, SAE A Mount, Aligned Ports, 1/2-14 NPT

2-Hole, SAE A Mount, Aligned Ports, 7/8-14 UNF

2-Hole, SAE A Mount, Aligned Manifold Ports, 1/2” Drilled

2-Hole, SAE A Mount, Offset Manifold Ports, G 1/2

2-Hole, SAE A Mount, Aligned Side Ports, 7/8-14 UNF

4-Hole, Square Mount, Aligned Ports, 1/2-14 NPT

4-Hole, Square Mount, Aligned Ports, 7/8-14 UNF

4-Hole, Square Mount, Aligned Manifold Ports, 1/2” Drilled

6B Spline, 1/4 Tap

6B Spline, 5/16 Tap (Ext)

6B Spline, M8 Tap

1” Straight

25mm Straight

Black

Black, Unpainted Mounting Surface

Standard

Speed Sensor, Dual, 4-Pin Male Weatherpack Connector

Speed Sensor, Dual, 4-Pin M12 Male Connector

Speed Sensor, Single, 3-Pin Male Weatherpack Connector

Speed Sensor, Single, 4-Pin M12 Male Connector

None

Freeturning Rotor

The 03 extended shaft is designed for use with one of the speed sensor options listed in STEP 7.

None

251

1. CHOOSE SERIES DESIGNATION

2. SELECT A DISPLACEMENT OPTION

040

050

060

070

080

090

100

115

130

160

200

240

250

290

320

400

3. SELECT A MOUNT & PORT OPTION

A10

A11

A17

A18

A71

F30

F31

F37

4. SELECT A SHAFT OPTION

02

03

04

10

12

5. SELECT A PAINT OPTION

A

B

6. SELECT A VALVE CAVITY / CARTRIDGE OPTION

7. SELECT AN ADD-ON OPTION

A

W

X

Y

Z

8. SELECT A MISCELLANEOUS OPTION

AA

AC

252

A

P109396

Technical Information

Orbital Motors Type WD, WP and WR

WR Product Line

WR 251 and 252 Series Ordering Information

Technical Information

Orbital Motors Type WD, WP and WR

WR Product Line

WR 255 and 256 Series

WR 255 and 256 Series Housings

Dimensions shown are without paint. Paint thickness can be up to 0.13 [.005]. Dimensions are charted in WR 255 and 256 Series Technical Information on page 85. (TP) - Taller Pilot Height. Refer to detailed drawing for dimensional differences.

©

Danfoss | December 2019 BC267362166283en-000201 | 81

130.3 [5.13]

Ø106.4 [4.19]

59.4 [2.34]51 [2.00]

Ø13.7 [.539] Ø13.5 [.531]

130.3 [5.13]

Ø106.4 [4.19]

55 [2.17]51 [2.00]

Ø13.7 [.539] Ø13.5 [.531]

130.3 [5.13]

Ø106.4 [4.19]

59.4 [2.34]51 [2.00]

Ø82.50 [3.249] Ø82.35 [3.242]

36.1 [1.42]

A

B

18 [.71]

Ø101.6 [4.00]

K

2.7 [.105]

Ø82.50 [3.249] Ø82.35 [3.242]

43.5 [1.71]

A

B

22.9 [.90]

Ø101.6 [4.00]

K

20 [.79] 20 [.79]

Ø13.7 [.539] Ø13.5 [.531]

A12 - 37 [1.48] A62 - 35 [1.38]

A1D - (4) 5/16-18 UNC A13, A63 - (4) M8 x 1.25 Min. Depth 12 [.475]

A12 - 2.7 [.105] A62 - 5.2 [.205]

Ø82.50 [3.249] Ø82.35 [3.242]

36.1 [1.42]

A

B

18 [.71]

Ø101.6 [4.00]

K

A13, A1D - 37 [1.48] A63 - 35 [1.38]

A13, A1D - 2.7 [.105] A63 - 5.2 [.205]

20 [.79]

3.2 [.126]

1.2 [.047]

3.2 [.126]

1.2 [.047]

3.2 [.126]

1.2 [.047]

2-HOLE, SAE A MOUNT, OFFSET PORTS

A13

G 1/2

2-HOLE, SAE A MOUNT, OFFSET MANIFOLD PORTS

A1D

7/8-14 UNF

A12

G 1/2

A62

G 1/2 (TP)

2-HOLE, SAE A MOUNT, ALIGNED PORTS

A10 1/2-14 NPT A11 7/8-14 UNF

A63

G 1/2 (TP)

P109386

Technical Information

Orbital Motors Type WD, WP and WR

WR Product Line

43.5 [1.71]

2.7 [.105]

54 [2.14]

A

B

K

37 [1.48]

1.2 [.047]

32 [1.28]

Ø106.4 [4.19]

40 [1.58]51 [2.00]

Ø13.7 [.539] Ø13.5 [.531]

Spotface Ø 17.5 [.689] 2 [.079] Min. deep

14 [.56]

59.4 [2.34]

106.4 [4.189]

13.5 [.531]

22.5° 22.5°

130.3 [5.13]

Ø106.4 [4.19]

55 [2.17]51 [2.00]

Ø82.50 [3.249] Ø82.35 [3.242]

36.1 [1.42]

18 [.71]

Ø101.6 [4.00]

2.7 [.105]

Ø82.50 [3.249] Ø82.35 [3.242]

43.5 [1.71]

A

B

22.9 [.90]

Ø101.6 [4.00]

K

Ø13.7 [.539] Ø13.5 [.531]

(4) 5/16-18 UNC, Min. Depth 12 [.475]

2.7 [.105]

Ø82.50 [3.249] Ø82.35 [3.242]

43.5 [1.71]

A

B

22.9 [.90]

Ø101.6 [4.00]

K

63.5 [2.50]

1.2 [.047]

3.2 [.126]

1.2 [.047]

2-HOLE, SAE A MOUNT, OFFSET PORTS, VALVE CAVITY

A30 1/2-14 NPT4-HOLE, MAGNETO MOUNT, ALIGNED PORTS A31 7/8-14 UNF

A19

7/8-14 UNF

2-HOLE, SAE A MOUNT, ALIGNED MANIFOLD PORTS

A17 1/2” Drilled

P109387

Technical Information

Orbital Motors Type WD, WP and WR

WR Product Line

©

Danfoss | December 2019 BC267362166283en-000201 | 83

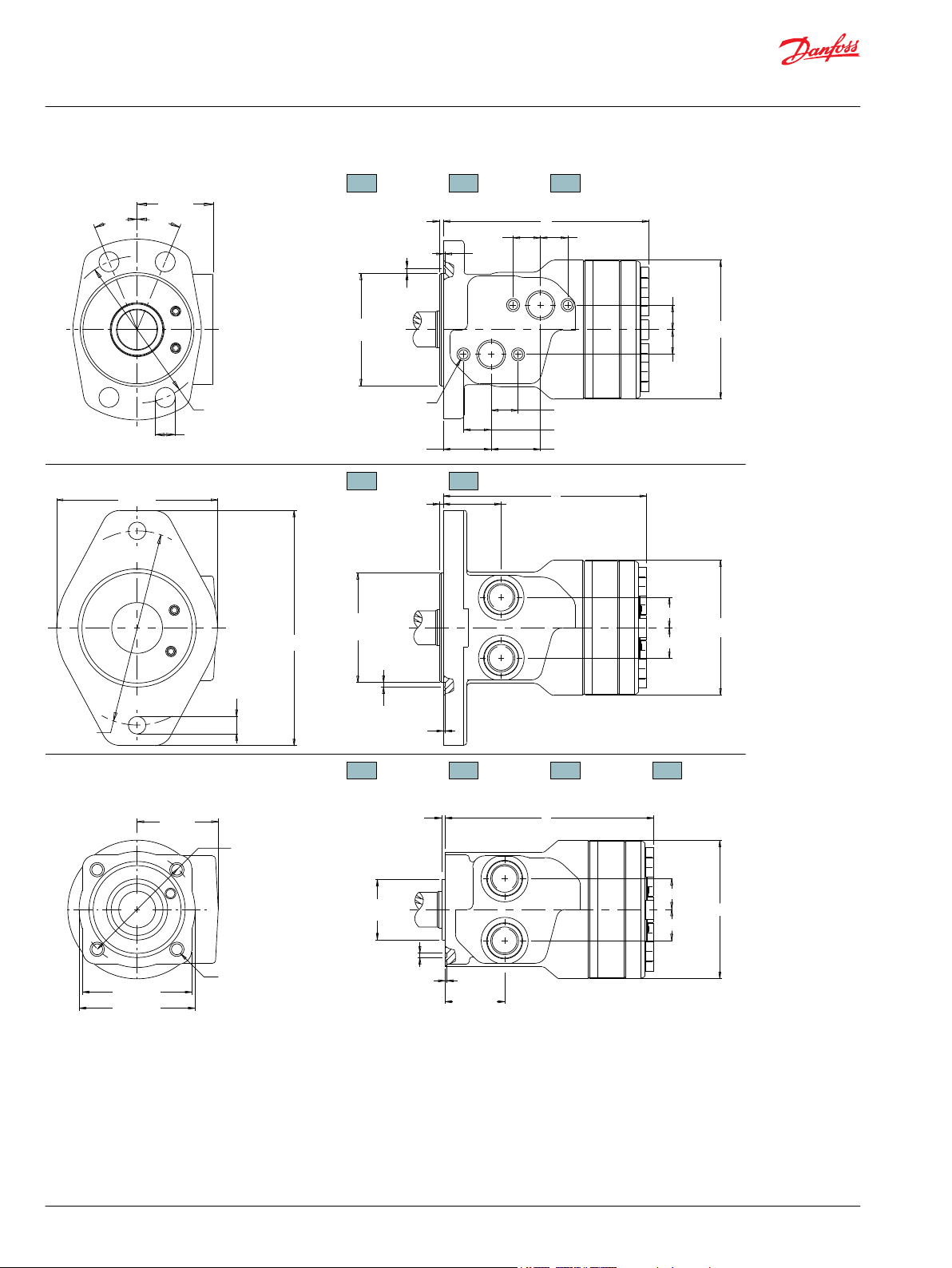

176,8 [6.96]

Ø146.1 [5.75]

Ø13.1 [.516]

43.5 [1.71]

A

B

2.7 [.105]

Ø101.60 [4.000] Ø101.42 [3.993]

L

80.0 [3.150]

83.8 [3.299]

Ø82.6 [3.250]

43.7 [1.720]

Ø101.6 [4.00]

23 [.90]

A

B

L

Ø44.45 [1.750] Ø44.35 [1.746]

2.5 [.098]

121 [4.76]

23 [.90]

Ø101.6 [4.00]

55 [2.17]

106.4 [4.189]

13.5 [.531]

22.5° 22.5°

20 [.79] 20 [.79]

A33, A3D - (4) 5/16-18 UNC AC3 - (4) M8 x 1.25 Min. Depth 11.8 [.465]

Ø82.50 [3.249] Ø82.35 [3.242]

36.1 [1.42]

A

B

18 [.71]

Ø101.6 [4.00]

K

A33, A3D - 37 [1.48] AC3 - 35 [1.38]

A33, A3D - 2.7 [.105] AC3 - 5.2 [.205]

20 [.79]

59 [2.34]

F30, F31, F38 - (4) 3/8-16 UNC Min. Depth 16 [.63] G38 - (4) M10 x 1.5 Min. Depth 16 [.63]

1.2 [.047]

3.2 [.126]

1.2 [.047]

3.0 [.118]

1.2 [.047]

2-HOLE, SAE B MOUNT, ALIGNED PORTS

F30

1/2-14 NPT4-HOLE, SQUARE MOUNT, ALIGNED PORTS

F31

7/8-14 UNF

B11

7/8-14 UNF

B18

G 1/2

4-HOLE, MAGNETO MOUNT, OFFSET MANIFOLD

A33 G 1/2 A3D 7/8-14 UNF

F38 G 1/2

AC3

G 1/2 (TP)

G38 G 1/2

P109388

Technical Information

Orbital Motors Type WD, WP and WR

WR Product Line

80.0 [3.150]

83.8 [3.299]

Ø82.6 [3.250]

19 [.77]

80.0 [3.150]

83.8 [3.299]

Ø82.6 [3.250]

55 [2.17]

F37 - (4) 3/8-16 UNC, Min. Depth 16 [.63] G37 - (4) M10 x 1.5, Min. Depth 16 [.63]

80.0 [3.150]

83.8 [3.299]

Ø82.6 [3.250]

55 [2.17]

(4) 3/8-16 UNC Min. Depth 16 [.63]

F37 - (4) 5/16-18 UNC, Min. Depth 12 [.47] G37 - (4) M8 x 1.25, Min. Depth 12 [.47]

(4) 3/8-16 UNC, Min. Depth 16 [.63]

F33 - (4) M8 x 1.25, Min. Depth 12 [.47] F3D - (4) 5/16-18 UNC, Min. Depth 12 [.47]

Ø101.6 [4.00]

18 [.71]

Ø44.45 [1.750] Ø44.35 [1.746]

2.7 [.106]

2.3 [.091] 14 [.56] 14 [.56]

63.5 [2.50]

44 [1.72]

L

B

A

20 [.79]

38 [1.48]

20 [.79]

36 [1.42]

20 [.79] 20 [.79]

L

B

A

Ø44.45 [1.750] Ø44.35 [1.746]

2.7 [.106]

2.3 [.091]

A

B

40 [1.57]

32 [1.28]

Ø101.6 [4.00]

23 [.90]

Ø44.45 [1.750] Ø44.35 [1.746]

2.7 [.106]

2.3 [.091]

44 [1.72]

87 [3.42]

38 [1.48] 36 [1.42]

L

Ø101.6 [4.00]

18 [.71]

3.0 [.118]

1.2 [.047]

3.0 [.118]

1.2 [.047]

3.0 [.118]

4-HOLE, SQUARE MOUNT, OFFSET MANIFOLD PORTS

F39 7/8-14 UNF

4-HOLE, SQUARE MOUNT, OFFSET PORTS, VALVE CAVITY

F33

G 1/2

F3D

7/8-14 UNF

4-HOLE, SQUARE MOUNT, ALIGNED MANIFOLD PORTS

F37 1/2” Drilled G37 1/2” Drilled

P109398

Technical Information

Orbital Motors Type WD, WP and WR

WR Product Line

WR 255 and 256 Series Technical Information

Allowable Shaft Load / Bearing Curve

The bearing curve below represents the side load capacity of the motor at the centerline of the key for various motor speeds. Operating conditions within the shaded area will maintain acceptable oil film

©

Danfoss | December 2019 BC267362166283en-000201 | 85

6000 [1350]

N [lbf]

4000 [900]

2000 [450]

0 600 rpm700500400300200100

P109389

276 [4000]

207 [3000]

69 [1000]

138 [2000]

bar [psi]

0 1000900 rpm600 800700500400300200100

Continuous

Intermittent

P109390

P109354

Technical Information

Orbital Motors Type WD, WP and WR

WR Product Line

lubrication with recommended fluids. Operating conditions outside the shaded area are susceptible to motor failure due to oil starvation and/or excessive heat generation. Fluids with low lubricity or low viscosity may require the maximum load and speed ratings to be derated to provide acceptable motor life and performance.

Permissible Shaft Seal Pressure

The curve below represents allowable seal pressure at various speeds. Operation in the gray area results in maintaining the rated life of the shaft seal. Actual shaft seal pressure depends on motor configuration.

With check valves and drain connection, the shaft seal pressure equals pressure in the drain line. With check valves and no drain connection, shaft seal pressure is identical to output pressure. No check valves and no drain connection, the shaft seal pressure is identical to the average value of input and output pressure.

222 daN [500 lb]

445 daN [1000 lb]

P109391

Technical Information

Orbital Motors Type WD, WP and WR

WR Product Line

Thrust Load

Length and Weight Chart

255 and 256 series motor weights can vary ± 0.5 kg [1 lb] depending on model configurations such as housing, shaft, endcover, options etc.

Dimension K is the overall motor length from the rear of the motor to the mounting flange surface and is referenced on detailed housing drawings listed in WR 255 and 256 Series Housings on page 81.

Dimension K

# 3 mm Pilot 8 mm Pilot Weight

mm [in] mm [in] kg [lb]

040 142 [5.60] 140 [5.50] 6.6 [14.5] 050 144 [5.67] 142 [5.57] 6.6 [14.5] 060 146 [5.74] 144 [5.64] 6.7 [14.7] 070 147 [5.80] 145 [5.70] 6.7 [14.7] 080 150 [5.91] 148 [5.81] 6.8 [15.0] 090 151 [5.96] 149 [5.86] 6.8 [15.0] 100 154 [6.06] 152 [5.96] 6.9 [15.2] 115 156 [6.15] 154 [6.05] 7.1 [15.6] 130 160 [6.28] 158 [6.18] 7.3 [16.0] 160 166 [6.53] 164 [6.43] 7.5 [16.5] 200 173 [6.83] 171 [6.73] 8.0 [17.6] 240 182 [7.15] 180 [7.05] 8.5 [18.7] 250 183 [7.20] 181 [7.10] 8.5 [18.7] 290 192 [7.56] 190 [7.46] 8.8 [19.4] 320 198 [7.78] 196 [7.68] 9.0 [19.8] 400 213 [8.39] 211 [8.29] 9.8 [21.6]

Dimension L is the overall motor length from the rear of the motor to the mounting flange surface and is referenced on detailed housing drawings listed in WR 255 and 256 Series Housings on page 81.

©

Danfoss | December 2019 BC267362166283en-000201 | 87

Technical Information

Orbital Motors Type WD, WP and WR

WR Product Line

Dimension L

# Square and B Mounts B Mount Weight Sq. Mount Weight

040 142 [5.60] 7.8 [17.2] 5.3 [11.8] 050 144 [5.67] 7.8 [17.2] 5.3 [11.9] 060 146 [5.74] 7.9 [17.4] 5.4 [11.9] 070 147 [5.80] 7.9 [17.4] 5.4 [11.9] 080 150 [5.91] 8.0 [17.6] 5.5 [12.1] 090 151 [5.96] 8.0 [17.6] 5.5 [12.1] 100 154 [6.06] 8.1 [17.8] 5.6 [12.3] 115 156 [6.15] 8.3 [18.3] 5.8 [12.8] 130 160 [6.28] 8.5 [18.7] 6.0 [13.2] 160 166 [6.53] 8.7 [19.1] 6.2 [13.7] 200 173 [6.83] 9.2 [20.2] 6.7 [14.8] 240 182 [7.15] 9.7 [21.3] 7.2 [15.9] 250 183 [7.20] 9.7 [21.3] 7.2 [15.9] 290 192 [7.56] 10.0 [22.0] 7.5 [16.5] 320 198 [7.78] 10.2 [22.4] 7.7 [17.0] 400 213 [8.39] 11.0 [24.2] 8.5 [18.7]

mm [in] kg [lb] kg [lb]

3 [.12]

32 [1.24]

7.95 [.313]

7.93 [.312]

25.40 [1.000]

25.36 [0.999]

25 [1.00]

15 [.61]

5/16-18 UNC, Min. Depth 20 [.80]

Min. Depth 20 [.80]

27.98 [1.102]

27.70 [1.091]

Ø25.02 [.985] Ø25.00 [.984]

Ø22.20 [.874] Ø22.15 [.872]

Ø25.26 [.995] Ø25.24 [.994]

42 [1.64]

28 [1.11]

M

2

M

05, 53 - 16 [.63] 66 - 11 [.44]

5/16-18 UNC, Min. Depth 20 [.80]

M8 x 1.25, Min. Depth 20 [.80]

M

2

6B Spline

SAE J499 Standard

52 [2.06]

25 [1.00]

17 [.67]

4 [.16]

2.3 [.092]

4.78 [.188]

4.76 [.187] 23 [.915]

1:8 Taper2 [.10]

25.40 [1.000]

25.36 [0.999]

01 7/8” 13 Tooth Spline

Max. Torque: 170 Nm [1500 lb-in]

02 1” 6B Spline, 5/16-18 Tap

Max. Torque: 678 Nm [6000 lb-in]

04 1” 6B Spline, M8x1.25 Tap

05

1” - 9.5 [.375] Pinhole

Max. Torque: 678 Nm [6000 lb-in]

53

1” - 10.3 [.406] Pinhole

66

1” - 8.0 [.315] Pinhole

13 1” Tapered

Max. Torque: 655 Nm [5800 lb-in]

12 25mm Straight 16 25mm Straight Extended

25.40 [1.000]

25.38 [0.999]

Min. Depth 20 [.80]

M

2

6.35 [.250]

6.30 [.248]

28.15 [1.108]

27.95 [1.100]

3 [.12]

32 [1.24]

Max. Torque: 678 Nm [6000 lb-in]

Max. Torque: 655 Nm [5800 lb-in]

10

1” Straight, 5/16-18 Tap

11

1” Straight, M8x1.25 Tap

15

1” Straight Ext., 5/16-18

A slotted hex nut is standard on this shaft.

P109393

Technical Information

Orbital Motors Type WD, WP and WR

WR Product Line

WR 255 and 256 Series Shafts

Mounting / Shaft Length Chart

©

Danfoss | December 2019 BC267362166283en-000201 | 89

Dimension M is the overall distance from the motor mounting surface to the end of the shaft. Additional shaft length information, if necessary, is noted as M2 and does not increase or decrease the

listed M dimensions in this chart. The overall shaft lengths are already factored into the overall distance from the mounting surface to the end of the shaft.

# 3 mm Pilot 5 mm Pilot M

mm [in] mm [in] mm [in]

01 40 [1.59] 43 [1.69] N/A 02 48 [1.88] 51 [1.98] N/A 04 48 [1.88] 51 [1.98] N/A 05 48 [1.88] 51 [1.98] 42 [1.64]

2

Technical Information

Orbital Motors Type WD, WP and WR

WR Product Line

# 3 mm Pilot 5 mm Pilot M

mm [in] mm [in] mm [in]

10 48 [1.88] 51 [1.98] 42 [1.64] 12 53 [2.08] 56 [2.18] 43 [1.69] 13 58 [2.29] 61 [2.39] N/A 15 64 [2.52] 67 [2.62] 58 [2.28] 16 64 [2.52] 67 [2.62] 59 [2.34] 53 48 [1.88] 51 [1.98] 42 [1.64] 66 54 [2.13] 57 [2.23] 48 [1.89]

2

1 2 3 4 5 6 7 8

40 cm3/rev [2.5 in3/rev]

50 cm3/rev [3.1 in3/rev]

59 cm3/rev [3.6 in3/rev]

71 cm3/rev [4.3 in3/rev]

79 cm3/rev [4.9 in3/rev]

88 cm3/rev [5.4 in3/rev]

100 cm3/rev [6.1 in3/rev]

113 cm3/rev [6.9 in3/rev]

Standard Rotation Reverse Rotation

The 255 & 256 series are bi-directional.

129 cm3/rev [7.9 in3/rev]

160 cm3/rev [9.8 in3/rev]

198 cm3/rev [12.1 in3/rev]

236 cm3/rev [14.4 in3/rev]

250 cm3/rev [15.3 in3/rev]

291 cm3/rev [17.8 in3/rev]

322 cm3/rev [19.6 in3/rev]

400 cm3/rev [24.4 in3/rev]

2-Hole, SAE A Mount, Aligned Ports, 1/2-14 NPT

2-Hole, SAE A Mount, Aligned Ports, 7/8-14 UNF

2-Hole, SAE A Mount, Offset Ports, G 1/2

2-Hole, SAE A Mount, Offset Manifold Ports, G 1/2

2-Hole, SAE A Mount, Offset Manifold Ports, 7/8-14 UNF

2-Hole, SAE A Mount, Offset Ports, Valve Cavity 7/8-14 UNF

4-Hole, Magneto Mount, Aligned Ports, 1/2-14 NPT

4-Hole, Magneto Mount, Aligned Ports, 7/8-14 UNF

4-Hole, Magneto Mount, Offset Manifold Ports, G 1/2

4-Hole, Magneto Mount, Offset Manifold Ports, 7/8-14 UNF

2-Hole, SAE A Mount, Offset Ports, G 1/2 (TP)

2-Hole, SAE A Mount, Offset Manifold Ports, G 1/2 (TP)

4-Hole, Magneto Mount, Offset Manifold Ports, G 1/2 (TP)

2-Hole, SAE B Mount, Aligned Ports, 7/8-14 UNF

2-Hole, SAE B Mount, Aligned Ports, G 1/2

4-Hole, Square Mount, Aligned Ports, 1/2-14 NPT

4-Hole, Square Mount, Aligned Ports, 7/8-14 UNF

4-Hole, Square Mount, Offset Manifold Ports, G 1/2

4-Hole, Square Mount, Aligned Manifold Ports, 1/2” Drilled

7/8” 13 Tooth Spline

1” 6B Spline, 5/16-18 Tap

1” 6B Spline, M8x1.25 Tap

1” - 9.5 [.375] Pinhole

1” Straight 5/16-18 Tap

1” Straight M8x1.25 Tap

25mm Straight

1” Tapered

1” Straight Extended

25mm Straight Extended

1” - 10.3 [.406] Pinhole

1” - 8.0 [.315] Pinhole

Black

Black, Unpainted Mounting Surface

Standard

Lock Nut

Solid Hex Nut

Speed Sensor, Dual, 4-Pin Male Weatherpack Connector

Speed Sensor, Dual, 4-Pin M12 Male Connector

Speed Sensor, Single, 3-Pin Male Weatherpack Connector

Speed Sensor, Single, 4-Pin M12 Male Connector

None

Viton Shaft Seal

The 15 & 16 extended shafts are designed for use with one of the speed sensor options listed in STEP 7.

(TP) - Tall pilot. Speed sensor option is not available on tall pilot housings.

None

Valve Cavity Only

69 bar [1000 psi] Relief

86 bar [1250 psi] Relief

104 bar [1500 psi] Relief

121 bar [1750 psi] Relief

138 bar [2000 psi] Relief

173 bar [2500 psi] Relief

207 bar [3000 psi] Relief

Valve cavity is only available on the A19 & F39 housings.

4-Hole, Square Mount, Aligned Ports, G 1/2

4-Hole, Square Mount, Offset Ports, Valve Cavity 7/8-14 UNF

4-Hole, Square Mount, Offset Manifold Ports, 7/8-14 UNF

4-Hole, Square Mount, Aligned Manifold Ports, 1/2” Drilled

4-Hole, Square Mount, Aligned Ports, G 1/2

255

1. CHOOSE SERIES DESIGNATION

2. SELECT A DISPLACEMENT OPTION

040

050

060

070

080

090

100

115

130

160

200

240

250

290

320

400

3. SELECT A MOUNT & PORT OPTION

A10

A11

A12

A13

A1D

A19

A30

A31

A33

A3D

A62

A63

AC3

B11

B18

F30

F31

F33

F37

4. SELECT A SHAFT OPTION

01

02

04

05

10

11

F38

F39

F3D

G37

G38

12

13

15

16

53

66

5. SELECT A PAINT OPTION

A

B

6. SELECT A VALVE CAVITY / CARTRIDGE OPTION

7. SELECT AN ADD-ON OPTION

A

B

C

W

X

Y

Z

8. SELECT A MISCELLANEOUS OPTION

AA

EG

256

A

B

C

D

E

F

G

J

L

P109394

Technical Information

Orbital Motors Type WD, WP and WR

WR Product Line

WR 255 and 256 Series Ordering Information

©

Danfoss | December 2019 BC267362166283en-000201 | 91

Danfoss Power Solutions GmbH & Co. OHG

Krokamp 35 D-24539 Neumünster, Germany Phone: +49 4321 871 0

Danfoss Power Solutions ApS

Nordborgvej 81 DK-6430 Nordborg, Denmark Phone: +45 7488 2222

Danfoss Power Solutions (US) Company

2800 East 13th Street Ames, IA 50010, USA Phone: +1 515 239 6000

Danfoss Power Solutions Trading (Shanghai) Co., Ltd.

Building #22, No. 1000 Jin Hai Rd Jin Qiao, Pudong New District Shanghai, China 201206 Phone: +86 21 2080 6201

Products we offer:

Hydro-Gear

www.hydro-gear.com

Daikin-Sauer-Danfoss

www.daikin-sauer-danfoss.com

DCV directional control

•

valves Electric converters

•

Electric machines

•

Electric motors

•

Gear motors

•

Gear pumps

•

Hydrostatic motors

•

Hydrostatic pumps

•

Orbital motors

•

PLUS+1® controllers

•

PLUS+1® displays

•

PLUS+1® joysticks and

•

pedals PLUS+1® operator

•

interfaces PLUS+1® sensors

•

PLUS+1® software

•

PLUS+1® software services,

•

support and training Position controls and

•

sensors PVG proportional valves

•

Steering components and

•

systems Telematics

•

Danfoss Power Solutions is a global manufacturer and supplier of high-quality hydraulic and electric components. We specialize in providing state-of-the-art technology and solutions that excel in the harsh operating conditions of the mobile off-highway market as well as the marine sector. Building on our extensive applications expertise, we work closely with you to ensure exceptional performance for a broad range of applications. We help you and other customers around the world speed up system development, reduce costs and bring vehicles and vessels to market faster.

Danfoss Power Solutions – your strongest partner in mobile hydraulics and mobile electrification.

Go to www.danfoss.com for further product information.

We offer you expert worldwide support for ensuring the best possible solutions for outstanding performance. And with an extensive network of Global Service Partners, we also provide you with comprehensive global service for all of our components.

Local address:

Danfoss can accept no responsibility for possible errors in catalogues, brochures and other printed material. Danfoss reserves the right to alter its products without notice. This also applies to products already on order provided that such alterations can be made without subsequent changes being necessary in specifications already agreed. All trademarks in this material are property of the respective companies. Danfoss and the Danfoss logotype are trademarks of Danfoss A/S. All rights reserved.

©

Danfoss | December 2019 BC267362166283en-000201

Danfoss WD, WP, WR User guide

Specifications and Main Features

Frequently Asked Questions

User Manual

Contents

Technical Information

Operating Recommendations

Oil Type

Fluid Viscosity and Filtration

Installation and Start-up

Motor Protection

Hydraulic Motor Safety Precaution

Motor/Brake Precaution

Motor Connections

Product Testing

Allowable Bearing and Shaft Loading

Vehicle Drive Calculations

Induced Side Load

Hydraulic Equations

Shaft Nut Information

Optional Motor Features

Speed Sensor Options

Freeturning Rotor Option

Valve Cavity Option

Slinger Seal Option

WD Product Line

WD Introduction

WD Functional Charts

WD 145/146 Series

145/146 Series Housings

145/146 Series Technical Data

145/146 Series Shafts

145/146 Series Order Codes

WP Product Line

WP Introduction

WP Functional Charts

155/156 Series

155/156 Series Housings

155/156 Series Technical Data

155/156 Series Shafts

155/156 Order Codes

WP 157 and 158 Series

WP 157 and 158 Series Housings

WP 157 and 158 Series Technical Information

WP 157 and 158 Series Shafts

WP 157 and 158 Series Ordering Information

WR Product Line

WR Product Line Introduction

WR Displacement Performance

WR 251 and 252 Series

WR 251 and 252 Series Housings

WR 251 and 252 Series Technical Information

WR 251 and 252 Series Shafts

WR 251 and 252 Series Ordering Information

WR 255 and 256 Series

WR 255 and 256 Series Housings

WR 255 and 256 Series Technical Information

WR 255 and 256 Series Shafts

WR 255 and 256 Series Ordering Information
