Danfoss VSPP Data sheet

Data Sheet
Hydraulic Steering Unit
VSPP
Steering solution
The VSPP is a steering unit with integrated priority valve inside the envelope of the standard VSP housing. This brings about a very compact solution minimizing installation space, cost and time.
The VSPP is suitable for small, low HP tractors, or any application needing a steering unit with standard options, good performance and manual steering capabilities.
The VSPP steering unit combines low cost with good performance, high quality and reliable delivery.
VSPP meets vehicle requirements with the same high support and service level as any other Danfoss product.
Applications:
Tractors
Forklift trucks
Backhoe loaders
Telehandlers
Combines
Features
With integrated priority valve, max pump flow: 80 l/min
Variants: LS dynamic
Displacements: 50-400 cc/rev
Built-in valve functions: pressure relief, shock, suction and check valve between priority valve and steering unit part, check valve in LS line
Port threads as required to DIN or ISO standards
Low steering torque
Low pressure drop
Comprehensive technical literature is online at www.danfoss.com
©
Danfoss | November 2019 AI00000326en-000103 | 1
Data Sheet
VSPP Steering Unit
VSPP program
VSPP steering unit will be available in load sensing dynamic version.
VSPP characteristics
Displacement 50, 70, 80, 100, 125, 160, 200, 250, 315 and 400 cc/rev Max. system pressure/ max P-T port pressure 190 bar [2755 psi] Max. P and EF port pressure 230 bar [3335 psi] Max. T-port pressure 30 bar [435 psi] Max. flow 80 l/min [21.1 US gal/min] Input torque (for standard neutral spring kit 150-4209) 0.8 to 4 N•m [7.08 to 35.40 lbf•in] Valve functions Check valve for manual steering, pressure relief, shock and suction valves,
check valve between priority valve and steering unit part, check valve in LS
Port options P, T, L, R, EF
DIN 3852-2 BSP G ½ in ISO 6149-1 M18x1.5 ISO 11926-1 3/4-16 UNF
Neutral pressure drop, P-EF at load on EF>10 bar <5 bar [72.5 psi] at 40 l/min [10.6 US gal/min] and at viscosity 21 cSt
VSPP cetop
2 | © Danfoss | November 2019 AI00000326en-000103

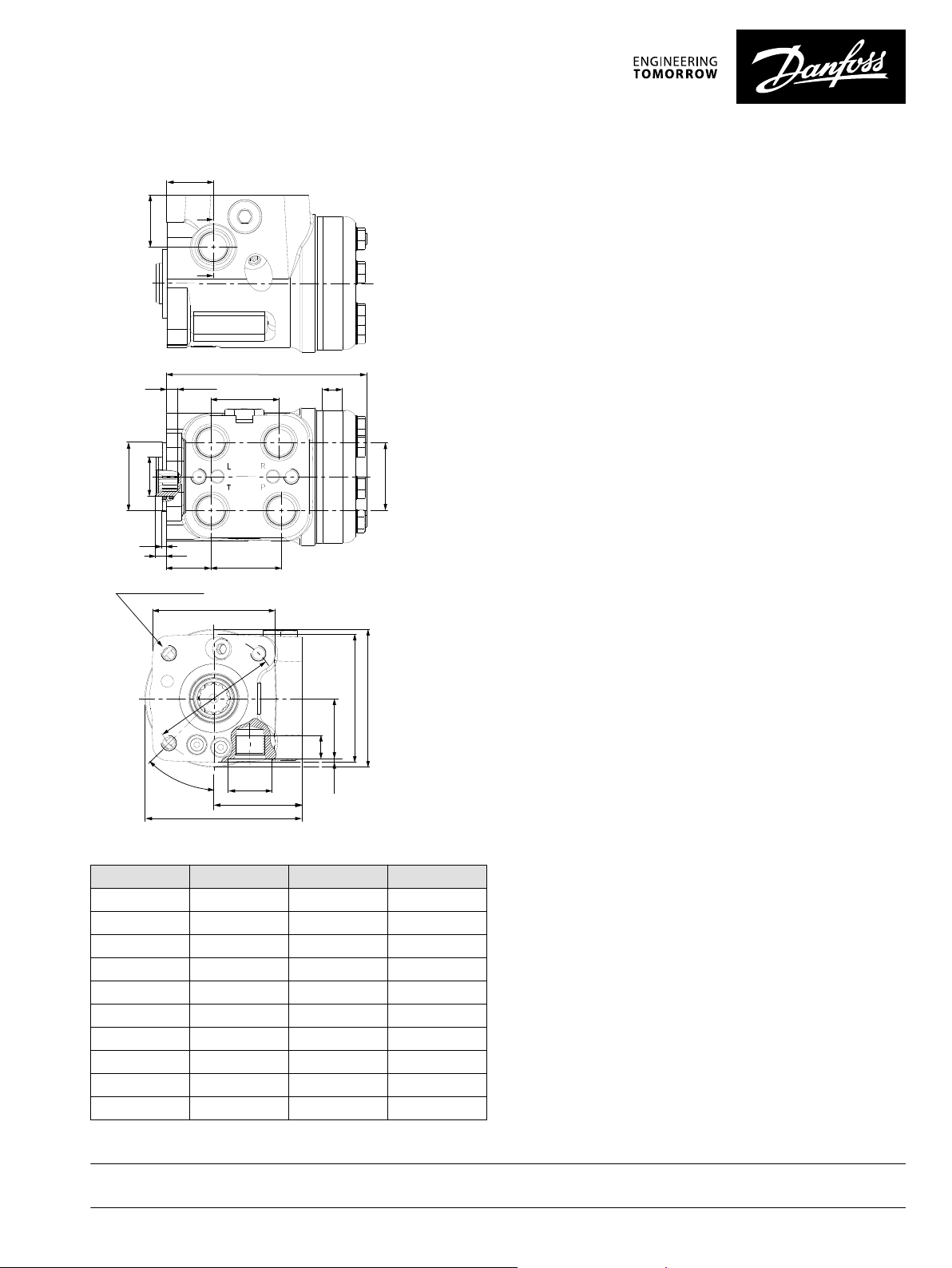

VSPP dimensions
2.8 7
29
45.5
44
44
L2
min. 7.1
ø44.4 ± 0.05
ø25.4
33.5
30.2
EF
A
A
L1
79
4 x M10 x 1.5; min. 16 deep
45°
102
min. ø28.6
A--A
min. 15
max. 87
ø91
ø82 ± 0.3
xlp1493660068391
max. 5.3
38
57
VSPP types dimensions
Type L1, mm [in] L2, mm [in] Weight kg [lb]
VSPP 50 125 [4.92] 6.5 [0.26] 5.2 [11.46] VSPP 70 127 [4.99] 9.1 [0.36] 5.3 [11.68] VSPP 80 128 [5.04] 10.4 [0.41] 5.3 [11.68] VSPP 100 131 [5.16] 13.0 [0.51] 5.4 [11.90] VSPP 125 134 [5.28] 16.2 [0.64] 5.5 [12.13] VSPP 160 139 [5.47] 20.8 [0.82] 5.6 [12.35] VSPP 200 144 [5.67] 26.0 [1.02] 5.8 [12.79] VSPP 250 150 [5.91] 32.5 [1.28] 6.0 [13.23] VSPP 315 159 [6.26] 40.9 [1.61] 6.2 [13.67] VSPP 400 170 [6.69] 52.0 [2.05] 7.0 [15.43]
