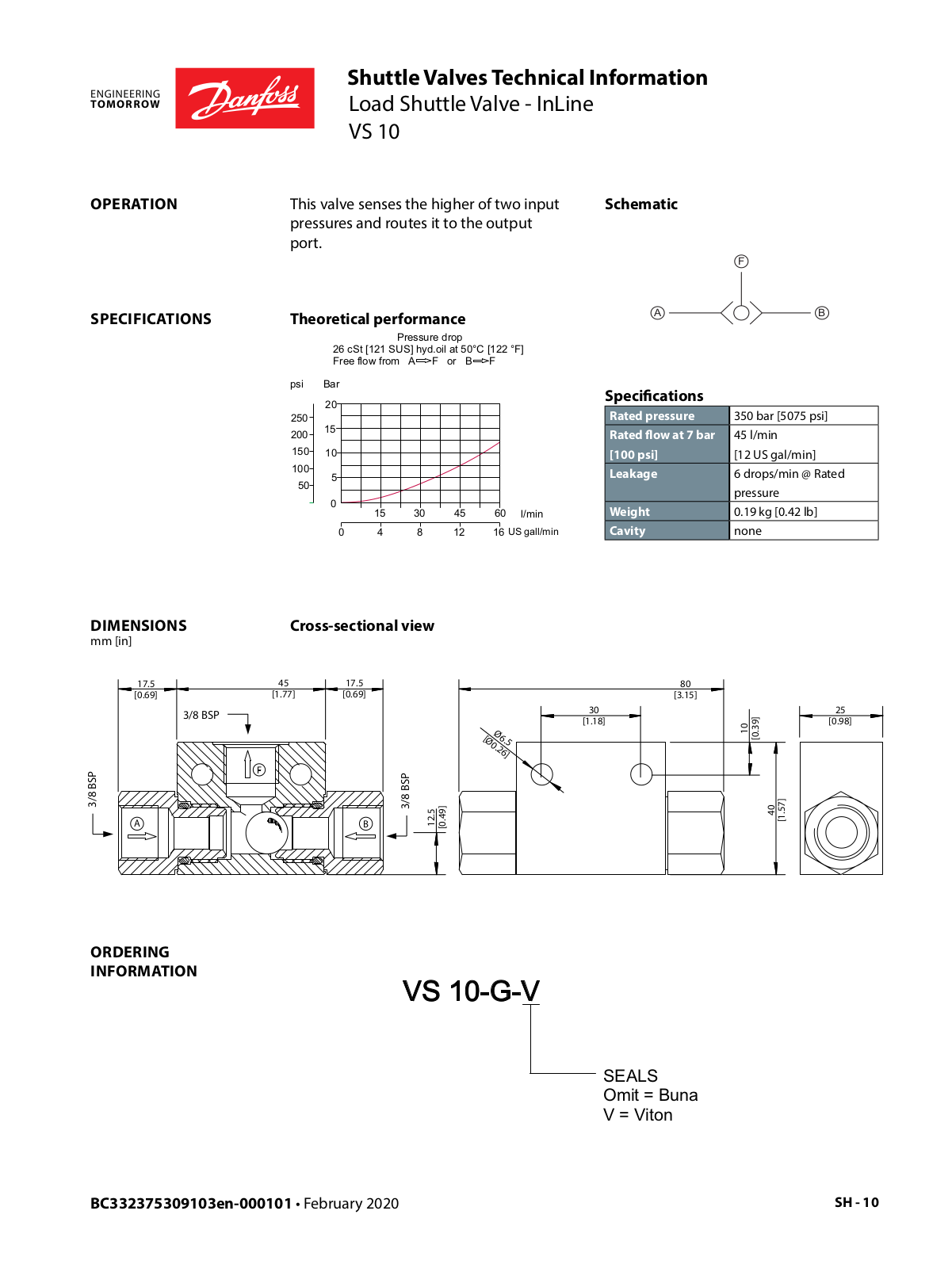

Shuttle Valves Technical Information
01
200
psi
250
AB
F
3/8 BSP
Load Shuttle Valve - InLine
VS 10
OPERATION
SPECIFICATIONS
DIMENSIONS
mm [in]
This valve senses the higher of two input
pressures and routes it to the output
port.
Theoretical performance
26 cSt[121 SUS] hyd.oil at 50°C [122 °F]
Free flow from AFor BF
Bar
20
15
150
10
100
5
50
0
Pressuredrop
15
604530
l/min
US gall/min
16
284
Cross-sectional view
Schematic
Specications
Rated pressure 350 bar [5075 psi]
Rated ow at 7 bar
[100 psi]
Leakage 6 drops/min @ Rated
Weight 0.19 kg [0.42 lb]
Cavity none
45 l/min
[12 US gal/min]
pressure
17.5
[0.69]
3/8 BSP
A
ORDERING
INFORMATION
45
[1.77]
F
17.5
[0.69]
80
30
Ø6.5
[Ø0.26]
3/8 BSP
B
12.5
[0.49]
[1.18]
[3.15]
10
[0.39]
40
[1.57]
25
[0.98]
VS 10-G-V
SEALS
Omit =Buna
V=Viton
BC332375309103en-000101 • February 2020
SH - 10
