Data Sheet
Non return valve
VCM 13
1½” Vic. outlet
hpp.danfoss.com
Data Sheet | Non return valve VCM 13
Introduction
Features
Technical data
and code numbers
Filtration
The function of the non-return valve to be mounted directly on the outlet of the APP pump is to
protect the pump by allowing ow out of the pump while blocking ow into the pump.
The valve incorporates a conical poppet design, which ensures sealing when used with a low viscosity
medium such as water.
Typically used in connection with APP 11 -13 pumps (APP (W) 5.1 - 10.2 pumps).
The non-return valve is produced in stainless Super Duplex W. Nr. 1.4410. The connection sealing is an
O-ring made of Viton.
The valve is available for ows up to 13 m
Type
.
VCM 13 80 (1160) 216 (47.6) 0.4 (5.8) 1.2 (17.4)
Max.
pressure
bar (psi)
Flow
continuously
l/min (gpm)
3
/h or 216 l/min (47.6 gpm).
Opening
pressure
bar (psi)
Pressure loss
at max. ow
bar (psi)
Inlet
connection
M42 x 1.5
(48.3mm)
Outlet
connection
Vic. 1 ½” 180H0053
Code
number
The uid must be clean and free from abrasive sediments.
2 | © Danfoss | DCS (im) 2019.09
AI318239916745en-000301
Data Sheet | Non return valve VCM 13

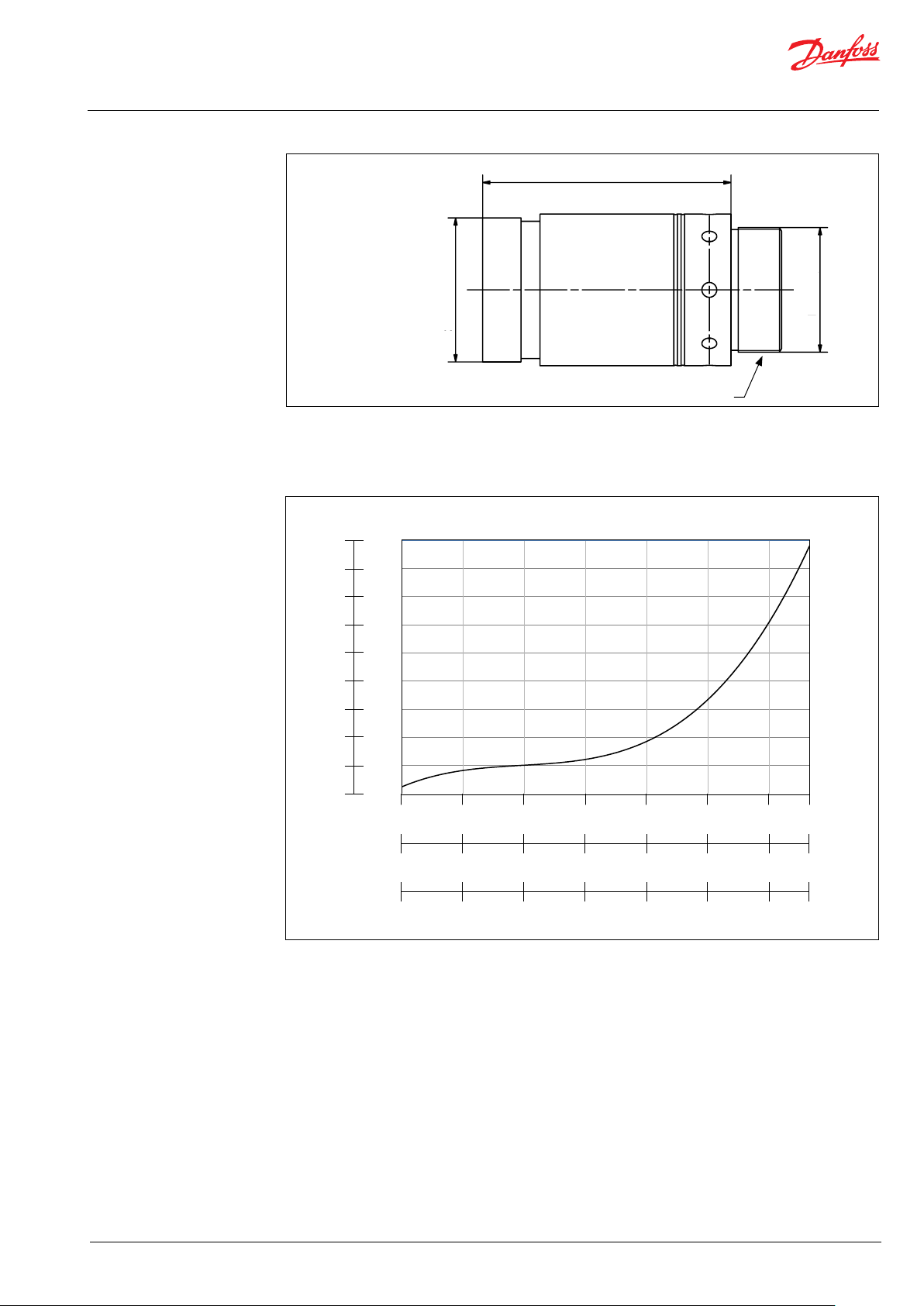

Dimensions
Pressure drop over the valve
(typical values)
VCM30
VCM 13
1½” Vic
2½V
mm/inch
mm (inch)
1½” Victaulic
Victaulic® is a registered trademark of Victaulic Corporation Inc.
PSI
Bar
1.3
19
1.2
17
1.1
16
103 [4.05]
M42 x 1,5
Screw into APP 11-13
1.0
15
0.9
13
0.8
12
0.7
10
0.6
9
0.5
7
0.4
6
30 60 90 120 150 180 210 230 l/min
8 16 24 32 40 48 55 61 gpm
2 4 5 7 9 11 13 14 m3/h
© Danfoss | DCS (im) 2019.09
AI318239916745en-000301| 3
