Danfoss VCM 10 Data sheet
Data sheet
Non return valve
VCM 10
1½”Vic. outlet (In-line)
hpp.danfoss.com
Data Sheet | Non return valve VCM 10
Introduction
Features
Technical data and code numbers
Filtration
The function of the non-return valve is to allow flow in one direction while blocking it in the other. The valve incorporates a conical poppet design, which ensures sealing when used with a low viscosity medium such as water.
Typically used in connection with APP (W) 5.1 - 10.2 pumps.
The non-return valve is produced in stainless Duplex W. Nr. 1,4462.
The sealing is an O-ring made of Viton.
The valve is available for flows up to 11.5 m3/h or 190 l/min (40 gpm).
|
Max. |
Flow |
Opening |
Pressure |
|
|
|
|
|
loss |
Inlet |
Outlet |
Code |
||||
Type |
pressure |
continuously |
pressure |
|||||
at max. flow |
connection |
connection |
number |
|||||
|
bar (psi) |
l/min (gpm) |
bar (psi) |
|||||
|
bar (psi) |
|
|
|
||||
|
|
|
|
|
|
|
||
|
|
|
|
|
|
|
|
|
VCM 10 |
80 (1160) |
190 (50) |
0.3 (4.3) |
1 (14.5) |
Vic. 1½” |
Vic . 1½” |
180H0047 |
|
(In-line) |
In-line |
|||||||
|
|
|
|
|
|
|||
|
|
|
|
|
|
|
|
|
VCM 10 |
80 (1160) |
190 (50) |
0.3 (4.3) |
1 (14.5) |
M42 x 1.5 |
Vic. 1½” |
180H0049 |
|
|
|
|
|
|
|
|
|
The fluid must be clean and free from abrasive sediments.

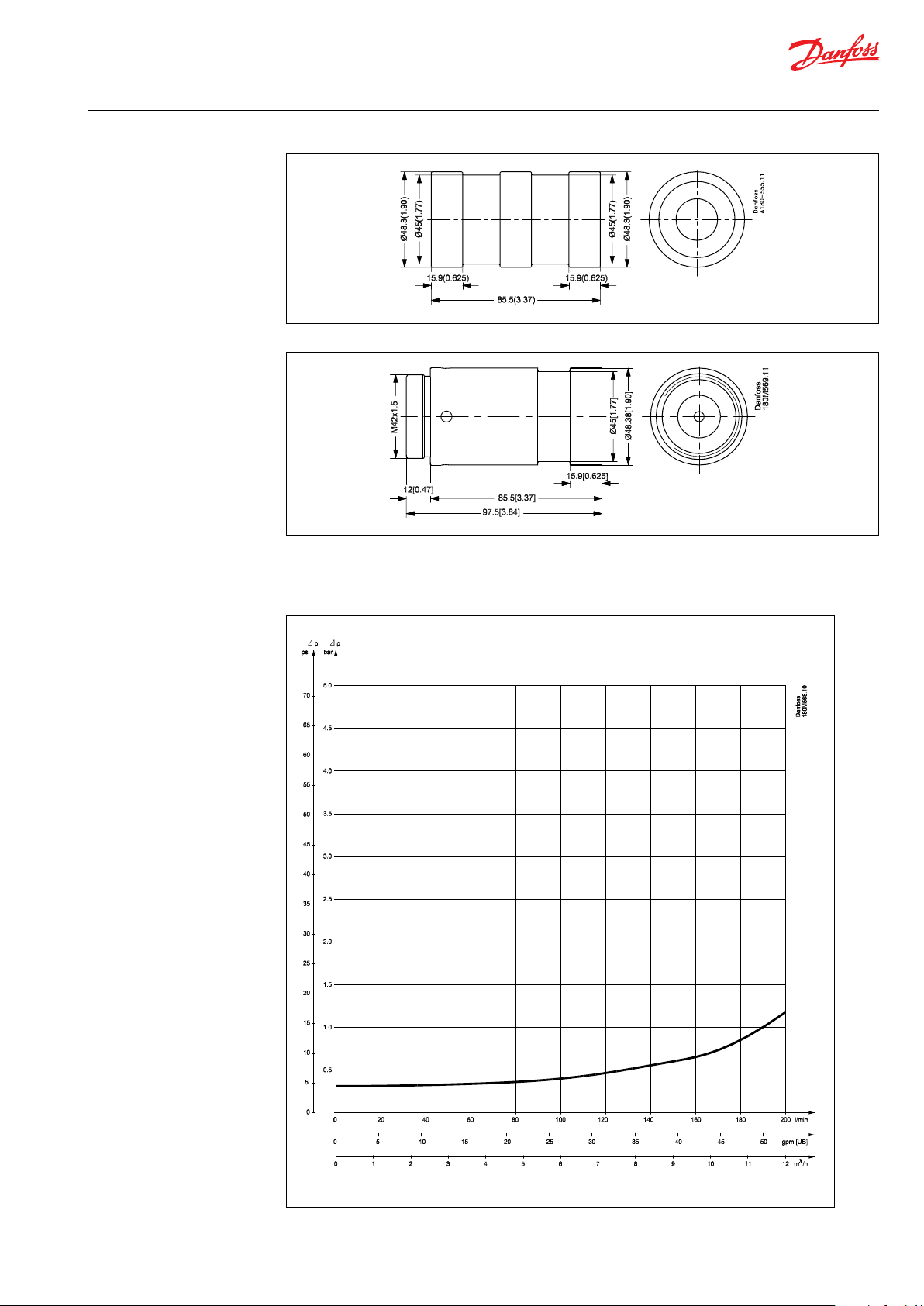

2 | © Danfoss | DCS (im) 2019.09 |
AI318235230734 en-000201 |
