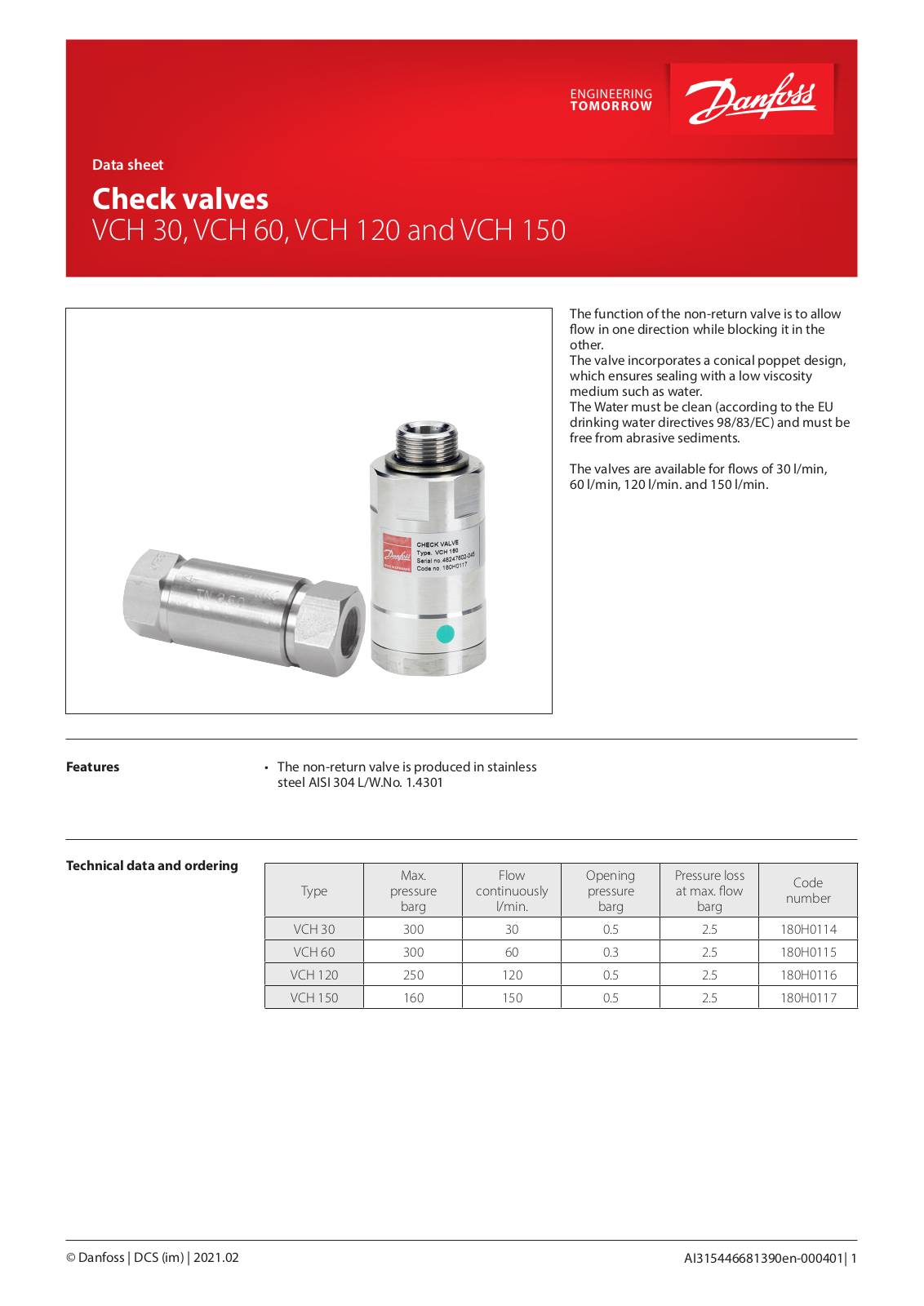

Danfoss VCH 30, VCH 60, VCH 120, VCH 150 Data sheet

Data sheet

Check valves

VCH 30, VCH 60, VCH 120 and VCH 150

The function of the non-return valve is to allow
ow in one direction while blocking it in the
other.
The valve incorporates a conical poppet design,
which ensures sealing with a low viscosity
medium such as water.
The Water must be clean (according to the EU
drinking water directives 98/83/EC) and must be
free from abrasive sediments.

The valves are available for ows of 30 l/min,
60 l/min, 120 l/min. and 150 l/min.

Features • The non-return valve is produced in stainless

steel AISI 304 L/W.No. 1.4301

Technical data and ordering

Type

VCH 30 300 30 0.5 2.5 180H0114

VCH 60 300 60 0.3 2.5 180H0115
VCH 120 250 120 0.5 2.5 180H0116
VCH 150 160 150 0.5 2.5 180H0117

Max.

pressure

barg

Flow

continuously

l/min.

Opening

pressure

barg

Pressure loss

at max. ow

barg

Code

number

© Danfoss | DCS (im) | 2021.02

AI315446681390en-000401| 1

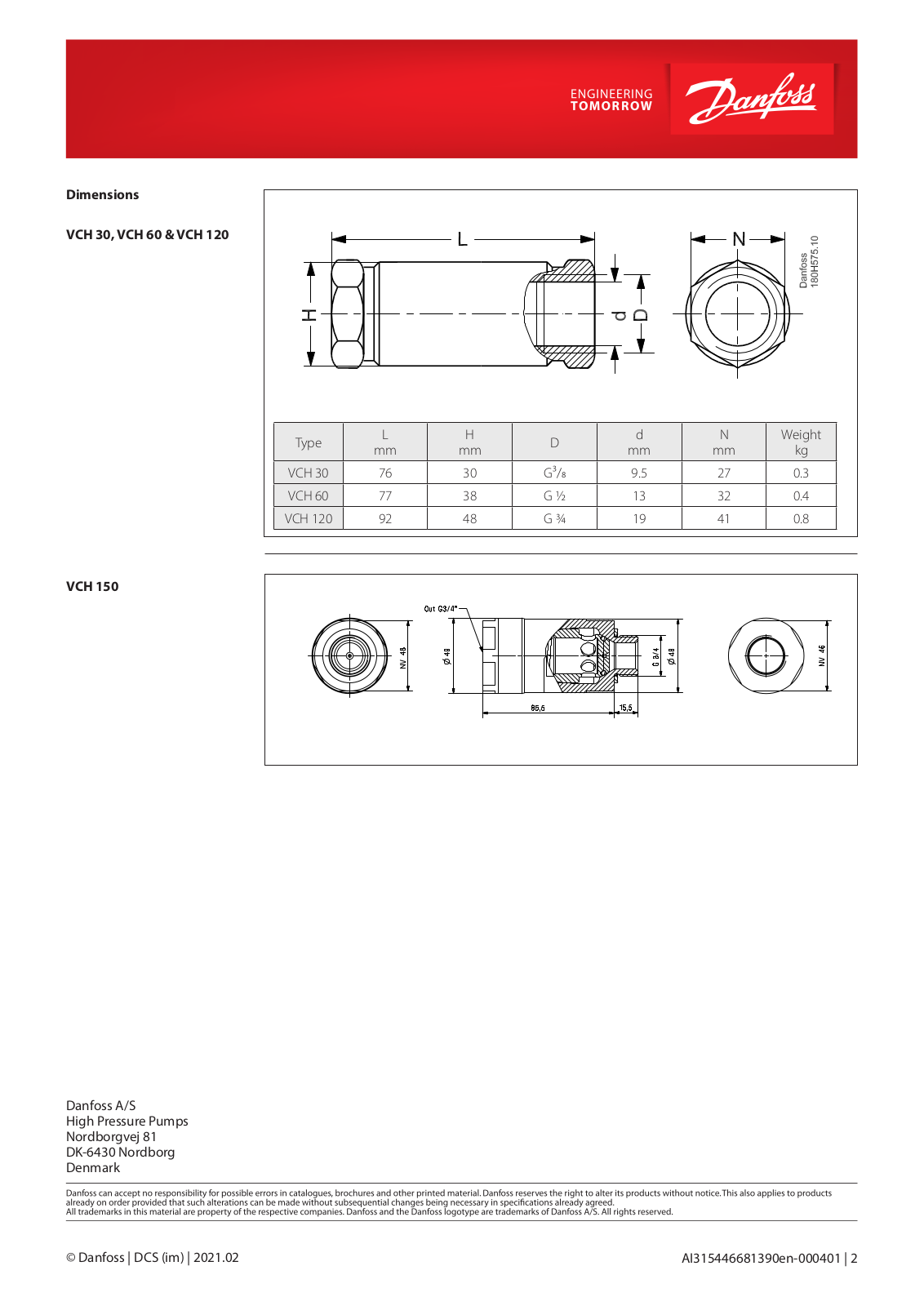

Dimensions

VCH 30, VCH 60 & VCH 120

VCH 150

Type

VCH 30 76 30 G/ 9.5 27 0.3
VCH 60 77 38 G ½ 13 32 0.4

VCH 120 92 48 G ¾ 19 41 0.8

L

mm

H

mm

D

d

mm

N

mm

Weight

kg

Danfoss A/S
High Pressure Pumps
Nordborgvej 81
DK-6430 Nordborg
Denmark

© Danfoss | DCS (im) | 2021.02

AI315446681390en-000401 | 2
