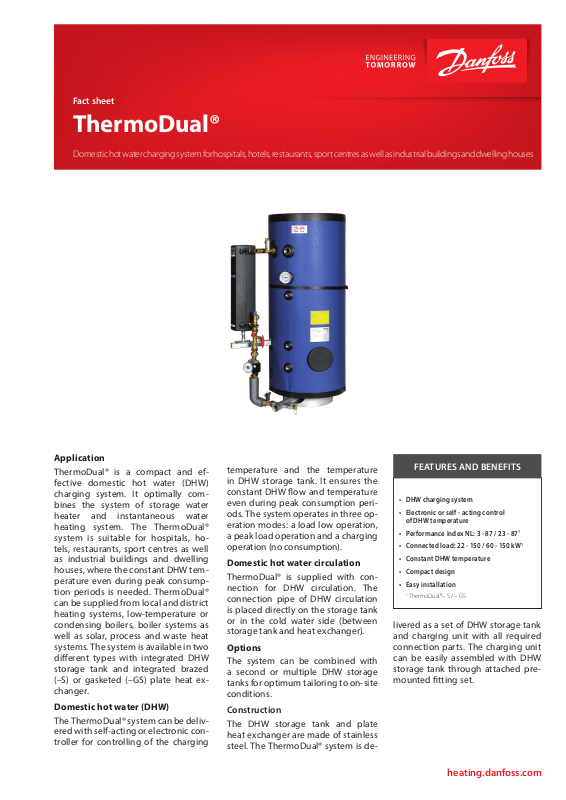

Danfoss ThermoDual Fact sheet
Fact sheet
ThermoDual®
Domestic hot water charging system for hospitals, hotels, restaurants, sport centres as well as industrial buildings and dwelling houses
Application
ThermoDual® is a compact and effective domestic hot water (DHW) charging system. It optimally combines the system of storage water heater and instantaneous water heating system. The ThermoDual® system is suitable for hospitals, hotels, restaurants, sport centres as well as industrial buildings and dwelling houses, where the constant DHW temperature even during peak consumption periods is needed. ThermoDual® can be supplied from local and district heating systems, low-temperature or condensing boilers, boiler systems as well as solar, process and waste heat systems. The system is available in two different types with integrated DHW storage tank and integrated brazed (–S) or gasketed (–GS) plate heat exchanger.
Domestic hot water (DHW)
The ThermoDual® system can be delivered with self-acting or electronic controller for controlling of the charging
temperature and the temperature in DHW storage tank. It ensures the constant DHW flow and temperature even during peak consumption periods. The system operates in three operation modes: a load low operation, a peak load operation and a charging operation (no consumption).
Domestic hot water circulation
ThermoDual® is supplied with connection for DHW circulation. The connection pipe of DHW circulation is placed directly on the storage tank or in the cold water side (between storage tank and heat exchanger).
Options
The system can be combined with a second or multiple DHW storage tanks for optimum tailoring to on-site conditions.
Construction
The DHW storage tank and plate heat exchanger are made of stainless steel. The ThermoDual® system is de-
FEATURES AND BENEFITS
•• DHW charging system
•• Electronic or self - acting control of DHW temperature
•• Performance index NL: 3 - 87 / 23 - 871 •• Connected load: 22 - 150 / 60 - 150 kW1 •• Constant DHW temperature
•• Compact design •• Easy installation
1 ThermoDual®– S / – GS
livered as a set of DHW storage tank and charging unit with all required connection parts. The charging unit can be easily assembled with DHW storage tank through attached premounted fitting set.
heating.danfoss.com
SCHALTSCHEMA (BEISPIEL)
|
|
|
|
|
shut off device |
4 |
HEL TC |
|
37 |
2 |
balancing valve |
|
CVS/CVE |
SFV |
|
||
|
|
|
|
|
|
5 |
|
3 |
|
3 |
TC sensor (direct, cable / universal, surface) |
|
|
|
|
|
thermometer |
|
|
|
|
DTA |
drain / air vent (on site / by customer) |
|
LPU |
|
|
|
|
|
|
|
|
3 |
|
|
|
|
|
|
|
|
|
|
|
1 |
|
DTA Domestic buffer tank HEL HEX charging / load LPU Charging pump / load SFV Safety valve
CVE Control valve electrical (accessory) CVS Control valve self-acting (accessory)
Connections:
1Domestic water cold
2Domestic water hot
3Circulation (options)
4Heating supply
5Heating return
37 Domestic water load
Technical parameters: |
|
Type – S |
|
Nominal pressure: |
PN 25 |
DH supply temp.: |
Tmax = 150 °C |
Type – GS |
|
Nominal pressure: |
PN 3 |
DH supply temp.: |
Tmax = 110 °C |
Options:
•Stainless steel DHW storage tank, series SE, capacity 100 ... 8000 liters
•DHW-adequate bronze or stainless steel charging pump
•Balancing valve
•Stainless steel sensor pockets
•Self-acting control valves as 2-way valve, 3-way mixing valve, or 3-way diverting valve, with thread or flange
•Control and safety thermostats, storage tank thermometer
•Additional storage tank
DHW: CAPACITY EXAMPLES
|
|
DHW tem- |
Performance |
Con- |
DHW top delivery |
|
|
|
Dimensions |
|
Net |
|
Connections |
|
||||||
|
Type |
peratures |
nected |
|
|
Input |
|
|
|
|
|
|
|
|
|
|
||||
|
|
|
|
|
|
|
|
|
|
|
|
|
||||||||
|
prim./sec. |
index |
load |
[l/10 min] |
[l/h] |
W |
3 |
H |
|
W |
|
D |
weight |
1, 2 |
|
3 |
|
4, 5 |
||
|
|
NL |
2 |
|
|
|
[kg] |
|
|
|||||||||||
|
|
[°C] |
|
[kW] |
|
|
|
|
[mm] |
|
[mm] |
|
[mm] |
|
|
|
|
|
||
|
200-010 |
|
8 |
|
25 |
368 |
902 |
|
|
1540 |
|
800 |
|
700 |
68 |
1½” |
|
¾” |
|
|
-S |
500-060 |
70->25/10->60 |
72 |
150 |
1294 |
4373 |
|
|
1765 |
|
1050 |
|
950 |
103 |
|
|
|
DN 20 / 25 |
||
|
|
|
|
|
|
1” |
|
|||||||||||||
|
1000-060 |
|
87 |
150 |
1973 |
5051 |
|
|
2080 |
|
1150 |
|
1250 |
169 |
2” |
|
|
|
||
|
|
max. 87 |
|
|
|
|
|
|
||||||||||||
|
300-030 |
|
35 |
100 |
817 |
2864 |
1705 |
|
1375 |
|
975 |
150 |
|
|
¾” |
|
|
|||
|
|
|
|
|
|
1½” |
|
|
|
|||||||||||
-GS |
500-020 |
65->35/10->60 |
30 |
60 |
925 |
2157 |
|
|
1765 |
|
1450 |
|
1100 |
173 |
|
|
|
G 1¼” |
||
|
|
|
|
|
|
1” |
|
|||||||||||||
|
1000-050 |
|
87 |
150 |
1973 |
5051 |
|
|
2080 |
|
1570 |
|
1200 |
244 |
2” |
|
|
|
||
|
|
|
|
|
|
|
|
|
|
|||||||||||
2)Performance index NL acc. to DIN 4708 in relation to a storage tank water temperature of 60 °C.
3)Charging pump; A.C. 1 ~ 230 V / 50 Hz; thermal motor overload protection or motor protection by integrated thermo switch.
© Danfoss | DHS-SRMT/ PL | 2016 . 05 |
VL.KR.G4.02 |
