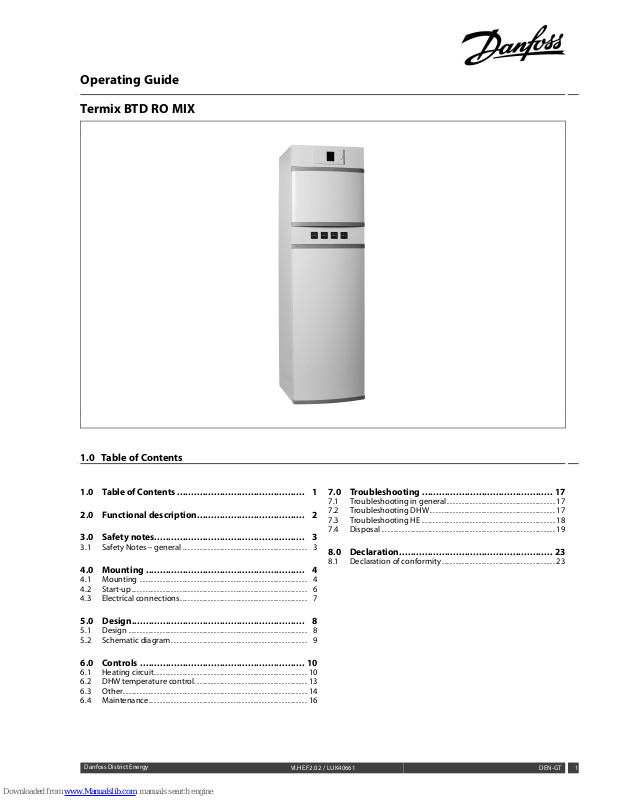

OperatingGuide

TermixBTDROMIX

1.0TableofContents

1.0TableofContents.............................................1

2.0Functionaldescription......................................2

3.0Safetynotes.....................................................3

3.1SafetyNotes–general............................................3

4.0Mounting........................................................4

4.1Mounting...........................................................4

4.2Start-up..............................................................6

4.3Electricalconnections.............................................7

5.0Design.............................................................8

5.1Design...............................................................8

5.2Schematicdiagram................................................9

6.0Controls..........................................................10

6.1Heatingcircuit......................................................10

6.2DHWtemperaturecontrol........................................13

6.3Other.................................................................14

6.4Maintenance........................................................16

7.0Troubleshooting..............................................17

7.1Troubleshootingingeneral......................................17

7.2TroubleshootingDHW............................................17

7.3TroubleshootingHE...............................................18

7.4Disposal.............................................................19

8.0Declaration......................................................23

8.1Declarationofconformity........................................23

DanfossDistrictEnergy

VI.HE.F2.02/LUK40661

DEN-GT

1

OperatingGuideTermixBTDROMIX

2.0Functionaldescription

Districtheatingsubstationfordirectheatingwithtankfor
domestichotwaterpreparationandwiththermostaticor
electroniccontrol.Designedforoor-mounting.Connections
atthetopofthestation.

Application

TheTermixBTDROMIXsubstationisacompletesolutionforhot
waterandheatingsystemwithdifferentialpressurecontroland
mixingloop.TheTermixBTDROMIXisapplicableforsingle-family
housesorapartments.

Districtheating(DH)

Thesubstationisprefabricatedwithadifferentialpressure
controller,ttingpieceandsensorpocketsforinsertionofa
heatmeteraswellasstrainerandballvalves.Furthermorethe
substationisdeliveredwithamixingloopincludingpump,controls
andnon-returnvalve.

Heating(HE)

Theheatingcircuitisdesignedfordirectgenerationofheat.The
differentialpressurecontrolsetstheoptimaloperationconditions
forradiatorthermostaticvalvesinordertoenableindividual
temperaturecontrolineachroom.Themixingloopcreatesa
suitabletemperaturelevele.g.foroorheating.

Domestichotwater(DHW)

Thedomestichotwatercircuitconsistsofahotwatertankwithcoil
andaself-actingthermostaticcontrolvalveorelectroniccontroller .
Thehotwatertankandcoilareenamelledandthetankcontainsa
magnesiumanode.

2

DEN-GT

VI.HE.F2.02/LUK40661

DanfossDistrictEnergy

OperatingGuideTermixBTDROMIX

3.0Safetynotes

3.1SafetyNotes–general

Thefollowinginstructionsrefertothestandarddesignof
substation.Specialversionsofsubstationsareavailableon
request.

Thisoperatingmanualshouldbereadcarefullybeforeinstallation
andstart-upofthesubstation.Themanufactureracceptsno
liabilityfordamageorfaultsthatresultfromnon-compliancewith
theoperatingmanual.Pleasereadandfollowalltheinstructions
carefullytopreventaccidents,injuryanddamagetoproperty.
Assembly,start-upandmaintenanceworkmustbeperformedby
qualiedandauthorizedpersonnelonly.
Pleasecomplywiththeinstructionsissuedbythesystem
manufacturerorsystemoperator.

Corrosionprotection

Allpipesandcomponentsaremadeofstainlesssteelandbrass.
Themaximumchloridecompoundsoftheowmediumshouldnot
behigherthan150mg/l.
Theriskofequipmentcorrosionincreasesconsiderablyifthe
recommendedlevelofpermissiblechloridecompoundsis
exceeded.

Energysource

Thesubstationisdesignedfordistrictheatingastheprimary
sourceofenergy.However,alsootherenergysourcescanbeused
wheretheoperatingconditionsallowitandalwaysarecomparable
todistrictheating.

Application

Thesubstationisdesignedtobeconnectedtothehouse
installationinafrost-freeroom,wherethetemperaturedoesnot
exceed50°Candthehumiditydoesnotexceed60%.Donotcover
orwallupthesubstationorinanyotherwayblocktheentrance
tothestation.

Choiceofmaterial

Choiceofmaterialsalwaysincompliancewithlocallegislation.

Safetyvalve(s)

Werecommendmountingofsafetyvalve(s),however,alwaysin
compliancewithlocalregulations.

Connection

Thesubstationmustbeequippedwithfeaturesthatensurethat
thesubstationcanbeseparatedfromallenergysources(also
powersupply).

Emergency

Incaseofdangeroraccidents-re,leaksorotherdangerous
circumstances-interruptallenergysourcestothestationif
possible,andseekexperthelp.
Incaseofdiscolouredorbad-smellingdomestichotwater,closeall
shut-offvalvesonthesubstation,informtheoperatingpersonnel
andcallforexperthelpimmediately.

Storage

Anystorageofthesubstationwhichmaybenecessarypriorto
installationshouldbeinconditionswhicharedryandheated.

Authorizedpersonnelonly

Assembly,start-upandmaintenanceworkmustbeperformedby
qualiedandauthorizedpersonnelonly.

Pleaseobserveinstructionscarefully

Toavoidinjurytopersonsanddamagetothedevice,itisabsolutely
necessarytoreadandobservetheseinstructionscarefully.

Warningofhighpressureandtemperature

Beawareoftheinstallation’ spermissiblesystempressureand
temperature.

Themaximumtemperatureoftheowmediuminthesubstationis
120°C.

Themaximumoperatingpressureofthesubstationis10bar .PN16
versionsareavailableonenquiry.

Theriskofpersonsbeinginjuredandequipmentdamagedincreases
considerablyiftherecommendedpermissibleoperatingparameters
areexceeded.

Thesubstationinstallationmustbeequippedwithsafetyvalves,
however,alwaysinaccordancewithlocalregulations.

Warningofhotsurface

Thesubstationhasgothotsurfaces,whichcancauseskinburns.
Pleasebeextremelycautiousincloseproximitytothesubstation.

Powerfailurecanresultinthemotorvalvesbeingstuckinopen
position.Thesurfacesofthesubstationcangethot,whichcancause
skinburns.Theballvalvesondistrictheatingsupplyandreturnshould
beclosed.

Warningoftransportdamage

Beforesubstationinstallation,pleasemakesurethatthesubstation
hasnotbeendamagedduringtransport.

IMPORTANT-Tighteningofconnections

Duetovibrationsduringtransportallangeconnections,screwjoints
andelectricalclampandscrewconnectionsmustbecheckedand
tightenedbeforewaterisaddedtothesystem.Afterwaterhasbeen
addedtothesystemandthesystemhasbeenputintooperation,
re-tightenALLconnections.

DanfossDistrictEnergy

VI.HE.F2.02/LUK40661

DEN-GT

3

OperatingGuideTermixBTDROMIX

4.0Mounting

4.1Mounting

Installationmustbeincompliancewithlocalstandardsand
regulations.
Districtheating(DH)-Inthefollowingsections,DHreferstothe
heatsourcewhichsuppliesthesubstations.Avarietyofenergy
sources,suchasoil,gasorsolarpower,couldbeusedasthe
primarysupplytoDanfosssubstations.Forthesakeofsimplicity,
DHcanbetakentomeantheprimarysupply.

Connections:

1.DHWcirculation(HWC)

2.Domestichotwater(DHW)

3.Domesticcoldwater(DCW)

4.Heating(HE)return

5.Heating(HE)supply

6.Districtheating(DH)return

7.Districtheating(DH)supply

Connectionsizes:

Allconnections:

G¾”(int.thread)

Dimensions(mm):

Withcover:
H1570xW540xD640(typeBTD-MIX1)
H1870xW540xD640(typeBTD-MIX2)

Weight(approx.):90-130kg

Authorizedpersonnelonly

Assembly,start-upandmaintenanceworkmustbeperformedby
qualiedandauthorizedpersonnelonly.

Thepipeplacementcandeviatefromtheshowndrawing.Pleasenote
themarkingsonthestation.

4

DEN-GT

VI.HE.F2.02/LUK40661

DanfossDistrictEnergy

OperatingGuideTermixBTDROMIX

4.1.1Installation

Mounting:

Adequatespace

Pleaseallowadequatespacearoundthesubstationformounting
andmaintenancepurposes.

Orientation

Thestationmustbemountedsothatcomponents,keyholes
andlabelsareplacedcorrectly.Ifyouwishtomountthestation
differentlypleasecontactyoursupplier.

Drillings

Wheresubstationsaretobewall-mounted,drillingsareprovided
inthebackmountingplate.Floormountedunitshavesupport.

Labelling

Eachconnectiononthesubstationislabelled.

Beforeinstallation:

Cleanandrinse

Priortoinstallation,allsubstationpipesandconnectionsshouldbe
cleanedandrinsed.

Tightening

Duetovibrationduringtransport,allsubstationconnectionsmust
becheckedandtightenedbeforeinstallation.

Unusedconnections

Unusedconnectionsandshut-offvalvesmustbesealedwitha
plug.Shouldtheplugsrequireremoval,thismustonlybedoneby
anauthorizedservicetechnician.

Installation:

Strainer

Ifastrainerissuppliedwiththestationitmustbettedaccording
toschematicdiagram.Pleasenotethatthestrainermaybe
suppliedloose.

Connections

Internalinstallationanddistrictheatingpipesconnectionsmustbe
madeusingthreaded,angedorweldedconnections.

DanfossDistrictEnergy

VI.HE.F2.02/LUK40661

DEN-GT

5

OperatingGuideTermixBTDROMIX

4.2Start-up

Start-up,Heatingwithmixingloop

Start-up:

1:Pumpspeed

Setthepumptohighestspeedbeforestart-up.

2:Startpump

Startthepumpandheatthroughthesystem.

3:Openshut-offvalves

Theshut-offvalvesshouldthenbeopenedandtheunitobserved
asitentersservice.Visualcheckingshouldconrmtemperatures,
pressures,acceptablethermalexpansionandabsenceofleakage.
Ifthesystemoperatesinaccordancewithdesign,itcanbeput
toregularuse.

4:Ventsystem

Switchoffthepumpandventtheinstallationaftertheradiators
havebeenwarmedup.

5:Adjustpumpspeed

Setthepumptothelowestspeedconsistentwithcomfortand
electricityconsumption.
Normallythechange-overswitchissetinthemidposition(default).
Howeverforsystemswithunderoorheatingorsinglepipeloop
systems,itmaybenecessarytoturnthechange-overswitch
upwards.
Higherpumpspeedsareonlyusediftheheatingrequirement
increases.

Re-thightenconnections

Afterwaterhasbeenaddedtothesystemandthesystemhasbeen
putintooperation,re-tightenALLconnections.

Pump

Thepumpmustbeswitchedoffduringsystemll.

Underoorheating:

Pumpstopfunction

Ifthesubstationisusedinconnectionwithunderoorheating,the
circulationpumpmustbeconnectedtothepumpstopfunctionin
theunderoorheatingcontroller .Thepumpmustbestoppedif
allunderoorheatingcircuitsareclosed.

Warranty

Ifthisisnotpossible,thenowmustbecontinuedthroughthe
by-pass.Failingthis,thepumpwillbeatriskofseizureandany
remainingwarrantywillbewithdrawn.

Summeroperation:

Switchoffpump

Insummerthecirculationpumpmustbeswitchedoffandthe
shut-offvalvetoHEsupplyclosed.

Runningpumpbi-weekly

Itisrecommendedtostartupthecirculationpump(for2minutes)
onceamonthduringsummer;theshut-offvalveoftheHEsupply
mustbeshut.

Electroniccontroller

Mostelectroniccontrollerswillstartupthepumpautomatically
(pleasenotemanufacturer´sinstructions).

6

DEN-GT

VI.HE.F2.02/LUK40661

DanfossDistrictEnergy

OperatingGuideTermixBTDROMIX

4.3Electricalconnections

Beforemakingelectricalconnections,pleasenotethe
following:

Safetynotes

Pleasereadtherelevantpartsofthesafetynotes.

230V

Thesubstationmustbeconnectedto230VACandearth.

Potentialbonding

Potentialbondingshouldbecarriedoutaccording
to60364-4-41:2007andIEC60364-5-54:2011.
Bondingpointonthemountingplatebelowrightcornermarked
withearthsymbol.

Disconnection

Thesubstationmustbeelectricallyconnectedsothatitcanbe
disconnectedforrepairs.

Outdoortemperaturesensor

Outdoorsensorsshouldbemountedsoastoavoidexposureto
directsunlight.Theyshouldnotbeplacedclosetodoors,windows
orventilationoutlets.

Theoutdoorsensormustbeconnectedtothestationonthe
terminalblockundertheelectroniccontrol.

Authorizedelectrician

Electricalconnectionsmustbemadebyanauthorizedelectricianonly.

Localstandards

Electricalconnectionsmustbemadeinaccordancewithcurrent
regulationsandlocalstandards.

DanfossDistrictEnergy

VI.HE.F2.02/LUK40661

DEN-GT

7

OperatingGuideTermixBTDROMIX

5.0Design

5.1Design

Yoursubstationmightlookdifferentthanthesubstationshown.

Designdescription

E

Hotwatertankwithcoil

10

Circulatorpump

27

Actuator,HE

1A

Ballvalve,DVGW

14

Sensorpocket,energymeter

41

Fittingpiece,energymeter

7

Thermostaticvalve,DHW

20

Filling/drainvalve

43

Ballvalveclosed

9

Strainer

22

Testconnection

50

Diff.pressurecontrollerwithowlimiter

8

DEN-GT

VI.HE.F2.02/LUK40661

DanfossDistrictEnergy

OperatingGuideTermixBTDROMIX

5.2Schematicdiagram

DHW

DCW

HWC

DH

Supply

HE
Supply

DH

Return

HE
Return

Yoursubstationmightlookdifferentthantheschematicdiagramshown.

Schematicdescription

E

Hotwatertankwithcoil

10

Circulatorpump

24

Deliveredloosewithunit

F

Electroniccontroller

14

Sensorpocket,energymeter

27

Actuator,HE

1

Ballvalve

16

Outdoorsensor

29

2-waymotorizedvalve

1A

Ballvalve,DVGW

18

Thermometer

41

Fittingpiece,energymeter

2

Singlecheckvalve

19

Surfacesensor

43

Ballvalveclosed

7

Thermostaticvalve,DHW

20

Filling/drainvalve

50

Diff.pressurecontrollerwithowlimiter

9

Strainer

22

Testconnection

DHW:DomesticHotWater
DCW:

DomesticColdWater

HWC:

HotWaterCirculation

DHSupply:DistrictHeatingSupply
DHReturn:DistrictHeatingReturn
HESupply:HeatingSupply
HEReturn:HeatingReturn

5.2.1Technicalparameters

Technicalparameters

Nominalpressure:PN10(PN16versionsareavailableonenquiry)
Max.DHsupplytemperature:

T–max=120°C

DanfossDistrictEnergy

VI.HE.F2.02/LUK40661

DEN-GT

9

OperatingGuideTermixBTDROMIX

6.0Controls

6.1Heatingcircuit

6.1.1Differentialpressurecontroller

Thedifferentialpressurecontrollersmoothsouttheuctuationsin
pressurearrivingfromthedistrictheatingnetwork.Theoperating
pressureinthesubstationisthusheldsteady.

6.1.2HEtemperaturecontrol

TheHEowtemperatureintheheatingcircuitiscontrolledbythe
HEtemperaturecontroller.

6.1.3RAVKcontroller

RAVKcontroller(25-65°C).Thetemperaturesettingisasfollows:
1=25°C
2=35°C
3=45°C
4=55°C
5=65°C

Thevaluesareintendedasaguide.

Thermostaticcontrol

ThetemperatureoftheHEowlineisadjustedasfollows:
Toincreasetemperature,turnthehandleonthethermostatic
controllertoselectahighernumber.
Todecreasetemperature,turnthehandleonthethermostatic
controllertoselectalowernumber.

10

DEN-GT

VI.HE.F2.02/LUK40661

DanfossDistrictEnergy

OperatingGuideTermixBTDROMIX

6.1.4AVTBcontroller(30–100°)

Thetemperaturesettingisasfollows:
1=35°C
2=55°C
3=75°C
4=95°C
5=100°C

Thevaluesareintendedasaguide.

Thermostaticcontrol

ThetemperatureoftheHEowlineisadjustedasfollows:
Toincreasetemperature,turnthehandleonthethermostatic
controllertoselectahighernumber.
Todecreasetemperature,turnthehandleonthethermostatic
controllertoselectalowernumber.

6.1.5Electroniccontrol

Substationswithelectroniccontrolmustbesetinaccordancewith
manufacturer´sinstructions.
Wheretheroomtemperatureiscontrolledbyradiatorthermostats,
itisrecommendedthatthermostatsbesetforminimum
temperatureineachroom.

6.1.6Outdoortemperaturesensor(ESMT)

Outdoorsensorsshouldbemountedsoastoavoidexposureto
directsunlight.Theyshouldnotbeplacedclosetodoors,windows
orventilationoutlets.

DanfossDistrictEnergy

VI.HE.F2.02/LUK40661

DEN-GT

11

OperatingGuideTermixBTDROMIX

6.1.7CirculatorpumpUPM3

UPM3Pumpscanbecontrolledinconstantpressure,proportional
pressureorconstantspeedmodedenedbythemeansofasmart
userinterface.
Thevariablespeedmodulatingmodesallowthepumptomatchits
performancetothesystemrequirements,helpingtoreducenoise
whenthermostaticvalvesareclosingdown.
EnergylabellingclassA

6.1.8GrundfosUPM3AUTOLinstructions

Controlmode

Youcanswitchfromtheperformanceviewtothesettingsviewbypressingthepushbutton.Thesettingsviewshowswhichmode
controlsthecirculator.After2seconds,thedisplayswitchesbacktoperformanceview.
Ifyoupressthebuttonfor2to10seconds,theuserinterfaceswitchesto"settingselection"iftheuserinterfaceisunlocked.Youcan
changethesettingsastheyappear.Theselectionofthecontrolmodedependsonthesystemtypeandtheallocationofpressurelosses.
Ifyoupressthekeylockformorethan10seconds,youcantogglebetweenenabling/disablingthekeylockfunction.

Function

Recommendedfor

Green

YellowYellowYellowYellow

Proportionalpressure1

1-pipesystems

µµ

Proportionalpressure2

µµµ

Proportionalpressure3

2-pipesystems

µµµµ

Constantpressure1

Underoorheating

µµ

Constantpressure2

µµµ

Constantpressure3

µµµµ

ConstantCurve1

µµµ

ConstantCurve2

µµµµ

ConstantCurve3

µµµµµ

ConstantCurveMax.

µµµµ

Operationstatus

Function

Recommendedfor

Green

YellowYellowYellowYellow

Standby**OnlyPWMcontrolled

µ

0%≤P1≤25%

µµ

25%≤P1≤50%

µµµ

50%≤P1≤75%

µµµµ

75%≤P1≤100%

µµµµµ

Alarmstatus

Function

Recommendedfor

RedYellowYellowYellowYellow

Blocked

µµ

Supplyvoltagelow

µµ

Electricalerror

µµ

12

DEN-GT

VI.HE.F2.02/LUK40661

DanfossDistrictEnergy

OperatingGuideTermixBTDROMIX

6.2DHWtemperaturecontrol

DHWtemperaturecontrol

TherearevarioustypesofDHWtemperaturecontrolusedin
Danfosssubstations.
DHWtemperatureshouldbeadjustedto45-50°C,asthisprovides
optimalutilisationofDHwater.AtDHWtemperaturesabove55°C,
thepossibilityoflimescaledepositsincreasessignicantly.

6.2.1RAVKcontroller

RAVKcontroller(25-65°C).Thetemperaturesettingisasfollows:
1=25°C
2=35°C
3=45°C
4=55°C
5=65°C

Thevaluesareintendedasaguide.

Thermostaticcontrol

DHWtemperatureisadjustedasfollows:
Toincreasetemperature,turnthehandleonthethermostatic
controllertoselectahighernumber.
Todecreasetemperature,turnthehandleonthethermostatic
controllertoselectalowernumber.

6.2.2AVTBcontroller(20–60°)

Thetemperaturesettingisasfollows:
1=20°C
2=35°C
3=50°C
4=60°C
5=70°C

Thevaluesareintendedasaguide.

TheAVTBoperatesatitsbestatDHsupplytemperaturesofupto
90°C.

Thermostaticcontrol

DHWtemperatureisadjustedasfollows:
Toincreasetemperature,turnthehandleonthethermostatic
controllertoselectahighernumber.
Todecreasetemperature,turnthehandleonthethermostatic
controllertoselectalowernumber.

DanfossDistrictEnergy

VI.HE.F2.02/LUK40661

DEN-GT

13

OperatingGuideTermixBTDROMIX

6.2.3Electric2–waymotorizedvalve

Actuatorswithorwithoutsafetyfunctionareavailablefor3-point
controls.Spring-returnactuatorscanbeusedtoprovidesafety
shut-offintheeventofpowerfailure.

6.3Other

6.3.1Safetyvalve

Thepurposeofthesafetyvalveistoprotectthesubstationfrom
excessivepressure.
Theblow-offpipefromthesafetyvalvemustnotbeclosed.The
blow-offpipeoutletshouldbeplacedsothatitdischargesfreely
anditispossibletoobserveanydrippingfromthesafetyvalve.
Itisrecommendedtochecktheoperationofsafetyvalvesat
intervalsof6months.Thisisdonebyturningthevalveheadin
directionindicated.

6.3.2Strainer

Strainersshouldbecleanedregularlybyauthorizedpersonnel.The
frequencyofcleaningwoulddependonoperatingconditionsand
themanufacturer’sinstructions.

14

DEN-GT

VI.HE.F2.02/LUK40661

DanfossDistrictEnergy

OperatingGuideTermixBTDROMIX

6.3.3Fittingpiece

Thesubstationisequippedwithattingpieceforenergymeter.

Assemblyofenergymeters:

1:Closeballvalves

ClosetheballvalvesonDHSupplyandDHReturn,ifthereiswater
onthesystem.

2:Loosennuts

Loosenthenutsonthettingpiece.

3:Removettingpiece

Removethettingpieceandreplaceitwiththeenergymeter.Do
notforgetthegaskets.

4:Tightenconnections

Aftermountingoftheenergymeterremembertocheckand
tightenallthreadedconnections.

Sensorpocket,energymeter

Thesensorsoftheenergymeterismountedinthesensorpockets.

DanfossDistrictEnergy

VI.HE.F2.02/LUK40661

DEN-GT

15

OperatingGuideTermixBTDROMIX

6.4Maintenance

Thesubstationrequireslittlemonitoring,apartfromroutine
checks.Itisrecommendedtoreadtheenergymeteratregular
intervals,andtowritedownthemeterreadings.

RegularinspectionsofthesubstationaccordingtothisInstruction
arerecommended,whichshouldinclude:

Strainers

Cleaningofstrainers.

Meters

Checkingofalloperatingparameterssuchasmeterreadings.

Temperatures

Checkingofalltemperatures,suchasDHsupplytemperatureand
DHWtemperature.

Connections

Checkingallconnectionsforleakages.

Safetyvalves

Theoperationofthesafetyvalvesshouldbecheckedbyturning
thevalveheadintheindicateddirection.

Venting

Checkingthatthesystemisthoroughlyvented.

Inspectionsshouldbecarriedoutminimumeverytwoyears.

SparepartscanbeorderedfromDanfoss.Pleaseensurethatany
enquiryincludesthesubstationserialnumber.

Authorizedpersonnelonly

Assembly,start-upandmaintenanceworkmustbeperformedby
qualiedandauthorizedpersonnelonly.

16

DEN-GT

VI.HE.F2.02/LUK40661

DanfossDistrictEnergy

OperatingGuideTermixBTDROMIX

7.0Troubleshooting

7.1Troubleshootingingeneral

Intheeventofoperatingdisturbances,thefollowingbasicfeatures
shouldbecheckedbeforecarryingoutactualtroubleshooting:

•thesubstationisconnectedtoelectricity,

•thestrainerontheDHsupplypipeisclean,

•thesupplytemperatureoftheDHisatthenormallevel
(summer,atleast60°C-winter,atleast70°C),

•thedifferentialpressureisequaltoorhigherthanthenormal
(local)differentialpressureintheDHnetwork–ifindoubt,ask
theDHplantsupervisor,

•pressureonthesystem-checktheHEpressuregauge.

Authorizedpersonnelonly

Assembly,start-upandmaintenanceworkmustbeperformedby
qualiedandauthorizedpersonnelonly.

7.2TroubleshootingDHW

ProblemPossiblecauseSolution

Strainerinsupplyorreturnlineclogged.Cleanstrainer(s).

DHWcirculationpumpoutoforderorwith
toolowsetting.

Checkcirculationpump.

Defectiveorcloggednon-returnvalve.

Replace–clean.

Noelectricity.Check.

Wrongsettingofautomaticcontrols,ifany.Toadjustanelectroniccontrollerfor

DHW,pls.noteenclosedinstructionsfor
electroniccontroller.

Scalingoftheplateheatexchanger.

Replace–rinseout.

Defectivemotorizedvalve.Check(usemanualfunction)–replace.

Defectivetemperaturesensors.

Check–replace.

ToolittleornoDHW.

Defectivecontroller.

Check–replace.

DCWisbeingmixedwiththeDHW,e.g.in
adefectivethermostaticmixingvalve.

Check–replace. Hotwaterinsometapsbutnotinall.

Defectiveorcloggednon-returnvalveon
circulationvalve.

Replace–clean.

Taptemperaturetoohigh;DHWtapload
toohigh.

Thermostaticvalveadjustedtoatoohigh
level.

Check–set.

Scalingoftheplateheatexchanger.

Replace–rinseout. Temperaturedropduringtapping.

LargerDHWowthanthesubstationhas
beendesignedfor.

ReduceDHWow.

Thermostaticcontrolvalvedoesnotclose

TemperaturedifferencebetweenDH
supplyandDHWsetpointtoolow.

Lowerthesetpointtemperatureor
increasetheDHsupplytemperature.

DanfossDistrictEnergy

VI.HE.F2.02/LUK40661

DEN-GT

17

OperatingGuideTermixBTDROMIX

7.3TroubleshootingHE

ProblemPossiblecauseSolution

Toolittleornoheat.StrainercloggedinDHorHEcircuit

(radiatorcircuit).

Cleangate/strainer(s).

ThelterintheenergymeteronDHcircuit
clogged.

Cleanthelter(afterconsultingtheDH
plantoperator).

Defectiveorwronglyadjusteddifferential
pressurecontroller.

Checktheoperationofthedifferential
pressurecontroller–cleanthevalveseatif
required.

Sensordefective–orpossiblydirtinthe
valvehousing.

Checktheoperationofthethermostat–
cleanthevalveseatifrequired.

Automaticcontrols,ifany,wronglysetor
defective-possiblypowerfailure.

Checkifthesettingofthecontroller
iscorrect–seeseparateinstructions.
Checkthepowersupply.Temporary
settingofmotorto“manual”control–see
instructionsonautomaticcontrols.

Pumpoutofoperation.Checkifthepumpisreceivingpowerand

thatitturns.Checkifthereisairtrappedin
thepumphousing–seepumpmanual.

Thepumpissetattoolowspeedof
rotation.

Setthepumpathigherspeedofrotation.

Pressuredrop–thepressuredropon
theradiatorcircuitshowslowerthan
recommendedoperatingpressure.

Fillwateronthesystemandcheckthe
functioningofthepressureexpansion
vesselifrequired.

Airpocketsinthesystem.Venttheinstallationthoroughly.

Limitingofthereturntemperature
adjustedtoolow.

Adjustaccordingtoinstructions.

Defectiveradiatorvalves.

Check–replace.

Unevenheatdistributioninbuilding
becauseofincorrectlysetbalancingvalves,
orbecausetherearenobalancingvalves.

Adjust/installbalancingvalves.

Diameterofpipetosubstationtoosmallor
branchpipetoolong.

Checkpipedimensions.

Unevenheatdistribution.Airpocketsinthesystem.Venttheinstallationthoroughly.

DHsupplytemperaturetoohigh.

Wrongsettingofthermostatorof
automaticcontrols,ifany.

Adjustautomaticcontrols,–see
instructionsforautomaticcontrols.

Defectivecontroller.Thecontrollerdoes
notreactasitshouldaccordingtothe
instructions.

Callautomaticcontrolsmanufactureror
replacetheregulator.

Defectivesensoronself-actingthermostat.

Replacethermostat–orsensoronly.

DHsupplytemperaturetoolow.

Wrongsettingofautomaticcontrols,ifany.

Adjustautomaticcontrols–seeinstructions
forautomaticcontrols.

Defectivecontroller.Thecontrollerdoes
notreactasitshouldaccordingtothe
instructions.

Callinautomaticcontrolsmanufactureror
replacecontroller.

Defectivesensoronself-actingthermostat.

Replacethermostat–orsensoronly.

Wrongplacement/ttingofoutdoor
temperaturesensor.

Adjustlocationofoutdoortemperature
sensor.

Strainerclogged.Cleangate/strainer.

18

DEN-GT

VI.HE.F2.02/LUK40661

DanfossDistrictEnergy

OperatingGuideTermixBTDROMIX

ToohighDHreturntemperature.

Toosmallheatingsurface/toosmall
radiatorscomparedtothetotalheating
requirementofthebuilding.

Increasetotalheatingsurface.

Poorutilizationofexistingheatingsurface.
Defectivesensoronself-actingthermostat.

Makesuretheheatisdistributedevenly
acrossthefullheatingsurface–openall
radiatorsandkeeptheradiatorsinthe
systemfromheatingupatthebottom.It
isextremelyimportanttokeepthesupply
temperaturetotheradiatorsaslowas
possible,whilemaintainingareasonable
levelofcomfort.

Thesystemissinglepipeloop.

Thesystemshouldfeatureelectronic
controlsaswellasreturnsensors.

Pumppressuretoohigh.Adjustpumptoalowerlevel.

Airinsystem.

Ventthesystem.

Defectiveorincorrectlysetradiator
valve(s).Singlepipeloopsystemsrequire
specialone-piperadiatorvalves.

Check–set/replace.

Dirtinthemotorizedvalveorinthe
differentialpressurecontroller.

Check–cleanout.

Defectivemotorizedvalve,sensoror
automaticcontroller.

Check–replace.

Electroniccontrollernotadjustedcorrectly.Adjustaccordingtoinstructions.

Noiseinsystem.

Pumppressuretoohigh.Adjustpumptoalowerlevel.

Heatloadtoohigh.

Defectivemotorizedvalve,sensoror
electroniccontroller.

Check–replace.

7.4Disposal

Disposal

Thisproductshouldbedismantledanditscomponents
sorted,ifpossible,invariousgroupsbeforerecycling
ordisposal.

Alwaysfollowthelocaldisposalregulations.

DanfossDistrictEnergy

VI.HE.F2.02/LUK40661

DEN-GT

19

OperatingGuideTermixBTDROMIX

20

DEN-GT

VI.HE.F2.02/LUK40661

DanfossDistrictEnergy

OperatingGuideTermixBTDROMIX

DanfossDistrictEnergy

VI.HE.F2.02/LUK40661

DEN-GT

21

OperatingGuideTermixBTDROMIX

22

DEN-GT

VI.HE.F2.02/LUK40661

DanfossDistrictEnergy

OperatingGuideTermixBTDROMIX

8.0Declaration

8.1Declarationofconformity

Category0withelectricalequipment

DanfossDistrictEnergy

VI.HE.F2.02/LUK40661

DEN-GT

23

OperatingGuideTermixBTDROMIX

ProducedbyDanfossA/S©02/2017
