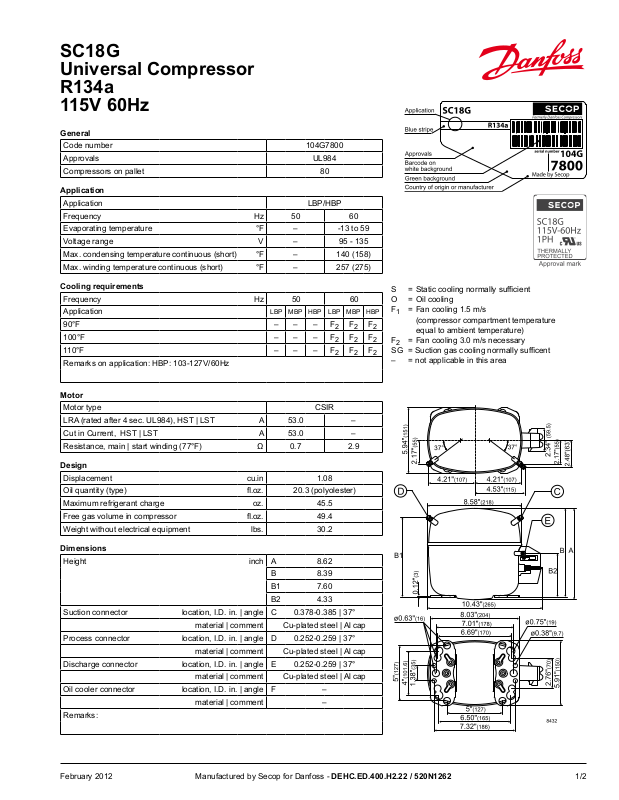

SC18G
Universal Compressor
R134a
115V 60Hz
General
Code number |
|
|
|
|
|
104G7800 |
|
|
|
||
Approvals |
|
|
|
|
|
UL984 |
|
|
|
||
Compressors on pallet |
|
|
|
|
|
80 |
|
|
|
||
Application |
|
|
|
|
|
|
|
|
|
|
|
Application |
|
|
|
|
|
LBP/HBP |
|
|
|
||
Frequency |
|
Hz |
|
50 |
|
|
|
60 |
|
|
|
Evaporating temperature |
|
°F |
|
|
– |
|
|
-13 to 59 |
|||
Voltage range |
|
V |
|
|
– |
|
|
95 - 135 |
|||
Max. condensing temperature continuous (short) |
°F |
|
|
– |
|
|
140 (158) |
||||
Max. winding temperature continuous (short) |
°F |
|
|
– |
|
|
257 (275) |
||||
Cooling requirements |
|
|
|
|
|
|
|
|
|
|
|
Frequency |
|
Hz |
|
50 |
|
|
|
60 |
|
|
|
Application |
|
|
LBP |
|
MBP |
HBP |
|
LBP |
MBP |
|
HBP |
90°F |
|
|
– |
|
– |
– |
|
F2 |
F2 |
|
F2 |
100°F |
|
|
– |
|
– |
– |
|
F2 |
F2 |
|
F2 |
110°F |
|
|
– |
|
– |
– |
|
F2 |
F2 |
|
F2 |
Remarks on application: HBP: 103-127V/60Hz |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Motor |
|
|
|
|
|
|
|
|
|
|
|
Motor type |
|
|
|
|
|
CSIR |
|
|
|
||
LRA (rated after 4 sec. UL984), HST | LST |
A |
|
53.0 |
|
|
|
– |
|
|||
Cut in Current, HST | LST |
|
A |
|
53.0 |
|
|
|
– |
|
||
Resistance, main | start winding (77°F) |
Ω |
|
0.7 |
|
|
|
2.9 |
|
|
||
Design |
|
|
|
|
|
|
|
|
|
|
|
Displacement |
|
cu.in |
|
|
|
1.08 |
|
|
|
||
Oil quantity (type) |
|
fl.oz. |
|
|
20.3 (polyolester) |
|
|||||
Maximum refrigerant charge |
|
oz. |
|
|
|
45.5 |
|
|
|
||
Free gas volume in compressor |
|
fl.oz. |
|
|
|
49.4 |
|
|
|
||
Weight without electrical equipment |
lbs. |
|
|
|
30.2 |
|
|
|
|||
Dimensions |
|
|
|
|
|
|
|
|
|
|
|
Height |
|
inch |
A |
|
|
8.62 |
|
|
|
||
|
|
|
B |
|
|
8.39 |
|
|
|
||
|
|
|
B1 |
|
|
7.60 |
|
|
|
||
|
|
|
B2 |
|
|
4.33 |
|
|
|
||
Suction connector |
location, I.D. in. | angle |
C |
0.378-0.385 | 37° |
|
|
||||||
|
material | comment |
|
Cu-plated steel | Al cap |
|
|||||||
Process connector |
location, I.D. in. | angle |
D |
0.252-0.259 | 37° |
|
|
||||||
|
material | comment |
|
Cu-plated steel | Al cap |
|
|||||||
Discharge connector |
location, I.D. in. | angle |
E |
0.252-0.259 | 37° |
|
|
||||||
|
material | comment |
|
Cu-plated steel | Al cap |
|
|||||||
Oil cooler connector |
location, I.D. in. | angle |
F |
|
|
|
– |
|
|
|
||
|
material | comment |
|
|
|
|
– |
|
|
|
||
Remarks: |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
S = Static cooling normally sufficient
O= Oil cooling
F1 |
= Fan cooling 1.5 m/s |
|
(compressor compartment temperature |
|
equal to ambient temperature) |
F2 |
= Fan cooling 3.0 m/s necessary |
SG |
= Suction gas cooling normally sufficent |
–= not applicable in this area
February 2012 |
Manufactured by Secop for Danfoss - DEHC.ED.400.H2.22 / 520N1262 |
1/2 |
ASHRAE LBP |
|
|
|
115V, 60Hz, fan cooling F2 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||||||||||||||||
Evap. temp. in °F |
-49 |
-40 |
-30 |
|
-20 |
-13 |
-10 |
0 |
10 |
20 |
|
23 |
|
|
30 |
40 |
41 |
|
45 |
|
50 |
59 |
68 |
|||||||||||||||||||||
Capacity in BTU/h |
|
|
|
|
|
|
|
|
|
|
|
|
|
1142 |
1357 |
2112 |
2952 |
3908 |
4221 |
|
5008 |
6285 |
6423 |
6999 |
|
7768 |
9308 |
|
||||||||||||||||
Power cons. in W |
|
|
|
|
|
|
|
|
|
|
|
|
|
374 |
404 |
504 |
599 |
691 |
718 |
|
780 |
868 |
877 |
912 |
|
956 |
1035 |
|
||||||||||||||||
Current cons. in A |
|
|
|
|
|
|
|
|
|
|
|
|
|
6.56 |
6.71 |
7.24 |
7.80 |
8.41 |
8.59 |
|
9.05 |
9.72 |
9.79 |
10.07 |
|
10.43 |
11.11 |
|
||||||||||||||||
EER in BTU/Wh |
|
|
|
|
|
|
|
|
|
|
|
|
|
3.06 |
3.35 |
4.19 |
4.93 |
5.66 |
5.88 |
|
6.42 |
7.24 |
7.33 |
7.67 |
|
8.13 |
8.99 |
|
||||||||||||||||
ASHRAE HBP |
|
|
|
115V, 60Hz, fan cooling F2 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||||||||||||||||
Evap. temp. in °F |
-49 |
-40 |
-30 |
|
-20 |
-13 |
-10 |
0 |
10 |
20 |
|
23 |
|
|
30 |
40 |
41 |
|
45 |
|
50 |
59 |
68 |
|||||||||||||||||||||
Capacity in W |
|
|
|
|
|
|
|
|
|
|
|
|
|
1015 |
1206 |
1877 |
2622 |
3469 |
3746 |
|
4443 |
5570 |
5693 |
6200 |
|
6878 |
8233 |
|
||||||||||||||||
Power cons. in W |
|
|
|
|
|
|
|
|
|
|
|
|
|
374 |
404 |
504 |
599 |
691 |
718 |
|
780 |
868 |
877 |
912 |
|
956 |
1035 |
|
||||||||||||||||
Current cons. in A |
|
|
|
|
|
|
|
|
|
|
|
|
|
6.56 |
6.71 |
7.24 |
7.80 |
8.41 |
8.59 |
|
9.05 |
9.72 |
9.79 |
10.07 |
|
10.43 |
11.11 |
|
||||||||||||||||
EER in BTU/Wh |
|
|
|
|
|
|
|
|
|
|
|
|
|
2.72 |
2.98 |
3.73 |
4.38 |
5.02 |
5.22 |
|
5.70 |
6.42 |
6.49 |
6.80 |
|
7.20 |
7.95 |
|
||||||||||||||||
EN 12900 Household (CECOMAF) |
115V, 60Hz, fan cooling F2 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||||||||||||||||||||
Evap. temp. in °F |
-49 |
-40 |
-30 |
|
-20 |
-13 |
-10 |
0 |
10 |
20 |
|
23 |
|
|
30 |
40 |
41 |
|
45 |
|
50 |
59 |
68 |
|||||||||||||||||||||
Capacity in W |
|
|
|
|
|
|
|
|
|
|
|
|
|
264 |
315 |
495 |
695 |
921 |
995 |
|
1181 |
1481 |
1514 |
1648 |
|
1829 |
2187 |
|
||||||||||||||||
Power cons. in W |
|
|
|
|
|
|
|
|
|
|
|
|
|
369 |
400 |
501 |
597 |
690 |
717 |
|
781 |
870 |
879 |
914 |
|
959 |
1039 |
|
||||||||||||||||
Current cons. in A |
|
|
|
|
|
|
|
|
|
|
|
|
|
6.54 |
6.69 |
7.23 |
7.80 |
8.41 |
8.60 |
|
9.06 |
9.74 |
9.81 |
10.10 |
|
10.46 |
11.14 |
|
||||||||||||||||
COP in W/W |
|
|
|
|
|
|
|
|
|
|
|
|
|
0.71 |
0.79 |
0.99 |
1.16 |
1.34 |
1.39 |
|
1.51 |
1.70 |
1.72 |
1.80 |
|
1.91 |
2.11 |
|
||||||||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Accessories for |
SC18G |
Figure |
Code number |
|
Starting device assembly |
|
|
||
CSR |
23.6 in. cable length |
a3 |
– |
|
CSIR |
23.6 in. cable length |
117-7053 |
||
|
||||
|
|
|
||
Starting device components |
|
|
||
Starting relay |
1/4 in. spade connect. |
a2 |
117-7441 |
|
Start. capacitor 410 µF |
1/4 in. spade connect. |
c |
117U5042 |
|
Run capacitor 23.5 µF |
1/4 in. spade connect. |
e |
– |
|
Cover |
|
b |
117U1021 *) |
|
Protector |
|
f |
117U3212 *) |
|
Protector holder |
|
h |
117U0439 *) |
*) Remarks: Cover, protector, protector holder parts of compressor
Test conditions |
ASHRAE MBP |
EN 12900/CECOMAF* |
Condensing temp. |
130°F |
131°F |
Ambient temperature |
95°F |
90°F |
Suction gas temp. |
95°F |
90°F |
Liquid temperature |
115°F |
no subcooling |
Mounting accessories |
|
Code number |
Bolt joint for one comp. |
Ø: 5/8 in. |
118-1917 |
Bolt joint in quantities |
Ø: 5/8 in. |
118-1918 |
Snap-on in quantities |
Ø: 5/8 in. |
118-1919 |
