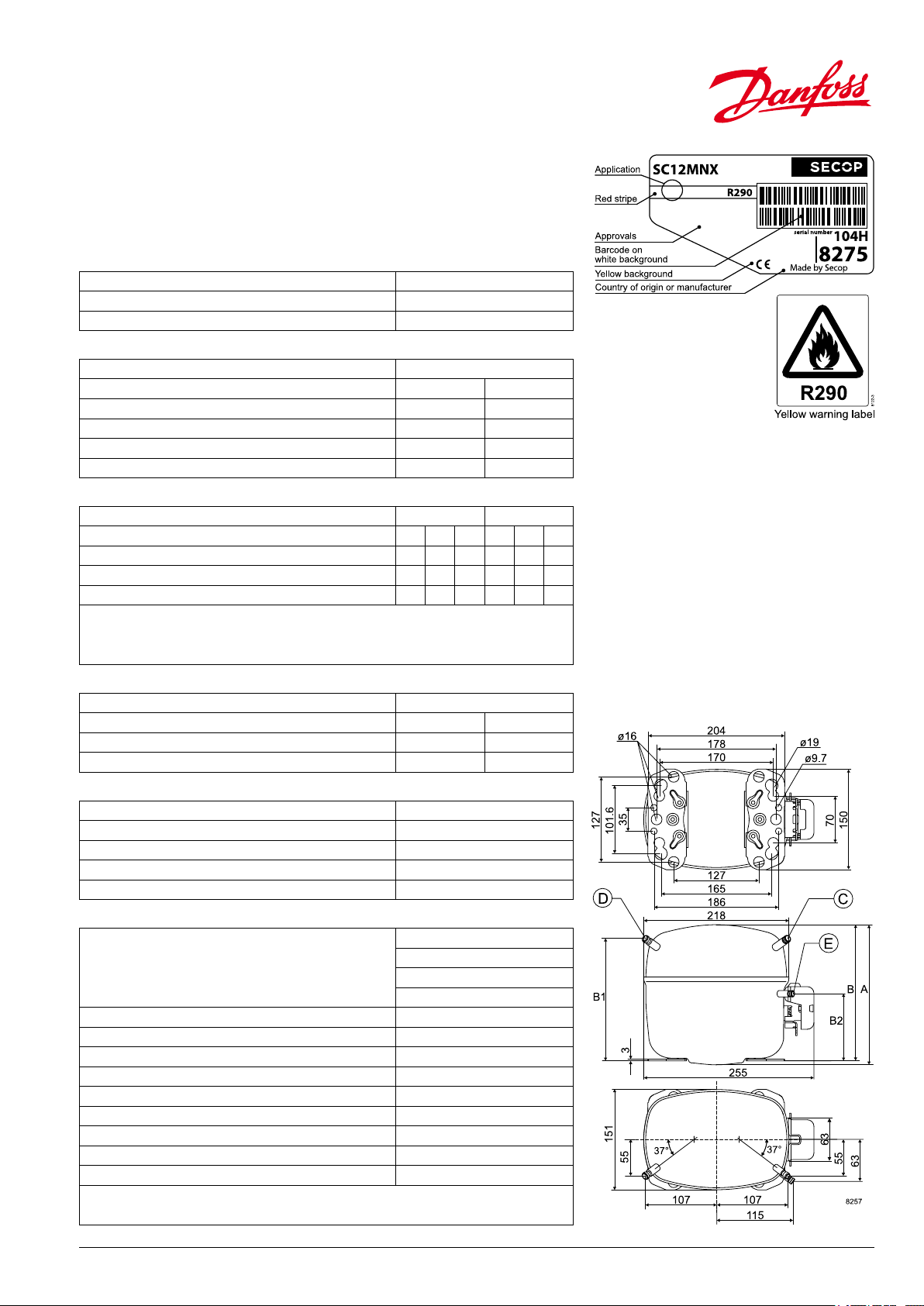

SC12MNX
MBP Compressor
R290
220-240V 50Hz
General
Code number 104H8275
Approvals EN 60335-2-34, CCC
Compressors on pallet 80
Application
Application MBP
Frequency Hz 50 60
Evaporating temperature °C -35 to 10 –
Voltage range V 187 - 254 –
Max. condensing temperature continuous (short) °C 55 (65) –
Max. winding temperature continuous (short) °C 125 (135) –
Cooling requirements
Frequency Hz 50 60
Application
32°C – F2– – – –
38°C – F
43°C – F
Remarks on application:
Motor
Motor type CSIR
LRA (rated after 4 sec. UL984), HST | LST A 18.6 –
Cut in Current, HST | LST A 18.6 –
Resistance, main | start winding (25°C) Ω 3.7 14.1
Design
Displacement cm
Oil quantity (type) cm
Maximum refrigerant charge g 150
Free gas volume in compressor cm
Weight without electrical equipment kg 13.5
Dimensions
Height mm A 219
Suction connector location/I.D. mm | angle C 8.2 | 37°
material | comment Cu-plated steel | Al cap
Process connector location/I.D. mm | angle D 6.2 | 37°
material | comment Cu-plated steel | Al cap
Discharge connector location/I.D. mm | angle E 6.2 | 37°
material | comment Cu-plated steel | Al cap
Oil cooler connector location/I.D. mm | angle F –
material | comment –
Connector tolerance I.D. mm ±0.09
Remarks:
LBP MBP HBP LBP MBP HBP
– – – –
2
– – – –
2
3
3
3
B 213
B1 193
B2 110
12.87
550 (polyolester)
1510
S = Static cooling normally sufcient
O = Oil cooling
F1 = Fan cooling 1.5 m/s
(compressor compartment temperature
equal to ambient temperature)
F2 = Fan cooling 3.0 m/s necessary
SG = Suction gas cooling normally sufcent
– = not applicable in this area
May 2013 Manufactured by Secop for Danfoss - DEHC.ED.540.D5.02 / 520N1461 1/2
EN 12900 MBP 220V, 50Hz, fan cooling F
2
Evap. temp. in °C -45 -40 -35 -30 -25 -23.3 -20 -15 -10 -6.7 -5 0 5 7.2 10 15 20
Capacity in W 224 327 446 490 582 738 918 1050 1123 1356 1620 1747 1918
Power cons. in W 302 348 392 406 432 469 503 524 534 563 590 601 615
Current cons. in A 2.75 2.88 3.01 3.05 3.13 3.24 3.34 3.40 3.44 3.52 3.60 3.64 3.67
COP in W/W 0.74 0.94 1.14 1.21 1.35 1.58 1.83 2.01 2.10 2.41 2.75 2.91 3.12
ASHRAE HBP/MBP 220V, 50Hz, fan cooling F
2
Evap. temp. in °C -45 -40 -35 -30 -25 -23.3 -20 -15 -10 -6.7 -5 0 5 7.2 10 15 20
Capacity in W 147 254 375 420 513 670 851 983 1056 1291 1557 1685 1858
Power cons. in W 296 354 407 424 456 501 543 569 581 616 648 662 678
Current cons. in A 2.69 2.86 3.02 3.08 3.18 3.33 3.46 3.55 3.60 3.72 3.84 3.88 3.94
COP in W/W 0.50 0.72 0.92 0.99 1.12 1.34 1.57 1.73 1.82 2.09 2.40 2.55 2.74
Accessories for SC12MNX Figure Code number Test conditions
PTC starting device 6.3 mm spade connectors
4.8 mm spade connectors – Ambient temperature 32°C 35°C
–
– Condensing temperature 45°C 54.4°C
EN 12900
MBP
ASHRAE
HBP/MBP
Starting relay 6.3 mm spade connectors a2 117U7019 Suction gas temperature 20°C 35°C
Cover b 103N2008 Liquid temperature no subcooling 46.1°C
Start. capacitor 80 µF 6.3 mm spade connectors c 117U5017
Cord relief d 103N1004 Mounting accessories Code number
Protection screen for PTC – – Bolt joint for one comp. Ø: 1 6 mm 118-1917
Bolt joint in quantities Ø: 16 mm 118-1918
Snap-on in quantities Ø: 16 mm 118-1919
Danfoss can accept no responsibility for possible errors in catalogues, brochures and other printed material. Danfoss reserves the right to alter its products without notice. This also applies to
products already on order provided that such alterations can be made without subsequential changes being necessary in specications already agreed.
All trademarks in this material are property of the respective companies. Danfoss and the Danfoss logotype are trademarks of Danfoss A/S. All rights reserved.
2/2 Manufactured by Secop for Danfoss - DEHC.ED.540.D5.02 / 520N1461 May 2013
