Danfoss RPI 01 Data sheet

Data Sheet
Movement sensor
Accessory
Type RPI 01 Expand the capabilities by tracking customer’s motion around your equipment.
RPI Motion sensor from Danfoss provides a way to improve performance and operation.
Store owners will notice improved value, increased safety and signicant reductions in energy consumption and maintenance costs.
RPI 01 is a versatile passive infrared (PIR) motion sensor that can be used in refrigeration applications. This sensor provides the capability to manage the ECO and Early Wake Up mode based on customer's presence in the store.
A passive infrared motion detector located on the bottom front center of the merchandisers, detects the presence of approaching individuals and trigger signals to the controller to control the illumination and temperature of the equipment in the most energy ecient way.
Features:
• Low power consumption
• Wide detection range
• Increased energy savings
• IP65 frontal protection
• High reproof level
• Designed for harsh environment
AI205386432079en-000401
45°
X
Danfoss
80G459
80°
Danfoss
80G460
Danfoss
80G461
3 m
3
2
1
A B C
Danfoss
80G8210
ABC
Black: ground
Red: 5 – 12 V
White: signal
Features
Description
Power supply
DC 5 – 12 V
Current Draw
Max. 20 mA
Action output
PORT (NPN)
Detection Method
Passive infrared
Stabilization time when the power supply working
Max. 45 s
Detection speed
0.3 – 1.5 m/s
Detection angle
Horizontal: 80° Vertical: 45°
Detection distance
3 m
Operating temperature
-10 – 55 °C
Storage temperature
-40 – 70 °C
Environment humidity
95% Max
Connector type
Double insulation connector
Optic system
Resistant UV lens
Protection grade
Front: IP65 Rear: IP32
Resin
Flame resistant UL94 - 5 V A
Sensor
Port
ERC 112 supports RPI 01 sensor
“S3” port “di” port
ERC 113 supports RPI 01
“S3” port always “di” port when ERC 113 is not connected to RDI 107
Movement sensor, Accessory
Product specication
Overview of the product
A Passive Infrared (PIR) motion detector, located, preferably, on the bottom front center of the refrigerator detects the presence of approaching individuals and trigger signals to the controller to manage the operation and status of the controller (ECO mode) to allow exible operation of some settings like light and temperature control. The eld of motion detection of the PIR value fans out to 45 degrees vertically and 80 degrees horizontally.
Figure 1: Vertical direction
General features
Table 1: General features
Figure 2: Horizontal direction
Figure 3: Operational distance
Connection
Table 2: Connection
Wiring details
Figure 4: Wiring details
© Danfoss | Climate Solutions | 2021.03 AI205386432079en-000401 | 2
ABC
65.3 55±0.1
17±0.1
4.0±0.1
37.3
16.5
11.5
Danfoss
80G8211
A B C
Front panel
Rear panel
Front mounting
Mounting
Unmounting
Danfoss
80G464
Insert the PIR Value into the cabinet frame
Danfoss
80G464
Remove both the M3.5 screw from the screw hole using a Phillips head screwdriver
Danfoss
80G464
Place the M3.5 screw in the screw hole and fasten the screw using a Phillips head screw­driver
Danfoss
80G464
Remove the PIR Value from the cabinet frame
WARNING:
Do not connect mains power until the controller is correctly mounted.
WARNING:
Disconnect the power supply before unmounting
Movement sensor, Accessory

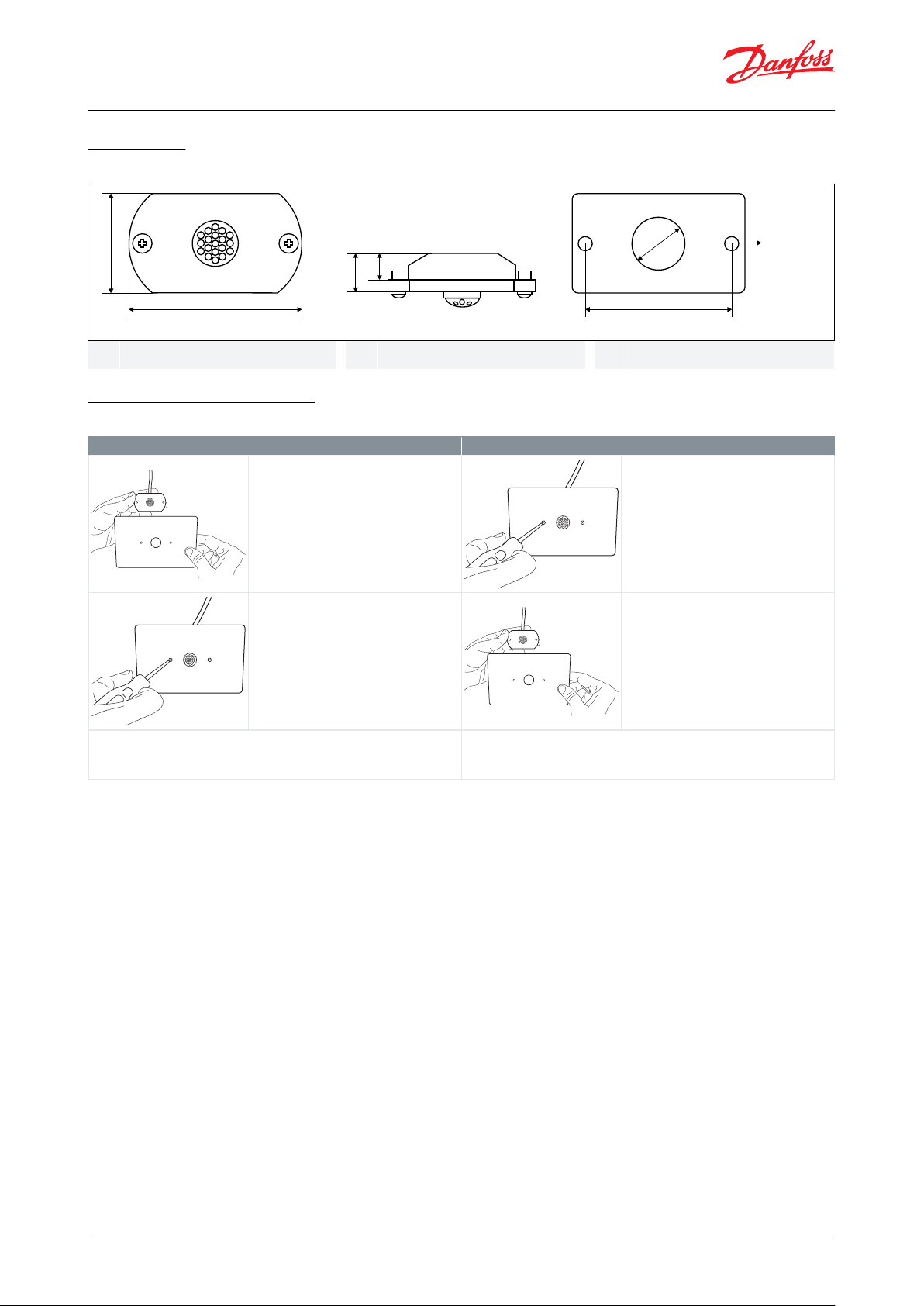

Dimensions
Figure 5: Dimensions
Mounting and Unmounting
Table 3: Mounting and Unmounting
© Danfoss | Climate Solutions | 2021.03 AI205386432079en-000401 | 3
Description
Code No.
RPI 01, 3000 mm cable length
080G3392
Regulatory and Compliance
Directive
Standards
Country
Electrical Safety (Polymeric Material)
-
UL 746C (Referenced by UL 60730-1)
US / Canada
RoHS
RoHS Directive: 2011/65/EU & 2015/863/EU
EN 50581:2012, EN IEC 63000 : 2018
Europe
Enclosure material ammable class
-
UL 746C, Flammability - 5V (500 W)
US / Canada
Certication and Manufacturer Declarations on Conformity
CE, C-UL-US, CQC, ENEC & RoHS
Movement sensor, Accessory
Ordering
Product part numbers
Table 4: Product part numbers
Certicates, declarations, and approvals
The list contains all certicates, declarations, and approvals for this product type. Individual code number may have some or all of these approvals, and certain local approvals may not appear on the list.
Some approvals may change over time. You can check the most current status at danfoss.com or contact your local Danfoss representative if you have any questions.
Table 5: Certicates, declarations, and approvals
© Danfoss | Climate Solutions | 2021.03 AI205386432079en-000401 | 4
