Data Sheet
RA-IN upgradable radiator valves, copper
connection
Application
Approved to EN 215
Code nos.
013G6806
Side Angle Right
RA-IN valves are designed to work in conjunction
with thermostatic sensor to deliver energy savings.
RA-IN valve bodies can be used together with all
types of thermostatic elements in the Danfoss RA
sensor series, like RAS-C2, RAX, RA2000, Eco and
Connect electronic thermostats and with TWA
thermal actuators.
RA-IN valves are used in two-pipe heating systems.
They are designed to fit with Danfoss fitting range.
A comprehensive range of compression fittings for
PEX, AluPEX, copper and steel tubes are available.
RA-IN valves are delivered in 'N' position which is
fully open.
Each valve body is supplied with a white protective
cap, which can be used for manual regulation
Danfoss RA-IN valves are manufactured to the highest standards, and are approved to the European
Standard EN 215.
Type Design
side angle right G3/4 G3/4 0.53 013G6806
RA-IN
side angle left G3/4 G3/4 0.53 013G6807
angle G3/4 G3/4 0.53 013G6814
straight G3/4 G3/4 0.53 013G6815
013G6807
Side Angle Left
during the construction phase. The protective cap
must not be used as a manual shut off device.
A special manual shut off device is available as an
accessory.RA-IN valve bodies are manufactured
from brass with nickel plating.
The pressure pin of the gland seal is of chromium
steel and works in a lifetime lubricated O-ring. The
complete gland seal assembly can be replaced
without draining down the system.
In order to avoid deposition and corrosion
the composition of the hot water must be in
accordance with the VDI 2035 guideline (Verein
Deutscher Ingenieure).
It is recommended that formulations containing
mineral oil are avoided.
Connections kv (m3/h at p = 1 bar)
Inlet Outlet N
013G6814
Angle
013G6815
Straight
Code No.
Accessories
Product Code no.
Gland seal 013G0290
Tail piece 013G6846
Tail Piece 013G6845
Tail Piece (Project ) 013G6843
Tail Piece (Project ) 013G6844
© Danfoss HS | 07/2019 | AI312052367721 | 1
Datasheet RA-IN upgradable radiator valves
Principles
Capacities
RA-IN valves are delivered in 'N' position which is fully open.
2|© Danfoss HS | 07/2019 | AI312052367721
Datasheet RA-IN upgradable radiator valves
013G6806
29.3mm
29.3mm
45.6mm

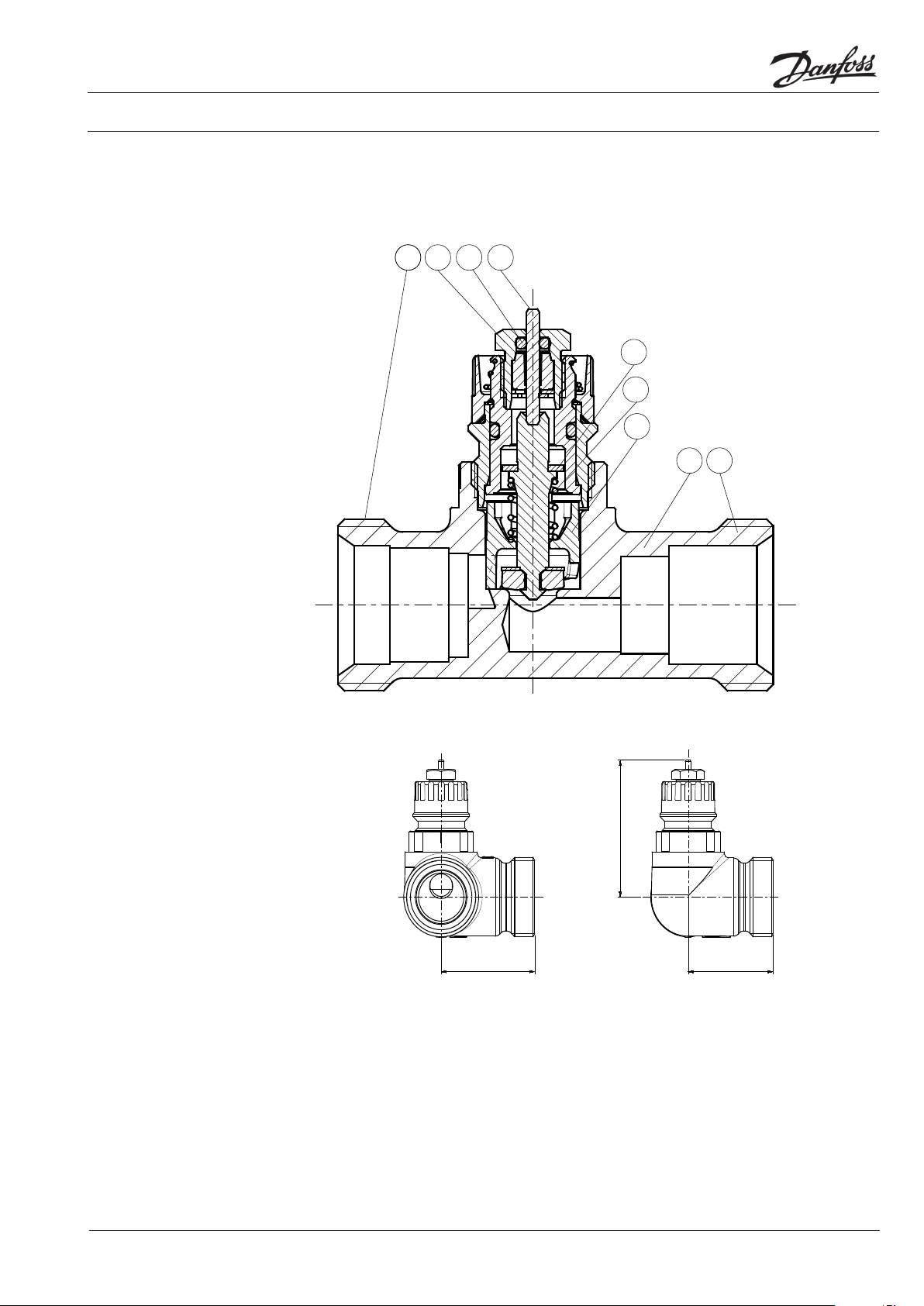

Construction
3 4
2
11
1. Nipple
2. Union Nut
3. Gland Seal
4. O-ring Seal
5. Pressure Pin
5
6. Seal
7. Regulation Spring
6
8. Setting Dial
9. Valve Body
7
8
9
Dimensions
© Danfoss HS | 07/2019 | AI312052367721 | 3
Danfoss c an accept no respons ibility for pos sible errors in ca talogues, bro chures and other pr inted material. Da nfoss reserve s the right to alter its p roducts with out notice. This al so applies to
produc ts already on ord er provided that su ch alterations ca n be made without su bsequential cha nges being neces sary in speci cations alread y agreed.
All trade marks in this mate rial are proper ty of the respec tive companies . Danfoss and all Danf oss logotyp es are trademark s of Danfoss A/S. A ll rights reser ved.
Danfoss A/S
Heating Segment • heating.danfoss.com • +45 7488 2222 • E-Mail: heating@danfoss.com
013G6807
29.3mm
29.3mm
45.6mm
Datasheet RA-IN upgradable radiator valves
013G6814
29.3mm
45.6mm
30mm
013G6815
37mm
45.6mm
30mm
Dimensions (cont)
4| © Danfoss HS | 07/2019 | AI312052367721
