Danfoss PMFH Installation guide [da]

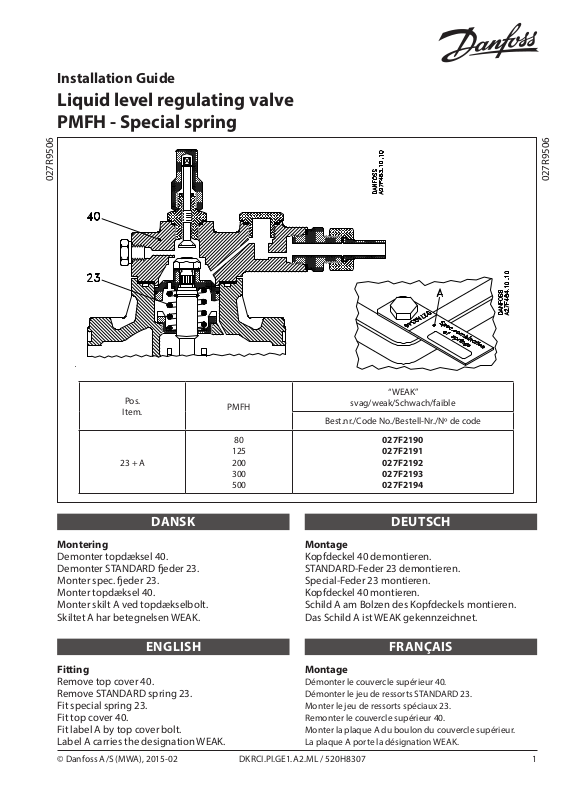

Installation Guide
Liquid level regulating valve
PMFH - Special spring
| <![if ! IE]> <![endif]>027R9506 |
<![if ! IE]> <![endif]>027R9506 |
|
Pos. |
|
|
|
|
“WEAK” |
|
|
|
PMFH |
|
svag/weak/Schwach/faible |
|
||
|
Item. |
|
|
|
|
||
|
|
|
|
|
Best.nr./Code No./Bestell-Nr./Nº de code |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
80 |
|
|
027F2190 |
|
|
|
|
125 |
|
|
027F2191 |
|
|
23 + A |
|
200 |
|
|
027F2192 |
|
|
|
|
300 |
|
|
027F2193 |
|
|
|
|
500 |
|
|
027F2194 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
DANSK |
DEUTSCH |
|
|||
Montering
Demonter topdæksel 40. Demonter STANDARD fjeder 23. Monter spec. fjeder 23.
Monter topdæksel 40.
Monter skilt A ved topdækselbolt. Skiltet A har betegnelsen WEAK.
Montage
Kopfdeckel 40 demontieren. STANDARD-Feder 23 demontieren. Special-Feder 23 montieren. Kopfdeckel 40 montieren.
Schild A am Bolzen des Kopfdeckels montieren. Das Schild A ist WEAK gekennzeichnet.
ENGLISH |
|
|
FRANÇAIS |
|
Fitting |
|
Montage |
|
|
Remove top cover 40. |
|
Démonter le couvercle supérieur 40. |
|
|
Remove STANDARD spring 23. |
|
Démonter le jeu de ressorts STANDARD 23. |
|
|
Fit special spring 23. |
|
Monter le jeu de ressorts spéciaux 23. |
|
|
Fit top cover 40. |
|
Remonter le couvercle supérieur 40. |
|
|
Fit label A by top cover bolt. |
|
Monter la plaque A du boulon du couvercle supérieur. |
|
|
Label A carries the designation WEAK. |
|
La plaque A porte la désignation WEAK. |
|
|
|
|
|
||
© Danfoss A/S (MWA), 2015-02 |
DKRCI.PI.GE1.A2.ML / 520H8307 |
1 |
||
2 |
DKRCI.PI.GE1.A2.ML / 520H8307 |
© Danfoss A/S (MWA), 2015-02 |
