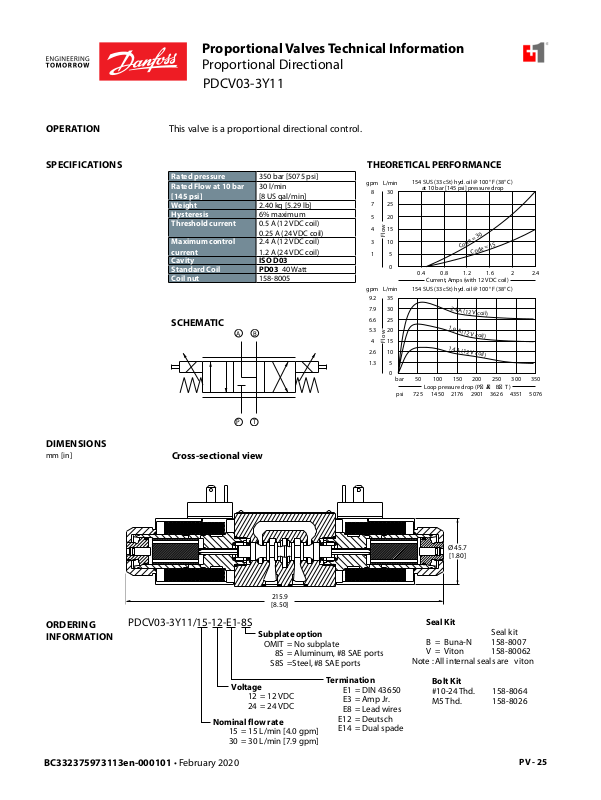

Proportional Valves Technical Information
gpm
6
gpm
T
P
Ø 45.7
[1.80]
215.9
[8.50]
PDCV03-3Y11/15-12-E1-8S
Proportional Directional
PDCV03-3Y11
OPERATION
SPECIFICATIONS
This valve is a proportional directional control.
Rated pressure 350 bar [5075 psi]
Rated Flow at 10 bar
[145 psi]
30 l/min
[8 US gal/min]
Weight 2.40 kg [5.29 lb]
Hysteresis 6% maximum
Threshold current 0.5 A (12 VDC coil)
0.25 A (24 VDC coil)
Maximum control
current
2.4 A (12 VDC coil)
1.2 A (24 VDC coil)
Cavity ISO D03
Standard Coil PD03 40 Watt
Coil nut 158-8005
SCHEMATIC
A
B
THEORETICAL PERFORMANCE
154 SUS (33 cSt) hyd. oil @ 100° F (38° C)
L/min
30
8
25
7
20
5
15
4
Flow
10
3
51
0
L/min
35
9.2
30
7.9
25
6.6
20
5.3
Flow
15
4
10
2.6
51.3
0
at 10 bar [145 psi] pressure drop
e
d
o
C
0.4
0.8 1.2 1.622.4
Current, Amps (with 12VDC coil)
154 SUS (33 cSt) hyd. oil @ 100° F (38° C)
2
.
4
A
(
1
2
1
.
9
A
(
1
2
V
1
.
4
A V
(
1
2
bar
psi
100 150 200 250 300 350
50
Loop pressure drop (P ABT)
725
1450 2176 2901 3626 4351 507
0
3
=
1
=
e
d
o
C
V
c
o
i
l
)
c
o
i
l
)
c
o
i
l
)
5
DIMENSIONS
mm [in]
ORDERING
INFORMATION
BC332375973113en-000101 • February 2020
Cross-sectional view
Voltage
12 = 12 VDC
24 = 24 VDC
Nominal flow rate
15 = 15 L/min [4.0 gpm]
30 = 30 L/min [7.9 gpm]
Subplate option
OMIT= No subplate
8S = Aluminum, #8 SAE ports
S8S =Steel, #8 SAE ports
Termination
E1 = DIN 43650
E3 = Amp Jr.
E8 = Lead wires
E12= Deutsch
E14= Dual spade
Seal Kit
Seal kit
B=Buna-N158-8007
V=Viton 158-80062
Note :All internal seals are viton
Bolt Kit
#10-24 Thd. 158-8064
M5 Thd. 158-8026
PV - 25
