Danfoss OP-LPQE, OP-MPVE, OP-MPME Installation guide

A B

C D

Instructions



Optyma™ Slim Pack OP-LPQE/MPVE/MPME

Name plate

OP-MPVE034MLW04E

114X7039

Application Refrigerant

M.W.P. HP

LP (1) 7 bar

Voltage 380-400V3N~/50Hz LRA OIL INSIDE POE 46

Serial No. Barcode Serial No:

EAN No.

* For exact values please refer name plate in unit

A: Model B: Code number C: Application, Protection D: Refrigerant E: Housing Service Pressure F: Supply voltage, Locked Rotor Ampere,

Maximum Current Consumption

G: Serial Number and bar code

Designation system for the Optyma™ Slim Pack range

MBP (1) R404A, R507, R22, R448A, R449A, R452A

(1) 28 bar

30.5 A 7.5 AMCC

123456CG0514

XXXXXXXXXXX

MADE IN INDIA

IP54 (2) R134a, R513A

(2) 23 bar (2) 5 bar

Danfoss A/S, 6430 Nordborg, Denmark

Picture 1 : Minimum mounting distances

118UXXXX

OP-MPVE 034 ML W10 E

[mm]

250 650 550 550

[mm]

Installation and servicing of the conden-

sing units by qualiﬁed personnel only. Follow these instructions and sound refrigeration engineering practice relating to installation, commissioning, maintenance and service.

The condensing unit must only be used for its designed purpose(s) and within its scope of application.

Under all circumstances, the EN378 (or

other applicable local safety regulation) requirements must be fulﬁlled.

The condensing unit is delivered under nitrogen gas pressure (1 bar) and hence it cannot be connected as it is; refer to the «installation» section for further details.

The condensing unit must be handled with caution in the vertical position (maximum oﬀset from the vertical : 15°)

1 2 3 4 5 6 7 8

1 Application

M = MBP L = LBP

2 Package

P = Packaged unit

3 Refrigerant

V= R22/R134a/R513A/R404A/R448A/R449A/R452A M= R22 Q = R404A/R507/R452A

4 Condenser

E: Extreme and tropical ambient conditions up to 48°C

5 Swept volume

Swept volume in CC

6 Compressor platform

ML = MLZ (Scroll) MT = MT (Reciprocating) NT = NTZ (Reciprocating) LL = LLZ (Scroll)

7 Version

See version control table - W02, W04, W08 and W10

8 Voltage code

G = Compressor 230V/1N~/50Hz, fan 230V/1~/50Hz E = Compressor 400V/3N~/50Hz, fan 230V/1~/50Hz

7. Version control

Service valves Low Pressure cartridge Receiver Filter drier Sight Glass Solenoid Valve Cranckase Heater (Only for LBP models) Full Ebox Fan speed controller Dual Pressure switch KP HP alarm provision LP alarm Provision Discharge gas thermostat provision

W02 W04 W08 W10

   

             

    

                

118A0665D - AN238286441930en-001501 | 1

Instructions

Picture 3

Picture 2

1 – Introduction

These instructions pertain to Optyma

Slim Pack condensing units OP-LPQE/MPVE/MPME (R22, R404A, R507, R134a, R513A, R448A, R449A, R452A) used for refrigeration systems. They provide necessary information regarding safety and proper usage of this product. The condensing unit includes following:

• Scroll/reciprocating compressor

• Microchannel heat exchanger

• Dual pressure switches

• Service valves suction/ liquid

• Weather proof housing (IP 54)

• Filter drier

• Receiver with stop valve

• Sight glass

• Solenoid valve

• Phase sequence relay *

)

• Fully pre-wired electrical panel (including main

switch, compressors contactor, overload relay)

• Crankcase heater (OP-LPQE units in W04 and

W10 only)*

Fan speed controller (W10 only)

)

Refer version control for components details in

)

all versions

2 – Handling and storage

• It is recommended not to open the packaging

before the unit is at the ﬁnal place for installation.

• Handle the unit with care. The packaging

allows for the use of a forklift or pallet jack. Use appropriate and safe lifting equipment.

• Store and transport the unit in an upright position.

• Store the unit between -35°C and 50°C.

• Don’t expose the packaging to rain or corrosive

atmosphere.

• After unpacking, check that the unit is

complete and undamaged.

3 – Installation precautions

Do not braze as long the condensing unit is

under pressure.

Never place the unit in a ﬂammable atmosphere Place the unit in such a way that it is not blocking

or hindering walking areas, doors, windows or similar.

• Ensure adequate space around the unit for air

circulation and to open doors. Refer to picture1 for minimal values of distance to walls.

• Avoid installing the unit in locations which are daily

exposed to direct sunshine for longer periods.

• Avoid installing the unit in aggressive and

dusty environments.

• Ensure a foundation with horizontal surface

(less than 3° slope), strong and stable enough to carry the entire unit weight and to eliminate vibrations and interference.

• The unit ambient temperature may not exceed

50°C during oﬀ-cycle.

• Ensure that the power supply corresponds to

the unit characteristics (see nameplate).

• When installing units for HFC refrigerants,

use equipment speciﬁcally reserved for HFC refrigerants which was never used for CFC or HCFC refrigerants.

Schrader valve

Mounting bolts

• Use clean and dehydrated refrigeration-grade copper tubes and silver alloy brazing material.

• Use clean and dehydrated system components.

• The suction piping connected to the compressor must be ﬂexible in 3 dimensions to dampen vibrations. Furthermore piping has to be done in such a way that oil return for the compressor is ensured and the risk of liquid slug over in compressor is eliminated.

4 – Installation

• The installation in which the condensing unit is installed must comply to EEC Pressure directive (PED) no. 2014/68/EU. The condensing unit itself is not a ”unit” in the scope this directive. Under all circumstances local safety regulations must be fulﬁlled.

• The unit must be securely installed on a stable and rigid support, and ﬁxed from the beginning. See picture 2.

• It is recommended to install the unit on

rubber grommets or vibration dampers .

Rubber pads with mounting bolts are supplied.

• Slowly release the nitrogen holding charge through the schrader port.

• Connect the unit to the system as soon as possible to avoid oil contamination from ambient moisture.

• Avoid material entering into the system while cutting tubes. Never drill holes where burrs cannot be removed.

• Braze with great care using state-of-the-art technique and vent piping with nitrogen gas ﬂow.

• Connect the required safety and control devices. When the schrader port is used for this, remove the internal valve.

• It is recommended to insulate the suction pipe up to the compressor inlet with 19 mm thick insulation.

5 – Leak detection

Never pressurize the circuit with oxygen or

dry air. This could cause ﬁre or explosion.

• Do not use dye for leak detection.

• Perform a leak detection test on the complete system.

• The maximum test pressure is 31 bar.

• When a leak is discovered, repair the leak and repeat the leak detection.

6 – Vacuum dehydration

• Never use the compressor to evacuate the system.

• Connect a vacuum pump to both the LP & HP sides.

• Pull down the system under a vacuum of 500 μm Hg (0.67 mbar) absolute.

• Do not use a megohmmeter nor apply power to the compressor while it is under vacuum as this may cause internal damage.

7 – Electrical connections

• Switch oﬀ and isolate the main power supply.

• Ensure that power supply can not be switched on during installation.

• All electrical components must be selected as

Anticlockwise (open)

Clockwise (Close)

per local standards and unit requirements.

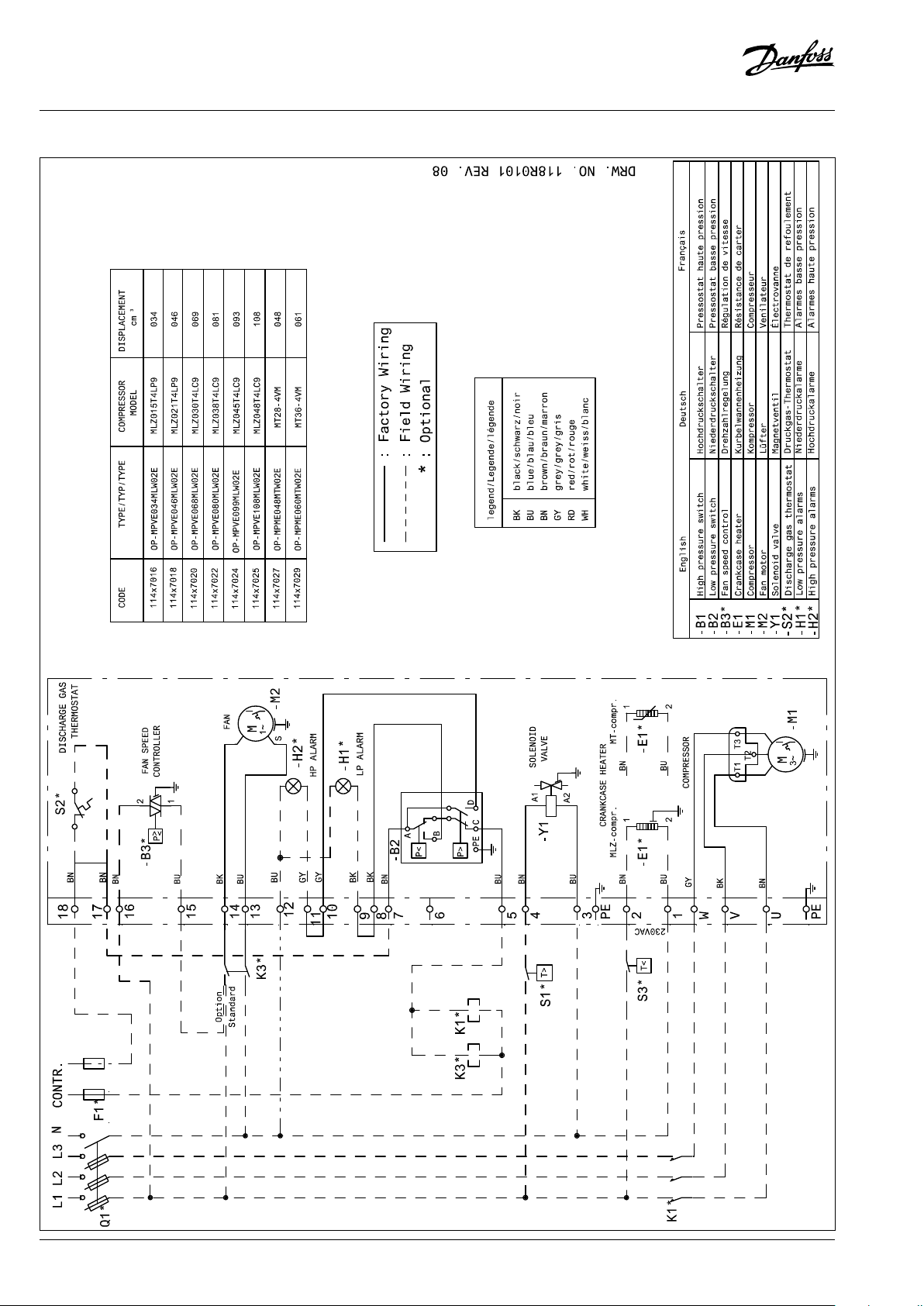

• Refer to wiring diagram for electrical connections details.

• Ensure that the power supply corresponds to the unit characteristics and that the power supply is stable (nominal voltage ±10% and nominal frequency ±2,5 Hz).

• Dimension the power supply cables according to unit data for voltage and current.

• Protect the power supply and ensure correct earthing.

• Make the power supply according to local standards and legal requirements.

•

The unit is equipped with high and low pressure switches, which directly cut the power supply to the compressor and provides 230V a.c. alarm signals (max.50VA) in case of activation. Version W04 is also equipped with phase sequence relay to protect the unit against phase loss/sequence/ asymmetry and under-/over-voltage.

For units with a 3-phase scroll compressor, correct phase sequence for compressor rotation direction shall be observed.

• Determine the phase sequence by using a phase meter in order to establish the phase orders of line phases L1, L2 and L3.

• Connect line phases L1, L2 and L3 to main switch terminals T1, T2 and T3 respectively.

DGT protection is required if the high and low pressure switch settings do not protect the compressor against operations beyond its speciﬁc application envelope. Please refer to the examples below, which illustrate where DGT protection is required (n°1) and where it is not (n°2). The compressor must not be allowed to cycle on the discharge gas thermostat. Continuous operations beyond the compressor’s operating range will cause serious damage to the compressor!

Thermostat

Discharge line

Bracket

Insulation

A DGT accessory is available from Danfoss: refer to section “Spare parts & accessories”.

8 – Safety

Fusible Plug is not available in unit, it is replaced with adapter plug.

Unit has liquid receiver with an Adapter Plug with 3/8” NPT connection. installer/end user can select various options as mentioned in EN378-2 : 2016 Article § 6.2.2.3

• The unit/installation into which the

2 | AN238286441930en-001501 - 118A0665D

Instructions

condensing unit is mounted/integrated, must be in accordance with the PED.

• Beware of hot and extremely cold components.

• Beware of moving components. Power supply should be disconnected while servicing.

9 – Filling the system

• Wear protective stuﬀ like goggles and protective gloves.

• Never start the compressor under vacuum. Keep the compressor switched oﬀ.

• Before charging the refrigerant, verify that the oil level is between ¼ and ¾ on the compressor oil sight glass. If additional oil is required please refer to the compressors label for type of oil.

• Use only the refrigerant for which the unit is designed for.

• Fill the refrigerant in liquid phase into the condenser or liquid receiver. Ensure a slow charging of the system to 4 – 5 bar for R404A / R507, R22, R452A or R448A/R449A and approx. 2 bar for R134a and R513A.

• Do not put liquid refrigerant through suction line.

• It is not allowed to mix additives with the oil and/or refrigerant

• The remaining charge is done until the installation has reached a level of stable nominal condition during operation.

• Never leave the ﬁlling cylinder connected to the circuit.

10 – Verification before commissioning

Use safety devices in compliance with both generally and locally applicable regulations and safety standards.

• Verify that all electrical connections are properly

fastened and in compliance with local regulations.

• When a crankcase heater is required, it must be

energized at least 12 hours before initial start-up and start-up after prolonged shut-down period.

11 – Start-up

• Never start the unit when no refrigerant is

charged.

• All service valves must be in the open position.

See picture 3.

• Check compliance between unit and power

supply.

• Check that the crankcase heater is working.

• Check that the fan can rotate freely.

• Check that the protection sheet has been

removed from the backside of condenser.

• Balance the High Pressure / Low Pressure.

• Energize the unit. It must start promptly. If

the compressor does not start, check wiring conformity, voltage on terminals and sequence phase.

• Eventual reverse rotation of a 3-phase

compressor can be detected by following phenomena; unit doesn’t start, the compressor doesn’t build up pressure, it has abnormally high sound level and abnormally low power consumption. In such case, shut down the unit immediately and connect the phases to their proper terminals.

• If the rotation direction is correct the low pressure indication on the low pressure gauge shall show a declining pressure and the high pressure indication on the high pressure gauge shall show an increasing pressure.

12 – Check with running unit

• Check the fan rotation direction. Air must ﬂow from the condenser towards the fan.

• Check current draw and voltage.

• Check suction superheat to reduce risk of slugging.

• When a sight glass is provided observe the oil level at start and during operation to conﬁrm that the oil level remains visible.

• Respect the operating limits.

• Check all tubes for abnormal vibration. Movements in excess of 1.5 mm require corrective measures such as tube brackets.

• When needed, additional refrigerant in liquid phase may be added in the low-pressure side as far away as possible from the compressor. The compressor must be operating during this process.

• Do not overcharge the system.

• Never release refrigerant to atmosphere.

• Before leaving the installation site, carry out a general installation inspection regarding cleanliness, noise and leak detection.

• Record type and amount of refrigerant charge as well as operating conditions as a reference for future inspections.

13 – Maintenance

Always switch oﬀ the unit at main switch

before remove fan panel.

Internal pressure and surface temperature are dangerous and may cause permanent injury. Maintenance operators and installers require appropriate skills and tools. Tubing temperature may exceed 100°C and can cause severe burns.

Ensure that periodic service inspections to ensure system reliability and as required by local regulations are performed. To prevent system related problems, following Periodic maintenance is recommended:

• Verify that safety devices are operational and

properly set.

• Ensure that the system is leak tight.

• Check the compressor current draw.

• Conﬁrm that the system is operating in a way

consistent with previous maintenance records and ambient conditions.

• Check that all electrical connections are still adequately fastened.

• Keep the unit clean and verify the absence of rust and oxidation on the unit components, tubes and electrical connections.

The condenser must be checked at least once a year for clogging and be cleaned if deemed necessary. Access to the internal side of the condenser takes place through the fan panel. Microchannel coils tend to accumulate dirt on the surface rather than inside, which makes them easier to clean than ﬁn-&-tube coils.

• Switch oﬀ the unit at main switch before remove any panel from the condensing unit.

• Remove surface dirt, leaves, ﬁbres, etc. with a vacuum cleaner, equipped with a brush or other soft attachment. Alternatively, blow compressed air through the coil from the inside out, and brush with a soft bristle. Do not use a wire brush. Do not impact or scrape the coil with the vacuum tube or air nozzle.

If the refrigerant system has been opened, the system has to be ﬂushed with dry air or nitrogen to remove moisture and a new ﬁlter drier has to be installed. If evacuation of refrigerant has to be done, it shall be done in such a way that no refrigerant can escape to the environment.

14 - Warranty

Always transmit the model number and serial number with any claim ﬁled regarding this product. The product warranty may be void in following cases:

• Absence of nameplate.

• External modiﬁcations; in particular, drilling, welding, broken feet and shock marks.

• Compressor opened or returned unsealed.

• Rust, water or leak detection dye inside the compressor.

• Use of a refrigerant or lubricant not approved by Danfoss.

• Any deviation from recommended instructions pertaining to installation, application or maintenance.

• Use in mobile applications.

• Use in explosive atmospheric environment.

• No model number or serial number transmitted with the warranty claim.

15 – Disposal

Danfoss recommends that condensing units and oil should be recycled by a suitable company at its site.

16 - Fan speed controller setting for R134a/R513A refrigerant

FSC type

XGE-4C

Controller will be damaged if this warning is not followed

When Fan speed Controller is at factory setting (19 bar):

- Maximum number of turns allowed in clockwise direction (+) = 4.

- Maximum number of turns allowed in anti-clockwise direction (-) = 6

Fan speed Controller

Spare part number

061H3140

Refrigerant

letter

Q R404A/R452A/R507

R404A/R507/R448A/R449A/R452A

If refrigerant used is R134a or R513A

For Refrigerant

Factory

setting

19 bar

Turn the adjusting screw towards counterclockwise (-) by 6 turns to set the pressure

Action required

360°=1 turn = Approx 1.5 bar

(Clockwise rotation =

Increase pressure setting,

Counter clockwise rotation =

Decrease pressure setting)

from 19 bar to 10 bar.

118A0665D - AN238286441930en-001501 | 3

Instructions

17 - Dual Pressure Switch factory settings

Refrigerants

High pressure settings (bar (g)) Low pressure settings (bar (g))

ON OFF ON OFF R404A/R507/R448A/R449A/R452A 23 27 2 1 R134a/R513A 13 17 2 1

KP 17W, 17B

SPDT+LP signal

LP+HP signal

Cut In

Diﬀerential

Cut out

Max. 50 VA

Contacts

Use Copper wire only Tightening torque 20lb.in.

Listed refrigeration controller

Voltage

AC DC

240 81648 8A

A-B

120

A-C

A-D

-1 bar (Pe)(30in.Hg)

240

Cut In

Diﬀerential ﬁxed

Cut out

61B5

Resist.

Load

16A96

Pilot duty

When used acc. to UL regulations

12W

50VA

AC1 10A

LR 112A 400 V

AC3 10A AC11 10A

Cut out

Diﬀerential

Cut In

DC 11 12 W 220 V

Manual test

Manual reset

Test

Convertible reset

KP 17B 060-539366, 060-539466

LP-auto. HP-man.

LP-auto. HP-auto.

Test

HPLP, man. resetLP, aut. reset

Manual reset

LP diﬀ.

4 | AN238286441930en-001501 - 118A0665D

Instructions

OP-LPQE048 - 068, OP-MPVE034 - 046 - 057, OP-MPME048 - 060

OptymaTMSlim Pack

Chassis: B2

OP-LPQE067 - 084 - 098, OP-MPVE068 - 080 - 093 - 099 - 108

Chassis: B3

OptymaTMSlim Pack

118A0665D - AN238286441930en-001501 | 5

+ 11 hidden pages
