Danfoss MBT 9110 - 084Z7443 User guide [da]

Document type Myriad Pro Semibold 7 pt.
Product name - Myriad Pro bold 12/12
Operation Manual
Product type - Myriad Pro light 12/12
Temperature transmitter
xxxRxxxx
xxxRxxxx
bar code pl ace holder
bar code pl ace holder
© Danfoss | DCS (xxx) | YYYY.MM - Myriad Pro Regular 7 pt.
XXXX.XX.XXX.XX.XX.XXX | XXXAXXXX | 1
www.danfoss.com
INDEX
2-Wire Programmable Transmitter Page 3 - UK
2-Tråds Programmerbar Transmitter Side 10 - DK
Transm. 2-ls universel (Pt100/TC) Page 17 - FR
2-Leiter Universalmessumformer Seite 24 - DE
< < < <
© Danfoss | DCS (im) | 2017.072 | 520B7739 | IC.PS.P40.B3.52
ENGLISH
RTD to 4 – 20 mA
2-wire installation
TC
+
-
+
-
+
-
+
-
V+
mA
V+
mA
+
-
RTD to 4 – 20 mA
2-wire installation
in control room
2-wire installation
in control room
TC to 4 – 20 mA
2-wire installation
2-wire installation
2-WIRE PROGRAMMABLE TRANSMITTER
MBT 9110 - 084Z7443
CONTENTS
Application .............................................................................................................................................................................................. 3
Technical characteristics ..................................................................................................................................................................... 3
Mounting / installation ....................................................................................................................................................................... 3
Applications ............................................................................................................................................................................................ 3
Type / Version ......................................................................................................................................................................................... 4
Electrical specifications ....................................................................................................................................................................... 4
Connections ............................................................................................................................................................................................ 6
Block diagram ......................................................................................................................................................................................... 7
Programming .......................................................................................................................................................................................... 7
Mechanical specifications .................................................................................................................................................................. 8
Mounting of sensor wires .................................................................................................................................................................. 8
Appendix .................................................................................................................................................................................................. 8
- ATEX Installation drawing................................................................................................................................................................ 8
- Safety instructions .............................................................................................................................................................................. 9
• RTD, TC, Ohm, or mV input
• Extremely high measurement accuracy
• 1.5 kVAC galvanic isolation
• For DIN form B sensor head mounting
Application
• Linearised temperature measurement with Pt100 / Pt1000, Ni100 / Ni1000, or TC sensor
• Conversion of linear resistance variation to a standard analogue current signal, for instance from valves or Ohmic level sensors
Technical characteristics
• The RTD and resistance inputs have cable compensation for 2-, 3- and 4-wire connection
• Continuous check of vital stored data for safety reasons
Mounting / installation
• For DIN form B sensor head mounting
• In non-hazardous areas the MBT 9110, 084Z7443 can be mounted on a DIN rail with a special tting
APPLICATIONS
to 4 – 20 mA
+
-
+
+
-
-
+
+
-
-
in control room
2-wire installation
in control room
Resistance to 4 – 20 mA
V+
mA
+
+
-
-
mV to 4 – 20 mA
V+
mA
+
-
+
+
-
-
in control room
V+
mA
in control room
V+
mA
© Danfoss | DCS (im) | 2017.07 IC.PS.P40.B3.52 | 520B7739 | 3
TYPE
VERSION
Galvanic isolation 084Z7442 Galvanic isolation, EEx 084Z7443
MBT 9110
ELECTRICAL SPECIFICATIONS
Specications range -40 °C – 85 °C
Galvanic isolation MBT 9110, 084Z7442 7.2 – 35 V Galvanic isolation, EEx MBT 9110, 084Z7443 7.2 – 30 VDC
Common specications
Supply voltage, DC
Internal consumption 25 mW – 0.8 W Voltage drop 7.2 VDC Isolation voltage, test / operation 1.5 kVAC / 50 VAC Warm-up time 5 min. Communications interface Loop Link Signal / noise ratio min. 60 dB Response time (programmable) 1 – 60 s EEprom error check < 3.5 s Signal dynamics, input 20 bit Signal dynamics, output 16 bit Calibration temperature 20 – 28 °C
ACCURACY, THE GREATER OF GENERAL AND BASIC VALUES GENERAL VALUES
Input type Absolute accuracy Temperature coefficient
All ≤ ± 0.05% of span ≤ ± 0.01% of span / °C
BASIC VALUES
Input type Basic accuracy Temperature coefficient
RTD ≤ ± 0.2 °C ≤ ± 0.01 °C / °C Lin.R ≤ ± 0.1 Ω ≤ ± 10 mΩ / °C Volt ≤ ± 10 μV ≤ ± 1 μV / °C TC type: E, J, K, L, N, T, U ≤ ± 1 °C ≤ ± 0.05 °C / °C TC type: B, R, S, W3, W5, LR ≤ ± 2 °C ≤ ± 0.2 °C / °C EMC immunity inuence ≤ ± 0.5% of span Extended EMC immunity: NAMUR NE 21, A criterion, burst ≤ ± 1% of span
Eect of supply voltage variation ≤ 0,005% of span / VDC Vibration IEC 60068-2-6 Test FC Lloyd’s specication no. 1 4 g / 2 – 100 Hz Max. wire size 1 x 1.5 mm2 stranded wire Humidity < 95% RH (non-cond.) Dimensions ø44 x 20.2 mm Tightness (enclosure / terminal) IP68 / IP00 Weight 50 g
ELECTRICAL SPECIFICATIONS, INPUT RTD AND LINEAR RESISTANCE INPUT
RTD type Min. value Max. value Min. span Standard
Pt 100 -200 °C 850 °C 25 °C IEC 60751 Ni 100 -60 °C 250 °C 25 °C DIN 43760 Lin. R 0 Ω 5000 Ω 30 Ω
© Danfoss | DCS (im) | 2017.074 | 520B7739 | IC.PS.P40.B3.52
Max. oset 50% of selec. max. value Cable resistance per wire (max.) 5 Ω Sensor current nom. 0.2 mA Eect of sensor cable resistance (3- / 4-wire) < 0.002 Ω / Ω Sensor error detection Yes
TC INPUT
Typ e Min. temperature Max. temperature Min. span Standard
B 400 °C 1820 °C 200 °C IEC584 E -100 °C 1000 °C 50 °C IEC584 J -100 °C 1200 °C 50 °C IEC584 K -180 °C 1372 °C 50 °C IEC584 L -100 °C 900 °C 50 °C DIN 43710 N -180 °C 1300 °C 100 °C IEC584 R -50 °C 1760 °C 200 °C IEC584 S -50 °C 1760 °C 200 °C IEC584 T -200 °C 400 °C 50 °C IEC584 U -200 °C 600 °C 75 °C DIN 43710 W3 0 °C 2300 °C 200 °C ASTM E988-90 W5 0 °C 2300 °C 200 °C ASTM E988-90 LR -200 °C 800 °C 50 °C GOST 3044-84
Max. oset 50% of selec. max. value Cold junction compensation ≤ ± 1.0 °C Sensor error detection Yes
Sensor error current
When detecting nom. 33 mA Else 0 mA
VOLTAGE INPUT
Measurement range -12 – 800 mV Min. span 5 mV Max. oset 50% of selec. max. value Input resistance 10 mΩ
OUTPUT CURRENT OUTPUT
Signal range 4 – 20 mA Min. signal range 16 mA Updating time 440 ms Output signal at EEprom error ≤ 3.5 mA Load resistance ≤ (V Load stability ≤ ±0.01% of span / 100 Ω
- 7.2) / 0.023 [Ω]
supply
SENSOR ERROR DETECTION
Programmable 3.5 – 23 mA NAMUR NE43 Upscale 23 mA NAMUR NE43 Downscale 3.5 mA Of span = Of the presently selected range
© Danfoss | DCS (im) | 2017.07 IC.PS.P40.B3.52 | 520B7739 | 5
EEx approval MBT 9110, 084Z7443
KEMA 04ATEX1339
Max. amb. temperature for T4 85 °C Max. amb. temperature for T6 60 °C ATEX, applicable in zone 0, 1, 2, 20, 21 or 22 ATEX Installation Drawing No. MBT 9110 - 084Z7443
II 1 G Ex ia IIC T4 or T6 II 1 D Ex iaD
OBSERVED AUTHORITY REQUIREMENTS STANDARD
EMC 2004/108/EF Emission and immunity EN 61326-1
EN 60079-0, EN 60079-11
ATEX 94/9/EF
EN 60079-15, EN 60079-26 EN 61241-0, EN 61241-11

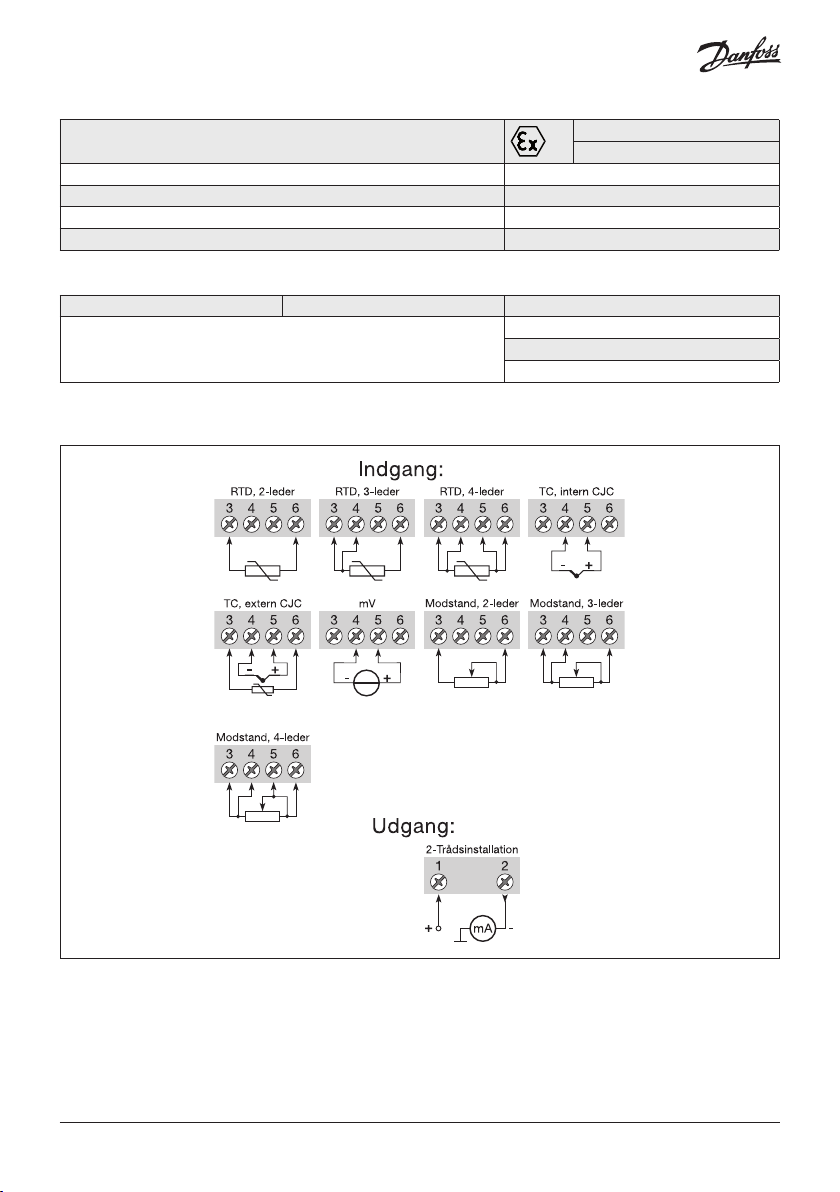

CONNECTIONS
© Danfoss | DCS (im) | 2017.076 | 520B7739 | IC.PS.P40.B3.52

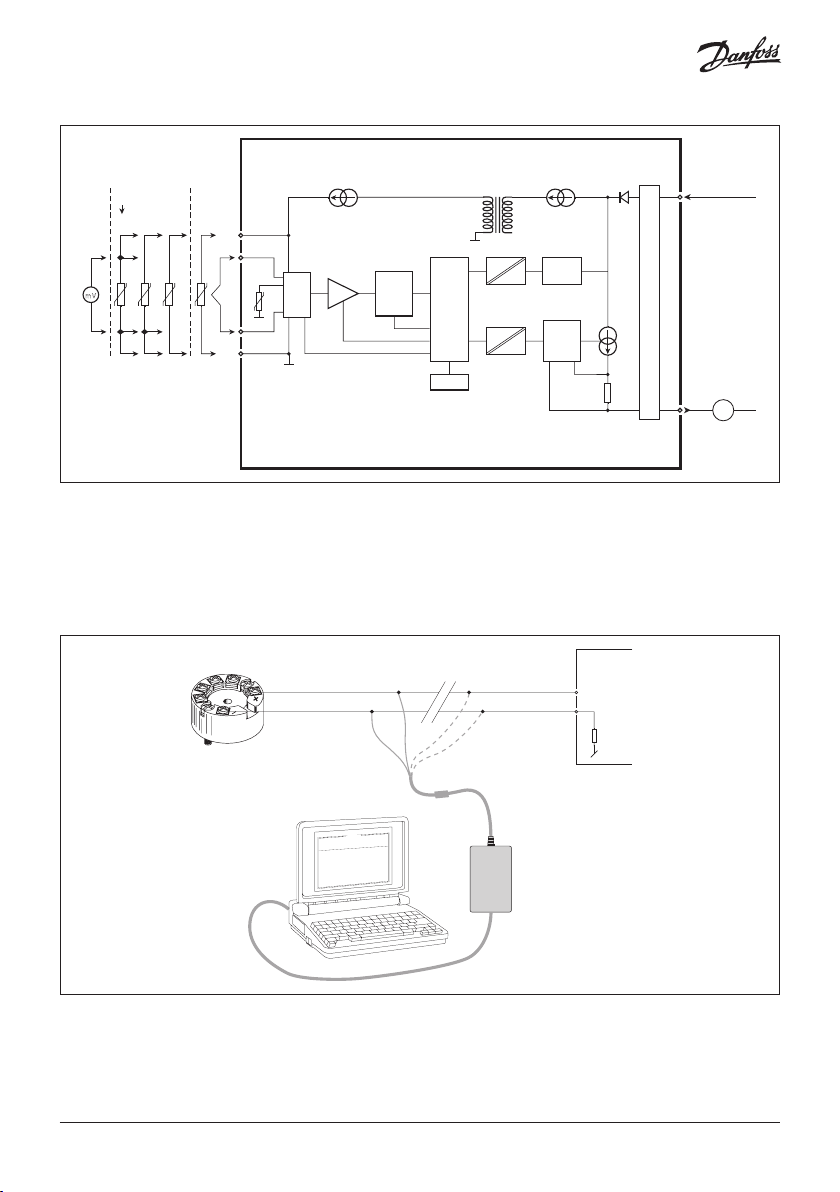

BLOCK DIAGRAM
0–16
mA
432
1
5
6
4
3
2
+
-
+
-
mV
mA
MUX
4 mA
MBT 9110
084Z7442, 084Z7443 EEx
PGA
D / A
Comu.
A / D
CPU
EEPROM
Input gnd.
Supply -
4 – 20 mA
TC
Ext. CJC
mV
RTD, lin. R
- wire
Int. CJC
Ex circuit, only 084Z7443
Supply +
7.2 – 35 VDC
PROGRAMMING
• Loop Link is a communications interface that is needed for programming MBT 9110
• For programming please refer to the drawing below and the help functions in PReset
• Loop Link is not approved for communication with modules installed in hazard ous (Ex) areas
ORDER: LOOP LINK
Receiving
1
2
Black
Disconnect
Red
Yellow
*
Green
*
Equipment
+Vsupply
Input
MBT 9110
Connector
File Product Input Output Communication Language Option 08:30:00
Pr etop 5331
Date: 2004-8.10 Serial No.: 043201594 Tag No.: PR electronics
Analog Input Analog Ouput Input Type: Pt 100 DIN / IEC Output Type: 4 – 20 mA Input Range: 0 – 50C Sensor error: Upscale Connection: 3-wire Cold junction comp: --------­Response time: 1.00 sec
Loop
Link
5909 - USB 5905 - RS232
* Connected only for on-line programming
© Danfoss | DCS (im) | 2017.07 IC.PS.P40.B3.52 | 520B7739 | 7
Mechanical specifications Mounting of sensor wires
APPENDIX ATEX Installation drawing
MBT 9110 - 084Z7443
ATEX Certicate KEMA 04ATEX 1339
Marking
Standards
II 1 G Ex ia IIC T6 – T4
II 1 D Ex iaD EN 60079-0 : 2006, EN 60079-11 : 2007, EN 60079-26 : 2007, EN 61241-0 : 2006, EN 61241-11 : 2006
Wires must be mounted
between the metal plates
Hazardous area
Zone: 0, 1, 2, 20, 21, 22
T4: -40 ≤ Ta ≤ 85 °C T6: -40 ≤ Ta ≤ 60 °C
Terminal: 3,4,5,6
Uo: 9.6 VDC Io: 25 mA Po: 60 mW Lo: 33 mH Co: 2.4 μF
6
5
4
3
Terminal: 1,2
Ui: 30 VDC Ii: 120 mA Pi: 0.84 W Li: 10 μH Ci: 1.0 μF
Non Hazardous Area
+
1
-
2
Barrier
© Danfoss | DCS (im) | 2017.078 | 520B7739 | IC.PS.P40.B3.52
INSTALLATION NOTES SAFETY INSTRUCTIONS
For safe installation of MBT 9110 084Z7443 the following must be observed. The module shall only be Installed by qualified personnel who are familiar with the national and international laws, directives and standards that apply to this area. Year of manufacture can be taken from the first two digits in the serial number.
The sensor circuit is not infallibly galvanic isolated from the input circuit. However, the galvanic isolation between the circuits is capable of withstanding a test voltage of 500 VAC during 1 minute.
In a potentially explosive gas atmosphere, the transmitter shall be mounted in an enclosure in order to provide a degree of protection of at least IP20 according to EN60529.
If the transmitter is installed in an explosive atmosphere requiring the use of equipment of category 1G and if the enclosure is made of aluminium, it must be installed such, that even in the event of rare incidents, ignition sources due to impact and friction, sparks are excluded; if the enclosure is made of non-metallic materials, electrostatic charging shall be avoided.
For installation in a potentially explosive dust atmosphere, the following instructions apply:
The transmitter shall be mounted in a metal enclosure form B according to DIN43729 that is providing a degree of protection of at least IP6X according to EN60529, that is suitable for the application and correctly installed.
Cable entries and blanking elements shall be used that are suitable for the application and correctly installed.
For an ambient temperature ≥ 60 °C, heat resistant cables shall be used with a rating of at least 20 K above the ambient temperature.
The surface temperature of the enclosure is equal to the ambient temperature plus 20 K, for a dust layer with a thickness up to 5 mm.
Danfoss A/S Danfoss Industrial Automation DK 6430 Nordborg Denmark Phone +45 7488 2222
© Danfoss | DCS (im) | 2017.07 IC.PS.P40.B3.52 | 520B7739 | 9
DANISH
RTD til 4 – 20 mA
2-Trådsinstallation
ådsinstallation
TC
+
-
+
-
+
-
+
-
V+
mA
V+
mA
+
-
RTD til 4 – 20 mA
2-Trådsinstallation
i kontrolrum
2-Trådsinstallation
i kontrolrum
TC til 4 – 20 mA
2-Trådsinstallation
ådsinstallation
2-TRÅDS PROGRAMMERBAR TRANSMITTER
MBT 9110 - 084Z7443
INDHOLDSFORTEGNELSE
Anvendelse .............................................................................................................................................................................................. 3
Teknisk karakteristik ............................................................................................................................................................................. 3
Montage / installation ......................................................................................................................................................................... 3
Applikationer .......................................................................................................................................................................................... 3
Type / Version ......................................................................................................................................................................................... 4
Elektriske specifikationer .................................................................................................................................................................... 4
Tilslutninger ............................................................................................................................................................................................ 6
Blokdiagram ............................................................................................................................................................................................ 7
Programmering ...................................................................................................................................................................................... 7
Mekaniske specifikationer ................................................................................................................................................................. 8
Montering af følerledninger .............................................................................................................................................................. 8
Appendix .................................................................................................................................................................................................. 8
- ATEX Installations drawing .............................................................................................................................................................. 8
- Sikkerhedsinstruktion ....................................................................................................................................................................... 9
• Indgang for RTD, TC, Ohm eller mV
• Ekstrem målenøjagtighed
• 1,5 kVAC galvanisk isolation
• Kan monteres i DIN form B følerhoved
Anvendelse
• Temperaturlineariseret måling med Pt100 / Pt1000, Ni100 / Ni1000 eller termoelementføler
• Omsætning af lineær modstandsændring til standard analogt strømsignal, f.eks. fra ventiler eller ohmske niveaustave
• Forstærkning af bipolært mV-signal til et standard 4 – 20 mA strømsignal
Teknisk karakteristik
• RTD og modstandsindgangen har kabelkompensering for 2-, 3- og 4-leder tilslutning
• Der er løbende sikkerhedscheck af gemte data
Montage / installation
• Kan monteres i DIN form B følerhoved
• I ikke-eksplosionsfarlige områder kan MBT 9110, 084Z7443 monteres på en DIN-skinne med et specielt beslag

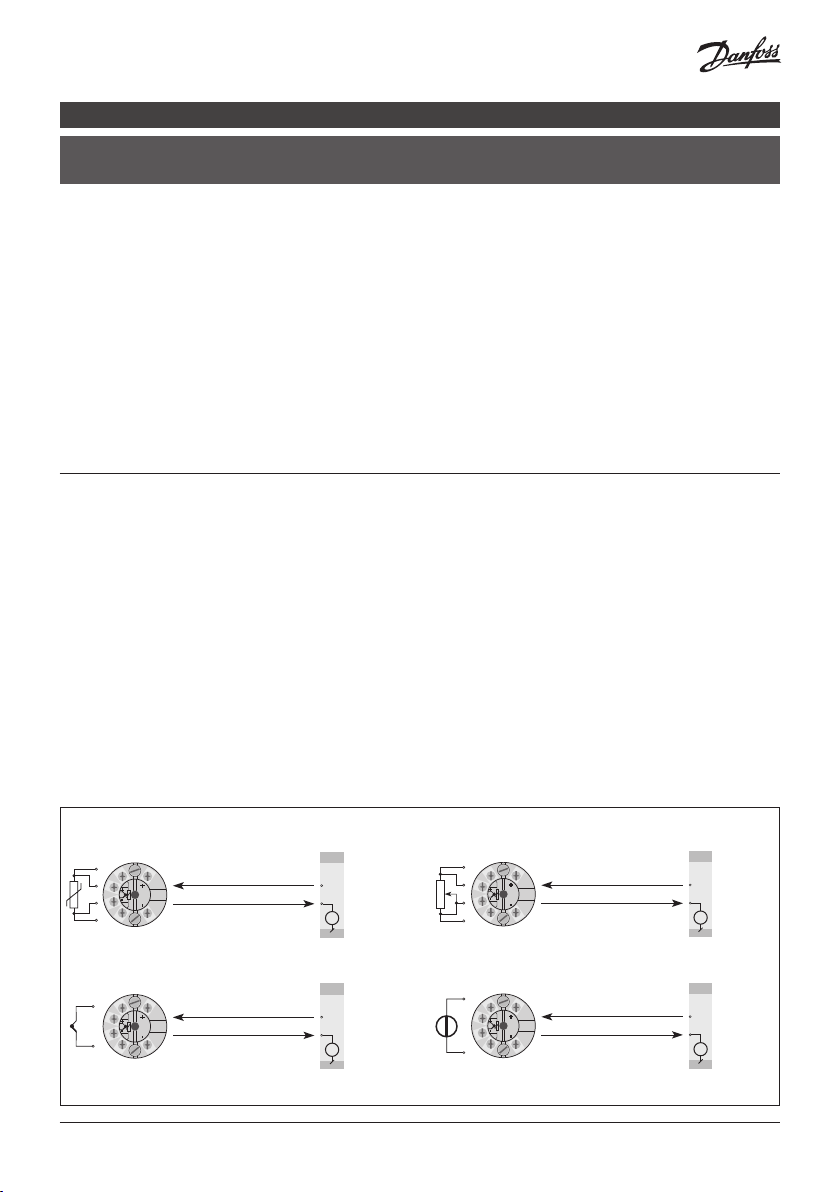

APPLIKATIONER
til 4 – 20 mA
+
-
+
+
-
-
+
+
-
-
i kontrolrum
2-Tr
i kontrolrum
Modstand til 4 – 20 mA
V+
mA
+
+
-
-
mV til 4 – 20 mA
V+
mA
+
-
+
+
-
-
i kontrolrum
2-Tr
i kontrolrum
V+
mA
V+
mA
© Danfoss | DCS (im) | 2017.0710 | 520B7739 | IC.PS.P40.B3.52
TYPE
VERSION
Galvanisk isolation 084Z7442 Galvanisk isolation, EEx 084Z7443
MBT 9110
ELEKTRISKE SPECIFIKATIONER
Specikationsområde -40 °C – 85 °C
Galvanisk isolation MBT 9110, 084Z7442 7,2 – 35 V Galvanisk isolation, EEx
MBT 9110, 084Z7443 7,2 – 30 VDC
Fælles specikationer
Forsyningsspænding DC
Egetforbrug 25 mW – 0.8 W Spændingsdrop 7,2 VDC Isolationsspænding, test / drift 1,5 kVAC / 50 VAC Opvarmningstid 5 min. Kommunikationsinterface Loop Link Signal- / støjforhold Min. 60 dB Reaktionstid (programmerbar) 1 – 60 s EEprom fejlcheck < 3,5 s Signaldynamik, indgang 20 bit Signaldynamik, udgang 16 bit Kalibreringstemperatur 20 – 28 °C
NØJAGTIGHED, STØRST AF GENERELLE OG BASISVÆRDIER GENERELLE VÆRDIER
Indgangs type Absolut nøjagtighed Temperaturkoefficient
Alle ≤ ± 0,05% af span ≤ ± 0,01% af span / °C
BASISVÆRDIER
Indgangstype Basis nøjagtighed Temperaturkoefficient
RTD ≤ ± 0,2 °C ≤ ± 0,01 °C / °C Lin.R ≤ ± 0,1 Ω ≤ ± 10 mΩ / °C Volt ≤ ± 10 μV ≤ ± 1 μV / °C TC type: E, J, K, L, N, T, U ≤ ± 1 °C ≤ ± 0,05 °C / °C TC type: B, R, S, W3, W5, LR ≤ ± 2 °C ≤ ± 0,2 °C / °C EMC-immunitetspåvirkning ≤ ± 0,5% af span Udvidet EMC-immunitet: NAMUR NE 21, A kriterium, gniststøj ≤ ± 1% af span
Virkning af forsyningsspændingsændring ≤ 0,005% af span / VDC Vibration IEC 60068-2-6 Test FC Lloyd’s specikation nr. 1 4 g / 2 – 100 Hz Max. ledningskvadrat 1 x 1,5 mm2 stranded wire Luftfugtighed < 95% RH (non-cond.) Mål ø44 x 20,2 mm Tæthedsgrad (hus / klemme) IP68 / IP00 Vægt 50 g
ELEKTRISKE SPECIFIKATIONER INDGANG RTD- OG LINEÆR MODSTANDSINDGANG
RTD type Min. værdi Max. værdi Min. span Standard
Pt 100 -200 °C 850 °C 25 °C IEC 60751 Ni 100 -60 °C 250 °C 25 °C DIN 43760 Lin. R 0 Ω 5000 Ω 30 Ω
© Danfoss | DCS (im) | 2017.07 IC.PS.P40.B3.52 | 520B7739 | 11
Max. nulpunktsforskydning (oset) 50% af valgt max. værdi Kabelmodstand pr. leder (max.) 5 Ω Følerstrøm nom. 0,2 mA Virkning af følerkabelmodstand (3- / 4-leder) < 0,002 Ω / Ω Følerfejlsdetektering ja
TC-INDGANG
Typ e Min. temperatu Max. temperatur Min. span Standard
B 400 °C 1820 °C 200 °C IEC584 E -100 °C 1000 °C 50 °C IEC584 J -100 °C 1200 °C 50 °C IEC584 K -180 °C 1372 °C 50 °C IEC584 L -100 °C 900 °C 50 °C DIN 43710 N -180 °C 1300 °C 100 °C IEC584 R -50 °C 1760 °C 200 °C IEC584 S -50 °C 1760 °C 200 °C IEC584 T -200 °C 400 °C 50 °C IEC584 U -200 °C 600 °C 75 °C DIN 43710 W3 0 °C 2300 °C 200 °C ASTM E988-90 W5 0 °C 2300 °C 200 °C ASTM E988-90 LR -200 °C 800 °C 50 °C GOST 3044-84
Max. nulpunktsforskydning (oset) 50% af valgt max. værdi Koldt loddestedskomp. (CJC) ≤ ± 1,0 °C Følerfejlsdetektering Yes
Følerfejlsstrøm
under detektering nom. 33 mA ellers 0 mA
SPÆNDINGSINDGANG
Måleområde -12 – 800 mV Min. måleområde (span) 5 mV Max. nulpunktsforskydning (oset) 50% af valgt max. værdi Indgangsmodstand 10 mΩ
UDGANG STRØMUDGANG
Signalområde 4 – 20 mA Min. signalområde 16 mA Opdateringstid 440 ms Udgangssignal ved EEpromfejl ≤ 3,5 mA Belastningsmodstand ≤ (V Belastningsstabilitet ≤ ±0,01% af span / 100 Ω
- 7,2) / 0,023 [Ω]
forsyn.
FØLERFEJLSDETEKTERING
Programmerbar 3,5 – 23 mA NAMUR NE43 Upscale 23 mA NAMUR NE43 Downscale 3,5 mA Af span = Af det aktuelt valgte område
© Danfoss | DCS (im) | 2017.0712 | 520B7739 | IC.PS.P40.B3.52
EEx-godkendelse MBT 9110, 084Z7443
KEMA 04ATEX1339
Max. omgivelsestemp. for T4 85 °C Max. omgivelsestemp. for T6 60 °C ATEX, må anvendes i zone 0, 1, 2, 20, 21 eller 22 ATEX Installation Drawing No. MBT 9110 - 084Z7443
II 1 G Ex ia IIC T4 eller T6 II 1 D Ex iaD
OVERHOLDTE MYNDIGHEDSKRAV STANDARD
EMC 2004/108/EF Emission og immunitet EN 61326-1
EN 60079-0, EN 60079-11
ATEX 94/9/EF
EN 60079-15, EN 60079-26 EN 61241-0, EN 61241-11
TILSLUTNINGER
© Danfoss | DCS (im) | 2017.07 IC.PS.P40.B3.52 | 520B7739 | 13
BLOKDIAGRAM
0–16
mA
432
1
5
6
4
3
2
+
-
+
-
mV
mA
MUX
4 mA
MBT 9110
084Z7442, 084Z7443 EEx
PGA
D / A
Comu.
A / D
CPU
EEPROM
Indgang gnd.
Forsyning -
4 – 20 mA
Forsyning + 7,2 – 35 VDC
TC
Ext. CJC
mV
RTD, lin. R
- tråd
Ex-kredsløb, kun 084Z7443
Int. CJC
PROGRAMMERING
• Loop Link er et batteridrevet kommunikationsinterface, der er nødvendigt for programmering af MBT 9110
• Ved programmering henvises til tegningen nedenfor og hjælpefunktionen i PReset programmet
• Loop Link må ikke benyttes til kommunikation med moduler installeret i Ex-område
BESTILLING: LOOP LINK
Modtagende
1
2
Sort
Afbryd
Rød
Gul
*
Grøn
*
udstyr
+Vforsyning
Indgang
MBT 9110
Stikfor-
bindelse
File Product Input Output Communication Language Option 08:30:00
Pr etop 5331
Date: 2004-8.10 Serial No.: 043201594 Tag No.: PR electronics
Analog Input Analog Ouput Input Type: Pt 100 DIN / IEC Output Type: 4 – 20 mA Input Range: 0 – 50C Sensor error: Upscale Connection: 3-wire Cold junction comp: --------­Response time: 1.00 sec
Loop
Link
5909 - USB 5905 - RS232
* Kun forbundet ved on-line programmering
© Danfoss | DCS (im) | 2017.0714 | 520B7739 | IC.PS.P40.B3.52
Mekaniske specifikationer Montering af følerledninger
APPENDIX ATEX Installation drawing
MBT 9110 - 084Z7443
ATEX Certicate KEMA 04ATEX 1339
Marking
Standards
II 1 G Ex ia IIC T6 – T4
II 1 D Ex iaD EN 60079-0 : 2006, EN 60079-11 : 2007, EN 60079-26 : 2007, EN 61241-0 : 2006, EN 61241-11 : 2006
Hazardous area
Zone: 0, 1, 2, 20, 21, 22
T4: -40 ≤ Ta ≤ 85 °C T6: -40 ≤ Ta ≤ 60 °C
Terminal: 3,4,5,6
Uo: 9.6 VDC Io: 25 mA Po: 60 mW Lo: 33 mH Co: 2.4 μF
6
5
4
3
Terminal: 1,2
Ui: 30 VDC Ii: 120 mA Pi: 0.84 W Li: 10 μH Ci: 1.0 μF
Non Hazardous Area
+
1
-
2
Barrier
Ledninger monteres mellem
metalpladerne
© Danfoss | DCS (im) | 2017.07 IC.PS.P40.B3.52 | 520B7739 | 15
BEMÆRKNINGER TIL INSTALLERING SIKKERHEDSINSTRUKTION
For at gennemføre en sikker installering af MBT 9110 084Z7443 skal følgende overholdes. Modulet må kun installeres af kvalificeret personale, der er bekendt med gældende nationale og internationale love, direktiver og standarder inden for dette område. Produktionsåret fremgår af de første to cifre i serienummeret.
Følerkredsløbet er ikke ufejlbarligt galvanisk isoleret fra indgangskredsløbet. Den galvaniske isolation mellem kredsløbene er dog i stand til at modstå en prøvespænding på 500 VAC i løbet af ét minut.
I en potentielt eksplosiv gasatmosfære skal transmitteren monteres i en kapsling, så man opnår en beskyttelsesgrad på min. IP20 i henhold til EN 60529.
Installeres transmitteren i en eksplosiv atmosfære, der kræver udstyr i kategori 1G, og hvis kapslingen er lavet af aluminium, skal den installeres således, at gnister fra antændelseskilder ved slag og friktion selv under usædvanlige omstændigheder holdes ude. Er kapslingen lavet af ikke-metalliske materialer, skal elektrostatisk opladning undgås.
Ved installering i en atmosfære med potentielt eksplosivt støv følges disse anvisninger:
Transmitteren skal monteres i en metalkapsling form B i henhold til DIN 43729, der yder en beskyttelsesgrad på min. IP6X i henhold til EN 60529. Kapslingen skal være egnet til applikationen og installeret korrekt.
Der må kun anvendes kabelindgange og blindstik, der er egnet til applikationen og installeret korrekt.
Ved en omgivende temperatur på ≥ 60º C skal der anvendes varmebestandige kabler med en klassificering på mindst 20 K over den omgivende temperatur.
Kapslingens overfladetemperatur er lig med den omgivende temperatur plus 20 K ved et støvlag med en tykkelse på op til 5 mm.
Danfoss A/S Danfoss Industrial Automation DK 6430 Nordborg Denmark Phone +45 7488 2222
© Danfoss | DCS (im) | 2017.0716 | 520B7739 | IC.PS.P40.B3.52
FRANÇAIS
RTD en 4 – 20 mA
mAInstallation 2-lsen
TC
+
-
+
-
+
-
+
-
V+
mA
V+
mA
+
-
RTD en 4 – 20 mA
mAInstallation 2-lsen
salle de contrôle
mAInstallation 2-lsen
salle de contrôle
TC en 4 – 20 mA
mAInstallation 2-lsen
mAInstallation 2-lsen
TRANSMETTEUR 2-FILS UNIVERSEL (Pt100 / TC)
MBT 9110 - 084Z7443
SOMMAIRE
Application ........................................................................................................................................................................................... 17
Caractéristiques techniques ........................................................................................................................................................... 17
Montage / installation ...................................................................................................................................................................... 17
Applications ......................................................................................................................................................................................... 17
Type / Version ...................................................................................................................................................................................... 18
Spécifications électriques ............................................................................................................................................................... 18
Connexions ........................................................................................................................................................................................... 20
Schéma de principe........................................................................................................................................................................... 21
Programmation ................................................................................................................................................................................... 21
Dimensions mécaniques ................................................................................................................................................................. 22
Montage des fils du capteur .......................................................................................................................................................... 22
Appendix ............................................................................................................................................................................................... 22
ATEX Installation drawing ............................................................................................................................................................... 22
Consigne de sécurité ........................................................................................................................................................................ 23
• Entrée RTD, TC, Ohm ou mV
• Trés grande précision de mesure
• Isolation galvanique de 1,5 kVAC
• Pour tête de sonde DIN B
Application
• Mesure linéarisée de la température avec un capteur Pt100 / Pt1000, Ni100 / Ni1000 ou de thermocouples
• Conversion d’une résistance linéaire en un signal courant standard analogique pour mesurer par exemple le niveau ou la position d’une vanne
• Amplication d’un signal mV bipolaire en un signal courant standard de 4 – 20 mA
Caractéristiques techniques
• Compensation de ligne pour des entrées RTD et résistance avec un raccordement à 2, 3 et 4 ls
• Vérication continue des données sauvegardées
Montage / installation
• Pour tête de sonde DIN B. En zone non-dangereuse le MBT 9110, 084Z7443 peut être monté sur rail DIN avec un raccord spécial
APPLICATIONS
+
+
-
-
salle de contrôle
Résistance en 4 – 20 mA
+
V+
mA
+
-
-
salle de contrôle
V+
mA
en 4 – 20 mA
+
+
-
-
+
-
mAInstallation 2-lsen
salle de contrôle
V+
mA
mV en 4 – 20 mA
+
+
-
-
+
-
© Danfoss | DCS (im) | 2017.07 IC.PS.P40.B3.52 | 520B7739 | 17
salle de contrôle
V+
mA
TYPE
VERSION
Isolation galvanique 084Z7442 Isolation galvanique, EEx 084Z7443
MBT 9110
SPÉCIFICATIONS ÉLECTRIQUES
Plage des spécications -40 °C – 85 °C
Isolation galvanique MBT 9110, 084Z7442 7.2 – 35 V Isolation galvanique, EEx MBT 9110, 084Z7443 7.2 – 30 VDC
Common specications
Tension d’alimentation, CC
Consommation interne 25 mW – 0.8 W Chute de tension 7.2 VDC Tension d’isolation, test / opération 1.5 kVAC / 50 VAC Temps de chaue 5 min. Kit de programmation Loop Link Rapport signal / bruit min. 60 dB Temps de réponse (programmable) 1 – 60 s Vérication de l’EEprom < 3.5 s Dynamique du signal d’entrée 20 bit Dynamique du signal de sortie 16 bit Température d’étalonnage 20 – 28 °C
PRÉCISION, LA PLUS GRANDE DES VALEURS GÉNÉRALES ET DE BASE VALEURS GÉNÉRALES
Type d’entrée Précision absolue Coefficient de température
All ≤ ± 0,05% de l’EC ≤ ± 0,01% de l’EC / °C
VALEURS DE BASE
Type d’entrée Précision de base Coefficient de température
RTD ≤ ± 0.2 °C ≤ ± 0,01 °C / °C R. Lin. ≤ ± 0.1 Ω ≤ ± 10 mΩ / °C Volt ≤ ± 10 μV ≤ ± 1 μV / °C TC type: E, J, K, L, N, T, U ≤ ± 1 °C ≤ ± 0,05 °C / °C TC type: B, R, S, W3, W5, LR ≤ ± 2 °C ≤ ± 0,2 °C / °C Immunité CEM ≤ ± 0,5% de l’EC Immunité CEM améliorée : NAMUR NE 21, critère A, burst ≤ ± 1% de l’EC
Eet d’une variation de la tension d’alimentation ≤ 0,005% of span / VDC Vibration IEC 60068-2-6 Test FC Lloyd, spécication no. 1 4 g / 2 – 100 Hz Taille max. des ls 1 x 1,5 mm2 stranded wire Humidité < 95% RH (sans cond.) Dimensions ø44 x 20,2 mm Etanchéité (boitier / bornier) IP68 / IP00 Poids 50 g
SPÉCIFICATIONS ÉLECTRIQUES, ENTRÉE ENTRÉE RTD ET ENTRÉE RÉSISTANCE LINÉAIRE
RTD type Valeur min. Valeur max. Plage min. Standard
Pt 100 -200 °C 850 °C 25 °C IEC 60751 Ni 100 -60 °C 250 °C 25 °C DIN 43760 Lin. 0 Ω 5000 Ω 30 Ω
© Danfoss | DCS (im) | 2017.0718 | 520B7739 | IC.PS.P40.B3.52
Décalage max. 50% de la valeur max. sélec. Résistance de ligne max. par ls 5 Ω Courant de sonde nom. 0,2 mA Eet de la résistance de ligne (3 / 4 ls) < 0,002 Ω / Ω Détection de rupture sonde Oui
ENTRÉE TC
Typ e Température min. Température max. Plage min. Standard
B 400 °C 1820 °C 200 °C IEC584 E -100 °C 1000 °C 50 °C IEC584 J -100 °C 1200 °C 50 °C IEC584 K -180 °C 1372 °C 50 °C IEC584 L -100 °C 900 °C 50 °C DIN 43710 N -180 °C 1300 °C 100 °C IEC584 R -50 °C 1760 °C 200 °C IEC584 S -50 °C 1760 °C 200 °C IEC584 T -200 °C 400 °C 50 °C IEC584 U -200 °C 600 °C 75 °C DIN 43710 W3 0 °C 2300 °C 200 °C ASTM E988-90 W5 0 °C 2300 °C 200 °C ASTM E988-90 LR -200 °C 800 °C 50 °C GOST 3044-84
Décalage max. 50% de la valeur max. sélec. Compensation de soudure froide ≤ ± 1,0 °C Détection de rupture de sonde Oui
Courant de sonde
Pendant la détection nom. 33 mA Si non 0 mA
ENTRÉE TENSION
Gamme de mesure -12 – 800 mV Plage de mesure min. 5 mV Décalage max. 50% de la valeur max. sélec. Résistance d’entrée 10 mΩ
SORTIE SORTIE COURANT
Gamme de mesure 4 – 20 mA Plage de mesure min. 16 mA Temps de scrutation 440 ms Sortie en cas de corruption de l’EEprom ≤ 3,5 mA Résistance de charge ≤ (V Stabilité de charge ≤ ±0,01% of span / 100 Ω
- 7,2) / 0,023 [Ω]
alim.
SENSOR ERROR DETECTION
Programmable 3,5 – 23 mA NAMUR NE43 Haut d’échelle 23 mA NAMUR NE43 Bas d’échelle 3,5 mA EC = Echelle congurée
© Danfoss | DCS (im) | 2017.07 IC.PS.P40.B3.52 | 520B7739 | 19
APPROBATION EEx MBT 9110, 084Z7443
KEMA 04ATEX1339
Température amb. max. (T4) 85 °C Température amb. max. (T6) 60 °C ATEX, applicable en zone 0, 1, 2, 20, 21 or 22 ATEX Installation Drawing No. MBT 9110 - 084Z7443
II 1 G Ex ia IIC T4 or T6 II 1 D Ex iaD
AGRÉMENTS ET HOMOLOGATIONS STANDARD
CEM (EMC) 2004/108/CE Emission et immunité EN 61326-1
EN 60079-0, EN 60079-11
ATEX 94/9/CE
EN 60079-15, EN 60079-26 EN 61241-0, EN 61241-11
CONNEXIONS
© Danfoss | DCS (im) | 2017.0720 | 520B7739 | IC.PS.P40.B3.52
DCPUEEPROMSCHEMA DE PRINCIPE
e
0 –16
mA
432
1
5
6
4
3
2
+
-
+
-
mV
mA
MUX
4 mA
MBT 9110
084Z7442, 084Z7443 EEx
PGA
D / A
Comu.
A / D
CPU
EEPROM
Entrée masse
Alimentation -
4 – 20 mA
TC
CSF ext.
mV
RTD, R. lin.
- ls
CSF int.
Circuit S.I., seulement 084Z7443
Alimentation +
7,2 – 35 VCC
PROGRAMMATION
• Loop Link est un kit de programmation permettant de programmer le MBT 9110
• Pour le raccordement du Loop Link, veuillez vous reporter au schéma ci--dessous et à l’aide en ligne du logiciel PReset
• Loop Link ne doit pas être utilisé pour communication avec des modules installés en zone dangereuse
NUMÉRO DE RÉFÉRENCE: LOOP LINK
API ou autres
+Valim.
Entrée
1
2
Noir
Rouge
Débranché
Jaune
*
Verte
*
MBT 9110
Connecteur
File Product Input Output Communication Language Option 08:30:00
Pr etop 5331
Date: 2004-8.10 Serial No.: 043201594 Tag No.: PR electronics
Analog Input Analog Ouput Input Type: Pt 100 DIN / IEC Output Type: 4 – 20 mA Input Range: 0 – 50C Sensor error: Upscale Connection: 3-wire Cold junction comp: --------­Response time: 1.00 sec
© Danfoss | DCS (im) | 2017.07 IC.PS.P40.B3.52 | 520B7739 | 21
Loop
Link
5909 - USB 5905 - RS232
* Connexion facultativ
Dimensions mécaniques Montage des fils du capteur
APPENDIX ATEX Installation drawing
MBT 9110 - 084Z7443
ATEX Certicate KEMA 04ATEX 1339
Marking
Standards
II 1 G Ex ia IIC T6 – T4
II 1 D Ex iaD EN 60079-0 : 2006, EN 60079-11 : 2007, EN 60079-26 : 2007, EN 61241-0 : 2006, EN 61241-11 : 2006
Les fils doivent être montés
entre les plaques métalliques
Hazardous area
Zone: 0, 1, 2, 20, 21, 22
T4: -40 ≤ Ta ≤ 85 °C T6: -40 ≤ Ta ≤ 60 °C
Terminal: 3,4,5,6
Uo: 9.6 VDC Io: 25 mA Po: 60 mW Lo: 33 mH Co: 2.4 μF
6
5
4
3
Terminal: 1,2
Ui: 30 VDC Ii: 120 mA Pi: 0.84 W Li: 10 μH Ci: 1.0 μF
Non Hazardous Area
+
1
-
2
Barrier
© Danfoss | DCS (im) | 2017.0722 | 520B7739 | IC.PS.P40.B3.52
NOTES CONCERNANT L’INSTALLATION CONSIGNE DE SÉCURITÉ
Pour l’installation sûre du MBT 9110 084Z 7443, il convient de suivre les instructions suivantes. Le module ne doit être installé que par du personnel qualifié connaissant la législation nationale et internationale ainsi que les directives et normes régissant ce domaine. L’année de production est indiquée par les deux premiers chiffres du numéro de série.
L’isolation galvanique entre le circuit du capteur et le circuit d’entrée n’est pas infaillible. Cependant, l’isolation galvanique entre les circuits est capable de résister à une tension de test de 500 V CA pendant 1 minute.
Dans les atmosphères gazeuses potentiellement explosives, le transmetteur doit être monté dans un boîtier afin de garantir un degré de protection d’au moins IP20 conformément à la norme EN 60529.
Si le transmetteur est installé dans une atmosphère explosive nécessitant l’usage d’un équipement de catégorie 1G et si le boîtier est en aluminium, il doit être monté d’une telle manière que, même dans le cas d’incidents rares, les sources d’inflammation dues aux impacts et à la friction, et les étincelles ne puissent se produire. Si le boîtier est construit dans des matériaux non métalliques, la charge électrostatique doit être évitée.
Pour l’installation dans des atmosphères poussiéreuses potentiellement explosives, les instructions suivantes s’appliquent:
Le transmetteur doit être monté dans un boîtier métallique de forme B conformément à DIN 43729 assurant un degré de protection d’au moins IP6X conformément à la norme EN 60529. Ce boîtier doit convenir à l’application et il doit être correctement installé.
Seuls des entrées de câble et des bouchons convenant à l’application et correctement installés doivent être utilisés.
Pour une température ambiante ≥ 60 °C, il faut utiliser des câbles résistant aux températures élevées avec une capacité nominale d’au moins 20 K au-dessus de la température ambiante.
La température de surface du boîtier est égale à la température ambiante plus 20 K, pour une couche de poussière d’une épaisseur de 5 mm.
Danfoss A/S Danfoss Industrial Automation DK 6430 Nordborg Denmark Phone +45 7488 2222
© Danfoss | DCS (im) | 2017.07 IC.PS.P40.B3.52 | 520B7739 | 23
DEUTSCH
2-Draht-Installation
2-Draht-Installation
+
-
+
-
+
-
+
-
V+
mA
V+
mA
+
-
WTH in 4 – 20 mA
TE in 4 – 20 mA
W
2-Draht-Installation
2-Draht-Installation
2-Draht-Installation
im Kontrollraum
2-Draht-Installation
im Kontrollraum
2-DRAHT UNIVERSALMESSUMFORMER
MBT 9110 - 084Z7443
INHALTSVERZEICHNIS
Verwendung......................................................................................................................................................................................... 24
Technische Merkmale: ...................................................................................................................................................................... 24
Mounting / installation .................................................................................................................................................................... 24
Anwendungen..................................................................................................................................................................................... 24
Typ / Version ......................................................................................................................................................................................... 25
Elektrische Daten................................................................................................................................................................................ 25
Anschlüsse ............................................................................................................................................................................................ 27
Blockdiagramm ................................................................................................................................................................................... 28
Programmierung ................................................................................................................................................................................ 28
Abmessungen ..................................................................................................................................................................................... 29
Montage von Fühlerleitungen ...................................................................................................................................................... 29
Appendix ............................................................................................................................................................................................... 29
- ATEX Installation drawing.............................................................................................................................................................29
- Sicherheitsinstruktion .................................................................................................................................................................... 30
• Eingang für WTH, TE, Ω oder mV
• Extreme Messgenauigkeit
• 1,5 kVAC mit galvanische Trennung
• Für Einbau in Anschlusskopf DIN Form B
Verwendung
• Linearisierte Temperaturmessung mit Pt100 / Pt1000, Ni100 / Ni1000 oder Thermoelementsensor
• Umwandlung von linearer Widerstandsänderung in ein analoges Standard- Stromsignal, z.B. von Ventilen oder Niveau-Messwertgeber
• Verstärkung von bipolaren mV-Signalen zu einem Standard 4 – 20 mA Stromsignal
Technische Merkmale:
• Der WTH- und Widerstandseingang haben Leitungskompensation bei 2-, 3- oder 4- Leiter-Anschluss
• Die gespeicherten Daten werden laufend kontrolliert
Mounting / installation
• Für DIN Form B Sensorkopf Montage. Im sicheren Bereich kann der MBT 9110, 084Z7443 auf einer DIN-Schiene mittels eines speziellen Beschlages.
ANWENDUNGEN
WTH in 4 – 20 mA
+
-
TE in 4 – 20 mA
+
+
-
-
+
-
+
-
im Kontrollraum
V+
mA
im Kontrollraum
V+
mA
iderstand in 4 – 20 mA
+
+
-
-
mV in 4 – 20 mA
+
-
+
+
-
-
im Kontrollraum
V+
mA
im Kontrollraum
V+
mA
© Danfoss | DCS (im) | 2017.07 IC.PS.P40.B3.52 | 520B7739 | 24
TYP
VERSION
Galvanische Isolation 084Z7442 Galvanische Isolation, EEx 084Z7443
MBT 9110
ELEKTRISCHE DATEN
Spezikationsbereich -40 °C – 85 °C
Galvanische Isolation MBT 9110, 084Z7442 7,2 – 35 V Galvanische Isolation, EEx MBT 9110, 084Z7443 7,2 – 30 VDC
Allgemeine Daten
Versorgung­sspannung, DC
Eigenverbrauch 25 mW – 0,8 W Spannungsabfall 7,2 VDC Isolationsspannung, Test / Betrieb 1,5 kVAC / 50 VAC Aufwärmzeit 5 min, Kommunikationsschnittstelle Loop Link Signal- / Rauschverhältnis min, 60 dB Ansprechzeit (programmierbar) 1 – 60 s EEprom Fehlerkontrolle < 3,5 s Signaldynamik, Eingang 20 bit Signaldynamik, Ausgang 16 bit Kalibrierungstemperatur 20 – 28 °C
GENAUIGKEIT, HÖHERER WERT VON ALLGEMEINEN UND GRUNDWERTEN ALLGEMEINE WERTE
Eingangsart Absolute Genauigkeit Temperatur koeffizient
Alle ≤ ± 0,05% d. Messsp. ≤ ± 0,01% d. Messsp. / °C
GRUNDWERTE
Eingangsart Grund Genauigkeit Temperatur koeffizient
WTH ≤ ± 0,2 °C ≤ ± 0,01 °C / °C Lin.R ≤ ± 0,1 Ω ≤ ± 10 mΩ / °C Volt ≤ ± 10 μV ≤ ± 1 μV / °C TE-typ: E, J, K, L, N, T, U ≤ ± 1 °C ≤ ± 0,05 °C / °C TE-typ: B, R, S, W3, W5, LR ≤ ± 2 °C ≤ ± 0,2 °C / °C EMV-Immunitätswirkung ≤ ± 0,5% d. Messsp. Erweiterte EMV-Immunität: NAMUR NE 21, A Kriterium, Burst ≤ ± 1% d. Messsp.
Einuss von Änderung der Versorgungsspannung ≤ 0,005% d. Messsp. / VDC Vibration IEC 60068-2-6 Test FC Lloyd’s Spezikation Nr. 1 4 g / 2 – 100 Hz Max. Leitungsquerschnitt 1 x 1,5 mm2 Litzendraht Luftfeuchtigkeit < 95% RH (nicht kond.) Maß ø44 x 20,2 mm Schutzart (Gehäuse / Anschluss) IP68 / IP00 Gewicht 50 g
ELEKTRISCHE DATEN, EINGANG WTH- UND LINEARER WIDERSTANDSEINGANG
WTH-Typ Min. Wert Max. Wert Min. Spanne Norm
Pt 100 -200 °C 850 °C 25 °C IEC 60751 Ni 100 -60 °C 250 °C 25 °C DIN 43760 Lin. R 0 Ω 5000 Ω 30 Ω
© Danfoss | DCS (im) | 2017.07 IC.PS.P40.B3.52 | 520B7739 | 25
Max. Nullpunktverschiebung (Oset) 50% des gewählten Maximalwertes Leitungswiderstand pro Leiter (max.) 5 Ω Sensorstrom nom. 0,2 mA Wirkung des Fühlerkabelwiederstandes (3- / 4-Leiter) < 0,002 Ω / Ω Fühlerfehlererkennung ja
TE-EINGANG
Typ e Min. temperatur Max. temperatur Min. spanne Norm
B 400 °C 1820 °C 200 °C IEC584 E -100 °C 1000 °C 50 °C IEC584 J -100 °C 1200 °C 50 °C IEC584 K -180 °C 1372 °C 50 °C IEC584 L -100 °C 900 °C 50 °C DIN 43710 N -180 °C 1300 °C 100 °C IEC584 R -50 °C 1760 °C 200 °C IEC584 S -50 °C 1760 °C 200 °C IEC584 T -200 °C 400 °C 50 °C IEC584 U -200 °C 600 °C 75 °C DIN 43710 W3 0 °C 2300 °C 200 °C ASTM E988-90 W5 0 °C 2300 °C 200 °C ASTM E988-90 LR -200 °C 800 °C 50 °C GOST 3044-84
Max. Nullpunktverschiebung (Oset) 50% des gewählten Maximalwertes Vergleichstellenkompensation (CJC) ≤ ± 1,0 °C Fühlerfehlererkennung Ye s
Fühlerfehlerstrom
Bei Erkennung nom. 33 mA Sonst 0 mA
SPANNUNGSEINGANG
Messbereich -12 – 800 mV Min. Messbereich (Spanne) 5 mV Max. Nullpunktverschiebung (Oset) 50% des gewählten Maximalwertes Eingangswiederstand 10 mΩ
AUSGANG STROMAUSGANG
Signalbereich 4 – 20 mA Min. Signalbereich 16 mA Aktualisierungszeit 440 ms Ausgangssignal bei EEpromfehler ≤ 3,5 mA Belastungswiederstand ≤ (V Belastungsstabilität ≤ ±0,01% d. Messsp. / 100 Ω
- 7,2) / 0,023 [Ω]
Versorg.
SENSORFEHLANZEIGE
Programmierbar 3,5 – 23 mA NAMUR NE43 aufsteuernd 23 mA NAMUR NE43 zusteuernd 3,5 mA d. Messspanne = der gewählten Messspanne
© Danfoss | DCS (im) | 2017.07 IC.PS.P40.B3.52 | 520B7739 | 26
EEx-Zulassungen: MBT 9110, 084Z7443
KEMA 04ATEX1339
Max. Umgebungstemp. für T4 85 °C Max. Umgebungstemp. für T6 60 °C ATEX, für Anwendung in Zone 0, 1, 2, 20, 21 oder 22 ATEX Installation Drawing No. MBT 9110 - 084Z7443
II 1 G Ex ia IIC T4 oder T6 II 1 D Ex iaD
EINGEHALTENE RICHTLINIEN NORM
EMV 2004/108/EC Emission und Immunität EN 61326-1
EN 60079-0, EN 60079-11
ATEX 94/9/EC
EN 60079-15, EN 60079-26 EN 61241-0, EN 61241-11
ANSCHLÜSSE
© Danfoss | DCS (im) | 2017.07 IC.PS.P40.B3.52 | 520B7739 | 27
BLOCKDIAGRAMM
0–16
mA
432
1
5
6
4
3
2
+
-
+
-
mV
mA
MUX
4 mA
MBT 9110
084Z7442, 084Z7443 EEx
PGA
D / A
Comu.
A / D
CPU
EEPROM
Eingang Masse
Versorgung -
4 – 20 mA
TE
Ext. CJC
mV
WTH, lin. R
- Draht
Int. CJC
Ex-Kreislauf, nur 084Z7443
Versorgung +
7,2 – 35 VDC
soll.
PROGRAMMIERUNG
• Loop Link ist eine batteriegespeiste Schnittstelle zur Programmierung des MBT 9110
• Bezüglich Programmierung verweisen wir auf die nachfolgende Zeichnung und die “Hilfe”-Funktion im PReset-Programm
• Loop Link darf nicht zur kommunikation mit Modulen, die in Ex-gefährdeten Bereichen installiert sind, benutz werden
BESTELLANGABE: LOOP LINK
Betriebs­spannung
+VB
Eingang
MBT 9110
1
2
Schwarz
Rot
Unterbrechen
Gelb
*
Grün
*
Anschlussstelle
File Product Input Output Communication Language Option 08:30:00
Pr etop 5331
Date: 2004-8.10 Serial No.: 043201594 Tag No.: PR electronics
Analog Input Analog Ouput Input Type: Pt 100 DIN / IEC Output Type: 4 – 20 mA Input Range: 0 – 50C Sensor error: Upscale Connection: 3-wire Cold junction comp: --------­Response time: 1.00 sec
© Danfoss | DCS (im) | 2017.07 IC.PS.P40.B3.52 | 520B7739 | 28
5909 - USB
Loop
5905 - RS232
Link
* Nur anzuschliessen, wenn on-line (im Betrieb) konguriert werden
Abmessungen Montage von Fühlerleitungen
Die Leitungen müssen zwischen den
Metallplatten montiert werden
APPENDIX ATEX Installation drawing
MBT 9110 - 084Z7443
ATEX Certicate KEMA 04ATEX 1339
Marking
Standards
II 1 G Ex ia IIC T6 – T4
II 1 D Ex iaD EN 60079-0 : 2006, EN 60079-11 : 2007, EN 60079-26 : 2007, EN 61241-0 : 2006, EN 61241-11 : 2006
Hazardous area
Non Hazardous Area
Zone: 0, 1, 2, 20, 21, 22
T4: -40 ≤ Ta ≤ 85 °C T6: -40 ≤ Ta ≤ 60 °C
Terminal: 3,4,5,6
Uo: 9.6 VDC Io: 25 mA Po: 60 mW Lo: 33 mH Co: 2.4 μF
6
5
4
3
+
1
-
2
Barrier
Terminal: 1,2
Ui: 30 VDC Ii: 120 mA Pi: 0.84 W Li: 10 μH Ci: 1.0 μF
© Danfoss | DCS (im) | 2017.07 IC.PS.P40.B3.52 | 520B7739 | 29
INSTALLATIONSHINWEISE SICHERHEITSINSTRUKTION
Um den MBT 9110 084Z 7443 sicher zu installieren, sind die folgenden Hinweise zu beachten. Das Modul ist von qualifizierten Technikern mit Kenntnissen über einschlägigen nationalen und internationalen Gesetzen, Richtlinien und Standards zu installieren. Das Baujahr entnehmen Sie den ersten beiden Ziffern der Seriennummer.
Der Sensorkreis ist vom Eingangskreis nicht unfehlbar galvanisch getrennt. Die galvanische Trennung zwischen den beiden Kreisen kann jedoch eine Minute lang einer Prüfspannung von 500 V AC standhalten.
In explosionsfähigen Gasatmosphären ist der Messumformer in ein Gehäuse einzubauen, um mindestens die Schutzart IP20 gemäß EN 60529 zu gewährleisten.
Bei Installation des Messumformers in einer explosionsfähigen Atmosphäre, in der Geräte der Kategorie 1G erforderlich sind, und wenn das Gehäuse aus Aluminium hergestellt ist, muss der Messumformer so installiert werden, dass selbst bei seltenen Ereignissen – Zündquellen durch Schlägen oder Reibung – keine Funken auftreten können. Bei einem Gehäuse aus einem nichtmetallischen Material sind elektrostatische Aufladungen zu vermeiden.
Bei Installation in einer explosionsfähigen Staubatmosphäre sind folgende Anweisungen zu beachten:
Der Messumformer ist in ein Metallgehäuse nach DIN 43729 Form B einzubauen, wobei mindestens die Schutzart IP6X gemäß EN 60529 gewährleistet werden soll. Das Gehäuse muss für die Anwendung geeignet sein und ordnungsgemäß installiert werden.
Es sind Kabeleinführungen und Blindstopfen zu verwenden und ordnungsgemäß zu installieren, die für die Anwendung geeignet sind.
Bei Umgebungstemperaturen von ≥ 60ºC sind hitzebeständige Kabel mit einem Rating von mindestens 20 K über der Umgebungstemperatur zu verlegen.
Die Oberflächentemperatur des Gehäuses entspricht bei einer Staubschicht von 5 mm der Umgebungstemperatur plus 20K.
Danfoss A/S Danfoss Industrial Automation DK 6430 Nordborg Denmark Phone +45 7488 2222
© Danfoss | DCS (im) | 2017.07 IC.PS.P40.B3.52 | 520B7739 | 30
© Danfoss | DCS (im) | 2017.07 IC.PS.P40.B3.52 | 520B7739 | 31
© Danfoss | DCS (im) | 2017.07 IC.PS.P40.B3.52 | 520B7739 | 32
Loading...
