Data Sheet
Pressure Transmitter
Type MBS 8200 and MBS 8250
For Wind Turbine Applications
MBS 8200 is a series of compact pressure
transmitters developed to withstand the
pressure pulsations and vibrations known in
wind turbine applications.
A new technology combining piezo resistive
sensor element and programmable gain
ampliers makes the MBS 8200 the obvious
choice for applications demanding highest
accuracy and insensitiveness against
temperature variations. Further this technology
enhances the functional safety by limiting the
output signal at excess pressure conditions, it
allows excellent sink/source capabilities and it
leave the pressure transmitters unaected by
electromagnetic elds up to 100 V/m.
MBS 8250 with integrated pulse-snubber is
designed for use in hydraulic applications with
severe media inuences like cavitation, liquid
hammer or pressure peaks, and oers a reliable
pressure measurement, even under harsh
environmental conditions.
Features
• Designed for use in harsh industrial
environments
• EMC protection 100 V/m
• For media and ambient temperatures up to
125 °C
• Reverse polarity protected
• Version with integrated pulse-snubber
• Protected against cavitation, liquid
hammering and pressure peaks
• Enclosure and wetted parts of AISI 316L
• Digitally temperature calibrated
• RoHS conformity
AI225186434746en-000701
1
1
Pulse-snubber
Non-linearity BFSL (conformity)
≤ ± 0.2% FS
Hysteresis and repeatability
≤ ± 0.1% FS
Total error band inside the compensated temperature range
≤ ± 1% FS
Thermal shift outside the compensated temperature range
≤ ± 0.65% FS / 10 K
Response time MBS 8200 (10-90%)
< 2 ms
Response time MBS 8250 (10-90%)
Liquids with viscosity < 100 cSt
< 4 ms
Air and gases
< 35 ms
Overload pressure (static)
6 × FS (max. 1400 bar)
Burst pressure
> 6 x FS (max 1800 bar)
Durability, P: 10 – 90% FS
> 10 × 10
6
cycles
Nom. output signal (short-circuit protected)
4 – 20 mA (2-wire)
Supply voltage, U
B
(polarity protected)
9 – 32 V DC > 32 V: Contact Danfoss
Supply voltage dependency
≤ ± 0.05% FS / 10 V
Current limitation (linear output signal up to 1.5 × rated range)
22 mA ± 0.5 mA
Load [R
L
] (load connected to 0 V)
R
L
≤ (UB- 9 V) / 0.02 A [Ω]
Media temperature range
-40 – 125 °C
Ambient temperature range
-40 – 105 °C
Compensated temperature span
Δ 80 °C
Compensated temperature range default
-10 – 70 °C
Storage temperature
-50 – 125 °C
EMC - Emission
EN 61000-6-3
Pressure Transmitter, type MBS 8200 and MBS 8250
Applications
Applications (MBS 8250)
Cavitation, liquid hammer and pressure peaks may occur in hydraulic systems with changes in ow velocity, e.g. fast
closing of a valve or pump starts and stops.
The problem may occur on the inlet and outlet side, even at rather low operating pressures.
Media conditions (MBS 8250)
Clogging of the nozzle may occour in liquids containing particles. Mounting the transmitter in an upright position
minimizes the risk of clogging, because the ow in the nozzle is restricted to the start-up period when the dead
volume behind the nozzle lls, and furthermore because the nozzle orice is relatively big (0.4 mm). The media
viscosity has only little eect on the response time. Even at viscosities up to 100 cSt, the response time will not
exceed 4 ms.
Product specication
Technical data
Table 1: Performance (EN 60770)
Table 2: Electrical specications
Table 3: Environmental conditions
© Danfoss | Climate Solutions | 2021.02 AI225186434746en-000701 | 2
EMC Immunity
RF Field
100 V/m, 20 MHz – 2 GHz
ISO 11452-2
20 V/m, 2 GHz – 4 GHz
Insulation resistance
> 100 MΩ at 500 V DC
Vibration stability
Sinusoidal
15.9 mm-pp, 5 Hz – 25 Hz
IEC 60068-2-6
25 g, 25 Hz – 2 kHz
Random
15 g
rms
, 5 Hz – 1 kHz
IEC 60068-2-64
Shock resistance
Shock
500 g / 1 ms
IEC 60068-2-27
Free fall
1 m
IEC 60068-2-32
Enclosure (depending on electrical connection)
See Electrical connections
Materials
Wetted parts
EN 10088-1; 1.4404 (AISI 316 L)
Enclosure
EN 10088-1; 1.4404 (AISI 316 L)
Pressure conncetion
EN 10088-1; 1.4404 (AISI 316 L)
Electrical connections
See Electrical connections
Net weight (depending on pressure connection
< 0.07 kg
Pressure Transmitter, type MBS 8200 and MBS 8250
Table 4: Mechanical characteristics

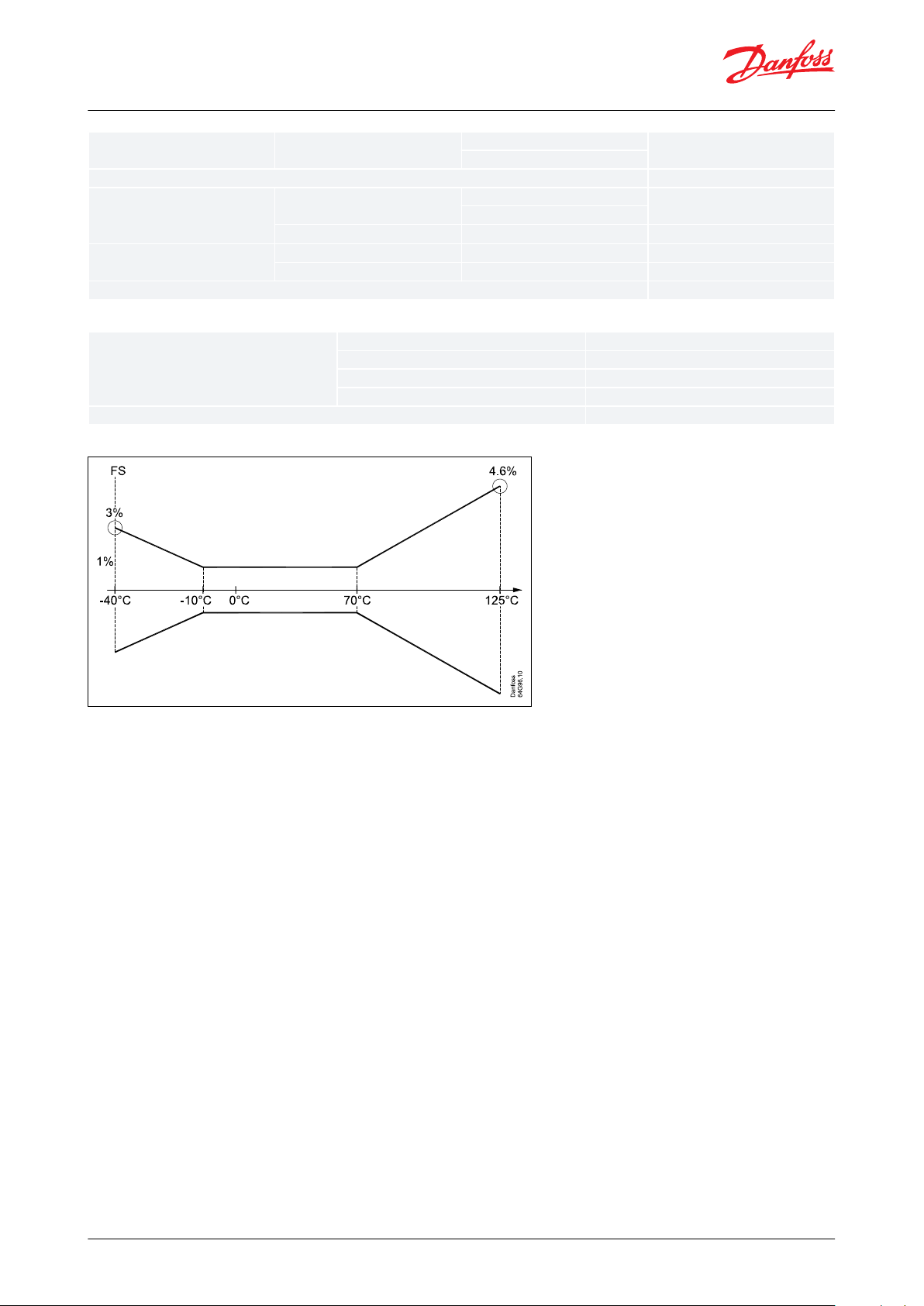

Figure 1: Total error band
© Danfoss | Climate Solutions | 2021.02 AI225186434746en-000701 | 3
4
9
3 2
064G100
Danf
oss
Type code C1 C2 C3 C6
Electrical connections M12 × 1, 4-pin, metal, Au Round Packard, Sn Deutsch Plug DT04 4pin/AU ISO 15170 A1-3.1 Au
Housing Ø = 19 mm
Type code GB04 FA08
Pressure connections
G1/4 - DIN 3852-E
Gasket: DIN 3869-14
M14 x 1.5 - ISO 6149-2
O-ring
Recommended torque ¹) 30 – 35 Nm 30 – 35 Nm
Type codeC1C2C3C6
Electrical connection
M12 × 1, 4 pin, Metal Au
Round Packard, Sn
Deutsch Plug DT04 4pin / AU
14
23
ISO 15170 A1-3.1 Au
Enclosure (IP protection
full-
led together with mating con-
nector)
IP67
IP67
IP67
IP69K
Material
Glass
lled polyamid, PA 6.6 Au
coated contacts
Glass
lled polyamide, PA 6.6
Sn coated contacts
Valox Resin with AU plated pins
Glass
lled polyester, PBT Au
coated contacts
Electrical connection, 4 – 20 mA
output (2 wire)
Pin1: + supply
Pin 2: - supply
Pin 3: not used
Pin 4: not used
Pin 1 (A): - supply
Pin 2 (B): + supply
Pin 3 (C): not used
Pin1: + supply
Pin 2: - supply
Pin 3: not used
Pin 4: not used
Pin 1: + supply
Pin 2: - supply
Pin 3: not used
Pin 4: not used
Pressure Transmitter, type MBS 8200 and MBS 8250
Dimensions / Combinations
1
) Depends of dierent parameters such as gasket material, mating material, thread lubrication and pressure level
Electrical connections
© Danfoss | Climate Solutions | 2021.02 AI225186434746en-000701 | 4
MBS 82
Type
Standard...........................................................
With pulse snubber..........................
Measuring range
0 – 6 bar......................................................................................................
0 – 10 bar..................................................................................................
0 – 16 bar..................................................................................................
0 – 25 bar..................................................................................................
0 – 40 bar..................................................................................................
0 – 60 bar..................................................................................................
0 – 100 bar..............................................................................................
0 – 160 bar..............................................................................................
0 – 250 bar..............................................................................................
0 – 400 bar..............................................................................................
Compensated temperature range
-10 – 70° C..........................................................................................................................................
Pressure Reference
Gauge / Relative (only available for measuring ranges above 30 bar).................
Absolute......................................................................................................................................................................
Output signal
4 – 20 mA................................................................................................................................................................................
C1
C2
C3
C6
- - - -
00
50
18
20
22
24
26
28
30
32
34
36
1
2
1
21
Gasket
......................No gasket
......................Gasket, Viton, medium temp. -20 °C – 125 °C
Pressure Connection
................................................................G1/4, DIN3852-E / ISO 1179-2
................................................................M14×1.5, ISO 6149-2
Electri cal Connection
.............................................................................................................*M12x1, metal, IEC 947-5-2, 4 pin, Au, male,
excl. female plug
.............................................................................................................
Round Packard Metric-Pack 3-pin, Sn, male,
excl. female plug
.................................................................................
Deutsch Plug DT04 4pin /AU, Male
.............................................................................................................
Bayonet, ISO 15170/DIN 72585-A1-3.1-Au,
excl. female plug
* Sealed gauge versions
GB04
FA08
0
1
Please contact your local Danfoss office for further information or request on other versions.
File name
Document type
Document topic
Approval authority
E227388
Explosive - Safety
Certicate
Hazardous Locations
UL
E31024
Electrical - Safety
Certicate
-ULE311982
Electrical - Safety
Certicate
-UL060R9400.02
EU Declaration
EMCD/ROHS
Danfoss
CRN.0F18477.5123467890YTN
Pressure - Safety
Certicate
CRN
TSSA
064R9401.00
Manufacturers Declaration
China RoHS
Danfoss
064R9402.00
Manufacturers Declaration
PED
Danfoss
1786330
Explosive - Safety
Certicate
-
CSA
Pressure Transmitter, type MBS 8200 and MBS 8250

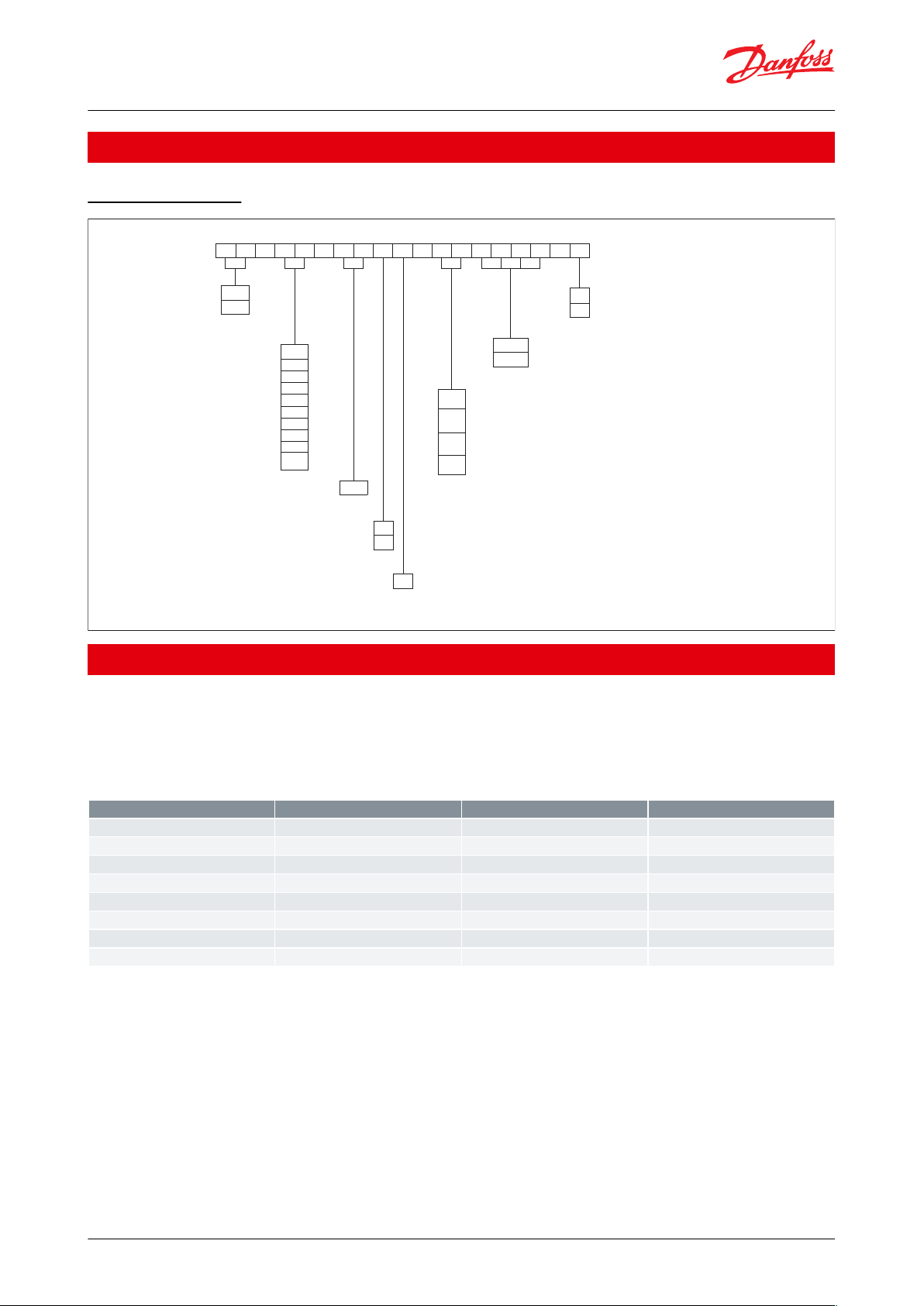

Ordering
Ordering standard
Certicates, declarations, and approvals
The list contains all certicates, declarations, and approvals for this product type. Individual code number may have
some or all of these approvals, and certain local approvals may not appear on the list.
Some approvals may change over time. You can check the most current status at danfoss.com or contact your local
Danfoss representative if you have any questions.
