Data Sheet
压力变送器
MBS 4000 型
精确度高
高精度压力传感器 MBS 4000 经设计几乎适用
于所有工业应用,即使在恶劣环境条件下,也
能提供可靠的压力测量。
压力传感器配置非常灵活,提供 4 – 20 mA 的
输出信号、绝对或相对(表压)版本,测量范
围为从 0–1.6 到 0–400 bar。多种多样的压力
连接。
抗振稳定性高、耐用性高并且 EMC/EMI 防护能
力高,这款压力变送器达到了最严格的工业标
准。
特性
• 专为严苛的海运环境而设计
• 外壳和接触液体部件均采用耐酸不锈钢材料
(AISI 316L)
• 相对(表压)或绝对压力范围为 0-400 bar
• 输出信号: 4 – 20 mA
• 多种多样的压力连接
• 完全数字补偿
• 最大精确度 0.5% FS
• UL 认证
AI377939046896zh-000201

RL≤
(UB − 9V)
0.02A
[Ω]
IEC 60068-2-6
20 g,25 Hz – 2 kHz
EN 10088-1; 1.4404 (AISI 316 L)
EN 10088-1; 1.4404 (AISI 316 L)
压力传感器,MBS 4000 型
产品规格
技术参数
Table 1: 性能(EN 60770)
Table 2: 电气规格
Table 3: 环境条件
Table 4: 机械特性
© Danfoss | Climate Solutions | 2022.03 AI377939046896zh-000201 | 2

针脚 1: + 电源
针脚 2: ÷ 电源
针脚 3: 未使用
接地: 连接至 MBS 外壳
压力传感器,MBS 4000 型
Table 5: 爆炸危险环境
(1)
(1)
在 ATEX 2 区低温环境下使用时,必须对电缆和插头进行保护 , 以防受到撞击。
在 ATEX 2 区低温环境下使用时,必须对电缆和插头进行保护 , 以防受到撞击。

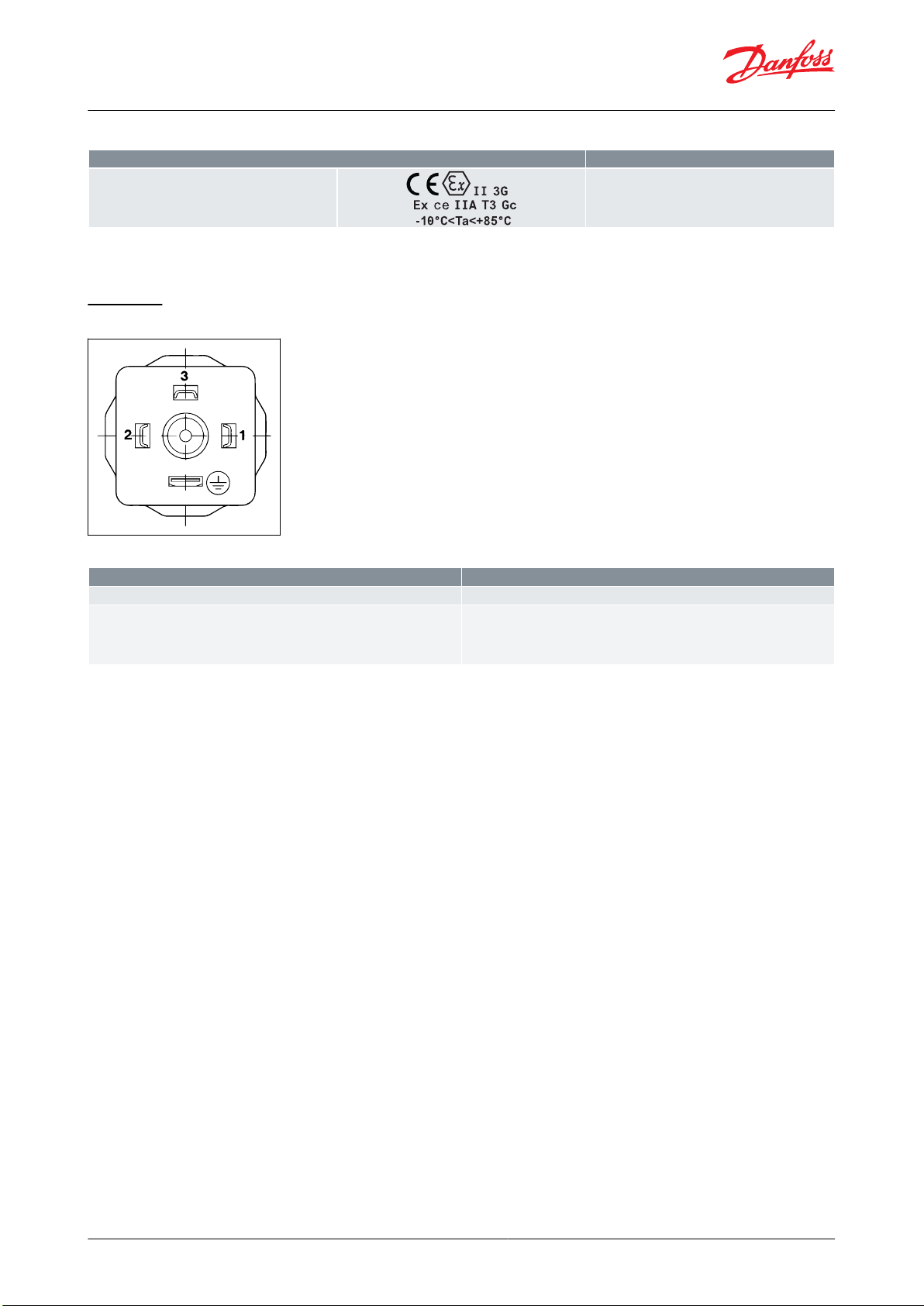

电气连接
數字 1: 电气连接
Table 6: 电气连接
© Danfoss | Climate Solutions | 2022.03 AI377939046896zh-000201 | 3

G ¼ A
(EN 837) (EN 837)
G ½ A
(EN 837)
¼ – 18 NPT ½ – 14 NPT
G ¼
(DIN 3852-E)
Type code AB04 AB06 AB08 AC04 AC08 GB04
Recommended
torque1)
30 – 35 Nm 30 – 35Nm 30 – 35 Nm
2 – 3 turns after
f inger tightened
2 – 3 turns after
f inger tightened
30 – 35 Nm
Type code A1
3
39.5
压力传感器,MBS 4000 型

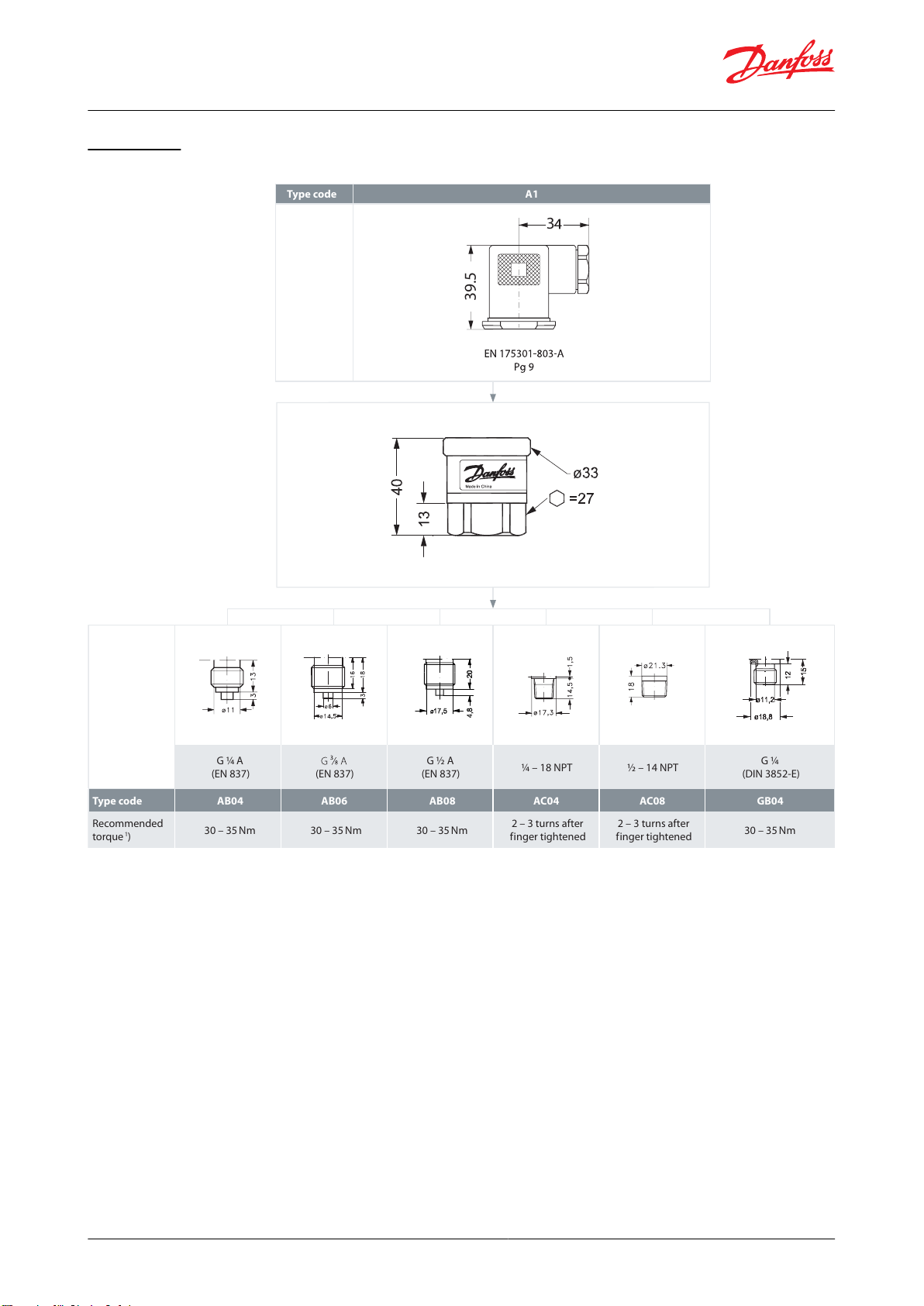

尺寸和重量
數字 2: 尺寸/组合
1
) 取决于各种因素,例如垫片材质、配套材料、螺纹润滑及压力大小
© Danfoss | Climate Solutions | 2022.03 AI377939046896zh-000201 | 4

MBS 40
1 – A1 –
Gasket / O-ring material
0 No gasket
2 Gasket, NBR -40 °C – 85 °C
4 O-ring, NBR -40 °C – 85 °C
Pressure connection
G ¼ A (EN 837)
Measuring range
G ½ A (EN 837)
0 – 1.6 bar
1 2
A C 0 4
A B 0 8
A B 0 6
A B 0 4
A C 0 8
G B 0 4
¼ – 18 NPT
0 – 2.5 bar
1 4
½ – 14 NPT
0 – 4.0 bar
1 6
G ¼ (DIN 3852-E)
0 – 6.0 bar
1 8
0 – 10 bar
2 0
0 – 16 bar
2 2
Electrical connection
0 – 25 bar
2 4
0 – 40 bar
2 6
A1 Plug Pg9 (EN175301-803-A)
0 – 60 bar
2 8
0 – 100 bar
3 0
0 – 160 bar
3 2
0 – 250 bar
3 4
Output signal
0 – 400 bar
3 6
4 – 20 mA
Pressure reference
Gauge (relative)
1
Absolute
2
Preferred version
1
Standard 0 0
With pulse-snubber 5 0
压力传感器,MBS 4000 型
订货
數字 3: 订购标准
附注:
可选择非标准构建组合。但是,有最低订购数量要求。
关于更多详情或其他型号,请联系您当地的丹佛斯办事处。
© Danfoss | Climate Solutions | 2022.03 AI377939046896zh-000201 | 5
