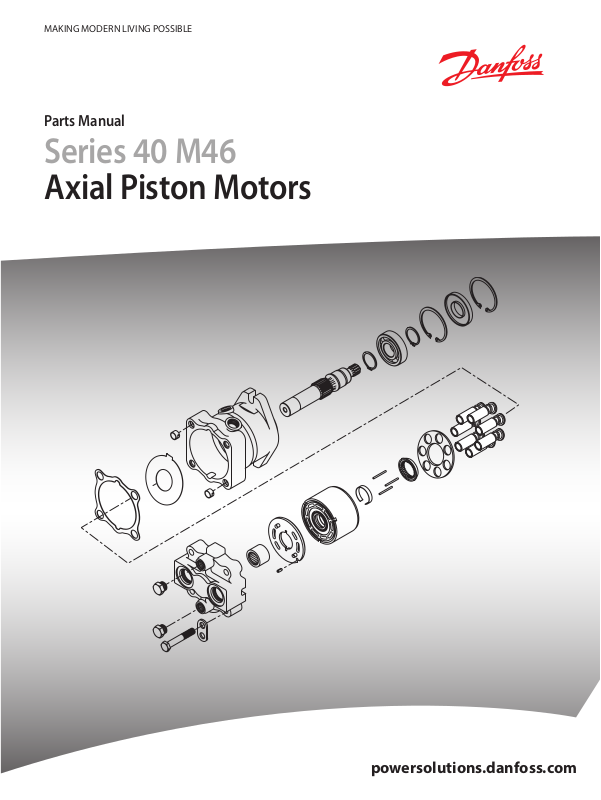

MAKING MODERN LIVING POSSIBLE
Parts Manual
Series 40 M46
Axial Piston Motors
powersolutions.danfoss.com
Parts Manual Series 40 M46 Axial Piston Motors
General information
Fixed displacement motor
Variable displacement motor
Service parts identication ............................................................................................................................................. 4
Nameplate ............................................................................................................................................................................4
Date code ..............................................................................................................................................................................5
Service bulletins..................................................................................................................................................................5
Procedure to identify a part ............................................................................................................................................5
Abobe Acrobat 2-page viewing ....................................................................................................................................6
Order code ............................................................................................................................................................................7
Common parts ................................................................................................................................................................8-9
Seal ..................................................................................................................................................................................... 8-9
Shaft ............................................................................................................................................................................... 10-11
End cap..........................................................................................................................................................................12-21
Cylinder block .............................................................................................................................................................22-23
Housing ......................................................................................................................................................................... 24-25
Order code ......................................................................................................................................................................... 27
Common parts ...........................................................................................................................................................28-29
Seal ................................................................................................................................................................................ 28-29
Shaft ............................................................................................................................................................................... 30-31
Displacement ..............................................................................................................................................................32-35
Control features .........................................................................................................................................................36-41
Housing ......................................................................................................................................................................... 42-71
Special hardware .......................................................................................................................................................70-71
Overhaul seal kit .............................................................................................................................................................. 72
Variable displacement
cartridge motor
Order code ......................................................................................................................................................................... 73
Common parts ...........................................................................................................................................................74-75
Seal ................................................................................................................................................................................ 72-73
Shaft ............................................................................................................................................................................... 72-73
Minimum displacement .......................................................................................................................................... 74-75
Maximum displacement ......................................................................................................................................... 74-75
Housing ......................................................................................................................................................................... 76-85
Special hardware .......................................................................................................................................................84-85
Overhaul seal kit .............................................................................................................................................................. 85
2
AX00000046en-US | 11063895 • Rev 0300 • August 2016
Parts Manual Series 40 M46 Axial Piston Motors
Contents
Service Bulletin
SB-1987-032 (servo cover) ........................................................................................................................................... 86
SB-1988-002 (servo piston improvements) .....................................................................................................87-88
SB-1989-010 (cylinder block kit) .......................................................................................................................... 89-90
SB-1989-013 (front cover screw size) ....................................................................................................................... 91
SB-1990-012 (servo cover screw size) ...................................................................................................................... 92
SB-1991-009 (servo piston bearing ring) ................................................................................................................ 93
SB-1994-002 (swashplate kits) .................................................................................................................................... 94
SB-1994-011 (retained swashplate journal bearing) ....................................................................................95-96
SB-1994-037 (front cover screw) ................................................................................................................................ 97
SB-1995-020 (cylinder block nish) .......................................................................................................................... 98
SB-1996-002 (improved seal retention for cartridge motors) ......................................................................... 99
SB-1996-022 (end cap dowel pins added to xed motors) ............................................................................100
SB-1997-002 (addition of orice capability in loop ush drain) ................................................................... 101
SB-1998-014 (improved seal retention for variable motors) .........................................................................102
SB-1998-026 (relocation of pulse pickup boss) ..................................................................................................103
SB-1998-075 (relocation of nameplate) ................................................................................................................104
SB-1999-018 (end cap gasket) .................................................................................................................................. 105
SB-1999-058 (valve plate nish) ...............................................................................................................................106
SB-2002-017 (housing option change)..................................................................................................................107
SB-2002-021 (tapered shaft keyway)......................................................................................................................108
SB-2002-037 (servo gasket and 0 degree servo stop) ...................................................................................... 109
SB-2012-013 (swashplate journal bearing) .......................................................................................................... 110
SB-2015-054 (front cover dowel pin)......................................................................................................................111
AX00000046en-US | 11063895 • Rev 0300 • August 2016
3
Parts Manual Series 40 M46 Axial Piston Motors
General information
The following information and procedure is used to identify the module group, item number,
Service parts
indentication
manufacture date, part number, and part name of the parts included in the series 40 M46 xed
displacement motor and variable displacement motor.
The parts listed include all parts which may be used when performing either “Minor Repairs”,
“Major Repairs” or “Conversions” on the M46 motors.
Nameplate
Each unit will have a nameplate axed to the
housing. The nameplate will include the following
information.
Model Code
The Sauer-Danfoss model code completely denes
the specic unit and must be used when ordering
parts to service this product.
Model Number
The Sauer-Danfoss model number is used by the
factory in manufacturing. On repeat orders, a
complete unit can be ordered by the model number.
Serial Number
The Sauer-Danfoss serial number is used to identify
the manufacture date and the unit sequence in the
build. The serial number is also used to identify the
units warranty time period.
The letter code indicates the location of original
manufacture (assembly). “A” indicates the unit was
originally assembled in Ames, Iowa, USA.
The rst number (2 digits) indicates the year of
manufacture. (“97” would indicate the unit was
manufactured in 1997)
The second number (2 digits) indicates the calendar
week of manufacture.
Model Code
MMF 046 C A E A
B B NNN
Model No.
M46-3019
A - 97 - 34 - 12345
Serial No.
MADE IN U.S.A.
Typ
Ident Nr
Fabr Nr
The third number (5 digits) is a sequential number
used to identify a specic unit.
4
AX00000046en-US | 11063895 • Rev 0300 • August 2016
Parts Manual Series 40 M46 Axial Piston Motors
General information
The date code is dened as the year and week of manufacture. The same item number may list more
Date code
than one part number. This indicates that there is more than one conguration for that item number.
You will see that there are dierent date codes for the dierent part numbers. Find the date code of
your unit from the nameplate to determine which service part number you need to order.
EXAMPLE: The service part desired is Item H10
Order Date Date
Code Item Begin End Part Number Part Name Usage
3113 86-23 4460407 Thrust plate 1
3113 84-31 86-22 4460033 Thrust plate 1
All units using this order code with a date code of 84-31 and up to and including 86-22, must use part
number “4460013”. All units with a date code of 86-23 and newer must use part number “4460407”.
Service bulletins
Procedure to identify a part
A Service Bulletin Number (SB-_ _ _ _ - _ _ _) may follow the “Part Name” of the part you desire. You
must read that Service Bulletin prior to ordering that part. The information contained in these Service
Bulletins, as of the print date of this bulletin, are included at the end of this manual. Service Bulletins
contain more detailed information such as interchangeability, what additional parts are involved, etc.
It is suggested that you add additional Service Bulletins to this manual as you recieve them.
General
The modular design of series 40 units results in a simplied service parts list and part number
identication procedure. The same item numbers are used for same part names on all units within a
product type. (Example: The lip seal - Item 3201 has the same item number on all motors.)
A part number that has another number following it in parentheses is done to make this a world wide
manual. The rst number is sold in Germany. The number in parentheses is sold in the United States.
(Example: 5000731, customers would order 373282 (9001315-0011) if ordering the part in the United
States.)
Example of a Part Identication
The nameplate on an M46 xed displacement motor has an Order Code of MMF046C A E A B B NNN.
Use the following procedures to determine the part number of the drive shaft used on this motor.
1) Referring to the output shaft module in the Order Code (see page 7), the output shaft option for this
motor is identied by the code “E”. (MMF046C A E A B B NNN)
2) Referring to the Service Parts List, nd the shaft group. Next nd the order code that relates to this
unit, which is “E”. The shaft is found to be item 3301 and part number 4460582.
5AX00000046en-US | 11063895 • Rev 0300 • August 2016
Parts Manual Series 40 M46 Axial Piston Motors
Adobe Acrobat 2-page viewing
Abobe Acrobat 2-page
viewing
While viewing manual in Adobe Acrobat, the following settings need to be applied to ensure proper
page display.
1. With open document
2. Select “View” --> “Page Display” --> “Two Page View”
3. Select “View” --> “Page Display” --> “Show Cover Page in Two Page View”
6 AX00000046en-US | 11063895 • Rev 0300 • August 2016
Parts Manual Series 40 M46 Axial Piston Motors
Order code
M M
F 0 4 6 C
C A E D B B
N N N
Product
Frame Size
Type
Seal Group
Special Hardware
Housing
Cylinder Block
End Cap
Output Shaft
P100 529E
7AX00000046en-US | 11063895 • Rev 0300 • August 2016
Parts Manual Series 40 M46 Axial Piston Motors
Fixed displacement motor
3113
3102
3103
3104
3106
(A)
3201
3111
3114
3115
3119
(B)
3201
3202
3203
8 AX00000046en-US | 11063895 • Rev 0300 • August 2016
E100 162E
Enlarged bold type item
numbers are recommended
part to stock for servicing.
Parts Manual Series 40 M46 Axial Piston Motors
Fixed displacement motor
Common parts
Order Date Date Qty. per
Code Item Begin End Part Number Part Name Model/Kit
3102 86-30 9006200-0281 Retaining ring 1
3103 84-31 9006200-0281 Retaining ring 1
3104 84-31 5000731 Ball bearing 1
3106 84-31 4460999 End cap gasket (SB-1999-018) 1
3111 84-31 4461105 Valve plate (SB-1999-058) 1
3113 86-23 4460407 Thrust plate 1
3113 84-31 86-22 4460033 Thrust plate 1
3114 84-31 9001465-0010 Needle bearing 1
3115 84-31 9004700-1907 Pin 1
3119 84-31 9801000 Lifting bracket 1
3309 84-31 9006300-0137 Retaining ring 1
3310 84-31 9006300-0137 Retaining ring 1
Seal group
A 3201 84-31 9008000-0121 Lip seal 1
B 3201 84-31 9008000-0121 Lip seal 1
3202 84.31 9008000-0131 Lip seal 1
3205 84-31 9006200-0169 Retaining ring 1
9AX00000046en-US | 11063895 • Rev 0300 • August 2016
Parts Manual Series 40 M46 Axial Piston Motors
Fixed displacement motor
3304
(3)
3309
3310
3301
3301
(D)
3309
3310
3301
3301
(H) (M & N)
3309
(A & E)
3309
3310
(F, K & V)
3309
3310
3303
3309
3301
3310
3310
3304
3301
(T)
3309
3310
3306
3301
E101 741E
Enlarged bold type item
numbers are recommended
part to stock for servicing.
10 AX00000046en-US | 11063895 • Rev 0300 • August 2016
Parts Manual Series 40 M46 Axial Piston Motors
Fixed displacement motor
Shaft
Order Date Date Qty. per
Code Item Begin End Part Number Part Name Model/Kit
all 3309 89-09 9006300-0137 Retaining ring 1
3310 89-09 9006300-0137 Retaining ring 1
3 3301 01-05 4461143 Shaft 13 tooth, tapered auxiliary 1
3304 01-05 9003310-1910 Key 1
A 3301 84-31 89-39 4460485 Shaft, 13 tooth (SB-1989-010) 1
D 3301 95-12 4460812 Shaft, 19 tooth 1
E 3301 84-31 4460582 Shaft, 13 tooth 1
F 3301 84-31 89-39 4460121 Shaft, 15 tooth (SB-1989-010) 1
H 3301 84-31 4460312 Shaft, 15 tooth/13 tooth auxiliary 1
K 3301 84-31 4460285 Shaft, 15 tooth 1
M 3301 89-09 4461309 Shaft, tapered (SB-2002-021) 1
3303 89-09 9003575-0071 Nut 1
3304 02-35 5000664 Key, square 1
3304 89-09 02-34 9003310-2514 Key, woodru 1
N 3301 84-31 89-39 4461309 Shaft, tapered (SB-1989-010) 1
3303 84-31 89-39 9003575-0071 Nut 1
3304 84-31 89-39 5000664 Key 1
T 3301 89-10 4460578 Shaft, straight key 1
3306 89-10 9003261-2526 Key 1
V 3301 84-31 670364 Shaft, 14 tooth 1
11AX00000046en-US | 11063895 • Rev 0300 • August 2016
Parts Manual Series 40 M46 Axial Piston Motors
Fixed displacement motor
3413
3412
Q3413
3410
3409
3414
3416
3411
3417
Q3418
(2)
Q3413
3422
3421
3418
3401
3122
3122
3416
3414
3413
3413
3412
Q3413
3410
3409
3414
3416
Q3418
(6)
3411
3122
3401
3417
3423
3122
3416
3414
3413
Q3413
3422
3421
3419
3418
3412
(8)
3122
3401
3122
3410
12 AX00000046en-US | 11063895 • Rev 0300 • August 2016
E101 739E
Enlarged bold type item
numbers are recommended
part to stock for servicing.
Parts Manual Series 40 M46 Axial Piston Motors
Fixed displacement motor
End cap
Order Date Date Qty. per
Code Item Begin End Part Number Part Name Model/Kit
2 3122 97-25 5000397 Pin 2
3401 97-25 4460874 End cap 1
3409 97-25 327007 (9005110-4400) Plug assembly 2
3410 97-25 681296 (9005110-7500) Plug assembly 1
3411 97-25 093625 (9005100-9000) Plug assembly 2
3412 97-25 753632 (9007200-5036) Screw 4
3413 97-25 4800365 Plug assembly 2
3414 97-25 4800225 Spring 2
3416 97-25 512257 Spring guide 2
3417 97-25 365544 (8800550) Shuttle spool 1
3418 97-25 4800280 Plug assembly 1
3421 97-25 768853 Spring 1
3422 97-25 4800397 Poppet 1
Q3413 97-25 085043 (9004201-3700) O-ring 2
Q3418 97-25 015818 (9004201-3100) O-ring 1
6 3122 99-48 5000397 Pin 2
3401 99-48 4460873 End cap 1
3409 99-48 327007 (9005110-4400) Plug assembly 2
3410 99-48 681296 (9005110-7500) Plug assembly 1
3411 99-48 093625 (9005100-9000) Plug assembly 2
3412 99-48 753632 (9007200-5036) Screw 4
3413 99-48 4800365 Plug assembly 2
3414 99-48 4800225 Spring 2
3416 99-48 512257 Spring guide 2
3417 99-48 365544 (8800550) Shuttle spool 1
3418 99-48 4800308 Plug assembly 1
3419 99-48 4510027 Shim kit 1
3421 99-48 4800176 Spring 1
3422 99-48 4800134 Poppet 1
3423 99-48 8800242-0001 Orice plug 1
Q3413 97-25 085043 (9004201-3700) O-ring 2
Q3418 97-25 015818 (9004201-3100) O-ring 1
8 3122 01-05 5000397 Pin 2
3401 01-05 4461142 End cap 1
3410 01-05 681296 (9005110-7500) Plug assembly 1
3412 01-05 9007200-5036 Screw 4
13AX00000046en-US | 11063895 • Rev 0300 • August 2016
Parts Manual Series 40 M46 Axial Piston Motors
Fixed displacement motor
3412
3410
3410
(A)
(D)
3401
3410
3122
3401
3122
3122
3122
3410
3410
(G)
(B)
3122
3401
3122
3412
3122
3401
3122
3412
3413
3412
Q3413
3410
3409
3414
3416
Q3418
3412
3410
(J)
3411
3122
3401
3417
3122
3416
3414
3413
Q3413
3422
3421
3419
3418
E100 163E
Enlarged bold type item
numbers are recommended
part to stock for servicing.
14 AX00000046en-US | 11063895 • Rev 0300 • August 2016
Parts Manual Series 40 M46 Axial Piston Motors
Fixed displacement motor
End cap
Order Date Date Qty. per
Code Item Begin End Part Number Part Name Model/Kit
A 3122 97-41 5000397 Pin (SB-1996-022) 2
3401 84-31 4460868 End cap (SB-1996-022) 1
3410 84-31 001529 (9005100-7500) Plug assembly 2
3412 84-31 9007200-5030 Screw 4
B 3122 97-41 5000397 Pin (SB-1996-022) 2
3401 84-31 4460867 End cap (SB-1996-022) 1
3410 84-31 001529 (9005100-7500) Plug assembly 2
3412 84-31 9007200-5030 Screw 4
D 3122 00-49 5000397 Pin 2
3405 00-49 4461041 End cap 1
3410 00-49 001529 (9005100-7500) Plug assembly 2
3412 00-49 9007200-5030 Screw 4
G 3122 97-14 5000397 Pin 2
3401 97-14 4460964 End cap 1
3410 97-14 681296 (9005110-7500) Plug assembly 2
3412 97-14 753632 (9007200-5036) Screw 4
J 3122 97-08 5000397 Pin (SB-1996-022) 2
3401 97-08 4460871 End cap (SB-1996-022) 1
3409 92-19 327007 (9005110-4400) Plug assembly 2
3410 92-19 681296 (9005110-7500) Plug assembly 1
3411 92-19 001537 (9005100-8700) Plug assembly 2
3412 92-19 753632 (9007200-5036) Screw 4
3413 92-19 4800365 Plug assembly 2
3414 92-19 4800225 Spring 2
3416 92-19 512257 Spring guide 2
3417 92-19 365544 (8800550) Shuttle spool 1
3418 92-19 4800308 Plug assembly 1
3419 92-19 4510027 Shim kit 1
3421 92-19 4800176 Spring 1
3422 92-19 4800134 Poppet 1
Q3413 92-19 085043 (9004201-3700) O-ring 2
Q3418 92-19 001149 (9004201-6200) O-ring 1
15AX00000046en-US | 11063895 • Rev 0300 • August 2016
Parts Manual Series 40 M46 Axial Piston Motors
Fixed displacement motor
(K)
3413
3412
3410
3409
Q3413
3414
3416
3417
Q3418
3122
3401
3122
3416
3414
3413
Q3413
3422
3421
3419
3418
(L)
3413
3412
3410
3409
Q3413
3414
3416
3417
Q3418
3411
3122
3401
3122
3416
3414
3413
Q3413
3422
3421
3419
3418
E100 164E
Enlarged bold type item
numbers are recommended
part to stock for servicing.
16 AX00000046en-US | 11063895 • Rev 0300 • August 2016
Parts Manual Series 40 M46 Axial Piston Motors
Fixed displacement motor
End cap
Order Date Date Qty. per
Code Item Begin End Part Number Part Name Model/Kit
K 3122 97-01 5000397 Pin (SB-1996-022) 2
3401 97-01 4460872 End cap (SB-1996-022) 1
3409 93-08 327007 (9005110-4400) Plug assembly 2
3410 93-08 681296 (9005110-7500) Plug assembly 1
3412 93-08 753632 (9007200-5036) Screw 4
3413 93-08 4800365 Plug assembly 2
3414 93-08 4800225 Spring 2
3416 93-08 512257 Spring guide 2
3417 93-08 365544 (8800550) Shuttle spool 1
3418 93-08 4800308 Plug assembly 1
3419 93-08 4510027 Shim kit 1
3421 93-08 8800496 Spring 1
3422 93-08 4800134 Poppet 1
Q3413 93-08 085043 (9004201-3700) O-ring 2
Q3418 93-08 001149 (9004201-6200) O-ring 1
L 3122 97-01 5000397 Pin (SB-1996-022) 2
3401 97-01 4460871 End cap (SB-1996-022) 1
3409 92-19 327007 (9005110-4400) Plug assembly 2
3410 92-19 681296 (9005110-7500) Plug assembly 1
3411 92-19 001537 (9005100-8700) Plug assembly 2
3412 92-19 753632 (9007200-5036) Screw 4
3413 92-19 4800365 Plug assembly 2
3414 92-19 4800225 Spring 2
3416 92-19 512257 Spring guide 2
3417 92-19 365544 (8800550) Shuttle spool 1
3418 92-19 4800308 Plug assembly 1
3419 92-19 4510027 Shim kit 1
3421 92-19 8800496 Spring 1
3422 92-19 4800134 Poppet 1
Q3413 92-19 085043 (9004201-3700) O-ring 2
Q3418 92-19 001149 (9004201-6200) O-ring 1
17AX00000046en-US | 11063895 • Rev 0300 • August 2016
Parts Manual Series 40 M46 Axial Piston Motors
Fixed displacement motor
(N)
3413
3412
3410
3409
Q3413
3414
3416
3417
Q3418
3122
3401
3122
3416
3414
3413
Q3413
3422
3421
3419
3418
(P)
3413
3412
Q3413
3410
3409
3414
3416
Q3418
3411
3122
3401
3417
3423
3122
3416
3414
3413
Q3413
3422
3421
3419
3418
E100 165E
Enlarged bold type item
numbers are recommended
part to stock for servicing.
18 AX00000046en-US | 11063895 • Rev 0300 • August 2016
Parts Manual Series 40 M46 Axial Piston Motors
Fixed displacement motor
End cap
Order Date Date Qty. per
Code Item Begin End Part Number Part Name Model/Kit
N 3122 97-01 5000397 Pin (SB-1996-022) 2
3401 97-01 4460872 End cap (SB-1996-022) 1
3409 93-44 327007 (9005110-4400) Plug assembly 2
3410 93-44 681296 (9005110-7500) Plug assembly 1
3412 93-44 753632 (9007200-5036) Screw 4
3413 93-44 4800365 Plug assembly 2
3414 93-44 4800225 Spring 2
3416 93-44 512257 Spring guide 2
3417 93-44 365544 (8800550) Shuttle spool 1
3418 93-44 4800308 Plug assembly 1
3419 93-44 4510027 Shim kit 1
3421 93-44 8800496 Spring 1
3422 93-44 4800134 Poppet 1
Q3413 93-44 085043 (9004201-3700) O-ring 2
Q3418 93-44 001149 (9004201-6200) O-ring 1
P 3122 97-01 5000397 Pin (SB-1996-022) 2
3401 97-01 4460873 End cap (SB-1996-022) 1
3409 92-19 327007 (9005110-4400) Plug assembly 2
3410 92-19 681296 (9005110-7500) Plug assembly 1
3411 92-19 001537 (9005100-8700) Plug assembly 2
3412 92-19 753632 (9007200-5036) Screw 4
3413 92-19 4800365 Plug assembly 2
3414 92-19 4800225 Spring 2
3416 92-19 512257 Spring guide 2
3417 92-19 365544 (8800550) Shuttle spool 1
3418 92-19 4800308 Plug assembly 1
3419 92-19 4510027 Shim kit 1
3421 92-19 8800496 Spring 1
3422 92-19 4800134 Poppet 1
3423 92-19 11061969 Orice plug 1
Q3413 92-19 085043 (9004201-3700) O-ring 2
Q3418 92-19 001149 (9004201-6200) O-ring 1
19AX00000046en-US | 11063895 • Rev 0300 • August 2016
Parts Manual Series 40 M46 Axial Piston Motors
Fixed displacement motor
(R)
3404
3413
Q3413
3414
3416
3417
3410
3404
3122
3401
3122
3416
3414
3413
Q3413
3409
3422
3412
3418A
3421
3418
(V) (W)
3413
3417
3412
Q3413
3410
3409
3414
3416
Q3418
Q3413
3422
3421
3418
3401
3122
3416
3414
3413
3122
3404
3410
3412
3411
3122
3401
3122
E100 166E
Enlarged bold type item
numbers are recommended
part to stock for servicing.
20 AX00000046en-US | 11063895 • Rev 0300 • August 2016
Parts Manual Series 40 M46 Axial Piston Motors
Fixed displacement motor
End cap
Order Date Date Qty. per
Code Item Begin End Part Number Part Name Model/Kit
R 3122 97-01 5000397 Pin 2
3401 97-01 4460874 End cap 1
3404 95-05 093625 (9005100-9000) Plug assembly 2
3409 95-05 327007 (9005110-4400) Plug assembly 2
3410 95-05 681296 (9005110-7500) Plug assembly 1
3412 95-05 753632 (9007200-5036) Screw 4
3413 95-05 4800365 Plug assembly 2
3414 95-05 4800225 Spring 2
3416 95-05 512257 Spring guide 2
3417 95-05 365544 (8800550) Shuttle spool 1
3418 95-05 4800280 Plug assembly 1
3421 95-05 768853 Spring 1
3422 95-05 4800397 Poppet 1
Q3413 95-05 085043 (9004201-3700) O-ring 2
Q3418 95-05 001149 (9004201-6200) O-ring 1
V 3122 97-01 5000397 Pin (SB-1996-022) 2
3401 97-01 4460876 End cap (SB-1996-022) 1
3404 96-07 093625 (9005100-9000) Plug assembly 2
3409 96-07 327007 (9005110-4400) Plug assembly 2
3410 96-07 681296 (9005110-7500) Plug assembly 1
3412 96-07 753632 (9007200-5036) Screw 4
3413 96-07 4800365 Plug assembly 2
3414 96-07 4800225 Spring 2
3416 96-07 512257 Spring guide 2
3417 96-07 365544 (8800550) Shuttle spool 1
3418 96-07 4800280 Plug assembly 1
3421 96-07 768853 Spring 1
3422 96-07 4800397 Poppet 1
Q3413 96-07 085043 (9004201-3700) O-ring 2
Q3418 96-07 001149 (9004201-6200) O-ring 1
W 3122 97-25 5000397 Pin 2
3401 97-25 4460875 End cap 1
3410 97-25 681296 (9005110-7500) Plug assembly 2
3411 97-25 093625 (9005100-9000) Plug assembly 2
3412 97-25 753632 (9007200-5036) Screw 4
21AX00000046en-US | 11063895 • Rev 0300 • August 2016
Parts Manual Series 40 M46 Axial Piston Motors
Fixed displacement motor
(A)
Q3107
3107
3107
2164
2168
(B)
2164
2168
2167
2165
2166
(C)
3107
2165
2166
Q3107
22 AX00000046en-US | 11063895 • Rev 0300 • August 2016
2168
2167
2164
E100 167E
Enlarged bold type item
numbers are recommended
part to stock for servicing.
Parts Manual Series 40 M46 Axial Piston Motors
Fixed displacement motor
Cylinder block
Order Date Date Qty. per
Code Item Begin End Part Number Part Name Model/Kit
A 2164 84-31 89-39 4461032 Piston assembly 7
2168 84-31 89-39 4460032 Slipper retainer 1
3107 84-31 89-39 4460290 Cylinder block kit (SB-1995-020) 1
B 2164 84-31 4461032 Piston assembly 7
2165 84-31 9004875-0113 Hold down pin 3
2166 84-31 4460028 Hold down pin retainer 1
2167 84-31 4460180 Retainer guide 1
2168 84-31 4460009 Slipper guide 1
3107 84-31 4460890 Cylinder block kit (SB-1995-020) 1
Q3107 84-31 11183528 Cylinder block assembly 1
C 2164 84-31 4461032 Piston assembly 7
2165 84-31 9004875-0113 Hold down pin 3
2166 84-31 4460028 Hold down pin retainer 1
2167 84-31 4460180 Retainer guide 1
2168 84-31 4460009 Slipper guide 1
3107 84-31 4460891 Cylinder block kit, with speed ring 1
Q3107 84-31 11183529 Cylinder block assembly, with speed ring 1
23AX00000046en-US | 11063895 • Rev 0300 • August 2016
Parts Manual Series 40 M46 Axial Piston Motors
Fixed displacement motor
3604
3601
3603
(A)
(B)
3601
(D)
(H)
Q3604
3603
Q3603
3601
3601
E101 740E
Enlarged bold type item
numbers are recommended
part to stock for servicing.
24 AX00000046en-US | 11063895 • Rev 0300 • August 2016
Parts Manual Series 40 M46 Axial Piston Motors
Fixed displacement motor
Housing
Order Date Date Qty. per
Code Item Begin End Part Number Part Name Model/Kit
A 3601 86-30 4460865 Housing 1
B 3601 86-23 4460864 Housing 1
D 3601 95-46 06-12 4460866 Housing 1
3603 95-46 06-12 4800432 Adapter assembly 1
Q3603 95-46 06-12 001149 (9004201-6200) O-ring 1
3604 95-46 06-12 KPPG13408 Speed senser 1
Q3604 95-46 06-12 085043 (9004201-3700) O-ring 1
H 3601 98-24 4460866 Housing 1
3603 98-24 315325 (9005110-8700) Plug assembly 1
25AX00000046en-US | 11063895 • Rev 0300 • August 2016
Parts Manual Series 40 M46 Axial Piston Motors
Notes
26 AX00000046en-US | 11063895 • Rev 0300 • August 2016
Parts Manual Series 40 M46 Axial Piston Motors
Order code
M M
V 0 4 6 C
C A A B C A A
N N N
Product
Frame size
Type
Seal group
Special hardware
Housing/end cap
Control features
Minimum displacement
Output shaft
P100 530E
27AX00000046en-US | 11063895 • Rev 0300 • August 2016
Parts Manual Series 40 M46 Axial Piston Motors
Variable displacement motor
4131
(B)
*4202
4203
*4130
4127
4114
4101
*4123
4127
4124
4125
*4143
4131
4121
4112
4126
4119
4113
2135
4116
* = included in overhaul seal kit Q210
4135
4118
4117
4115
4118
(A & B)
*4201
4142
4117
E100 170E
Enlarged bold type item
numbers are recommended
part to stock for servicing.
28 AX00000046en-US | 11063895 • Rev 0300 • August 2016
Parts Manual Series 40 M46 Axial Piston Motors
Variable displacement motor
Common parts
Order Date Date Qty. per
Code Item Begin End Part Number Part Name Model/Kit
2135 84-31 9004820-4416 Pin, straight 1
4101 84-31 4461105 Valve plate (SB-1999-058) 1
4112 86-23 4510072 Swashplate assembly (SB-1994-002) 1
4113 84-31 11110521 Journal bearing (SB-1994-011 & SB-2012-013) 2
4114 84-31 4400090 Dowel pin (SB-2015-054) 1
4115 84-31 5000208 Screw (SB-1994-037) 1
4116 84-31 5000731 Ball bearing 1
4117 84-31 615237 (9006200-0281) Retaining ring 2
4118 84-31 615245 (9006300-0137) Retaining ring 2
4119 84-31 5000116 Pin, coil (SB-1994-011) 2
4121 84-31 4460162 Bearing sleeve 1
4122 98-15 4460993 Front cover 1
4122 89-23 98-14 4460563 Front cover (SB-1998-014) 1
4122 84-31 89-22 4460392 Front cover (SB-1989-013) 1
4123 84-31 4460564 Front cover gasket (SB-1989-013) 1
4124 84-31 9004700-1907 Pin, slotted 1
4125 84-31 615252 (9001465-0010) Needle bearing 1
4126 98-15 4461355 Front cover assembly 1
4127 84-31 664524 (9005110-9000) Plug assembly 2
4130 87-49 4461311 Servo cover gasket (SB-2002-037) 1
4130 84-31 87-48 4460208 Servo cover gasket (SB-1987-032) 1
4131 87-05 9007276-0134 Screw (SB-1987-032 & SB-1990-012) 10
4131 84-31 87-04 9007200-2516 Screw 10
4135 89-23 5000207 Screw (SB-1994-037) 6
4135 84-31 89-22 9007510-3716 Screw (SB-1989-013) 6
4142 98-15 11083729 Support washer (SB-1998-014) 1
4143 87-49 4461311 Servo cover gasket (SB-2002-037) 1
4143 84-31 87-48 4460208 Servo cover gasket (SB-1987-032) 1
Seal group
A 4201 84-31 9008000-0121 Lip seal 1
B 4201 84-31 9008000-0121 Lip seal 1
4202 92-43 9008000-0131 Lip seal 1
4202 84-31 92-42 9008000-0102 Lip seal 1
4203 84-31 9006200-0169 Retaining ring 1
29AX00000046en-US | 11063895 • Rev 0300 • August 2016
Parts Manual Series 40 M46 Axial Piston Motors
Variable displacement motor
(A,D & E) (B & F)
4301
(G) (J)
4314
4301
4301
4301
4304
4303
(L & M)
4301
30 AX00000046en-US | 11063895 • Rev 0300 • August 2016
E100 171E
Enlarged bold type item
numbers are recommended
part to stock for servicing.
Parts Manual Series 40 M46 Axial Piston Motors
Variable displacement motor
Shaft
Order Date Date Qty. per
Code Item Begin End Part Number Part Name Model/Kit
A 4301 84-31 4460251 Shaft, 13 tooth, no auxiliary drive 1
B 4301 84-31 4460254 Shaft, 13 tooth, 13 tooth auxiliary drive 1
D 4301 95-12 11041625 Shaft, 19 tooth, no auxiliary drive 1
E 4301 84-31 4460166 Shaft, 15 tooth, no auxiliary drive 1
F 4301 84-31 4460255 Shaft, 15 tooth/13 tooth auxiliary drive 1
G 4301 95-24 4461306 Shaft, 13 tooth/tapered auxiliary drive (SB-2002-021) 1
4314 02-40 5000664 Key, square (SB-2002-021) 1
4314 95-24 02-39 9003310-2514 Key, woodru 1
J 4301 91-07 4460252 Shaft, tapered 1
4303 91-07 9003575-0071 Nut 1
4304 91-07 9003310-2514 Key, woodru 1
L 4301 08-12 11041624 Shaft, 19 tooth/tapered auxiliary drive 1
M 4301 08-39 11052235 Shaft, 15 tooth/tapered auxiliary drive 1
31AX00000046en-US | 11063895 • Rev 0300 • August 2016
Parts Manual Series 40 M46 Axial Piston Motors
Variable displacement motor
4404
4401
4401
4409
(2, 3, 4, 5, 6, A, B,
D, E, F, G & H)
4403
(C)
4406
4409
4405
4404
4407
4408
* = included in overhaul seal kit Q210
32 AX00000046en-US | 11063895 • Rev 0300 • August 2016
E103 524E
Enlarged bold type item
numbers are recommended
part to stock for servicing.
Parts Manual Series 40 M46 Axial Piston Motors
Variable displacement motor
Displacement
Order Date Date Qty. per
Code Item Begin End Part Number Part Name Model/Kit
2 4401 01-07 4461221 Servo stop, 11.75° 1
4409 01-07 4460086 Servo spring 1
3 4401 01-32 4461312 Servo stop, 0° 1
4409 01-32 4460086 Spring 1
4 4401 08-26 4460445-0005 Servo stop, 4° 1
4409 08-26 4460086 Spring 1
5 4401 09-06 4460445-0005 Servo stop, 9.8° 1
4409 09-06 4460086 Spring 1
6 4401 09-06 4460445-0005 Servo stop, 4.6° 1
4409 09-06 4460086 Spring 1
A 4401 86-42 4460445-0001 Servo stop, 11° 1
4401 84-31 86-41 4460250-0003 Spring seat 1
4409 86-42 4460086 Spring 1
B 4401 86-42 4460445-0003 Servo stop, 7° 1
4401 84-31 86-41 4460250-0002 Spring seat 1
4409 86-42 4460086 Spring 1
C 4401 89-35 4460599 Servo stop 1
4403 89-35 9007201-3722 Screw 1
4404 89-35 9003575-0083 Seal nut 2
4405 89-35 4460445-0010 Servo stop 1
4406 89-35 9007301-3732 Screw 1
4407 89-35 9003575-0094 Seal nut 1
4408 89-35 048090 (9007201-3112) Screw 1
4409 89-35 4460086 Spring 1
D 4401 86-42 4460445-0004 Servo stop, 6° 1
4401 84-31 86-41 4460250-0004 Spring seat 1
4409 86-42 4460086 Spring 1
E 4401 86-42 4460445-0005 Servo stop, 1° 1
4401 84-31 86-41 4460250-0005 Spring seat 1
4409 86-42 4460086 Spring 1
F 4401 86-42 4460445-0002 Servo stop, 9° 1
4401 84-31 86-41 4460250-0002 Spring seat 1
4409 86-42 4460086 Spring 1
G 4401 86-44 01-31 4460445-0006 Servo stop, -1° 1
4409 86-44 01-31 4460086 Spring 1
H 4401 86-44 4460445-0007 Servo stop, 8.5° 1
4409 86-44 4460086 Spring 1
33AX00000046en-US | 11063895 • Rev 0300 • August 2016
Parts Manual Series 40 M46 Axial Piston Motors
Variable displacement motor
4404
4401
4403
4401
4409
(K, L, M, N,
T & W)
(C)
* = included in overhaul seal kit Q210
34 AX00000046en-US | 11063895 • Rev 0300 • August 2016
E100 173E
Enlarged bold type item
numbers are recommended
part to stock for servicing.
Parts Manual Series 40 M46 Axial Piston Motors
Variable displacement motor
Displacement
Order Date Date Qty. per
Code Item Begin End Part Number Part Name Model/Kit
K 4401 86-44 11074804 Servo stop, 5.5° 1
4409 86-44 4460086 Spring 1
L 4401 86-44 4460445-0008 Servo stop, 5° 1
4409 86-44 4460086 Spring 1
M 4401 86-44 4460445-0009 Servo stop, 8° 1
4409 86-44 4460086 Spring 1
N 4401 86-44 4460445-0011 Servo stop, 10° 1
4409 86-44 4460086 Spring 1
P 4401 93-50 4460727 Servo stop, 7° 1
4403 93-50 9007201-3722 Screw 1
4404 93-50 9003575-0083 Seal nut 1
R 4401 94-16 4460733 Servo stop, 9° 1
4403 94-16 9007201-3722 Screw 1
4404 94-16 9003575-0083 Seal nut 1
T 4401 96-14 4460825 Servo stop, 12.75° 1
4409 96-14 4460086 Spring 1
W 4401 99-14 4461076 Servo stop, 7.5° 1
4409 99-14 4460086 Spring 1
35AX00000046en-US | 11063895 • Rev 0300 • August 2016
Parts Manual Series 40 M46 Axial Piston Motors
Variable displacement motor
4511
4505
4501
(A only)
4503
(C only)
4503
(A & B)
4501
4507
(C & D)
4504
4507
*QB
*4140
4502
*4140
* = included in overhaul seal kit Q210
36 AX00000046en-US | 11063895 • Rev 0300 • August 2016
E100 174E
Enlarged bold type item
numbers are recommended
part to stock for servicing.
Parts Manual Series 40 M46 Axial Piston Motors
Variable displacement motor
Control features
Order Date Date Qty. per
Code Item Begin End Part Number Part Name Model/Kit
A QB 86-42 4510002 Servo piston ring kit 1
4140 88-05 4460648 Bearing ring (SB-1988-002 & SB-1991-009) 2
4501 87-49 4460455-0004 Servo cover (SB-1987-032) 1
4502 86-42 4460471 Servo piston 1
4502 84-31 86-41 4460385 Servo piston 1
4503 87-49 046151 (9005100-5600) Plug assembly 1
4507 87-49 4460455-0004 Servo cover (SB-1987-032) 1
B QB 87-49 4510002 Servo piston ring kit 1
4140 88-05 4460648 Bearing ring (SB-1988-002 & SB-1991-009) 2
4501 87-49 4460455-0004 Servo cover (SB-1987-032) 1
4502 86-42 4510023 Servo piston assembly 1
4502 84-31 86-41 4460385 Servo piston (plug not included) 1
4507 87-49 4460455-0004 Servo cover (SB-1987-032) 1
C QB 87-49 4510002 Servo piston ring kit 1
4140 88-05 4460648 Bearing ring (SB-1988-002 & SB-1991-009) 2
4501 87-49 4460455-0002 Servo cover (SB-1987-032) 1
4502 86-42 4460471 Servo piston 1
4502 84-31 86-41 4460385 Servo piston 1
4503 87-49 046151 (9005100-5600) Plug assembly 1
4503A 87-49 085043 (9004201-3700) O-ring 1
4504 86-42 4460448 Servo stop 1
4505 84-31 9003575-0083 Seal nut 1
4507 87-49 4460455-0004 Servo cover (SB-1987-032) 1
4511 89-23 718262 (4800175) Servo adjust cover 1
D QB 87-49 4510002 Servo piston ring kit 1
4140 88-05 4460648 Bearing ring (SB-1988-002 & SB-1991-009) 2
4501 87-49 4460455-0002 Servo cover (SB-1987-032) 1
4502 86-42 4510023 Servo piston assembly 1
4502 84-31 86-41 4460385 Servo piston (plug not included) 1
4504 86-42 4460448 Servo stop 1
4505 84-31 9003575-0083 Seal nut 1
4507 87-49 4460455-0004 Servo cover (SB-1987-032) 1
4511 89-23 718262 (4800175) Servo adjust cover 1
37AX00000046en-US | 11063895 • Rev 0300 • August 2016
Parts Manual Series 40 M46 Axial Piston Motors
Variable displacement motor
4511
4503
4505
4504
4501
4501
*4140
4501
4508
4507
4510
4509
4513
4514
(F & H)(E) (S)
4507
(F only)
4508
4507
4510
4509
4513
*QB
4502
*4140
* = included in overhaul seal kit Q210
38 AX00000046en-US | 11063895 • Rev 0300 • August 2016
E100 175E
Enlarged bold type item
numbers are recommended
part to stock for servicing.
Parts Manual Series 40 M46 Axial Piston Motors
Variable displacement motor
Control features
Order Date Date Qty. per
Code Item Begin End Part Number Part Name Model/Kit
E QB 87-49 4510002 Servo piston ring kit 1
4140 87-49 4460648 Bearing ring (SB-1988-002 & SB-1991-009) 2
4501 87-49 4460455-0002 Servo cover 1
4502 87-49 4460471 Servo piston 1
4503 87-49 046151 (9005100-5600) Plug assembly 1
4504 87-49 4460448 Servo stop 1
4505 87-49 9003575-0083 Seal nut 1
4507 87-49 4460455-0003 Servo cover 1
4508 87-49 4460603 Servo stop 1
4509 87-49 9006326-0025 Retaining ring 1
4510 87-49 9003575-0094 Seal nut 1
4511 89-23 718262 (4800175) Servo adjust cover 1
4513 89-23 4800174 Servo adjust cover 1
F QB 87-49 4510002 Servo piston ring kit 1
4140 87-49 4460648 Bearing ring (SB-1988-002 & SB-1991-009) 2
4501 89-35 4460455-0002 Servo cover 1
4502 89-35 4510024 Servo piston assembly 1
4507 89-35 4460455-0001 Servo cover 1
4514 87-49 046151 (9005100-5600) Plug assembly 1
H QB 93-51 4510002 Servo piston ring kit 1
4140 93-51 4460648 Bearing ring 2
4501 93-51 4460455-0002 Servo cover 1
4502 93-51 4510023 Servo piston assembly 1
4507 93-51 4460455-0004 Servo cover 1
S QB 94-22 4510002 Servo piston ring kit 1
4140 94-22 4460648 Bearing ring 2
4501 94-22 4460455-0004 Servo cover 1
4502 94-22 4510023 Servo piston assembly 1
4507 94-22 4460455-0003 Servo cover 1
4508 94-22 4460603 Servo stop 1
4509 94-22 9006326-0025 Retaining ring 1
4510 94-22 9003575-0094 Seal nut 1
4513 94-22 4800174 Servo adjust cover 1
39AX00000046en-US | 11063895 • Rev 0300 • August 2016
Parts Manual Series 40 M46 Axial Piston Motors
Variable displacement motor
4511
4503
4505
(Y)
4504
4501
4508
4507
4510
4509
4513
4503
(U & X)
4501
4508
4507
4510
4509
4513
*QB
*4140
4502
*4140
* = included in overhaul seal kit Q210
40 AX00000046en-US | 11063895 • Rev 0300 • August 2016
E101 742E
Enlarged bold type item
numbers are recommended
part to stock for servicing.
Parts Manual Series 40 M46 Axial Piston Motors
Variable displacement motor
Control features
Order Date Date Qty. per
Code Item Begin End Part Number Part Name Model/Kit
U QB 01-33 4510002 Servo piston ring kit 1
4140 01-33 4460648 Bearing ring 2
4501 01-33 4460455-0004 Servo cover 1
4502 01-33 4460471 Servo piston 1
4503 01-33 046151 (9005100-5600) Plug assembly 1
4507 01-33 4460455-0003 Servo cover 1
4508 01-33 4460603 Servo stop 1
4509 01-33 9006326-0025 Retaining ring 1
4510 01-33 9003575-0094 Seal nut 1
4513 01-33 4800174 Servo adjust cover 1
X QB 96-34 4510002 Servo piston ring kit 1
4140 96-34 4460648 Bearing ring 2
4501 96-34 4460455-0004 Servo cover 1
4502 96-34 4460471 Servo piston 1
4503 96-34 046151 (9005100-5600) Plug assembly 1
4507 96-34 4460455-0003 Servo cover 1
4508 96-34 4460603 Servo stop 1
4509 96-34 9006326-0025 Retaining ring 1
4510 96-34 9003575-0094 Seal nut 1
4513 96-34 4800174 Servo adjust cover 1
Y QB 10-46 4510002 Servo piston ring kit 1
4140 10-46 4460648 Bearing ring 2
4501 10-46 4460455-0002 Servo cover 1
4502 10-46 4460471 Servo piston 1
4503 10-46 046151 (9005100-5600) Plug assembly 1
4504 10-46 4460448 Servo stop 1
4505 10-46 9003575-0083 Seal nut 1
4507 10-46 4460455-0003 Servo cover 1
4508 10-46 4460603 Servo stop 1
4509 10-46 9006326-0025 Retaining ring 1
4510 10-46 9003575-0094 Seal nut 1
4511 10-46 4800175 Servo adjust cover 1
4513 10-46 4800174 Servo adjust cover 1
41AX00000046en-US | 11063895 • Rev 0300 • August 2016
Parts Manual Series 40 M46 Axial Piston Motors
Variable displacement motor
Q4621
4619
4623
4621
*Q4619
4618
*Q4618
4601
(1 & A1)
Q4620
2165
2166
2167
4620
2168
2164
4601
(2 & A2)
Q4620
2165
2166
* = included in overhaul seal kit Q210
2167
4620
2168
2164
E100 178E
Enlarged bold type item
numbers are recommended
part to stock for servicing.
42 AX00000046en-US | 11063895 • Rev 0300 • August 2016
Parts Manual Series 40 M46 Axial Piston Motors
Variable displacement motor
Housing
Order Date Date Qty. per
Code Item Begin End Part Number Part Name Model/Kit
1 & A1 2164 06-46 4461032 Piston assembly 7
2165 06-46 9004875-0113 Hold down pin 3
2166 06-46 4460028 Hold down pin retainer 1
2167 06-46 4460180 Retainer guide 1
2168 06-46 4460009 Slipper guide 1
4601 06-46 4461044 Housing 1
4618 06-46 4800432 Adapter assembly 1
4619 06-46 KPPG16008 Speed sensor assembly 1
4620 06-46 4460891 Cylinder block kit, with speed ring 1
4621 06-46 4461003 Plug assembly 1
4623 06-46 9006200-0169 Retaining ring 1
Q4618 06-46 001149 (9004201-6200) O-ring 1
Q4619 06-46 085043 (9004201-3700) O-ring 1
Q4620 06-46 11183529 Cylinder block assembly, with speed ring 1
Q4621 06-46 327189 (9004100-0290) O-ring 1
2 & A2 2164 08-12 4461032 Piston assembly 7
2165 08-12 9004875-0113 Hold down pin 3
2166 08-12 4460028 Hold down pin retainer 1
2167 08-12 4460180 Retainer guide 1
2168 08-12 4460009 Slipper guide 1
4601 08-12 11041623 Housing 1
4620 08-12 4460890 Cylinder block kit 1
Q4620 08-12 11183528 Cylinder block assembly 1
43AX00000046en-US | 11063895 • Rev 0300 • August 2016
Parts Manual Series 40 M46 Axial Piston Motors
Variable displacement motor
(3 & A3)
4619
*Q4618
4606
*Q4619
4618
*4606A
4606C
4606B
4610
4604
4611
4612
4603
4605
4614
4615
*Q4611
4603
4606C
4601
4606
*4606A
4606B
Q4620
2165
2166
* = included in overhaul seal kit Q210
2167
4620
2168
2164
E101 743E
Enlarged bold type item
numbers are recommended
part to stock for servicing.
44 AX00000046en-US | 11063895 • Rev 0300 • August 2016
Parts Manual Series 40 M46 Axial Piston Motors
Variable displacement motor
Housing
Order Date Date Qty. per
Code Item Begin End Part Number Part Name Model/Kit
3 & A3 2164 08-19 4461032 Piston assembly 7
2165 08-19 9004875-0113 Hold down pin 3
2166 08-19 4460028 Hold down pin retainer 1
2167 08-19 4460180 Retainer guide 1
2168 08-19 4460009 Slipper guide 1
4601 08-19 4461224 Housing 1
4603 08-19 327007 (9005110-4400) Plug assembly 2
4604 08-19 515965 (9005110-5600) Plug assembly 1
4605 08-19 093625 (9005100-9000) Plug assembly 2
4606 08-19 4800912 Loop ushing spool spring assembly 2
4606A 08-19 085043 (9004201-3700) O-ring 2
4606B 08-19 4800887 Spring 2
4606C 08-19 512257 Spring guide 2
4610 08-19 365544 (8800550) Spool 1
4611 08-19 4800308 Plug assembly 1
4612 08-19 4510027 Shim kit 1
4614 08-19 4800176 Spring 1
4615 08-19 4800134 Poppet 1
4618 08-19 4800432 Adapter assembly 1
4619 08-19 KPPG15408 Speed sensor assembly 1
4620 08-19 4460891 Cylinder block kit, with speed ring 1
Q4611 08-19 001149 (9004201-6200) O-ring 1
Q4618 08-19 001149 (9004201-6200) O-ring 1
Q4619 08-19 085043 (9004201-3700) O-ring 1
Q4620 08-19 11183529 Cylinder block assembly, with speed ring 1
45AX00000046en-US | 11063895 • Rev 0300 • August 2016
Parts Manual Series 40 M46 Axial Piston Motors
Variable displacement motor
(4 & A4)
4619
*Q4618
4606
*Q4619
4618
*4606A
4607
4606B
4606C
4610
4604
4611
4612
4614
4615
4603
*Q4611
4603
4606C
4601
4606
*4606A
4606B
Q4620
2165
2166
* = included in overhaul seal kit Q210
2167
4620
2168
2164
E101 744E
Enlarged bold type item
numbers are recommended
part to stock for servicing.
46 AX00000046en-US | 11063895 • Rev 0300 • August 2016
Parts Manual Series 40 M46 Axial Piston Motors
Variable displacement motor
Housing
Order Date Date Qty. per
Code Item Begin End Part Number Part Name Model/Kit
4 & A4 2164 08-19 4461032 Piston assembly 7
2165 08-19 9004875-0113 Hold down pin 3
2166 08-19 4460028 Hold down pin retainer 1
2167 08-19 4460180 Retainer guide 1
2168 08-19 4460009 Slipper guide 1
4601 08-19 4461224 Housing 1
4603 08-19 327007 (9005110-4400) Plug assembly 2
4604 08-19 515965 (9005110-5600) Plug assembly 1
4606 08-19 4800912 Loop ushing spool spring assembly 2
4606A 08-19 085043 (9004201-3700) O-ring 2
4606B 08-19 4800887 Spring 2
4606C 08-19 512257 Spring guide 2
4607 08-19 093625 (9005100-9000) Plug assembly 2
4610 08-19 365544 (8800550) Spool 1
4611 08-19 4800308 Plug assembly 1
4612 08-19 4510027 Shim kit 1
4614 08-19 4800176 Spring 1
4615 08-19 4800134 Poppet 1
4618 08-19 4800432 Adapter assembly 1
4619 08-19 KPPG13408 Speed sensor assembly 1
4620 08-19 4460891 Cylinder block kit, with speed ring 1
Q4611 08-19 001149 (9004201-6200) O-ring 1
Q4618 08-19 001149 (9004201-6200) O-ring 1
Q4619 08-19 085043 (9004201-3700) O-ring 1
Q4620 08-19 11183529 Cylinder block assembly, with speed ring 1
47AX00000046en-US | 11063895 • Rev 0300 • August 2016
Parts Manual Series 40 M46 Axial Piston Motors
Variable displacement motor
(5 & A5)
4606
4606B
*4606A
4618
4606C
4610
4604
4611
4612
4603
4605
4614
4615
*Q4611
4603
4606C
4601
4606
*4606A
4606B
Q4620
2165
2166
* = included in overhaul seal kit Q210
2167
4620
2168
2164
E101 745E
Enlarged bold type item
numbers are recommended
part to stock for servicing.
48 AX00000046en-US | 11063895 • Rev 0300 • August 2016
Parts Manual Series 40 M46 Axial Piston Motors
Variable displacement motor
Housing
Order Date Date Qty. per
Code Item Begin End Part Number Part Name Model/Kit
5 & A5 2164 08-19 4461032 Piston assembly 7
2165 08-19 9004875-0113 Hold down pin 3
2166 08-19 4460028 Hold down pin retainer 1
2167 08-19 4460180 Retainer guide 1
2168 08-19 4460009 Slipper guide 1
4601 08-19 4461224 Housing 1
4603 08-19 327007 (9005110-4400) Plug assembly 2
4604 08-19 515965 (9005110-5600) Plug assembly 1
4605 08-19 093625 (9005100-9000) Plug assembly 2
4606 08-19 4800912 Loop ushing spool spring assembly 2
4606A 08-19 085043 (9004201-3700) O-ring 2
4606B 08-19 4800887 Spring 2
4606C 08-19 512257 Spring guide 2
4610 08-19 365544 (8800550) Spool 1
4611 08-19 4800308 Plug assembly 1
4612 08-19 4510027 Shim kit 1
4614 08-19 4800176 Spring 1
4615 08-19 4800134 Poppet 1
4618 08-19 315325 (9005110-8700) Plug assembly 1
4620 08-19 4460891 Cylinder block kit, with speed ring 1
Q4611 08-19 001149 (9004201-6200) O-ring 1
Q4620 08-19 11183529 Cylinder block assembly, with speed ring 1
49AX00000046en-US | 11063895 • Rev 0300 • August 2016
Parts Manual Series 40 M46 Axial Piston Motors
Variable displacement motor
(8 & A8)
Q4621
4619
(6 & A6)
4623
4621
4619
*Q4619
4618
*Q4618
*Q4618
4606
*Q4619
4606B
*4606A
4601
4618
4606C
4610
4604
4611
4612
4614
4603
4605
4615
*Q4611
4603
4606C
4601
4606
*4606A
4606B
* = included in overhaul seal kit Q210
50 AX00000046en-US | 11063895 • Rev 0300 • August 2016
Q4620
2165
2166
4620
2167
2168
E101 746E
Enlarged bold type item
numbers are recommended
part to stock for servicing.
2164
Parts Manual Series 40 M46 Axial Piston Motors
Variable displacement motor
Housing
Order Date Date Qty. per
Code Item Begin End Part Number Part Name Model/Kit
6 & A6 2164 06-46 4461032 Piston assembly 7
2165 06-46 9004875-0113 Hold down pin 3
2166 06-46 4460028 Hold down pin retainer 1
2167 06-46 4460180 Retainer guide 1
2168 06-46 4460009 Slipper guide 1
4601 06-46 4461044 Housing 1
4618 06-46 4800432 Adapter assembly 1
4619 06-46 KPPG16408 Speed sensor assembly 1
4620 06-46 4460891 Cylinder block kit, with speed ring 1
4621 06-46 4461003 Plug assembly 1
4623 06-46 9006200-0169 Retaining ring 1
Q4618 06-46 001149 (9004201-6200) O-ring 1
Q4619 06-46 085043 (9004201-3700) O-ring 1
Q4620 06-46 11183529 Cylinder block assembly, with speed ring 1
Q4621 06-46 9004100-0290 O-ring 1
8 & A8 2164 08-19 4461032 Piston assembly 7
2165 08-19 9004875-0113 Hold down pin 3
2166 08-19 4460028 Hold down pin retainer 1
2167 08-19 4460180 Retainer guide 1
2168 08-19 4460009 Slipper guide 1
4601 08-19 11048268 Housing 1
4603 08-19 327007 (9005110-4400) Plug assembly 2
4604 08-19 515965 (9005110-5600) Plug assembly 1
4605 08-19 093625 (9005100-9000) Plug assembly 2
4606 08-19 4800912 Loop ushing spool spring assembly 2
4606A 08-19 085043 (9004201-3700) O-ring 2
4606B 08-19 4800887 Spring 2
4606C 08-19 512257 Spring guide 2
4610 08-19 365544 (8800550) Spool 1
4611 08-19 4800308 Plug assembly 1
4612 08-19 4510027 Shim kit 1
4614 08-19 4800176 Spring 1
4615 08-19 4800134 Poppet 1
4618 08-19 4800432 Adapter assembly 1
4619 08-19 KPPG13408 Speed sensor assembly 1
4620 08-19 4460891 Cylinder block kit, with speed ring 1
Q4611 08-19 001149 (9004201-6200) O-ring 1
Q4618 08-19 001149 (9004201-6200) O-ring 1
Q4619 08-19 085043 (9004201-3700) O-ring 1
Q4620 08-19 11183529 Cylinder block assembly, with speed ring 1
51AX00000046en-US | 11063895 • Rev 0300 • August 2016
Parts Manual Series 40 M46 Axial Piston Motors
Variable displacement motor
4606
(E & AE)
*Q4618
4606B
*4606A
4606C
4610
4618
4604
4611
4612
4614
4615
4603
(D & AD)
*Q4611
4603
*Q4618
4606B
4606C
(A & AA)
4601
4618
4601
4606
*4606A
4601
4605
* = included in overhaul seal kit Q210
52 AX00000046en-US | 11063895 • Rev 0300 • August 2016
Q4620
2165
2166
2167
2168
E100 176E
Enlarged bold type item
numbers are recommended
part to stock for servicing.
4620
2164
Parts Manual Series 40 M46 Axial Piston Motors
Variable displacement motor
Housing
Order Date Date Qty. per
Code Item Begin End Part Number Part Name Model/Kit
A & AA 2164 86-30 4461032 Piston assembly 7
2165 86-30 9004875-0113 Hold down pin 3
2166 86-30 4460028 Hold down pin retainer 1
2167 86-30 4460180 Retainer guide 1
2168 86-30 4460009 Slipper guide 1
4601 86-30 4461043 Housing (SB-1989-013 & SB-1998-075) 1
4620 86-30 4460890 Cylinder block kit 1
Q4620 86-30 11183528 Cylinder block assembly 1
D & AD 2164 86-30 4461032 Piston assembly 7
2165 86-30 9004875-0113 Hold down pin 3
2166 86-30 4460028 Hold down pin retainer 1
2167 86-30 4460180 Retainer guide 1
2168 86-30 4460009 Slipper guide 1
4601 91-07 4461044 Housing (SB-1998-026 & SB-1998-075) 1
4618 91-07 315325 (9005110-8700) Plug assembly 1
4620 91-07 4460890 Cylinder block kit 1
Q4618 09-08 001149 (9004201-6200) O-ring 1
Q4620 91-07 11183528 Cylinder block assembly 1
E & AE 4601 92-19 4461224 Housing 1
4603 92-19 327007 (9005110-4400) Plug assembly 2
4604 92-19 515965 (9005110-5600) Plug assembly 1
4605 92-19 093625 (9005100-9000) Plug assembly 2
4606 92-19 4800912 Loop ushing plug/spring assembly 2
4606A 92-19 085043 (9004201-3700) O-ring 2
4606B 92-19 4800887 Spring 2
4606C 92-19 512257 Spring guide 2
4610 92-19 365544 (8800550) Spool 1
4611 92-19 4800308 Plug assembly 1
4612 92-19 4510027 Shim kit 1
4614 92-19 4800176 Spring 1
4615 92-19 4800134 Poppet 1
4618 92-19 315325 (9005110-8700) Plug assembly 1
4620 92-19 4460890 Cylinder block kit 1
Q4611 92-19 001149 (9004201-6200) O-ring 1
Q4618 09-08 001149 (9004201-6200) O-ring 1
Q4620 91-07 11183528 Cylinder block assembly 1
53AX00000046en-US | 11063895 • Rev 0300 • August 2016
Parts Manual Series 40 M46 Axial Piston Motors
Variable displacement motor
(H & AH
prior to 02-27)
4604
4606
4610
4606C
4606B
*4606A
4611
4603
4606
*4606A
(F & AF)
4606C
4606B
*Q4611
4603
4610
4604
4606B
4606C
4611
4612
4614
4615
4603
*4606A
4601
4606
*Q4611
4603
4606B
4606C
4606
*4606A
4601
(H & AH
after to 02-26)
4601
Q4620
2165
2166
* = included in overhaul seal kit Q210
2167
4620
2168
2164
E100 177E
Enlarged bold type item
numbers are recommended
part to stock for servicing.
54 AX00000046en-US | 11063895 • Rev 0300 • August 2016
Parts Manual Series 40 M46 Axial Piston Motors
Variable displacement motor
Housing
Order Date Date Qty. per
Code Item Begin End Part Number Part Name Model/Kit
F & AF 2164 86-30 4461032 Piston assembly 7
2165 86-30 9004875-0113 Hold down pin 3
2166 86-30 4460028 Hold down pin retainer 1
2167 86-30 4460180 Retainer guide 1
2168 86-30 4460009 Slipper guide 1
4601 96-36 4460903 Housing (SB-1997-002) 1
4603 96-36 327007 (9005110-4400) Plug assembly 2
4604 96-36 515965 (9005110-5600) Plug assembly 1
4606 96-36 4800912 Loop ushing plug/spring assembly 2
4606A 96-36 085043 (9004201-3700) O-ring 2
4606B 96-36 4800887 Spring 2
4606C 96-36 512257 Spring guide 2
4610 96-36 365544 (8800550) Spool 1
4611 96-36 4800308 Plug assembly 1
4612 96-36 4510027 Shim kit 1
4614 96-36 4800176 Spring 1
4615 96-36 4800134 Poppet 1
4620 96-36 4460890 Cylinder block kit 1
Q4611 96-36 001149 (9004201-6200) O-ring 1
Q4620 96-36 11183528 Cylinder block assembly 1
H & AH 4601 97-04 4461265 Housing (SB-2002-017) 1
4603 97-04 02-26 327007 (9005110-4400) Plug assembly 2
4603A 97-04 02-26 001123 (9004201-2500) O-ring 2
4604 97-04 02-26 515965 (9005110-5600) Plug assembly 1
4604A 97-04 02-26 085043 (9004201-3700) O-ring 1
4606 97-04 02-26 046151 (9005100-5600) Plug assembly 2
4606A 97-04 02-26 085043 (9004201-3700) O-ring 2
4610 97-04 02-26 8800668 Spool 1
4611 97-04 02-26 001537 (9005100-8700) Plug assembly 1
4620 97-04 4460890 Cylinder block kit 1
Q4611 97-04 02-26 001149 (9004201-6200) O-ring 1
Q4620 97-04 11183528 Cylinder block assembly 1
55AX00000046en-US | 11063895 • Rev 0300 • August 2016
Parts Manual Series 40 M46 Axial Piston Motors
Variable displacement motor
(I & AI)
*Q4618
4606
4606B
*4606A
4606C
4610
4618
4604
4611
4612
4603
4605
4614
4615
*Q4611
4603
4606B
4606C
*4606A
4601
4606
Q4620
2165
2166
2167
4620
2168
2164
* = included in overhaul seal kit Q210
56 AX00000046en-US | 11063895 • Rev 0300 • August 2016
E101 747E
Enlarged bold type item
numbers are recommended
part to stock for servicing.
Parts Manual Series 40 M46 Axial Piston Motors
Variable displacement motor
Housing
Order Date Date Qty. per
Code Item Begin End Part Number Part Name Model/Kit
I & AI 2164 09-08 4461032 Piston assembly 7
2165 09-08 9004875-0113 Hold down pin 3
2166 09-08 4460028 Hold down pin retainer 1
2167 09-08 4460180 Retainer guide 1
2168 09-08 4460009 Slipper guide 1
4601 09-08 4461224 Housing 1
4603 09-08 327007 (9005110-4400) Plug assembly 2
4604 09-08 515965 (9005110-5600) Plug assembly 1
4605 09-08 093625 (9005100-9000) Plug assembly 2
4606 09-08 4800912 Loop ushing plug/spring assembly 2
4606A 09-08 085043 (9004201-3700) O-ring 2
4606B 09-08 4800887 Spring 2
4606C 09-08 512257 Spring guide 2
4610 09-08 365544 (8800550) Spool 1
4611 09-08 4800308 Plug assembly 1
4612 09-08 4510027 Shim kit 1
4614 09-08 4800176 Spring 1
4615 09-08 4800134 Poppet 1
4618 09-08 315325 (9005110-8700) Plug assembly 1
4620 09-08 4460890 Cylinder block kit 1
Q4611 09-08 001149 (9004201-6200) O-ring 1
Q4618 09-08 001149 (9004201-6200) O-ring 1
Q4620 09-08 11183528 Cylinder block assembly 1
57AX00000046en-US | 11063895 • Rev 0300 • August 2016
Parts Manual Series 40 M46 Axial Piston Motors
Variable displacement motor
(98-28 thru 02-03)
4606
4606
4606C
4606B
*4606A
(K & AK)
4606
4606C
4606B
*4606A
4610
4610
4604
4604
4611
4612
4614
4615
4603
4611
4612
4614
4615
4603
*Q4611
4603
*Q4611
4603
4606B
4606C
4606B
4606C
*4606A
4601
*4606A
4601
(J & AJ)
4606
4606
Q4620
Q4620
2165
2166
2167
4620
2168
2164
4620
* = included in overhaul seal kit Q210
58 AX00000046en-US | 11063895 • Rev 0300 • August 2016
2165
2166
2167
Enlarged bold type item
numbers are recommended
part to stock for servicing.
2168
2164
E101 748E
Parts Manual Series 40 M46 Axial Piston Motors
Variable displacement motor
Housing
Order Date Date Qty. per
Code Item Begin End Part Number Part Name Model/Kit
J & AJ 2164 94-38 4461032 Piston assembly 7
2165 94-38 9004875-0113 Hold down pin 3
2166 94-38 4460028 Hold down pin retainer 1
2167 94-38 4460180 Retainer guide 1
2168 94-38 4460009 Slipper guide 1
4601 94-38 4460903 Housing (SB-1997-002) 1
4602 98-28 02-03 9005110-9200 Plug assembly 2
4603 94-38 327007 (9005110-4400) Plug assembly 2
4604 94-38 515965 (9005110-5600) Plug assembly 1
4606 94-38 4800912 Loop ushing plug/spring assembly 2
4606A 94-38 085043 (9004201-3700) O-ring 2
4606B 94-38 4800887 Spring 2
4606C 94-38 512257 Spring guide 2
4610 94-38 365544 (8800550) Spool 1
4611 94-38 4800308 Plug assembly 1
4612 94-38 4510027 Shim kit 1
4614 94-38 8800496 Spring 1
4615 94-38 4800134 Poppet 1
4620 94-38 4460890 Cylinder block kit 1
Q4611 94-38 001149 (9004201-6200) O-ring 1
Q4620 94-38 11183528 Cylinder block assembly 1
K & AK 2164 94-44 4461032 Piston assembly 7
2165 94-44 9004875-0113 Hold down pin 3
2166 94-44 4460028 Hold down pin retainer 1
2167 94-44 4460180 Retainer guide 1
2168 94-44 4460009 Slipper guide 1
4601 94-44 4460903 Housing (SB-1997-002) 1
4603 94-44 327007 (9005110-4400) Plug assembly 2
4604 94-44 515965 (9005110-5600) Plug assembly 1
4606 94-44 4800912 Loop ushing plug/spring assembly 2
4606A 94-44 085043 (9004201-3700) O-ring 2
4606B 94-44 4800887 Spring 2
4606C 94-44 512257 Spring guide 2
4610 94-44 365544 (8800550) Spool 1
4611 94-44 4800308 Plug assembly 1
4612 94-44 4510027 Shim kit 1
4614 94-44 8800496 Spring 1
4615 94-44 4800134 Poppet 1
4620 94-44 4460890 Cylinder block kit 1
Q4611 94-44 001149 (9004201-6200) O-ring 1
Q4620 94-44 11183528 Cylinder block assembly 1
59AX00000046en-US | 11063895 • Rev 0300 • August 2016
Parts Manual Series 40 M46 Axial Piston Motors
Variable displacement motor
*Q4619
4619
4623
4621
4618
*Q4618
4601
Q4621
4619
*Q4618
*Q4619
4618
4601
(M, AM,
N & AN)
(0 & A0)
Q4620
2165
2166
2167
4620
2168
2164
*Q4619
4619
4618
*Q4618
4601
(P & AP)
* = included in overhaul seal kit Q210
60 AX00000046en-US | 11063895 • Rev 0300 • August 2016
E101 749E
Enlarged bold type item
numbers are recommended
part to stock for servicing.
Parts Manual Series 40 M46 Axial Piston Motors
Variable displacement motor
Common cylinder block kit parts
Order Date Date Qty. per
Code Item Begin End Part Number Part Name Model/Kit
2164 94-38 4461032 Piston assembly 7
2165 94-38 9004875-0113 Hold down pin 3
2166 94-38 4460028 Hold down pin retainer 1
2167 94-38 4460180 Retainer guide 1
2168 94-38 4460009 Slipper guide 1
Housing
M & AM 4601 95-37 4461044 Housing (SB-1998-026 & SB-1998-075) 1
4618 95-37 4800432 Adapter assembly 1
4619 95-37 KPPG13408 Speed sensor assembly 1
4620 95-37 4460891 Cylinder block kit, with speed ring 1
4621 95-37 4461003 Plug assembly 1
4623 95-37 9006200-0169 Retaining ring 1
Q4618 95-37 001149 (9004201-6200) O-ring 1
Q4619 95-37 085043 (9004201-3700) O-ring 1
Q4620 95-37 11183529 Cylinder block assembly, with speed ring 1
Q4621 95-37 327189 (9004100-0290) O-ring 1
N & AN 4601 95-37 4461044 Housing (SB-1998-026 & SB-1998-075) 1
4618 95-37 4800432 Adapter assembly 1
4619 95-37 KPPG12408 Speed sensor assembly 1
4620 95-37 4460891 Cylinder block kit, with speed ring 1
4621 95-37 4461003 Plug assembly 1
4623 95-37 9006200-0169 Retaining ring 1
Q4618 95-37 001149 (9004201-6200) O-ring 1
Q4619 95-37 085043 (9004201-3700) O-ring 1
Q4620 95-37 11183529 Cylinder block assembly, with speed ring 1
Q4621 95-37 327189 (9004100-0290) O-ring 1
O & AO 4601 10-31 4461265 Housing 1
4618 10-31 4800432 Adapter assembly 1
4619 10-31 KPPG13408 Speed sensor assembly 1
4620 10-31 4460891 Cylinder block kit, with speed ring 1
Q4618 10-31 001149 (9004201-6200) O-ring 1
Q4619 10-31 085043 (9004201-3700) O-ring 1
Q4620 10-31 11183529 Cylinder block assembly, with speed ring 1
P & AP 4601 96-46 4461044 Housing (SB-1998-026 & SB-1998-075) 1
4618 96-46 4800432 Adapter assembly 1
4619 96-46 KPPG13408 Speed sensor assembly 1
4620 96-46 4460891 Cylinder block kit, with speed ring 1
Q4618 96-46 001149 (9004201-6200) O-ring 1
Q4619 96-46 085043 (9004201-3700) O-ring 1
Q4620 96-46 11183529 Cylinder block assembly, with speed ring 1
61AX00000046en-US | 11063895 • Rev 0300 • August 2016
Parts Manual Series 40 M46 Axial Piston Motors
Variable displacement motor
4619
*4606A
*Q4618
4606
*4606A
*Q4618
4606
4606B
4606C
4606B
4606C
4610
*Q4619
4610
4618
4604
4604
4618
4603
4603
4605
4611
4612
4614
4615
4611
4612
4614
4615
*Q4611
4603
*Q4611
4603
4606C
4606B
4606C
*4606A
4606B
4601
*4606A
4601
4606
4606
(Q & AQ)
Q4620
(R & AR)
Q4620
2165
2166
2167
4620
2168
2164
4620
4605
* = included in overhaul seal kit Q210
62 AX00000046en-US | 11063895 • Rev 0300 • August 2016
2165
2166
2167
Enlarged bold type item
numbers are recommended
part to stock for servicing.
2168
E103 525E
2164
Parts Manual Series 40 M46 Axial Piston Motors
Variable displacement motor
Housing
Order Date Date Qty. per
Code Item Begin End Part Number Part Name Model/Kit
Q & AQ 2164 94-38 4461032 Piston assembly 7
2165 94-38 9004875-0113 Hold down pin 3
2166 94-38 4460028 Hold down pin retainer 1
2167 94-38 4460180 Retainer guide 1
2168 94-38 4460009 Slipper guide 1
4601 09-18 4461224 Housing 1
4603 09-18 327007 (9005110-4400) Plug assembly 2
4604 09-18 515965 (9005110-5600) Plug assembly 1
4605 09-18 093625 (9005100-9000) Plug assembly 2
4606 09-18 4800912 Loop ushing plug/spring assembly 2
4606A 09-18 085043 (9004201-3700) O-ring 2
4606B 09-18 4800887 Spring 2
4606C 09-18 512257 Spring guide 2
4610 09-18 365544 (8800550) Spool 1
4611 09-18 4800308 Plug assembly 1
4612 09-18 4510027 Shim kit 1
4614 09-18 4800176 Spring 1
4615 09-18 4800134 Poppet 1
4618 09-18 4800432 Adapter assembly 1
4619 09-18 KPPG16708 Speed sensor assembly 1
4620 09-18 4460891 Cylinder block kit, with speed ring 1
Q4611 09-18 001149 (9004201-6200) O-ring 1
Q4618 09-18 001149 (9004201-6200) O-ring 1
Q4620 09-18 11183529 Cylinder block assembly, with speed ring 1
R & AR 2164 09-18 4461032 Piston assembly 7
2165 09-18 9004875-0113 Hold down pin 3
2166 09-18 4460028 Hold down pin retainer 1
2167 09-18 4460180 Retainer guide 1
2168 09-18 4460009 Slipper guide 1
4601 09-18 110408268 Housing 1
4603 09-18 327007 (9005110-4400) Plug assembly 2
4604 09-18 515965 (9005110-5600) Plug assembly 1
4605 09-18 093625 (9005100-9000) Plug assembly 2
4606 09-18 4800912 Loop ushing plug/spring assembly 2
4606A 09-18 085043 (9004201-3700) O-ring 2
4606B 09-18 4800887 Spring 2
4606C 09-18 512257 Spring guide 2
4610 09-18 365544 (8800550) Spool 1
4611 09-18 4800308 Plug assembly 1
4612 09-18 4510027 Shim kit 1
4614 09-18 4800176 Spring 1
4615 09-18 4800134 Poppet 1
4620 09-18 4460890 Cylinder block kit 1
4618 09-18 315325 (9005110-8700) Plug assembly 1
Q4611 09-18 001149 (9004201-6200) O-ring 1
Q4618 09-18 001149 (9004201-6200) O-ring 1
Q4620 09-18 11183528 Cylinder block assembly 1
63AX00000046en-US | 11063895 • Rev 0300 • August 2016
Parts Manual Series 40 M46 Axial Piston Motors
Variable displacement motor
(U & AU)
4606
4606B
*4606A
4606C
4610
4604
4611
4612
4614
4615
4603
*Q4611
4603
4606B
4606C
4606
*4606A
4601
Q4620
2165
2166
2167
4620
2168
4606
4606B
*4606A
4606C
4610
(V & AV)
4604
4611
4612
4603
4605
4614
4615
*Q4611
4603
4606B
4606C
*4606A
4601
4606
Q4620
2165
2166
2167
2164
4620
2168
2164
* = included in overhaul seal kit Q210
64 AX00000046en-US | 11063895 • Rev 0300 • August 2016
E101 750E
Enlarged bold type item
numbers are recommended
part to stock for servicing.
Parts Manual Series 40 M46 Axial Piston Motors
Variable displacement motor
Housing
Order Date Date Qty. per
Code Item Begin End Part Number Part Name Model/Kit
U & AU 2164 97-02 4461032 Piston assembly 7
2165 97-02 9004875-0113 Hold down pin 3
2166 97-02 4460028 Hold down pin retainer 1
2167 97-02 4460180 Retainer guide 1
2168 97-02 4460009 Slipper guide 1
4601 97-02 4460903 Housing 1
4603 97-02 327007 (9005110-4400) Plug assembly 2
4604 97-02 515965 (9005110-5600) Plug assembly 1
4606 97-02 4800912 Loop ushing plug/spring assembly 2
4606A 97-02 085043 (9004201-3700) O-ring 2
4606B 97-02 4800887 Spring 2
4606C 97-02 512257 Spring guide 2
4610 97-02 365544 (8800550) Spool 1
4611 97-02 4800308 Plug assembly 1
4612 97-02 4510027 Shim kit 1
4614 97-02 4800176 Spring 1
4615 97-02 4800134 Poppet 1
4620 97-02 4460890 Cylinder block kit 1
Q4611 97-02 001149 (9004201-6200) O-ring 1
Q4620 97-02 11183528 Cylinder block assembly 1
V & AV 2164 97-07 4461032 Piston assembly 7
2165 97-07 9004875-0113 Hold down pin 3
2166 97-07 4460028 Hold down pin retainer 1
2167 97-07 4460180 Retainer guide 1
2168 97-07 4460009 Slipper guide 1
4601 97-07 4460909 Housing 1
4603 97-07 327007 (9005110-4400) Plug assembly 2
4604 97-07 515965 (9005110-5600) Plug assembly 1
4605 97-07 093625 (9005100-9000) Plug assembly 1
4606 97-07 4800912 Loop ushing plug/spring assembly 2
4606A 97-07 085043 (9004201-3700) O-ring 2
4606B 97-07 4800887 Spring 2
4606C 97-07 512257 Spring guide 2
4610 97-07 365544 (8800550) Spool 1
4611 97-07 4800308 Plug assembly 1
4612 97-07 4510027 Shim kit 1
4614 97-07 4800176 Spring 1
4615 97-07 4800134 Poppet 1
4620 97-07 4460890 Cylinder block kit 1
Q4611 97-07 001149 (9004201-6200) O-ring 1
Q4620 97-07 11183528 Cylinder block assembly 1
65AX00000046en-US | 11063895 • Rev 0300 • August 2016
Parts Manual Series 40 M46 Axial Piston Motors
Variable displacement motor
*Q4619
4619
4623
4618
*Q4618
4621
(W & AW)
Q4621
*Q4619
4619
4618
*Q4618
4601
(X & AX)
4601
Q4620
Q4620
2165
2166
2167
4620
2168
2164
4620
* = included in overhaul seal kit Q210
66 AX00000046en-US | 11063895 • Rev 0300 • August 2016
2165
2166
2167
2168
2164
E101 751E
Enlarged bold type item
numbers are recommended
part to stock for servicing.
Parts Manual Series 40 M46 Axial Piston Motors
Variable displacement motor
Housing
Order Date Date Qty. per
Code Item Begin End Part Number Part Name Model/Kit
W & AW 2164 97-02 4461032 Piston assembly 7
2165 97-02 9004875-0113 Hold down pin 3
2166 97-02 4460028 Hold down pin retainer 1
2167 97-02 4460180 Retainer guide 1
2168 97-02 4460009 Slipper guide 1
4601 03-03 4461044 Housing 1
4618 03-03 4800432 Adapter assembly 1
4619 03-03 KPPG166 Speed sensor assembly 1
4620 03-03 4460891 Cylinder block kit, with speed ring 1
4621 03-03 4461003 Plug assembly 1
4623 03-03 9006200-0169 Retaining ring 1
Q4618 03-03 001149 (9004201-6200) O-ring 1
Q4619 03-03 085043 (9004201-3700) O-ring 1
Q4620 03-03 11183529 Cylinder block assembly, with speed ring 1
Q4621 03-03 327189 (9004100-0290) O-ring 1
X & AX 2164 97-02 4461032 Piston assembly 7
2165 97-02 9004875-0113 Hold down pin 3
2166 97-02 4460028 Hold down pin retainer 1
2167 97-02 4460180 Retainer guide 1
2168 97-02 4460009 Slipper guide 1
4601 95-37 4461044 Housing (SB-1998-026 & SB-1998-075) 1
4618 95-37 4800432 Adapter assembly 1
4619 95-37 515965 (9005110-5600) Plug assembly 1
4620 95-37 4460891 Cylinder block kit, with speed ring 1
4621 95-37 4461003 Plug assembly 1
4623 95-37 9006200-0169 Retaining ring 1
Q4621 95-37 327189 (9004100-0290) O-ring 1
Q4618 95-37 001149 (9004201-6200) O-ring 1
Q4619 95-37 085043 (9004201-3700) O-ring 1
Q4620 95-37 11183529 Cylinder block assembly, with speed ring 1
67AX00000046en-US | 11063895 • Rev 0300 • August 2016
Parts Manual Series 40 M46 Axial Piston Motors
Variable displacement motor
(Y & AY)
4601
4605
4619
*Q4619
4618
*Q4618
4601
Q4620
(Z & AZ)
2165
2166
2167
4620
2168
2164
Q4620
* = included in overhaul seal kit Q210
68 AX00000046en-US | 11063895 • Rev 0300 • August 2016
2165
2166
2167
4620
2168
2164
E100 180E
Enlarged bold type item
numbers are recommended
part to stock for servicing.
Parts Manual Series 40 M46 Axial Piston Motors
Variable displacement motor
Housing
Order Date Date Qty. per
Code Item Begin End Part Number Part Name Model/Kit
Y & AY 2164 97-11 4461032 Piston assembly 7
2165 97-11 9004875-0113 Hold down pin 3
2166 97-11 4460028 Hold down pin retainer 1
2167 97-11 4460180 Retainer guide 1
2168 97-11 4460009 Slipper guide 1
4601 97-11 4461035 Housing (SB-1998-075) 1
4605 97-11 093625 (9005100-9000) Plug assembly 2
4620 97-11 4460890 Cylinder block kit, 1
Q4620 97-11 11183528 Cylinder block assembly 1
Z & AZ 2164 97-16 4461032 Piston assembly 7
2165 97-16 9004875-0113 Hold down pin 3
2166 97-16 4460028 Hold down pin retainer 1
2167 97-16 4460180 Retainer guide 1
2168 97-16 4460009 Slipper guide 1
4601 97-16 4461044 Housing (SB-1998-026 & SB-1998-075) 1
4618 97-16 4800432 Adapter assembly 1
4619 97-16 KPPG16008 Speed sensor assembly 1
4620 97-16 4460891 Cylinder block kit, with speed ring 1
Q4618 97-16 001149 (9004201-6200) O-ring 1
Q4619 97-16 085043 (9004201-3700) O-ring 1
Q4620 97-16 11183529 Cylinder block assembly, with speed ring 1
69AX00000046en-US | 11063895 • Rev 0300 • August 2016
Parts Manual Series 40 M46 Axial Piston Motors
Variable displacement motor
4618
*Q4618
4601
Q4620
2165
2166
2167
4620
2168
2164
3901
* = included in overhaul seal kit Q210
70 AX00000046en-US | 11063895 • Rev 0300 • August 2016
E103 526E
Enlarged bold type item
numbers are recommended
part to stock for servicing.
Parts Manual Series 40 M46 Axial Piston Motors
Variable displacement motor
Housing
Order Date Date Qty. per
Code Item Begin End Part Number Part Name Model/Kit
BG 2164 12-18 4461032 Piston assembly 7
2165 12-18 9004875-0113 Hold down pin 3
2166 12-18 4460028 Hold down pin retainer 1
2167 12-18 4460180 Retainer guide 1
2168 12-18 4460009 Slipper guide 1
4601 12-18 11091549 Housing 1
4618 12-18 9005110-8700 Plug assembly assembly 1
4620 12-18 4460890 Cylinder block kit 1
Q4618 12-18 001149 (9004201-6200) O-ring 1
Q4620 12-18 11183528 Cylinder block assembly 1
Special hardware
NNA-NNF No parts
NNG 3901 95-45 11061980 Orice plug, .076” 1
NNH No parts
NNJ 3901 95-45 8800242-0001 Orice plug, .054” 1
NNL 3901 95-45 11061992 Orice plug, .094” 1
NNN No parts
VNA 3901 95-45 11061969 Orice plug, .062” 1
VNB 3901 95-45 8800242-0001 Orice plug, .054” 1
VNC 3901 95-45 11061980 Orice plug, .076” 1
VND 3901 95-45 8800242-0001 Orice plug, .054” 1
VNE 3901 95-45 8800242-0001 Orice plug, .054” 1
VNF 3901 95-45 11061992 Orice plug, .094” 1
71AX00000046en-US | 11063895 • Rev 0300 • August 2016
Parts Manual Series 40 M46 Axial Piston Motors
Variable displacement motor
Overhaul seal kit
Order Date Date Qty. per
Code Item Begin End Part Number Part Name Model/Kit
Q210 84-31 4510184 Overhaul seal kit, MMV046C 1
4123 84-31 4460564 Front cover gasket 1
4130 84-31 4461311 Servo cover gasket 1
4136 84-31 8700067 Piston ring 1
4137 84-31 8700067 Piston ring 1
4138 84-31 673236 (9004100-1310) O-ring, 1.674 x .103, nitrile 2
4140 84-31 4460648 Bearing ring 2
4143 84-31 4461311 Servo cover gasket 1
4201 84-31 9008000-0121 Lip seal 1
4202 84-31 9008000-0131 Lip seal 1
4505 84-31 9003575-0083 Seal nut, .375-24 1
4510 84-31 9003575-0094 Seal nut, .3125-24 1
4606A 84-31 ` 085043 (9004201-3700) O-ring, .468 x .078, nitrile 2
Q4611 84-31 001149 (9004201-6200) O-ring, .755 x .097, nitrile 1
Q4618 84-31 001149 (9004201-6200) O-ring, .755 x .097, nitrile 1
Q4619 84-31 ` 085043 (9004201-3700) O-ring, .468 x .078, nitrile 1
72 AX00000046en-US | 11063895 • Rev 0300 • August 2016
Parts Manual Series 40 M46 Axial Piston Motors
M M
Product
C 0 4 6 C
A E J U A F
N N N
Special Hardware
Variable displacement cartridge motor
Frame Size
Type
Seal Group
Output Shaft
Housing/End Cap
Maximum Displacement
Minimum Displacement
P100 531E
73AX00000046en-US | 11063895 • Rev 0300 • August 2016
Parts Manual Series 40 M46 Axial Piston Motors
Variable displacement cartridge motor
4144
4143
4127
4119
4113
4129
4129
4143
4144
4119
4113
4127
4114
4124
4125
*4111
4114
4101
*4123
4112
4139
4133
4301
4118
4116
4118
* = included in overhaul seal kit Q210
74 AX00000046en-US | 11063895 • Rev 0300 • August 2016
4117
*4201
4142
4117
E100 181E
Enlarged bold type item
numbers are recommended
part to stock for servicing.
Parts Manual Series 40 M46 Axial Piston Motors
Variable displacement cartridge motor
Common parts
Order Date Date Qty. per
Code Item Begin End Part Number Part Name Model/Kit
4101 93-39 4461105 Valve plate (SB-1999-058) 1
4111 93-39 729319 O-ring 1
4112 93-39 4460701 Swashplate 1
4113 93-39 11110521 Journal bearing (SB-1994-011) 2
4114 93-39 9004800-3708 Pin 2
4116 93-39 5000731 Ball bearing 1
4117 93-39 615237 (9006200-0281) Retaining ring 2
4118 93-39 615245 (9006300-0137) Retaining ring 2
4119 93-39 5000116 Pin, coil (SB-1994-011) 2
4123 93-39 4460711 Front cover gasket 1
4124 93-39 9004700-1907 Pin, slotted 1
4125 93-39 615252 (9001465-0010) Needle bearing 1
4127 93-39 664524 (9005110-9000) Plug assembly 2
4129 93-39 327007 (9005110-4400) Plug assembly 2
4133 93-39 5000207 Screw 8
4139 96-07 4461356 Front cover assembly (SB-1996-002) 1
4142 96-07 11083729 Support washer (SB-1996-002) 1
4143 12-45 11040737 Lifting bracket 2
4144 12-45 393686 Screw 2
Seal group
A 4201 84-31 9008000-0121 Lip seal 1
Shaft
A 4301 93-39 4460251 Shaft, 13 tooth 1
E 4301 93-39 4460166 Shaft, 15 tooth 1
75AX00000046en-US | 11063895 • Rev 0300 • August 2016
Parts Manual Series 40 M46 Axial Piston Motors
Variable displacement cartridge motor
4131
*4130
4504
*4110
4502
4513
4509
4108
4414
4131
*4510
4507
*4130
4508
4413
4401
4128
4409
*4110
4109
*4110
4402
4108
* = included in overhaul seal kit Q210
4109
E100 182E
Enlarged bold type item
numbers are recommended
part to stock for servicing.
76 AX00000046en-US | 11063895 • Rev 0300 • August 2016
Parts Manual Series 40 M46 Axial Piston Motors
Variable displacement cartridge motor
Common parts
Order Date Date Qty. per
Code Item Begin End Part Number Part Name Model/Kit
4108 93-39 4350095 Piston 2
4109 93-39 4460705 Slipper 2
4110 93-39 4700031 Piston seal ring 4
4128 93-39 515965 (9005110-5600) Plug assembly 1
4130 93-39 9004101-1370 O-ring 2
4131 93-39 9007276-0134 Screw 8
4402 93-39 4460708 Servo piston 1
4409 93-39 4460713 Spring 1
4413 93-39 4460712 Spring 1
4414 93-39 4460709 Servo cover 1
Minimum displacement
A 4401 93-39 4460754 Stop, 11 degree 1
B 4401 93-39 4460752 Stop, 7 degree 1
D 4401 93-39 4460751 Stop, 6 degree 1
E 4401 93-39 4460750 Stop, 1 degree 1
F 4401 93-39 4460753 Stop, 9 degree 1
H 4401 93-39 4460706 Stop, 8.5 degree 1
J 4401 93-39 4460761 Stop, 13 degree 1
L 4401 93-39 4460839 Stop, 5 degree 1
S 4401 93-39 4460735 Stop, 10.5 degree 1
W 4401 93-39 4461136 Stop, 7.5 degree 1
Maximum displacement
G, T, U, 4502 93-39 4460704 Servo piston 1
V, & W 4504 93-39 4460714 Spring 1
4507 93-39 4460710 Servo cover 1
4508 93-39 4460603 Servo stop 1
4509 93-39 9006326-0025 Retaining ring 1
4510 93-39 9003575-0094 Seal nut 1
4513 93-39 4800174 Servo adjust cover 1
77AX00000046en-US | 11063895 • Rev 0300 • August 2016
Parts Manual Series 40 M46 Axial Piston Motors
Variable displacement cartridge motor
4606
*4606A
4606B
4606C
4610
4601
4615
4614
4612
4611
(F & AF)
Q4620
4601
4606
4611
4612
4614
*4606A
4615
4615
4619
*Q4618
*Q4611
4610
*Q4611
4606B
*4606A
*Q4619
4618
4606C
4601
(G & AG)
Q4620
2165
2166
2165
2167
2166
2167
2168
2168
2164
4620
4606
*4606A
* = included in overhaul seal kit Q210
78 AX00000046en-US | 11063895 • Rev 0300 • August 2016
2164
E100 183E
Enlarged bold type item
numbers are recommended
part to stock for servicing.
Parts Manual Series 40 M46 Axial Piston Motors
Variable displacement cartridge motor
Housing
Order Date Date Qty. per
Code Item Begin End Part Number Part Name Model/Kit
F & AF 2165 93-39 9004875-0113 Hold down pin 3
2166 93-39 4460028 Hold down pin retainer 1
2167 93-39 4460180 Retainer guide 1
2164 93-39 4461032 Piston assembly 7
2168 93-39 4460009 Slipper guide 1
4601 93-39 4460834 Housing 1
4606 93-39 4800912 Loop ushing plug/spring assembly 2
4606A 93-39 085043 (9004201-3700) O-ring 2
4606B 93-39 4800887 Spring 2
4606C 93-39 512257 Spring guide 2
4610 93-39 365544 (8800550) Loop ushing spool 1
4611 93-39 4800308 Plug assembly 1
4612 93-39 4510027 Shim kit 1
4614 93-39 4800176 Spring 1
4615 93-39 4800134 Poppet 1
4620 93-39 4460890 Cylinder block kit 1
Q4611 93-39 001149 (9004201-6200) O-ring 1
Q4620 93-39 11183528 Cylinder block assembly 1
G & AG 2165 93-39 9004875-0113 Hold down pin 3
2166 93-39 4460028 Hold down pin retainer 1
2167 93-39 4460180 Retainer guide 1
2164 93-39 4461032 Piston assembly 7
2168 93-39 4460009 Slipper guide 1
4601 93-39 4460834 Housing 1
4606 93-39 9005100-5600 Plug assembly 4
4606A 93-39 085043 (9004201-3700) O-ring 2
4610 93-39 8800668 Loop ushing spool, defeated 1
4611 93-39 9005100-8700 Plug assembly 2
4618 93-39 4800432 Adapter assembly 1
4619 93-39 KPPG13408 Speeed sensor 1
4620 93-39 4460891 Cylinder block kit, with speed ring 1
Q4611 93-39 001149 (9004201-6200) O-ring 1
Q4618 95-37 001149 (9004201-6200) O-ring 1
Q4619 95-37 085043 (9004201-3700) O-ring 1
Q4620 93-39 11183529 Cylinder block assembly, with speed ring 1
79AX00000046en-US | 11063895 • Rev 0300 • August 2016
Parts Manual Series 40 M46 Axial Piston Motors
Variable displacement cartridge motor
4606
*4606A
4601
(H & AH)
4611
*Q4611
4610
4606
4606
4610
*4606A
*4606A
4606B
4606C
Q4620
(J, AJ, K & AK)
4601
2165
2166
2167
4601
2168
2164
4615
4614
4612
4611
Q4620
*Q4611
4606C
4606B
*4606A
* = included in overhaul seal kit Q210
80 AX00000046en-US | 11063895 • Rev 0300 • August 2016
2165
2166
4601
2167
2168
E100 184E
Enlarged bold type item
numbers are recommended
part to stock for servicing.
2164
Parts Manual Series 40 M46 Axial Piston Motors
Variable displacement cartridge motor
Housing
Order Date Date Qty. per
Code Item Begin End Part Number Part Name Model/Kit
H & AH 2165 93-35 9004875-0113 Hold down pin 3
2166 93-35 4460028 Hold down pin retainer 1
2167 93-35 4460180 Retainer guide 1
2164 93-35 4461032 Piston assembly 7
2168 93-35 4460009 Slipper guide 1
4601 93-35 4460834 Housing 1
4606 93-35 9005100-5600 Plug assembly 4
4606A 93-35 085043 (9004201-3700) O-ring 2
4610 93-35 8800668 Loop ushing spool, defeated 1
4611 93-35 9005100-8700 Plug assembly 2
4620 93-35 4460890 Cylinder block kit 1
Q4611 93-35 001149 (9004201-6200) O-ring 1
Q4620 93-35 11183528 Cylinder block assembly 1
J & AJ 2165 93-39 9004875-0113 Hold down pin 3
2166 93-39 4460028 Hold down pin retainer 1
2167 93-39 4460180 Retainer guide 1
2164 93-39 4461032 Piston assembly 7
2168 93-39 4460009 Slipper guide 1
4601 93-39 4460834 Housing 1
4606 93-39 4800912 Loop ushing plug/spring assembly 2
4606A 93-39 085043 (9004201-3700) O-ring 2
4606B 93-39 4800887 Spring 2
4606C 93-39 512257 Spring guide 2
4610 93-39 365544 (8800550) Loop ushing spool 1
4611 93-39 4800308 Plug assembly 1
4612 93-39 4510027 Shim kit 1
4614 93-39 8800496 Spring 1
4615 93-39 4800134 Poppet 1
4620 93-39 4460890 Cylinder block kit 1
Q4611 93-39 001149 (9004201-6200) O-ring 1
Q4620 93-39 11183528 Cylinder block assembly 1
K &AK 2165 93-39 9004875-0113 Hold down pin 3
2166 93-39 4460028 Hold down pin retainer 1
2167 93-39 4460180 Retainer guide 1
2164 93-39 4461032 Piston assembly 7
2168 93-39 4460009 Slipper guide 1
4601 93-39 4460834 Housing 1
4606 93-39 4800912 Loop ushing spool spring assembly 2
4606A 93-39 085043 (9004201-3700) O-ring 2
4606B 93-39 4800887 Spring 2
4606C 93-39 512257 Spring guide 2
4610 93-39 365544 (8800550) Loop ushing spool 1
4611 93-39 4800308 Plug assembly 1
4612 93-39 4510027 Shim kit 1
4614 93-39 8800496 Spring 1
4615 93-39 4800134 Poppet 1
4620 93-39 4460890 Cylinder block kit 1
Q4611 93-39 001149 (9004201-6200) O-ring 1
Q4620 93-39 11183528 Cylinder block assembly 1
81AX00000046en-US | 11063895 • Rev 0300 • August 2016
Parts Manual Series 40 M46 Axial Piston Motors
Variable displacement cartridge motor
4606
*4606A
4606B
4606C
4610
4611
4606
4612
4614
4615
4615
4619
*Q4618
*Q4611
*4606A
4606B
4606C
*Q4619
4606C
4606B
*4606A
4618
4601
(L & LA)
Q4620
2165
2166
2167
4620
2168
2164
4611
4612
4614
4615
4610
*Q4611
4606C
4606B
*4606A
4601
(U & UA)
Q4620
2165
2166
* = included in overhaul seal kit Q210
2167
4601
2168
2164
E100 185E
Enlarged bold type item
numbers are recommended
part to stock for servicing.
82 AX00000046en-US | 11063895 • Rev 0300 • August 2016
Parts Manual Series 40 M46 Axial Piston Motors
Variable displacement cartridge motor
Housing
Order Date Date Qty. per
Code Item Begin End Part Number Part Name Model/Kit
L & LA 2165 95-13 9004875-0113 Hold down pin 3
2166 95-13 4460028 Hold down pin retainer 1
2167 95-13 4460180 Retainer guide 1
2164 95-13 4461032 Piston assembly 7
2168 95-13 4460009 Slipper guide 1
4601 95-13 4460835 Housing 1
4606 95-13 4800912 Loop ushing plug/spring assembly 2
4606A 95-13 085043 (9004201-3700) O-ring 2
4606B 95-13 4800887 Spring 2
4606C 95-13 512257 Spring guide 2
4610 95-13 365544 (8800550) Loop ushing spool 1
4611 95-13 4800308 Plug assembly 1
4612 95-13 4510027 Shim kit 1
4614 95-13 8800496 Spring 1
4615 95-13 4800134 Poppet 1
4618 95-13 4800432 Adapter assembly 1
4619 95-13 9005110-5600 Plug assembly 1
4620 95-13 4460891 Cylinder block kit, with speed ring 1
Q4611 95-13 001149 (9004201-6200) O-ring 1
Q4618 95-13 001149 (9004201-6200) O-ring 1
Q4619 95-13 085043 (9004201-3700) O-ring 1
Q4620 95-13 11183529 Cylinder block assembly, with speed ring 1
U & AU 2165 99-10 9004875-0113 Hold down pin 3
2166 99-10 4460028 Hold down pin retainer 1
2167 99-10 4460180 Retainer guide 1
2164 99-10 4461032 Piston assembly 7
2168 99-10 4460009 Slipper guide 1
4601 99-10 4460834 Housing 1
4606 99-10 4800912 Loop ushing plug/spring assembly 2
4606A 99-10 085043 (9004201-3700) O-ring 2
4606B 99-10 4800887 Spring 2
4606C 99-10 512257 Spring guide 2
4610 99-10 365544 (8800550) Loop ushing spool 1
4611 99-10 4800308 Plug assembly 1
4612 99-10 4510027 Shim kit 1
4614 99-10 8800176 Spring 1
4615 99-10 4800134 Poppet 1
4620 99-10 4460890 Cylinder block kit 1
Q4611 99-10 001149 (9004201-6200) O-ring 1
Q4620 99-10 11183528 Cylinder block assembly 1
83AX00000046en-US | 11063895 • Rev 0300 • August 2016
Parts Manual Series 40 M46 Axial Piston Motors
Variable displacement cartridge motor
3901
* = included in overhaul seal kit Q210
84 AX00000046en-US | 11063895 • Rev 0300 • August 2016
E101 752E
Enlarged bold type item
numbers are recommended
part to stock for servicing.
Parts Manual Series 40 M46 Axial Piston Motors
Variable displacement cartridge motor
Special hardware
Order Date Date Qty. per
Code Item Begin End Part Number Part Name Model/Kit
NNA No parts
NNB No parts
NNL 3901 95-45 11061992 Orice plug, .094” 1
NNN No parts
NVA 3901 95-45 11061969 Orice plug, .062” 1
NVC 3901 95-45 11061980 Orice plug, .076” 1
NZL No parts
VNA 3901 95-45 11061969 Orice plug, .062” 1
VNC 3901 09-28 11061980 Orice plug, .076” 1
Overhaul seal kit
Q210 93-39 4510183 Overhaul seal kit, MMV046C 1
4110 93-39 4700031 Piston seal ring 4
4111 93-39 729319 O-ring, 154 x 3 mm, nitrile 1
4123 93-39 4460711 Front cover gasket 1
4130 93-39 9004101-1370 O-ring, 2.050 x .103, nitrile 1
4201 93-39 9008000-0121 Lip seal 1
4510 93-39 9003575-0094 Seal nut, .3125-24 1
4606A 93-39 ` 085043 (9004201-3700) O-ring, .468 x .078, nitrile 2
Q4611 93-39 001149 (9004201-6200) O-ring, .755 x .097, nitrile 1
Q4618 93-39 001149 (9004201-6200) O-ring, .755 x .097, nitrile 1
Q4619 93-39 ` 085043 (9004201-3700) O-ring, .468 x .078, nitrile 1
85AX00000046en-US | 11063895 • Rev 0300 • August 2016
Parts Manual Series 40 M46 Axial Piston Motors
Housing
asket
Screw
Service bulletin: SB-1987-032
Products aected
Subject
Description
M46 variable motors
Servo cover change
In December 1987, a change will be made to all M46 variable motor servo covers. The cover will
change from a 4-bolt to a 5-bolt design, which is currently used on all M46 pumps.
The parts aected will be the housings, servo covers, servo cover gaskets, servo cover cap screws and
washers. The part number of the washers and cap screws remains the same, but the quantities will
change from (4) to (5).
This change will move the servo cover pressure port approximately 1.1” further from the motor front
cover.
Plug
Washer
Servo Cover
Servo Cover G
Models aected
Serial numbers
Part numbers aected
Parts disposition
86
All M46-4xxx variable motors
This change became eective at serial number A-87-49-xxxxx.
Parts for S/N Prior Parts for S/N 87/49
to 87-49 & Later
4460366 Standard Housing 4460452
4460367 Housing for thru Shaft 4460453
4460410 Special Clearance Housing 4460454
4460262 Servo Cover 4460455-0004 w/
046151 (9005100-5600) Plug
4460206 Servo Cover 4460455-0004
4460447 Servo Cover 4460455-0002
4460208 Gasket-Servo Cover 4460413
Non-interchangeable
AX00000046en-US | 11063895 • Rev 0300 • August 2016
Parts Manual Series 40 M46 Axial Piston Motors
Service bulletin: SB-1988-002
Products aected
Subject
Description
Models aected
M46 pumps and variable motors
Servo piston improvements
Two product improvements have taken place in the M46 product line.
The rst improvement involves a change in the servo backlash adjustment from one self locking nut
to a stronger double nut arrangement. A .335” wide nut takes the place of the self locking nut, and
is adjusted to set zero backlash as in the previous design. After backlash is set, a .225” wide nut is
torqued to 18-27 ft. lbs. against the thicker nut to act as a lock nut. (Figure 2 and 3)
The second improvement involves the addition of a nonmetallic bearing ring to enhance the bearing
characteristics of the housing bore/servo piston interface. The rings are of a split design and simply
t into grooves located inside the current grooves for the servo piston seal rings. Before installing
the bearing rings to the servo piston, the bearing rings must be preformed. Simply curl the bearing
ring around your nger until its O.D. is approximately 1”, and let stand for approximately (5) minutes.
To assemble, install the (2) bearing rings into the bearing ring grooves, (2) O-rings into the piston
ring grooves, and (1) of the (2) piston rings over its O-ring. Do not install the piston ring closest to
the neutral adjustment screw (Figure 3). Spread a light lm of oil on the seal and bearing ring. Next
slide the servo piston into the housing bore, adjustment screw rst, until the adjustment screw end
piston ring groove is just exposed. Then install the second piston ring and oil and slide the piston into
position in the housing. (Figure 4).
All M46 pumps and variable motors.
Serial numbers
Part numbers aected
Parts disposition
Double nut backlash was incorporated at serial number 87-41-xxxxx. Bearing ring was incorporated at
serial number 88-05-xxxxx.
.335” nut is p/n 9003535-3700
.225” nut is p/n 9003561-3700
Bearing ring is p/n 4460477
Servo piston with groove for bearing ring is 460474
Interchangeable - 4460474 servo piston with 4460477 ring will t all vintages of M46 housings.
See SB-1987-005 for installation instructions for older housing without a lead-in chamfer.
AX00000046en-US | 11063895 • Rev 0300 • August 2016
87
Parts Manual Series 40 M46 Axial Piston Motors
O-ring
Piston Ring Grooves
Bearing Ring Grooves
t
.225" Wide
Service bulletin: SB-1988-002
Piston Ring Piston Ring
Fig. 1
Servo piston assembly with rings
Servo piston assembly with all rings
installed except the closest to the
.335" Wide
Nut
Nut
Fig. 3
neutral adjustment screw.
Neutral Adjustmen
Screw
Fig. 2
Bearing ring grooves
Tightening the backlash locknut
Fig. 4
Installing second piston ring
88
AX00000046en-US | 11063895 • Rev 0300 • August 2016
Parts Manual Series 40 M46 Axial Piston Motors
Service bulletin: SB-1989-010
Products aected
Subject
Description
M46 xed motors
Cylinder block kit change
Standard M46 xed motors currently use a cylinder block kit with the slipper retainer guide (ball
guide) built into the cylinder block. M46 pump (and variable motor) cylinder block kits incorporate a
separate retainer guide with hold down pins to transmit pressure from the block spring to the slipper
retainer. This creates positive hold down pressure on the slippers and swashplate.
As a product improvement, all M46 xed motors will change to the pump style cylinder block kit. In
the past, only selected models included this feature.
Due to dierences in the mating splines on the drive shaft and cylinder block, dierent xed motor
drive shafts are required with this change.
Fixed motor style cylinder block kits and their corresponding drive shafts will remain available as spare
part items to repair older xed motors.
Models aected
Serial numbers
Motor style cylinder block Pump style cylinder block
(will be used on all M46 products
after this change)
Old model Old shaft Replacement New shaft
number part number model number part number
M46-3002 4460121 M46-3023 4460285
M46-3004 4460124 M46-3108 4460577
M46-3011 4460485 M46-3019 4460308
M46-3014 4460121 M46-3013 4460285
M46-3015 4460485 M46-3021 4460308
M46-3020 4460122 M46-3022 4460312
M46-3027 4460398 M46-3109 4460578
M46-3029 4460485 M46-3106 4460308
M46-3031 4460398 M46-3110 4460578
M46-3104 4460121 M46-3107 4460285
M46-3105 4460398 M46-3111 4460578
M46-3901 4460121 M46-3902 4460285
Serial number incorportation is not required since the motor model numbers change.
AX00000046en-US | 11063895 • Rev 0300 • August 2016
89
Parts Manual Series 40 M46 Axial Piston Motors
Service bulletin: SB-1989-010
Part numbers aected
Cyl. bkl. Cylinder Slipper Slipper hold Pin Retainer Retainer
Description kit block retainer Pistons down pins retainer plate guide
Older xed motor 4460290 4460287 4460032 4460027 N/A N/A N/A N/A
Pump, variable
motors and new 4460289 4460583 4460406 4460027 9004875-0113 4460028 44604633 4460180
xed motors
Parts disposition
Non-interchangeable
90
AX00000046en-US | 11063895 • Rev 0300 • August 2016
Parts Manual Series 40 M46 Axial Piston Motors
Front cover
6)
Service bulletin: SB-1989-013
Products aected
Subject
Description
M46 variable pumps, tandem pumps, and variable motors
Front cover cap screw change
As a product improvement, six (6) of the seven (7) front cover screws on M46 variable displacement
units will increase in size from 3/8-16 to 7/16-14. This improvement increases the front cover to
housing clamping force, and reduces the potential for leaks or screw breakage.
A 7/16” 12 point socket is required to remove and install the new 7/16” screws. The 3/8” screw
continues to require a 3/8” 12 point socket. The installation torque is 60-74 lbf•ft. (81-100 Nm) for the
7/16” screws and 39-47 lbf•ft. (53-64 Nm) for the 3/8” screw.
All variable pump and motor housings, including both front and rear tandem pump housings, will
change and the old (all 3/8” screw hole) housings will no longer be available as service parts. Housings
are rarely sold as service part items, but if required, a new front cover and screws must be used with
the new housing. The gasket will change, however, the new style gasket will t any vintage pump. The
front cover (plus rear cover on tandems) will also change, but old style covers will remain available as
service parts, and must be used to repair older vintage pumps and variable motors.
Housing
Spring pin
(does not change)
Screw that
changes (qty.
Models aected
Serial numbers
Part numbers aected
Screw that does
Gasket
All M46-2xxx single pumps, M91-46xxx tandem pumps, and M46-4xxx variable motors.
The change will take place at serial number A-89-23-xxxxx.
not change
Description Old part number New part number
Housing - single pump *4460440 4460579
Housing - front tandem pump *4460438 4460568
Housing - rear tandem pump *4460439 4460569
Housing - standard variable motor *4460452 4460565
Housing - for thru shaft variable motor *4460453 4460566
Front cover - standard 4460392 4460563
Front cover - special mounting 4460478 4460573
Rear cover - “A” ange tandem pump 4460449 4460571
Rear cover - “B” ange tandem pump 4460437 4460572
Cover gasket *4460409 4460564
12 point screw (quantity 6) 9007510-3716 9007510-4416
Parts disposition
Interchangeable
AX00000046en-US | 11063895 • Rev 0300 • August 2016
91
Parts Manual Series 40 M46 Axial Piston Motors
Service bulletin: SB-1990-012
Products aected
Subject
Description
M46 pumps & variable motors
Servo cover cap screw change
In the 3rd quarter of 1990, the screws that retain the servo covers to the housing will change from hex
head screws with at washers to ange head screws with no washers.
The wrench size required to remove the screws decreases from 7/16” to 3/8”. The screw torque remains
unchanged at 11 to 13 lbf·ft [16 Nm].
Servo cover
cap screw
(5 per cover)
Models aected
Serial numbers
Part numbers aected
Parts disposition
All M46-2xxx single pumps, M91-46xxx tandem pumps, and M46-4xxx variable motors.
N/A
Description Old part number New part number
Screw 9007206-2522 9007276-0134
Washer 9009610-2850 not used
Interchangeable
92
AX00000046en-US | 11063895 • Rev 0300 • August 2016
Parts Manual Series 40 M46 Axial Piston Motors
g
Service bulletin: SB-1991-009A
Products aected
Subject
Description
M46 variable displacement pumps and motors
Brass bearing ring
The part number of the nylon bearing was incorrect in the 4-26-91 version of this bulletin. The purpose
of this revision “A” is to correct that error.
The bearing rings, used on all M46 servo pistons, are changing from a glass lled nylon material to
brass. The brass material will provide a better life in severe duty applications.
There are no functional or operational dierences between the nylon and brass rings.
Assembly procedures remain the same except extreme care should be taken not to deform or twist
the rings any more than necessary when sliding the rings over the piston and into their grooves.
Bearing Ring
Servo Piston
Bearing Rin
Models aected
Serial numbers
Part numbers aected
Parts disposition
All M46-2xxx single pumps, M91-46xxx tandem pumps, and M46-4xxx variable motors.
The change will take place at serial number A-89-23-xxxxx.
Description Old part number New part number
Bearing ring 4460477 4460648
Interchangeable
Use parts in stock
AX00000046en-US | 11063895 • Rev 0300 • August 2016
93
Parts Manual Series 40 M46 Axial Piston Motors
Servo piston pin
Control feedback pin
Service bulletin: SB-1994-002
Products aected
Subject
Description
M46 variable pumps & variable motors
Swashplate kits
When replacing the swashplate in M46 variable pumps and motors, the servo piston pin and control
feedback pin also need to be replaced. Sauer-Danfoss will provide service kits containing swashplates
with these pins installed. These swashplate kits will work in the variable motor with the control
feedback pin installed, even though the control pin is not necessary.
Swashplates without the pins installed will no longer be available as spare parts.
These assemblies may be used in units from serial number A-86-23-xxxxx to the present.
Models aected
Serial numbers
Part numbers aected
Parts disposition
All M46-2xxx single pumps, M91-46xxx tandem pumps, and M46-4xxx variable motors.
A-86-23 and beyond
Description Part number
Swashplate kit (non-balanced) 4510072
Swashplate kit (balanced) 4510073
Swashplate (non-balanced) 4460393
Swashplate (balanced) 4460394
Control feedback pin 9004700-2512
Servo piston pin 9004820-4416
Interchangeable
94
AX00000046en-US | 11063895 • Rev 0300 • August 2016
Parts Manual Series 40 M46 Axial Piston Motors
Front cover
Flanged pins
Service bulletin: SB-1994-011A
Products aected
Subject
Description
M46 xed motors
Cylinder block kit change
As a product improvement Sauer-Danfoss is changing the way the journal bearings are held in place
on the front cover of the M46 variable units. This change makes it easier to assemble the unit because
the bearings are retained with a anged pin to the front cover.
The hole in the bearing, along with the OD of the pin, became larger. The hole size of the old bearing
was .125 inches and the hole size of the new bearing is .137 inches. The new bearing can be used with
the old pin when repairing old style units. Thus the need to pull out the old pins and replace with
anged pins and new bearings is not necessary The old bearing with the .125 hole will be obsoleted
and replaced with the new bearing with the .137 hole.
To install the new bearings and pins, install the pin through the hole in the bearing from the running
surface side. Using a small hammer and punch, seat the pin into the hole of the front cover. After
completing the installation process, be sure the head of the pin is below the surface of the bearing
material to insure the pin does not score the swashplate mating surface.
Since the non-balanced swashplate module was inactivated in new production units in second quarter
1994, the non-balanced swashplate bearings will not change.
AX00000046en-US | 11063895 • Rev 0300 • August 2016
Journal bearing
95
Parts Manual Series 40 M46 Axial Piston Motors
Service bulletin: SB-1994-011A
Models aected
Serial numbers
Part numbers aected
Parts disposition
All M46-2xxx single pumps, M91-46xxx tandem pumps, and M46-4xxx variable motors.
The change will become eective per the following chart:
Tandem pumps 94-47 and beyond
Single pumps 94-47 and beyond
Variable motors (ange style) 95-02 and beyond
Variable motor (cartridge ange) 95-07 and beyond
Description Where used Old p/n New p/n
Journal bearing PV & PT balanced swashplate 4460320-0001 4460696
Journal bearing PV & PT non-balanced swashplate 4460325-0001 No change
Journal bearing Variable motor (SAE ange) 4460320-0003 4460397
Journal bearing Variable motor (cartridge ange) 4460320-0003 4460697
Slotted pin All variable units* 9004700-1206 5000116
* Except variable units with the non-balanced swashplate
Interchangeable - old pin/new bearing
Non-interchangeable - new pin/old bearing
96
AX00000046en-US | 11063895 • Rev 0300 • August 2016
Parts Manual Series 40 M46 Axial Piston Motors
5000208 (1 pc)
Service bulletin: SB-1994-037
Products aected
Subject
Description
M46 variable pump, tandem pump, and variable motor
Front cover screws
As a product improvement, Sauer-Danfoss is changing the screws that fasten the front cover to the
housing of the M46 pumps and variable motors.
The old screws had a 7/16 12 point head or 3/8 12 point head. The new screws have an internal T50
or an internal T55 torx head. The torque will remain the same as the old screws. The old screws are
obsolete and no longer available as a service part.
Models aected
Serial numbers
Part numbers aected
Parts disposition
5000207 (6 pc)
All M46-2xxx single pumps, M91-46xxx tandem pumps, and M46-4xxx variable motors.
This change became eective at serial number A-94-37-xxxxx.
Description Old part number New part number
7/16 12 point screw 9007510-4416 3/8 12 point screw 9007510-3720 T55 torx screw - 5000207
T50 torx screw - 5000208
Interchangeable
AX00000046en-US | 11063895 • Rev 0300 • August 2016
97
Parts Manual Series 40 M46 Axial Piston Motors
Service bulletin: SB-1995-020A
Products aected
Subject
Description
Models aected
Serial numbers
Part numbers aected
Parts disposition
M46 variable pumps & variable motors
Swashplate kits
As a product improvement, Sauer-Danfoss is changing the nish on M46 cylinder block. The old
cylinder blocks had a shiny steel nish. The new cylinder blocks have a dark gray nish.
All repairs that call for a new cylinder block should use the new block. Return new 4460583 cylinder
blocks and 4460289 cylinder block kits for credit and reorder the new part numbers.
All M46 pumps, xed motors, and variable motors.
This change became eective at week 96-19 on all xed motors, and 96-35 for all variable pumps
and variable motors.
Description Old part number New part number
Cylinder block 4460583 4460832
Cylinder block kit 4460289 4460890
Interchangeable
98
AX00000046en-US | 11063895 • Rev 0300 • August 2016
Parts Manual Series 40 M46 Axial Piston Motors
Flat washer
Service bulletin: SB-1996-002
Products aected
Subject
Description
M46 variable cartridge motors
Improved seal retention
As a product improvement, Sauer-Danfoss is adding a at washer in front of the input shaft lip seal
to improve seal retention. The snap ring groove moved in the front cover to make room for the
washer, making this a non-interchangeable change.
The old front cover will remain available as a service part.
Models aected
Serial numbers
Part numbers aected
Parts disposition
All M46 cartridge variable motors.
This change became eective at serial number A-96-07-xxxxx.
Description Old part number New part number
Front cover 4460702 4460847
Support washer N/A 4350455
Non-interchangeable
AX00000046en-US | 11063895 • Rev 0300 • August 2016
99
Parts Manual Series 40 M46 Axial Piston Motors
Service bulletin: SB-1996-022
Products aected
Subject
Description
M46 xed motors
Addition of end cap dowel pins
As a product improvement, Sauer-Danfoss is adding dowel pins to the M46 xed motor end cap and
housing interface. The end caps and housings are interchangeable with each other. For example, if
you have to change a housing, the new housing can be used with the old end cap and no dowel pins.
The only change is the addition of the dowel pin holes in the end cap and housing and the dowel pins
themselves. The old end caps, housings and gasket will become obsolete and no longer available as
genuine service parts.
Models aected
Serial numbers
Part numbers aected
Parts disposition
All M46-4xxx variable motors.
Any unit built at serial number A-98-15-xxxxx and newer will have the support washer.
Description Old p/n New p/n
End cap, radial port 4460117 4460868
End cap, axial port 4460116 4460867
End cap, axial port 4460844 4460875
End cap, axial port w/loop ush and orice capability 4460725 4460873
End cap, axial port w/loop ush 4460680 4460871
End cap, twin port w/loop ush 4460692 4460872
End cap, axial port w/loop ush and series 42 relief valve 4460798 4460874
End cap, radial port w/loop ush and series 42 relief valve 4460850 4460876
Housing, xed w/speed sensing (speed ring style) 4460695 4460865
Housing, xed w/speed sensing (piston sensing style) 4460828 4460866
Housing, xed without speed sensing 4460694 4460864
End cap gasket 4460127 4460877
Dowel pin N/A 5000397
Interchangeable
100
AX00000046en-US | 11063895 • Rev 0300 • August 2016
Loading...
