Data sheet
Manual Presetting Valves LENO™ MSV-B
Description
Application
LENO™ MSV-B is a new generation of manual
valves for balancing flow in heating, cooling and
domestic hot water systems.
LENO™ MSV-B is a combined presetting and shut
off valve with a range of unique features:
• Removable hand wheel for easy mounting.
• Numeric presetting scale, visible from more
angles.
• Easy locking of presetting.
• Built-in measuring nipples for 3mm needles.
• Open-close with Allen key in emergency.
• Open-closed colour indicator.
It is recommended to use LENO™ MSV-B in
constant flow systems in front of boilers, flat
stations or heat pumps in one-family houses
for balancing, shut off function for service and
repair, flow verification, one-pipe systems. The
valve may be mounted in flow or return.
DN 15 valves are available with internal or
external thread. Other dimensions with internal
thread.
Danfoss PFM 1000 measuring instruments
contain valve data for LENO™ MSV-B in memory.
Boiler, flat station or heat pump in 1-family
houses.
• For balancing.
• Shut-off function for service/repair.
© Danfoss | 2020.03 AI100486471298en-000401 | 1
Data sheet Manual Presetting Valves LENO™ MSV-B
Application (continuous)
Air handling unit
• For constant flow.
• For balancing.
• Shut-off function for service/ repair.
Fan coils
• For flow verification.
• Shut-off function for service/ repair.
1-pipe system
• For balancing.
• Shut-off function for service/repair.
2 | AI100486471298en-000401 © Danfoss | 2020.03
Data sheet Manual Presetting Valves LENO™ MSV-B
Ordering
LENO™ MSV-B valve with internal thread
Typ e Material Size kv s (m³/h) Connection Code no.
DN 15 LF 2.5 Rp ½” 003Z4030
DN 15 3.0 Rp ½” 003Z4031
DN 20 6.0 Rp ¾” 003Z4032
DZR* Brass
*Corrosion resistant brass
DN 25 9.5 Rp 1” 003Z4033
DN 32 18 Rp 1¼” 003Z4034
DN 40 26 Rp 1½” 003Z4035
DN 50 40 Rp 2” 003Z4036
LENO™ MSV-B valve with external thread
Typ e Material Size kv s (m³/h) Connection Code no.
DZR* Brass
**Eurocone DI N V 3838
DN 15 LF 2.5 G ¾ A** 00 3Z4131
DN 15 3.0 G ¾ A** 003Z 4130
Accessories
Typ e Code no.
Standard measuring nipples, 2 pcs. 003Z4662
Extended measuring nipples, 60 mm, 2 pcs. 003Z4657
Operating handle 003Z4652
Flow measuring instrument PFM 100 003L8260
Flow measuring instrument PFM 1000 (10 bar) 003Z8260
Flow measuring instrument PFM 1000 (20 bar) 00 3Z8261
Identification tag & strips, 10 pcs. 003Z4660
Compression fittings for valves with external thread
Pipe (mm) Valve thread PEX fittings, code no. Alupex fittings, code no.
12 x 1.1 G ¾ 013G 4150 -
12 x 2 G ¾ 013G 4152 013G 4182
13 x 2 G ¾ 013G 4153 -
14 x 2 G ¾ 013G 4154 013G 4184
15 x 1.7 G ¾ 013G4165 15 x 2.5 G ¾ 013G4155 013 G4185
16 x 1.5 G ¾ 013G415 7 -
16 x 2 G ¾ 013G 4156 013G 4186
16 x 2.25 G ¾ - 013G418 7
17 x 2 G ¾ 013G 4162 -
18 x 2 G ¾ 013G 4158 013G 4188
18 x 2.5 G ¾ 013G4159 -
20 x 2 G ¾ 013G 4160 013G 4190
20 x 2.5 G ¾ 013G 4161 013G 4191
Compression fittings for valves with external thread
Steel/copper pipes Dimension Code no.
G ¾ x 15 013G 4125
G ¾ x 16 013G 4126
G ¾ x 18 013G 4128
AI100486471298en-000401 | 3© Danfoss | 2020.03
Data sheet Manual Presetting Valves LENO™ MSV-B
Design
1. Valve house
2. Ball
3. Ball seat
4. Suppert screw
5. Throttle
6. Spindle head
7. Spindle
8. Shut off bush
9. Spring
10. Rotation lock
11. Top
12. Measuring nipple
13. Handle
14. Gasket for support screw
Technical Data
Fitting
Materials and parts in contact with water
Valve body DZR brass
O-rings EPDM
Ball Brass/chromium plated
Ball sealing Teflon
Max. static working pressure 20 bar
Static test pressure 30 bar
Max. differential pressure across valve 2.5 bar (250 kPa)
Max. flow temperature 120 °C
Min. temperature -20° C
Cooling liquids Ethylene glycol / propylene glycol and HYCOOL (max. 30 %)
Before fitting the valve the installer must ensure
that the pipe system is clean and:
1. the valve can be turned 360 degrees (if
threaded pipe is used).
2. the valve is fitted according to the flow
direction arrow.
Removal of the handle
1. Set the handle at 0/0.
DN R1/R 2 (mm)
15 96/58
20 99/60
25 101/63
32 124/ 87
40 127/90
50 131/94
2. Release the setting lock (green).
3. Unscrew the union nut.
Calibration of the handle
Before refitting, ensure that the handle setting
is 0/0.
For DN 15 valves with external thread
Danfoss offers a complete range of compression
fittings for steel, cobber and PEX pipes.
4 | AI100486471298en-000401 © Danfoss | 2020.03
Data sheet Manual Presetting Valves LENO™ MSV-B
Shut-Off
Setting and Locking
In order to shut-off the valve the handle must be
pressed down.
The shut-off function features a ball valve, which
only requires a 90 degree turn to shut the valve
completely.
An indicator window shows the actual setting:
• red = closed
• white = open
Measuring
The valve has a built-in presetting feature for
accurate flow ratings.
Setting the required flow is made in 5 steps:
1. In open position, release the lock using the
green lever or a 3 mm Allen key.
2. The handle pops up automatically.
The flow through the LENO™ MSV-B valve can
be measured using Danfoss PFM 1000 or other
brands of measuring instruments. The LENO™
MSV-B valve is supplied with two measuring
nipples for 3 mm needles. A twin bracket enables
the user to connect both needles simultanously.
Procedure for flow measuring:
1. Select flow measuring
2. Select valve brand
3. Select valve type and dimension
4. Enter presetting
5. Connect valve and instrument
6. Calibrate static pressure
7. Measure the flow
3. The calculated value can now be set.
4. The setting is locked when the handled is
pressed to click.
5. Seal - the setting can be protected by using a
strip as shown.
AI100486471298en-000401 | 5© Danfoss | 2020.03
Data sheet Manual Presetting Valves LENO™ MSV-B
Maximum error in
measured flow [%]
%100%
vs
Measuring Accuracy
16
14
12
10
8
6
4
2
0
0% 10% 20% 30%40% 50%60% 70%80% 90
Flow % of K
Kv-Signal
The red line indicates 25% of max. flow.
According to BS7350:1990 flow rates must be
within following values:
± 18 % at 25 % open position
± 10 % at fully open position
Kv-signal values are used for non-Danfoss
measuring instruments. Danfoss PFM1000 have
all data in memory, and the instruments are
using this formula:
Δp across the measuring nipples (k
across the valve (k
) is not the same due to
v-val
) and Δp
v-sig
turbulence influence for pressure measuring.
LENO™ MSV-B is very accurate, due to the
separate functions for presetting and shut-off.
2
k
∆P
= ∆P
val
sig
* with software 9.4 or higher
1 + 4 ∙
k
v–sig
v–val
6 | AI100486471298en-000401 © Danfoss | 2020.03
Data sheet Manual Presetting Valves LENO™ MSV-B
Kv-Signal Values
Setting DN 15 LF DN 15 DN20 DN25 DN32 DN40 D N50
0.0 0.07 0.10 0.12 0.34 0. 51 1.0 5 1.75
0.1 0. 08 0. 11 0.16 0.44 0.73 1.2 0 2.01
0.2 0.09 0 .12 0. 20 0.53 0.92 1.3 6 2.25
0.3 0 .11 0 .13 0. 26 0.61 1 .10 1. 55 2. 47
0.4 0. 12 0 .14 0 .32 0.67 1.26 1. 74 2.69
0.5 0. 13 0 .16 0.38 0.73 1. 43 1.95 2 .91
0.6 0.15 0.19 0.45 0.79 1. 60 2 .17 3. 12
0.7 0.16 0 .21 0. 53 0.84 1.78 2.40 3. 35
0.8 0 .17 0. 24 0.60 0.90 1.97 2.64 3.58
0.9 0 .19 0.26 0.67 0.95 2 .18 2.88 3. 82
1.0 0.20 0.29 0 .74 1.01 2.39 3.13 4. 07
1.1 0 .21 0. 32 0.82 1.0 8 2.62 3.39 4.33
1.2 0.23 0. 34 0.89 1.14 2. 87 3.64 4.60
1.3 0.25 0.37 0.96 1. 22 3 .12 3 .90 4.89
1.4 0. 27 0.40 1.0 3 1.29 3.38 4.16 5 .18
1.5 0.30 0.44 1.0 9 1.37 3.64 4. 43 5.49
1.6 0. 32 0.47 1.16 1.46 3.92 4 .69 5.80
1.7 0. 35 0.51 1.2 3 1.55 4 .18 4.9 6 6.13
1.8 0 .37 0.54 1. 30 1.6 5 4.48 5.24 6.46
1.9 0.40 0. 58 1.38 1.75 4. 76 5.51 6.80
2.0 0.43 0 .61 1. 45 1. 85 5.05 5. 80 7.1 4
2.1 0.46 0.65 1.53 1.9 6 5.35 6.08 7.4 9
2.2 0.49 0.69 1.61 2.07 5.65 6.38 7.8 4
2.3 0.52 0.73 1.69 2 .18 5.9 6 6.68 8.19
2.4 0.56 0.77 1. 78 2.29 6 .27 6.99 8 .55
2.5 0.59 0.8 0 1.87 2. 41 6.60 7. 30 8.91
2.6 0.62 0.85 1.97 2.53 6.94 7. 63 9. 27
2.7 0.66 0.89 2. 07 2.65 7. 29 7.9 8 9.64
2.8 0.69 0.93 2 .17 2.77 7. 67 8.33 10.0 0
2.9 0.73 0. 97 2. 29 2. 89 8.06 8 .70 10.3 7
3.0 0.76 1.01 2.40 3 .01 8.48 9.0 8 10. 74
3.1 0. 80 1. 04 2. 52 3.13 8 .92 9.48 11.11
3.2 0.83 1. 08 2.65 3.25 9. 38 9.90 11. 49
3.3 0.87 1.12 2 .78 3 .37 9.87 10. 33 11. 88
3.4 0.90 1.16 2.91 3.49 10. 38 10.79 12 .27
3.5 0.94 1. 20 3.05 3 .62 10.91 11. 26 12.67
3.6 0.97 1. 25 3.19 3 .74 11. 46 11 .74 13. 09
3.7 1.01 1.3 0 3.33 3.87 12. 02 12. 25 13. 51
3.8 1.06 1. 35 3.47 4.00 12 .58 12.7 7 13.9 5
3.9 1.10 1.41 3 .61 4.13 13.12 13.30 14. 41
4.0 1.14 1.47 3.75 4. 26 13. 64 13. 85 14. 88
4.1 1.18 1.53 3.89 4.39 1 4.12 14 .41 15. 38
4.2 1.23 1. 59 4.02 4.53 14. 52 14.9 8 15.89
4.3 1.27 1.6 6 4 .15 4.68 14 .84 15 .55 16. 44
4.4 1.31 1.7 3 4.28 4. 82 - 16.13 17.0 0
4.5 1.35 1. 81 4.40 4.98 - 16. 69 17. 59
4.6 1.39 1.91 4. 52 5.13 - 17. 25 18. 21
4.7 1.43 2.00 4.62 5.29 - 17. 80 18 .86
4.8 1.47 2.08 4.72 5.4 6 - 18 .32 19. 54
4.9 1.51 2 .16 4. 82 5.6 4 - 18 .80 20. 24
5.0 1.5 4 2 .23 4.9 0 5.81 - 19. 25 20.97
5.1 1.6 0 2.30 4.97 6.0 0 - 19. 65 21.7 3
5.2 1.6 6 2.36 5.04 6.19 - 19.9 8 22.51
5.3 1.72 2 .41 5.0 9 6. 38 - 20. 24 23.30
5.4 1.79 2.46 5.14 6.57 - 20 .41 2 4.12
5.5 1.8 7 2.50 5 .18 6.77 - 20.48 24.94
5.6 1.93 2.54 5. 21 6.96 - - 25.76
5.7 1.99 2.57 5.24 7. 15 - - 26.58
5.8 2.04 - 5. 27 7. 34 - - 2 7.3 8
5.9 2.09 - - 7. 52 - - 28.16
6.0 2.14 - - 7. 69 - - 28.90
6.1 2 .18 - - 7.8 5 - - 29.59
6.2 2.22 - - 7. 98 - - 3 0.21
6.3 2.26 - - 8.09 - - 30. 74
6.4 - - - 8 .17 - - 3 1.17
6.5 - - - 8.22 - - 31.47
6.6 - - - - - - 31. 61
AI100486471298en-000401 | 7© Danfoss | 2020.03
Data sheet Manual Presetting Valves LENO™ MSV-B

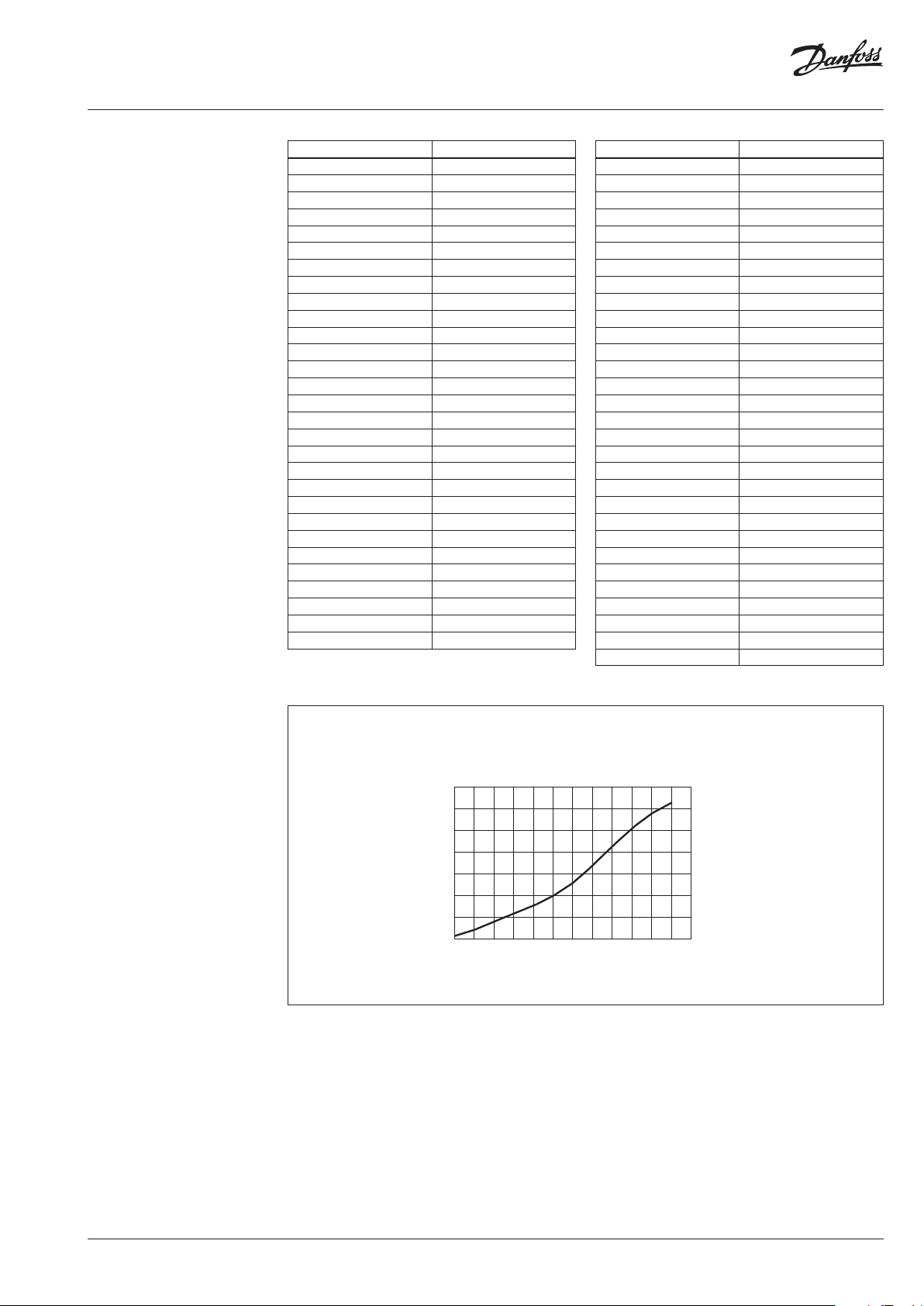

Kv-Signal
8 | AI100486471298en-000401 © Danfoss | 2020.03
Data sheet Manual Presetting Valves LENO™ MSV-B
MSV-B
[
]
�
[
]
√
Correction Factors
Valve Size and Presetting
Tem p.
°C
-40.0
-17. 8
4.4 0.95 0.95 0.93 0.92 0.91 0.90 0. 87
26.6 0.96 0.95 0.94 0.93 0.92 0.91 0.88
48.9 0.97 0.96 0.95 0.94 0.93 0.92 0.90
71.1 0.98 0.98 0.96 0.95 0.94 0.94 0.95
93.3 1. 00 0.99 0.97 0.96 0.95 0.95 0.92
115 .6
1)
Below freezing point
2)
Above boiling point
Correction factors, ethylene glycol / propylene glycol percentage (max. 30 %)
25 30 40 50 60 65 100
1) 1) 1) 1)
1) 1)
2) 2) 2) 2) 2) 2)
0.93 0 .91 0.90 0.89 0.86
0.89 0.88
Example:
Given
Max. pipe flow Q = 2.0 m³/h
Δpr = 15 kPa
Δpa = 45 kPa
Δpm = 10 kPa
Δpi = Δpa – Δpv – Δpm
Δpi = 45 kPa – 15 kPa – 10KPa = 20 kPa
Correct valve size and presetting is found in flow
diagramme, page 7.
Q= 2.0 m³/h and Δpi = 20 kPa
1)
0.94
On page 12 intersect guides and presetting is found to be
4.2 (DN 20 valve)
Setting can be also calculated from the formula:
kv =
Q
m
∆p
bar
i
2.0
/h
=
= 4.5 m3/h
0.20
2
which corresponds to presetting 4.2 as shown on
pages 7 and 12.
Δpi Pressure drop across LENO™ MSV-B valve
Δpm Pressure drop across valve
Δpr Necessary pressure for the riser
Δpa Available pressure for the riser
AI100486471298en-000401 | 9© Danfoss | 2020.03
Data sheet Manual Presetting Valves LENO™ MSV-B
Setting
Flow Diagrammes,
DN 15 LF
LENO™ MSV-B DN 15 LF
10 | AI100486471298en-000401 © Danfoss | 2020.03
Data sheet Manual Presetting Valves LENO™ MSV-B
Kv-value
2.5
2.0
1.5
1.0
0.5
Setting
Flow Diagrammes,
DN 15 LF (continuous)
Setting kv-value
0.0 0. 07
0.1 0.08
0.2 0.09
0.3 0.11
0.4 0.12
0.5 0.13
0.6 0.15
0.7 0.16
0.8 0.17
0.9 0.19
0.10 0.20
1.1 0.22
1.2 0.23
1.3 0.25
1.4 0.28
1.5 0.30
1.6 0.32
1.7 0.35
1.8 0.38
1.9 0.41
2.0 0.44
2.1 0.47
2.2 0.50
2.3 0.53
2.4 0.56
2.5 0.60
2.6 0.63
2.7 0.67
2.8 0.71
2.9 0.74
3.0 0.78
3.1 0.82
Setting kv-value
3.2 0.86
3.3 0.89
3.4 0.93
3.5 0.97
3.6 1.01
3.7 1. 05
3.8 1.10
3.9 1.15
4.0 1.19
4.1 1.24
4.2 1. 29
4.3 1. 33
4.4 1. 38
4.5 1. 43
4.6 1.48
4.7 1. 52
4.8 1. 56
4.9 1.61
5.0 1.65
5.1 1.72
5.2 1.78
5.3 1. 86
5.4 1.94
5.5 2.03
5.6 2.10
5.7 2.17
5.8 2.23
5.9 2.30
6.0 2.36
6.1 2.42
6.2 2.47
Flow characteristics
0
0 1.0 2.0 3.0 4.0 5.0 6.0
AI100486471298en-000401 | 11© Danfoss | 2020.03
Data sheet Manual Presetting Valves LENO™ MSV-B
Setting
Flow Diagrammes,
DN 15
LENO™ MSV-B DN 15
12 | AI100486471298en-000401 © Danfoss | 2020.03
Data sheet Manual Presetting Valves LENO™ MSV-B
Kv-value
3.5
3.0
2.5
2.0
1.5
1.0
0.5
Setting
Flow Diagrammes,
DN 15 (continuous)
Setting kv-value
0.0 0.11
0.1 0 .12
0.2 0.13
0.3 0.14
0.4 0.16
0.5 0.19
0.6 0.20
0.7 0.21
0.8 0. 24
0.9 0.27
0.10 0.29
1.1 0.32
1.2 0.35
1.3 0.38
1.4 0.41
1.5 0.44
1.6 0.48
1.7 0.51
1.8 0.55
1.9 0.59
2.0 0.63
2.1 0.67
2.2 0.71
2.3 0.75
2.4 0.80
2.5 0.84
2.6 0.88
2.7 0.93
2.8 0.97
Setting kv-value
2.9 1.02
3.0 1. 06
3.1 1.10
3.2 1.14
3.3 1.19
3.4 1. 23
3.5 1. 28
3.6 1. 34
3.7 1. 40
3.8 1. 46
3.9 1.52
4.0 1. 59
4.1 1.6 6
4.2 1.74
4.3 1. 82
4.4 1. 91
4.5 2.00
4.6 2.12
4.7 2.23
4.8 2. 33
4.9 2 .43
5.0 2.53
5.1 2.61
5.2 2.70
5.3 2.77
5.4 2.84
5.5 2.90
5.6 2.95
5.7 3.00
Flow characteristics
0
0 1.0 2.0 3.0 4.0 5.0 6.0
AI100486471298en-000401 | 13© Danfoss | 2020.03
Data sheet Manual Presetting Valves LENO™ MSV-B
Setting
Flow Diagrammes,
DN 20
LENO™ MSV-B DN 20
4.2
14 | AI100486471298en-000401 © Danfoss | 2020.03
Data sheet Manual Presetting Valves LENO™ MSV-B
Kv-value
7
6
5
4
3
2
1
0
Setting
Flow Diagrammes,
DN 20 (continuous)
Setting kv-value
0.0 0.13
0.1 0 .15
0.2 0.19
0.3 0. 24
0.4 0.30
0.5 0.37
0.6 0.45
0.7 0. 53
0.8 0 .61
0.9 0.68
0.10 0.76
1.1 0.84
1.2 0.92
1.3 0.99
1.4 1.06
1.5 1.13
1.6 1.21
1.7 1.28
1.8 1.35
1.9 1.43
2.0 1. 50
2.1 1.59
2.2 1. 67
2.3 1. 76
2.4 1.86
2.5 1.9 6
2.6 2.07
2.7 2.19
2.8 2.31
Setting kv-value
2.9 2.44
3.0 2.58
3.1 2.72
3.2 2. 87
3.3 3.03
3.4 3.19
3.5 3.36
3.6 3. 53
3.7 3.70
3.8 3. 87
3.9 4.05
4.0 4.23
4.1 4.40
4.2 4.58
4.3 4.75
4.4 4.91
4.5 5.07
4.6 5.22
4.7 5. 37
4.8 5.51
4.9 5.64
5.0 5.77
5.1 5.88
5.2 5.99
5.3 6.09
5.4 6.19
5.5 6. 29
5.6 6.39
5.7 6.49
5.8 6.60
Flow characteristics
0 1.0 2.0 3.0 4.0 5.0 6.0
AI100486471298en-000401 | 15© Danfoss | 2020.03
Data sheet Manual Presetting Valves LENO™ MSV-B
Setting
Flow Diagrammes,
DN 25
LENO™ MSV-B DN 25
16 | AI100486471298en-000401 © Danfoss | 2020.03
Data sheet Manual Presetting Valves LENO™ MSV-B
Kv-value
10
Setting
Flow Diagrammes,
DN 25 (continuo us)
Setting kv-value
0.0 0. 33
0.1 0.44
0.2 0. 53
0.3 0 .61
0.4 0.68
0.5 0.74
0.6 0.79
0.7 0.85
0.8 0 .91
0.9 0.96
0.10 1.03
1.1 1.09
1.2 1.16
1.3 1.24
1.4 1.32
1.5 1.41
1.6 1.50
1.7 1.60
1.8 1.70
1.9 1.80
2.0 1. 91
2.1 2.03
2.2 2.15
2.3 2.26
2.4 2.39
2.5 2.51
2.6 2.64
2.7 2 .76
2.8 2.89
2.9 3.02
3.0 3.15
Setting kv-value
3.1 3.28
3.2 3.41
3.3 3.54
3.4 3.68
3.5 3.81
3.6 3.95
3.7 4.09
3.8 4.24
3.9 4.39
4.0 4. 55
4.1 4.71
4.2 4.88
4.3 5.05
4.4 5.23
4.5 5.42
4.6 5.62
4.7 5.83
4.8 6.05
4.9 6 .27
5.0 6 .51
5.1 6.75
5.2 7.0 0
5.3 7.2 6
5.4 7.53
5.5 7.8 0
5.6 8.06
5.7 8.33
5.8 8 .59
5.9 8.84
6.0 9.08
6.1 9.30
6.2 9.50
Flow characteristics
8
6
4
2
0
0 1.0 2.0 3.0 4.0 5.0 6.0
AI100486471298en-000401 | 17© Danfoss | 2020.03
Data sheet Manual Presetting Valves LENO™ MSV-B
Setting
Flow Diagrammes,
DN 32
LENO™ MSV-B DN 15 LF
18 | AI100486471298en-000401 © Danfoss | 2020.03
Data sheet Manual Presetting Valves LENO™ MSV-B
Kv-value
16
12
Setting
Flow Diagrammes,
DN 32 (continuous)
Setting kv-value
0.0 0.50
0.1 0.75
0.2 0.95
0.3 1.13
0.4 1. 29
0.5 1.45
0.6 1. 62
0.7 1. 80
0.8 1. 99
0.9 2. 20
0.10 2.42
1.1 2.66
1.2 2.92
1.3 3.19
1.4 3.47
1.5 3.75
1.6 4.05
1.7 4.36
1.8 4.67
1.9 4.98
2.0 5.30
2.1 5.63
Flow characteristics
Setting kv-value
2.2 5.97
2.3 6. 32
2.4 6.68
2.5 7. 06
2.6 7. 46
2.7 7.89
2.8 8.34
2.9 8.83
3.0 9. 35
3.1 9.92
3.2 10.52
3.3 11 .16
3.4 11. 85
3.5 12. 51
3.6 13.23
3.7 13.9 8
3.8 14. 74
3.9 15. 49
4.0 16 .23
4.1 16.91
4.2 17. 51
4.3 18.0 0
4
0
0 1.0 2.0 3.0 4.0
AI100486471298en-000401 | 19© Danfoss | 2020.03
Data sheet Manual Presetting Valves LENO™ MSV-B
Setting
Flow Diagrammes,
DN 40
LENO™ MSV-B DN 40
20 | AI100486471298en-000401 © Danfoss | 2020.03
Data sheet Manual Presetting Valves LENO™ MSV-B
Kv-value
30
25
20
15
10
Setting
Flow Diagrammes,
DN 40 (continuous)
Setting kv-value
0.0 1. 06
0.1 1.21
0.2 1. 38
0.3 1. 56
0.4 1.76
0.5 1.97
0.6 2.20
0.7 2.43
0.8 2.68
0.9 2.93
1.0 3.19
1.1 3.46
1.2 3.73
1.3 4.01
1.4 4.29
1.5 4.58
1.6 4.87
1.7 5.17
1.8 5.47
1.9 5.78
2.0 6.09
2.1 6.41
2.2 6 .74
2.3 7. 09
2.4 7. 44
2.5 7. 80
2.6 8 .18
2.7 8.58
Setting kv-value
2.8 9.00
2.9 9. 44
3.0 9.9 0
3.1 10 .38
3.2 10.89
3.3 11. 43
3.4 12.00
3.5 12.60
3.6 13.22
3.7 13.88
3.8 14.56
3.9 15. 28
4.0 16.02
4.1 16.79
4.2 17. 57
4.3 18.3 8
4.4 19.19
4.5 20.02
4.6 20. 82
4.7 21.61
4.8 22. 38
4.9 23.12
5.0 23.81
5.1 24.44
5.2 25.00
5.3 25.46
5.4 25.80
5.5 26.00
Flow characteristics
5
0
0 1.0 2.0 3.0 4.0 5.0 6.0
AI100486471298en-000401 | 21© Danfoss | 2020.03
Data sheet Manual Presetting Valves LENO™ MSV-B
Setting
Flow Diagrammes,
DN 50
LENO™ MSV-B DN 50
22 | AI100486471298en-000401 © Danfoss | 2020.03
Data sheet Manual Presetting Valves LENO™ MSV-B
Kv-value
40
30
20
10
Setting
Flow Diagrammes,
DN 50 (continuous)
Setting kv-value
0.0 1.74
0.1 2.03
0.2 2.28
0.3 2 .51
0.4 2.73
0.5 2.95
0.6 3.16
0.7 3.38
0.8 3 .61
0.9 3.85
1.0 4.10
1.1 4.37
1.2 4.65
1.3 4.95
1.4 5.26
1.5 5.59
1.6 5.93
1.7 6.28
1.8 6.64
1.9 7. 01
2.0 7. 39
2.1 7. 78
2.2 8.17
2.3 8.56
2.4 8.96
2.5 9.36
2.6 9.76
2.7 10 .17
2.8 10 .58
2.9 10.99
3.0 11. 41
3.1 11. 84
3.2 12. 27
Setting kv-value
3.3 12. 71
3.4 13.16
3.5 13. 62
3.6 14.10
3.7 14.6 0
3.8 15.12
3.9 15.66
4.0 16 .23
4.1 16 .84
4.2 17. 47
4.3 18.14
4.4 18 .84
4.5 19.5 9
4.6 20. 38
4.7 21.21
4.8 22.08
4.9 23.00
5.0 23.96
5.1 24.96
5.2 26.00
5.3 27.07
5.4 28 .17
5.5 29.30
5.6 30.44
5.7 31.6 4
5.8 32.83
5.9 34.01
6.0 35.14
6.1 36.23
6.2 37. 24
6.3 38.14
6.4 38.93
6.5 39.56
6.6 40.00
Flow characteristics
0
0 1.0 2.0 3.0 4.0 5.0 6.0 7.0
AI100486471298en-000401 | 23© Danfoss | 2020.03
Data sheet Manual Presetting Valves LENO™ MSV-B
Dimensions
Size
(DN)
15 G ¾ A 76 92
ISO 228-1
a (mm)
L
(mm)
H
(mm)
Size
ISO 228-1
(DN)
15 G ½ 76 92 27
20 G ¾ 80 95 32
25 G 1 86 98 41
32 G 1¼ 102 121 50
40 G 1½ 102 125 55
50 G2 130 12 9 67
a (mm)L(mm)
H
(mm)
S
(mm)
© Danfoss | DHS-SMDBT/SI | 2020.0324 | AI100486471298en-000401
Loading...
