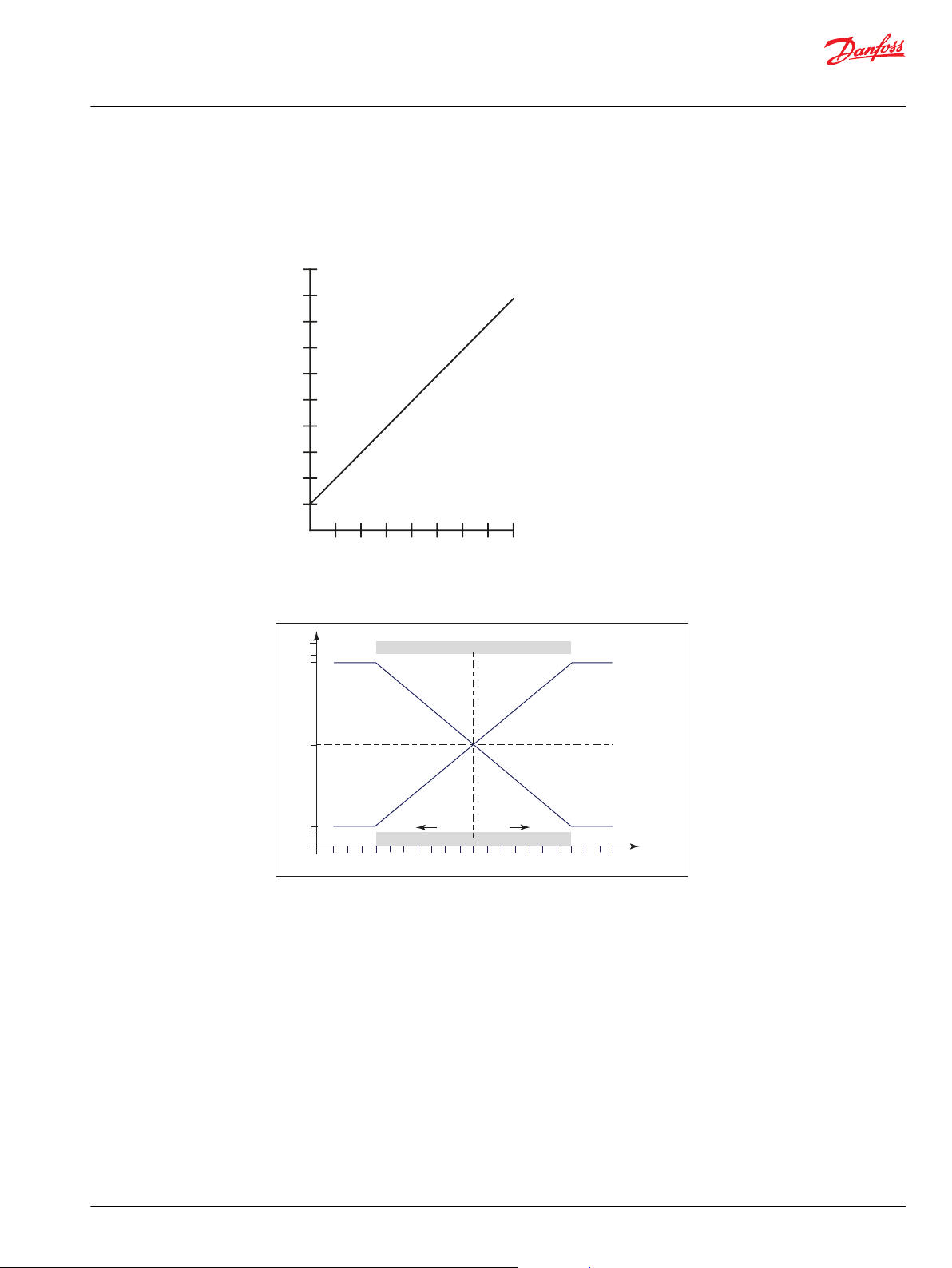

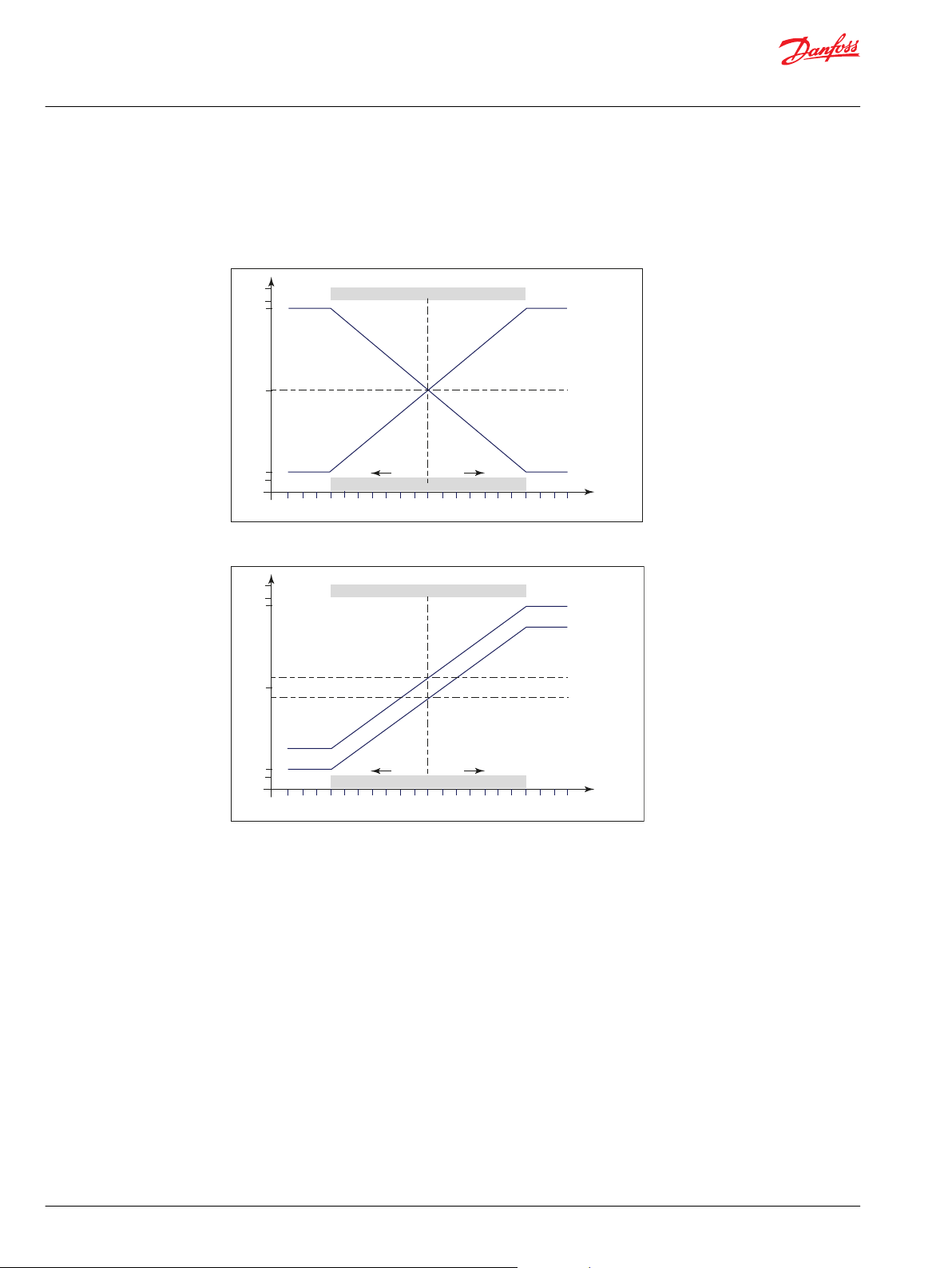

Technical Information
KEP Foot Pedal
Revision history Table of revisions
Date Changed Rev
December 2019 Added information regarding Uni-directional foot pedal with dual sensor output, part
number 11085538; Corrected Electrical connections/Bi-directional model type/ Metri-Pack
Series 150 table
August 2019 Updated to Engineering Tomorrow design 0502
July 2015 Converted to Danfoss layout EA
November 2011 Corrected Option 1 and 2 drawing DA
October 2011 Added interchangeable part number reference to Unidirectional Model Type table CB
September 2010 Major update CA
January 2010 Major update BA
January 2009 Initial release AB
0601
2 | © Danfoss | December 2019 11044978 | BC00000046en-000601
Technical Information
KEP Foot Pedal
Contents
Overview
Technical data
Dimensions
Output characteristics
Electrical connections
Description..........................................................................................................................................................................................4
Features................................................................................................................................................................................................4
Uni-directional model type..................................................................................................................................................... 4
Bi-directional model type.........................................................................................................................................................4
Operation............................................................................................................................................................................................ 4
Uni-directional model type .................................................................................................................................................... 4
Bi-directional model type.........................................................................................................................................................4
Ordering information......................................................................................................................................................................5
Uni-directional model type..................................................................................................................................................... 5
Bi-directional model type.........................................................................................................................................................5
Optional connector...............................................................................................................................................................6
Uni-directional model type...........................................................................................................................................................7
Bi-directional model type..............................................................................................................................................................8
Uni-directional model type...........................................................................................................................................................9
Bi-directional model type............................................................................................................................................................10
Uni-directional model type........................................................................................................................................................ 11
Bi-directional model type............................................................................................................................................................12
Uni-directional model type ....................................................................................................................................................... 13
Bi-directional model type............................................................................................................................................................14
Wiring harness.................................................................................................................................................................................14
Connector A: Metri-Pack connector...................................................................................................................................15
Connector B: Weather Pack connector (shroud)...........................................................................................................15
Connector C: Weather Pack connector (tower)............................................................................................................. 15
Schematics of a foot pedal connected to a PLUS+1® module....................................................................................... 16
Example, part 1..........................................................................................................................................................................16
Example, part 2..........................................................................................................................................................................17
PLUS+1® module pin connections example................................................................................................................... 18
©
Danfoss | December 2019 11044978 | BC00000046en-000601 | 3
Technical Information
KEP Foot Pedal
Overview
Description
Features
The electronic foot pedal is used to drive vehicles equipped with hydrostatic transmissions and/or
electronically-controlled engines. It provides an electrical signal to the engine’s electronics proportional
to the degree of pedal actuation. The electronic foot pedal features a sensor specifically designed for
heavy vehicle applications.
Danfoss offers two types of foot pedals: Uni-directional and Bi-directional. The uni-directional uses a
potentiometer sensor and was the first electronic foot pedal introduced by Danfoss in 1993. The new bidirectional type uses Hall effect sensors. Both types of foot pedals are PLUS+1® Compliant.
Uni-directional model type
Potentiometer sensor
•
Meets or exceeds FMVSS-124 requirements
•
Low pivot point eliminates need for external heel rest
•
Controls acceleration and deceleration smoothly
•
Potentiometer mounting location minimizes mounting space requirements and reduces vulnerability
•
to dirt, water, and foreign contaminants
3 pin Weather Pack compatible connector
•
Operation
Bi-directional model type
Hall effect sensors
•
14 ± 2° angular rotation, fore and aft
•
FMVSS 124 and 302 compliant
•
Dual ratiometric Automatic Protection Switching (APS) output
•
This feature provides redundancy
‒
Independent, isolated APS circuits
•
Protected against electrical misconnection
•
6 pin Metri-Pack 150 Series connector directly on the sensor
•
Two 3 pin Weather Pack compatible connector
•
These connectors are used with the recommended cable (reference Schematics of a foot pedal
‒
connected to a PLUS+1 module on page 16)
Non contact sensor
•
Black coated steel base and treadle
•
Chromate conversion module components
•
Uni-directional model type
The electronic foot pedal accepts a typical supply voltage of 5 Vdc and varies the output from 10% to
90% of supply through the pedal’s rated angle. Three standard accelerator position sensor models are
available for vehicle toeboard angles ranging from 0° to 25°. Custom mounting, termination, and
electrical characteristics are available upon factory request.
Bi-directional model type
The electronic foot pedal contains two independent non-contact transducers (Hall elements). The
transducers are designed to operate at 5 Vdc.
4 | © Danfoss | December 2019 11044978 | BC00000046en-000601
Technical Information
KEP Foot Pedal
Overview
Ordering information
The signal range for each transducer can be configured to match a machine’s requirements. Currently,
two different signal options are offered, reference Technical data, Bi-directional model type on page 8.
Use product description and part numbers for ordering electronic foot pedals. For detailed specifications,
refer to chapters Technical data on page 7; Dimensions on page 9; and Electrical connections on page
13.
Uni-directional model type
Description Foot pad Mating
Angle Signal 1 Signal 2 Transducer Part number
connector
KEPA14181 Uni-directional Rubber Weather Pack 28°
KEPA14161 Uni-directional Rubber Weather Pack 35°
KEPA14171 Uni-directional Rubber Weather Pack 45°
11085538 Uni-directional Rubber Weather Pack 45°
1
Refer to Technical data, Uni-directional model type on page 7 and Bi-directional model type on page 8.
2
Plus a 1K internal current limiting resistor.
3
US part number.
4
EU part number.
5
Interchangeable US part number is 11044101.
6
Choose this part number to include wiring harness, which is electrically connected before shipping from factory .
1
10% to 90% 2500 Ohms
1
10% to 90% 2500 Ohms
1
10% to 90% 2500 Ohms
1
10% to 90% 90% to 10% 2500 Ohms
Wiring harness assembly, if purchased separately
Description Part number
Wiring harness assembly 11065878
Mating electrical connector
Description Quantity Part number
3-pin Packard W-P tower mating connector 1 K08620
3-pin Packard W-P shroud mating connector 1 K08630
2
2
2
2
KEPA14181
KEPA14161
4
791681N
KEPA14171
11085538
3
3
5
6
Bi-directional model type
Description Foot pad Mating
connector
Option 1 Bi-directional Rubber 6 pin Metri-Pack
150 Series
Option 2 Bi-directional Rubber 6 pin Metri-Pack
150 Series
Angle Signal 1 Signal 2 Part number
±14° 10% to 90% 90% to 10% 11065877
±14° 10% to 80% 20% to 90% 11065874
Danfoss recommended mating electrical wire harness and connectors
Description Part number
6 pin Metri-Pack 150 Series 100 cm (39.37 in) from end to end 11065878
Two 3 pin Weather Pack
3 pin Weather Pack tower kit Used with wire harness, Danfoss part number 11065878 K08620
3 pin Weather Pack shroud kit K08630
©
Danfoss | December 2019 11044978 | BC00000046en-000601 | 5
C
Technical Information
KEP Foot Pedal
Overview
Optional connector
The optional mating electrical connector for the bi-directional model type must be ordered directly from
a Packard Electric (Delphi Connection Systems) supplier.
Caution
The electrical connection may be at risk. Wiring directly to the 6 pin Metri-Pack connector, which is
integral to the sensor, may not provide the flexibility and overall integrity that can otherwise be obtained
by using the Danfoss recommended harness (Danfoss part number 11065878).
Optional mating electrical connector piece parts for bi-directional model type
Description Packard Electric part number
6 pin Metri-Pack 150 Series One Connector and Seal 12066317
Six Terminals 12013881
6 | © Danfoss | December 2019 11044978 | BC00000046en-000601
Technical Information
KEP Foot Pedal
Technical data
Uni-directional model type
Electrical and environmental technical data
Supply voltage
Operating temperature
Maximum rated output current
Pedal potentiometer resistance
Sealing of electronics
Materials
Castings
Potentiometer shaft
Roller and spring sleeve
Base plate
Springs
Typical: 5.0 Vdc
Maximum: 16 Vdc (5 minutes)
-40 to +70° C [-40 to +158° F]
20 mA
2500 ± 500 Ohms, plus a 1K internal current limiting
resistor
IP 66
Iridited aluminum
Stainless steel
Glass filled nylon
Zinc plated steel
Stainless steel
Mechanical ratings
Pedal angle (toeboard angle)
Activation force
Activations, full stroke
Signal output
Signal current
Idle position
Full pedal stroke
Pedal potentiometer resistance
28° (16° to 25°)
35° (6° to 15°)
45° (0° to 5°)
Typical: 2.3 Kg [5 lbs] (at start) 5.5 Kg [12 lbs] (at full travel
Minimum: 3 million
Maximum: 20 mA
Minimum: 10% ± 2%
Maximum: 90% + 2%, - 7%
2500 ± 500 Ohms, plus a 1K internal current limiting
resistor
©
Danfoss | December 2019 11044978 | BC00000046en-000601 | 7
Technical Information
KEP Foot Pedal
Technical data
Bi-directional model type
Electrical and environmental specifications
Supply voltage (Ucc1, Ucc2)
Current consumption (each Hall element)
Operating temperature
Sealing of electronics
Material
Casting
Hall element shaft
Base plate
Spring
Weight
Mechanical ratings
Pedal angle (toeboard angle)
Activations (full stroke)
Static load limit (forward or reverse)
Side load limit
Vertical load limit (neutral)
5 Vdc ± 0.5 Vdc
Maximum: 10 mA (for both Hall elements 20 mA)
-40 to +85° C [-40 to +185° F]
IP 66
Iridited aluminum
Stainless steel
Zinc plated steel
Stainless steel
Typical: 2.6 Kg [5.6 lbs]
Maximum: 14° ± 2°
Minimum: 3 million
Maximum: 1500 N (measured 150 mm from pivot)
Maximum: 500 N (measured 150 mm from pivot)
Maximum: 1000 N (measured center of treadle on pivot
axis)
Signal output
Signal current (APS1, APS2)
Signal load
Short circuit of signal (APS1, APS2)
Option 1, signal level
Signal 1 range nominal (APS1)
Signal 2 range nominal (APS2)
Neutral 1 range nominal (APS1)
Neutral 2 range nominal (APS2)
Option 2, signal level
Signal 1 range nominal (APS1)
Signal 2 range nominal (APS2)
Neutral 1 range nominal (APS1)
Neutral 2 range nominal (APS2)
Maximum: 0.5 mA
Maximum: 10 K Ohms
Maximum: 20 minutes
90% +2% and -4% A
10% +4% and -2% B
10% +4% and -2% A
90% +2% and -4% B
50% ± 4%
50% ± 4%
10% +4% and -2% A
80% +2% and -4% B
20% +4% and -2% A
90% +2% and -4% B
45% ± 4%
55% ± 4%
8 | © Danfoss | December 2019 11044978 | BC00000046en-000601
234 [9.23]
28°
21 [0.81]
41 [1.63]
254 [10.00] maximum
864 [34.0 ± 1.0]
234 [9.23]
35°
21 [0.81]
41 [1.63]
254 [10.00] maximum
864 [34.0 ± 1.0]
Ø9 [(Ø.34)] through
4 places
37 [1.44]
89 [3.50]
64 [2.50]
49 [1094]
Ø10 [Ø.38] through
2 places
16 [0.63]
82 [3.22]
102 [4.0]
111 [4.37]
234 [9.23]
45°
21 [0.81]
41 [1.63]
254 [10.00] maximum
864 [34.0 ± 1.0]
Technical Information
KEP Foot Pedal
Dimensions
Uni-directional model type

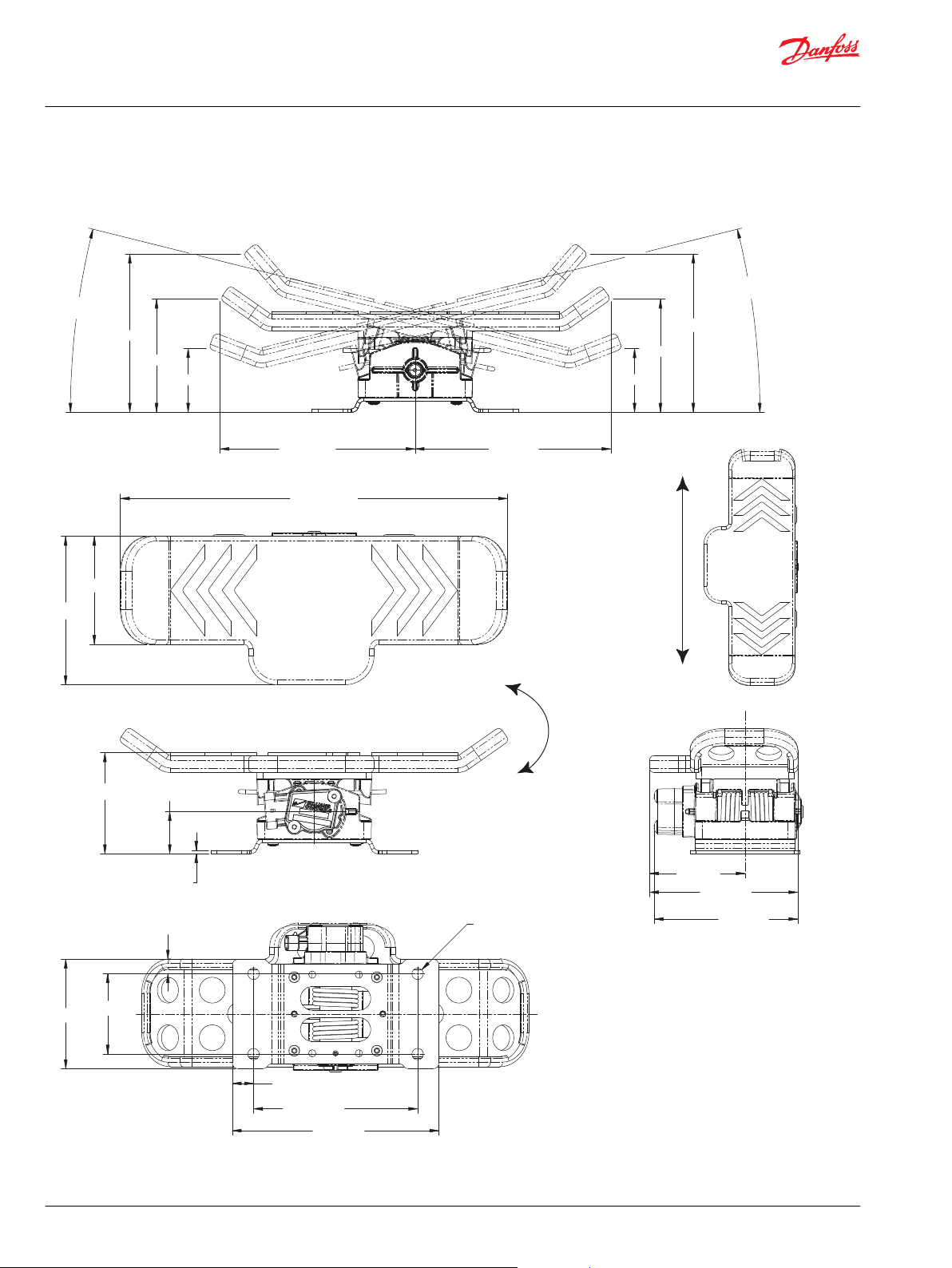

Part number KEPA14181 (mm [in]
Part number KEPA14161 (mm [in]
Part number KEPA14171; Part number 11085538, which includes electrically connected wiring harness (mm [in]
©
Danfoss | December 2019 11044978 | BC00000046en-000601 | 9
CC
LL
CC
LL
B
A
B
A
14° ±2°
138 [5.43]
14° ±2°
138 [5.43]
99 [3.90]
55 [2.16]
99 [3.90]
56 [2.20]
170 [6.69] 171 [6.73]
337.49 [13.29]
129 [5.08]
94 [3.20]
88 [3.46]
36.7 [1.44]
3 [0.12]
13 [0.51]
96 [3.78]
2x 70 [2.76]
2x 19 [0.75]
2x 143 [5.63]
180 [7.09]
4x Ø10 [0.39]
125.1 [4.92]
129.3 [5.09]
83.3 [3.28]
Technical Information
KEP Foot Pedal
Dimensions
Bi-directional model type
A and B direction; full fore and full aft 14° ±2°; dimensions are in mm [in]
10 | © Danfoss | December 2019 11044978 | BC00000046en-000601
50%
90%
10%
100%
50%
94%
90%
10%
5%
-20°-18°-16°
-14°-12°
-10°
-8°
-6°
-4° -2° -0°2°4° 6° 8° 10°
12°
14°
16°
18°20°
Direction A Direction B
Neutral position
Fault area
Fault area
Sensor 1 output
(percent of input
voltage)
Pedal angle
Sensor 2 output
(percent of input
voltage)
Technical Information
KEP Foot Pedal
Output characteristics
Uni-directional model type
Output and supply voltage
Idle to full pedal stroke
Signal level
Option 1, 10% to 90% and 90% to 10%
©
Danfoss | December 2019 11044978 | BC00000046en-000601 | 11
100%
50%
94%
90%
10%
5%
-20°-18°-16°
-14°-12°
-10°
-8°
-6°
-4° -2° -0°2°4° 6° 8° 10°
12°
14°
16°
18°20°
Direction A Direction B
Neutral position
Fault area
Fault area
Sensor 1 output
(percent of input
voltage)
Pedal angle
Sensor 2 output
(percent of input
voltage)
100%
50%
94%
90%
10%
5%
-20°
-18°
-16°
-14°
-12°
-10°
-8°
-6°
-4°
-2°
-0°
2°
4°
6°
8°
10°
12°
14°
16° 18°
20°
Direction A Direction B
Neutral positions
Fault area
Sensor 1 output
(percent of input
voltage)
Pedal angle
Sensor 2 output
(percent of input
voltage)
Fault area
Technical Information
KEP Foot Pedal
Output characteristics
Bi-directional model type
Signal level
Option 1, 10% to 90% and 90% to 10%
Option 2, 20% to 90% and 10% to 80%
12 | © Danfoss | December 2019 11044978 | BC00000046en-000601
A
B
C
A
B
C
D
E
F
A
B
C
A
B
C
A
B
C
2
1
3
A
B
C
A
B
C
A
B
C
A
B
C
1
3
2
A
B
C
Technical Information
KEP Foot Pedal
Electrical connections
Uni-directional model type
Connector mounted on potentiometer sensor.
Current configuration
Configuration before February 2006
1 Full stroke A White wire color
2 Potentiometer B Black wire color
3 Cable C Red wire color
PLUS+1® module pin connections example
Pin Sensor Connector
Power ground - Not used Not used
Power supply + Not used Not used
Sensor power + C C
Sensor power - B A
AIN/CAN0 shield A B
AIN/CAN1 shield A B
©
Danfoss | December 2019 11044978 | BC00000046en-000601 | 13
DIN Not used Not used
DIN/AIN A B
DIN/AIN/FreqIN A B
AIN/Temp/Rheo A B
A
B
C D E F
876.30 ± 12.70 [34.50 ± 0.50]
2X 977.9 ± 25.4 [2X 38.50 ± 1.00]
A
B
C
Technical Information
KEP Foot Pedal
Electrical connections
Bi-directional model type
Metri-Pack Series 150 (view facing connector end)
Wiring harness
Packard housing part number
Packard terminal part number
12066317
12103881
Sensor connections
Pin Function Wire color
A Signal 1 = Us1 Black
B Ground 1 = GND1 White
C Supply 1 = Ucc1 Red
D Supply 2 = Ucc2 Green
E Ground 2 = GND2 Blue
F Signal 2 = Us2 Orange
A Metri-Pack 150 Series Connector
B Weather Pack Connector (Shroud)
C Weather Pack Connector (Tower)
14 | © Danfoss | December 2019 11044978 | BC00000046en-000601
F
E
D
C
B
A
A
B
C
C
B
A
Technical Information
KEP Foot Pedal
Electrical connections
Connector A: Metri-Pack connector
Pin Function Wire color
A Signal 1 = Us1 Black
B Ground 1 = GND1 White
C Supply 1 = Ucc1 Red
D Supply 2 = Ucc2 Green
E Ground 2 = GND2 Blue
F Signal 2 = Us2 Orange
Connector B: Weather Pack connector (shroud)
Pin Function Wire color
A Ground 1 = GND1 White
B Signal 1 = Us1 Black
C Supply 1 = Ucc1 Red
Connector C: Weather Pack connector (tower)
Pin Function Wire color
C Supply 2 = Ucc2 Green
B Ground 2 = GND2 Blue
A Signal 2 = Us2 Orange
©
Danfoss | December 2019 11044978 | BC00000046en-000601 | 15
Ucc 1
GND 1
GND 2
Us 1
Ucc 2
Us 2
F
D
E
C
A
B
Ucc = +5 Vdc
Ucc = +5 Vdc
Rload >10k ohm
Rload >10k ohm
1 2
Technical Information
KEP Foot Pedal
Electrical connections
Schematics of a foot pedal connected to a PLUS+1® module
Example, part 1
Example of connecting foot pedal to a PLUS+1® module, part 1
1 Sensor
2 Controller
16 | © Danfoss | December 2019 11044978 | BC00000046en-000601
A
B
C
D
E
F
+
C2-P1
C2-P2
C2-P3
C2-P4
C2-P5
C2-P6
C2-P7
C2-P8
C2-P9
C2-P10
C2-P11
C2-P12
C1-P1
C1-P2
C1-P3
C1-P4
C1-P5
C1-P6
C1-P7
C1-P8
C1-P9
C1-P10
C1-P11
C1-P12
3
4
5
6
Technical Information
KEP Foot Pedal
Electrical connections
Example, part 2
3 Foot pedal 4 Connector
Pin Function Pin Controller function Pin Controller function
A Signal 1 = Us1 C2-P1 DIN C2-P7 AIN/Temp/Rheo
B Ground 1 = GND1 C2-P2 DIN/AIN/FreqIN C2-P8 AIN/Temp/Rheo
C Supply 1 = Ucc1 C2-P3 DIN/AIN/FreqIN C2-P9 PWMOUT/DOUT/
D Supply 2 = Ucc2 C2-P4 DIN/AIN/FreqIN C2-P10 PWMOUT/DOUT/
E Ground 2 = GND2 C2-P5 DIN/AIN/FreqIN C2-P11 PWMOUT/DOUT/
F Signal 2 = Us2 C2-P6 DIN/AIN/FreqIN C2-P12 PWMOUT/DOUT/
©
Danfoss | December 2019 11044978 | BC00000046en-000601 | 17
5 Power supply 6 Connector
- + Pin Controller function Pin Controller function
12/24 Vdc 12/24 Vdc C1-P1 Power ground - C1-P7 DIN
2
PVGOUT
PVGOUT
PVGOUT
PVGOUT
1
C1-P2 Power supply + C1-P8 5 Vdc sensor
power +
C1-P3 CAN + C1-P9 Sensor power
ground -
C1-P4 CAN - C1-P10 DIN
C1-P5 AIN/CAN shield C1-P11 DIN
C1-P6 DIN C1-P12 DIN
Technical Information
KEP Foot Pedal
Electrical connections
PLUS+1® module pin connections example
Pin Sensor
Power ground - Not used
Power supply + Not used
Sensor power + C, D
Sensor power - B, E
AIN/CAN0 shield A, F
AIN/CAN1 shield A, F
DIN Not used
DIN/AIN A, F
DIN/AIN/FreqIN A, F
AIN/Temp/Rheo A, F
18 | © Danfoss | December 2019 11044978 | BC00000046en-000601
Danfoss
Power Solutions GmbH & Co. OHG
Krokamp 35
D-24539 Neumünster, Germany
Phone: +49 4321 871 0
Danfoss
Power Solutions ApS
Nordborgvej 81
DK-6430 Nordborg, Denmark
Phone: +45 7488 2222
Danfoss
Power Solutions (US) Company
2800 East 13th Street
Ames, IA 50010, USA
Phone: +1 515 239 6000
Danfoss
Power Solutions Trading
(Shanghai) Co., Ltd.
Building #22, No. 1000 Jin Hai Rd
Jin Qiao, Pudong New District
Shanghai, China 201206
Phone: +86 21 2080 6201
Products we offer:
Hydro-Gear
www.hydro-gear.com
Daikin-Sauer-Danfoss
www.daikin-sauer-danfoss.com
DCV directional control
•
valves
Electric converters
•
Electric machines
•
Electric motors
•
Gear motors
•
Gear pumps
•
Hydrostatic motors
•
Hydrostatic pumps
•
Orbital motors
•
PLUS+1® controllers
•
PLUS+1® displays
•
PLUS+1® joysticks and
•
pedals
PLUS+1® operator
•
interfaces
PLUS+1® sensors
•
PLUS+1® software
•
PLUS+1® software services,
•
support and training
Position controls and
•
sensors
PVG proportional valves
•
Steering components and
•
systems
Telematics
•
Danfoss Power Solutions is a global manufacturer and supplier of high-quality hydraulic and
electric components. We specialize in providing state-of-the-art technology and solutions
that excel in the harsh operating conditions of the mobile off-highway market as well as the
marine sector. Building on our extensive applications expertise, we work closely with you to
ensure exceptional performance for a broad range of applications. We help you and other
customers around the world speed up system development, reduce costs and bring vehicles
and vessels to market faster.
Danfoss Power Solutions – your strongest partner in mobile hydraulics and mobile
electrification.
Go to www.danfoss.com for further product information.
We offer you expert worldwide support for ensuring the best possible solutions for
outstanding performance. And with an extensive network of Global Service Partners, we also
provide you with comprehensive global service for all of our components.
Local address:
Danfoss can accept no responsibility for possible errors in catalogues, brochures and other printed material. Danfoss reserves the right to alter its products without notice. This also applies to products
already on order provided that such alterations can be made without subsequent changes being necessary in specifications already agreed.
All trademarks in this material are property of the respective companies. Danfoss and the Danfoss logotype are trademarks of Danfoss A/S. All rights reserved.
©
Danfoss | December 2019 11044978 | BC00000046en-000601
Loading...
