Parts Manual
Open Circuit Pumps
Series 45 Frame K2, 25-45 cc
powersolutions.danfoss.com
Parts Manual Series 45 Frame K2 25-45cc O. C. Pumps
2
AX00000313en-US 0100 • June 2017
Parts Manual Series 45 Frame K2 25-45cc O. C. Pumps
General Information
Control
Choke orice
Gain orice
Input shaft
End cap
Auxiliary mounting
Service parts identication ............................................................................................................................................. 4
Nameplate ............................................................................................................................................................................4
Date code ..............................................................................................................................................................................5
Service bulletins..................................................................................................................................................................5
Procedure to identify a part ............................................................................................................................................5
Adobe Acrobat 2-page viewing ....................................................................................................................................6
Order code ............................................................................................................................................................................7
Electric proportional .................................................................................................................................................. 8-15
Electric on/o .............................................................................................................................................................16-21
Electric dump .............................................................................................................................................................. 22-23
Load sensing ...............................................................................................................................................................24-25
Pressure compensating ...........................................................................................................................................26-27
Remote pressure compensating ..........................................................................................................................26-27
De-stroking valve ...................................................................................................................................................... 28-31
Orice ............................................................................................................................................................................32-33
Gain orice ................................................................................................................................................................... 32-33
Shaft ............................................................................................................................................................................... 34-69
End cap..........................................................................................................................................................................34-69
Auxiliary mounting ange ..................................................................................................................................... 34-69
Housing/shaft seal
Displacement limiter
Special hardware
Displacement
Seal kit
Housing/shaft seal .................................................................................................................................................... 70-71
Displacement limiter ................................................................................................................................................70-71
Special hardware .......................................................................................................................................................72-73
Displacement ..............................................................................................................................................................72-73
Overhaul seal kit .............................................................................................................................................................. 74
AX00000313en-US 0100 • June 2017
3
Parts Manual Series 45 Frame K2 25-45cc O. C. Pumps
General information
Service parts indentication
The following information and procedure is used to identify the module group, item number, manufacture date, part number, and part name of the parts included in the Frame J open circuit pump. The Frame K2 includes the 25, 30, 38, 40 and 45 cc displacement pumps.
The parts listed include all parts which may be used when performing either “Minor Repairs”, “Major Repairs” or “Conversions” Frame K2 open circuit pumps.
Nameplate Each unit will have a nameplate axed to the
housing. The nameplate will include the following information.
Model Number The Sauer-Danfoss model number is used by the factory in manufacturing. On repeat orders, a complete unit can be ordered by the model number.
Model Code The Sauer-Danfoss model code completely denes the specic unit and must be used when ordering parts to service this product.
Serial Number The Sauer-Danfoss serial number is used to identify the manufacture date and the unit sequence in the build. The serial number is also used to identify the units warranty time period.
Model No./Ident No.
Model Code
25 NN N 3 C2MR A5N
Serial No.
A-17-04-12345
Made in Slovakia
83049488
K2 R 038 C LS 25
PLB NNN NNN
The letter code indicates the location of original manufacture (assembly). “DC” indicates the unit was originally assembled in Slovokia.
The rst 2 digits indicates the year of manufacture. (“02” would indicate the unit was manufactured in
2002)
The second 2 digits indicates the calendar week of manufacture.
The last 5 digits are a sequential number used to identify a specic unit.
4
AX00000313en-US 0100 • June 2017
Parts Manual Series 45 Frame K2 25-45cc O. C. Pumps
General information
Date code
Service bulletins
Procedure to identify a part
The date code is dened as the year and week of manufacture. The same item number may list more than one part number. This indicates that there is more than one conguration for that item number. You will see that there are dierent date codes for the dierent part numbers. Find the date code of your unit from the nameplate to determine which service part number you need to order.
EXAMPLE: The service part desired is Item C090
Order Date Date Qty. per Code Item Begin End Part Number Part Name Model/Kit
LB C090 98-02 4570245 Spool 1
C090 94-34 98-01 4570025 Spool (SB-1995-006) 1
All units using this order code with a date code of 94-34 and up to and including 98-01, must use part number “4570025”. All units with a date code of 98-02 and newer must use part number “4570245.”.
A Service Bulletin Number (SB-_ _ _ _ - _ _ _) may follow the “Part Name” of the part you desire. You must read that Service Bulletin prior to ordering that part. The information contained in these Service Bulletins, as of the print date of this bulletin, are included at the end of this manual. Service Bulletins contain more detailed information such as interchangeability, what additional parts are involved, etc. It is suggested that you add additional Service Bulletins to this manual as you recieve them.
General The modular design of Series 45 units results in a simplied service parts list and part number identication procedure.
The same item numbers are used for same part names on all units within a product type. (Example: The lip seal - Item K020 has the same item number on all pumps.)
A part number that has another number following it in parentheses is done to make this a world wide manual. The rst number is sold in Europe. The number in parentheses is sold in the United States. (Example: 016014 (9006200-0206), customers would order 9006200-0206 if ordering the part in the United States.)
Example of a Part Identication The nameplate on a Series 45 pump has an Order Code of K2-R-038C-LS-25-25-NN-N-3-C2MR-A5N­PLB-NNN-NNN. Do this to determine the part number of the drive shaft used on this pump.
1) Referring to the input shaft module in the Order Code (see page 7), the input shaft option for this pump is identied by the code C2MR (K2-R-038C-LS-25-25-NN-N-3-C2MR-A5N-PLB-NNN-NNN)
2) Referring to the Service Parts List, nd the shaft group.
3) Find the order code that relates to this unit, which is C2MR.
4) The shaft is item J010.
5) The part number is 1700058.
AX00000313en-US 0100 • June 2017
5
Parts Manual Series 45 Frame K2 25-45cc O. C. Pumps
Adobe Acrobat 2-page viewing
Abobe Acrobat 2-page viewing
While viewing manual in Adobe Acrobat, the following settings need to be applied to ensure proper page display.
1. Select “View” --> “Page Display” --> “Two Page View”
2. Select “View” --> “Page Display” --> “Show Cover Page in Two Page View”
6
AX00000313en-US 0100 • June 2017
Parts Manual Series 45 Frame K2 25-45cc O. C. Pumps
Order code
Frame
Rotation
Pump size (cc)
C
R
K2
Pressure compensator setting
038
Load life
Control type
LS
25
25
NN
N C
C2MR
A5N
Speed sensor
Front flange & housing ports style
Shaft seal
NNNPLB
Displacement limiter
NNN
Special features
Special hardware
Load sensing setting
Torque limiter setting
AX00000313en-US 0100 • June 2017
Choke orifice
End cap port style
Rear auxiliary flange
Input shaft
Gain orifice
P109 512E
7
Parts Manual Series 45 Frame K2 25-45cc O. C. Pumps
Control
(AH)
QC100
QC125
C155
*QC120
QC150
C151
C152
C103
C104
C132
C149
C112
*C154
C300
C153
G020
G030
*C200
C102
C133
C135
C113
C115
C114
*C118
*C138A
C134
C138
E101 621E
* = included in base motor seal kit Q210
8
AX00000313en-US 0100 • June 2017
Parts Manual Series 45 Frame K2 25-45cc O. C. Pumps
Control

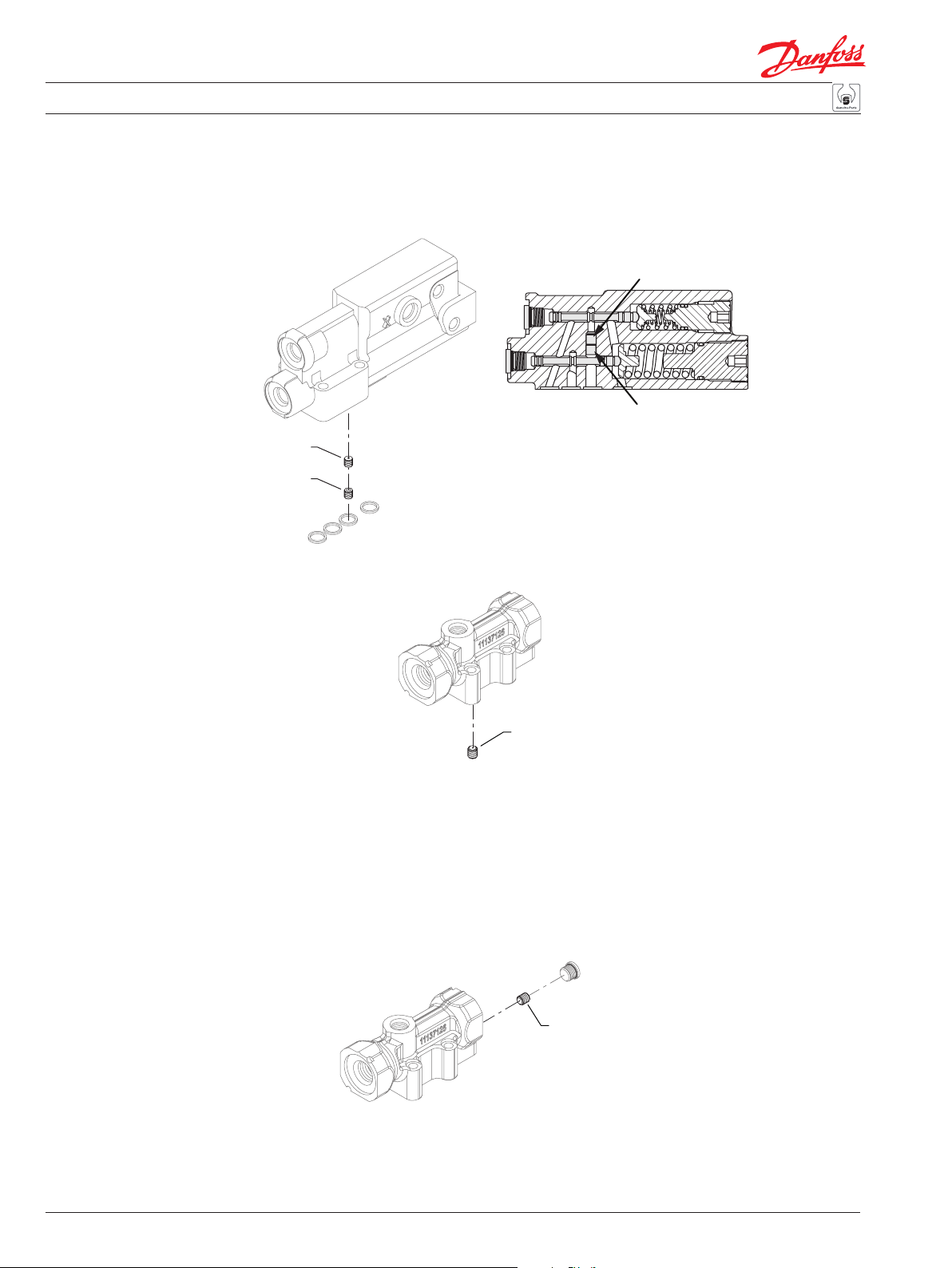

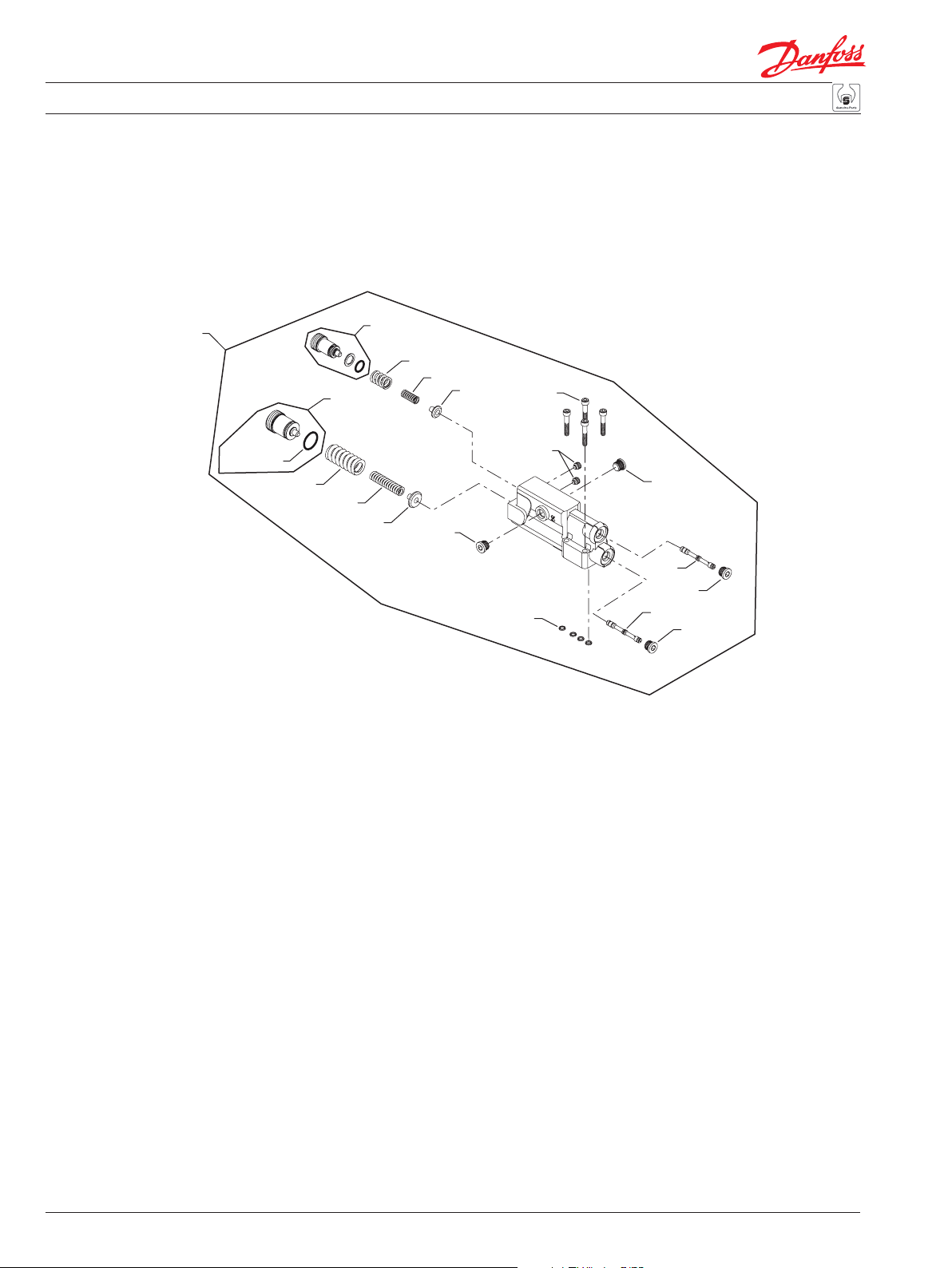

Electric proportional control
Order Date Date Qty. per code Item begin end Part number Part name model/kit
AH C102 17-14 4740064 Set screw 2 C103 17-14 327007 (9005110-4400) Plug assembly 1 C104 17-14 327007 (9005110-4400) Plug assembly 1 C112 17-14 1701439 Spool 1 C113 17-14 4740301 Spring guide 1 C114 17-14 4740061 Spring 1 C115 17-14 4740062 Spring 1 C118 17-14 11062214 Adjusting plug assembly 1 C132 17-14 1701124 Spool 1 C133 17-14 4740247 Spring guide 1 C134 17-14 4740051 Spring, PC outer 1 C135 17-14 4740052 Spring, PC inner 1 C138 17-14 11062379 Adjusting plug assembly 1 C138A 17-14 5000656 O-ring 1 C149 17-14 739144 Orice plug, 0.8mm 1 C151 17-14 9007315-0510 Screw 4 C152 17-14 11150082 Solenoid valve adapter 1 C153 17-14 327007 (9005110-4400) Plug assembly 1 C154 17-14 4740154 Seal ring 2 C155 17-14 1701291 Coil, 12 volt 1 C200 17-14 4740154 Seal ring 4 C300 17-14 5000164 (9007315-0507) Screw 4 G020 17-14 739144 Orice, 0.8mm 1 G020 17-14 519659 Orice, 1.0mm 1 G030 17-14 518215 Orice plug 1 QC100 17-14 11112221 Control Kit, electric prop. 12 volt, NC 1 QC120 17-14 11103621 Solenoid valve seal kit 1 QC125 17-14 11104460 Nut 1 QC150 17-14 11104467 Solenoid valve kit, 12 volt 1
AX00000313en-US 0100 • June 2017
9
Parts Manual Series 45 Frame K2 25-45cc O. C. Pumps
Control
(AL)
QC100
QC125
C155
*QC120
QC150
C151
C152
C103
C104
C132
C149
C112
*C154
C300
C153
G020
G030
*C200
C102
C133
C135
C113
C115
C114
*C118
*C138A
C134
C138
E101 621E
* = included in base motor seal kit Q210
10
AX00000313en-US 0100 • June 2017
Parts Manual Series 45 Frame K2 25-45cc O. C. Pumps
Control
Electric proportional control
Order Date Date Qty. per code Item begin end Part number Part name model/kit
AL C102 17-14 4740064 Set screw 2 C103 17-14 327007 (9005110-4400) Plug assembly 1 C104 17-14 327007 (9005110-4400) Plug assembly 1 C112 17-14 1701439 Spool 1 C113 17-14 4740301 Spring guide 1 C114 17-14 4740061 Spring 1 C115 17-14 4740062 Spring 1 C118 17-14 11062214 Adjusting plug assembly 1 C132 17-14 1701124 Spool 1 C133 17-14 4740247 Spring guide 1 C134 17-14 4740051 Spring, PC outer 1 C135 17-14 4740052 Spring, PC inner 1 C138 17-14 11062379 Adjusting plug assembly 1 C138A 17-14 5000656 O-ring 1 C149 17-14 739144 Orice plug, 0.8mm 1 C151 17-14 9007315-0510 Screw 4 C152 17-14 11150082 Solenoid valve adapter 1 C153 17-14 327007 (9005110-4400) Plug assembly 1 C154 17-14 4740154 Seal ring 2 C155 17-14 1701563 Coil, 24 volt 1 C200 17-14 4740154 Seal ring 4 C300 17-14 5000164 (9007315-0507) Screw 4 G020 17-14 739144 Orice, 0.8mm 1 G020 17-14 519659 Orice, 1.0mm 1 G030 17-14 518215 Orice plug 1 QC100 17-14 11112218 Control Kit, electric prop. 24 volt, NC 1 QC120 17-14 11103621 Solenoid valve seal kit 1 QC125 17-14 11104460 Nut 1 QC150 17-14 11104468 Solenoid valve kit, 24 volt 1
AX00000313en-US 0100 • June 2017
11
Parts Manual Series 45 Frame K2 25-45cc O. C. Pumps
Control
(AX)
QC100
QC125
C155
*QC120
QC150
C151
C152
C103
C104
C132
C149
C112
*C154
C300
C153
G020
G030
*C200
C102
C133
C135
C113
C115
C114
*C118
*C138A
C134
C138
E101 621E
* = included in base motor seal kit Q210
12
AX00000313en-US 0100 • June 2017
Parts Manual Series 45 Frame K2 25-45cc O. C. Pumps
Control
Electric proportional control
Order Date Date Qty. per code Item begin end Part number Part name model/kit
AX C102 17-14 4740064 Set screw 2 C103 17-14 327007 (9005110-4400) Plug assembly 1 C104 17-14 327007 (9005110-4400) Plug assembly 1 C112 17-14 1701439 Spool 1 C113 17-14 4740301 Spring guide 1 C114 17-14 4740061 Spring 1 C115 17-14 4740062 Spring 1 C118 17-14 11062214 Adjusting plug assembly (SB-2010-026) 1 C132 17-14 1701124 Spool 1 C133 17-14 4740247 Spring guide 1 C134 17-14 4740051 Spring, PC outer 1 C135 17-14 4740052 Spring, PC inner 1 C138 17-14 11062379 Adjusting plug assembly (SB-2010-026) 1 C138A 17-14 5000656 O-ring 1 C149 17-14 739144 Orice plug, 0.8mm 1 C151 17-14 9007315-0510 Screw 4 C152 17-14 11150082 Solenoid valve adapter (SB-2016-007) 1 C153 17-14 327007 (9005110-4400) Plug assembly 1 C154 17-14 4740154 Seal ring 2 C155 17-14 1701291 Coil, 12 volt 1 C200 17-14 4740154 Seal ring 4 C300 17-14 5000164 (9007315-0507) Screw 4 G020 17-14 739144 Orice, 0.8mm (SB-2012-011) 1 G020 17-14 519659 Orice, 1.0mm (SB-2012-011) 1 G030 17-14 518215 Orice plug (SB-2012-011) 1 QC100 17-14 11112230 Control Kit, electric prop. 12 v, NO (SB-2012-011) 1 QC120 17-14 11103621 Solenoid valve seal kit 1 QC125 17-14 11104459 Nut 1 QC150 17-14 11104465 Solenoid valve kit, 12 volt 1
AX00000313en-US 0100 • June 2017
13
Parts Manual Series 45 Frame K2 25-45cc O. C. Pumps
Control
(CL)
QC100
QC125
C155
*QC120
QC150
C151
C152
C103
C104
C132
C149
C112
*C154
C300
C153
G020
G030
*C200
C102
C133
C135
C113
C115
C114
*C118
*C138A
C134
C138
E101 621E
* = included in base motor seal kit Q210
14
AX00000313en-US 0100 • June 2017
Parts Manual Series 45 Frame K2 25-45cc O. C. Pumps
Control
Electric proportional control
Order Date Date Qty. per code Item begin end Part number Part name model/kit
CL C102 17-14 4740064 Set screw 2 C103 17-14 327007 (9005110-4400) Plug assembly 1 C104 17-14 327007 (9005110-4400) Plug assembly 1 C112 17-14 1701439 Spool 1 C113 17-14 4740301 Spring guide 1 C114 17-14 4740061 Spring 1 C115 17-14 4740062 Spring 1 C118 17-14 11062214 Adjusting plug assembly (SB-2010-026) 1 C132 17-14 1701124 Spool 1 C133 17-14 4740247 Spring guide 1 C134 17-14 4740051 Spring, PC outer 1 C135 17-14 4740052 Spring, PC inner 1 C138 17-14 11062379 Adjusting plug assembly (SB-2010-026) 1 C138A 17-14 5000656 O-ring 1 C149 17-14 739144 Orice plug, 0.8mm 1 C151 17-14 9007315-0510 Screw 4 C152 17-14 11150082 Solenoid valve adapter (SB-2016-007) 1 C153 17-14 327007 (9005110-4400) Plug assembly 1 C154 17-14 4740154 Seal ring 2 C155 17-14 1701563 Coil, 24 volt 1 C200 17-14 4740154 Seal ring 4 C300 17-14 5000164 (9007315-0507) Screw 4 G020 17-14 739144 Orice, 0.8mm (SB-2012-011) 1 G020 17-14 519659 Orice, 1.0mm (SB-2012-011) 1 G030 17-14 518215 Orice plug (SB-2012-011) 1 QC100 17-14 11112231 Control Kit, electric prop., 24v, NO (SB-2012-011) 1 QC120 17-14 11103621 Solenoid valve seal kit 1 QC125 17-14 11104459 Nut 1 QC150 17-14 11104466 Solenoid valve kit, 24 volt 1
AX00000313en-US 0100 • June 2017
15
Parts Manual Series 45 Frame K2 25-45cc O. C. Pumps
Control
(AN)
QC100
C300
QC150
QC125
C155
C104
C112
*QC120
C151
C152
C103
C132
*C154
C153
*C200
C102
C133
C135
C113
C115
C114
*C118
*C138A
C134
C138
E101 622E
* = included in base motor seal kit Q210
16
AX00000313en-US 0100 • June 2017
Parts Manual Series 45 Frame K2 25-45cc O. C. Pumps
Control
Electric on/o control
Order Date Date Qty. per code Item begin end Part number Part name model/kit
AN C102 17-14 4740064 Set screw 2 C103 17-14 327007 (9005110-4400) Plug assembly 1 C104 17-14 327007 (9005110-4400) Plug assembly 1 C112 17-14 4740300 Spool 1 C113 17-14 4740301 Spring guide 1 C114 17-14 4740061 Spring 1 C115 17-14 4740062 Spring 1 C118 17-14 11062214 Adjusting plug assembly (SB-2010-026) 1 C132 17-14 1701124 Spool 1 C133 17-14 4740247 Spring guide 1 C134 17-14 4740051 Spring, PC outer 1 C135 17-14 4740052 Spring, PC inner 1 C138 17-14 11062379 Adjusting plug assembly (SB-2010-026) 1 C138A 17-14 5000656 O-ring 1 C151 17-14 9007315-0510 Screw 4 C152 17-14 11150082 Solenoid valve adapter (SB-2016-007) 1 C153 17-14 327007 (9005110-4400) Plug assembly 1 C154 17-14 4740154 Seal ring 2 C155 17-14 1701291 Coil, 12 volt 1 C200 17-14 4740154 Seal ring 4 C300 17-14 5000164 (9007315-0507) Screw 4 QC100 17-14 11112229 Control Kit, electric on/o 12 volt, NO (SB-2012-011) 1 QC120 17-14 11103621 Solenoid valve seal kit 1 QC125 17-14 11104457 Nut 1 QC150 17-14 11104461 Solenoid valve kit, 12 volt 1
AX00000313en-US 0100 • June 2017
17
Parts Manual Series 45 Frame K2 25-45cc O. C. Pumps
Control
(AR)
QC100
C300
QC150
QC125
C155
C104
C112
*QC120
C151
C152
C103
C132
*C154
C153
*C200
C102
C133
C135
C113
C115
C114
*C118
*C138A
C134
C138
E101 622E
* = included in base motor seal kit Q210
18
AX00000313en-US 0100 • June 2017
Parts Manual Series 45 Frame K2 25-45cc O. C. Pumps
Control
Electric on/o control
Order Date Date Qty. per code Item begin end Part number Part name model/kit
AR C102 17-14 4740064 Set screw 2 C103 17-14 327007 (9005110-4400) Plug assembly 1 C104 17-14 327007 (9005110-4400) Plug assembly 1 C112 17-14 4740300 Spool 1 C113 17-14 4740301 Spring guide 1 C114 17-14 4740061 Spring 1 C115 17-14 4740062 Spring 1 C118 17-14 11062214 Adjusting plug assembly (SB-2010-026) 1 C132 17-14 1701124 Spool 1 C133 17-14 4740247 Spring guide 1 C134 17-14 4740051 Spring, PC outer 1 C135 17-14 4740052 Spring, PC inner 1 C138 17-14 11062379 Adjusting plug assembly (SB-2010-026) 1 C138A 17-14 5000656 O-ring 1 C151 17-14 9007315-0510 Screw 4 C152 17-14 11150082 Solenoid valve adapter (SB-2016-007) 1 C153 17-14 327007 (9005110-4400) Plug assembly 1 C154 17-14 4740154 Seal ring 2 C155 17-14 1701291 Coil, 12 volt 1 C200 17-14 4740154 Seal ring 4 C300 17-14 5000164 (9007315-0507) Screw 4 QC100 17-14 11112220 Control Kit, electric on/o 12 volt, NC (SB-2012-011) 1 QC120 17-14 11103621 Solenoid valve seal kit 1 QC125 17-14 11104457 Nut 1 QC150 17-14 11104463 Solenoid valve kit, 12 volt 1
AX00000313en-US 0100 • June 2017
19
Parts Manual Series 45 Frame K2 25-45cc O. C. Pumps
Control
(CN & CR)
QC100
C300
QC150
QC125
C155
C104
C112
*QC120
C151
C152
C103
C132
*C154
C153
*C200
C102
C133
C135
C113
C115
C114
*C118
*C138A
C134
C138
20
E101 622E
* = included in base motor seal kit Q210
AX00000313en-US 0100 • June 2017
Parts Manual Series 45 Frame K2 25-45cc O. C. Pumps
Control
Electric on/o control
Order Date Date Qty. per code Item begin end Part number Part name model/kit
CN C102 17-14 4740064 Set screw 2 C103 17-14 327007 (9005110-4400) Plug assembly 1 C104 17-14 327007 (9005110-4400) Plug assembly 1 C112 17-14 4740300 Spool 1 C113 17-14 4740301 Spring guide 1 C114 17-14 4740061 Spring 1 C115 17-14 4740062 Spring 1 C118 17-14 11062214 Adjusting plug assembly (SB-2010-026) 1 C132 17-14 1701124 Spool 1 C133 17-14 4740247 Spring guide 1 C134 17-14 4740051 Spring, PC outer 1 C135 17-14 4740052 Spring, PC inner 1 C138 17-14 11062379 Adjusting plug assembly (SB-2010-026) 1 C138A 17-14 5000656 O-ring 1 C151 17-14 9007315-0510 Screw 4 C152 17-14 11150082 Solenoid valve adapter (SB-2016-007) 1 C153 17-14 327007 (9005110-4400) Plug assembly 1 C154 17-14 4740154 Seal ring 2 C155 17-14 1701563 Coil, 24 volt 1 C200 17-14 4740154 Seal ring 4 C300 17-14 5000164 (9007315-0507) Screw 4 QC100 17-14 11112226 Control Kit, electric on/o 24v, NO (SB-2012-011) 1 QC120 17-14 11103621 Solenoid valve seal kit 1 QC125 17-14 11104457 Nut 1 QC150 17-14 11104462 Solenoid valve kit, 24 volt 1
CR C102 17-14 4740064 Set screw 2 C103 17-14 327007 (9005110-4400) Plug assembly 1 C104 17-14 327007 (9005110-4400) Plug assembly 1 C112 17-14 4740300 Spool 1 C113 17-14 4740301 Spring guide 1 C114 17-14 4740061 Spring 1 C115 17-14 4740062 Spring 1 C118 17-14 11062214 Adjusting plug assembly (SB-2010-026) 1 C132 17-14 1701124 Spool 1 C133 17-14 4740247 Spring guide 1 C134 17-14 4740051 Spring, PC outer 1 C135 17-14 4740052 Spring, PC inner 1 C138 17-14 11062379 Adjusting plug assembly (SB-2010-026) 1 C138A 17-14 5000656 O-ring 1 C151 17-14 9007315-0510 Screw 4 C152 17-14 11150082 Solenoid valve adapter (SB-2016-007) 1 C153 17-14 327007 (9005110-4400) Plug assembly 1 C154 17-14 4740154 Seal ring 2 C155 17-14 1701563 Coil, 24 volt 1 C200 17-14 4740154 Seal ring 4 C300 17-14 5000164 (9007315-0507) Screw 4 QC100 17-14 11112217 Control Kit, electric on/o 24v, NC (SB-2012-011) 1 QC120 17-14 11103621 Solenoid valve seal kit 1 QC125 17-14 11104457 Nut 1 QC150 17-14 11104464 Solenoid valve kit, 24 volt 1
AX00000313en-US 0100 • June 2017
21
Parts Manual Series 45 Frame K2 25-45cc O. C. Pumps
Control
(FB)
QC100
C300
QC150
QC125
C155
C104
C112
*QC120
C151
C152
C103
C132
*C154
C153
*C200
C102
C133
C135
C113
C115
C114
*C118
*C138A
C134
C138
22
E101 622E
* = included in base motor seal kit Q210
AX00000313en-US 0100 • June 2017
Parts Manual Series 45 Frame K2 25-45cc O. C. Pumps
Control
Electric dump control
Order Date Date Qty. per code Item begin end Part number Part name model/kit
FB C102 17-14 4740064 Set screw 2 C103 17-14 327007 (9005110-4400) Plug assembly 1 C104 17-14 327007 (9005110-4400) Plug assembly 1 C112 17-14 1701124 Spool 1 C113 17-14 4740246 Spring guide 1 C114 17-14 4740061 Spring 1 C115 17-14 4740062 Spring 1 C118 17-14 11062214 Adjusting plug assembly 1 C132 17-14 1701124 Spool 1 C133 17-14 4740247 Spring guide 1 C134 17-14 4740051 Spring, PC outer 1 C135 17-14 4740052 Spring, PC inner 1 C138 17-14 11062379 Adjusting plug assembly 1 C138A 17-14 5000656 O-ring 1 C151 17-14 9007315-0510 Screw 4 C152 17-14 11150082 Solenoid valve adapter (SB-2016-007) 1 C153 17-14 327007 (9005110-4400) Plug assembly 1 C154 17-14 4740154 Seal ring 2 C155 17-14 1701291 Coil, 12 volt 1 C200 17-14 4740154 Seal ring 4 C300 17-14 5000164 (9007315-0507) Screw 4 QC100 17-14 11112223 Control Kit, electric dump 12v, NC (SB-2012-011) 1 QC120 17-14 11103621 Solenoid valve seal kit 1 QC125 17-14 11104457 Nut 1 QC150 17-14 11104463 Solenoid valve kit, 12 volt 1
AX00000313en-US 0100 • June 2017
23
Parts Manual Series 45 Frame K2 25-45cc O. C. Pumps
Control
(LB, LJ & LS)
QC100
*C138A
C134
C138
C135
C133
*C118
C114
C106
C115
C113
*C200
C300
C102
C105
C112
C104
C132
C103
E100 536E
* = included in base motor seal kit Q210
24
AX00000313en-US 0100 • June 2017
Parts Manual Series 45 Frame K2 25-45cc O. C. Pumps
Control
Common load sensing control parts
Order Date Date Qty. per Code Item Begin End Part Number Part Name Model/Kit
C102 17-14 4740064 Set screw 2 C103 17-14 327007 (9005110-4400) Plug assembly 1 C104 17-14 327007 (9005110-4400) Plug assembly 1 C113 17-14 4740246 Spring guide 1 C114 17-14 4740061 Spring 1 C115 17-14 4740062 Spring 1 C118 17-14 11062214 Adjusting plug assembly 1 C132 17-14 1701124 Spool 1 C133 17-14 4740247 Spring guide 1 C134 17-14 4740051 Spring, outer 1 C135 17-14 4740052 Spring, inner 1 C138 17-14 11062379 Adjusting plug assembly 1 C138A 17-14 5000656 O-ring 1 C200 17-14 4740154 Seal ring 4 C300 17-14 5000164 (9007315-0507) Screw, M5 x 30 4
Load sensing control
LB C105 17-14 327007 (9005110-4400) Plug assembly 1 C106 17-14 327007 (9005110-4400) Plug assembly 1 C112 17-14 4740309 Spool 1 QC100 17-14 11112205 Control Kit 1
LJ C105 17-14 5000572 Plug assembly, M12 1 C106 17-14 5000572 Plug assembly, M12 1 C112 17-14 1701124 Spool 1 QC100 17-14 4510444 Control kit, load sensing, metric 1
LS C105 17-14 327007 (9005110-4400) Plug assembly 1 C106 17-14 327007 (9005110-4400) Plug assembly 1 C112 17-14 1701124 Spool 1 QC100 17-14 11112208 Control kit, load sensing (SB-2012-011) 1
AX00000313en-US 0100 • June 2017
25
Parts Manual Series 45 Frame K2 25-45cc O. C. Pumps

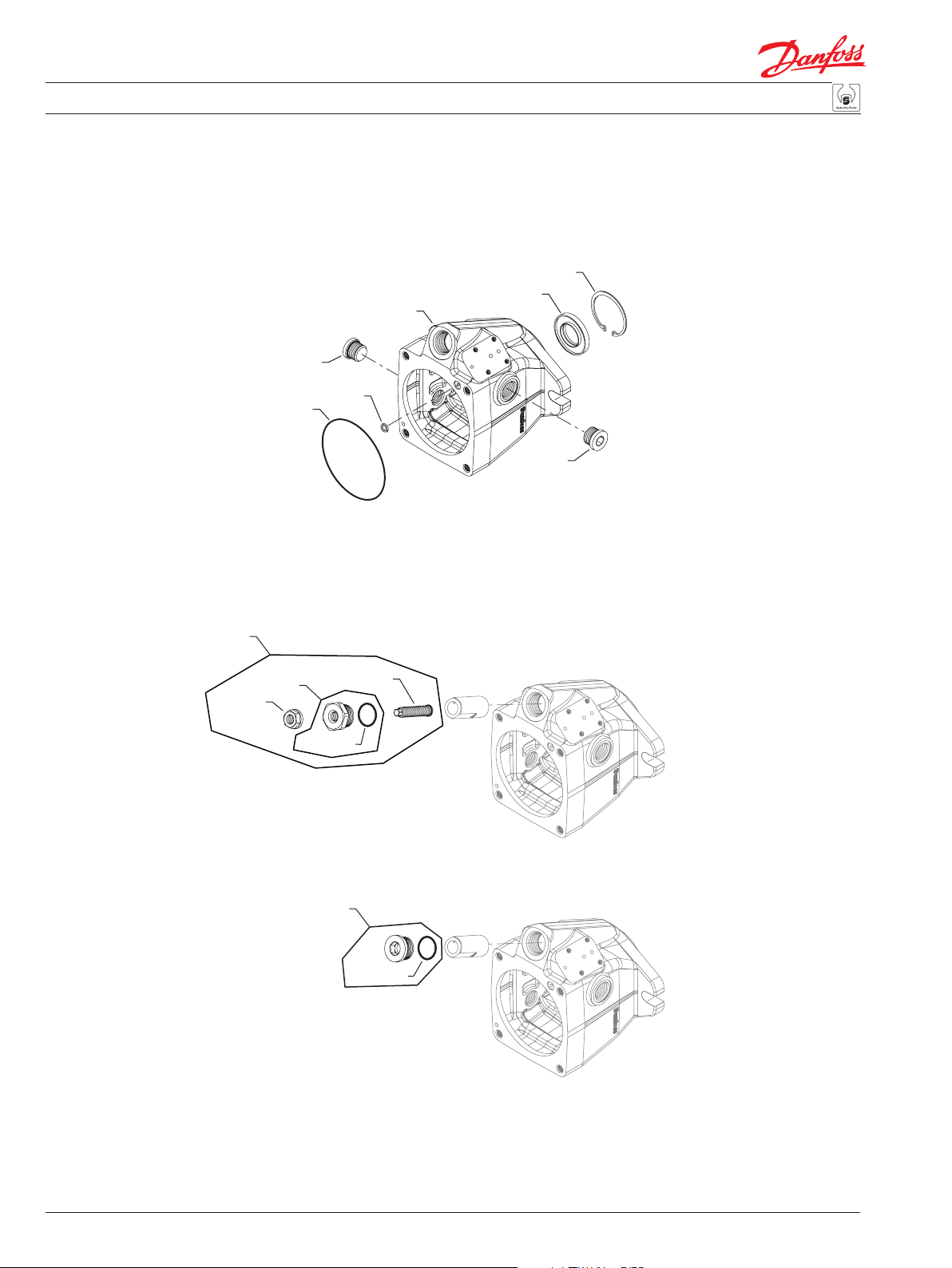

Control
(PC)
QC100
QC100
*C138A
C138
C138
*C118
C114
C134
C115
*C200
(RP)
C113
C300
C135
C133
C102
C132
C103
C300
26
*C138A
C134
C135
C133
AX00000313en-US 0100 • June 2017
C106
*C200
C102
C105
C112
C104
C132
C103
E103 594E
* = included in base motor seal kit Q210
Parts Manual Series 45 Frame K2 25-45cc O. C. Pumps
Control
Pressure compensating control
Order Date Date Qty. per code Item begin end Part number Part name model/kit
PC C102 17-14 4740064 Set screw 1 C103 17-14 327007 (9005110-4400) Plug assembly 1 C132 17-14 1701124 Spool 1 C133 17-14 4740247 Spring guide (SB-2002-034) 1 C134 17-14 4740051 Spring, outer 1 C135 17-14 4740052 Spring, inner 1 C138 17-14 11062379 Adjusting plug assembly 1 C138A 17-14 5000656 O-ring 1 C200 17-14 4740154 Seal ring 4 C300 17-14 5000164 (9007315-0507) Screw 4 QC100 17-14 4510422 Control kit, PC 1
RP C102 17-14 4740064 Set screw 2 C103 17-14 327007 (9005110-4400) Plug assembly 1 C104 17-14 327007 (9005110-4400) Plug assembly 1 C105 17-14 327007 (9005110-4400) Plug assembly 1 C106 17-14 327007 (9005110-4400) Plug assembly 1 C112 17-14 4740300 Spool 1 C113 17-14 4740301 Spring guide 1 C114 17-14 4740061 Spring 1 C115 17-14 4740062 Spring 1 C118 17-14 11062214 Adjusting plug 1 C132 17-14 1701124 Spool 1 C133 17-14 4740247 Spring guide 1 C134 17-14 4740051 Spring, PC outer 1 C135 17-14 4740052 Spring, PC inner 1 C138 17-14 11062379 Adjusting plug assembly 1 C138A 17-14 5000656 O-ring 1 C200 17-14 4740154 Seal ring 4 C300 17-14 5000164 (9007315-0507) Screw 4 QC100 17-14 11112213 Control Kit, remote PC 1
AX00000313en-US 0100 • June 2017
27
Parts Manual Series 45 Frame K2 25-45cc O. C. Pumps
Control
(SA & SB)
QC100
C120
QC125
*QC130
C128
*C128A
*C128B
C125
C122
C300
C107
C123
G020
*C200
*QC135
QC115
C124
*QC120
C129
H030
28
E103 508E
* = included in base motor seal kit Q210
AX00000313en-US 0100 • June 2017
Parts Manual Series 45 Frame K2 25-45cc O. C. Pumps
Control
Fan drive control
Order Date Date Qty. per code Item begin end Part number Part name model/kit
SA C107 17-14 327007 (9005110-4400) Plug assembly 1 C120 17-14 11013613 Solenoid valve, 12 volt 1 C122 17-14 11168804 Spool 1 C123 17-14 11168807 Spring guide 1 C124 17-14 11167423 Spring 1 C125 17-14 11167424 Spring 1 C128 17-14 11145569 Pressure adjuster assembly 1 C128A 17-14 085043 (9004201-3700) O-ring 1 C128B 17-14 732479 O-ring 1 C129 17-14 11040532 Plug assembly 1 C200 17-14 4740154 Seal ring 4 C300 17-14 5000164 (9007315-0507) Screw 4 G020 17-14 739144 Orice plug, 0.8mm 1 G020 17-14 519659 Orice plug, 1.0mm 1 H030 17-14 639146 Orice plug, 1.2mm 1 QC100 17-14 11168932 Control Kit, FDC, 12 volt, left, LP, NC 1 QC115 17-14 11031751 Coil kit, 12 volt 1 QC120 17-14 085043 (9004201-3700) O-ring 1 QC125 17-14 11027046 Nut 1 QC130 17-14 063172 O-ring 1 QC135 17-14 11031608 O-ring 1
SB C107 17-14 327007 (9005110-4400) Plug assembly 1 C120 17-14 11013614 Solenoid valve, 24 volt 1 C122 17-14 11168804 Spool 1 C123 17-14 11168807 Spring guide 1 C124 17-14 11167423 Spring 1 C125 17-14 11167424 Spring 1 C128 17-14 11145569 Pressure adjuster assembly 1 C128A 17-14 085043 (9004201-3700) O-ring 1 C128B 17-14 732479 O-ring 1 C129 17-14 11040532 Plug assembly 1 C200 17-14 4740154 Seal ring 4 C300 17-14 5000164 (9007315-0507) Screw 4 G020 17-14 739144 Orice plug, 0.8mm 1 G020 17-14 519659 Orice plug, 1.0mm 1 H030 17-14 639146 Orice plug, 1.2mm 1 QC100 17-14 11168933 Control Kit, FDC, 24 volt, left, LP, NC 1 QC115 17-14 11031762 Coil kit, 24 volt 1 QC120 17-14 085043 (9004201-3700) O-ring 1 QC125 17-14 11027046 Nut 1 QC130 17-14 063172 O-ring 1 QC135 17-14 11031608 O-ring 1
AX00000313en-US 0100 • June 2017
29
Parts Manual Series 45 Frame K2 25-45cc O. C. Pumps
Control
(SC & SD)
QC100
C120
QC125
*QC130
C128
*C128A
*C128B
C125
C122
C300
C107
C123
G020
*C200
*QC135
QC115
C124
*QC120
C129
H030
30
E103 508E
* = included in base motor seal kit Q210
AX00000313en-US 0100 • June 2017
Parts Manual Series 45 Frame K2 25-45cc O. C. Pumps
Control
Fan drive control
Order Date Date Qty. per code Item begin end Part number Part name model/kit
SC C107 17-14 327007 (9005110-4400) Plug assembly 1 C120 17-14 11013613 Solenoid valve, 12 volt 1 C122 17-14 11168804 Spool 1 C123 17-14 11168807 Spring guide 1 C124 17-14 11167423 Spring 1 C125 17-14 11167425 Spring 1 C128 17-14 11145569 Pressure adjuster assembly 1 C128A 17-14 085043 (9004201-3700) O-ring 1 C128B 17-14 732479 O-ring 1 C129 17-14 11040532 Plug assembly 1 C200 17-14 4740154 Seal ring 4 C300 17-14 5000164 (9007315-0507) Screw 4 G020 17-14 739144 Orice plug, 0.8mm 1 G020 17-14 519659 Orice plug, 1.0mm 1 H030 17-14 639146 Orice plug, 1.2mm 1 QC100 17-14 11168934 Control Kit, FDC, 12 volt, left, HP, NC 1 QC115 17-14 11031751 Coil kit, 12 volt 1 QC120 17-14 085043 (9004201-3700) O-ring 1 QC125 17-14 11027046 Nut 1 QC130 17-14 063172 O-ring 1 QC135 17-14 11031608 O-ring 1
SD C107 17-14 327007 (9005110-4400) Plug assembly 1 C120 17-14 11013614 Solenoid valve, 24 volt 1 C122 17-14 11168804 Spool 1 C123 17-14 11168807 Spring guide 1 C124 17-14 11167423 Spring 1 C125 17-14 11167424 Spring 1 C128 17-14 11145569 Pressure adjuster assembly 1 C128A 17-14 085043 (9004201-3700) O-ring 1 C128B 17-14 732479 O-ring 1 C129 17-14 11040532 Plug assembly 1 C200 17-14 4740154 Seal ring 4 C300 17-14 5000164 (9007315-0507) Screw 4 G020 17-14 739144 Orice plug, 0.8mm 1 G020 17-14 519659 Orice plug, 1.0mm 1 H030 17-14 639146 Orice plug, 1.2mm 1 QC100 17-14 11168935 Control Kit, FDC, 24 volt, left, HP, NC 1 QC115 17-14 11031762 Coil kit, 24 volt 1 QC120 17-14 085043 (9004201-3700) O-ring 1 QC125 17-14 11027046 Nut 1 QC130 17-14 063172 O-ring 1 QC135 17-14 11031608 O-ring 1
AX00000313en-US 0100 • June 2017
31
Parts Manual Series 45 Frame K2 25-45cc O. C. Pumps
Orice
(E, F & G)
G020
G030
G020
G030
(R & S)
(E, F & G)
G020
H030
E103 595E
32
AX00000313en-US 0100 • June 2017
Parts Manual Series 45 Frame K2 25-45cc O. C. Pumps
Orice
Choke orice
Order Date Date Qty. per code Item begin end Part number Part name model/kit
E G020 17-14 739144 Orice plug, 0.8mm 1 G030 17-14 518215 Orice plug, 2.2mm 1
F G020 17-14 519659 Orice plug, 1.0mm 1 G030 17-14 518215 Orice plug, 2.2mm 1
G G020 17-14 511825 Orice plug, 0.6mm 1 G030 17-14 518215 Orice plug, 2.2mm 1
N 17-14 none
R G020 17-14 739144 Orice plug, 0.8mm 1
S G020 17-14 519659 Orice plug, 1.0mm 1
Gain orice
3 none
E H030 17-14 639146 Orice plug, 1.2mm 1
F H030 17-14 639120 Orice plug, 1.0mm 1
G H030 17-14 598292 Orice plug, 1.2mm 1
AX00000313en-US 0100 • June 2017
33
Parts Manual Series 45 Frame K2 25-45cc O. C. Pumps

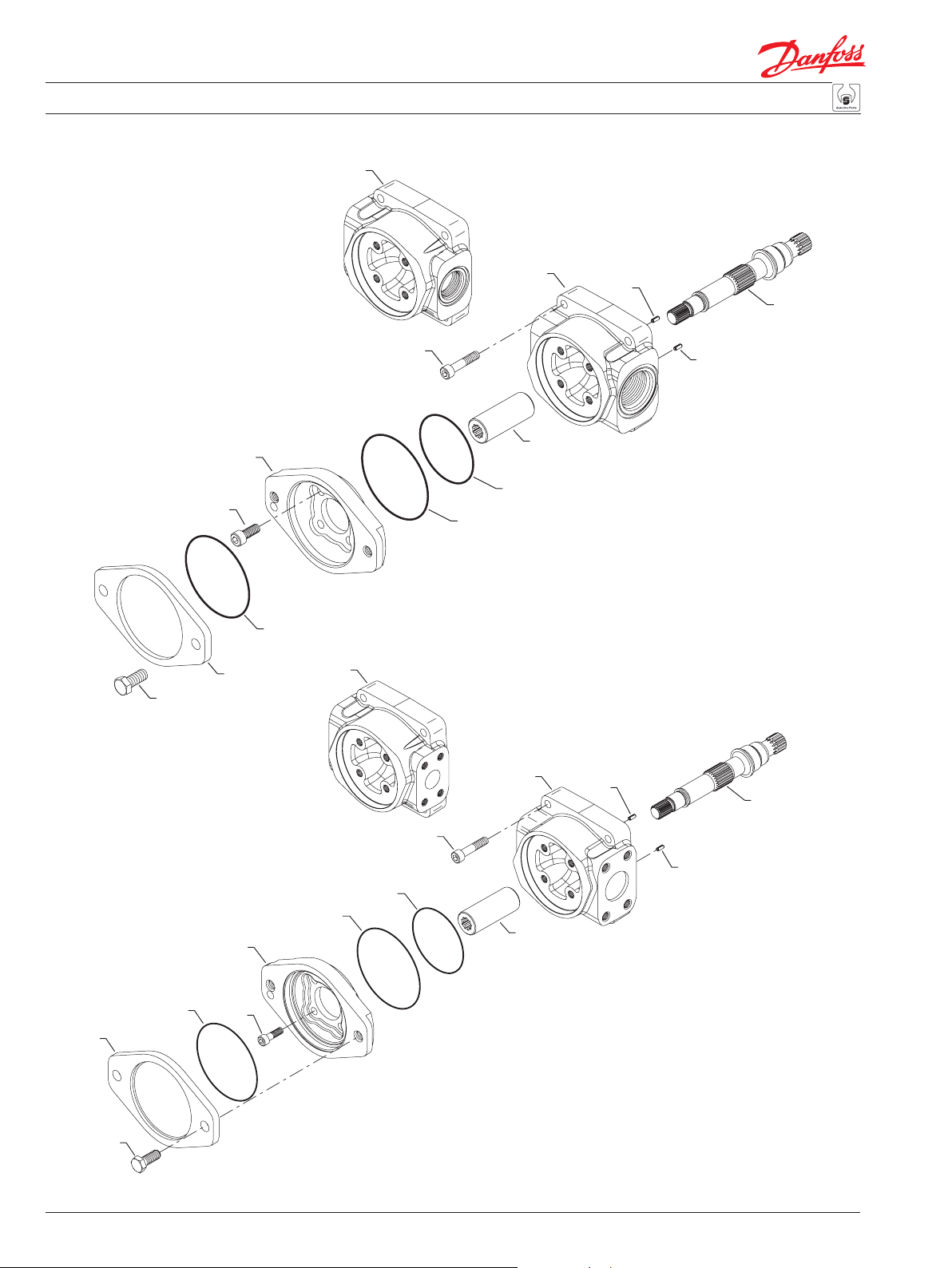

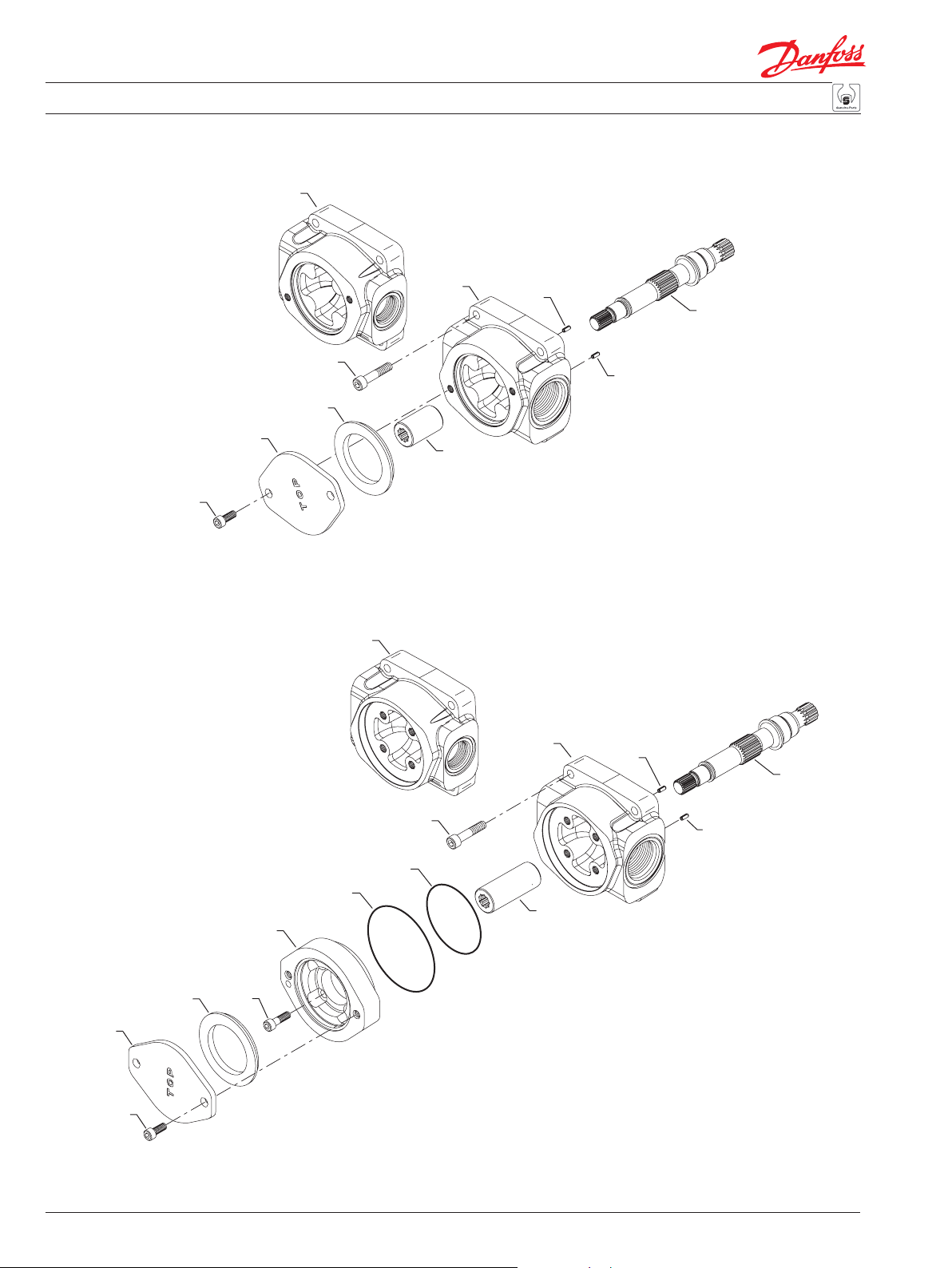

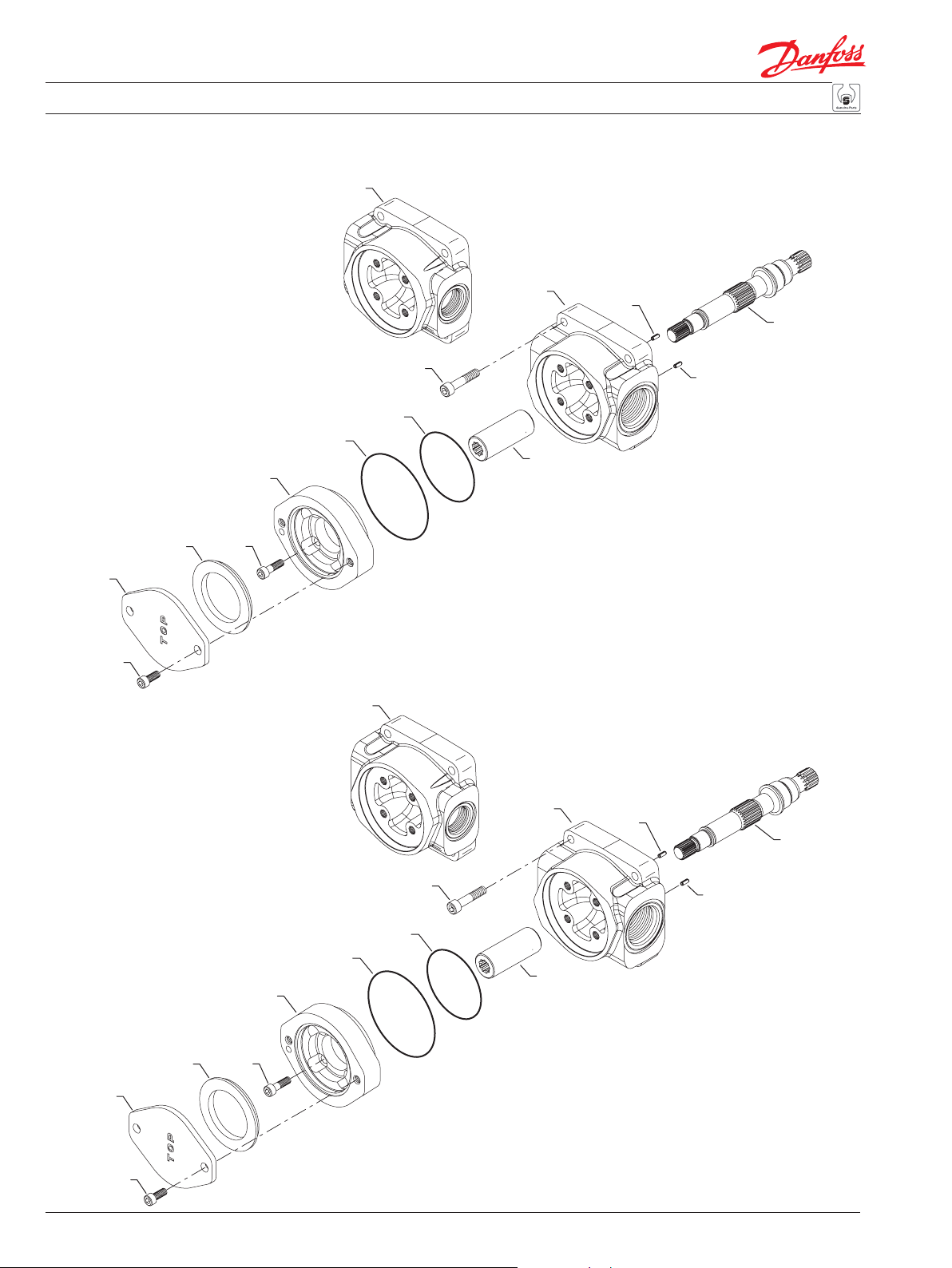

J110

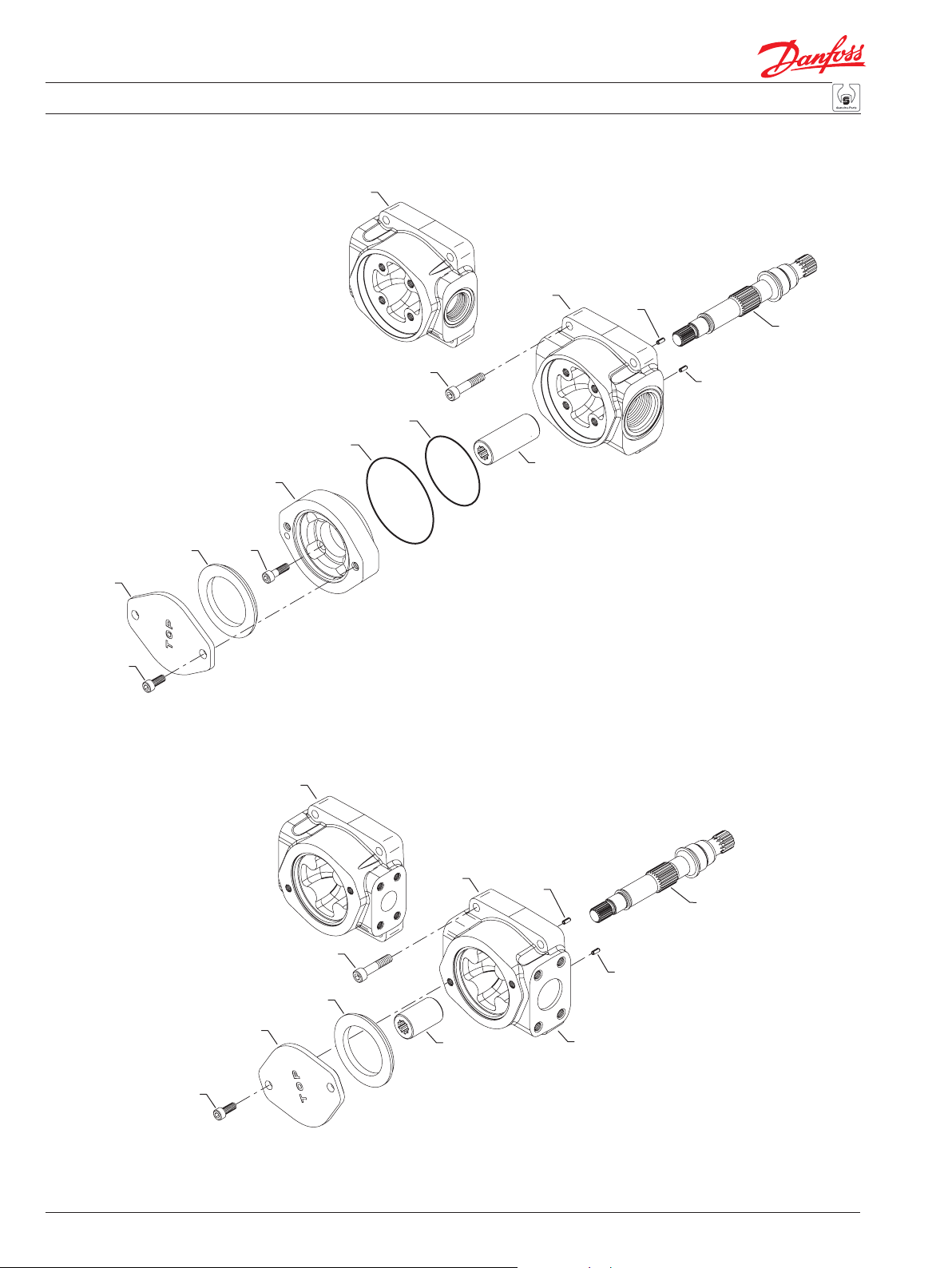

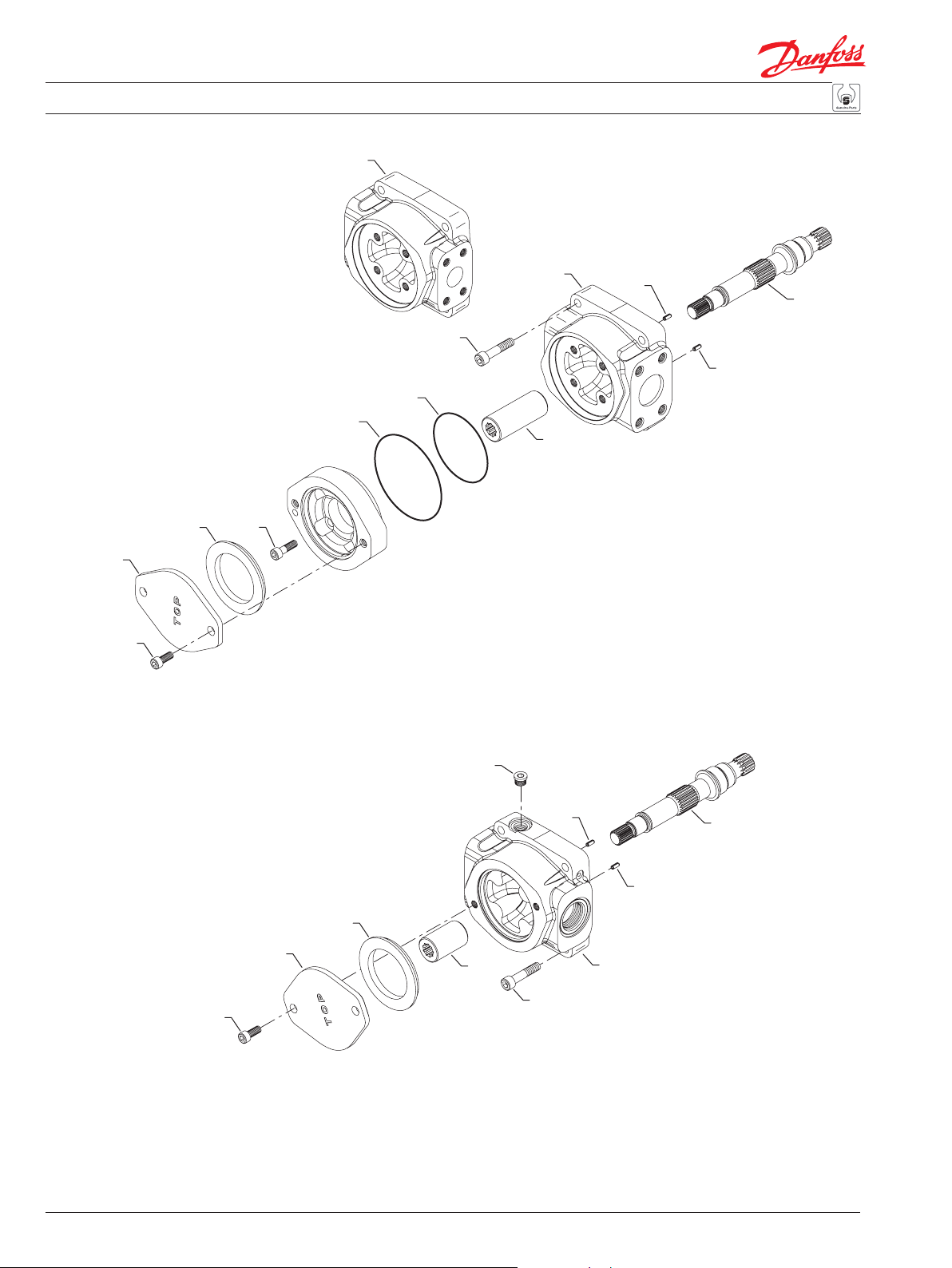

J020

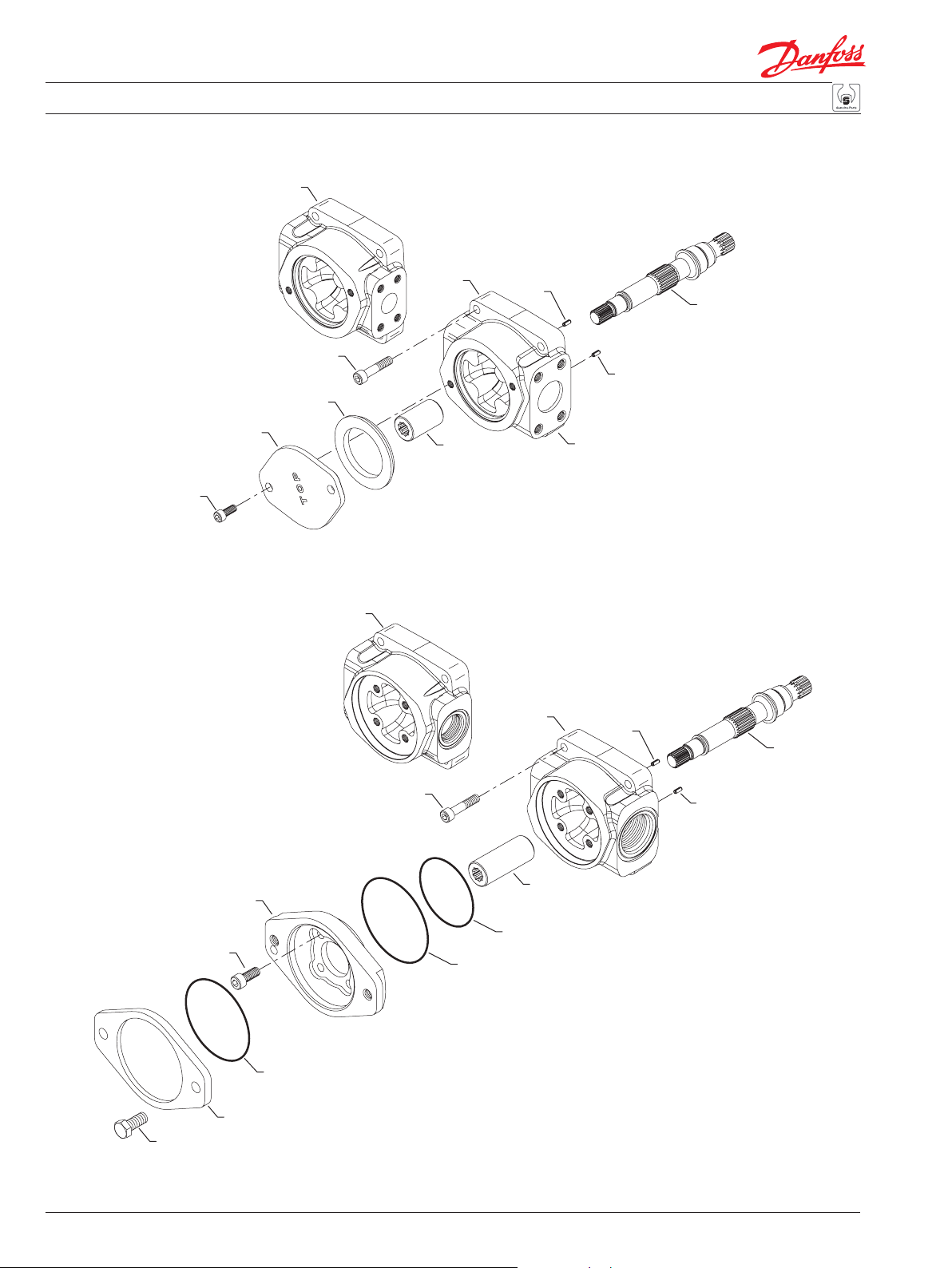

J130
J020

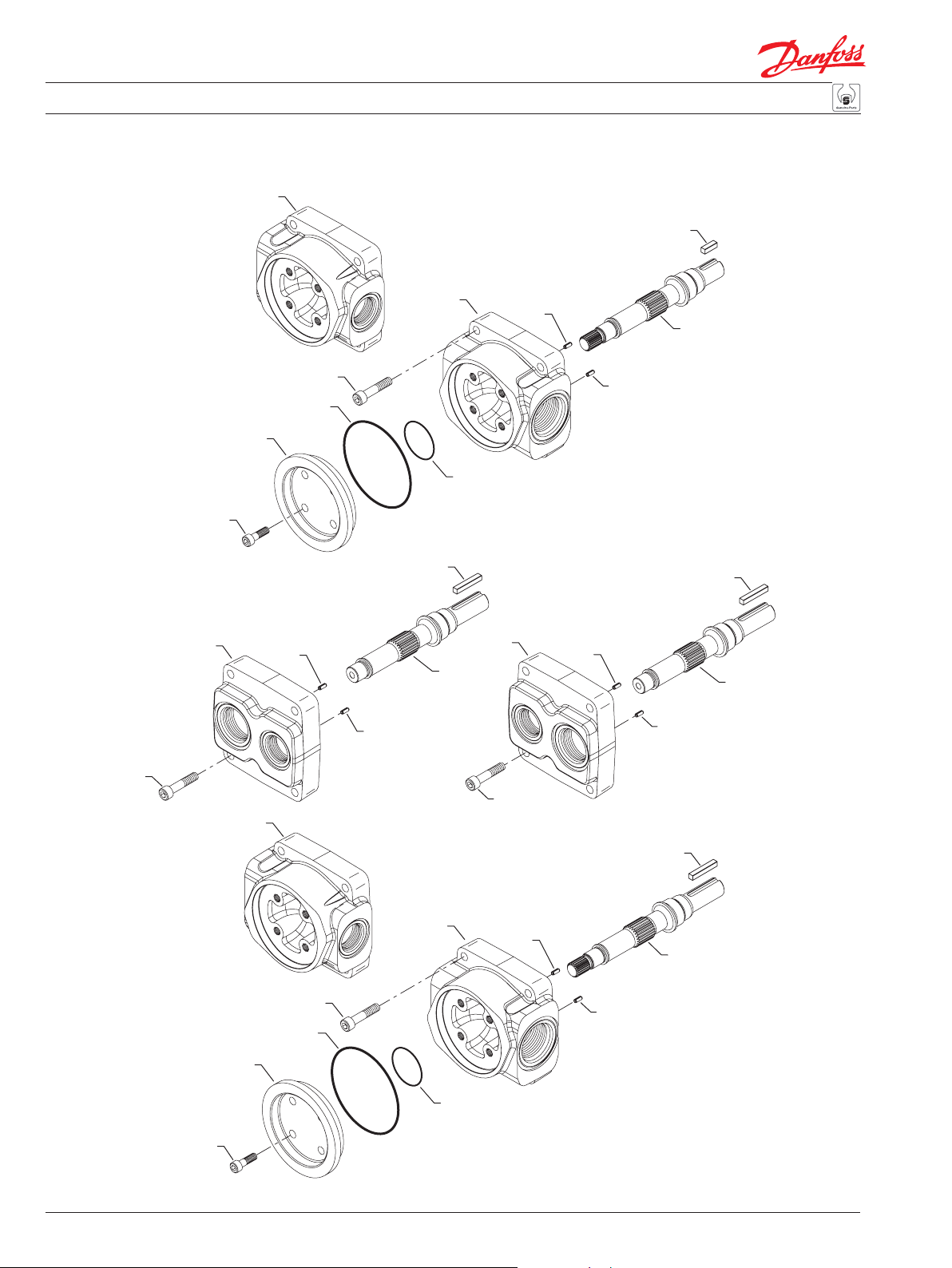

Shaft, auxiliary ange and end cap
Shaft/auxiliary ange/end cap
(C2AB & C2AG)
J130
J120
J100
J080
CW
*J090
*J095
J030
(C2AK)
J020
J051
J010
J050
J140
CCW
E103 602E
34
CW
J030
J120
J110
AX00000313en-US 0100 • June 2017
J020
J140
J051
J010
J050
J020
CCW
E103 596E
* = included in base motor seal kit Q210
Parts Manual Series 45 Frame K2 25-45cc O. C. Pumps
Shaft, auxiliary ange and end cap
Shaft/auxiliary ange/end cap
Shaft/auxiliary ange/end cap
Order Date Date Qty. per code Item begin end Part number Part name model/kit
C2AB J010 17-14 1700178 Shaft, 13 tooth spline, w/21 tooth auxiliary drive 1 J020 17-14 11178104 End cap, CW, radial ports, K2 1 J020 17-14 11175319 End cap, CCW, radial ports, K2 1 J030 17-14 672295 (9007314-1010) Screw, M10 x 45 4 J050 17-14 9004700-1907 Slotted pin 1 J051 17-14 9004700-1907 Slotted pin 1 J080 17-14 4570430 Adapter, A ange 1 J090 17-14 9004100-1550 O-ring 1 J095 17-14 545434 O-ring 1 J100 1700 5000489 Screw, M10 x 25 4 J110 17-14 4460586 Cover plate 1 J120 17-14 4800482 A pad seal 1 J130 17-14 5000622 Screw, M10 x 20 2 J140 17-14 1701364 Coupling, 9 tooth 1
C2AG J010 17-14 1700178 Shaft, 13 tooth spline, w/21 tooth auxiliary drive 1 J020 17-14 11164307 End cap, CW, radial ports, K2 1 J020 17-14 11164305 End cap, CCW, radial ports, K2 1 J030 17-14 672295 (9007314-1010) Screw, M10 x 45 4 J050 17-14 9004700-1907 Slotted pin 1 J051 17-14 9004700-1907 Slotted pin 1 J080 17-14 4570430 Adapter, A ange, metric 1 J090 17-14 9004100-1550 O-ring 1 J095 17-14 545434 O-ring 1 J100 1700 5000489 Screw, M10 x 25 4 J110 17-14 4460586 Cover plate 1 J120 17-14 4800482 A pad seal 1 J130 17-14 5000622 Screw, M10 x 20 2 J140 17-14 1701364 Coupling, 9 tooth 1
C2AK J010 17-14 11183984 Shaft, 13 tooth spline, w/9 tooth auxiliary drive 1 J020 17-14 11175342 End cap, CW, radial ports, K2 1 J020 17-14 11175320 End cap, CCW, radial ports, K2 1 J030 17-14 672295 (9007314-1010) Screw, M10 x 45 4 J050 17-14 9004700-1907 Slotted pin 1 J051 17-14 9004700-1907 Slotted pin 1 J110 17-14 4460586 Cover plate 1 J120 17-14 4800482 A pad seal 1 J130 17-14 5000622 Screw, M10 x 20 2 J140 17-14 11158651 Coupling, 9 tooth 1
AX00000313en-US 0100 • June 2017
35
Parts Manual Series 45 Frame K2 25-45cc O. C. Pumps
J020
J130
J110
J020
Shaft, auxiliary ange and end cap
Shaft/auxiliary ange/end cap
(C2BB & C2BG)
J100
J080
J110
J120
CW
J030
J020
J051
J010
J050
J140
CCW
*J095
*J090
E103 624E
(C2DR)
36
J130
J120
CW
*J095
*J090
J080
J100
AX00000313en-US 0100 • June 2017
J030
J020
J051
J010
J050
J140
CCW
E103 603E
* = included in base motor seal kit Q210
Parts Manual Series 45 Frame K2 25-45cc O. C. Pumps
Shaft, auxiliary ange and end cap
Shaft/auxiliary ange/end cap
Shaft/auxiliary ange/end cap
Order Date Date Qty. per code Item begin end Part number Part name model/kit
C2BB J010 17-14 1700178 Shaft, 13 tooth spline, w/21 tooth auxiliary drive 1 J020 17-14 11178104 End cap, CW, radial ports, K2 1 J020 17-14 11175319 End cap, CCW, radial ports, K2 1 J030 17-14 672295 (9007314-1010) Screw, M10 x 45 4 J050 17-14 9004700-1907 Slotted pin 1 J051 17-14 9004700-1907 Slotted pin 1 J080 17-14 4570390 Adapter,B ange, metric 1 J090 17-14 9004100-1550 O-ring 1 J095 17-14 545434 O-ring 1 J100 1700 5000489 Screw, M10 x 25 4 J110 17-14 4460370 Cover plate, B ange 1 J120 17-14 9004104-0440 O-ring 1 J130 17-14 370320 Screw, M12 x 25 2 J140 17-14 1701365 Coupling, 13 tooth 1
C2BG J010 17-14 1700178 Shaft, 13 tooth spline, w/21 tooth auxiliary drive 1 J020 17-14 11164307 End cap, CW, radial ports, K2 1 J020 17-14 11164305 End cap, CCW, radial ports, K2 1 J030 17-14 672295 (9007314-1010) Screw, M10 x 45 4 J050 17-14 9004700-1907 Slotted pin 1 J051 17-14 9004700-1907 Slotted pin 1 J080 17-14 4570390 Adapter,B ange, metric 1 J090 17-14 9004100-1550 O-ring 1 J095 17-14 545434 O-ring 1 J100 1700 5000489 Screw, M10 x 25 4 J110 17-14 4460370 Cover plate, B ange 1 J120 17-14 9004104-0440 O-ring 1 J130 17-14 370320 Screw, M12 x 25 2 J140 17-14 1701365 Coupling, 13 tooth 1
C2DR J010 17-14 1700178 Shaft, 13 tooth spline, w/21 tooth auxiliary drive 1 J020 17-14 11171411 End cap, CW, radial ports, K2 1 J020 17-14 11173919 End cap, CCW, radial ports, K2 1 J030 17-14 672295 (9007314-1010) Screw, M10 x 45 4 J050 17-14 9004700-1907 Slotted pin 1 J051 17-14 9004700-1907 Slotted pin 1 J080 17-14 4570390 Adapter,B ange, metric 1 J090 17-14 9004100-1550 O-ring 1 J095 17-14 545434 O-ring 1 J100 1700 5000489 Screw, M10 x 25 4 J110 17-14 4460370 Cover plate, B ange 1 J120 17-14 9004104-0440 O-ring 1 J130 17-14 370320 Screw, M12 x 25 2 J140 17-14 1701365 Coupling, 13 tooth 1
AX00000313en-US 0100 • June 2017
37
Parts Manual Series 45 Frame K2 25-45cc O. C. Pumps
CW
J130

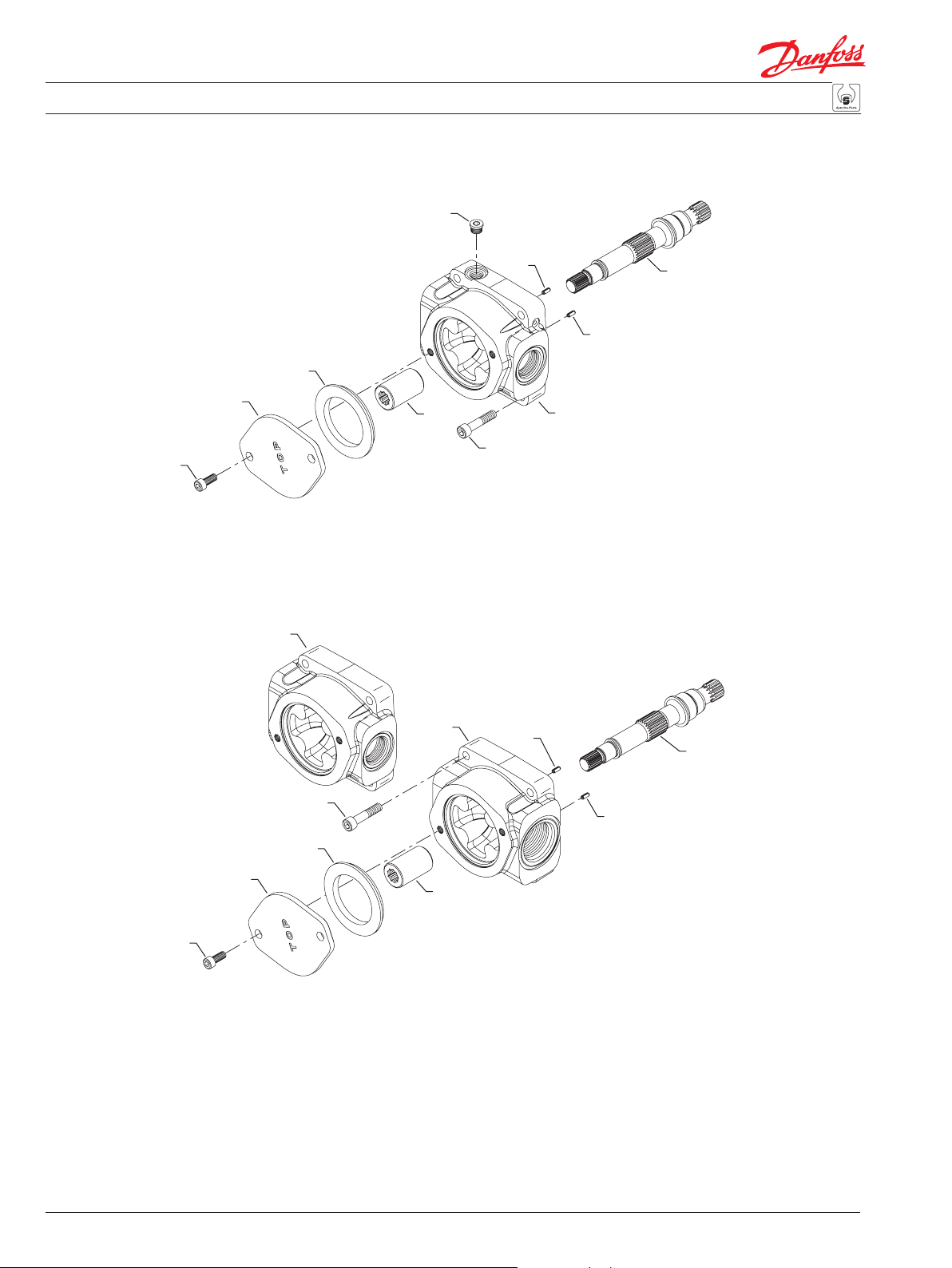

J020
J110
Shaft, auxiliary ange and end cap
(C2EK)
J130
J120
J100
CW
*J090
*J095
J030
J020
J140
J140
J051
J010
J050
CCW
E103 601E
38
J120
J110
AX00000313en-US 0100 • June 2017
(C2EU)
J043
J140
J051
J030
E103 604E
J010
J050
J020
* = included in base motor seal kit Q210
Parts Manual Series 45 Frame K2 25-45cc O. C. Pumps
Shaft, auxiliary ange and end cap
Shaft/auxiliary ange/end cap
Order Date Date Qty. per code Item begin end Part number Part name model/kit
C2EK J010 17-14 1700178 Shaft, 13 tooth spline, w/21 tooth auxiliary drive 1 J020 17-14 11171411 End cap, CW, radial ports, K2 1 J020 17-14 11173919 End cap, CCW, radial ports, K2 1 J030 17-14 672295 (9007314-1010) Screw, M10 x 45 4 J050 17-14 9004700-1907 Slotted pin 1 J051 17-14 9004700-1907 Slotted pin 1 J080 17-14 4570430 Adapter,A ange, metric 1 J090 17-14 9004100-1550 O-ring 1 J095 17-14 545434 O-ring 1 J100 1700 5000489 Screw, M10 x 25 4 J110 17-14 4460586 Cover plate, A ange 1 J120 17-14 4800482 A pad seal 1 J130 17-14 5000622 Screw, M10 x 20 2 J140 17-14 1701364 Coupling, 9 tooth 1
C2EU J010 17-14 11183984 Shaft, 13 tooth spline, w/9 tooth auxiliary drive 1 J020 17-14 11191000 End cap assembly, CW, radial ports, K2 1 J030 17-14 672295 (9007314-1010) Screw, M10 x 45 4 J043 17-14 5000438 Plug assembly J050 17-14 9004700-1907 Slotted pin 1 J051 17-14 9004700-1907 Slotted pin 1 J110 17-14 4460586 Cover plate 1 J120 17-14 4800482 A pad seal 1 J130 17-14 5000622 Screw, M10 x 20 2 J140 17-14 11158651 Coupling, 9 tooth 1
AX00000313en-US 0100 • June 2017
39
Parts Manual Series 45 Frame K2 25-45cc O. C. Pumps
J130
J020
J110
J020
Shaft, auxiliary ange and end cap
(C2FB & C2FG)
CW
J110
J030
J120
CW
J020
J140
J051
CCW
(C2GG & C2GT)
J020
J010
J050
E103 626E
J051
J010
40
J130
J120
*J090
J080
J100
AX00000313en-US 0100 • June 2017
*J095
J030
J050
J140
CCW
E103 602E
* = included in base motor seal kit Q210
Parts Manual Series 45 Frame K2 25-45cc O. C. Pumps
Shaft, auxiliary ange and end cap
Shaft/auxiliary ange/end cap
Order Date Date Qty. per code Item begin end Part number Part name model/kit
C2FB J010 17-14 11183984 Shaft, 13 tooth spline, w/9 tooth auxiliary drive 1 J020 17-14 11175321 End cap, CW, radial ports, K2 1 J020 17-14 11170900 End cap, CCW, radial ports, K2 1 J030 17-14 672295 (9007314-1010) Screw, M10 x 45 4 J050 17-14 9004700-1907 Slotted pin 1 J051 17-14 9004700-1907 Slotted pin 1 J110 17-14 4460586 Cover plate 1 J120 17-14 4800482 A pad seal 1 J130 17-14 5000622 Screw, M10 x 20 2 J140 17-14 11158651 Coupling, 9 tooth 1
C2FG J010 17-14 11183984 Shaft, 13 tooth spline, w/9 tooth auxiliary drive 1 J020 17-14 11171121 End cap, CW, radial ports, K2 1 J020 17-14 11175318 End cap, CCW, radial ports, K2 1 J030 17-14 672295 (9007314-1010) Screw, M10 x 45 4 J050 17-14 9004700-1907 Slotted pin 1 J051 17-14 9004700-1907 Slotted pin 1 J110 17-14 4460586 Cover plate 1 J120 17-14 4800482 A pad seal 1 J130 17-14 5000622 Screw, M10 x 20 2 J140 17-14 11158651 Coupling, 9 tooth 1
C2GG J010 17-14 1700178 Shaft, 13 tooth spline, w/21 tooth auxiliary drive 1 J020 17-14 11164307 End cap, CW, radial ports, K2 1 J020 17-14 11164305 End cap, CCW, radial ports, K2 1 J030 17-14 672295 (9007314-1010) Screw, M10 x 45 4 J050 17-14 9004700-1907 Slotted pin 1 J051 17-14 9004700-1907 Slotted pin 1 J080 17-14 4570430 Adapter, A ange 1 J090 17-14 9004100-1550 O-ring 1 J095 17-14 545434 O-ring 1 J100 1700 5000489 Screw, M10 x 25 4 J110 17-14 4460586 Cover plate 1 J120 17-14 4800482 A pad seal 1 J130 17-14 5000622 Screw, M10 x 20 2 J140 17-14 11017433 Coupling, 11 tooth 1
C2GT J010 17-14 1700178 Shaft, 13 tooth spline, w/21 tooth auxiliary drive 1 J020 17-14 11178104 End cap, CW, radial ports, K2 1 J020 17-14 11175319 End cap, CCW, radial ports, K2 1 J030 17-14 672295 (9007314-1010) Screw, M10 x 45 4 J050 17-14 9004700-1907 Slotted pin 1 J051 17-14 9004700-1907 Slotted pin 1 J080 17-14 4570430 Adapter, A ange, metric 1 J090 17-14 9004100-1550 O-ring 1 J095 17-14 545434 O-ring 1 J100 1700 5000489 Screw, M10 x 25 4 J110 17-14 4460586 Cover plate 1 J120 17-14 4800482 A pad seal 1 J130 17-14 5000622 Screw, M10 x 20 2 J140 17-14 11017433 Coupling, 11 tooth 1
AX00000313en-US 0100 • June 2017
41
Parts Manual Series 45 Frame K2 25-45cc O. C. Pumps

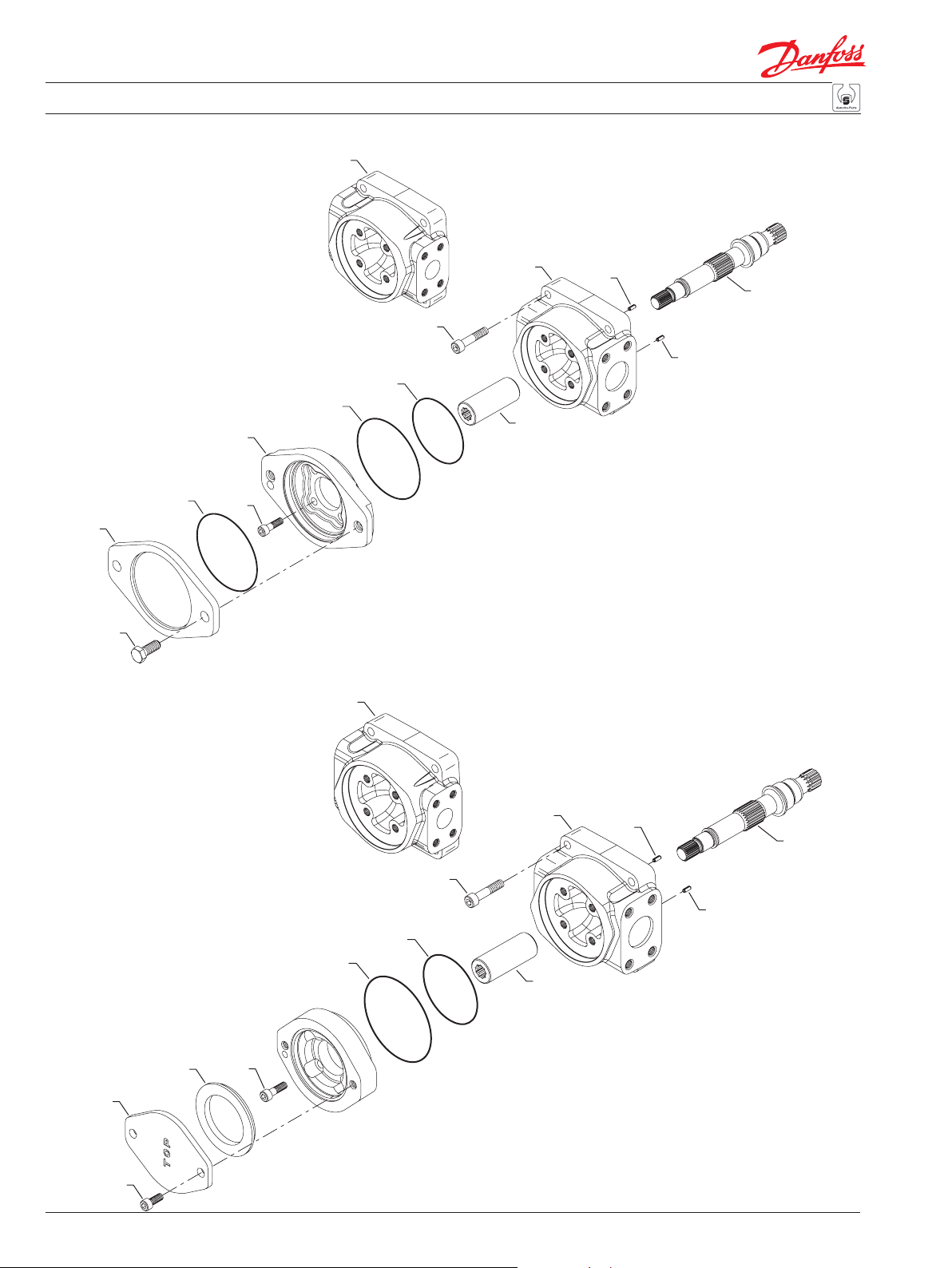

J030
J030
J030
CCW
J030
Shaft/auxiliary ange/end cap
(C2MA, C2MP & C2NP)
J020
J020
J051
J051
CW
CW
J050
J050
J010
J010
J020
J030
J051
(C2MF & C2NA)
J020
J030
J051
J010
J050
CCW
E103 599E
J010
J050
CCW
E103 597E
J020
J020
J051
J051
CW
CW
J050
J050
J030
J030
J010
J010
J020
(C2MR)
J020
(C2MG)
J051
J010
J050
E103 598E
CCW
J051
J010
J050
E103 600E
42
AX00000313en-US 0100 • June 2017
Parts Manual Series 45 Frame K2 25-45cc O. C. Pumps
Shaft/auxiliary ange/end cap
Shaft/auxiliary ange/end cap
Order Date Date Qty. per code Item begin end Part number Part name model/kit
C2MA J010 17-14 1700058 Shaft, 13 tooth spline, no auxiliary drive 1 J020 17-14 11189987 End cap, CCW, axial ports, K2 1 J030 17-14 672295 (9007314-1010) Screw, M10 x 45 4 J050 17-14 9004700-1907 Slotted pin 1 J051 17-14 9004700-1907 Slotted pin 1
C2MF J010 17-14 1700058 Shaft, 13 tooth spline, no auxiliary drive 1 J020 17-14 11173936 End cap, CW, axial ports, K2 1 J020 17-14 11164306 End cap, CCW, axial ports, K2 1 J030 17-14 672295 (9007314-1010) Screw, M10 x 45 4 J050 17-14 9004700-1907 Slotted pin 1 J051 17-14 9004700-1907 Slotted pin 1
C2MG J010 17-14 1700058 Shaft, 13 tooth spline, no auxiliary drive 1 J020 17-14 11173933 End cap, CW, radial ports, K2 1 J020 17-14 11164311 End cap, CCW, radial ports, K2 1 J030 17-14 672295 (9007314-1010) Screw, M10 x 45 4 J050 17-14 9004700-1907 Slotted pin 1 J051 17-14 9004700-1907 Slotted pin 1
C2MP J010 17-14 1700058 Shaft, 13 tooth spline, no auxiliary drive 1 J020 17-14 11176730 End cap, CW, axial ports, K2 1 J020 17-14 11173934 End cap, CCW, axial ports, K2 1 J030 17-14 672295 (9007314-1010) Screw, M10 4 J050 17-14 9004700-1907 Slotted pin 1 J051 17-14 9004700-1907 Slotted pin 1
C2MR J010 17-14 1700058 Shaft, 13 tooth spline, no auxiliary drive 1 J020 17-14 11176729 End cap, CW, radial ports, K2 1 J020 17-14 11173932 End cap, CCW, radial ports, K2 1 J030 17-14 672295 (9007314-1010) Screw, M10 4 J050 17-14 9004700-1907 Slotted pin 1 J051 17-14 9004700-1907 Slotted pin 1
C2NA J010 17-14 1700058 Shaft, 13 tooth spline, no auxiliary drive 1 J020 17-14 11178112 End cap, CW, axial ports, K2 1 J020 17-14 11178114 End cap, CCW, axial ports, K2 1 J030 17-14 672295 (9007314-1010) Screw, M10 x 45 4 J050 17-14 9004700-1907 Slotted pin 1 J051 17-14 9004700-1907 Slotted pin 1
C2NP J010 17-14 1700058 Shaft, 13 tooth spline, no auxiliary drive 1 J020 17-14 11175286 End cap, CW, axial ports, K2 1 J020 17-14 11178113 End cap, CCW, axial ports, K2 1 J030 17-14 672295 (9007314-1010) Screw, M10 4 J050 17-14 9004700-1907 Slotted pin 1 J051 17-14 9004700-1907 Slotted pin 1
AX00000313en-US 0100 • June 2017
43
Parts Manual Series 45 Frame K2 25-45cc O. C. Pumps
J020
CW
J030
J020
J130
Shaft, auxiliary ange and end cap
(C2NS)
J020
CW
J080
J051
J030
*J090
CW
J050
J030
J020
J010
(C2RG)
J020
J051
J051
J010
J050
E103 598E
CCW
J010
J050
J130
J080
*J090
J030
J020
*J095
(C2RR)
*J095
CCW
CCW
E103 627E
J051
J010
J050
E103 628E
44
* = included in base motor seal kit Q210
AX00000313en-US 0100 • June 2017
Parts Manual Series 45 Frame K2 25-45cc O. C. Pumps
Shaft, auxiliary ange and end cap
Shaft/auxiliary ange/end cap
Order Date Date Qty. per code Item begin end Part number Part name model/kit
C2NS J010 17-14 1700058 Shaft, 13 tooth spline, no auxiliary drive 1 J020 17-14 11178091 End cap, CW, radial ports, K2 1 J020 17-14 11178110 End cap, CCW, radial ports, K2 1 J030 17-14 672295 (9007314-1010) Screw, M10 x 45 4 J050 17-14 9004700-1907 Slotted pin 1 J051 17-14 9004700-1907 Slotted pin 1
C2RG J010 17-14 1700178 Shaft, 13 tooth spline, w/21 tooth auxiliary drive 1 J020 17-14 11164307 End cap, CW, radial ports, K2 1 J020 17-14 11164305 End cap, CCW, radial ports, K2 1 J030 17-14 672295 (9007314-1010) Screw, M10 x 45 4 J050 17-14 9004700-1907 Slotted pin 1 J051 17-14 9004700-1907 Slotted pin 1 J080 17-14 4570179 Running cover 1 J090 17-14 9004100-1550 O-ring 1 J095 17-14 9004104-0310 O-ring 1 J100 1700 5000489 Screw, M10 x 25 4
C2RR J010 17-14 1700178 Shaft, 13 tooth spline, w/21 tooth auxiliary drive 1 J020 17-14 11171411 End cap, CW, radial ports, K2 1 J020 17-14 11173919 End cap, CCW, radial ports, K2 1 J030 17-14 672295 (9007314-1010) Screw, M10 x 45 4 J050 17-14 9004700-1907 Slotted pin 1 J051 17-14 9004700-1907 Slotted pin 1 J080 17-14 4570179 Running cover 1 J090 17-14 9004100-1550 O-ring 1 J095 17-14 9004104-0310 O-ring 1 J100 1700 5000489 Screw, M10 x 25 4
AX00000313en-US 0100 • June 2017
45
Parts Manual Series 45 Frame K2 25-45cc O. C. Pumps
J020
J110
J020
J130
Shaft, auxiliary ange and end cap
(C2TK)
J130
J120
J100
CW
CW
*J090
*J095
J030
J020
J140
J140
(C2VG)
J020
J051
J010
J050
CCW
E103 601E
J051
J010
46
J100
J080
J120
J110
AX00000313en-US 0100 • June 2017
J030
J050
J140
CCW
*J095
*J090
E103 625E
* = included in base motor seal kit Q210
Parts Manual Series 45 Frame K2 25-45cc O. C. Pumps
Shaft, auxiliary ange and end cap
Shaft/auxiliary ange/end cap
Order Date Date Qty. per code Item begin end Part number Part name model/kit
C2TK J010 17-14 1700178 Shaft, 13 tooth spline, w/21 tooth auxiliary drive 1 J020 17-14 11171411 End cap, CW, radial ports, K2 1 J020 17-14 11173919 End cap, CCW, radial ports, K2 1 J030 17-14 672295 (9007314-1010) Screw, M10 x 45 4 J050 17-14 9004700-1907 Slotted pin 1 J051 17-14 9004700-1907 Slotted pin 1 J080 17-14 4570430 Flange apadter, A pad 1 J090 17-14 9004100-1550 O-ring 1 J095 17-14 545434 O-ring 1 J100 17-14 5000489 Screw, M10 x 25 4 J110 17-14 4460586 Cover plate 1 J120 17-14 4800482 A pad seal 1 J130 17-14 5000622 Screw, M10 x 20 2 J140 17-14 11017433 Coupling, 11 tooth 1
C2VG J010 17-14 1700178 Shaft, 13 tooth spline, w/21 tooth auxiliary drive 1 J020 17-14 11164307 End cap, CW, radial ports, K2 1 J020 17-14 11164305 End cap, CCW, radial ports, K2 1 J030 17-14 672295 (9007314-1010) Screw, M10 x 45 4 J050 17-14 9004700-1907 Slotted pin 1 J051 17-14 9004700-1907 Slotted pin 1 J080 17-14 4570390 Adapter,B ange, metric 1 J090 17-14 9004100-1550 O-ring 1 J095 17-14 545434 O-ring 1 J100 1700 5000489 Screw, M10 x 25 4 J110 17-14 4460370 Cover plate, B ange 1 J120 17-14 9004104-0440 O-ring 1 J130 17-14 370320 Screw, M12 x 25 2 J140 17-14 11021707 Coupling, 15 tooth 1
AX00000313en-US 0100 • June 2017
47
Parts Manual Series 45 Frame K2 25-45cc O. C. Pumps
J110
J020
J110
J020
Shaft, auxiliary ange and end cap
(C2VK)
J130
J120
J080
J100
CW
*J090
*J095
J030
(C3AB & C3AG)
J020
J051
J010
J050
J140
CCW
E103 629E
48
J130
J120
CW
*J095
*J090
J080
J100
AX00000313en-US 0100 • June 2017
J030
J020
J051
J010
J050
J140
CCW
E103 602E
* = included in base motor seal kit Q210
Parts Manual Series 45 Frame K2 25-45cc O. C. Pumps
Shaft, auxiliary ange and end cap
Shaft/auxiliary ange/end cap
Order Date Date Qty. per code Item begin end Part number Part name model/kit
C2VK J010 17-14 1700178 Shaft, 13 tooth spline, w/21 tooth auxiliary drive 1 J020 17-14 11171411 End cap, CW, radial ports, K2 1 J020 17-14 11173919 End cap, CCW, radial ports, K2 1 J030 17-14 672295 (9007314-1010) Screw, M10 x 45 4 J050 17-14 9004700-1907 Slotted pin 1 J051 17-14 9004700-1907 Slotted pin 1 J080 17-14 4570390 Adapter,B ange, metric 1 J090 17-14 9004100-1550 O-ring 1 J095 17-14 545434 O-ring 1 J100 1700 5000489 Screw, M10 x 25 4 J110 17-14 4460370 Cover plate, B ange 1 J120 17-14 9004104-0440 O-ring 1 J130 17-14 370320 Screw, M12 x 25 2 J140 17-14 11021707 Coupling, 15 tooth 1
C3AB J010 17-14 1700261 Shaft, 15 tooth spline, w/21 tooth auxiliary drive 1 J020 17-14 11178104 End cap, CW, radial ports, K2 1 J020 17-14 11175319 End cap, CCW, radial ports, K2 1 J030 17-14 672295 (9007314-1010) Screw, M10 x 45 4 J050 17-14 9004700-1907 Slotted pin 1 J051 17-14 9004700-1907 Slotted pin 1 J080 17-14 4570430 Adapter, A ange 1 J090 17-14 9004100-1550 O-ring 1 J095 17-14 545434 O-ring 1 J100 1700 5000489 Screw, M10 x 25 4 J110 17-14 4460586 Cover plate 1 J120 17-14 4800482 A pad seal 1 J130 17-14 5000622 Screw, M10 x 20 2 J140 17-14 1701364 Coupling, 9 tooth 1
C3AG J010 17-14 1700261 Shaft, 15 tooth spline, w/21 tooth auxiliary drive 1 J020 17-14 11164307 End cap, CW, radial ports, K2 1 J020 17-14 11164305 End cap, CCW, radial ports, K2 1 J030 17-14 672295 (9007314-1010) Screw, M10 x 45 4 J050 17-14 9004700-1907 Slotted pin 1 J051 17-14 9004700-1907 Slotted pin 1 J080 17-14 4570430 Adapter, A ange, metric 1 J090 17-14 9004100-1550 O-ring 1 J095 17-14 545434 O-ring 1 J100 1700 5000489 Screw, M10 x 25 4 J110 17-14 4460586 Cover plate 1 J120 17-14 4800482 A pad seal 1 J130 17-14 5000622 Screw, M10 x 20 2 J140 17-14 1701364 Coupling, 9 tooth 1
AX00000313en-US 0100 • June 2017
49
Parts Manual Series 45 Frame K2 25-45cc O. C. Pumps
J130
J020
J020
J130
Shaft, auxiliary ange and end cap
(C3AK)
CW
J110
J120
CW
J030
J020
J140
J051
CCW
(C2BB & C2BG)
J020
J010
J050
J020
E103 596E
J051
J010
50
J100
J080
J120
J110
AX00000313en-US 0100 • June 2017
J030
J050
J140
CCW
*J095
*J090
E103 624E
* = included in base motor seal kit Q210
Parts Manual Series 45 Frame K2 25-45cc O. C. Pumps
Shaft, auxiliary ange and end cap
Shaft/auxiliary ange/end cap
Order Date Date Qty. per code Item begin end Part number Part name model/kit
C3AK J010 17-14 11160317 Shaft, 15 tooth spline, w/9 tooth auxiliary drive 1 J020 17-14 11175342 End cap, CW, radial ports, K2 1 J020 17-14 11175320 End cap, CCW, radial ports, K2 1 J030 17-14 672295 (9007314-1010) Screw, M10 x 45 4 J050 17-14 9004700-1907 Slotted pin 1 J051 17-14 9004700-1907 Slotted pin 1 J110 17-14 4460586 Cover plate 1 J120 17-14 4800482 A pad seal 1 J130 17-14 5000622 Screw, M10 x 20 2 J140 17-14 11158651 Coupling, 9 tooth 1
C3BB J010 17-14 1700261 Shaft, 15 tooth spline, w/21 tooth auxiliary drive 1 J020 17-14 11178104 End cap, CW, radial ports, K2 1 J020 17-14 11175319 End cap, CCW, radial ports, K2 1 J030 17-14 672295 (9007314-1010) Screw, M10 x 45 4 J050 17-14 9004700-1907 Slotted pin 1 J051 17-14 9004700-1907 Slotted pin 1 J080 17-14 4570390 Adapter,B ange, metric 1 J090 17-14 9004100-1550 O-ring 1 J095 17-14 545434 O-ring 1 J100 1700 5000489 Screw, M10 x 25 4 J110 17-14 4460370 Cover plate, B ange 1 J120 17-14 9004104-0440 O-ring 1 J130 17-14 370320 Screw, M12 x 25 2 J140 17-14 1701365 Coupling, 13 tooth 1
C2BG J010 17-14 1700261 Shaft, 15 tooth spline, w/21 tooth auxiliary drive 1 J020 17-14 11164307 End cap, CW, radial ports, K2 1 J020 17-14 11164305 End cap, CCW, radial ports, K2 1 J030 17-14 672295 (9007314-1010) Screw, M10 x 45 4 J050 17-14 9004700-1907 Slotted pin 1 J051 17-14 9004700-1907 Slotted pin 1 J080 17-14 4570390 Adapter,B ange, metric 1 J090 17-14 9004100-1550 O-ring 1 J095 17-14 545434 O-ring 1 J100 1700 5000489 Screw, M10 x 25 4 J110 17-14 4460370 Cover plate, B ange 1 J120 17-14 9004104-0440 O-ring 1 J130 17-14 370320 Screw, M12 x 25 2 J140 17-14 1701365 Coupling, 13 tooth 1
AX00000313en-US 0100 • June 2017
51
Parts Manual Series 45 Frame K2 25-45cc O. C. Pumps
J020
J110
J110
J020
Shaft, auxiliary ange and end cap
(C2DR)
J130
J120
J080
J100
CW
*J090
*J095
J030
J020
J140
(C2EK)
J051
J010
J050
CCW
E103 603E
J130
J120
J100
CW
*J090
*J095
J030
J020
J140
J140
J051
J010
J050
CCW
E103 601E
* = included in base motor seal kit Q210
52
AX00000313en-US 0100 • June 2017
Parts Manual Series 45 Frame K2 25-45cc O. C. Pumps
Shaft, auxiliary ange and end cap
Shaft/auxiliary ange/end cap
Order Date Date Qty. per code Item begin end Part number Part name model/kit
C3DR J010 17-14 1700261 Shaft, 15 tooth spline, w/21 tooth auxiliary drive 1 J020 17-14 11171411 End cap, CW, radial ports, K2 1 J020 17-14 11173919 End cap, CCW, radial ports, K2 1 J030 17-14 672295 (9007314-1010) Screw, M10 x 45 4 J050 17-14 9004700-1907 Slotted pin 1 J051 17-14 9004700-1907 Slotted pin 1 J080 17-14 4570390 Adapter,B ange, metric 1 J090 17-14 9004100-1550 O-ring 1 J095 17-14 545434 O-ring 1 J100 1700 5000489 Screw, M10 x 25 4 J110 17-14 4460370 Cover plate, B ange 1 J120 17-14 9004104-0440 O-ring 1 J130 17-14 370320 Screw, M12 x 25 2 J140 17-14 1701365 Coupling, 13 tooth 1
C2EK J010 17-14 1700261 Shaft, 15 tooth spline, w/21 tooth auxiliary drive 1 J020 17-14 11171411 End cap, CW, radial ports, K2 1 J020 17-14 11173919 End cap, CCW, radial ports, K2 1 J030 17-14 672295 (9007314-1010) Screw, M10 x 45 4 J050 17-14 9004700-1907 Slotted pin 1 J051 17-14 9004700-1907 Slotted pin 1 J080 17-14 4570430 Adapter,A ange, metric 1 J090 17-14 9004100-1550 O-ring 1 J095 17-14 545434 O-ring 1 J100 1700 5000489 Screw, M10 x 25 4 J110 17-14 4460586 Cover plate, A ange 1 J120 17-14 4800482 A pad seal 1 J130 17-14 5000622 Screw, M10 x 20 2 J140 17-14 1701364 Coupling, 9 tooth 1
AX00000313en-US 0100 • June 2017
53
Parts Manual Series 45 Frame K2 25-45cc O. C. Pumps
CW
J130
J130
J020
Shaft/auxiliary ange/end cap
(C3EU)
J043
J110
CW
J120
J051
J140
J030
E103 604E
(C3FB & C3FG)
J020
J051
J010
J050
J020
J010
54
J030
J120
J110
AX00000313en-US 0100 • June 2017
J050
J140
CCW
E103 626E
Parts Manual Series 45 Frame K2 25-45cc O. C. Pumps
Shaft/auxiliary ange/end cap
Shaft/auxiliary ange/end cap
Order Date Date Qty. per code Item begin end Part number Part name model/kit
C3EU J010 17-14 11160317 Shaft, 15 tooth spline, w/9 tooth auxiliary drive 1 J020 17-14 11191000 End cap assembly, CW, radial ports, K2 1 J030 17-14 672295 (9007314-1010) Screw, M10 x 45 4 J043 17-14 5000438 Plug assembly J050 17-14 9004700-1907 Slotted pin 1 J051 17-14 9004700-1907 Slotted pin 1 J110 17-14 4460586 Cover plate 1 J120 17-14 4800482 A pad seal 1 J130 17-14 5000622 Screw, M10 x 20 2 J140 17-14 11158651 Coupling, 9 tooth 1
C3FB J010 17-14 11160317 Shaft, 15 tooth spline, w/9 tooth auxiliary drive 1 J020 17-14 11175321 End cap, CW, radial ports, K2 1 J020 17-14 11170900 End cap, CCW, radial ports, K2 1 J030 17-14 672295 (9007314-1010) Screw, M10 x 45 4 J050 17-14 9004700-1907 Slotted pin 1 J051 17-14 9004700-1907 Slotted pin 1 J110 17-14 4460586 Cover plate 1 J120 17-14 4800482 A pad seal 1 J130 17-14 5000622 Screw, M10 x 20 2 J140 17-14 11158651 Coupling, 9 tooth 1
C3FG J010 17-14 11160317 Shaft, 15 tooth spline, w/9 tooth auxiliary drive 1 J020 17-14 11171121 End cap, CW, radial ports, K2 1 J020 17-14 11175318 End cap, CCW, radial ports, K2 1 J030 17-14 672295 (9007314-1010) Screw, M10 x 45 4 J050 17-14 9004700-1907 Slotted pin 1 J051 17-14 9004700-1907 Slotted pin 1 J110 17-14 4460586 Cover plate 1 J120 17-14 4800482 A pad seal 1 J130 17-14 5000622 Screw, M10 x 20 2 J140 17-14 11158651 Coupling, 9 tooth 1
AX00000313en-US 0100 • June 2017
55
Parts Manual Series 45 Frame K2 25-45cc O. C. Pumps
J110
J020
J110
J020
Shaft, auxiliary ange and end cap
(C3GG & C3GT)
J130
J120
J100
J080
CW
*J090
*J095
J030
J020
J051
J010
J050
J140
CCW
E103 602E
(C3GG)
56
J130
J120
CW
*J090
J080
J100
AX00000313en-US 0100 • June 2017
*J095
J030
J020
J051
J010
J050
J140
CCW
E103 602E
* = included in base motor seal kit Q210
Parts Manual Series 45 Frame K2 25-45cc O. C. Pumps
Shaft, auxiliary ange and end cap
Shaft/auxiliary ange/end cap
Order Date Date Qty. per code Item begin end Part number Part name model/kit
C3GG J010 17-14 1700261 Shaft, 15 tooth spline, w/21 tooth auxiliary drive 1 J020 17-14 11164307 End cap, CW, radial ports, K2 1 J020 17-14 11164305 End cap, CCW, radial ports, K2 1 J030 17-14 672295 (9007314-1010) Screw, M10 x 45 4 J050 17-14 9004700-1907 Slotted pin 1 J051 17-14 9004700-1907 Slotted pin 1 J080 17-14 4570430 Adapter, A ange 1 J090 17-14 9004100-1550 O-ring 1 J095 17-14 545434 O-ring 1 J100 1700 5000489 Screw, M10 x 25 4 J110 17-14 4460586 Cover plate 1 J120 17-14 4800482 A pad seal 1 J130 17-14 5000622 Screw, M10 x 20 2 J140 17-14 11017433 Coupling, 11 tooth 1
C3GT J010 17-14 1700261 Shaft, 15 tooth spline, w/21 tooth auxiliary drive 1 J020 17-14 11178104 End cap, CW, radial ports, K2 1 J020 17-14 11175319 End cap, CCW, radial ports, K2 1 J030 17-14 672295 (9007314-1010) Screw, M10 x 45 4 J050 17-14 9004700-1907 Slotted pin 1 J051 17-14 9004700-1907 Slotted pin 1 J080 17-14 4570430 Adapter, A ange, metric 1 J090 17-14 9004100-1550 O-ring 1 J095 17-14 545434 O-ring 1 J100 1700 5000489 Screw, M10 x 25 4 J110 17-14 4460586 Cover plate 1 J120 17-14 4800482 A pad seal 1 J130 17-14 5000622 Screw, M10 x 20 2 J140 17-14 11017433 Coupling, 11 tooth 1
C3GG J010 17-14 1700261 Shaft, 15 tooth spline, w/21 tooth auxiliary drive 1 J020 17-14 11164307 End cap, CW, radial ports, K2 1 J020 17-14 11164305 End cap, CCW, radial ports, K2 1 J030 17-14 672295 (9007314-1010) Screw, M10 x 45 4 J050 17-14 9004700-1907 Slotted pin 1 J051 17-14 9004700-1907 Slotted pin 1 J080 17-14 4570430 Adapter, A ange 1 J090 17-14 9004100-1550 O-ring 1 J095 17-14 545434 O-ring 1 J100 1700 5000489 Screw, M10 x 25 4 J110 17-14 4460586 Cover plate 1 J120 17-14 4800482 A pad seal 1 J130 17-14 5000622 Screw, M10 x 20 2 J140 17-14 11017433 Coupling, 11 tooth 1
AX00000313en-US 0100 • June 2017
57
Parts Manual Series 45 Frame K2 25-45cc O. C. Pumps
J110
J020
J030
J030
Shaft, auxiliary ange and end cap
(C3GT)
J130
J120
J020
J100
J080
J051
CW
*J090
*J095
J030
J010
J020
J020
J051
J010
J050
J140
CCW
E103 602E
(C3MF)
J051
J010
58
J050
CW
J020
AX00000313en-US 0100 • June 2017
J051
CW
J050
J030
J010
J030
(C3MG)
J020
J050
CCW
E103 597E
J051
J010
J050
E103 598E
CCW
* = included in base motor seal kit Q210
Parts Manual Series 45 Frame K2 25-45cc O. C. Pumps
Shaft, auxiliary ange and end cap
Shaft/auxiliary ange/end cap
Order Date Date Qty. per code Item begin end Part number Part name model/kit
C3GT J010 17-14 1700261 Shaft, 15 tooth spline, w/21 tooth auxiliary drive 1 J020 17-14 11178104 End cap, CW, radial ports, K2 1 J020 17-14 11175319 End cap, CCW, radial ports, K2 1 J030 17-14 672295 (9007314-1010) Screw, M10 x 45 4 J050 17-14 9004700-1907 Slotted pin 1 J051 17-14 9004700-1907 Slotted pin 1 J080 17-14 4570430 Adapter, A ange, metric 1 J090 17-14 9004100-1550 O-ring 1 J095 17-14 545434 O-ring 1 J100 1700 5000489 Screw, M10 x 25 4 J110 17-14 4460586 Cover plate 1 J120 17-14 4800482 A pad seal 1 J130 17-14 5000622 Screw, M10 x 20 2 J140 17-14 11017433 Coupling, 11 tooth 1
C3MF J010 17-14 1700072 Shaft, 15 tooth spline, no auxiliary drive 1 J020 17-14 11173936 End cap, CW, axial ports, K2 1 J020 17-14 11164306 End cap, CCW, axial ports, K2 1 J030 17-14 672295 (9007314-1010) Screw, M10 x 45 4 J050 17-14 9004700-1907 Slotted pin 1 J051 17-14 9004700-1907 Slotted pin 1
C3MG J010 17-14 1700072 Shaft, 15 tooth spline, no auxiliary drive 1 J020 17-14 11173933 End cap, CW, radial ports, K2 1 J020 17-14 11164311 End cap, CCW, radial ports, K2 1 J030 17-14 672295 (9007314-1010) Screw, M10 x 45 4 J050 17-14 9004700-1907 Slotted pin 1 J051 17-14 9004700-1907 Slotted pin 1
AX00000313en-US 0100 • June 2017
59
Parts Manual Series 45 Frame K2 25-45cc O. C. Pumps
J030
CCW
J030
J030
J030
Shaft/auxiliary ange/end cap
(C3MP & C3NP)
J020
J020
J051
J051
CW
J050
CW
J050
J030
J010
J010
J020
J030
(C3MR)
J020
(C3NA)
J051
J010
J050
CCW
E103 599E
J051
J010
J050
E103 600E
J020
J020
J051
J051
CW
J050
CW
J050
J010
J030
J020
J030
J010
J020
J051
J010
J050
CCW
E103 597E
(C3NS)
J051
J010
J050
E103 598E
CCW
60
AX00000313en-US 0100 • June 2017
Parts Manual Series 45 Frame K2 25-45cc O. C. Pumps
Shaft/auxiliary ange/end cap
Shaft/auxiliary ange/end cap
Order Date Date Qty. per code Item begin end Part number Part name model/kit
C3MP J010 17-14 1700072 Shaft, 15 tooth spline, no auxiliary drive 1 J020 17-14 11176730 End cap, CW, axial ports, K2 1 J020 17-14 11173934 End cap, CCW, axial ports, K2 1 J030 17-14 672295 (9007314-1010) Screw, M10 4 J050 17-14 9004700-1907 Slotted pin 1 J051 17-14 9004700-1907 Slotted pin 1
C3MR J010 17-14 1700072 Shaft, 15 tooth spline, no auxiliary drive 1 J020 17-14 11176729 End cap, CW, radial ports, K2 1 J020 17-14 11173932 End cap, CCW, radial ports, K2 1 J030 17-14 672295 (9007314-1010) Screw, M10 4 J050 17-14 9004700-1907 Slotted pin 1 J051 17-14 9004700-1907 Slotted pin 1
C3NA J010 17-14 1700072 Shaft, 15 tooth spline, no auxiliary drive 1 J020 17-14 11178112 End cap, CW, axial ports, K2 1 J020 17-14 11178114 End cap, CCW, axial ports, K2 1 J030 17-14 672295 (9007314-1010) Screw, M10 x 45 4 J050 17-14 9004700-1907 Slotted pin 1 J051 17-14 9004700-1907 Slotted pin 1
C3NP J010 17-14 1700072 Shaft, 15 tooth spline, no auxiliary drive 1 J020 17-14 11175286 End cap, CW, axial ports, K2 1 J020 17-14 11178113 End cap, CCW, axial ports, K2 1 J030 17-14 672295 (9007314-1010) Screw, M10 4 J050 17-14 9004700-1907 Slotted pin 1 J051 17-14 9004700-1907 Slotted pin 1
C2NS J010 17-14 1700072 Shaft, 15 tooth spline, no auxiliary drive 1 J020 17-14 11178091 End cap, CW, radial ports, K2 1 J020 17-14 11178110 End cap, CCW, radial ports, K2 1 J030 17-14 672295 (9007314-1010) Screw, M10 x 45 4 J050 17-14 9004700-1907 Slotted pin 1 J051 17-14 9004700-1907 Slotted pin 1
AX00000313en-US 0100 • June 2017
61
Parts Manual Series 45 Frame K2 25-45cc O. C. Pumps
J020
J020
CW
Shaft, auxiliary ange and end cap
(C3RG)
CW
J130
J080
J030
*J090
J020
J020
J051
J010
J050
*J095
CCW
E103 627E
(C3RR)
J051
J010
62
J130
J030
*J090
J080
AX00000313en-US 0100 • June 2017
*J095
CCW
J050
E103 628E
* = included in base motor seal kit Q210
Parts Manual Series 45 Frame K2 25-45cc O. C. Pumps
Shaft, auxiliary ange and end cap
Shaft/auxiliary ange/end cap
Order Date Date Qty. per code Item begin end Part number Part name model/kit
C3RG J010 17-14 1700261 Shaft, 15 tooth spline, w/21 tooth auxiliary drive 1 J020 17-14 11164307 End cap, CW, radial ports, K2 1 J020 17-14 11164305 End cap, CCW, radial ports, K2 1 J030 17-14 672295 (9007314-1010) Screw, M10 x 45 4 J050 17-14 9004700-1907 Slotted pin 1 J051 17-14 9004700-1907 Slotted pin 1 J080 17-14 4570179 Running cover 1 J090 17-14 9004100-1550 O-ring 1 J095 17-14 9004104-0310 O-ring 1 J100 1700 5000489 Screw, M10 x 25 4
C3RR J010 17-14 1700261 Shaft, 15 tooth spline, w/21 tooth auxiliary drive 1 J020 17-14 11171411 End cap, CW, radial ports, K2 1 J020 17-14 11173919 End cap, CCW, radial ports, K2 1 J030 17-14 672295 (9007314-1010) Screw, M10 x 45 4 J050 17-14 9004700-1907 Slotted pin 1 J051 17-14 9004700-1907 Slotted pin 1 J080 17-14 4570179 Running cover 1 J090 17-14 9004100-1550 O-ring 1 J095 17-14 9004104-0310 O-ring 1 J100 1700 5000489 Screw, M10 x 25 4
AX00000313en-US 0100 • June 2017
63
Parts Manual Series 45 Frame K2 25-45cc O. C. Pumps
J020
J110
J020
J130
Shaft, auxiliary ange and end cap
(C3TK)
J130
J120
J100
CW
CW
*J090
*J095
J030
J020
J140
J140
(C3VG)
J020
J051
J010
J050
CCW
E103 601E
J051
J010
64
J100
J080
J120
J110
AX00000313en-US 0100 • June 2017
J030
J050
J140
CCW
*J095
*J090
E103 625E
* = included in base motor seal kit Q210
Parts Manual Series 45 Frame K2 25-45cc O. C. Pumps
Shaft, auxiliary ange and end cap
Shaft/auxiliary ange/end cap
Order Date Date Qty. per code Item begin end Part number Part name model/kit
C3TK J010 17-14 1700261 Shaft, 15 tooth spline, w/21 tooth auxiliary drive 1 J020 17-14 11171411 End cap, CW, radial ports, K2 1 J020 17-14 11173919 End cap, CCW, radial ports, K2 1 J030 17-14 672295 (9007314-1010) Screw, M10 x 45 4 J050 17-14 9004700-1907 Slotted pin 1 J051 17-14 9004700-1907 Slotted pin 1 J080 17-14 4570430 Flange apadter, A pad 1 J090 17-14 9004100-1550 O-ring 1 J095 17-14 545434 O-ring 1 J100 17-14 5000489 Screw, M10 x 25 4 J110 17-14 4460586 Cover plate 1 J120 17-14 4800482 A pad seal 1 J130 17-14 5000622 Screw, M10 x 20 2 J140 17-14 11017433 Coupling, 11 tooth 1
C3VG J010 17-14 1700261 Shaft, 15 tooth spline, w/21 tooth auxiliary drive 1 J020 17-14 11164307 End cap, CW, radial ports, K2 1 J020 17-14 11164305 End cap, CCW, radial ports, K2 1 J030 17-14 672295 (9007314-1010) Screw, M10 x 45 4 J050 17-14 9004700-1907 Slotted pin 1 J051 17-14 9004700-1907 Slotted pin 1 J080 17-14 4570390 Adapter,B ange, metric 1 J090 17-14 9004100-1550 O-ring 1 J095 17-14 545434 O-ring 1 J100 1700 5000489 Screw, M10 x 25 4 J110 17-14 4460370 Cover plate, B ange 1 J120 17-14 9004104-0440 O-ring 1 J130 17-14 370320 Screw, M12 x 25 2 J140 17-14 11021707 Coupling, 15 tooth 1
AX00000313en-US 0100 • June 2017
65
Parts Manual Series 45 Frame K2 25-45cc O. C. Pumps
J110
J020
J030
J020
J012
Shaft, auxiliary ange and end cap
(C3VK)
J130
J120
J080
J100
CW
*J090
*J095
J030
(K1MF)
J020
J051
J010
J050
J140
CCW
E103 629E
66
J051
J050
CW
AX00000313en-US 0100 • June 2017
J010
J020
J012
J051
J010
J050
CCW
J030
* = included in base motor seal kit Q210
E103 630E
Parts Manual Series 45 Frame K2 25-45cc O. C. Pumps
Shaft, auxiliary ange and end cap
Shaft/auxiliary ange/end cap
Order Date Date Qty. per code Item begin end Part number Part name model/kit
C3VK J010 17-14 1700261 Shaft, 15 tooth spline, w/21 tooth auxiliary drive 1 J020 17-14 11171411 End cap, CW, radial ports, K2 1 J020 17-14 11173919 End cap, CCW, radial ports, K2 1 J030 17-14 672295 (9007314-1010) Screw, M10 x 45 4 J050 17-14 9004700-1907 Slotted pin 1 J051 17-14 9004700-1907 Slotted pin 1 J080 17-14 4570390 Adapter,B ange, metric 1 J090 17-14 9004100-1550 O-ring 1 J095 17-14 545434 O-ring 1 J100 1700 5000489 Screw, M10 x 25 4 J110 17-14 4460370 Cover plate, B ange 1 J120 17-14 9004104-0440 O-ring 1 J130 17-14 370320 Screw, M12 x 25 2 J140 17-14 11021707 Coupling, 15 tooth 1
K1MF J010 17-14 1700757 Shaft, straight key, no auxiliary drive 1 J012 17-14 5000664 Key, 0.25 x 0.75 1 J020 17-14 11173936 End cap, CW, axial ports, K2 1 J020 17-14 11164306 End cap, CCW, axial ports, K2 1 J030 17-14 672295 (9007314-1010) Screw, M10 x 45 4 J050 17-14 9004700-1907 Slotted pin 1 J051 17-14 9004700-1907 Slotted pin 1
K1RG J010 17-14 11066789 Shaft, straight key, w/21 tooth auxiliary drive 1 J012 17-14 5000664 Key, 0.25 x 0.75 1 J020 17-14 11164307 End cap, CW, radial ports, K2 1 J020 17-14 11164305 End cap, CCW, radial ports, K2 1 J030 17-14 672295 (9007314-1010) Screw, M10 x 45 4 J050 17-14 9004700-1907 Slotted pin 1 J051 17-14 9004700-1907 Slotted pin 1 J080 17-14 4570179 Running cover 1 J090 17-14 9004100-1550 O-ring 1 J095 17-14 9004104-0310 O-ring 1 J100 17-14 5000489 Screw, M10 x 25 5
AX00000313en-US 0100 • June 2017
67
Parts Manual Series 45 Frame K2 25-45cc O. C. Pumps
J020
J130
J020
J130
J030
J030
J012
Shaft, auxiliary ange and end cap
(K1RG)
J012
J020
CW
J080
J051
J030
*J090
J050
J020
J010
*J095
J020
J051
J010
J050
E103 605E
CCW
(K2MF)
J012
J051
J010
J050
68
CW
CW
J030
*J090
J080
AX00000313en-US 0100 • June 2017
J020
*J095
(K2RG)
J051
CCW
E103 631E
CCW
J012
J010
J050
E103 632E
* = included in base motor seal kit Q210
Parts Manual Series 45 Frame K2 25-45cc O. C. Pumps
Shaft, auxiliary ange and end cap
Shaft/auxiliary ange/end cap
Order Date Date Qty. per code Item begin end Part number Part name model/kit
K1RG J010 17-14 11066789 Shaft, straight key, w/21 tooth auxiliary drive 1 J012 17-14 5000664 Key, 0.25 x 0.75 1 J020 17-14 11164307 End cap, CW, radial ports, K2 1 J020 17-14 11164305 End cap, CCW, radial ports, K2 1 J030 17-14 672295 (9007314-1010) Screw, M10 x 45 4 J050 17-14 9004700-1907 Slotted pin 1 J051 17-14 9004700-1907 Slotted pin 1 J080 17-14 4570179 Running cover 1 J090 17-14 9004100-1550 O-ring 1 J095 17-14 9004104-0310 O-ring 1 J100 17-14 5000489 Screw, M10 x 25 5
K2MF J010 17-14 1700480 Shaft, straight key, no auxiliary drive 1 J012 17-14 9003261-2524 Key, 0.25 x 1.5 1 J020 17-14 11173936 End cap, CW, axial ports, K2 1 J020 17-14 11164306 End cap, CCW, axial ports, K2 1 J030 17-14 672295 (9007314-1010) Screw, M10 x 45 4 J050 17-14 9004700-1907 Slotted pin 1 J051 17-14 9004700-1907 Slotted pin 1
K2RG J010 17-14 1700570 Shaft, straight key, w/21 tooth auxiliary drive 1 J012 17-14 9003261-2524 Key, 0.25 x 1.5 1 J020 17-14 11164307 End cap, CW, radial ports, K2 1 J020 17-14 11164305 End cap, CCW, radial ports, K2 1 J030 17-14 672295 (9007314-1010) Screw, M10 x 45 4 J050 17-14 9004700-1907 Slotted pin 1 J051 17-14 9004700-1907 Slotted pin 1 J080 17-14 4570179 Running cover 1 J090 17-14 9004100-1550 O-ring 1 J095 17-14 9004104-0310 O-ring 1 J100 17-14 5000489 Screw, M10 x 25 5
AX00000313en-US 0100 • June 2017
69
Parts Manual Series 45 Frame K2 25-45cc O. C. Pumps
Housing/shaft seal and displacement limiter
(A5N & A6N)
K010
*K020
K030
K070
L090
*L030
*K060
L010
*K055
K040
(A85 & AAA)
L040
*L010A
(PLB)
L010
*L010A
E103 606E
* = included in base motor seal kit Q210
70
AX00000313en-US 0100 • June 2017
Parts Manual Series 45 Frame K2 25-45cc O. C. Pumps
Housing/shaft seal and displacement limiter
Housing/shaft seal
Order Date Date Qty. per code Item begin end Part number Part name model/kit
A5N K010 17-14 9006200-0206 Retaining ring 1 K020 17-14 1701383 Lip seal 1 K030 17-14 11163863 Housing, metric 1 K040 17-14 5000439 Plug assembly, M22 1 K055 17-14 4740154 Seal ring 1 K060 17-14 5000581 O-ring 1 K070 17-14 5000439 Plug assembly, M22 1
A6N K010 17-14 9006200-0206 Retaining ring 1 K020 17-14 1701383 Lip seal 1 K030 17-14 11168823 Housing 1 K040 17-14 315325 (9005110-8700) Plug assembly 1 K055 17-14 4740154 Seal ring 1 K060 17-14 5000581 O-ring 1 K070 17-14 315325 (9005110-8700) Plug assembly 1
Displacement limiter
A85 L010 17-14 11175380 Displace limiter plug assembly 1 L010A 17-14 001156 (9004201-7500) O-ring 1 L030 17-14 9003509-0012 Seal nut, M12 1 L040 17-14 11139902 Servo screw 1 L0090 17-14 11175381 Displacement limiter assembly 1
AAA L010 17-14 11175380 Displace limiter plug assembly 1 L010A 17-14 001156 (9004201-7500) O-ring 1 L030 17-14 9003509-0012 Seal nut, M12 1 L040 17-14 11139902 Servo screw 1 L0090 17-14 11175381 Displacement limiter assembly 1
PLB L010A 17-14 001156 (9004201-7500) O-ring 1 L0090 17-14 664524 (9005110-9000) Plug assembly 1
AX00000313en-US 0100 • June 2017
71
Parts Manual Series 45 Frame K2 25-45cc O. C. Pumps
Special hardware features
QB020
(NNN)
QB030
QB070
B025
B040
B090
(25C, 30C, 38C, 40C & 45C)
P010
P025
K050
K049
K047
K046
K035
72
E103 607E
AX00000313en-US 0100 • June 2017
Parts Manual Series 45 Frame K2 25-45cc O. C. Pumps

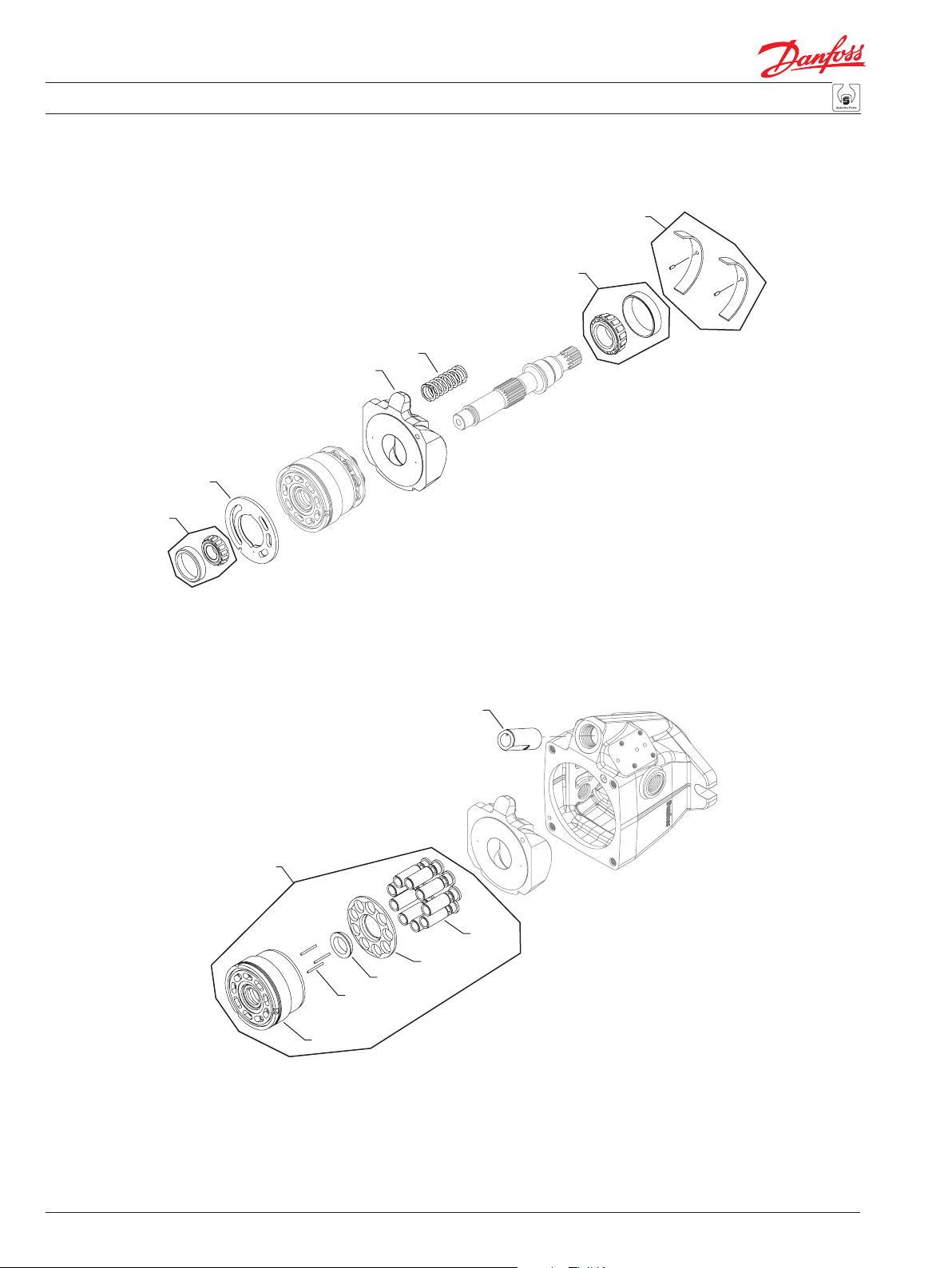

Special hardware features
Special hardware
Order Date Date Qty. per code Item begin end Part number Part name model/kit
NNN B025 17-14 11158650 Bias spring 1 B040 17-14 11170851 Swashplate 1 B090 17-14 1700542 Valve plate, CW 1 B090 17-14 1700639 Valve plate, CCW 1 QB020 17-14 4510330 Rear bearing kit 1 QB030 17-14 11184056 Swashplate bearing kit 1 QB070 17-14 4510326 Front bearing kit 1
Displacement
25C K035 17-14 11089225 Cylinder block assembly 1 K046 17-14 4700091 Slipper hold down pin 3 K047 17-14 3103487 Slipper retainer guide 1 K049 17-14 3103488 Slipper retainer 1 K050 17-14 4400040 Piston assembly, 38cc 9 P010 17-14 11048662 Cylinder block kit, 38cc 1 P025 17-14 11178031 Servo piston, 25cc 1
30C K035 17-14 11089225 Cylinder block assembly 1 K046 17-14 4700091 Slipper hold down pin 3 K047 17-14 3103487 Slipper retainer guide 1 K049 17-14 3103488 Slipper retainer 1 K050 17-14 4400040 Piston assembly, 38cc 9 P010 17-14 11048662 Cylinder block kit, 38cc 1 P025 17-14 11178030 Servo piston, 30cc 1
38C K035 17-14 11089225 Cylinder block assembly 1 K046 17-14 4700091 Slipper hold down pin 3 K047 17-14 3103487 Slipper retainer guide 1 K049 17-14 3103488 Slipper retainer 1 K050 17-14 4400040 Piston assembly, 38cc 9 P010 17-14 11048662 Cylinder block kit, 38cc 1 P025 17-14 11175247 Servo piston, 45/38cc 1
40C K035 17-14 11089226 Cylinder block assembly 1 K046 17-14 4700091 Slipper hold down pin 3 K047 17-14 3103487 Slipper retainer guide 1 K049 17-14 3103488 Slipper retainer 1 K050 17-14 4400041 Piston assembly, 45cc 9 P010 17-14 11102927 Cylinder block kit, 45cc 1 P025 17-14 11170492 Servo piston, 40cc 1
45C K035 17-14 11089226 Cylinder block assembly 1 K046 17-14 4700091 Slipper hold down pin 3 K047 17-14 3103487 Slipper retainer guide 1 K049 17-14 3103488 Slipper retainer 1 K050 17-14 4400041 Piston assembly, 45cc 9 P010 17-14 11102927 Cylinder block kit, 45cc 1 P025 17-14 11175247 Servo piston, 45/38cc 1
AX00000313en-US 0100 • June 2017
73
Parts Manual Series 45 Frame K2 25-45cc O. C. Pumps
Seal kit
Overhaul seal kit
Order Date Date Qty. per Code Item Begin End Part Number Part Name Model/Kit
Q210 17-14 11189431 Overhaul seal kit 1 C118 17-14 11062214 Adjusting plug assembly 1 C128A 17-14 085043 (9004201-3700) O-ring 1 C128B 17-14 732479 O-ring 1 C138A 17-14 5000656 O-ring 1 C200 17-14 4740154 Seal ring 4 J090 17-14 9004100-1550 O-ring 1 J095 17-14 545434 (9004100-0420) O-ring 1 J095 17-14 9004104-0310 O-ring 1 K020 17-14 1701383 Lip seal 1 K055 17-14 4740154 Seal ring 1 K060 17-14 5000581 O-ring 1 L010A 17-14 001156 (9004201-7500) O-ring 1 L030 17-14 9003509-0012 Seal nut, M12 1 C154 17-14 4740154 Seal ring 2 QC120 17-14 11103621 Solenoid valve seal kit 1 QC120 17-14 085043 (9004201-3700) O-ring 1 QC130 17-14 063172 O-ring 1 QC135 17-14 11031608 O-ring 1
74
AX00000313en-US 0100 • June 2017
Parts Manual Series 45 Frame K2 25-45cc O. C. Pumps
Notes
AX00000313en-US 0100 • June 2017
75
Products we oer:
Danf already on order pr All trademarks in this material are proper
Danfoss
Building #22, No. 1000 Jin Hai Rd
Danfoss Power Solutions US Compan
2800 East 13th Street Ames, IA 50010, USA Phone:
y Bent Axis Motors
y Closed Circuit Axial Piston
Pumps and Motors
y Displays
y Electrohydraulic Power
Steering
y Electrohydraulics
y Hydraulic Power Steering
y Integrated Systems
y Joysticks and Control
Handles
y Microcontrollers and
Software
y Open Circuit Axial Piston
Pumps
y Orbital Motors
y PL US +1® GUIDE
y Proportional Valves
y Sensors
y Steering
y Transit Mixer Drives
Danfoss Power Solutions is a global manufacturer and supplier of high-quality hydraulic and electronic components. We specialize in providing state-of-the-art technology and solutions that excel in the harsh operating conditions of the mobile o-highway market. Building on our extensive applications expertise, we work closely with our customers to ensure exceptional performance for a broad range of o-highway vehicles.
We help OEMs around the world speed up system development, reduce costs and bring vehicles to market faster. Danfoss – Your Strongest Partner in Mobile Hydraulics.
Go to www.powersolutions.danfoss.com for further product information.
Wherever o-highway vehicles are at work, so is Danfoss.
We oer expert worldwide support for our customers, ensuring the best possible solutions for outstanding performance. And with an extensive network of Global Service Partners, we also provide comprehensive global service for all of our components.
Please contact the Danfoss Power Solution representative nearest you.
Comatrol www.comatrol.com
Turolla
www.turollaocg.com
Hydro-Gear
www.hydro-gear.com
Daikin-Sauer-Danfoss
www.daikin-sauer-danfoss.com
+1 515 239 6000
oss can accept no responsibility for possible errors in catalogues, brochures and other printed material. Danfoss reserves the right to alter its products without notice. This also applies to products
AX00000313en-US 0100 • June 2017
ovided that such alterations can be made without subsequential changes being necessary in specifications already agreed.
Local address:
Danfoss
y
Power Solutions GmbH & Co. OHG
Krokamp 35 D-24539 Neumünster, Germany Phone: +49 4321 871 0
ty of the respective companies. Danfoss and the Danfoss logotype are trademarks of Danfoss A/S. All rights reserved.
Danfoss Power Solutions ApS
Nordborgvej 81 DK-6430 Nordborg, Denmark Phone: +45 7488 4444
Power Solutions
Jin Qiao, Pudong New District Shanghai, China 201206 Phone: +86 21 3418 5200
Loading...
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
