Danfoss ICF 15/20 EVRAT Data sheet

Data Sheet

Valve station
Type ICF 15/20 EVRAT

Flanged connections for fast and simple retrot of
solenoid valves and strainers (EVRA/FA)

Based on advanced technology the ICF EVRAT
retrot valve incorporates three functions in
one housing, which can replace the widely
used direct coupled FA + EVRAT, as a drop-in
solution.

The two function modules - solenoid valve and
manual opener are identical to the function
modules in the ICF 20 valve station concept
thus facilitating logistic and service.

 NOTE:

The solenoid valve is an assisted, servo
operated valve for liquid, suction and hot gas
lines with ammonia and ourinated
refrigerants.

Supplied as a complete assembly, it is fully
tested at high pressure and its functions are
tested under factory controlled conditions.

Features:

• Applicable to HCFC, non ammable HFC and
R717 (Ammonia). The use of ICF EVRAT with
ammable hydrocarbons is not
recommended

• Designed for industrial refrigeration
applications for a maximum working pressure
of 42 bar/610 psig

• Low temperature steel housing

• Low weight and compact design

• The solenoid valve ICFE 20 is designed to
open - and stay open at a pressure drop of 0
bar thus suitable for lines with low pressure
drop

• UL approved

• Classication: DNV, CRN, BV, EAC etc.

To get an updated list of certication on the
products please contact your local Danfoss
Sales Company.

AI183886420447en-000301

Description

Values

Valve body/connection material

Steel

Connection type

Flange

Direction

Straightway

Max. temperature range

-40 °C – 105 °C (-40 °F – 221 °F)

Max. working pressure [bar/psig]

42 bar (610 psig)

Packing format

Single pack

Valve station, Type ICF 15/20 EVRAT

Portfolio overview

Figure 1: ICF 15/20 EVRAT

Table 1: Portfolio overview

Media

Refrigerants

Applicable to HCFC, non ammable HFC and R717 (Ammonia). The use of ICF EVRAT with ammable h ydrocarbons
is not recommended. For further information please contact the local Danfoss sales company.

New refrigerants

Danfoss products are continually evaluated for use with new refrigerants depending on market requirements.

When a refrigerant is approved for use by Danfoss, it is added to the relevant portfolio, and the R number of the
refrigerant (e.g. R513A) will be added to the technical data of the code number. Therefore, products for specic
refrigerants are best checked at store.danfoss.com/en/, or by contacting your local Danfoss representative.

© Danfoss | Climate Solutions | 2021.02 AI183886420447en-000301 | 2

ICF 15/20 EVRAT ICF 20 EVRAT

Housing Housing

Solenoid valve module
ICFE 20

Solenoid valve module
ICFE 20H

Blind
plug

Manual
opening
module
ICFO 20

Filter
ICFF 15

Filter
ICFF 15

Manual
opener

Danfoss

11L9014

Max. Working pressure

42 bar (610 psig)

Max. Temperature range

-40 °C – 105 °C (-40 °F – 221 °F)

Ambient temperature range

-30 °C – 50 °C (-22 °F – 122 °F)

1

Danfoss

27H242

Pos.

Part

Material

EN

ASTM

JIS

1

Housing

Cast Iron

EN-GJS-400- 18-LT

Valve station, Type ICF 15/20 EVRAT

Product specication

Design

The main components of the ICF EVRAT are:

• Housing

• 3 predened function modules:

◦ Filter ICFF 15
◦ Solenoid valve module ICFE 20/ICFE 20H
◦ Manual opening module ICFO 20

Surface protection

The external surface is zinc-TLP treated to provide corrosion protection according to EN ISO 2081:200. Additional
on-site corrosion protection is recommended.

Figure 2: ICF 15/20 EVRAT assembly

Pressure and temperature data

Table 2: Pressure and temperature

Material specication

ICF EVRAT housing

Table 3: ICF EVRAT housing

© Danfoss | Climate Solutions | 2021.02 AI183886420447en-000301 | 3

6

3

2

1

5

8

7

4

Danfoss

27H244

Pos.

Part

Material

EN

ASTM

JIS

1

Filter

Stainless steel

2

Flange bonnet

Steel

G20Mn5QT, 10213-3
P285QH+QT, 10222-4
P275NL, 10028-3

LCC, A352 LF2, A350

3

Bolt

Stainless steel

A2-70

Type 308

A2-704ICFF 15 bonnet G1/4

Steel

11SMn30

AISI 1213

Type 25Flat gasket

Fiber, Non-asbestos

6

Plug 3/8” NPT

Steel

11SMnPb30

7

Gasket - metal joint

Aluminium

8

Wave spring

Steel

Pos.

Part

Material

EN

ASTM

JIS

1

Armature tube

Stainless steel

X2CrNi19-11 EN 10088

2

Armature tube nut

Stainless steel

X8CrNiS18-9 EN 10088

3

Flange

Cast Steel low temperature

G20Mn5QT EN 10213-3

A352

G5152

4

Gasket

Chloroprene (Neoprene)/
Fiber non asbestos

5

Hex-Head bolt M10 × 25

Stainless steel

A2-70 EN 24017

A320

A2-706Seat

High density polymer

Valve station, Type ICF 15/20 EVRAT

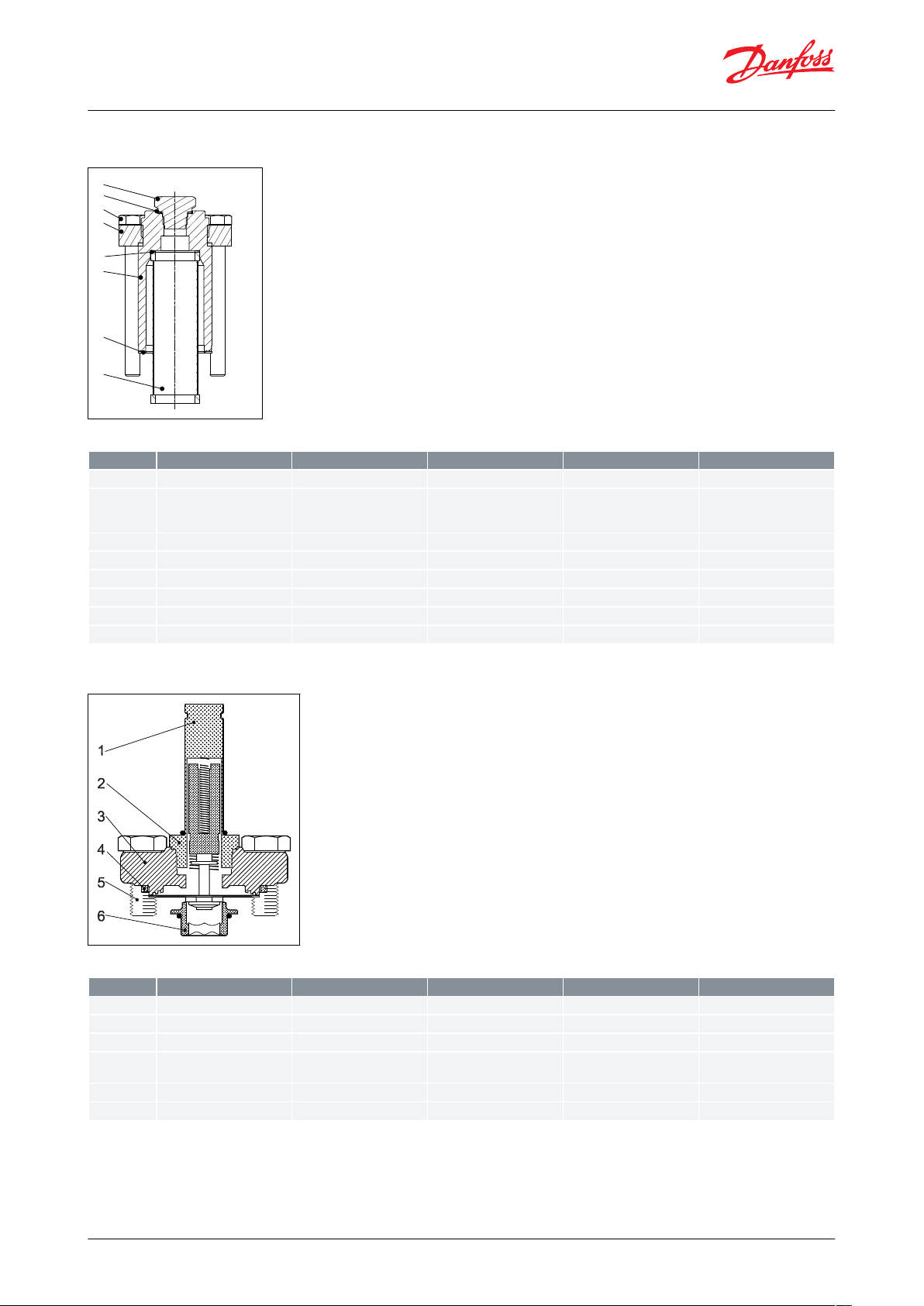

ICFF 15 Filter module

Table 4: ICFF 15 Filter module

ICFE 20 solenoid valve module (Kv 4.5 m2/h. Cv 5.2 USgal/min)

Table 5: ICFE 20 solenoid valve module (Kv 4.5 m2/h. Cv 5.2 USgal/min)

© Danfoss | Climate Solutions | 2021.02 AI183886420447en-000301 | 4

Pos.

Part

Material

EN

ASTM

JIS

1

Piston

Steel

11SMn30 EN EN 10025

2

Seat

Teon3Piston ring

4

Bonnet cylinder

Steel

P285QH EN 10222

A350

G32055Manual opener

Steel6Armature tube

Stainless steel

X2CrNi19-11 EN10028

7

Armature tube nut

Stainless steel

X2CrNi19-11 EN10216

A320

A2-708Gasket

Chloroprene (Neoprene)

Pos.

Part

Material

EN

ASTM

JIS

1

Seal cap

Steel

DIN 1651- 9SMn28 TLP sur­face treatment

1213 (SAE)

SUM 22

2

Gland nut

Steel

DIN 1651 9SMn28 Zinc Chro­mate Surface treatment

1213 (SAE)

SUM 22

3

Seal cap gasket

Nylon

Polyamid A6

Polyamid PA6

Polyamid PA6

4

Sealing ring

Teon

PTFE

PTFE

PTFE5Rubber gasket

Chloroprene rubber

CRCRCR6Spindle

Stainless steel

X8CrNiS 18-9 EN 10088

G4303 G4304

SUS 303

7

Hex-head bolt M10 × 25

Stainless steel

A2-70 EN 24017

A320

A2-708Flange

Cast steel low temperature

EN10222-4 P285QH

Valve station, Type ICF 15/20 EVRAT

ICFE 20H solenoid valve module (Kv 8 m4/h. Cv 9.3 USgal/min)

Table 6: ICFE 20H solenoid valve module (Kv 8 m4/h. Cv 9.3 USgal/min)

ICFO 20 Manual opening module

Table 7: ICFO 20 Manual opening module

Connections

The ICF EVRAT drop-in valves matches 2 existing ange connections:

© Danfoss | Climate Solutions | 2021.02 AI183886420447en-000301 | 5

261 mm / 10.3 in.

159 mm / 6.3 in.

96 mm / 3.8 in.

Valve station, Type ICF 15/20 EVRAT

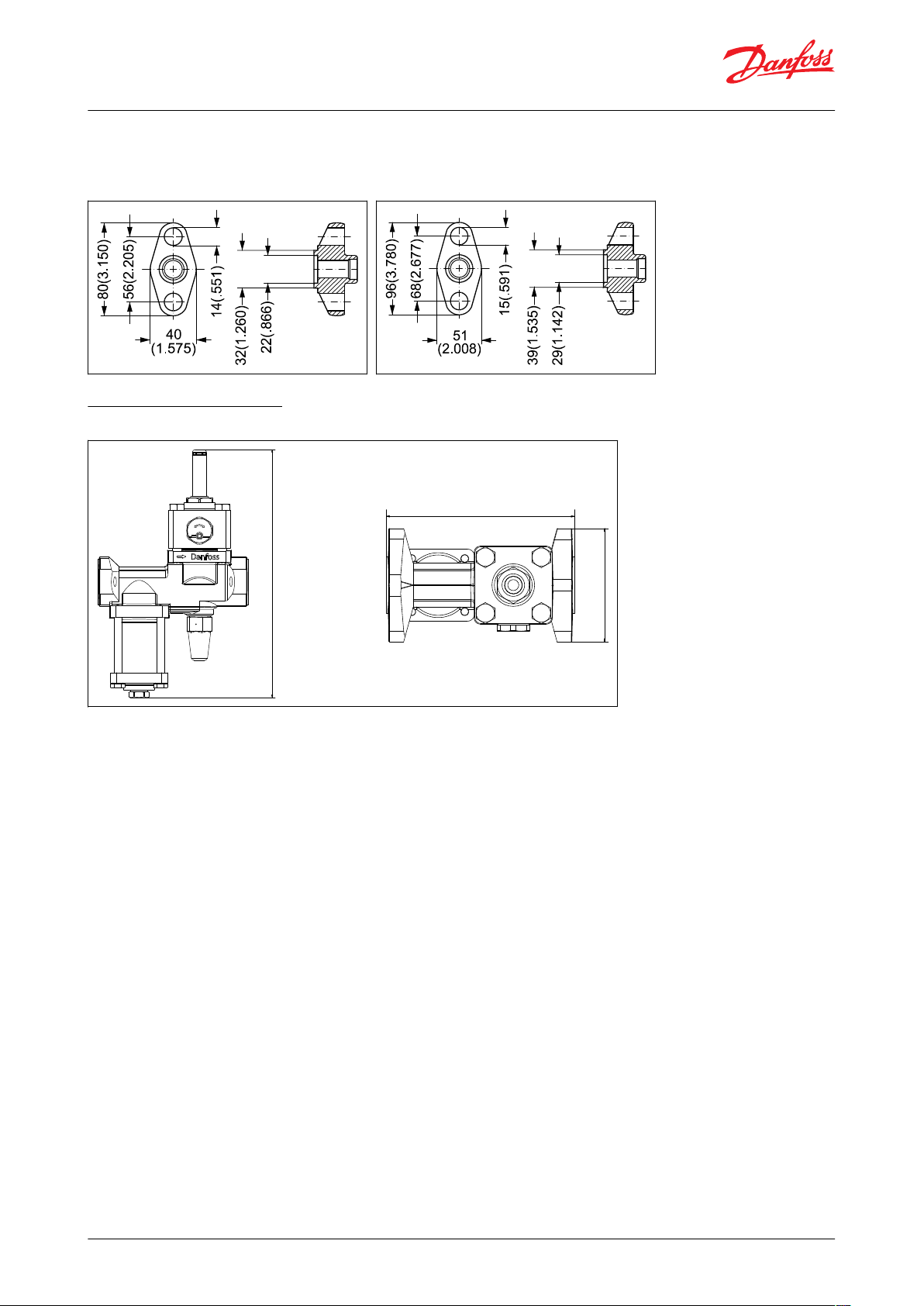

ICF 15 EVRAT ts directly into the EVRA/T 10/15 + FA ange arrangement ICF 20 EVRAT ts directly into the EVRA/T
20/25 + FA ange arrangement

Figure 3: ICF 15 EVRAT Figure 4: ICF 20 EVRAT

Dimensions and weight

Figure 5: This example indicates the maximum dimensions for the ICF EVRAT

© Danfoss | Climate Solutions | 2021.02 AI183886420447en-000301 | 6

Type

Solenoid

Kv [m3h]

Cv [USgal/min]

Code number

ICF 15 EVRAT

ICFE 20

2.4

2.8

027L4517

ICF 20 EVRAT

ICFE 20

3

3.5

027L4518

ICF 20 EVRAT

ICFE 20H

3.7

4.3

027L4519

Valve type

Voltage

Frequency

Code no.

Appendix no.

Power consumption

V

Hz

With 1 m 3-core

cable

IP 67

With terminal box

IP 67

With DIN plugs

Alternating current AC

ICFE

12

50

018F6706

15

Holding: 10 W 21 VA

Inrush: 44 VA

24

50

018F6257

018F6707

018F7358

16

220 – 230

50

018F6251

018F6701

018F7351

31

115

60

018F6260

018F6710

20

Direct current DC

ICFE12018F6856

1

20 W

ICFE24018F6857

2

20 W

Valve type

Voltage

Frequency

Code no.

Appendix no.

Power consumption

VHzWith terminal box IP 67

Alternating current AC

ICFE

24

50

018F6807

16

Holding: 12 W 26VA

Inrush: 55 VA

110

50

018F6811

22

220 – 230

50

018F6801

31

Valve station, Type ICF 15/20 EVRAT

Ordering

Code number selection

ICF EVRAT valves are intended as drop-in replacement valves.

To identify the correct code number simply select the same size as the replaced valve.

Table 8: Code number selection

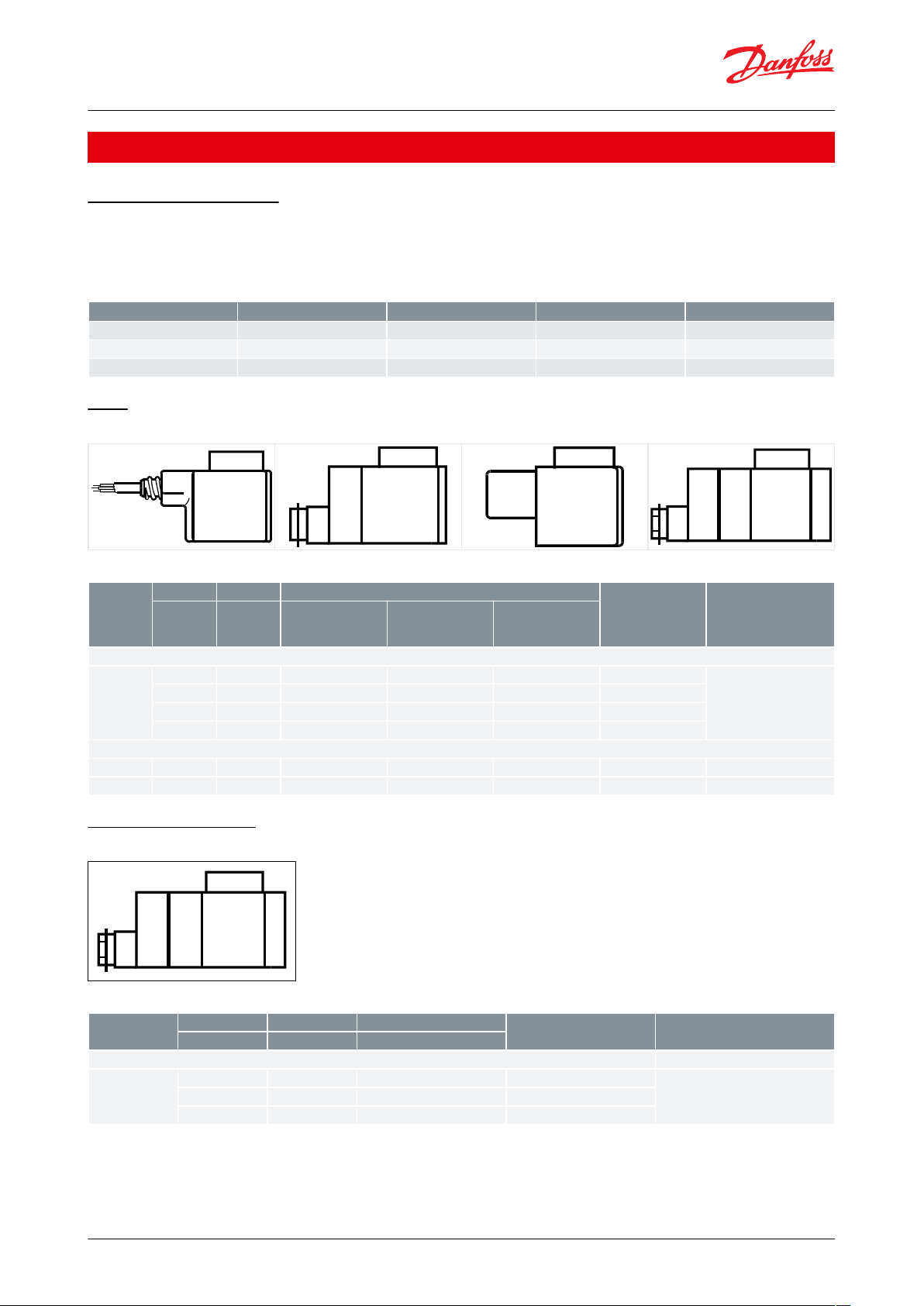

Coils

Table 9: Coils

Table 10: Coils

Special coils for ICFE

Figure 6: Special coils for ICFE

Table 11: Special coils for ICFE



For other coil types please refer to the technical leaets for EVRA or AKVA valves.

© Danfoss | Climate Solutions | 2021.02 AI183886420447en-000301 | 7

NOTE:

Type

File name

Document type

Document topic

Approval authority

ICF 15 EVRAT

TAA0000085 Rev. 2

Mechanical - Safety Certicate

-

DNV GL

SA7200

Mechanical - Safety Certicate

-ULCRN.0C14029.523467890YTN

Pressure - Safety Certicate

CRN

TSSA

ICF 20 EVRAT

TAA0000085 Rev. 2

Mechanical - Safety Certicate

-

DNV GL

SA7200

Mechanical - Safety Certicate

-ULCRN.0C14029.523467890YTN

Pressure - Safety Certicate

CRN

TSSA

FA + solenoid valve

Nominal bore

DN≤ 25 (1 in.)

Classied for

Fluid group I

Category

Article 3, paragraph 3

Valve station, Type ICF 15/20 EVRAT

Certicates, declarations, and approvals

The list contains all certicates, declarations, and approvals for this product type. Individual code number may have
some or all of these approvals, and certain local approvals may not appear on the list.

Some approvals may change over time. You can check the most current status at danfoss.com or contact your local
Danfoss representative if you have any questions.

Table 12: Valid Approvals

Table 13: Compliance

© Danfoss | Climate Solutions | 2021.02 AI183886420447en-000301 | 8

Online support

Danfoss oers a wide range of support along with our products, including digital product information, software,
mobile apps, and expert guidance. See the possibilities below.

The Danfoss Product Store

The Danfoss Product Store is your one-stop shop for everything product related—no matter where
you are in the world or what area of the cooling industry you work in. Get quick access to essential
information like product specs, code numbers, technical documentation, certications, accessories,
and more.
Start browsing at store.danfoss.com.

Find technical documentation

Find the technical documentation you need to get your project up and running. Get direct access to
our ocial collection of data sheets, certicates and declarations, manuals and guides, 3D models
and drawings, case stories, brochures, and much more.

Start searching now at www.danfoss.com/en/service-and-support/documentation.

Danfoss Learning

Danfoss Learning is a free online learning platform. It features courses and materials specically
designed to help engineers, installers, service technicians, and wholesalers better understand the
products, applications, industry topics, and trends that will help you do your job better.

Create your Danfoss Learning account for free at www.danfoss.com/en/service-and-support/learning.

Get local information and support

Local Danfoss websites are the main sources for help and information about our company and
products. Find product availability, get the latest regional news, or connect with a nearby expert—all
in your own language.

Find your local Danfoss website here: www.danfoss.com/en/choose-region.

Spare Parts

Get access to the Danfoss spare parts and service kit catalog right from your smartphone. The app
contains a wide range of components for air conditioning and refrigeration applications, such as
valves, strainers, pressure switches, and sensors.

Download the Spare Parts app for free at www.danfoss.com/en/service-and-support/downloads.

Coolselector®2 - nd the best components for you HVAC/R system

Coolselector®2 makes it easy for engineers, consultants, and designers to nd and order the best
components for refrigeration and air conditioning systems. Run calculations based on your operating
conditions and then choose the best setup for your system design.

Download Coolselector®2 for free at coolselector.danfoss.com.

Danfoss can accept no responsibility for possible errors in catalogues, brochures and other printed material. Danfoss reserves the right to alter its
products without notice. This also applies to products already on order provided that such alterations can be made without subsequential
changes being necessary in specications already agreed. All trademarks in this material are property of the respective companies. Danfoss and
the Danfoss logotype are trademarks of Danfoss A/S. All rights reserved.

© Danfoss | Climate Solutions | 2021.02 AI183886420447en-000301 | 9
