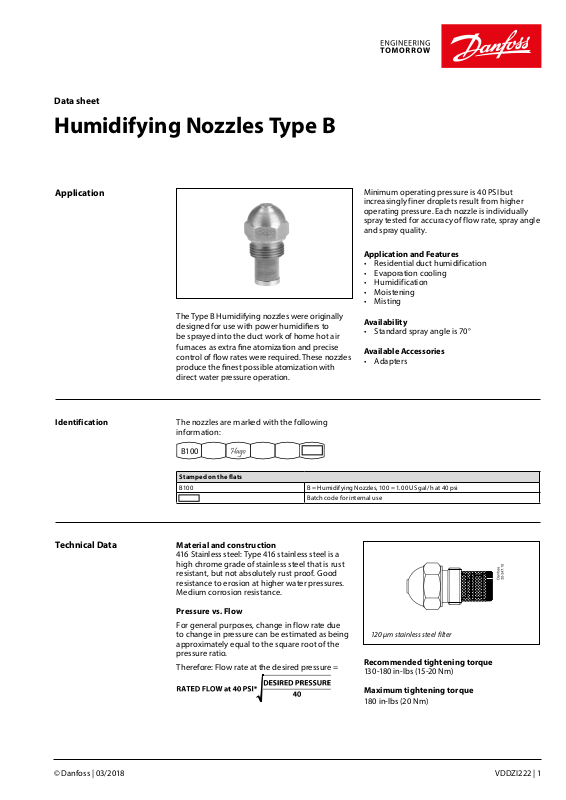

Data sheet
√
Humidifying Nozzles Type B
Application
The Type B Humidifying nozzles were originally
designed for use with power humidiers to
be sprayed into the duct work of home hot air
furnaces as extra ne atomization and precise
control of ow rates were required. These nozzles
produce the nest possible atomization with
direct water pressure operation.
Identification The nozzles are marked with the following
information:
12345B100
Minimum operating pressure is 40 PSI but
increasingly finer droplets result from higher
operating pressure. Each nozzle is individually
spray tested for accuracy of flow rate, spray angle
and spray quality.
Application and Features
• Residential duct humidification
• Evaporation cooling
• Humidification
• Moistening
• Misting
Availability
• Standard spray angle is 70°
Available Accessories
• Adapters
Technical Data
Stampe d on the flats
B100 B = Humidif ying Nozzles, 100 = 1.00 US gal/h at 40 psi
Batch code for internal use
Material and construction
416 Stainless steel: Type 416 stainless steel is a
high chrome grade of stainless steel that is rust
resistant, but not absolutely rust proof. Good
resistance to erosion at higher water pressures.
Medium corrosion resistance.
Pressure vs. Flow
For general purposes, change in flow rate due
to change in pressure can be estimated as being
approximately equal to the square root of the
pressure ratio.
Therefore: Flow rate at the desired pressure =
120 μm stainless steel filter
Recommended tightening torque
130-180 in-lbs (15-20 Nm)
Maximum tightening torque
180 in-lbs (20 Nm)
© Danfoss | 03/2018 VDDZI222 | 1
Danf
already on order pro
All trademarks in this material are property of the respec
Data sheet Humidifying Nozzles Type B
A BC D
Design
Dimensions
A: Tip
B: Disc
C: Strainer
D: Locknut
Spray angles
Dimensions for reference only.
Program
Size Code numb er US gal/h at 4 0 psi
B37 030L4720 0.37
B50 030L4723 0.50
B75 0 30L4726 0.75
B100 030L4728 1.00
B150 030 L4729 1. 50
B200 030L 4731 2.00
Danfoss
Toronto, ON/Baltimore, MD
Toll Free: 888-DANFOSS (326-3677) Option #3 for Heating
heating.danfoss.us
