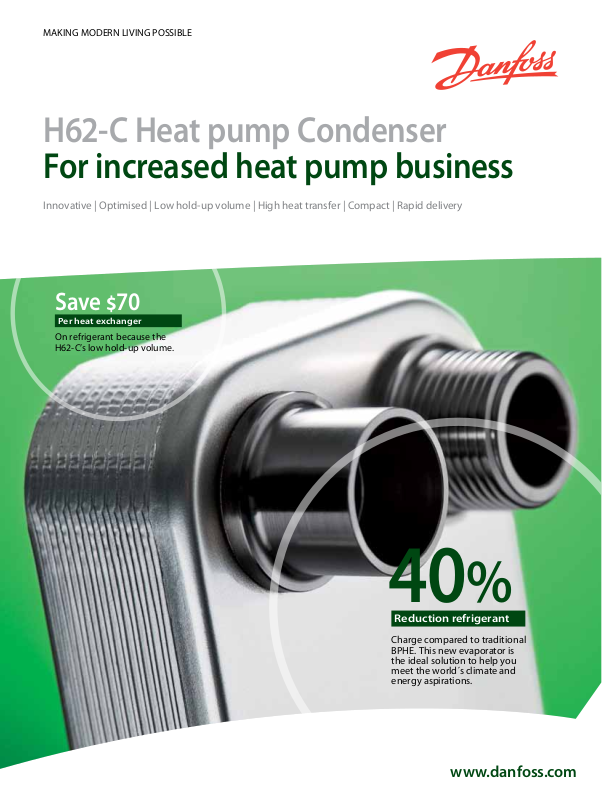

MAKING MODERN LIVING POSSIBLE
H62-C Heat pump Condenser
For increased heat pump business
Innovative | Optimised | Low hold-up volume | High heat transfer | Compact | Rapid delivery
Save $70
Per heat exchanger
On refrigerant because the
H62-C’s low hold-up volume.
40%
Reduction refrigerant
Charge compared to traditional
BPHE. This new evaporator is
the ideal solution to help you
meet the world´s climate and
energy aspirations.
www.danfoss.com
H62-C
Q4 Q1
Q4 Q1
Q4 Q1
525/20.7 ”
470/18.5”
Q3 Q2
Q3 Q2
Q3 Q2
H1 H4
H1 H4
H2 H3
H2 H3
INTRODUCTION
KEY FEATURES
TECHNICAL DATA
n = NUMBER O F PLATES
STANDARD
MATERIALS
STANDARD
CONNECTIONS
63/2. 5”
118 /4. 6”
11.5+1.4 4 x n
20/0.8”0.45+0.0 6 x n
The H62-C is a condenser optimised for R407C for use in high-eciency heat pumps with capacities of 4-40 kW (13-136 kBTU/hr). The
heat exchanger features innovative Micro Plate technology that improves heat transfer and reduces the amount of material used.
To meet demands for higher COPs in heat pumps, the H62-C is designed to work eciently with close temperature approaches. The
low hold-up volume reduces the refrigerant charge and offers valuable savings.
• Minimal hold up volume: Less refrigerant charge
• High heat transfer: For a more ecient heat pump
• Smaller footprint: Enabling more compact heat pumps
• Reduced CO
footprint: Environmentally friendly with high heat transfer and minimal refrigerant charge.
2
Min. working temperature: -196 °C (-320 °F)
Max. working temperature: 200 °C (390 °F)
Max. working pressure: 30 bar (435 psi)
Hold up volume (l): Q1-Q2/Q3-Q4: 0.066×n/2 / 0.066×(n-2)/2
(ft3) Q1-Q2/Q3-Q4: 0.002×n/2 / 0.002×(n-2)/2
Weight: 2.91 kg+0.145xn (6.42lb +0.32 x n)
Cover plates: AISI 304L
Connections: AISI 304L
Plates: AISI 316L
Brazing filler: Pure copper
Other material combinations are available on request. Please contact your Danfoss sales representative for more information.
The standard connections below are optimised for this product in condenser duties in heat pump systems. For other connections, please
contact your Danfoss representative.
Q3 (Refrigerant outlet): soldering 1/4” or 3/8” or 5/8”
Q4 (Refrigerant inlet): soldering 1/2” or 7/8”
Q1-Q2 (Water side): External threaded 1 1/4”
THIRD- PARTY
APPROVALS
ACCESSORIES
– STUD BOLTS
ACCESSIBILITY
CORRESPONDING
Europe: Pressure Equipment Directive (PED). America: Underwriters Laboratory Inc (UL). The third party approvals stated are standard for all our
products. For details of other existing approvals or to discuss how we can meet your local needs, please contact your Danfoss representative.
Stud bolts on front and/or back plates for mounting support are available upon request. Please contact your Danfoss sales
representative for further information.
We will help you set up a logistics solution that will meet your needs.
A corresponding MPHE for condenser duties (H62-E) is also available, fully tested and ready for heat pump applications.
CONDENSERS
Danfoss can accept no responsibility for possible errors in catalogues, brochures and other printed material. Danfoss reserves the right to alter its product s without notice. This also applies to
products already on order provided that such alterations can be made without consequent changes being necessary in specifications already agreed.
All trademarks in this material are the property of the respective companies. Danfoss and the Danfoss logotyp e are trademarks of Danfoss A/S. All rights reserved.
520H6245 DKQB.PD.300.A2.22
produced by M almøresund, ww w.malmoresund.se, p hoto by Lars Owesson, w ww.owesson.s e, March 2012
